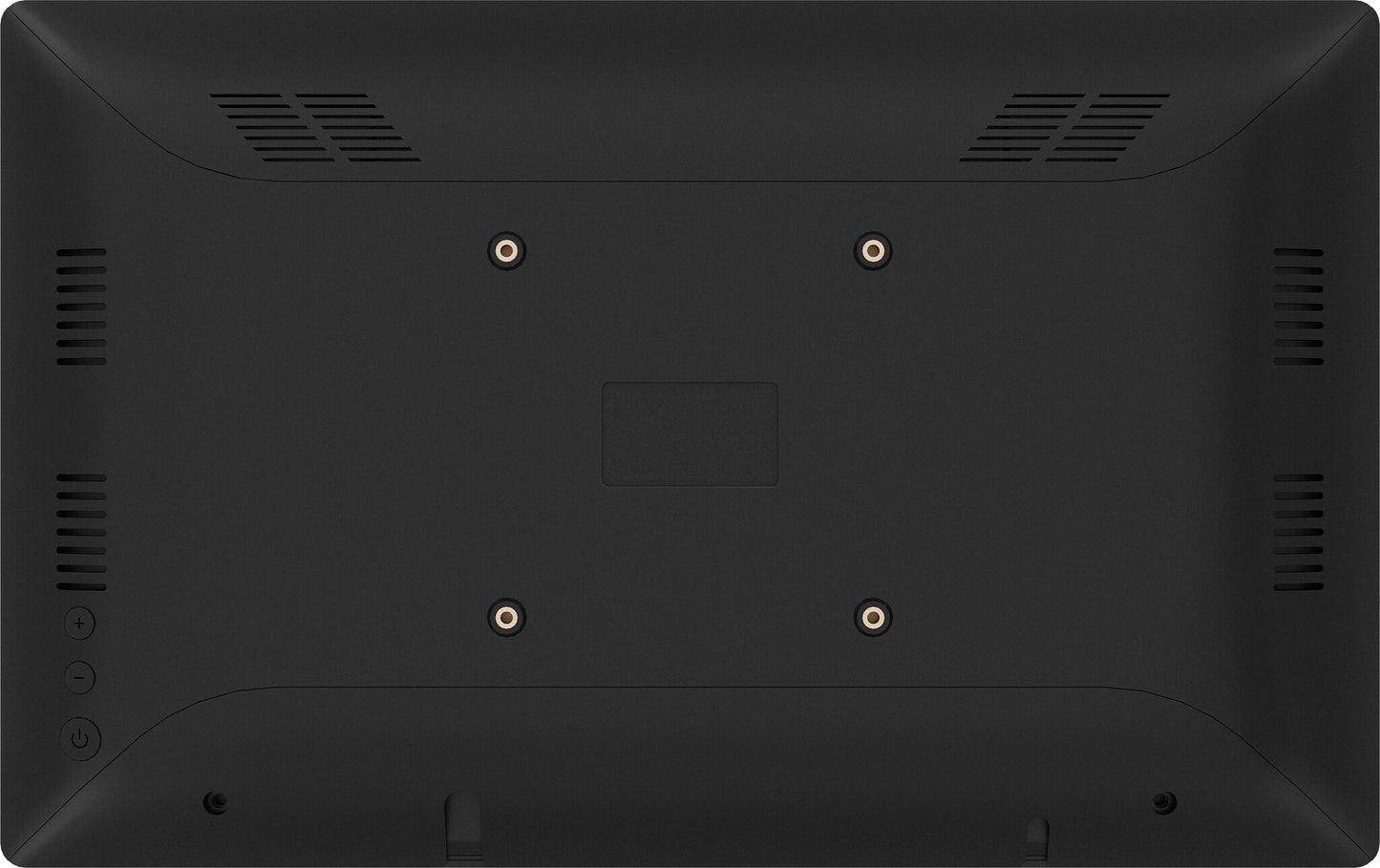

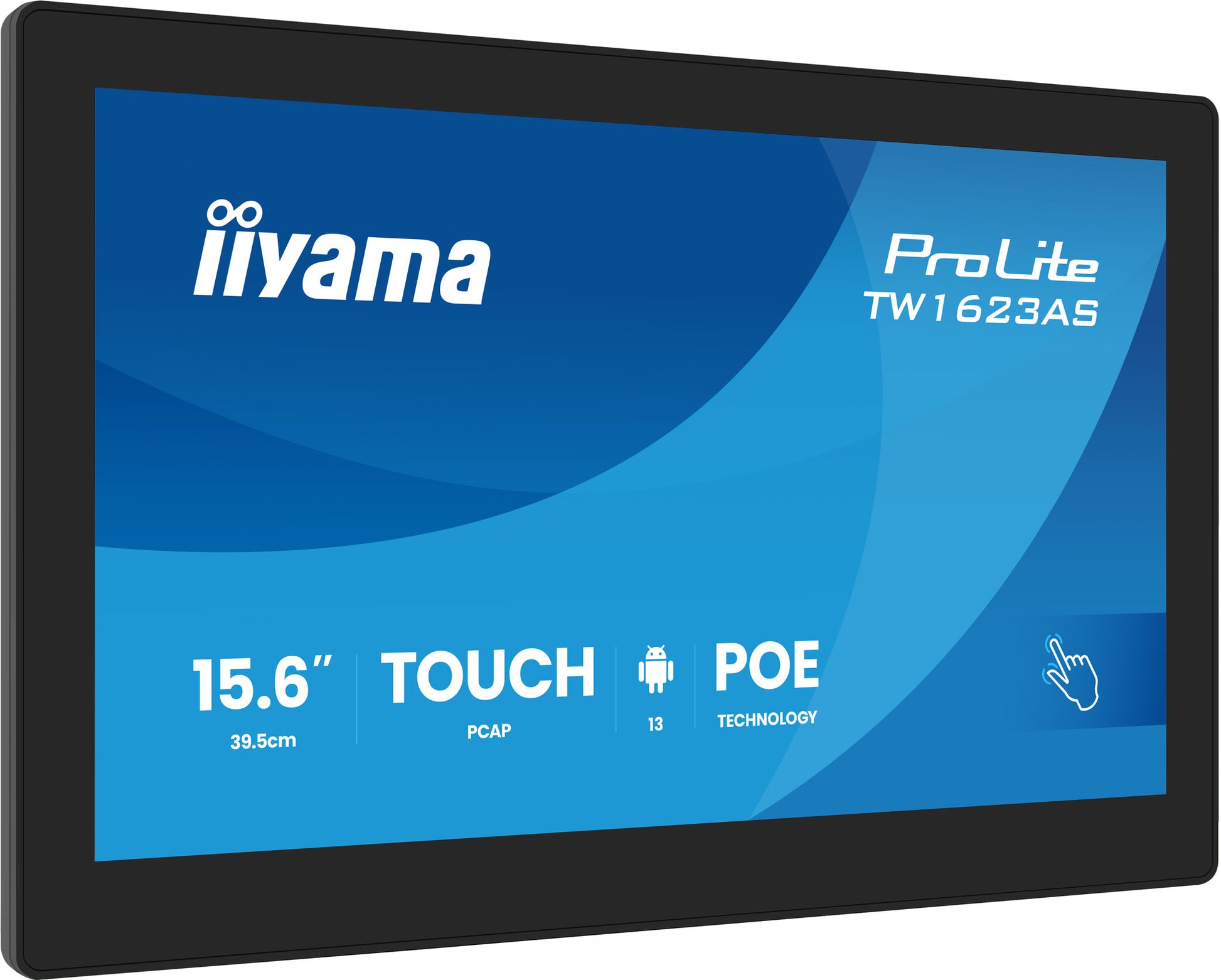

iiyama TW1623AS-B3P computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD LED Touchscreen Black

iiyama TW1623AS-B3P computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD LED Touchscreen Black

£329.45 GBP
£329.45 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

TW1623AS-B3P

17 in stock

  • 39.6 cm (15.6") Black
  • Built-in speaker(s)
  • Response time: 30 ms Response time measurement type: GTG (Gray to Gray)
  • 1920 x 1080 pixels Full HD Panel type: IPS
  • ErP CE, EAC, REACH, RoHS, UKCA, WEEE

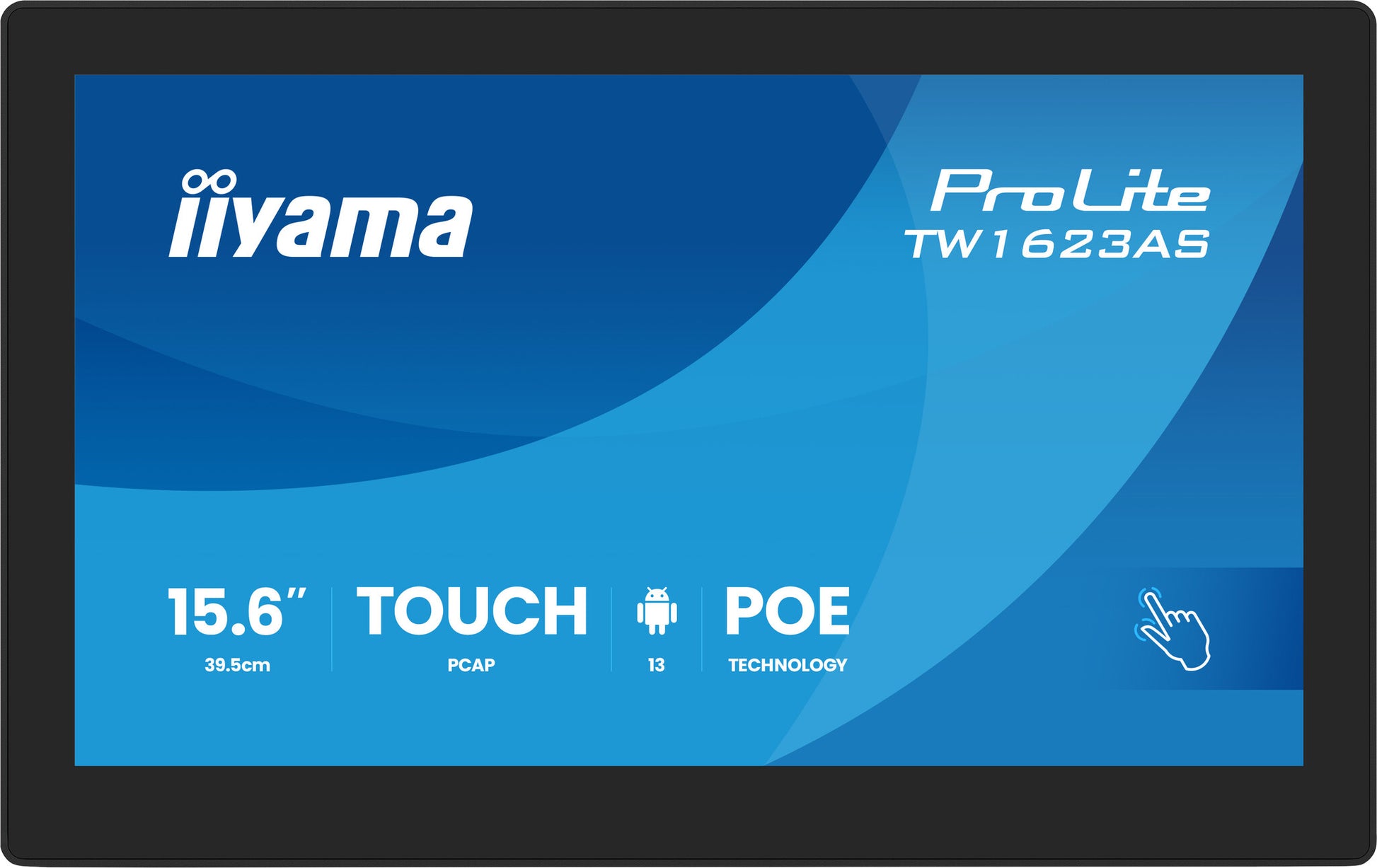

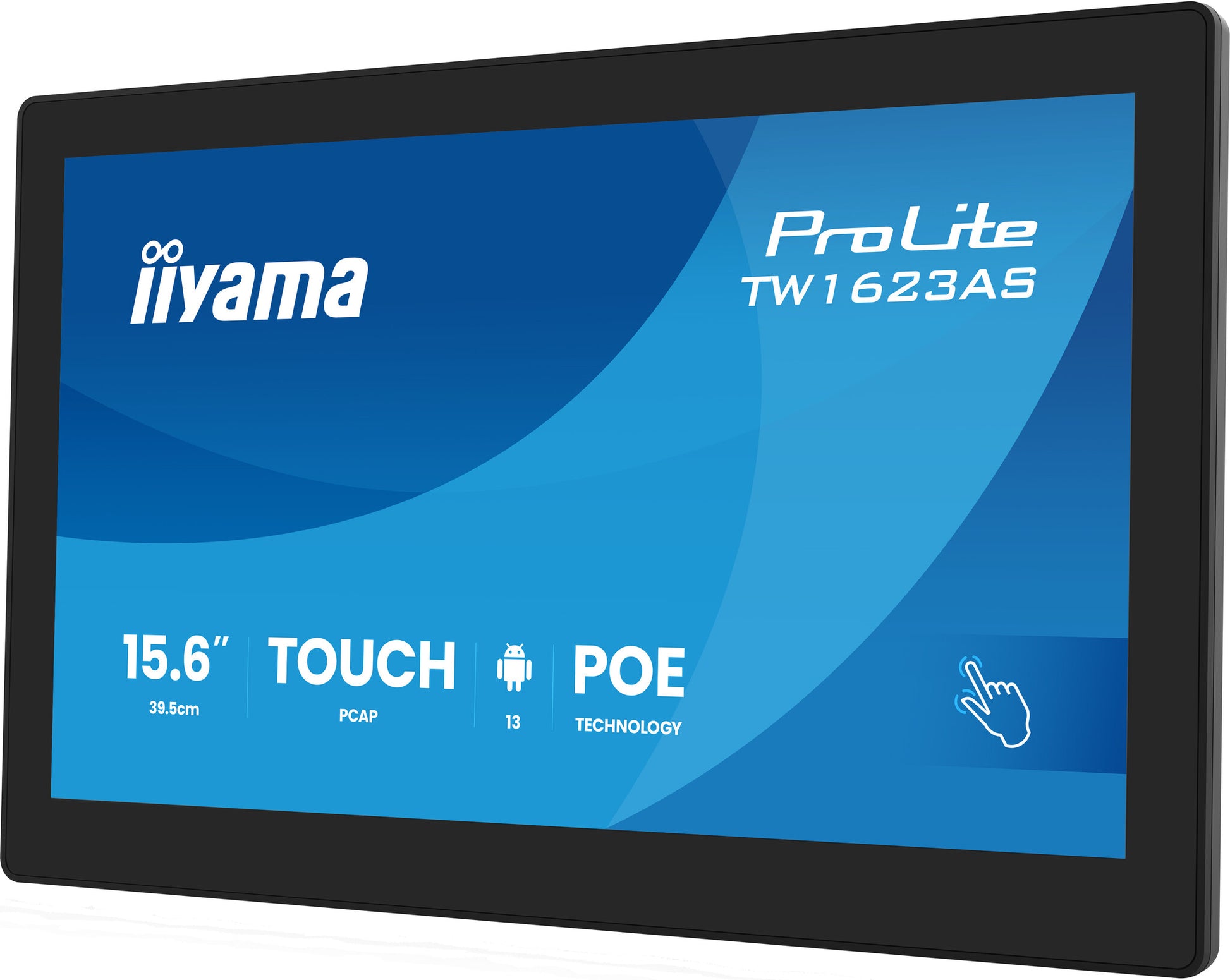

15.6” PCAP 10pt touchscreen PC with Android, PoE Technology and iiSignage2

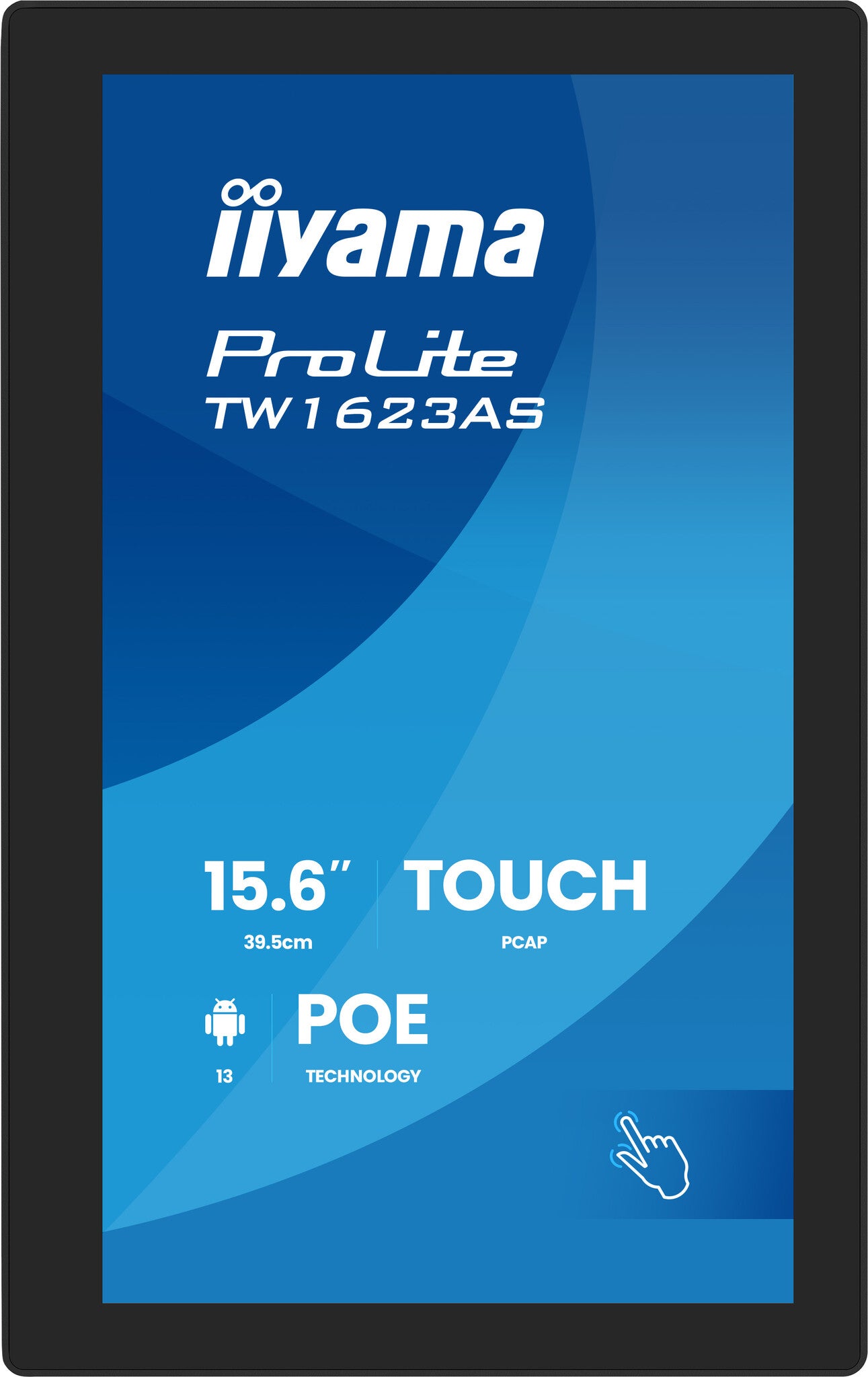

The ProLite TW1623AS-B3P is a smart and intuitive 15.6" touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 16, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in microphone and speakers, the TW1623AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage2 , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.

Display
Display diagonal 39.6 cm (15.6")
Display resolution 1920 x 1080 pixels
Native aspect ratio 16:9
Display technology LED
Touchscreen Yes
HD type Full HD
Panel type IPS
Touchscreen technology Projected capacitive system
Touch technology Multi-touch
Number of simultaneous touchpoints 10
Display brightness (typical) 450 cd/m²
Response time 30 ms
Response time measurement type GTG (Gray to Gray)
Contrast ratio (typical) 1000:1
Viewing angle, horizontal 170°
Viewing angle, vertical 170°
Display number of colours 16.7 million colours
Pixel pitch 0.1792 x 0.1792 mm
Viewable size, horizontal 34.4 cm
Viewable size, vertical 19.4 cm
Display diagonal (metric) 39.5 cm
Surface hardness 6H
Colour depth 8 bit
Display brightness 385 cd/m²
Performance
Operating hours (hours/days) 24/7
Operating system installed Android
Operating system version 13
Multimedia
Built-in speaker(s) Yes
Number of speakers 2
RMS rated power 4 W
Design
Product colour Black
Front bezel colour Black
Glass thickness 1.8 mm
Certification CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA

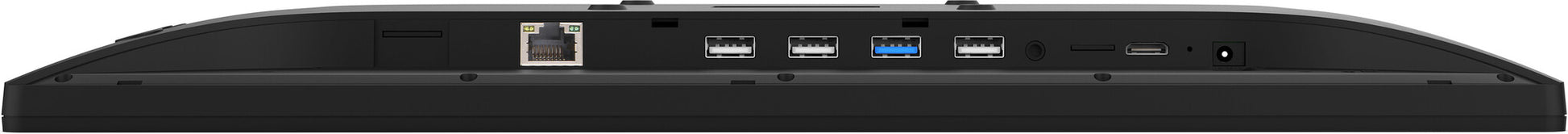

Ports & interfaces
USB version 2.0
USB Touch port Yes
HDMI ports quantity 1
Mini HDMI ports quantity 1
Audio input Mini Jack
Microphone in Yes
HDCP Yes
Card reader integrated Yes
Compatible memory cards SD
Network
Wi-Fi Yes
Wi-Fi standards Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Bluetooth Yes
Bluetooth version 5.2
Ethernet LAN Yes
Ergonomics

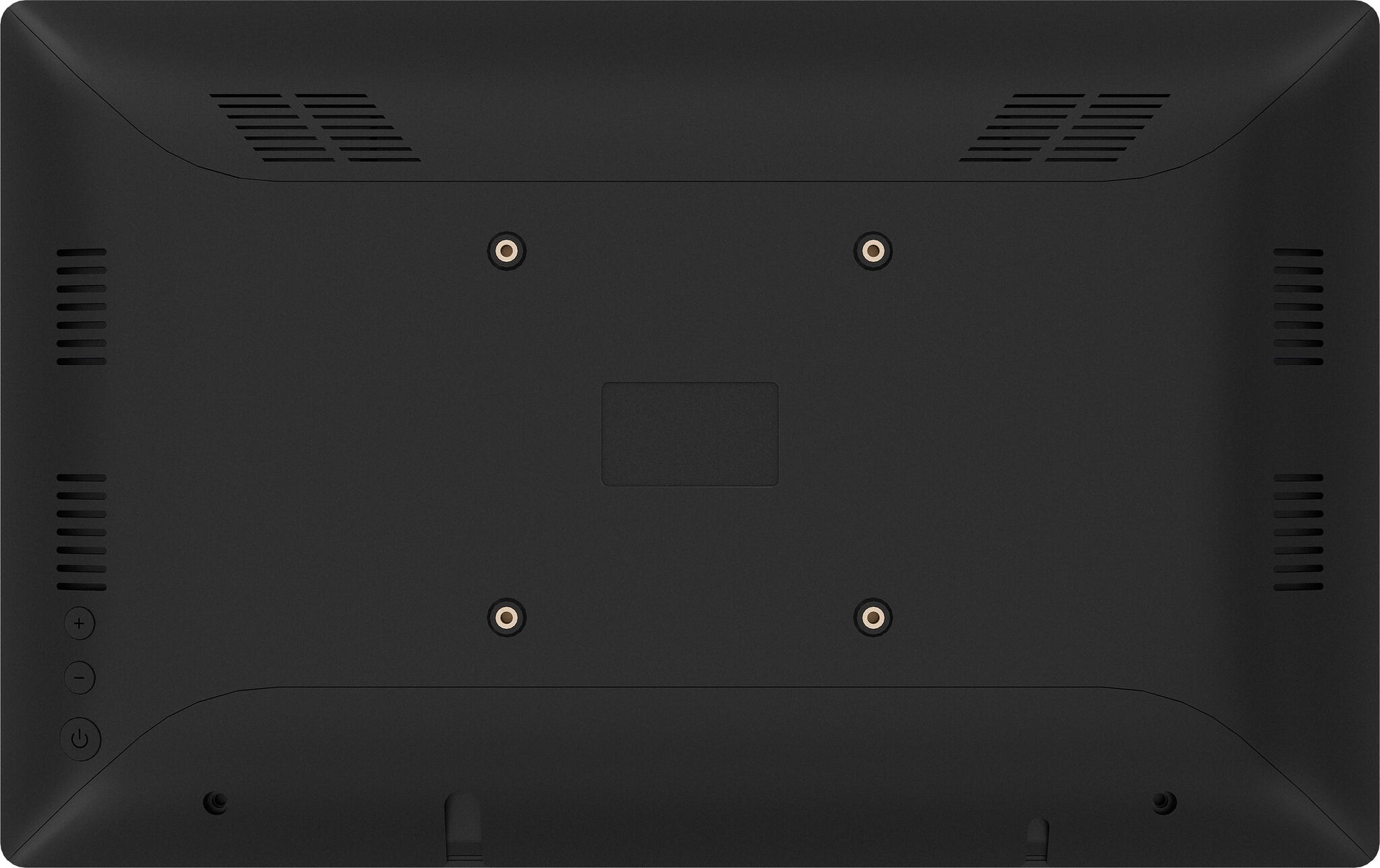

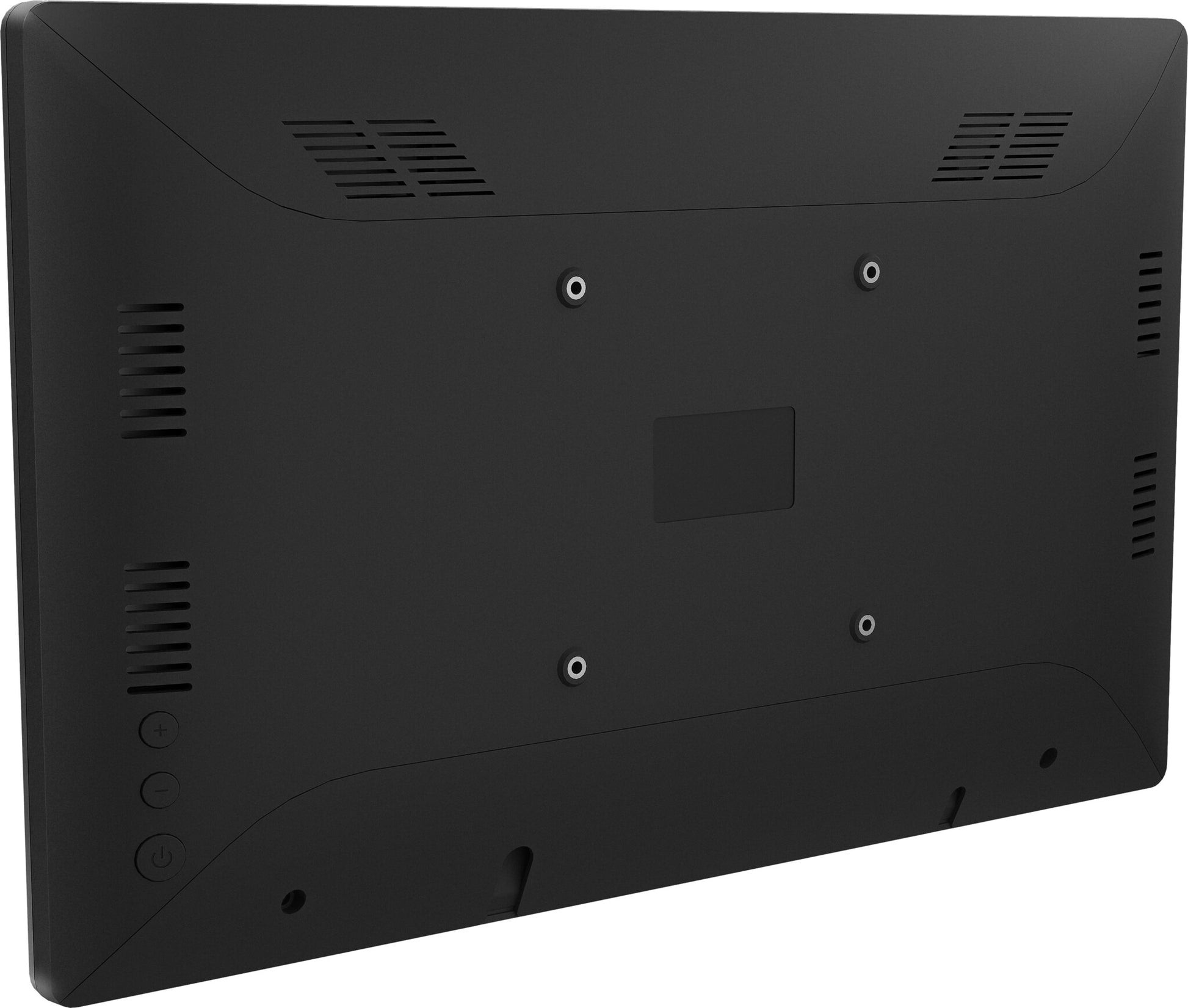

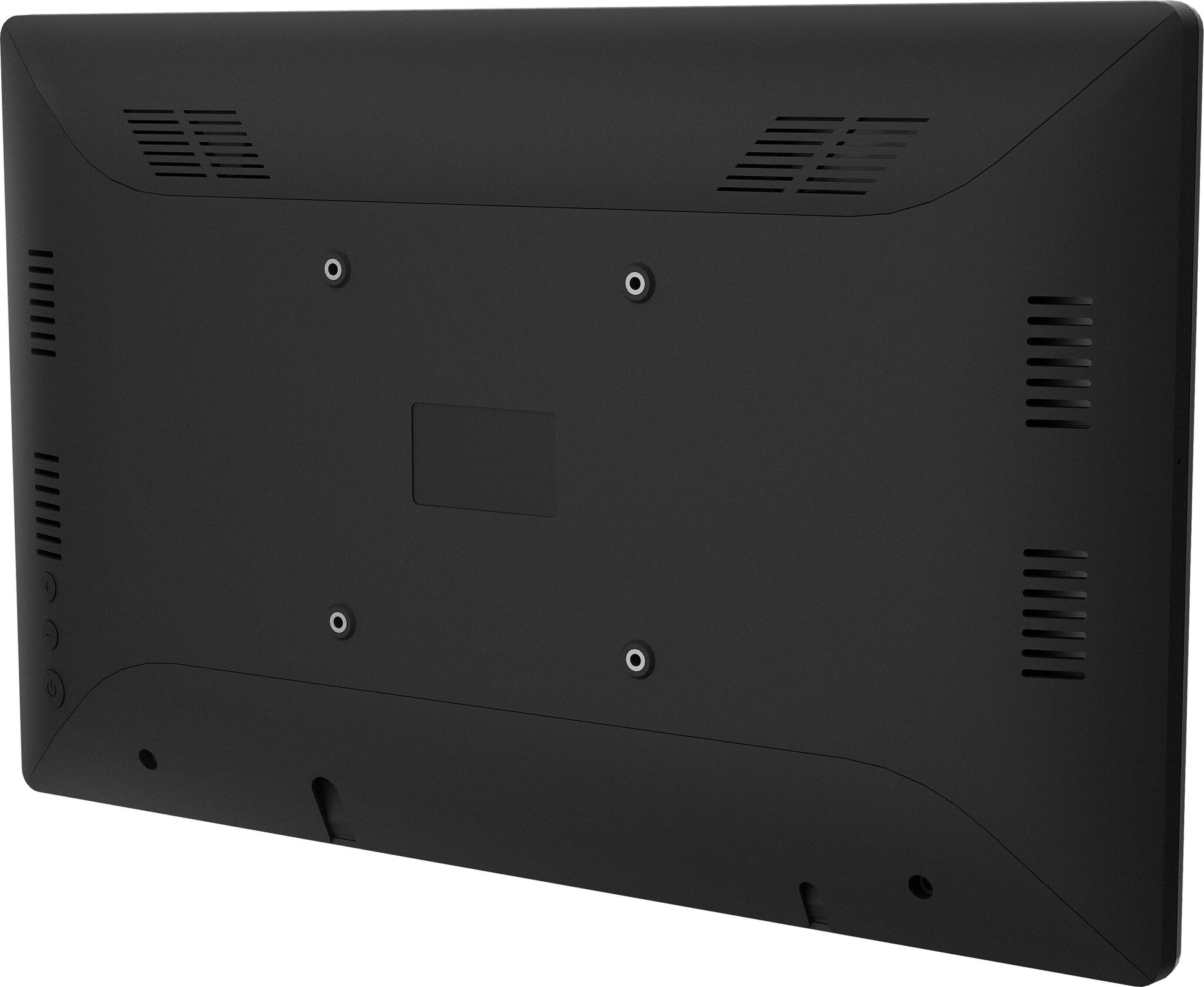

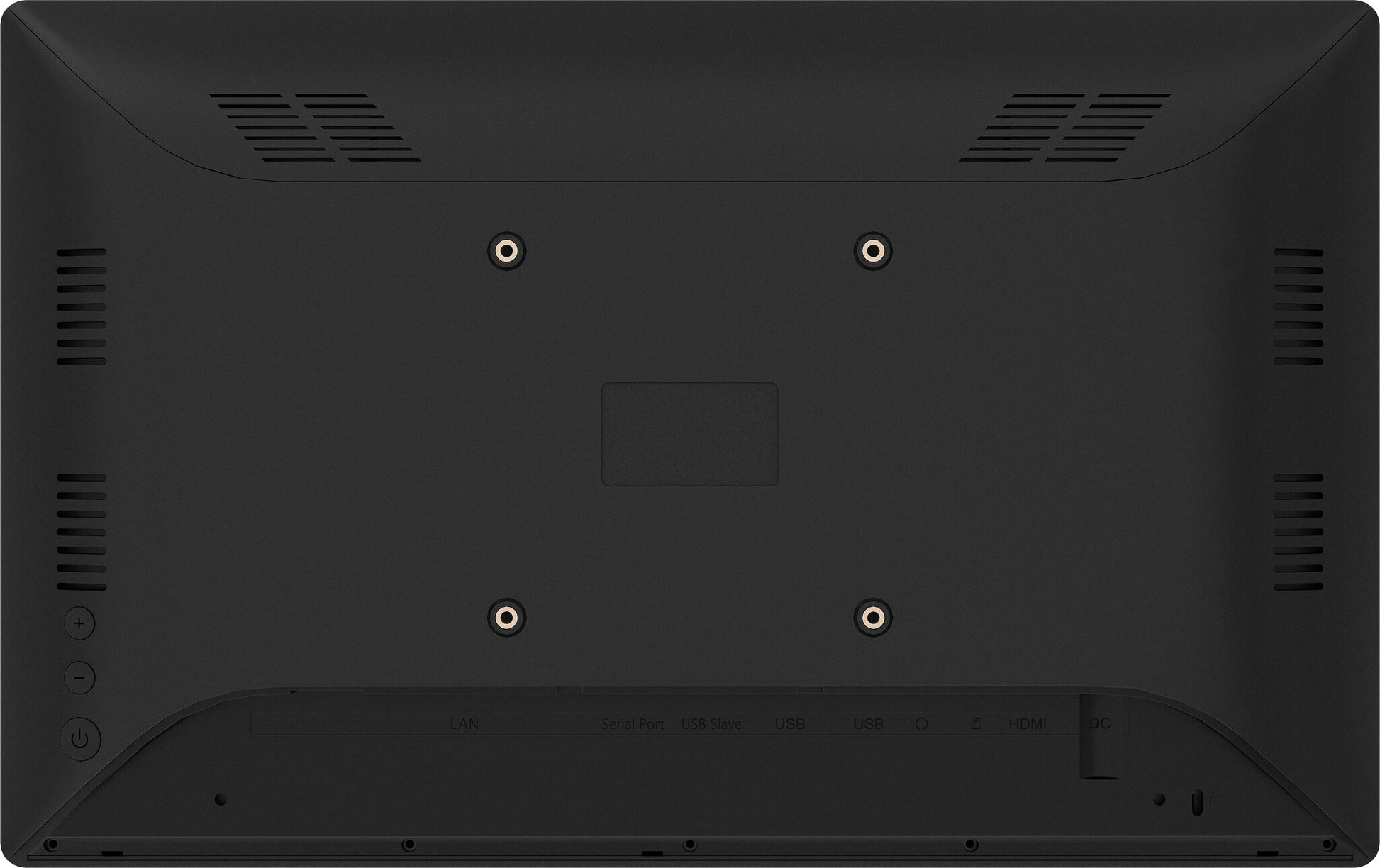

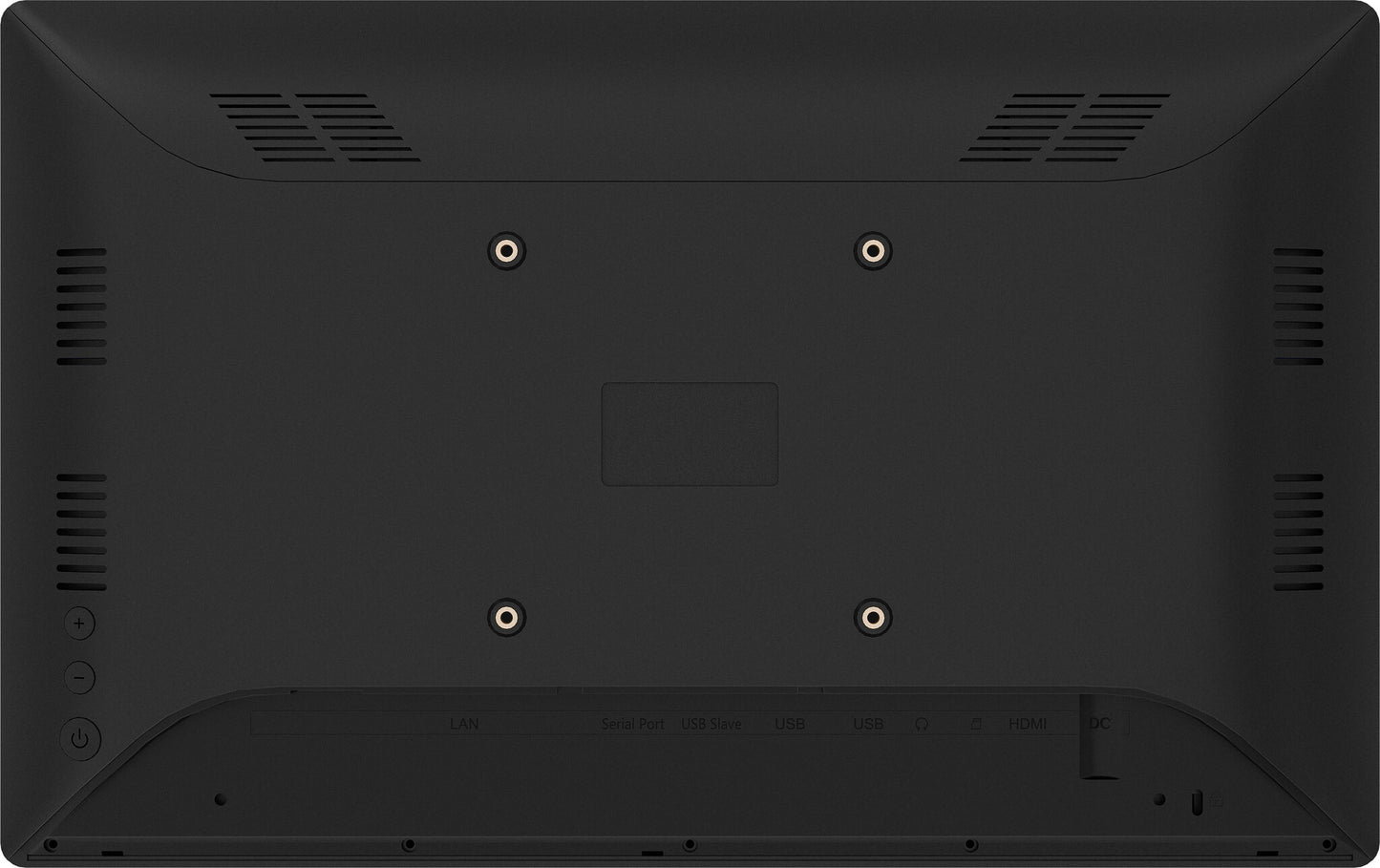

VESA mounting Yes
Panel mounting interface 100 x 100 mm
Cable management Yes
On Screen Display (OSD) Yes
Power
Power consumption (typical) 9 W
Power consumption (standby) 0.5 W
Power consumption (off) 0.3 W
AC adapter output voltage 12 V
Power supply type External
Packaging content
Power adapter included Yes
Quick start guide Yes
Weight & dimensions
Width (with stand) 387 mm

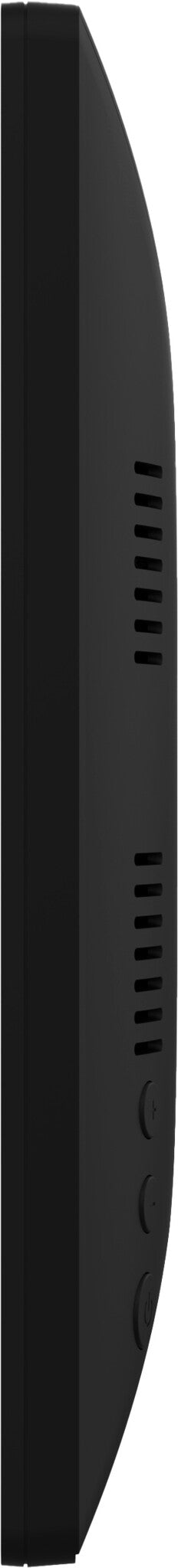

Depth (with stand) 30.5 mm
Height (with stand) 244 mm
Weight (with stand) 1.5 kg
Packaging data
Package width 477 mm
Package depth 75 mm
Package height 298 mm
Package weight 2.45 kg
Sustainability
Sustainability certificates ErP
Thin Client
Processor family ARM Rockchip
Processor architecture ARM Cortex-A55
Processor model RK3568
Processor cores 4
Processor frequency 2 GHz
Technical details
Compliance certificates CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
AC adapter included Yes
Packaging content AC adapter, interchangeable plugs (EU/UK)
Google applications Google Chrome, Gmail, Google Calendar
Built-in processor Yes
Placement supported Indoor
Brightness 385 cd/m²
USB ports quantity 3
Active display area (W x H) 344.2 x 193.6 mm
Width 387 mm
Height 244 mm
Weight 1.5 kg
Ethernet LAN (RJ-45) ports 1
Control panel Power switch, volume/ button +, volume/ button -
User controls Power switch, volume/ button +, volume/ button -
Touch method finger, glove (latex), capacitive stylus
