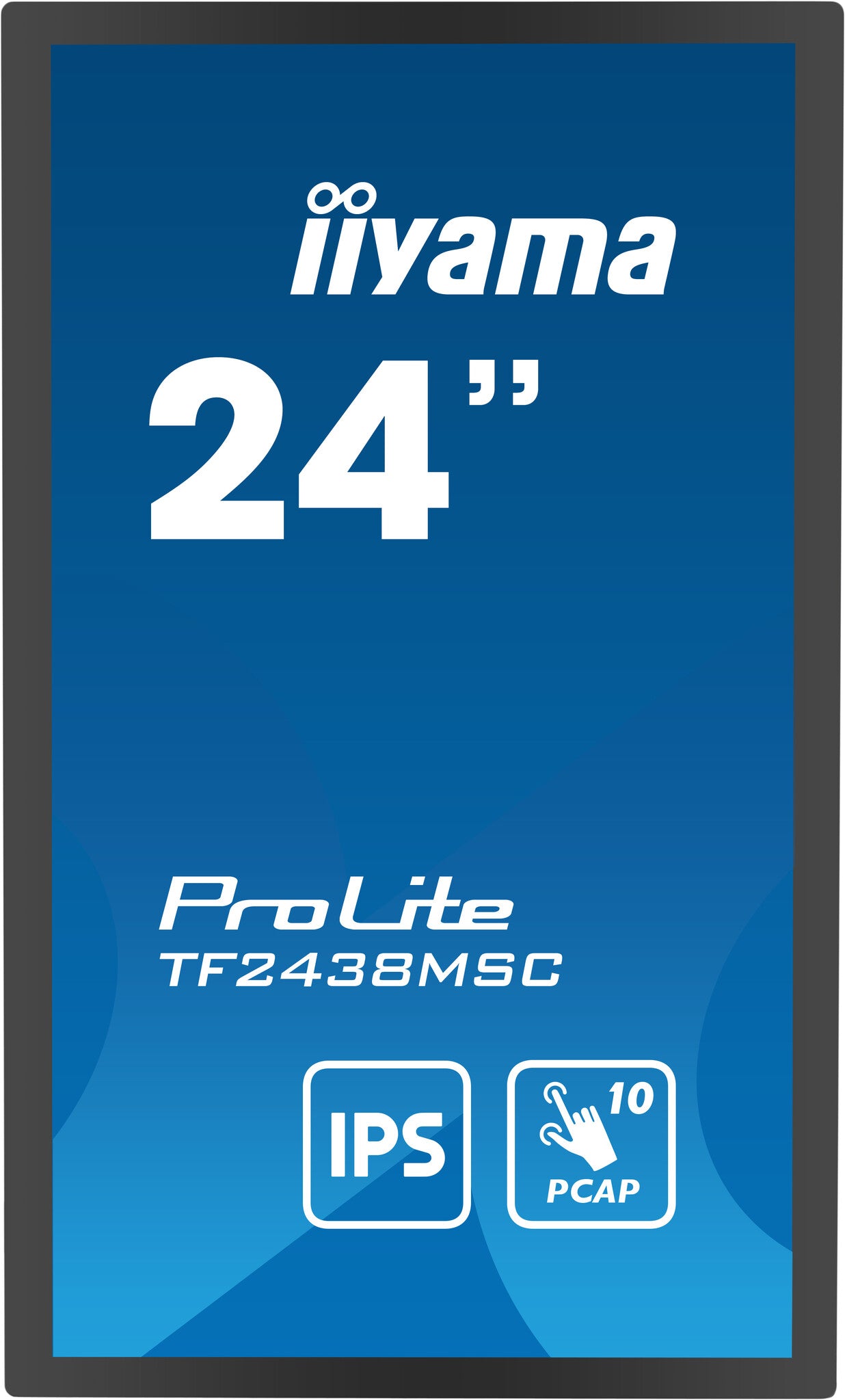

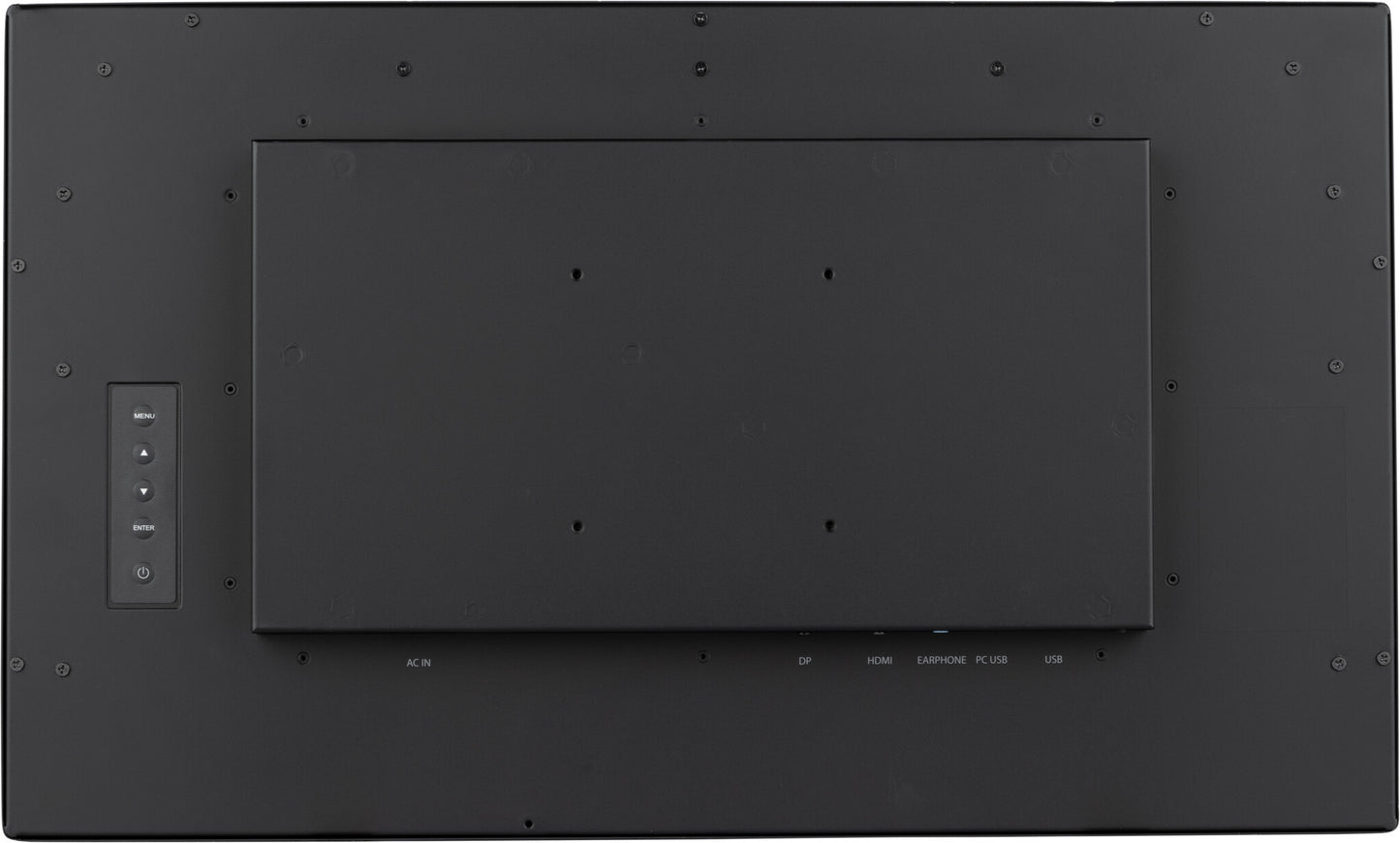

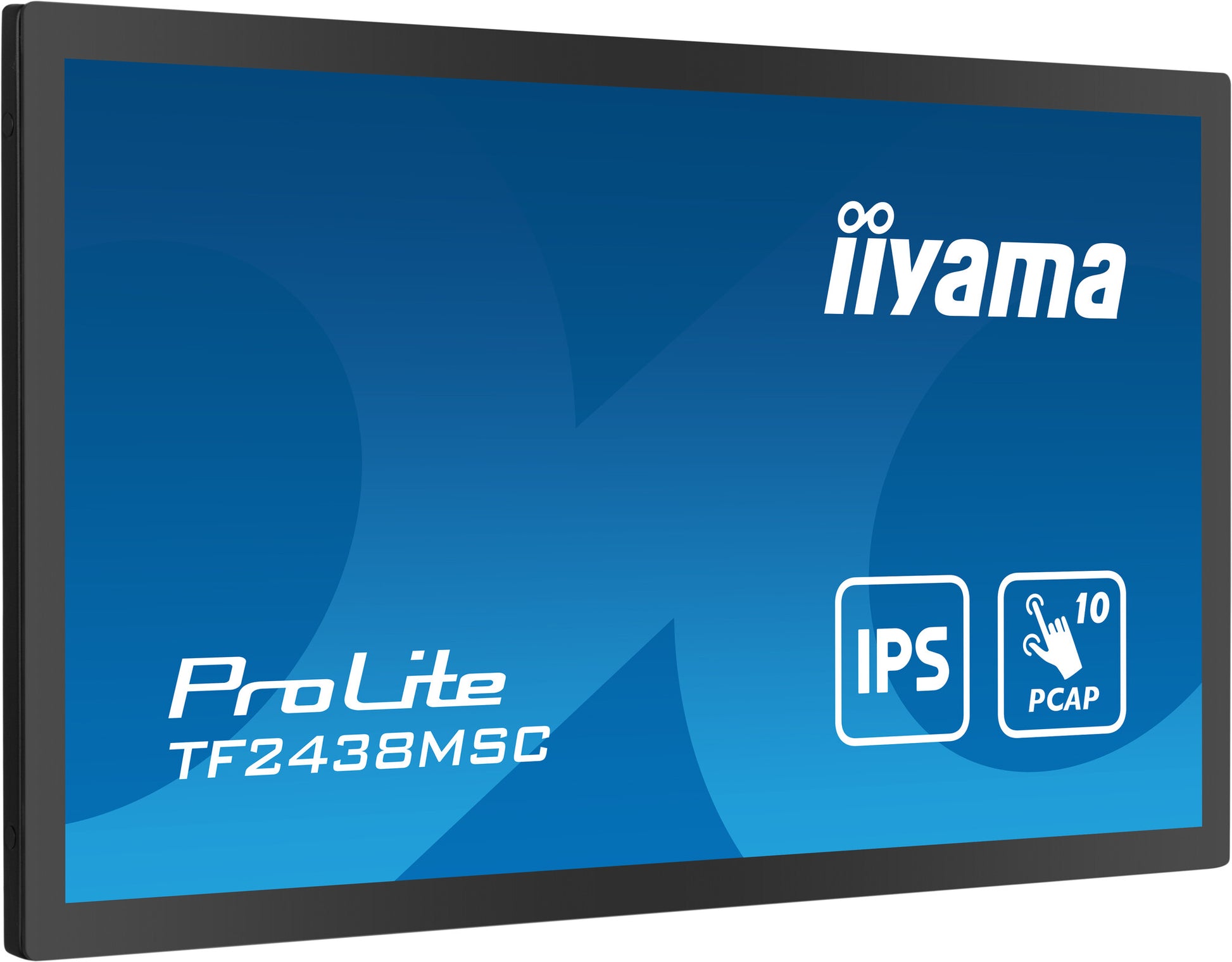

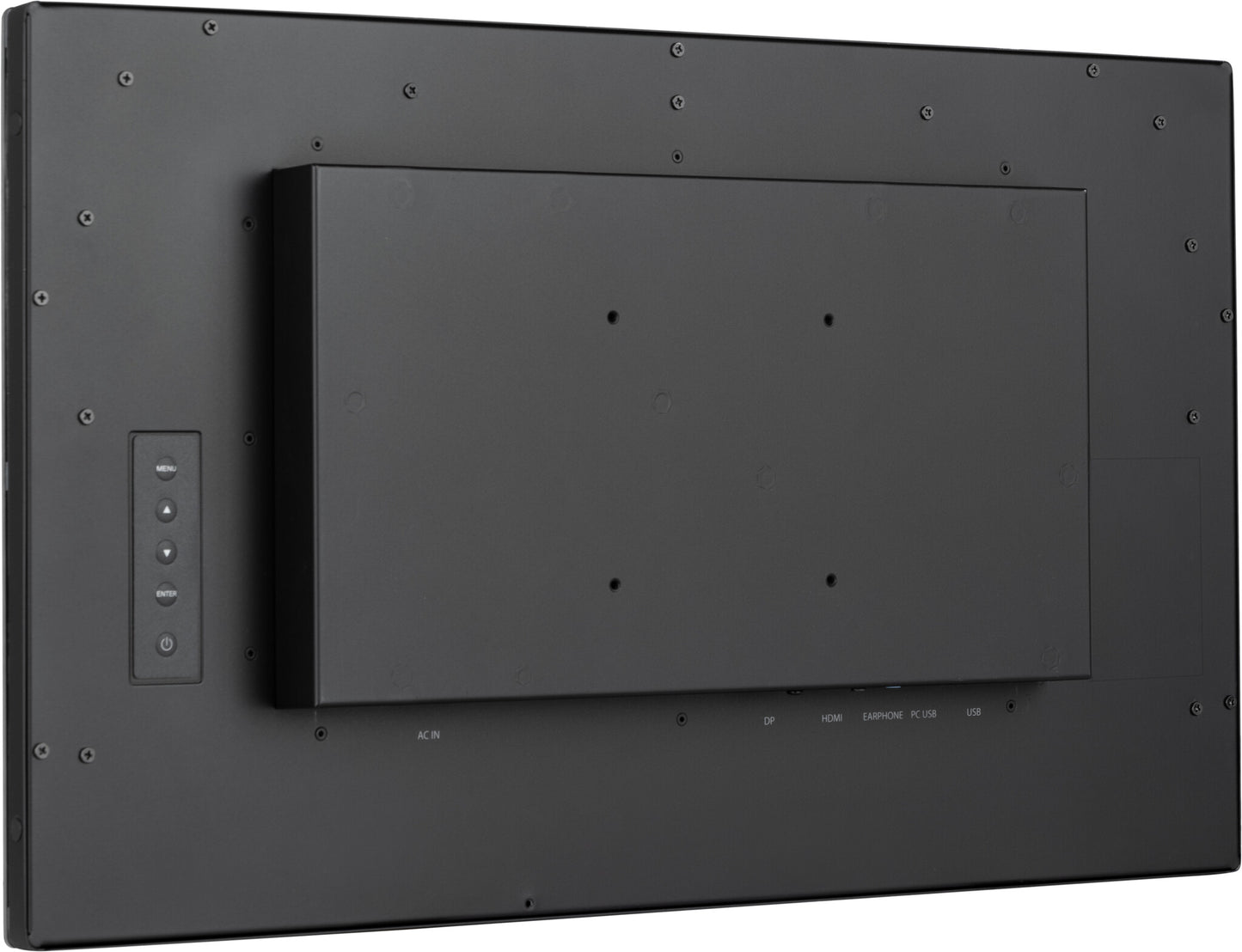

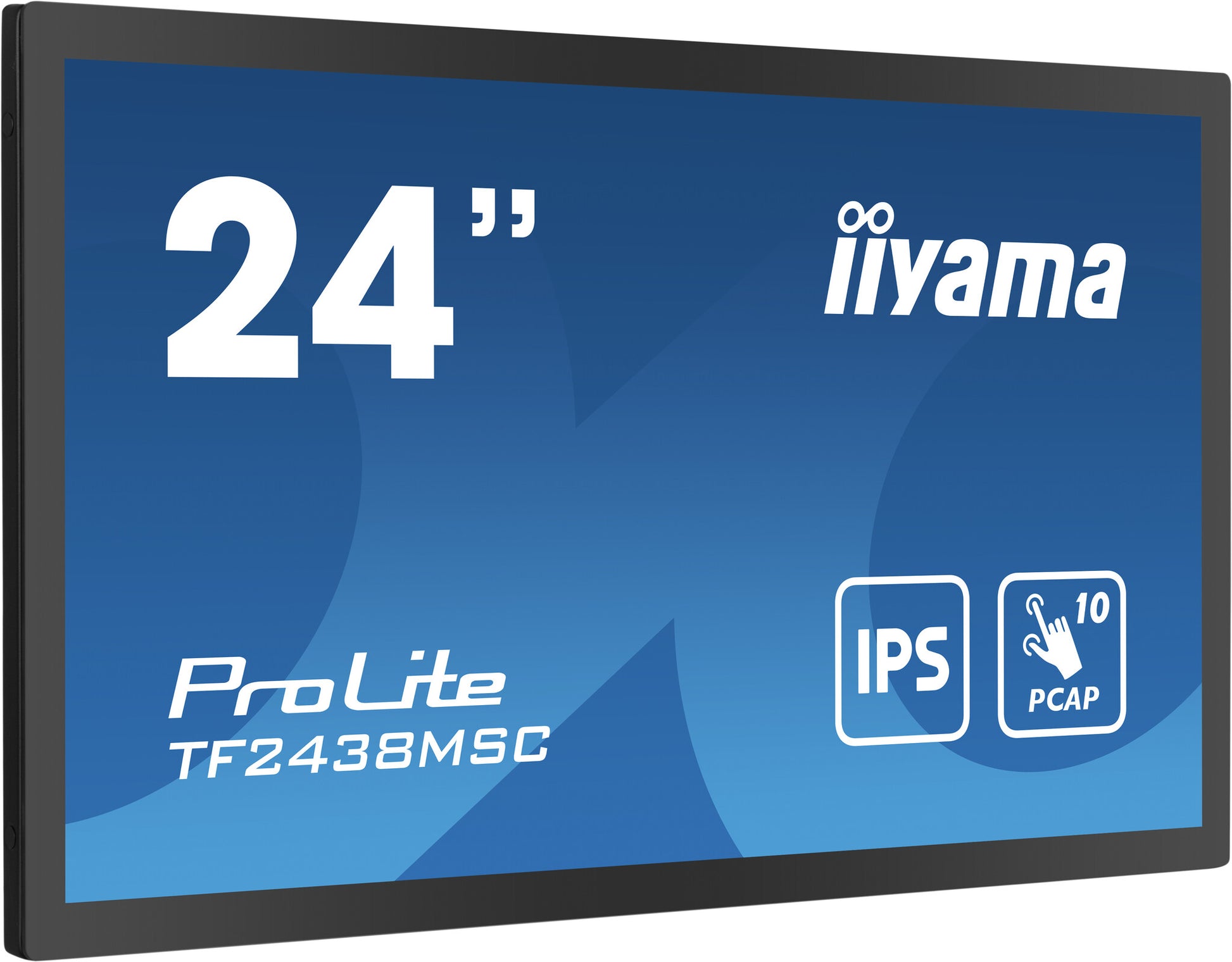

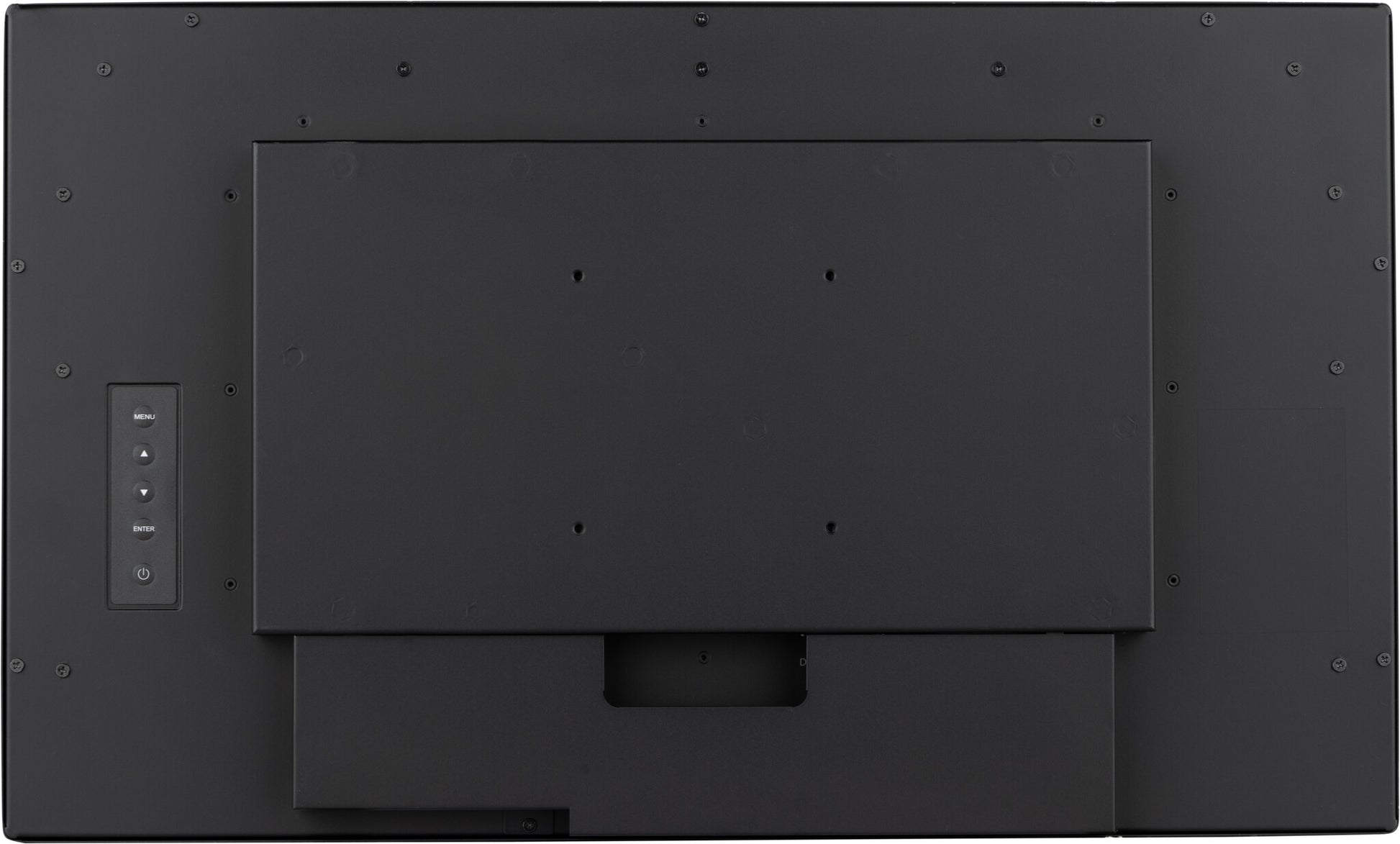

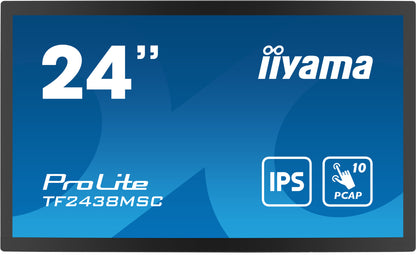

iiyama TF2438MSC-B1 computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LED Touchscreen Black

iiyama TF2438MSC-B1 computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LED Touchscreen Black

£481.32 GBP
£481.32 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

TF2438MSC-B1

11 in stock

  • OPTICAL BONDED PCAP
  • OPEN FRAME LFD
  • IPS TECHNOLOGY
  • SCRATCH RESISTANCE
  • SPEAKERS

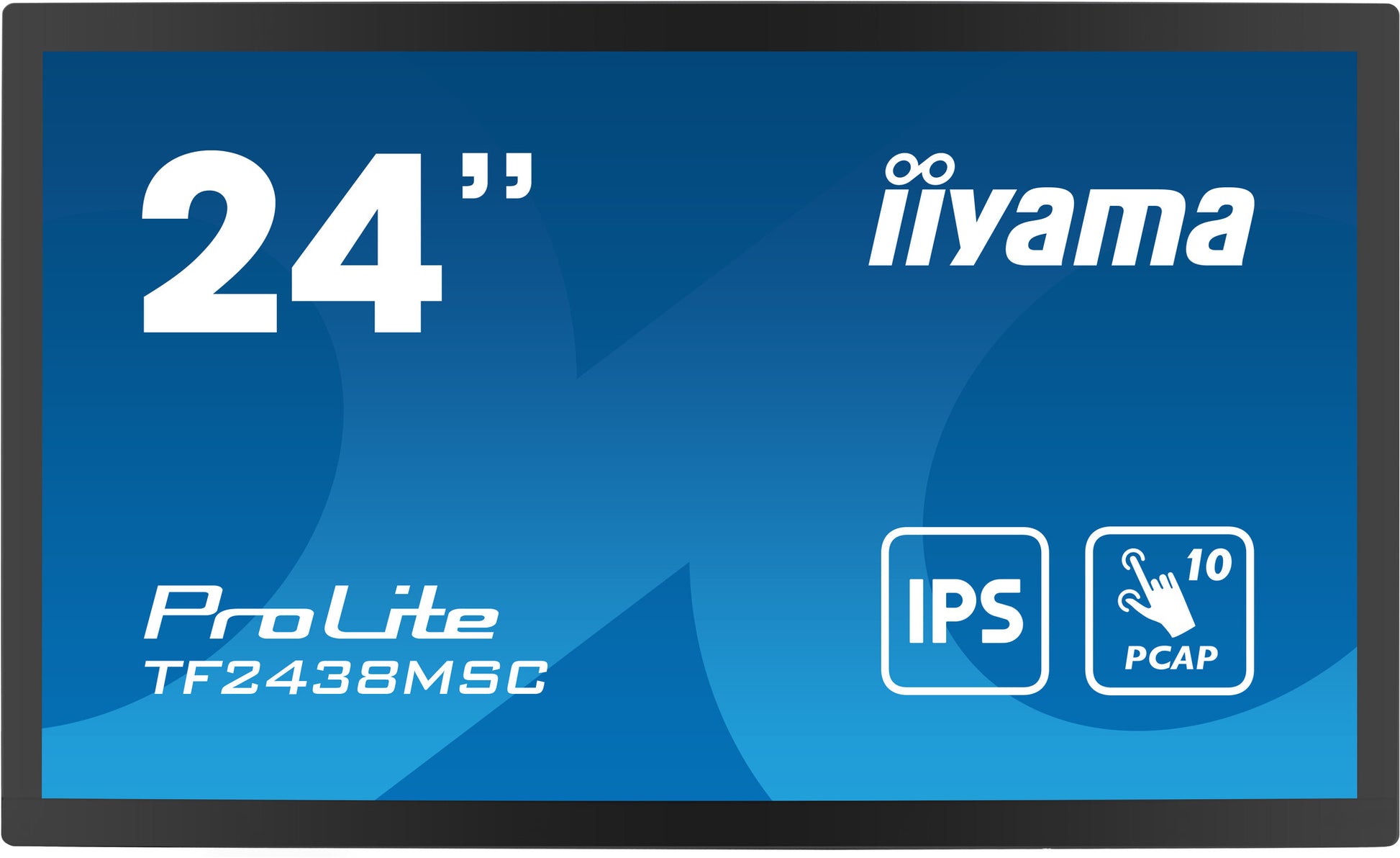

23.8” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing

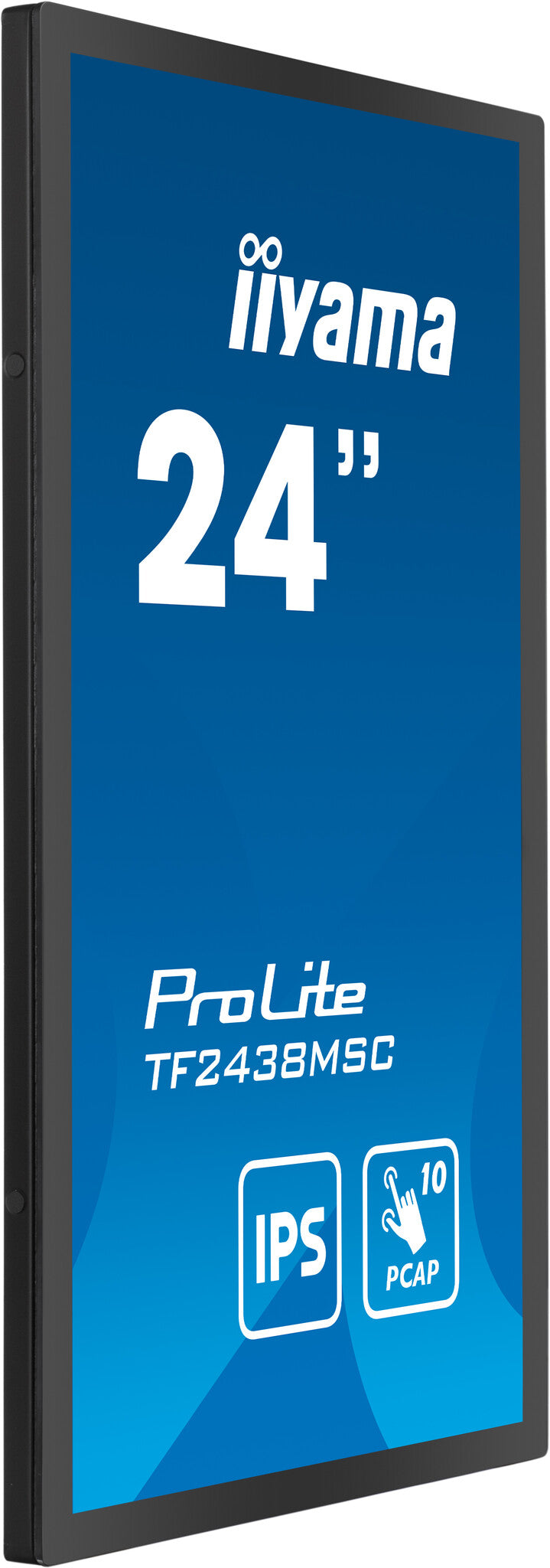

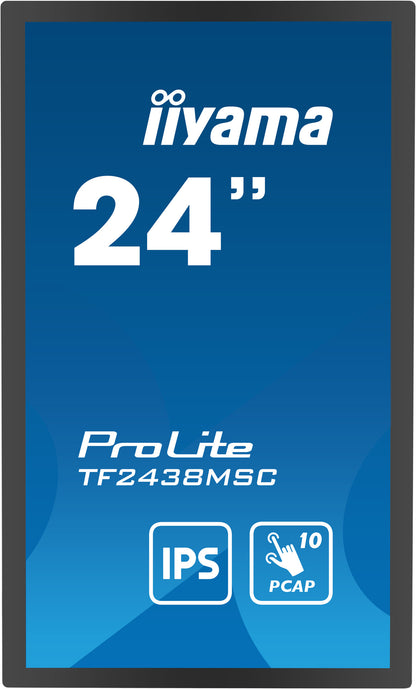

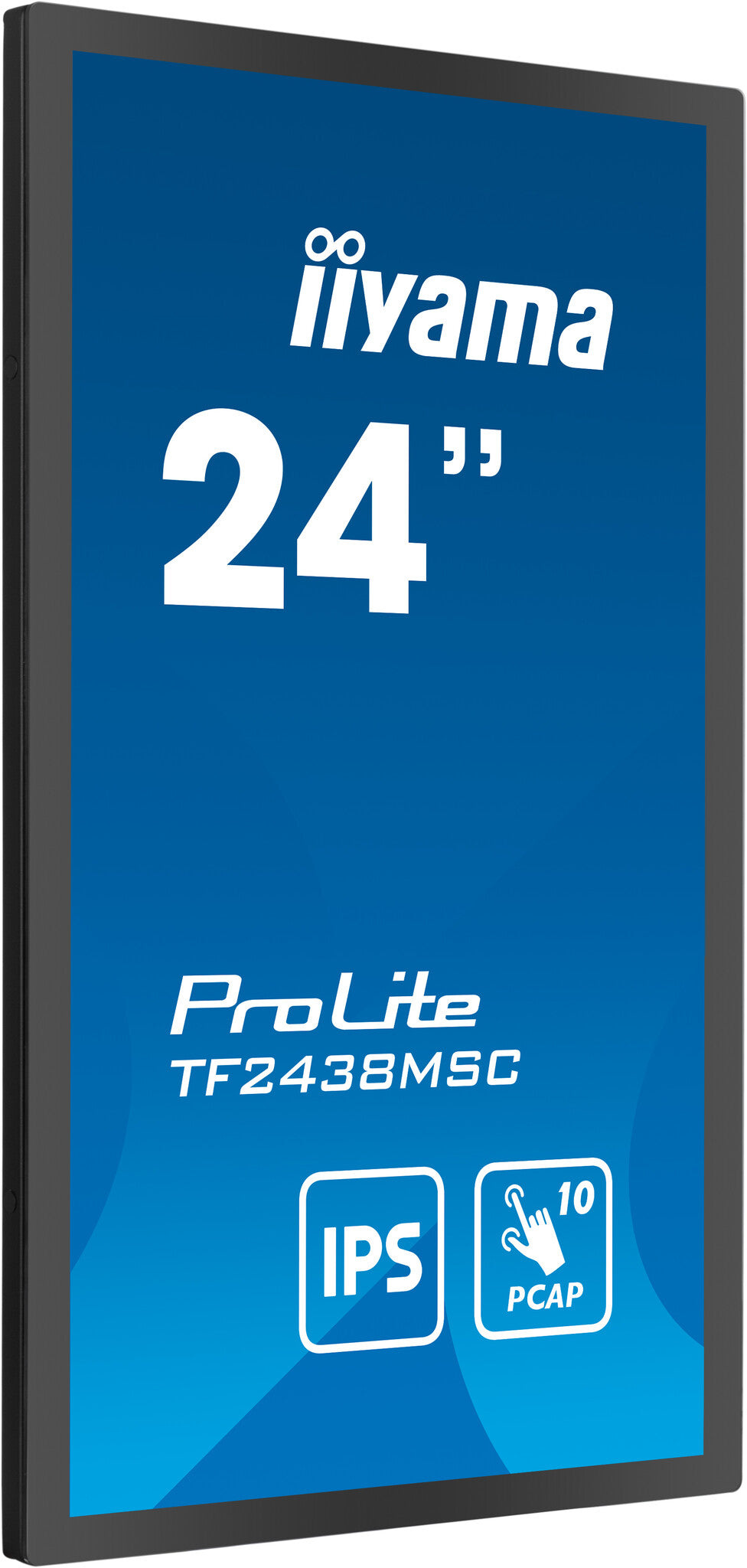

The Full HD (1920x1080) Open Frame monitor ProLite TF2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for kiosk systems, retail and interactive digital signage installations.

Display
Display brightness 525 cd/m²
Surface hardness 7H
Display diagonal (metric) 60.5 cm
Viewable size, vertical 29.6 cm
Viewable size, horizontal 52.7 cm
Horizontal scan range 30 - 83 kHz
Pixel pitch 0.275 x 0.275 mm
Display number of colours 16.7 million colours
Viewing angle, vertical 178°
Viewing angle, horizontal 178°
Maximum refresh rate 60 Hz
Contrast ratio (typical) 1000:1
Response time measurement type GTG (Gray to Gray)
Response time 5 ms
Display brightness (typical) 600 cd/m²
Number of simultaneous touchpoints 10
Touchscreen technology Projected capacitive system
Panel type IPS
HD type Full HD
Touchscreen Yes
Display technology LED
Native aspect ratio 16:9
Display resolution 1920 x 1080 pixels
Display diagonal 60.5 cm (23.8")
Performance
Compatible operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Low Blue Light technology Yes
Flicker-free technology Yes
Multimedia
RMS rated power 4 W
Number of speakers 2
Built-in speaker(s) Yes
Design
Certification CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Glass thickness 3.6 mm
International Protection (IP) code IP1X
Front bezel colour Black
Product colour Black

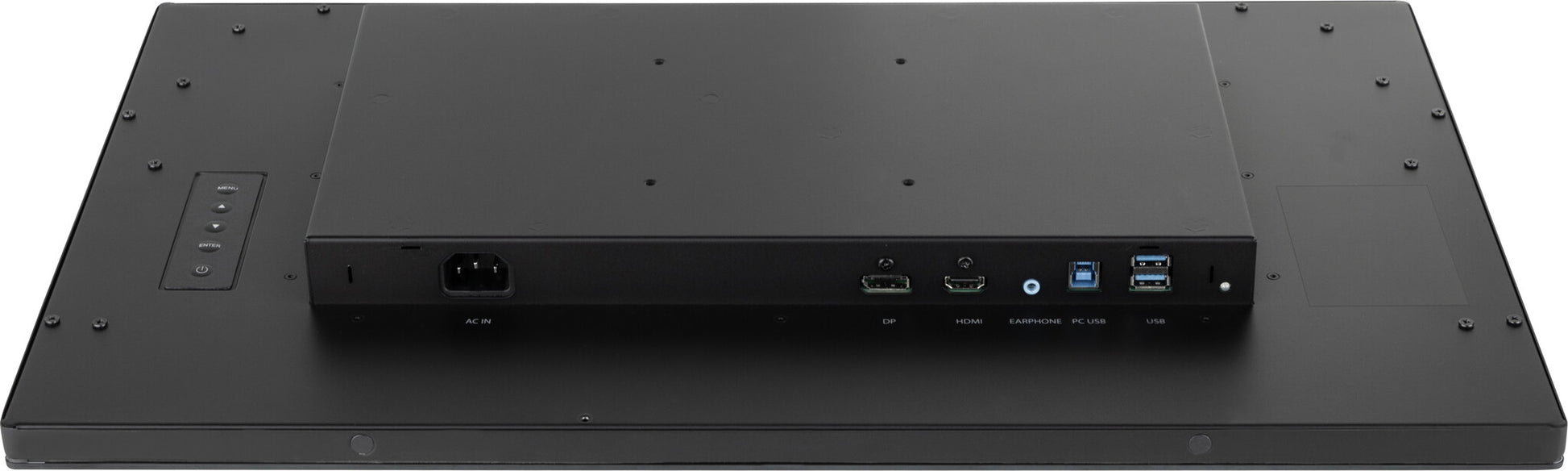

Ports & interfaces
HDCP Yes
DisplayPorts quantity 1
HDMI ports quantity 1
DVI port No
USB Touch port Yes
Number of downstream ports 2
USB hub version 3.2 Gen 1 (3.1 Gen 1)
USB version 3.2 Gen 1 (3.1 Gen 1)
Built-in USB hub Yes
Network
Ethernet LAN No
Wi-Fi No
Ergonomics
On Screen Display (OSD) languages Traditional Chinese, German, English, French, Japanese, Dutch, Polish, Russian
On Screen Display (OSD) Yes

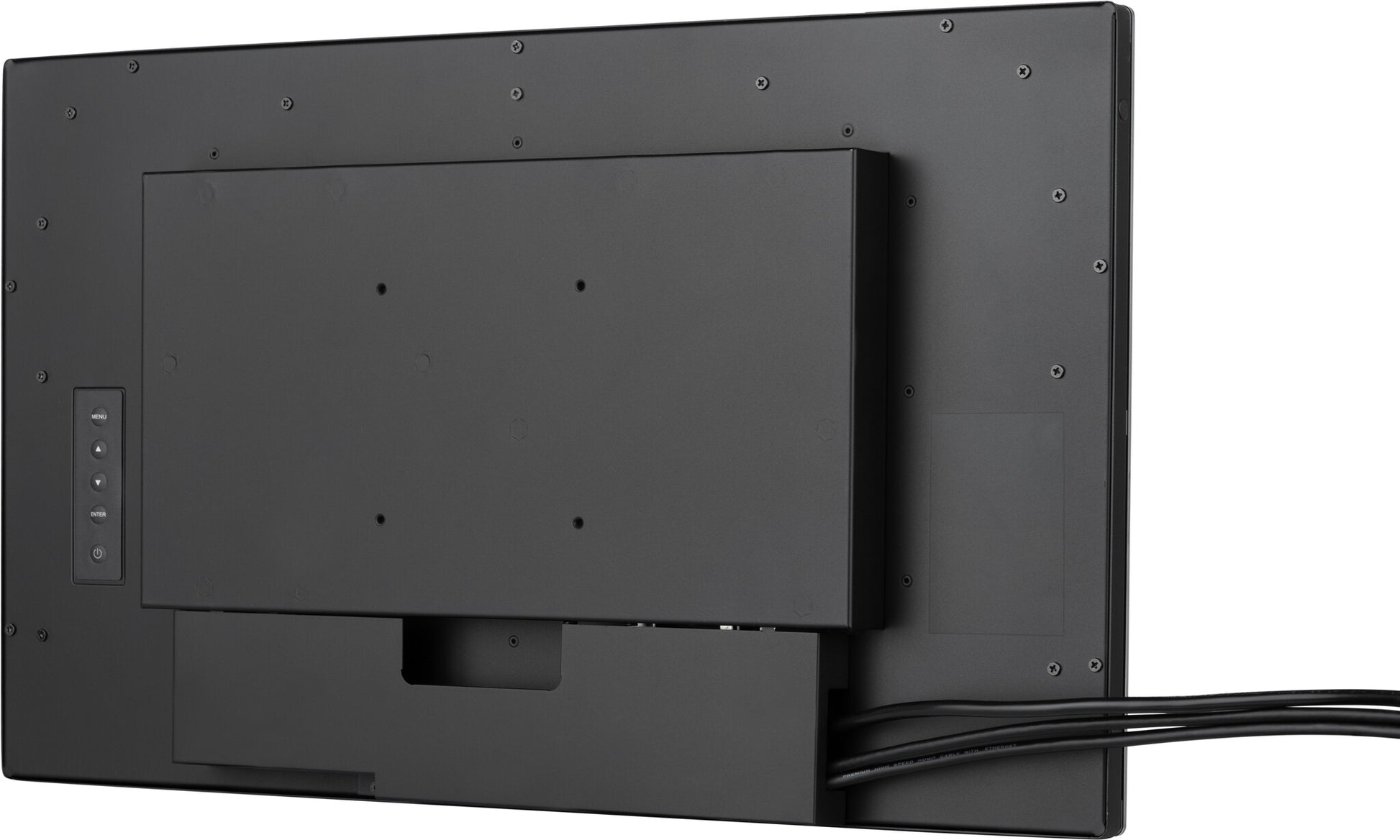

Cable management Yes

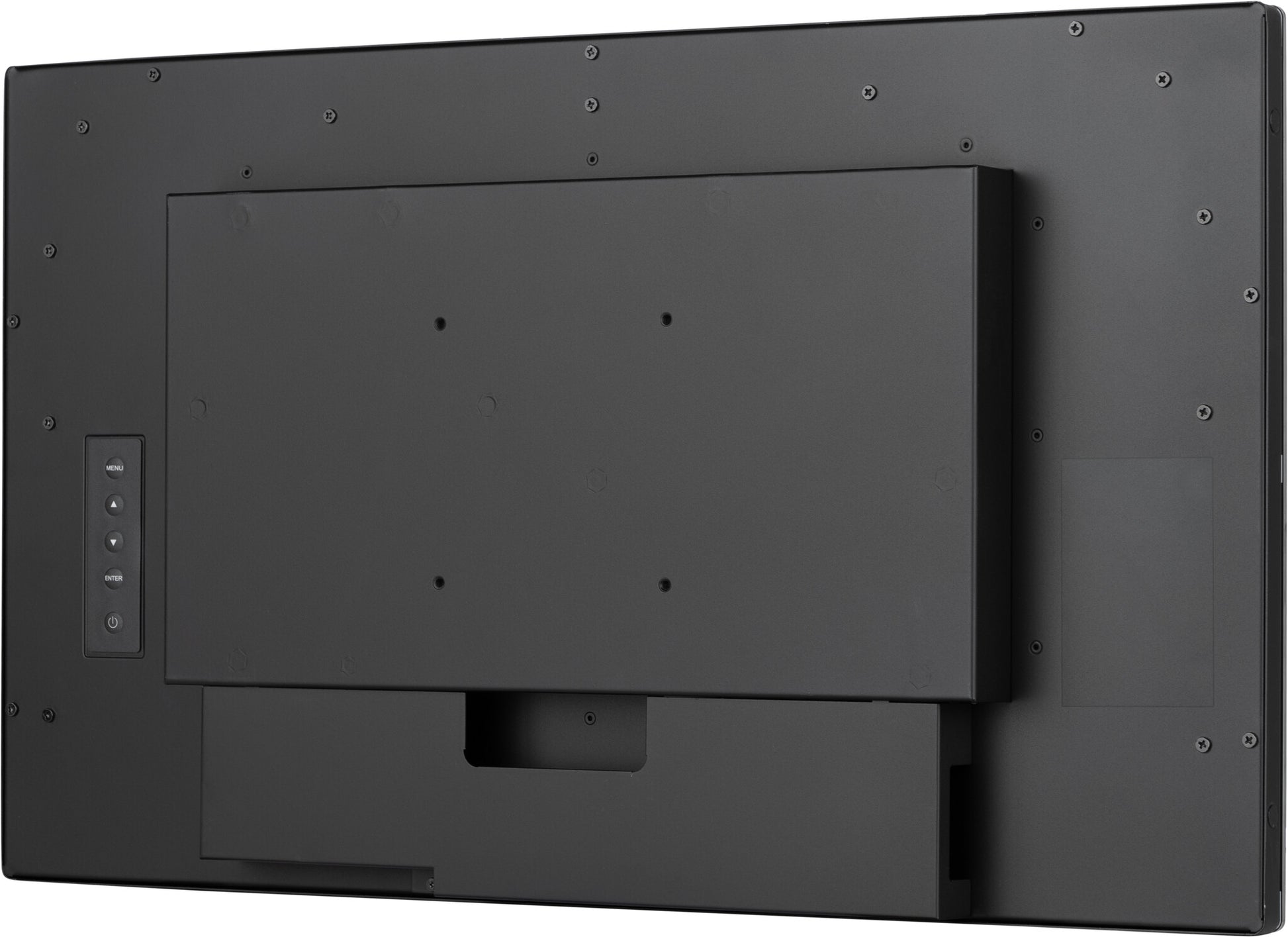

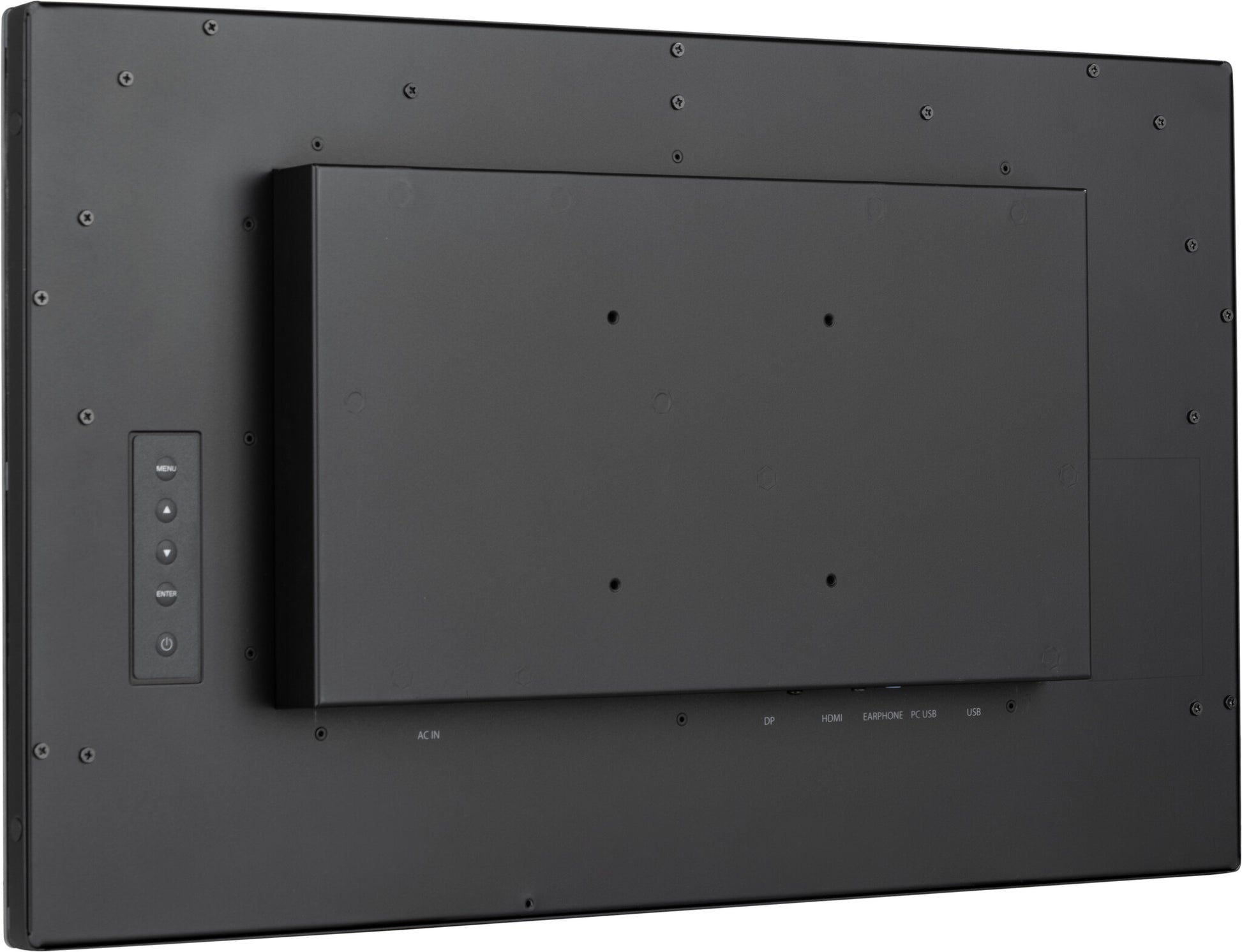

Panel mounting interface 100 x 100 mm
VESA mounting Yes
Power
Power supply type Internal
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power consumption (off) 0.3 W
Power consumption (standby) 0.8 W
Power consumption (typical) 22 W
Energy consumption (SDR) per 1000 hours 15.4 kWh
Energy efficiency class (HDR) Not available
Energy efficiency class (SDR) E
Packaging content
Power cable length 1.8 m
HDMI cable length 1.5 m
Quick start guide Yes

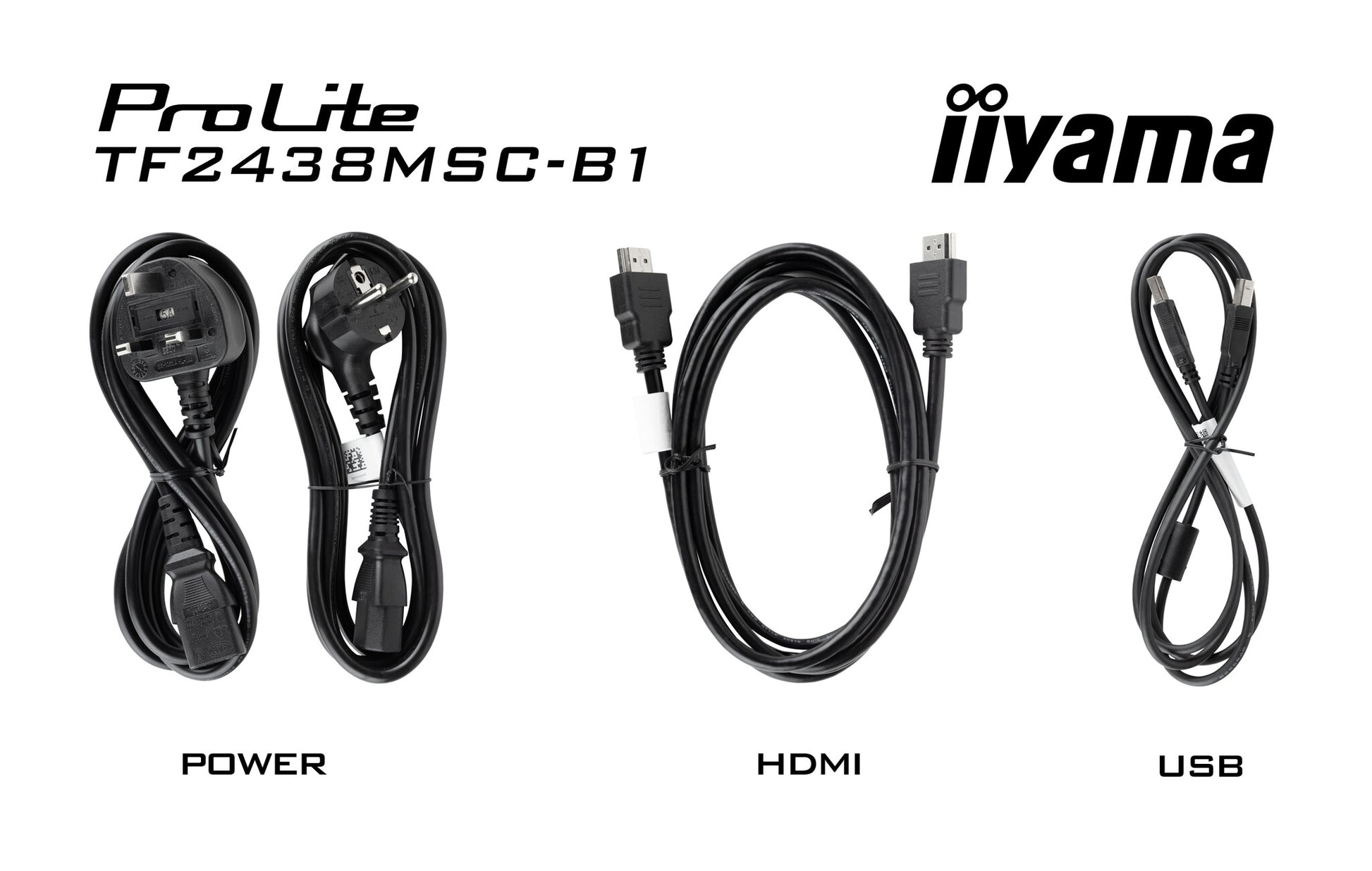

Cables included AC, USB, HDMI
Weight & dimensions
Bezel width (bottom) 2.03 cm
Bezel width (top) 2.03 cm
Bezel width (side) 1.73 cm
Weight (with stand) 6.5 kg
Height (with stand) 337 mm
Depth (with stand) 47.5 mm
Width (with stand) 561.5 mm
Packaging data
USB cable length 1.5 m
Package weight 8.1 kg
Package height 409 mm
Package depth 115 mm
Package width 635 mm
Sustainability
Sustainability certificates ErP
Technical details
Compliance certificates CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features

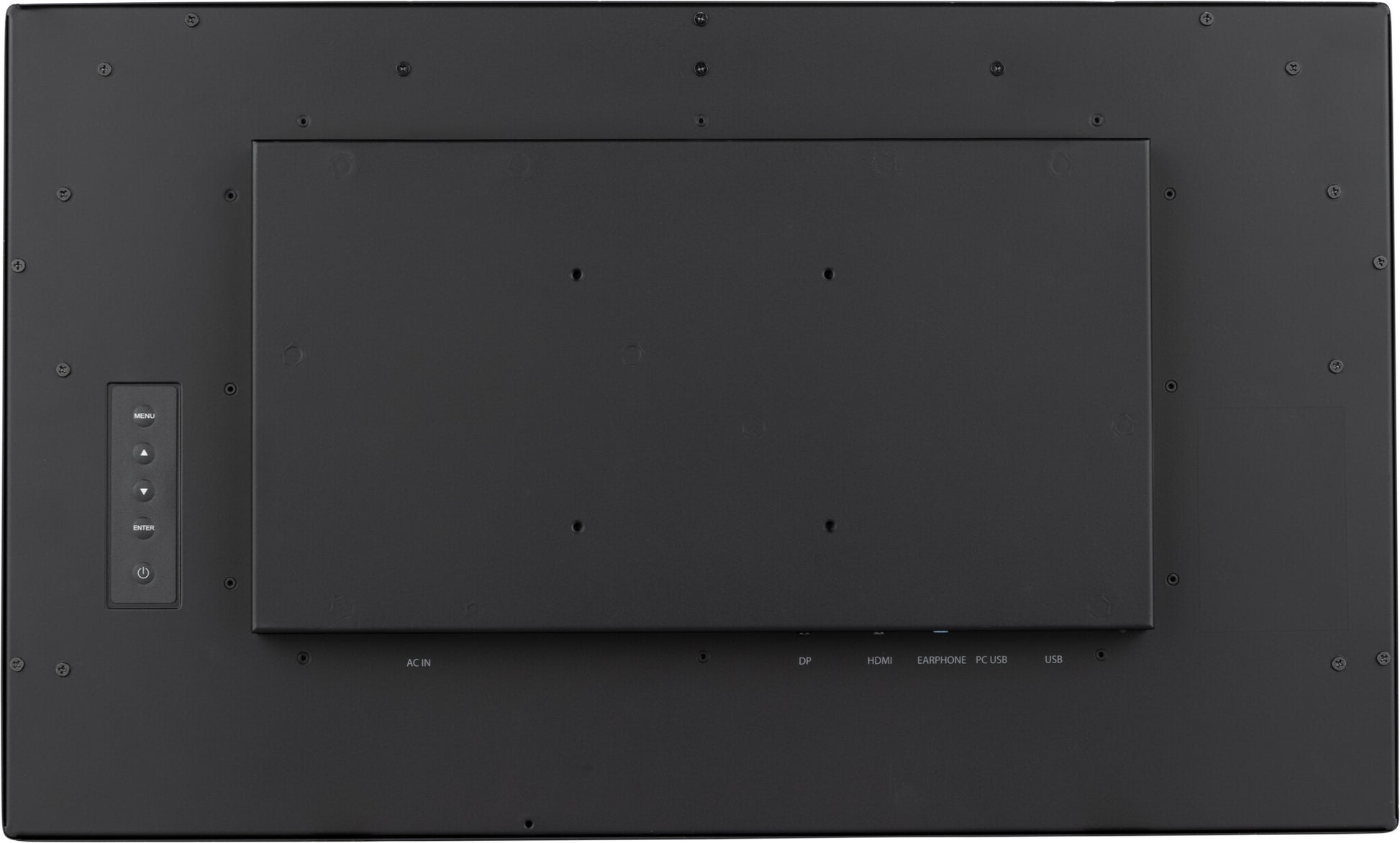

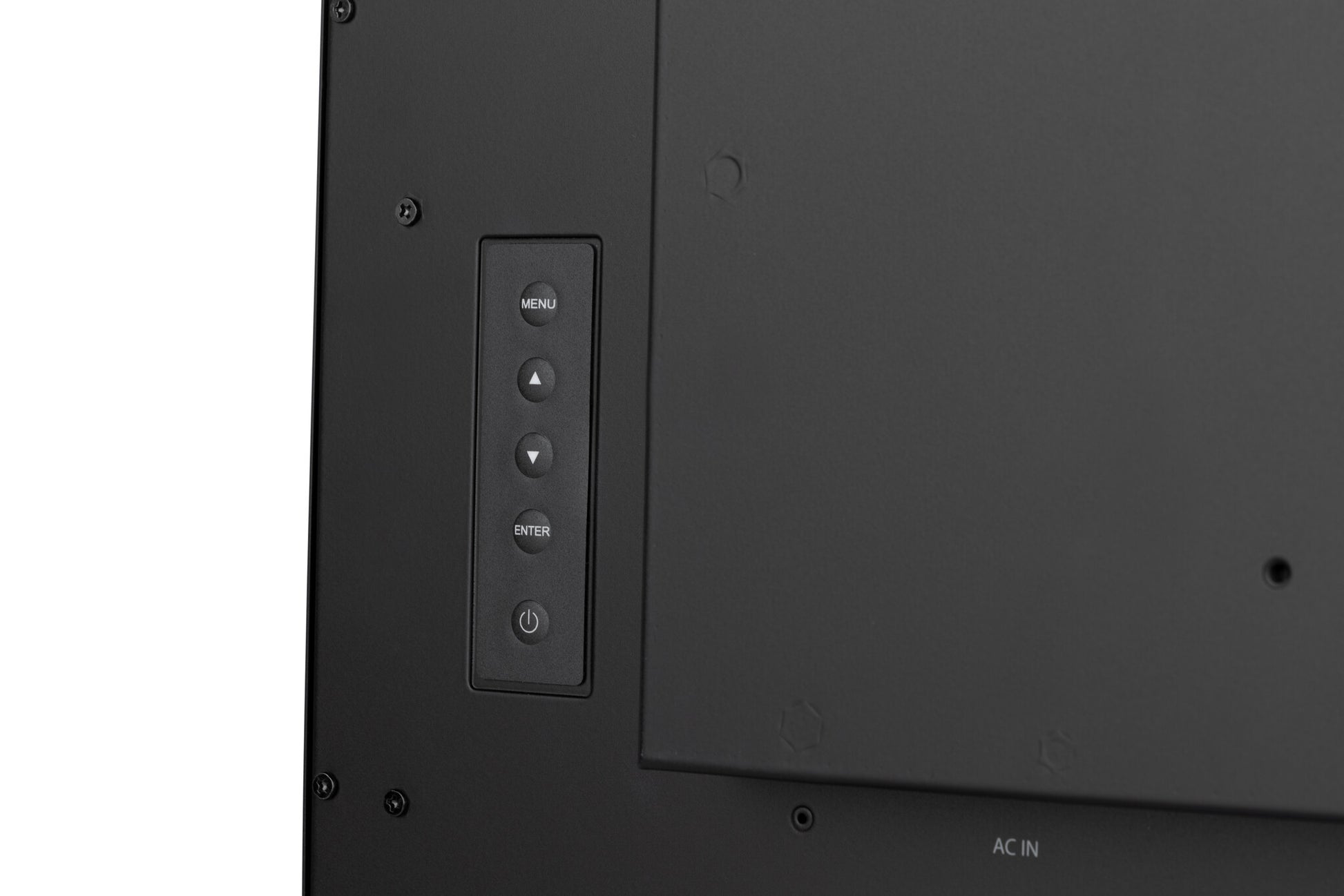

Control panel Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power
User controls Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch)
Touch method stylus, finger, glove (latex)
Mean time between failures (MTBF) 50000 h
Brightness 525 cd/m²
Weight 6.5 kg
Height 337 mm
Width 561.5 mm
Depth 47.5 mm
Active display area (W x H) 527 x 296.5 mm
Built-in processor No
USB ports quantity 2
Placement supported Indoor
