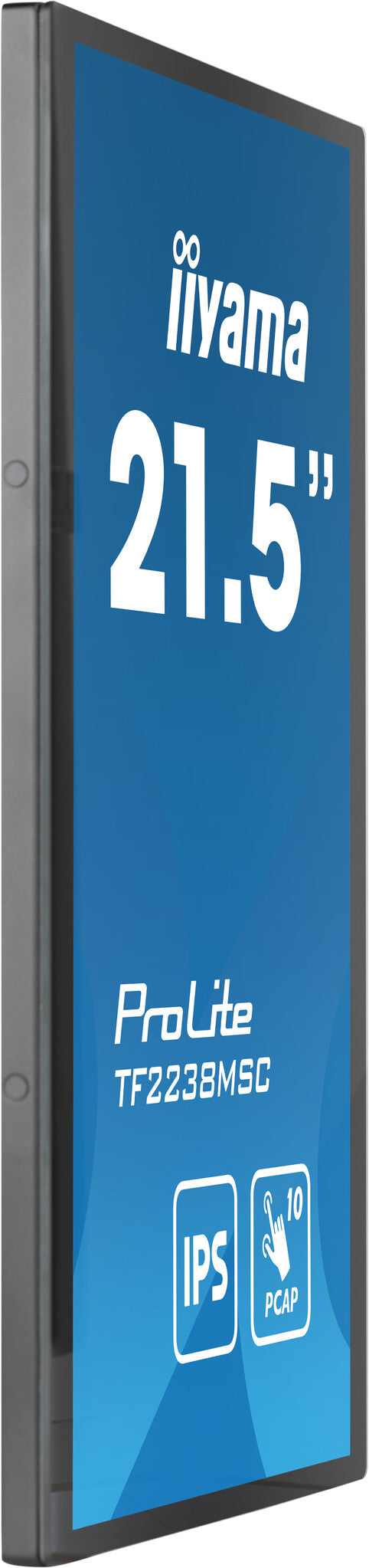

iiyama TF2238MSC-B1 computer monitor 53.3 cm (21") 1920 x 1080 pixels Full HD LED Touchscreen Black

iiyama TF2238MSC-B1 computer monitor 53.3 cm (21") 1920 x 1080 pixels Full HD LED Touchscreen Black

£443.54 GBP
£443.54 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

TF2238MSC-B1

Low stock: 6 left

  • OPTICAL BONDED PCAP
  • OPEN FRAME LFD
  • IPS TECHNOLOGY
  • SCRATCH RESISTANCE
  • SPEAKERS

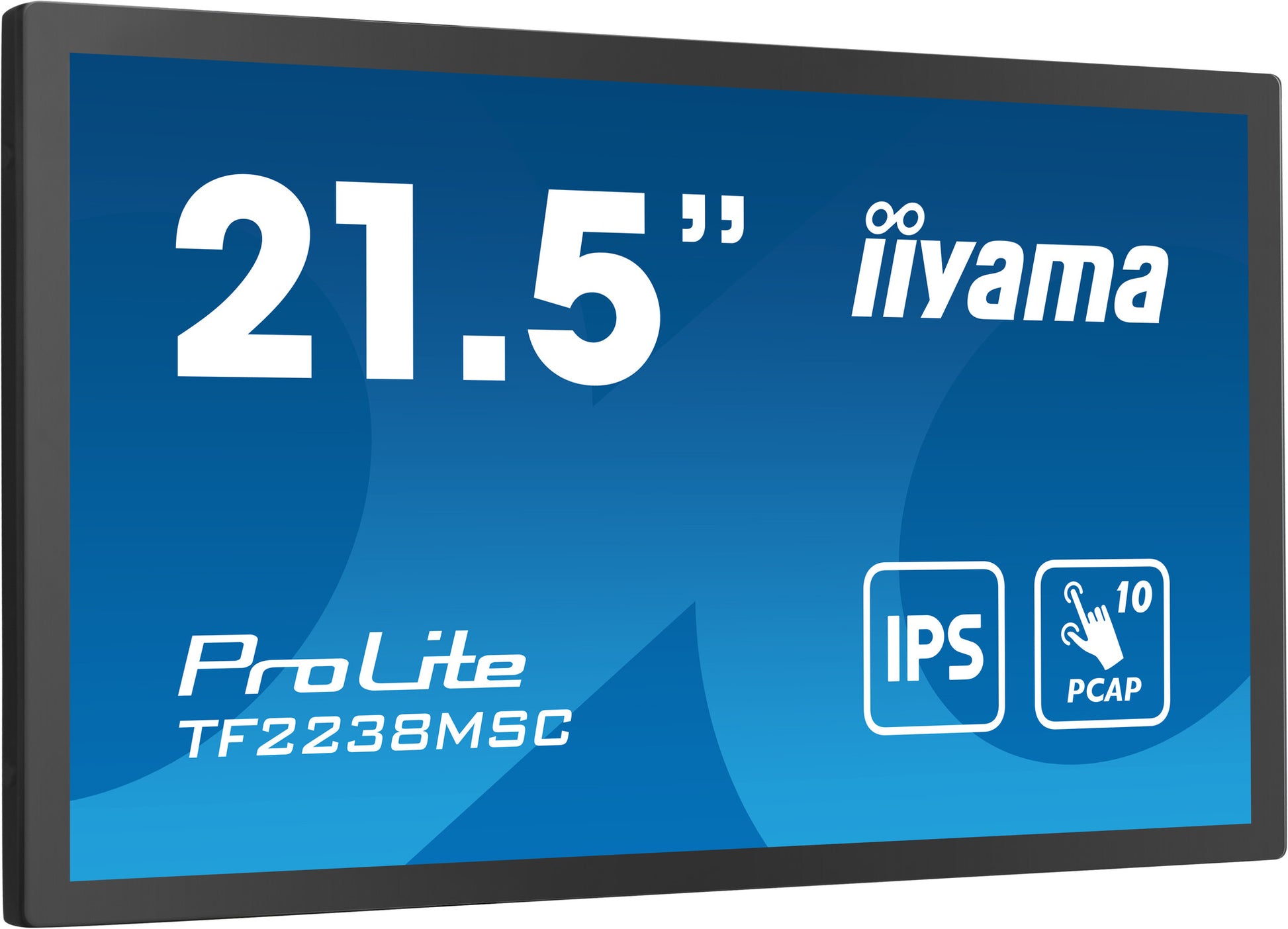

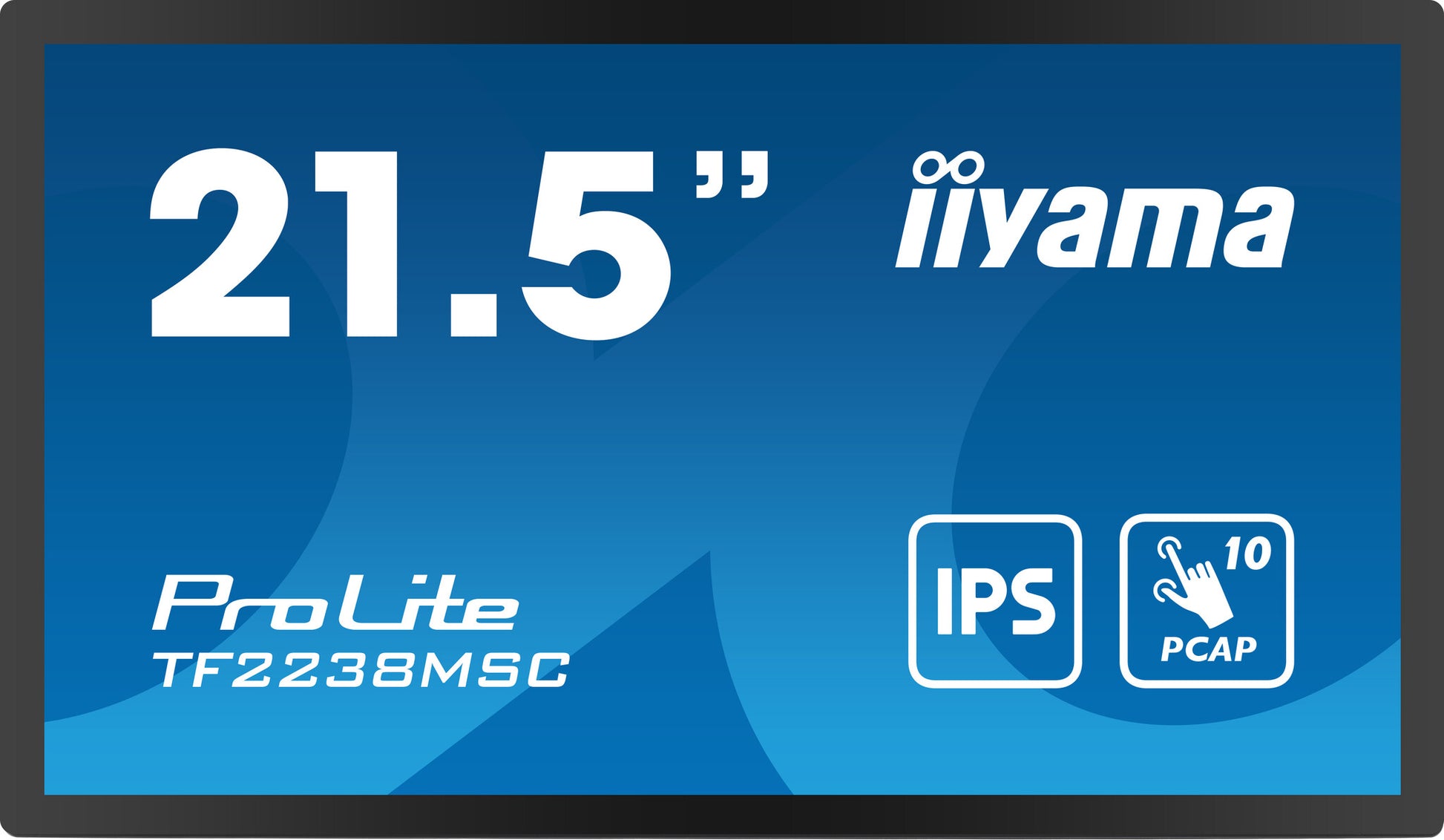

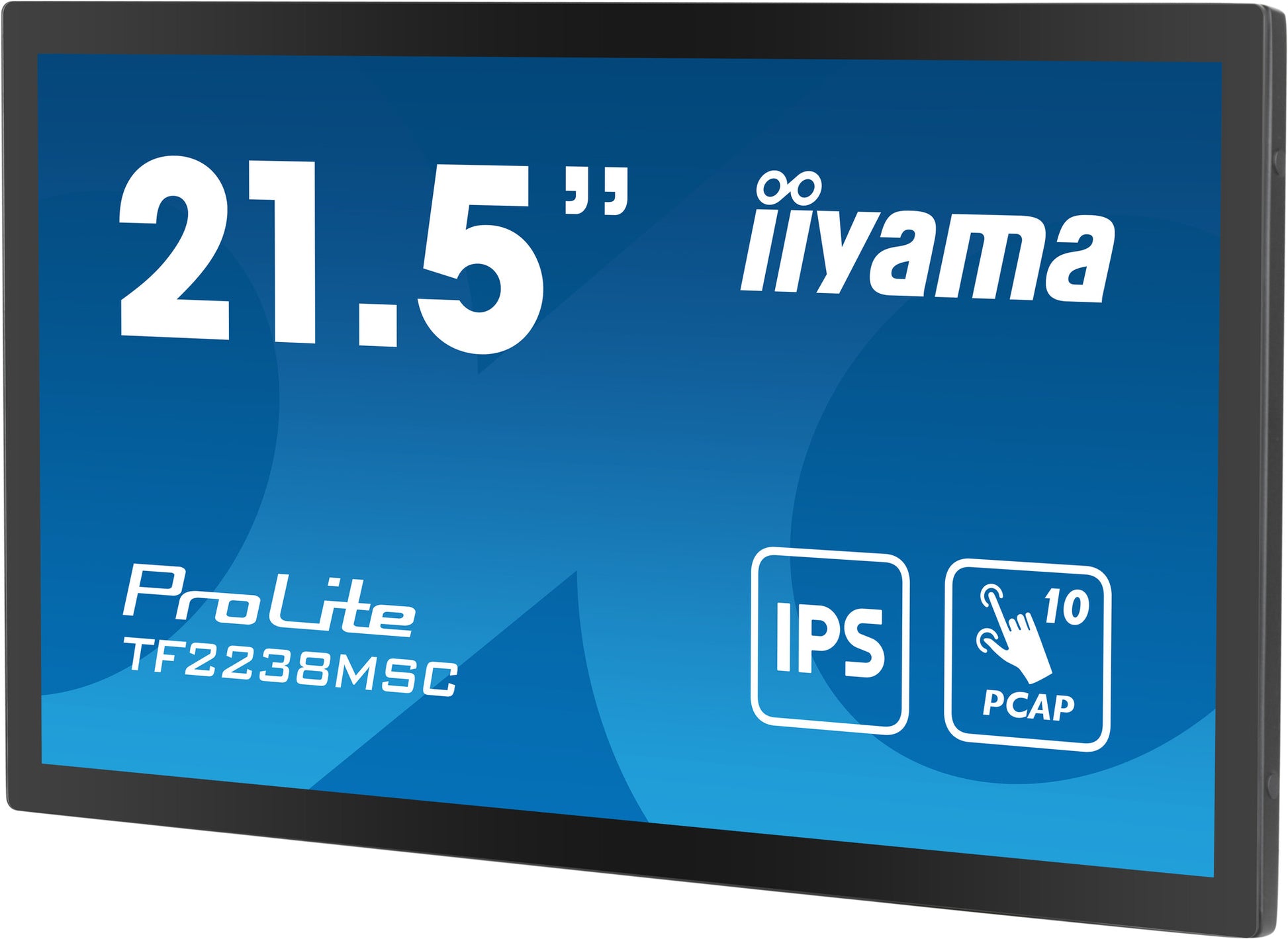

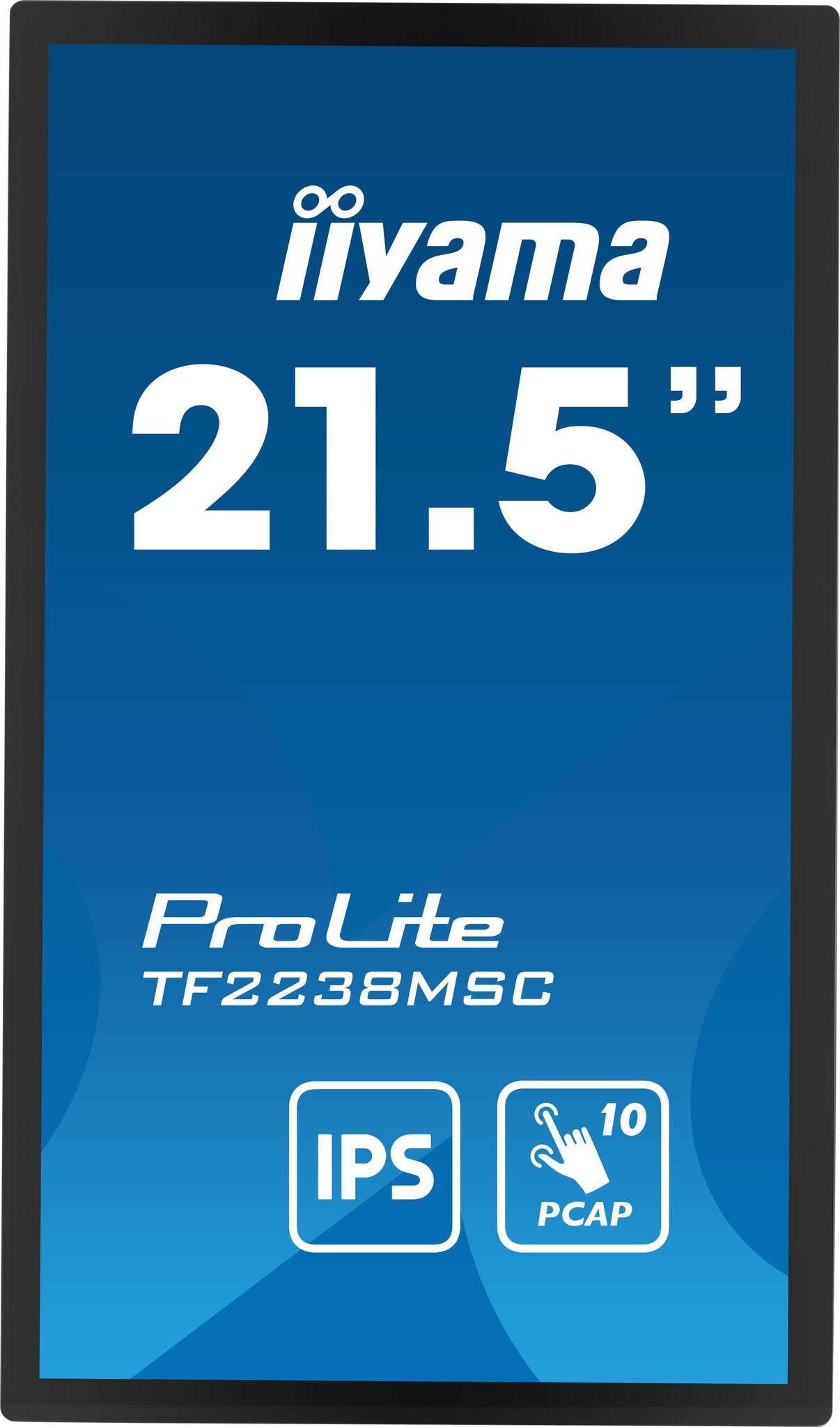

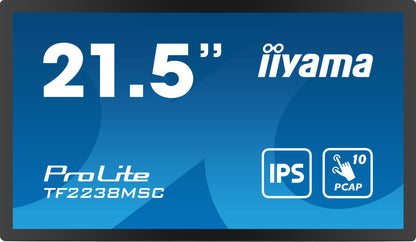

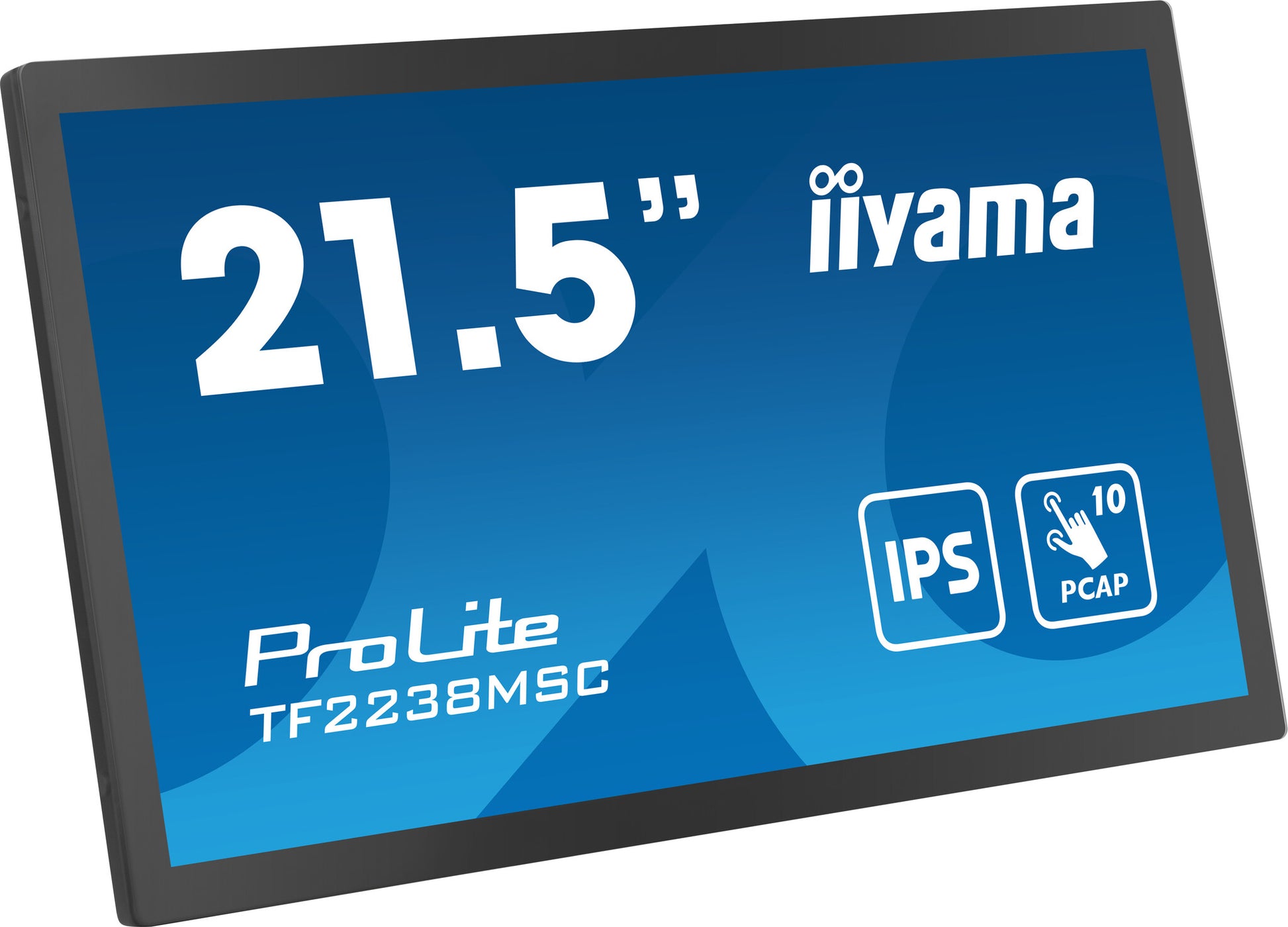

21.5” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing

The Full HD (1920x1080) Open Frame monitor ProLite TF2238MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2238MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for kiosk systems, retail and interactive digital signage installations.

Display
Display diagonal 53.3 cm (21")
Display resolution 1920 x 1080 pixels
Native aspect ratio 16:9
Display technology LED
Touchscreen Yes
HD type Full HD
Panel type IPS
Touchscreen technology Projected capacitive system
Number of simultaneous touchpoints 10
Display brightness (typical) 600 cd/m²
Response time 5 ms
Response time measurement type GTG (Gray to Gray)
Contrast ratio (typical) 1000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 16.7 million colours
Pixel pitch 0.249 x 0.249 mm
Horizontal scan range 30 - 83 kHz
Viewable size, horizontal 47.9 cm
Viewable size, vertical 26 cm
Display diagonal (metric) 54.5 cm
Surface hardness 7H
Display brightness 525 cd/m²
Performance
Low Blue Light technology Yes
Compatible operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Multimedia
Built-in speaker(s) Yes
Number of speakers 2
RMS rated power 4 W
Design
Product colour Black
Front bezel colour Black
International Protection (IP) code IP1X
Glass thickness 3.6 mm
Certification CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA

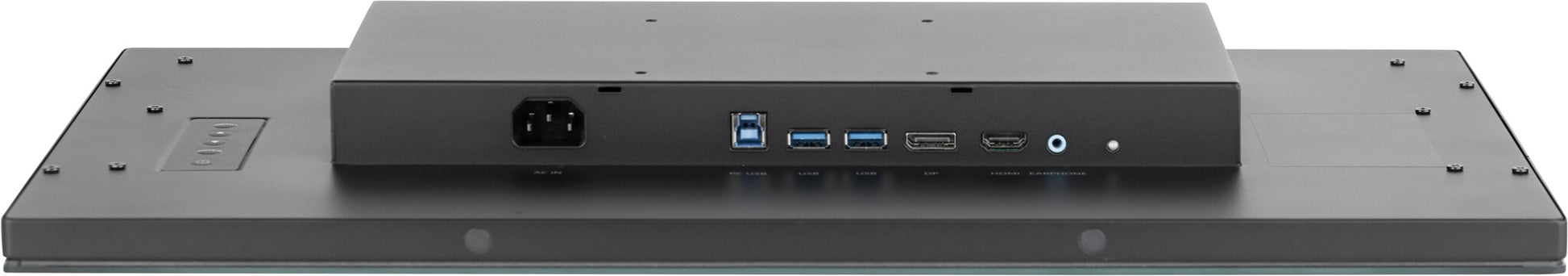

Ports & interfaces
Built-in USB hub Yes
USB version 3.2 Gen 1 (3.1 Gen 1)
USB hub version 3.2 Gen 1 (3.1 Gen 1)
Number of downstream ports 2
USB Touch port Yes
DVI port No
HDMI ports quantity 1
DisplayPorts quantity 1
HDCP Yes
Network
Wi-Fi No
Ethernet LAN No
Ergonomics

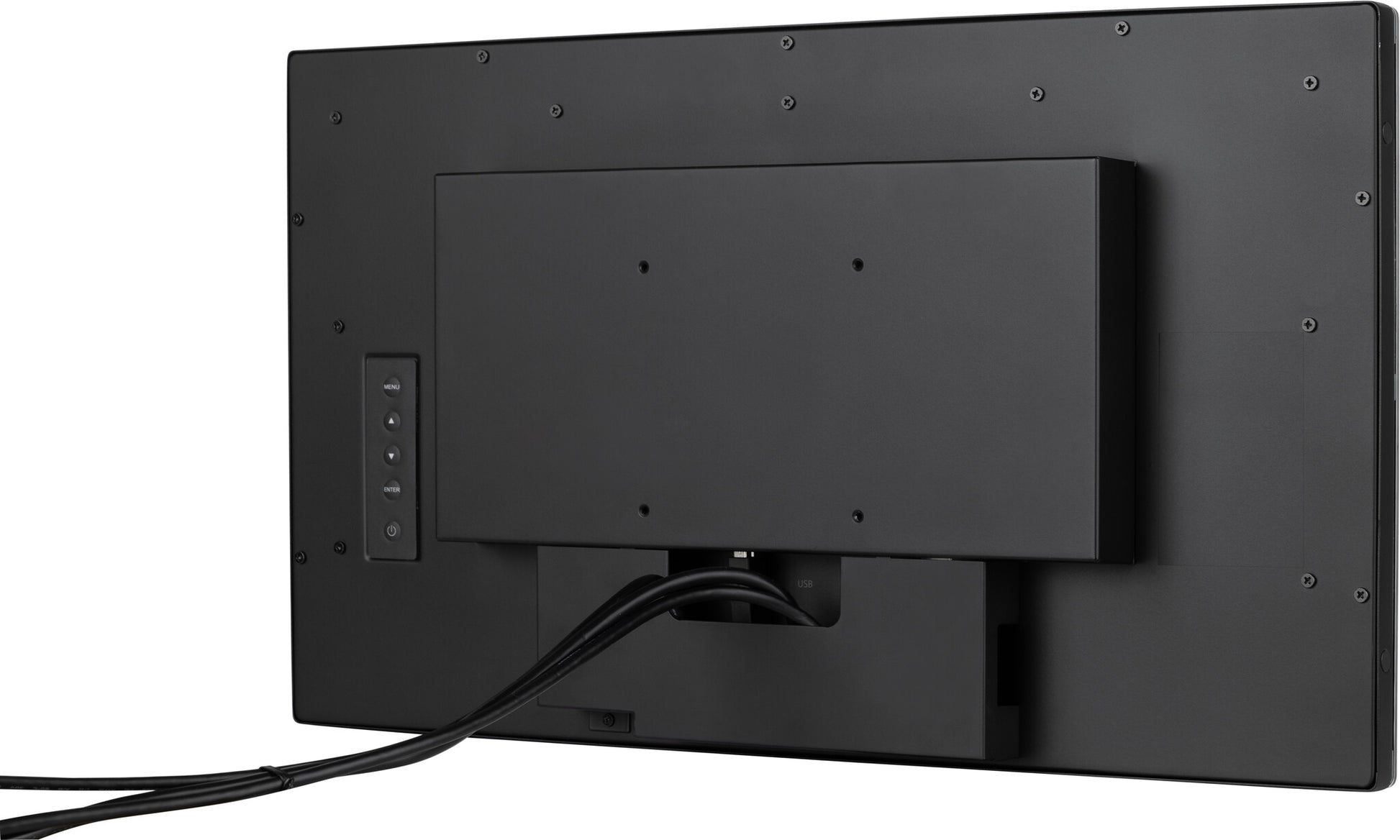

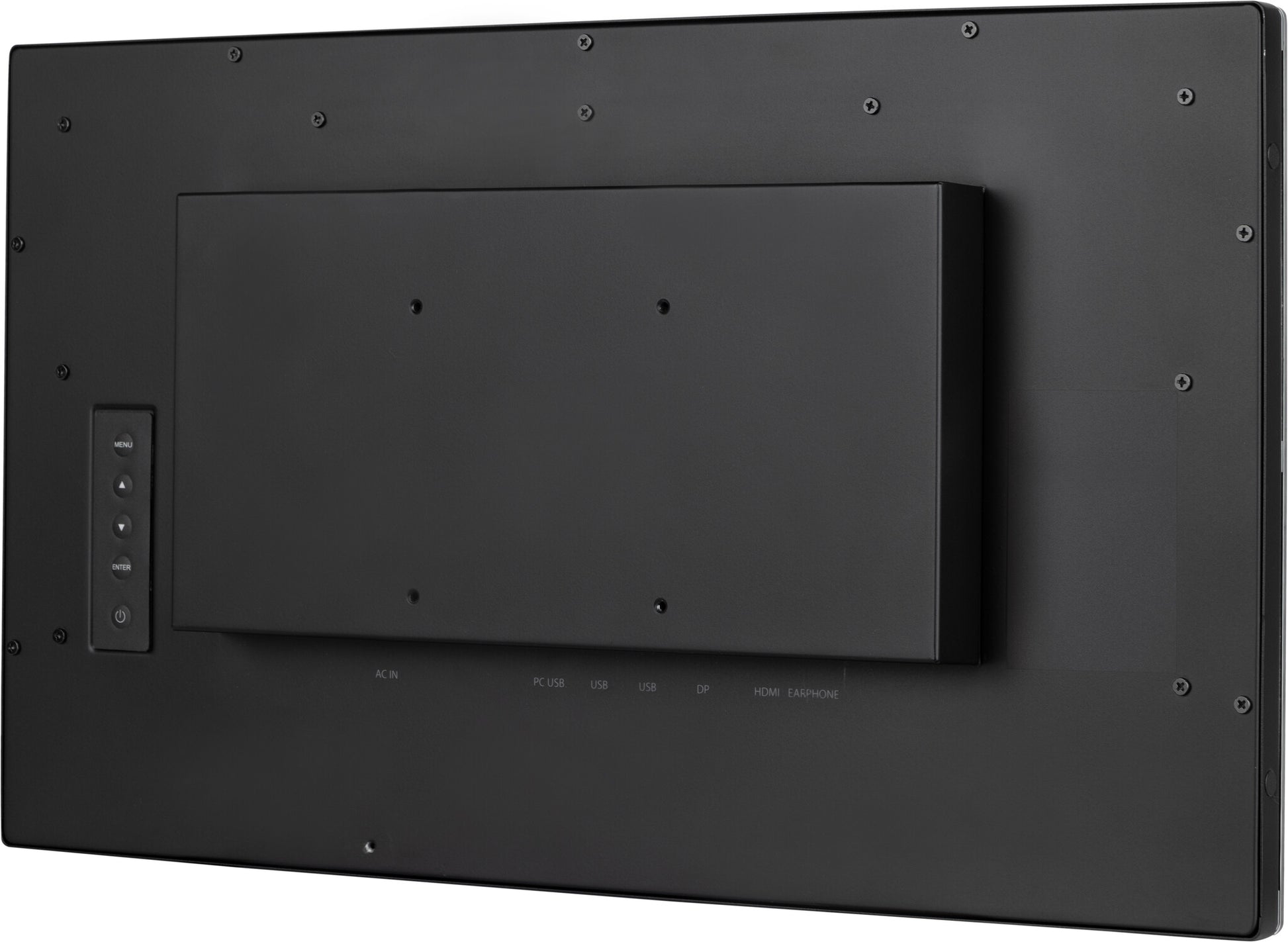

VESA mounting Yes
Panel mounting interface 100 x 100 mm
On Screen Display (OSD) Yes
On Screen Display (OSD) languages Traditional Chinese, German, English, French, Japanese, Dutch, Polish, Russian
Power
Energy efficiency class (SDR) D
Energy efficiency class (HDR) Not available
Energy consumption (SDR) per 1000 hours 12.9 kWh
Power consumption (typical) 17 W
Power consumption (standby) 1.5 W
Power consumption (off) 0.3 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power supply type Internal
Packaging content
Cables included AC, USB, HDMI
Quick start guide Yes
Weight & dimensions
Width (with stand) 512.5 mm
Depth (with stand) 47 mm
Height (with stand) 300 mm
Weight (with stand) 5.1 kg
Bezel width (side) 1.7 cm
Bezel width (top) 1.98 cm
Bezel width (bottom) 1.98 cm
Packaging data
Package width 572 mm
Package depth 112 mm
Package height 364 mm
Package weight 6.4 kg
Sustainability
Sustainability certificates ErP
Technical details
Compliance certificates CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Built-in processor No
Placement supported Indoor
Brightness 525 cd/m²
USB ports quantity 2
Active display area (W x H) 479 x 260 mm
Depth 47 mm
Width 512.5 mm
Height 300 mm
Weight 5.1 kg
Mean time between failures (MTBF) 50000 h

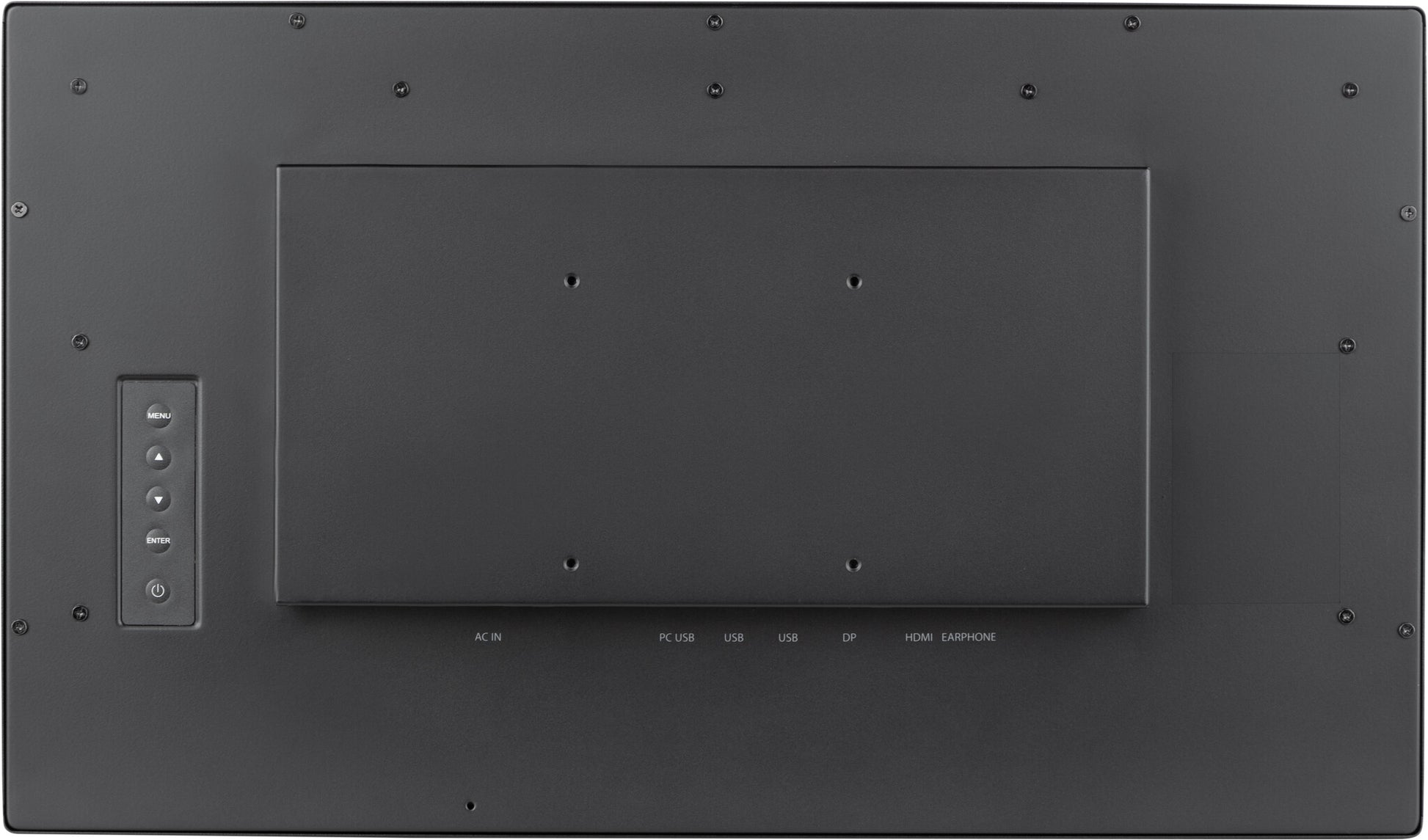

Control panel Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power
User controls Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch)
Touch method stylus, finger, glove
