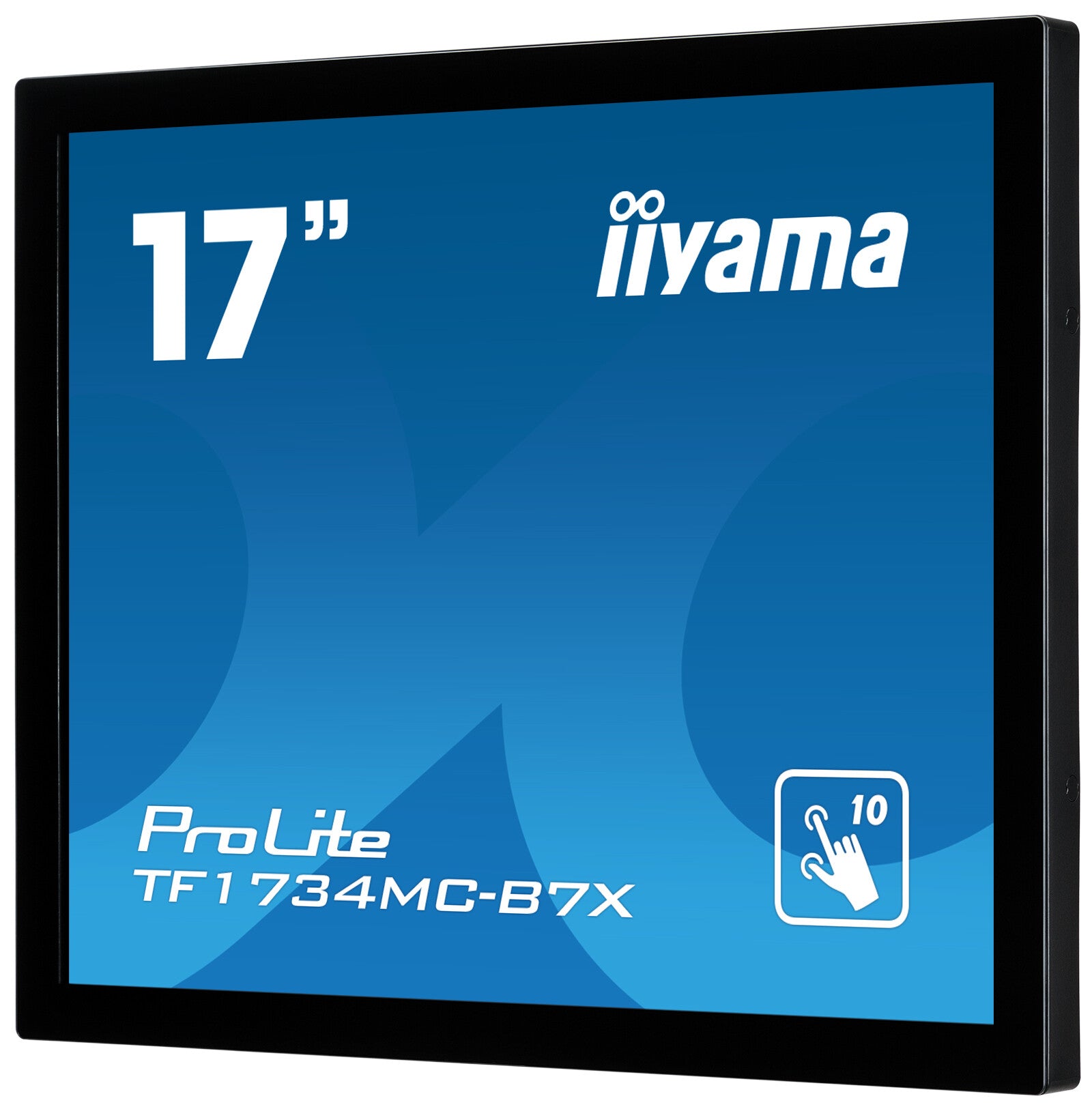

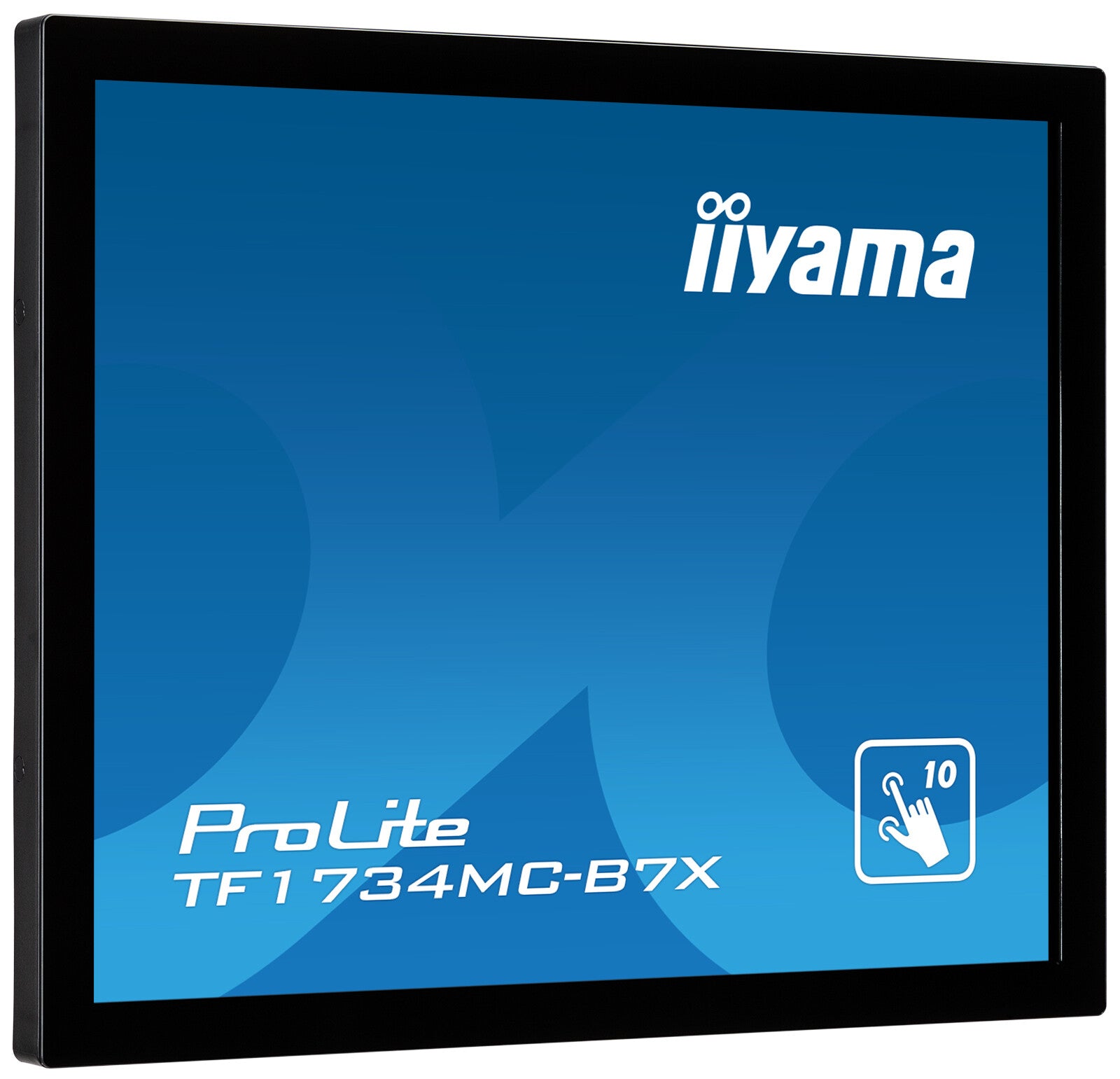

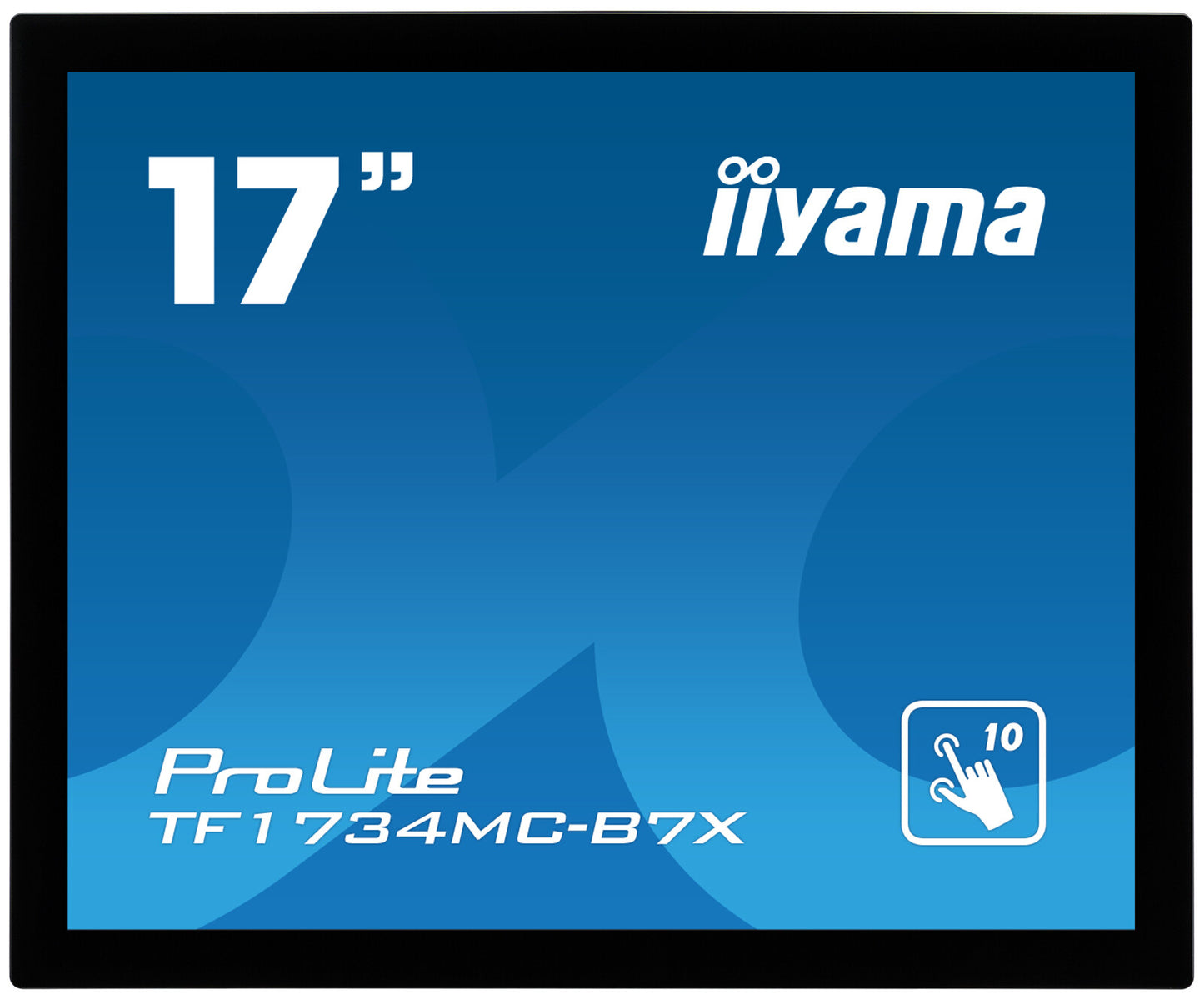

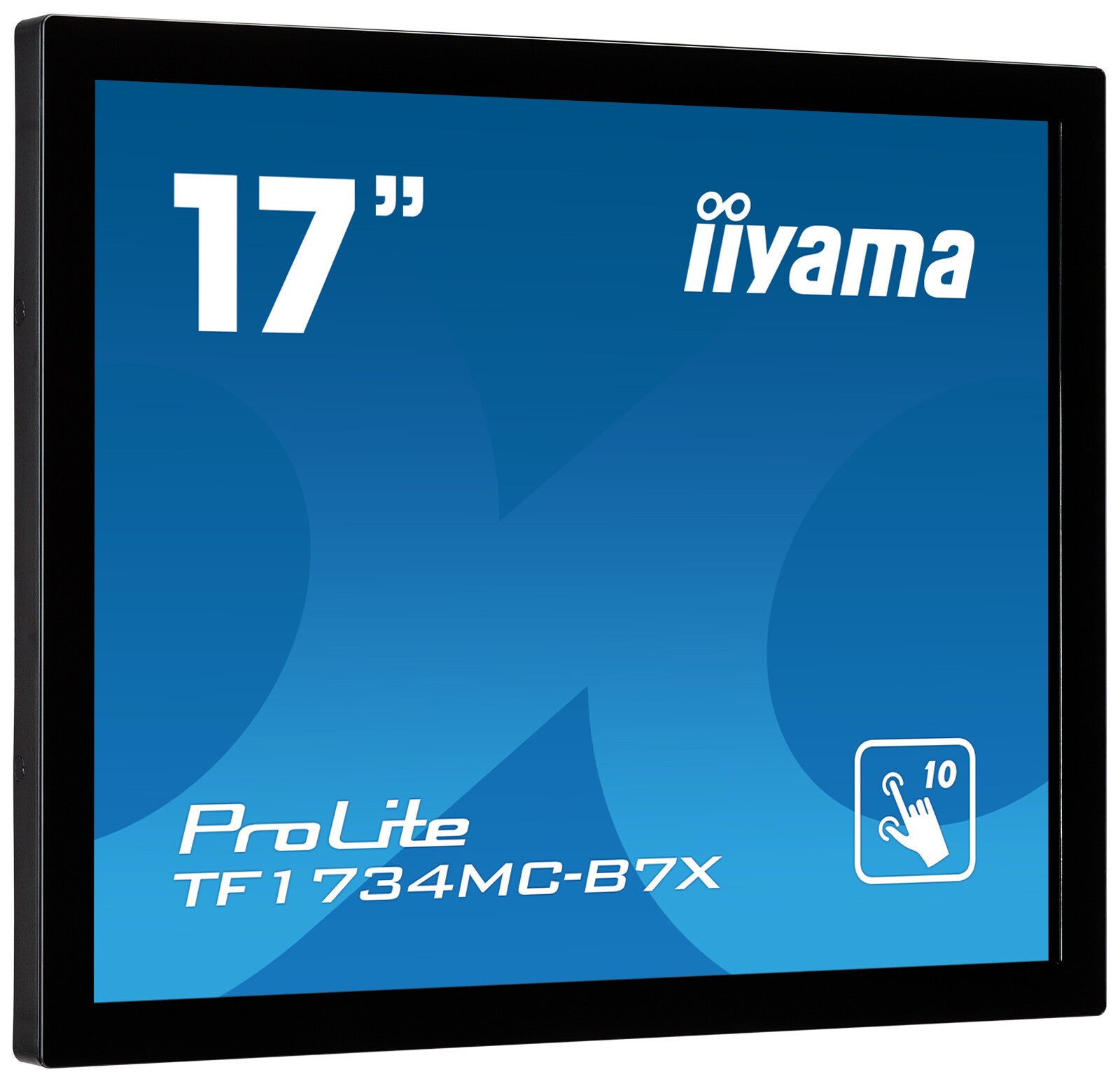

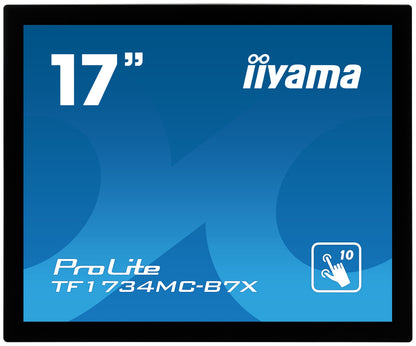

iiyama TF1734MC-B7X computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LED Touchscreen Black

iiyama TF1734MC-B7X computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LED Touchscreen Black

£575.92 GBP
£575.92 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

TF1734MC-B7X

Low stock: 4 left

  • Touchscreen 43.2 cm (17") LED TN
  • SXGA 1280 x 1024 pixels 5:4
  • 5 ms 350 cd/m² 1000:1
  • E 11 kWh 13 W
17’’ 10pt touch Open Frame monitor with Touch Through-Glass function

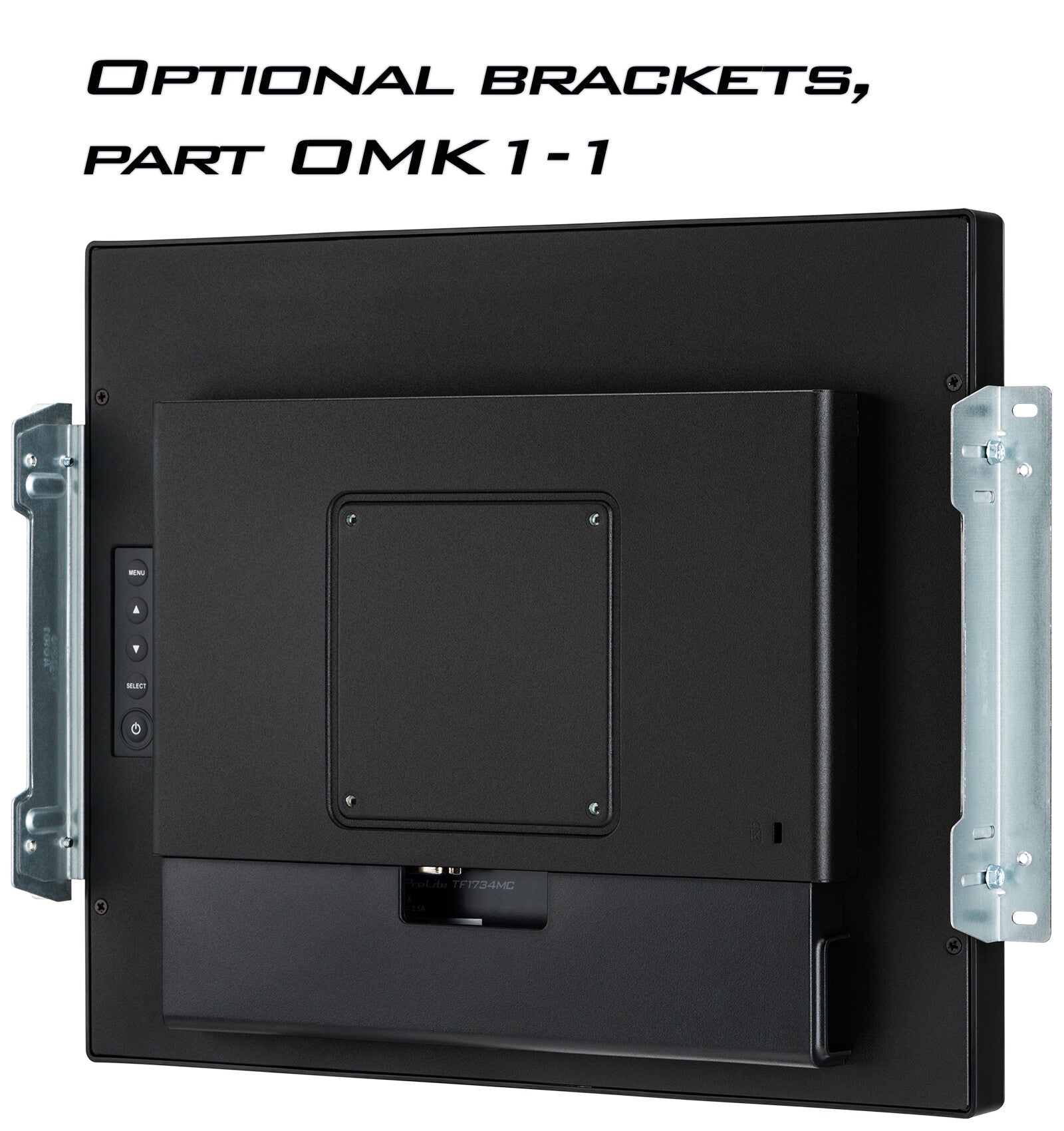

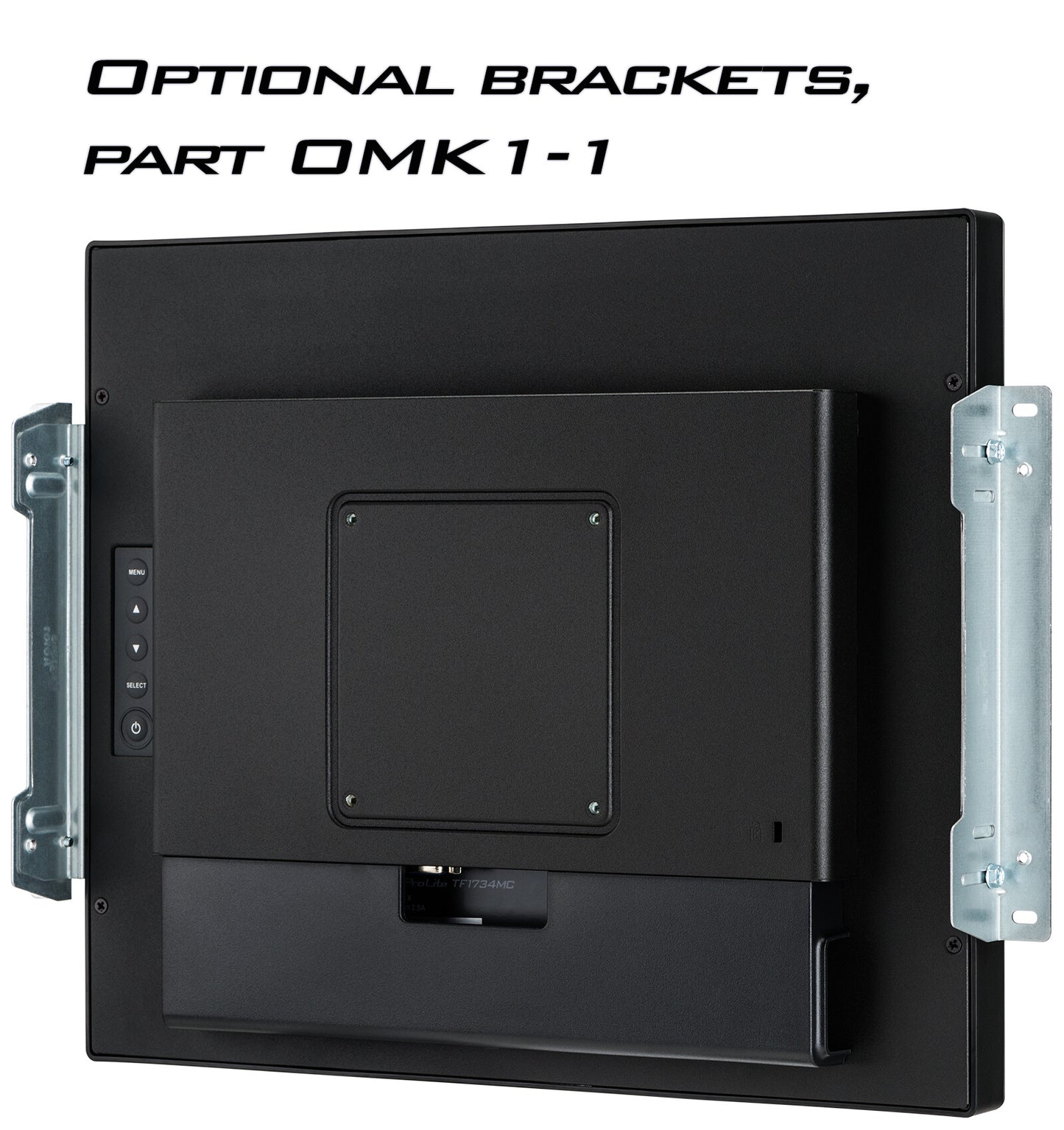

The ProLite TF1734MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).

Display
Display brightness 350 cd/m²
Colour depth 8 bit
Display diagonal (metric) 43 cm
Viewable size diagonal 43 cm
Viewable size, vertical 27.1 cm
Viewable size, horizontal 33.8 cm
Horizontal scan range 31.4 - 80 kHz
Pixel pitch 0.264 x 0.264 mm
Display number of colours 16.7 million colours
Viewing angle, vertical 160°
Viewing angle, horizontal 170°
Contrast ratio (typical) 1000:1
Aspect ratio 5:4
Supported video modes 1024p
Supported graphics resolutions 1280 x 1024 (SXGA)
Screen shape Flat
Response time 5 ms
Display brightness (typical) 350 cd/m²
Number of simultaneous touchpoints 10
Touch technology Multi-touch
Touchscreen technology Projected capacitive system
Panel type TN
HD type SXGA
Touchscreen Yes
Display technology LED
Native aspect ratio 5:4
Display resolution 1280 x 1024 pixels
Display diagonal 43.2 cm (17")
Performance
AMD FreeSync No
NVIDIA G-SYNC No
Multimedia
Built-in microphone No
Built-in camera No
Design
Certification CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Glass thickness 3 mm
International Protection (IP) code IP65
Front bezel colour Black
Product colour Black

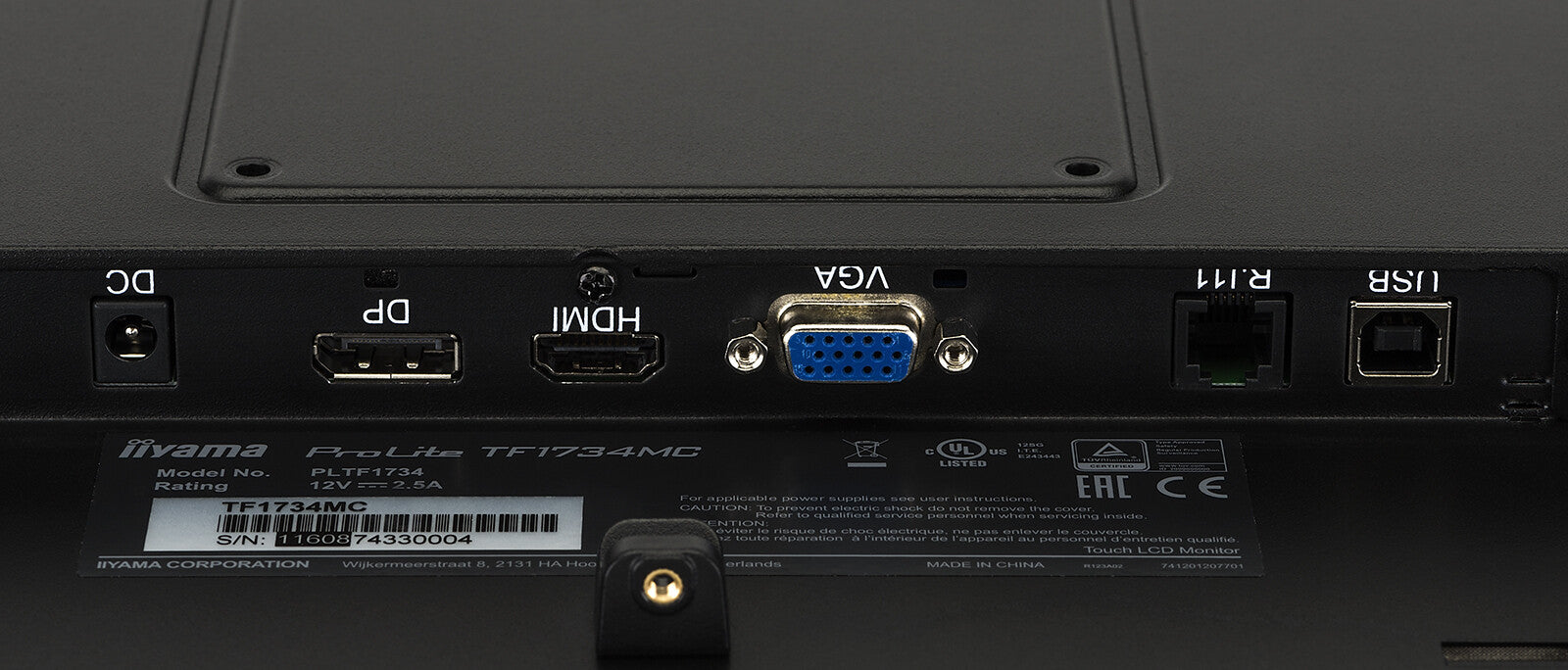

Ports & interfaces
HDCP Yes
DisplayPorts quantity 1
HDMI ports quantity 1
HDMI Yes
VGA (D-Sub) ports quantity 1
USB Touch ports quantity 1
USB Touch port Yes
USB required Yes
Ergonomics
Plug and Play Yes
Number of OSD languages 7
On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
On Screen Display (OSD) Yes

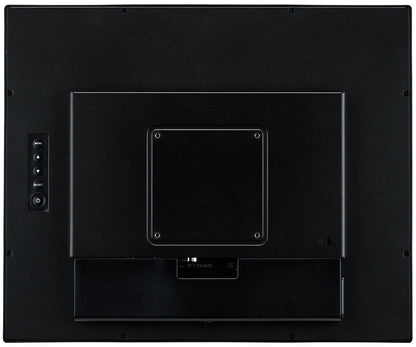

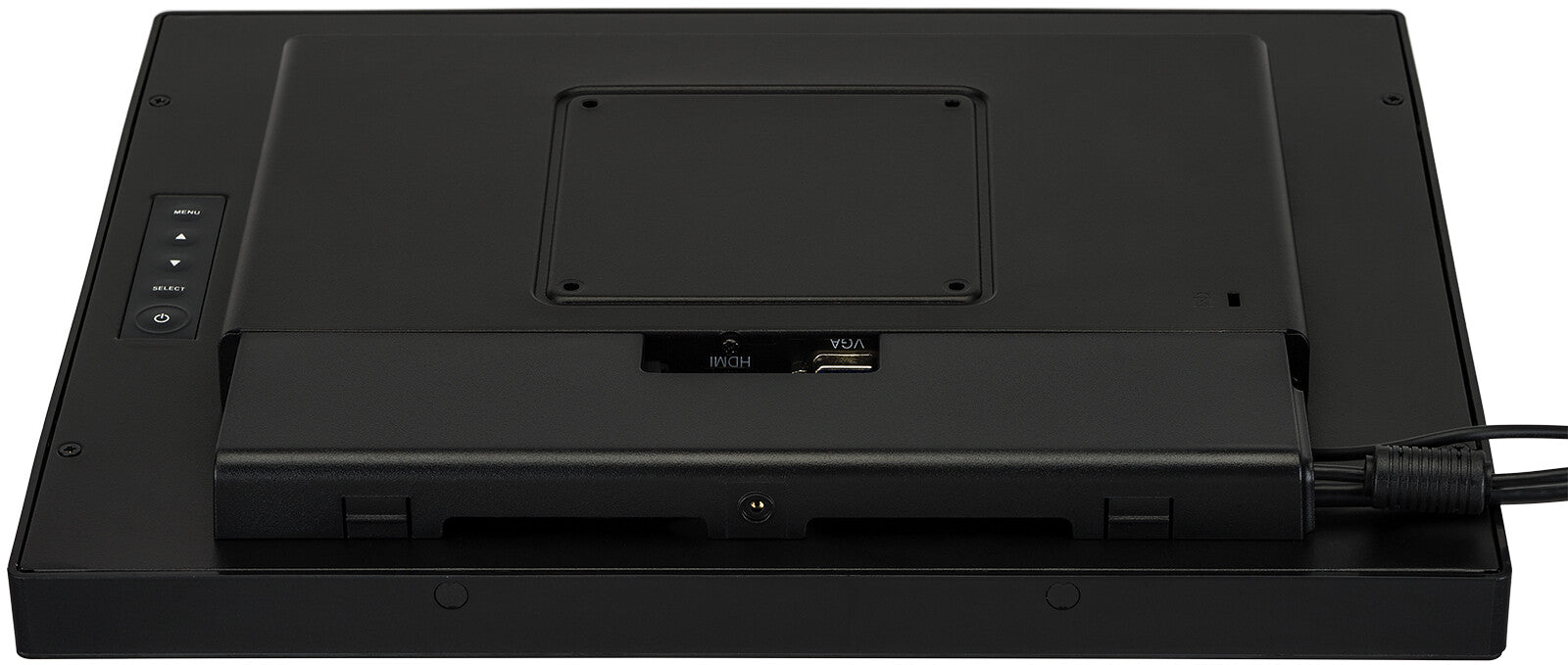

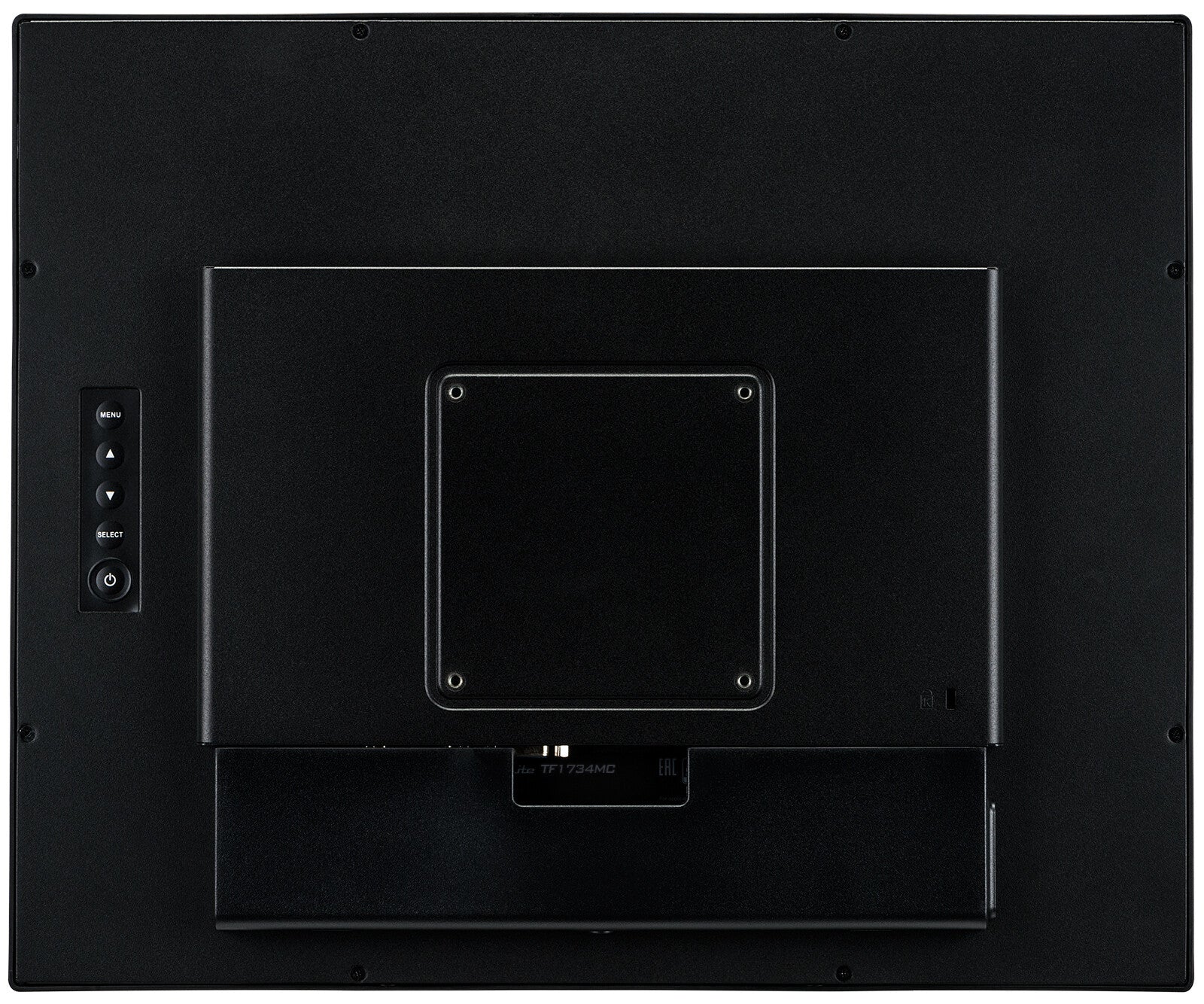

Panel mounting interface 100 x 100 mm
VESA mounting Yes
Power
Energy efficiency scale A to G
Power supply type External
AC adapter output voltage 12 V
Power consumption (off) 0.3 W
Power consumption (standby) 0.6 W
Power consumption (typical) 13 W
Energy consumption (SDR) per 1000 hours 11 kWh
Energy efficiency class (HDR) Not available
Energy efficiency class (SDR) E
Packaging content
Quick start guide Yes

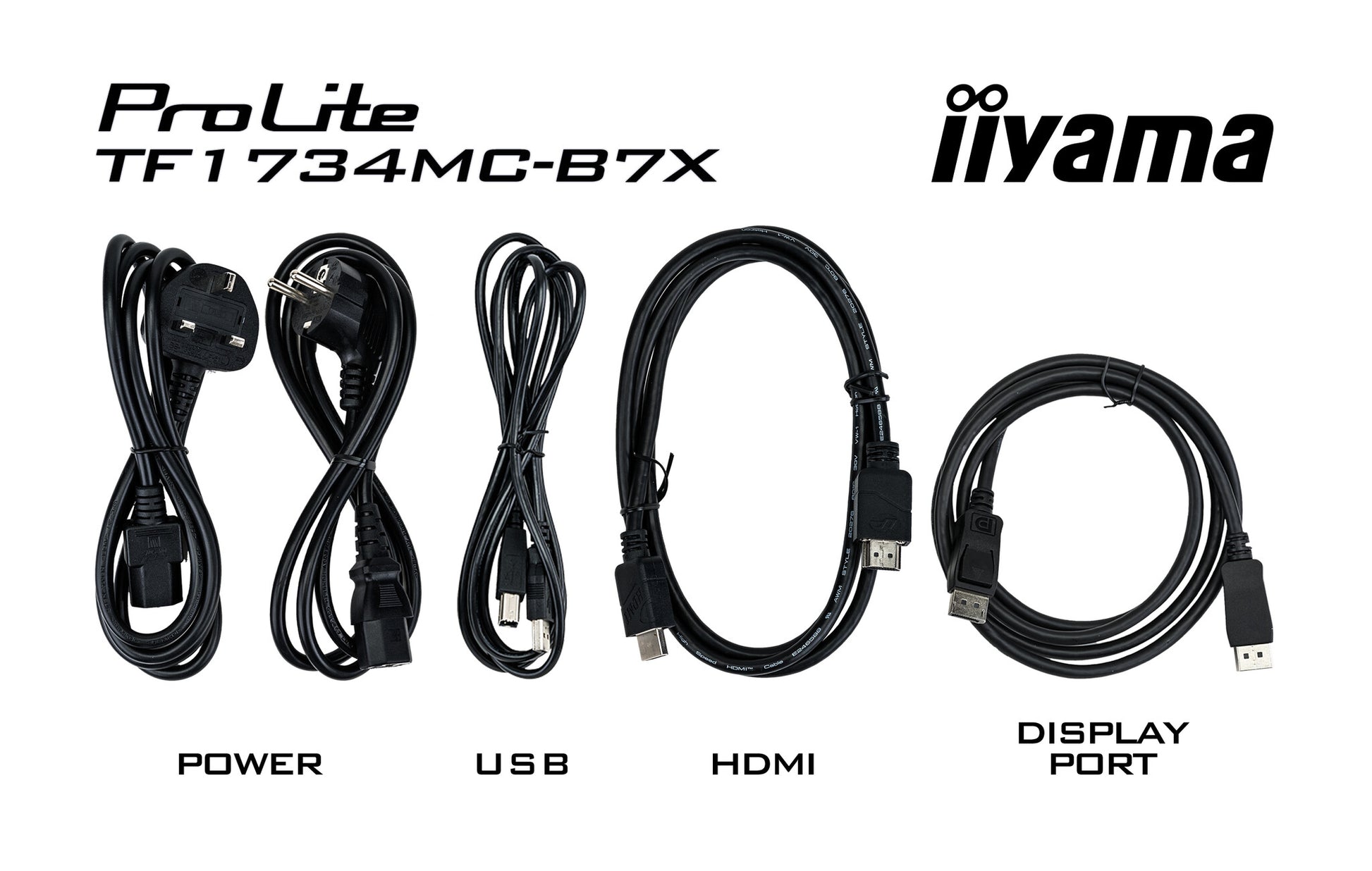

Cables included AC, DisplayPort, HDMI, USB
Weight & dimensions
Weight (without stand) 3.6 kg
Height (without stand) 307 mm

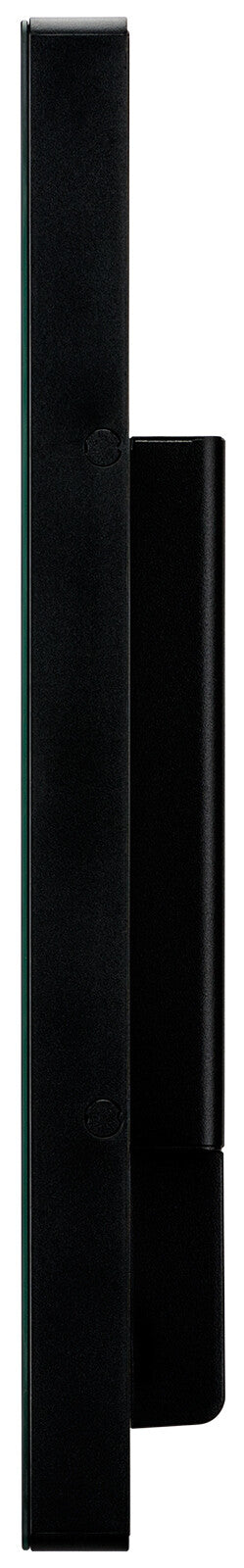

Depth (without stand) 47.5 mm
Width (without stand) 369 mm
Weight (with stand) 3.6 kg
Height (with stand) 307 mm
Depth (with stand) 47.5 mm
Width (with stand) 369 mm
Packaging data
Package weight 4.9 kg
Package height 387 mm
Package depth 455 mm
Package width 455 mm
Logistics data
Harmonized System (HS) code 85285210
Other features
Display viewable area (HxV) 338 x 270 mm
Connection to PC Yes
Placement supported Horizontal/Vertical
