Energy efficiency class (SDR): E ErP CB, CE, cULus, EAC, REACH, RoHS, WEEE
Open Frame PCAP 10 point touch screen equipped with touch through glass function

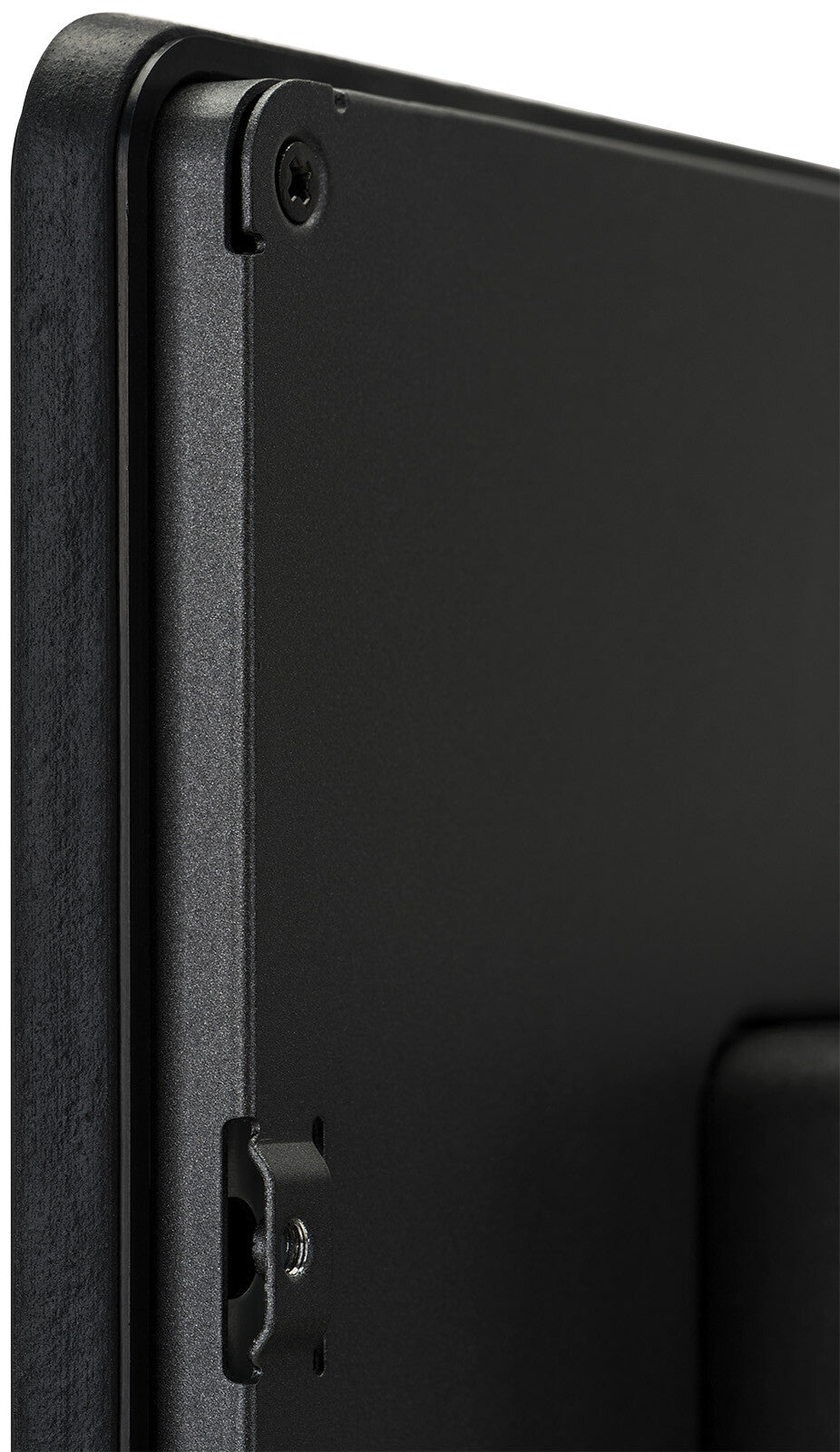

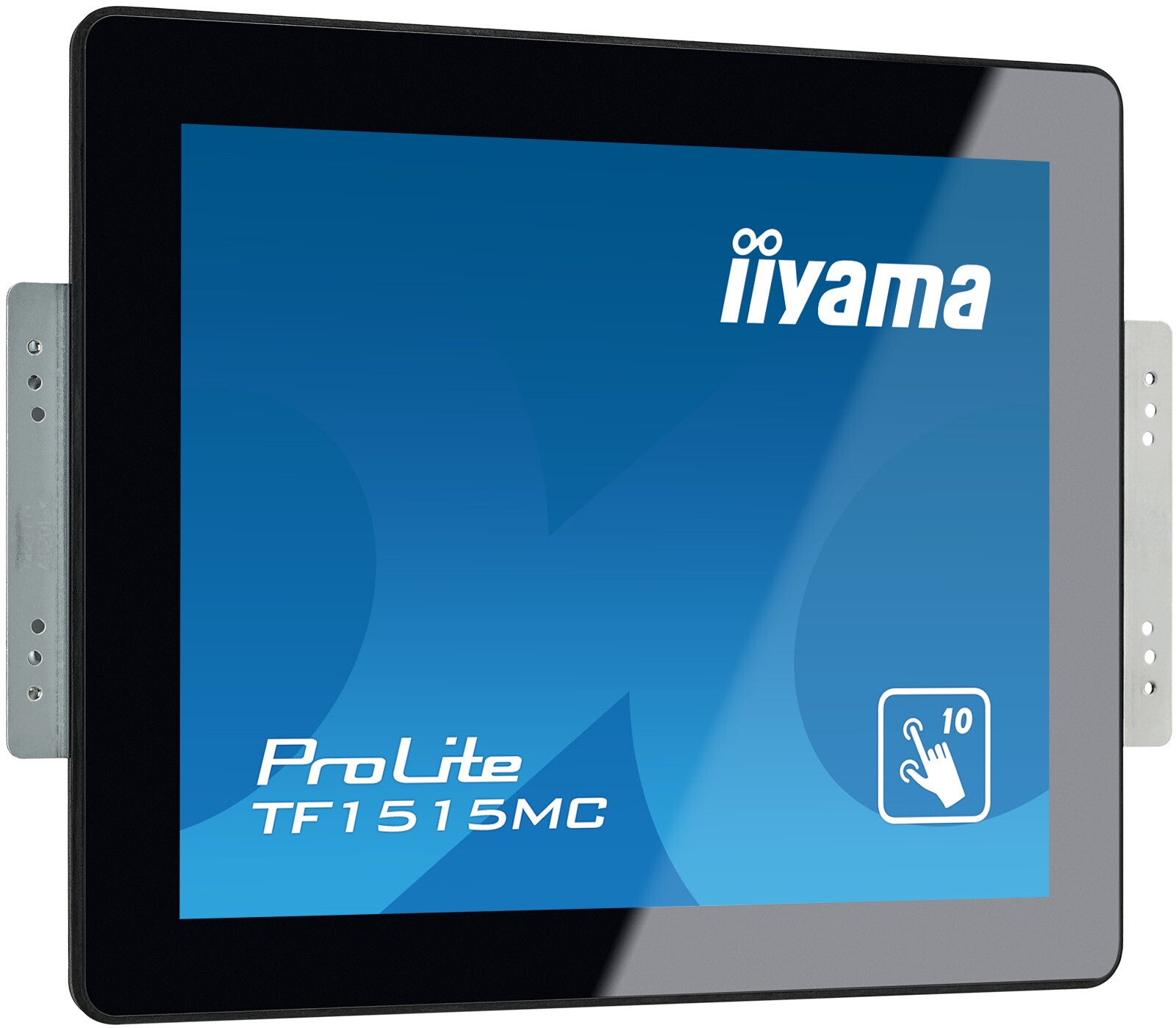

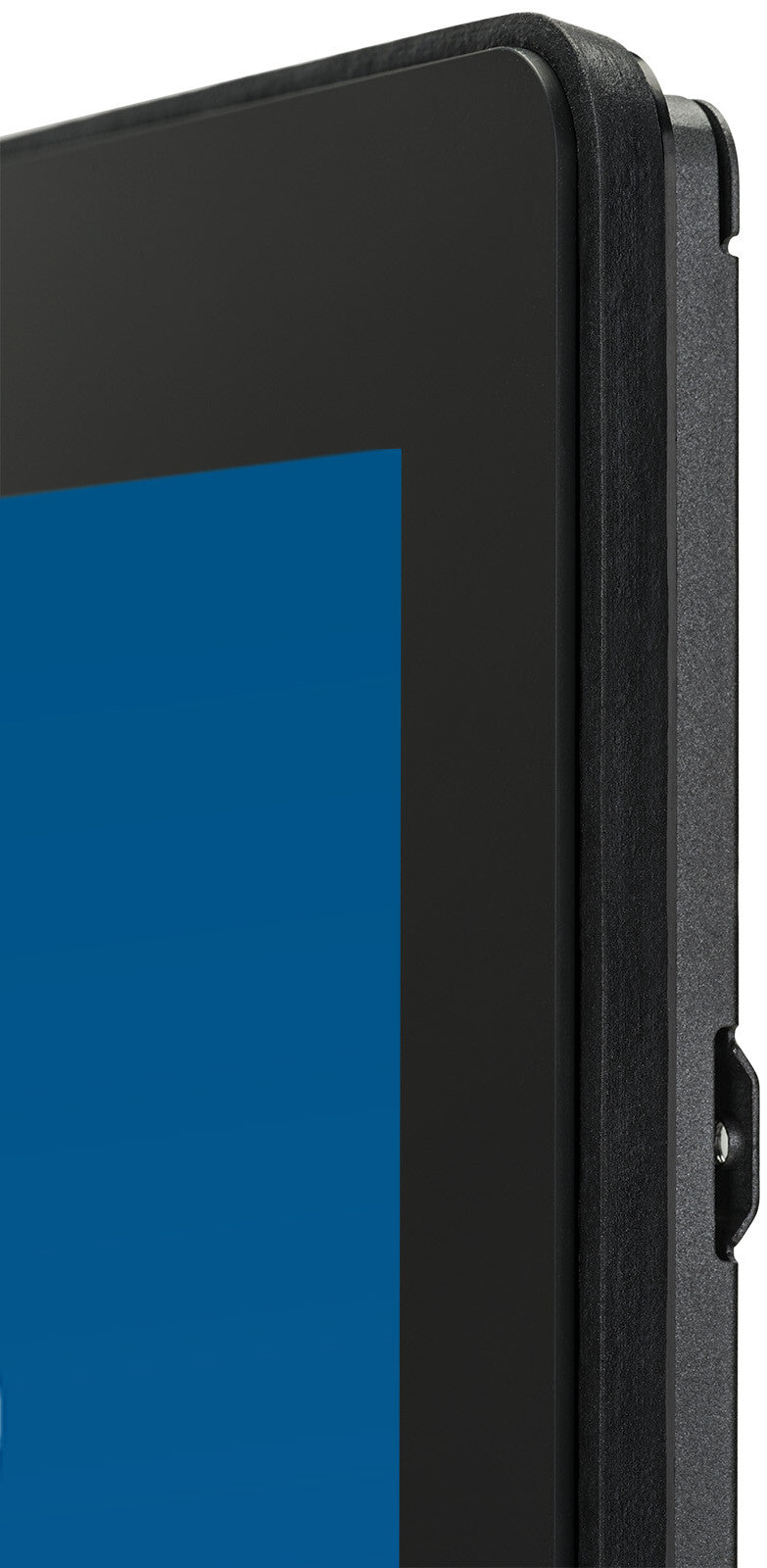

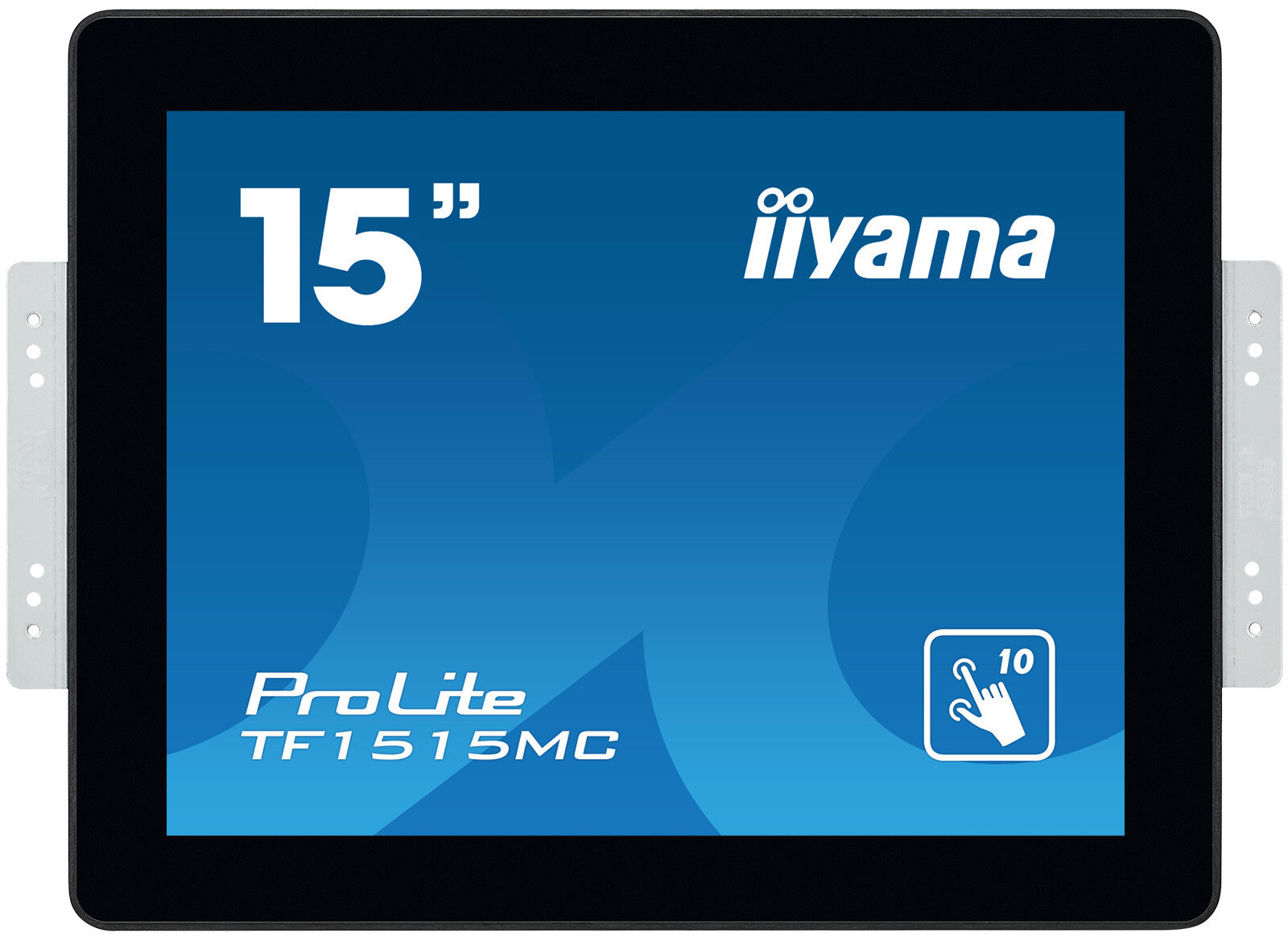

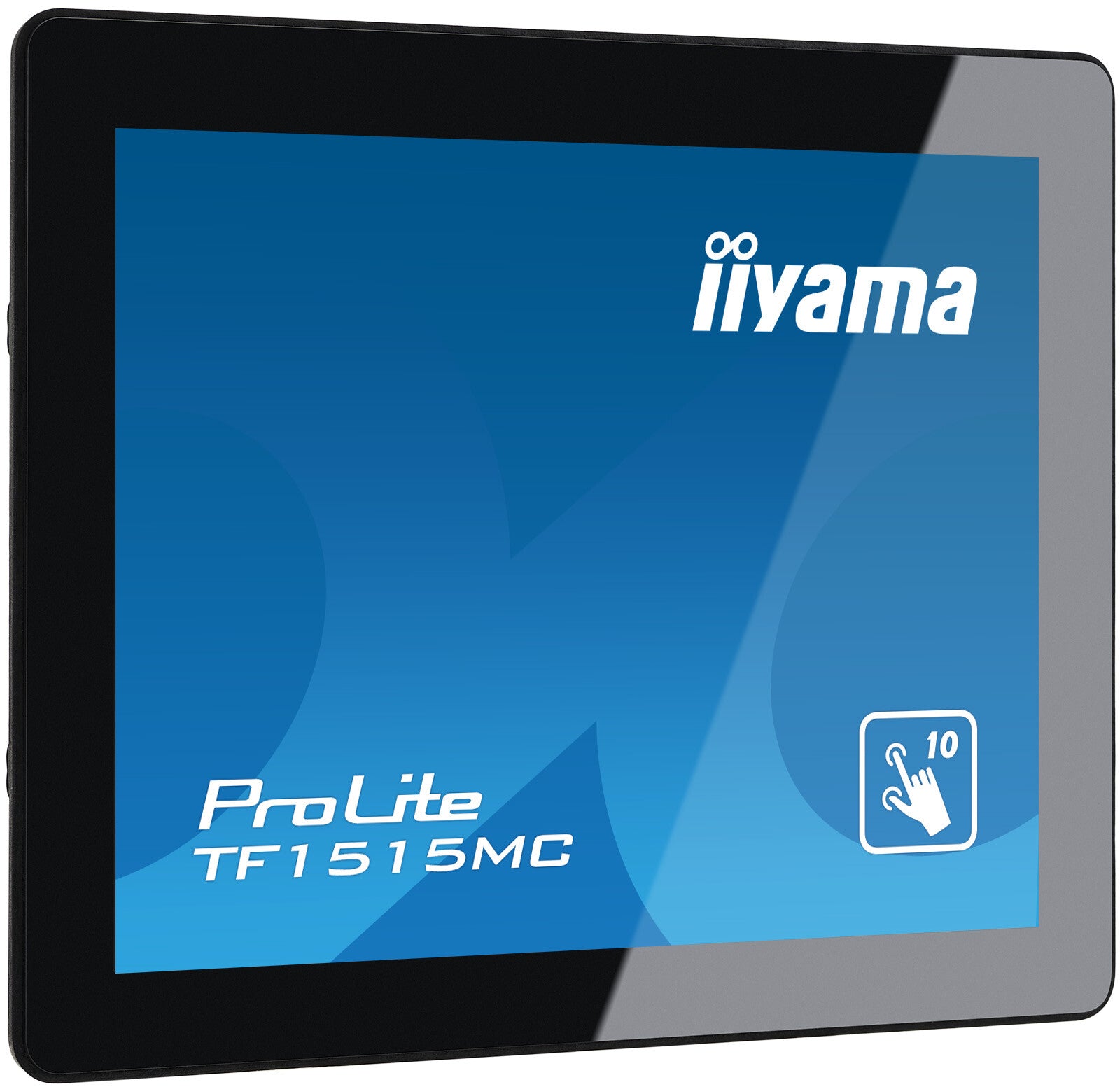

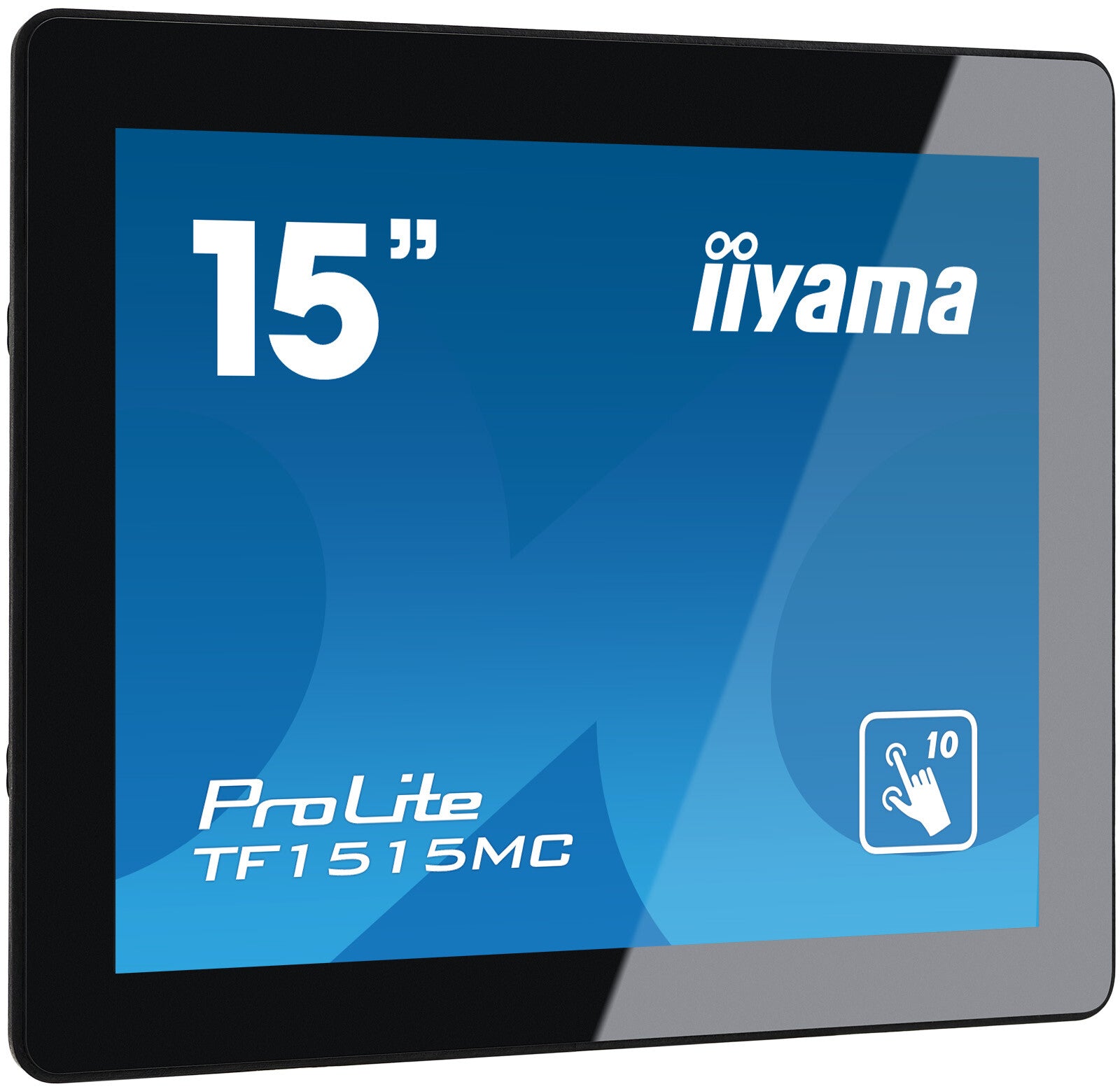

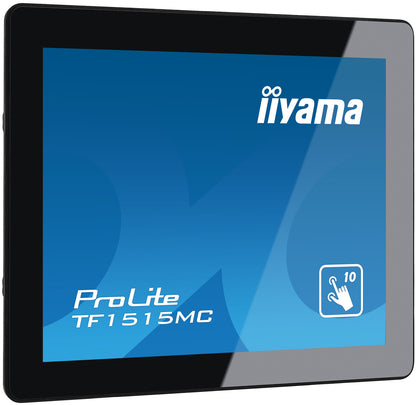

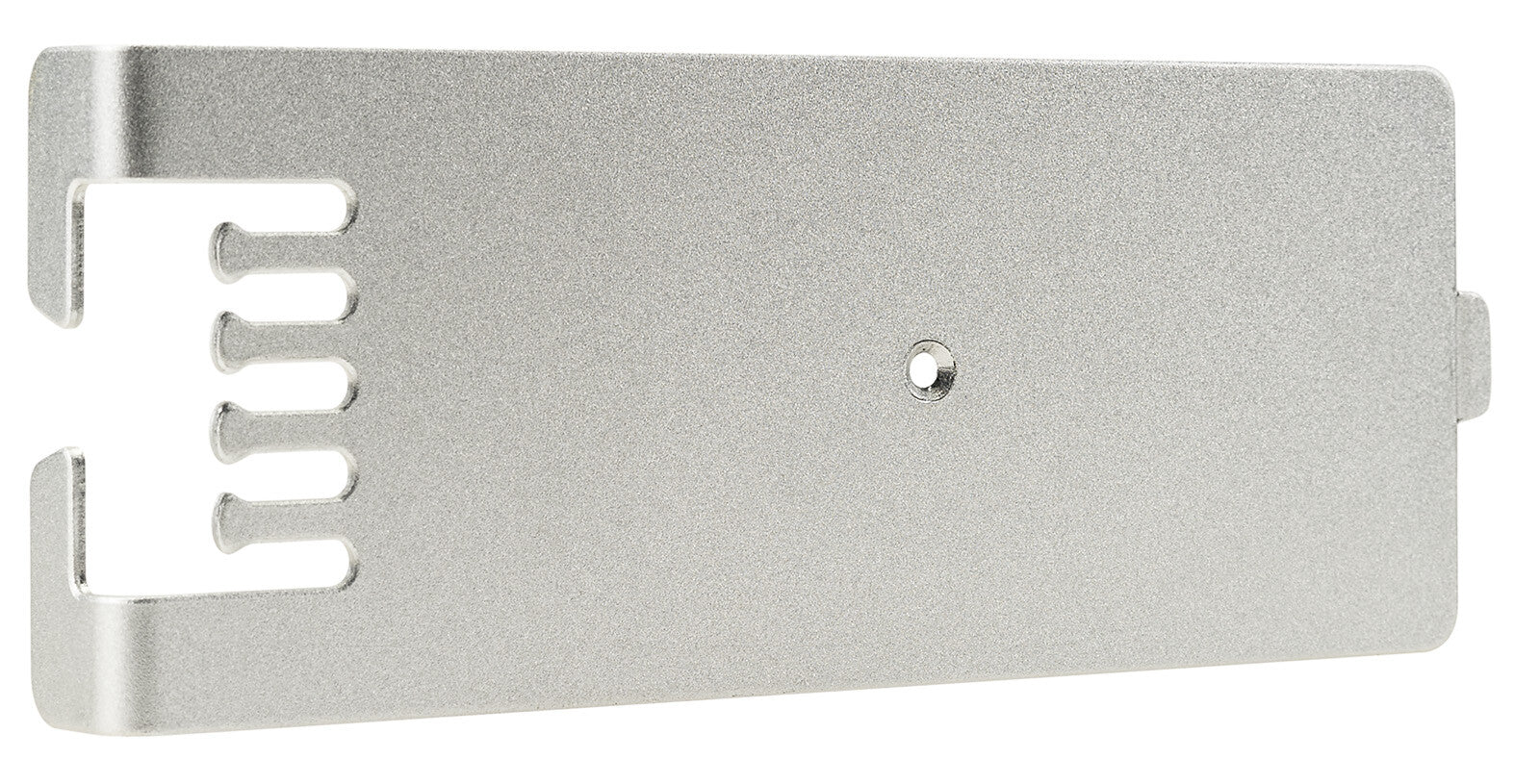

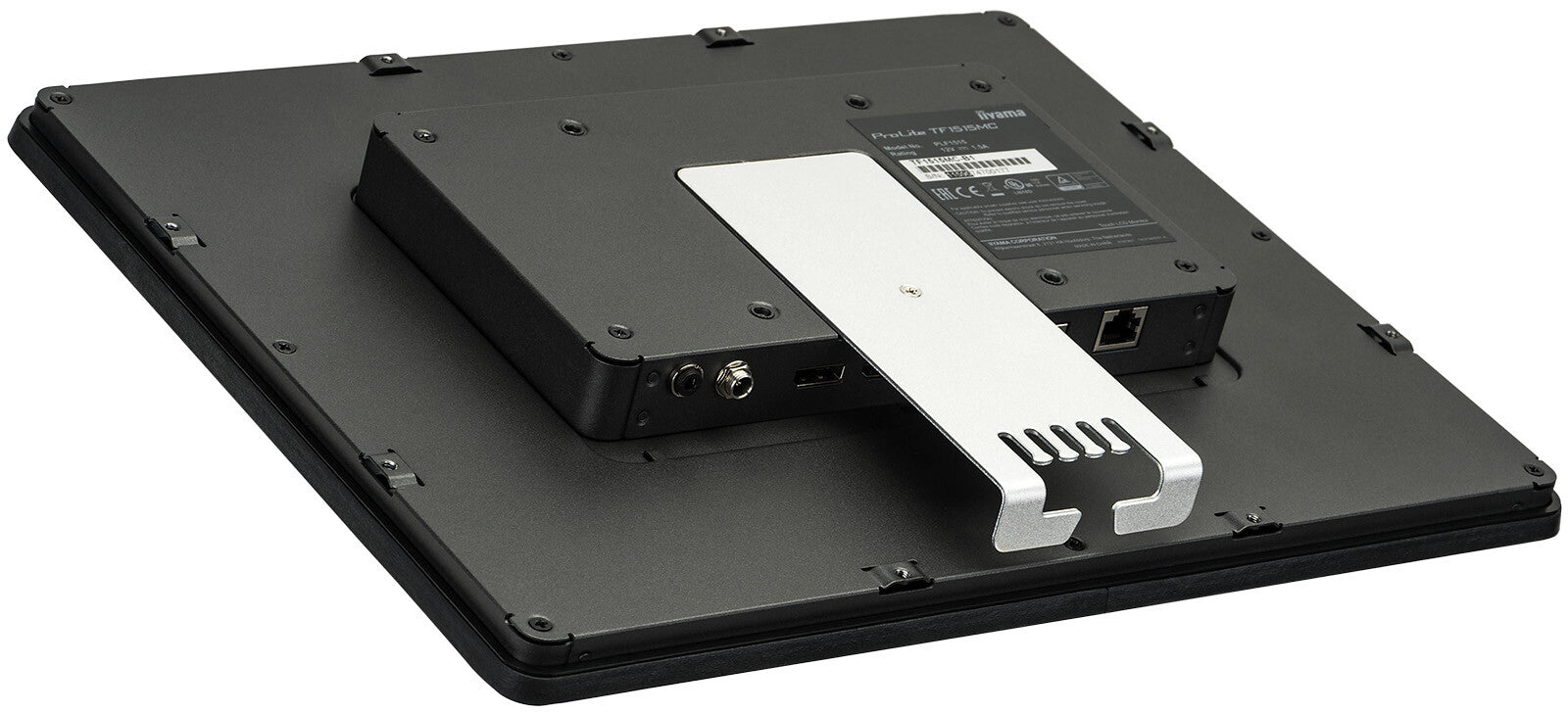

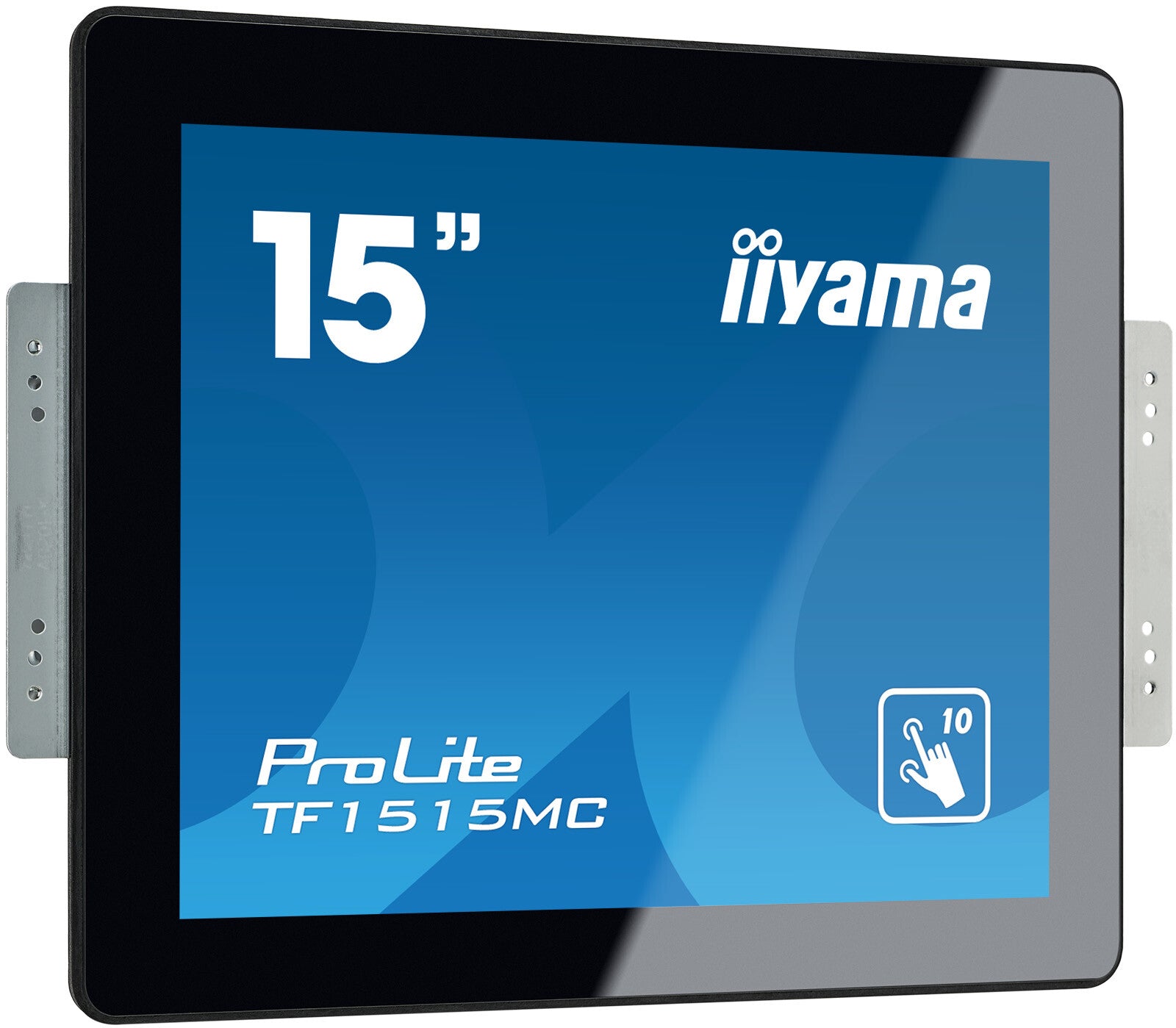

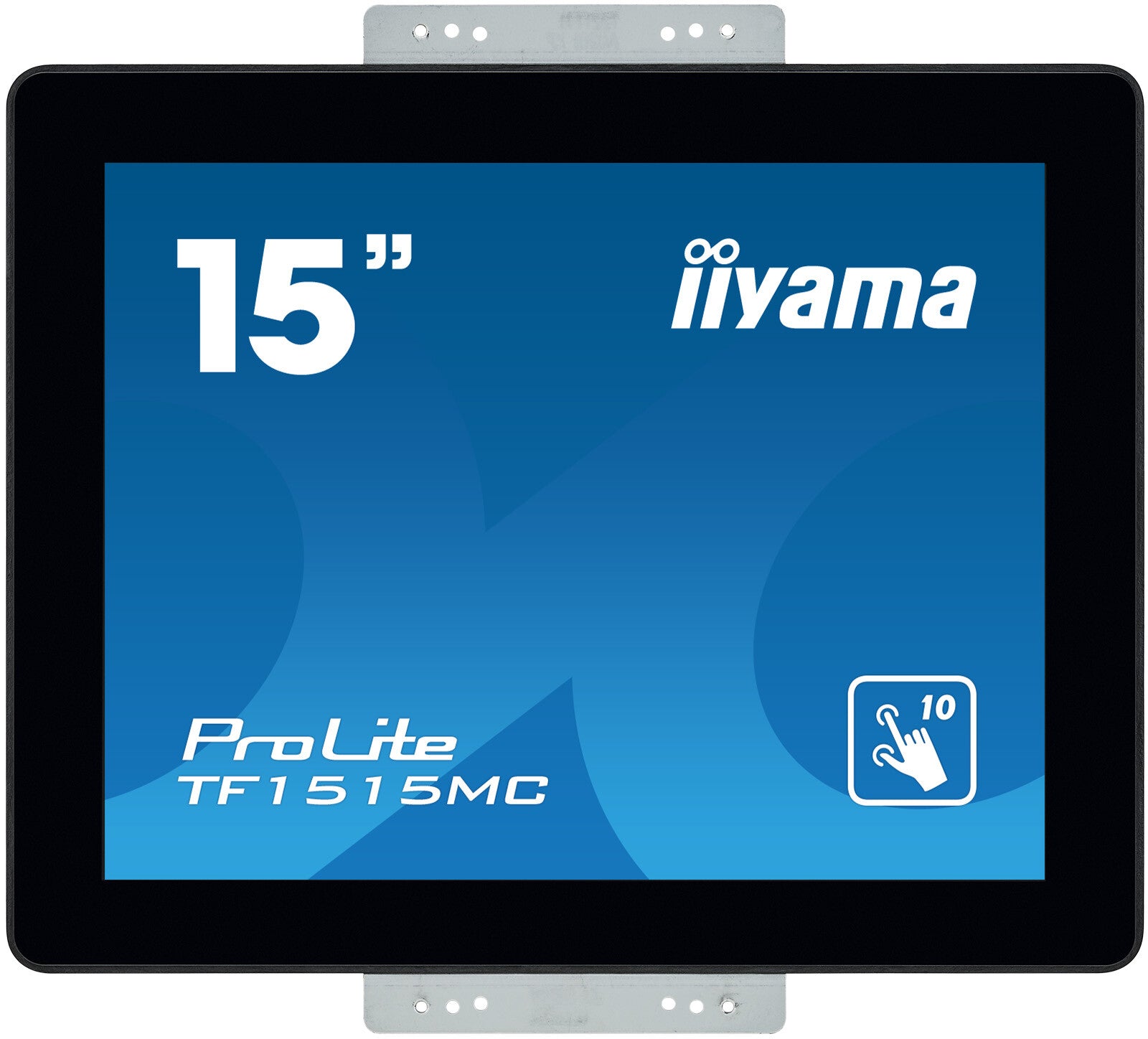

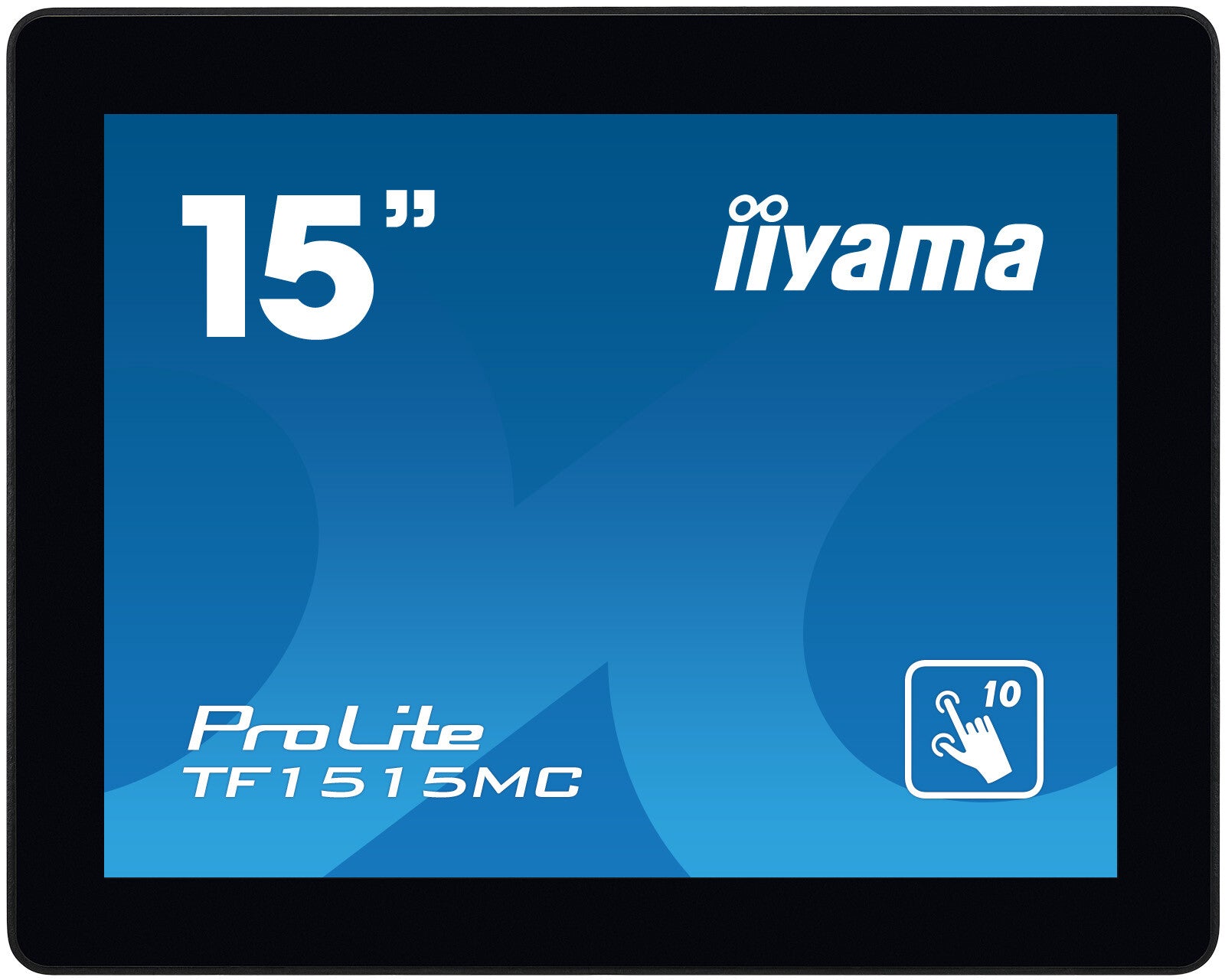

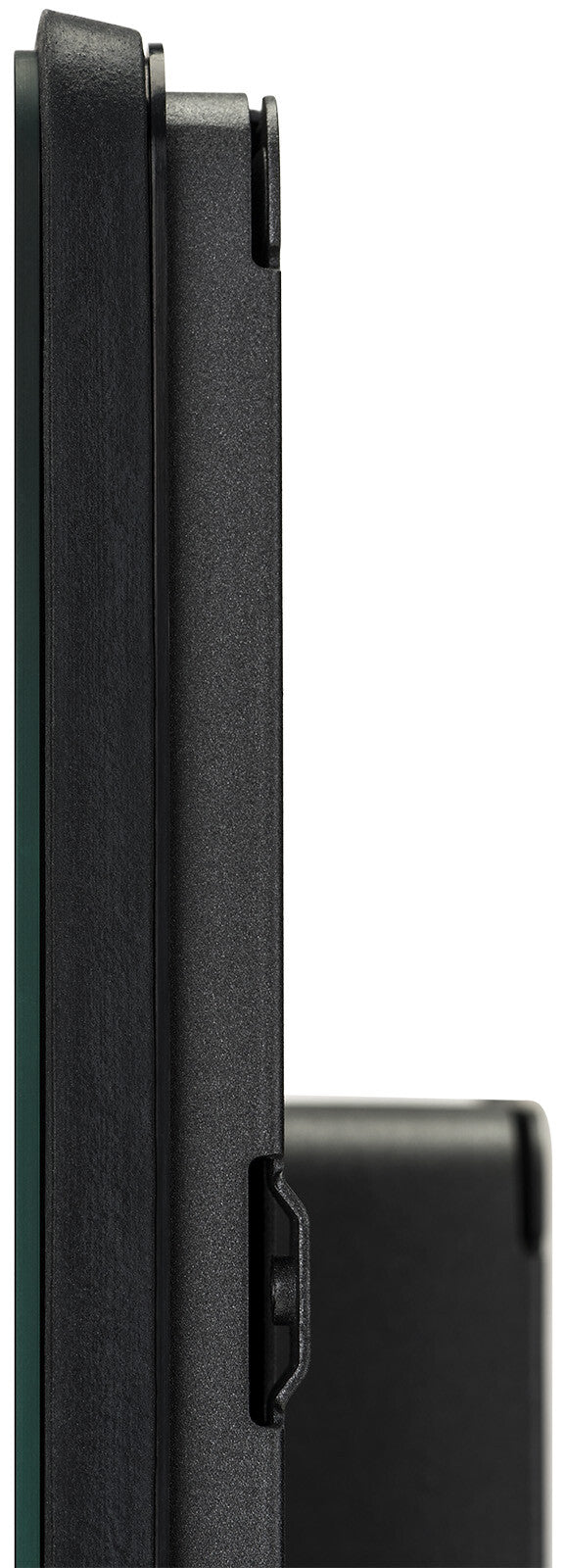

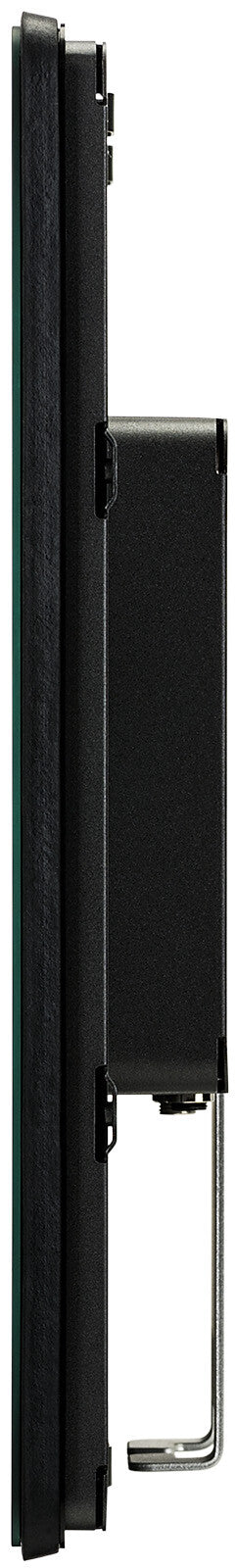

The ProLite TF1515MC-B2 (15 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1515MC-B2 can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Display
Display diagonal
38.1 cm (15")
Display resolution
1024 x 768 pixels
Native aspect ratio
4:3
Display technology
LED
Touchscreen
Yes
HD type
XGA
Panel type
TN
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Display brightness (typical)
350 cd/m²
Response time
8 ms
Screen shape
Flat
Aspect ratio
4:3
Contrast ratio (typical)
800:1
Maximum refresh rate
75 Hz
Viewing angle, horizontal
160°
Viewing angle, vertical
150°
Display number of colours
16.2 million colours
Pixel pitch
0.297 x 0.297 mm
Horizontal scan range
31.4 - 60 kHz
Viewable size, horizontal
30.4 cm
Viewable size, vertical
22.8 cm
Display diagonal (metric)
38 cm
Surface hardness
7H
Display brightness
315 cd/m²
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Multimedia
Built-in camera
No
Built-in microphone
No
Design
Product colour
Black
Front bezel colour
Black
International Protection (IP) code
IP65
Glass thickness
6 mm
Certification
CB, CE, TÜV-Bauart, EAC, cULus

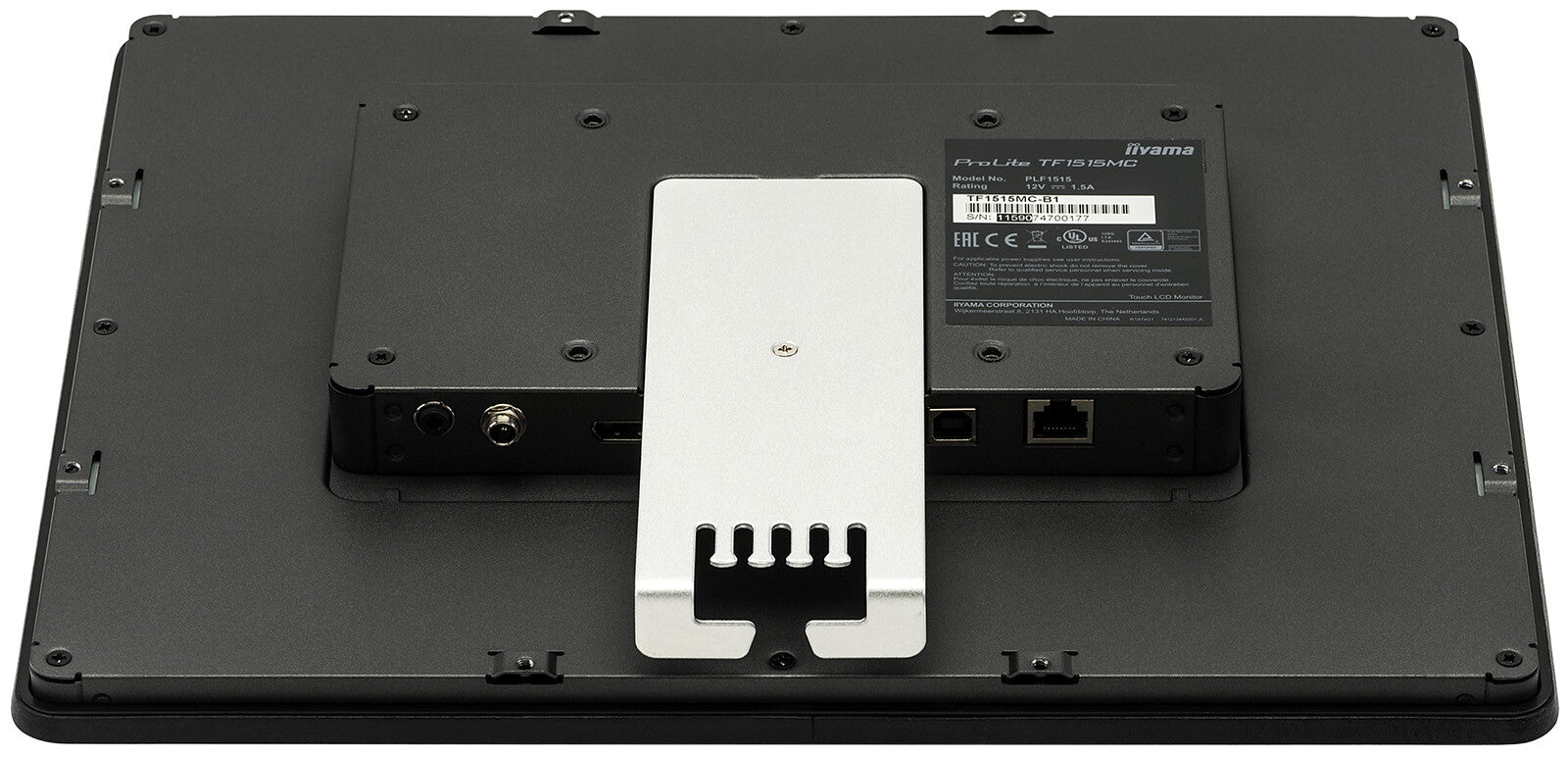

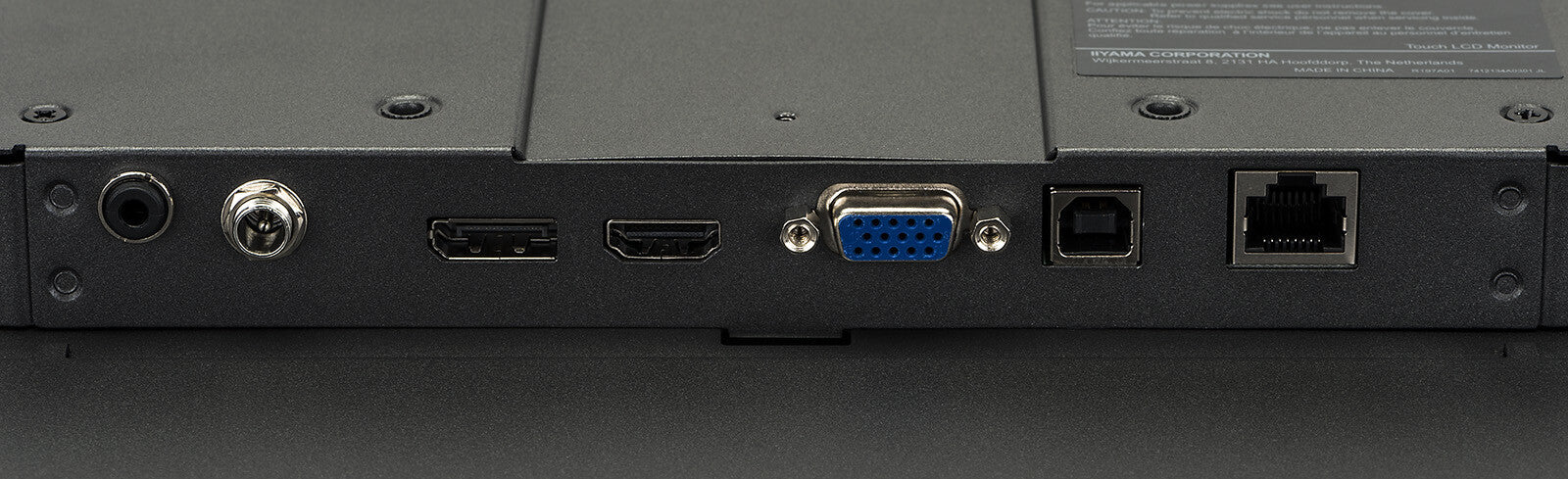

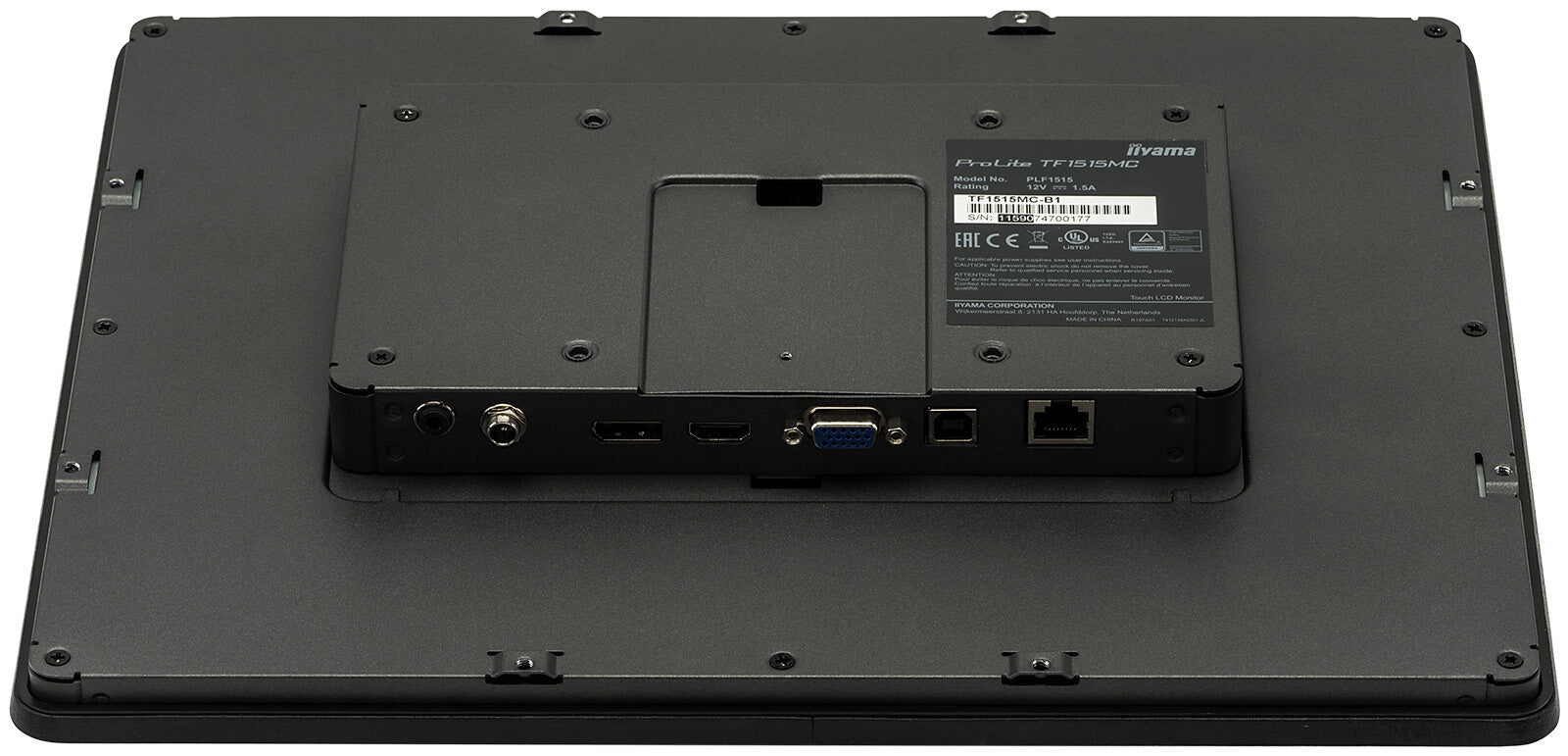

Ports & interfaces
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
HDCP
Yes
Ergonomics

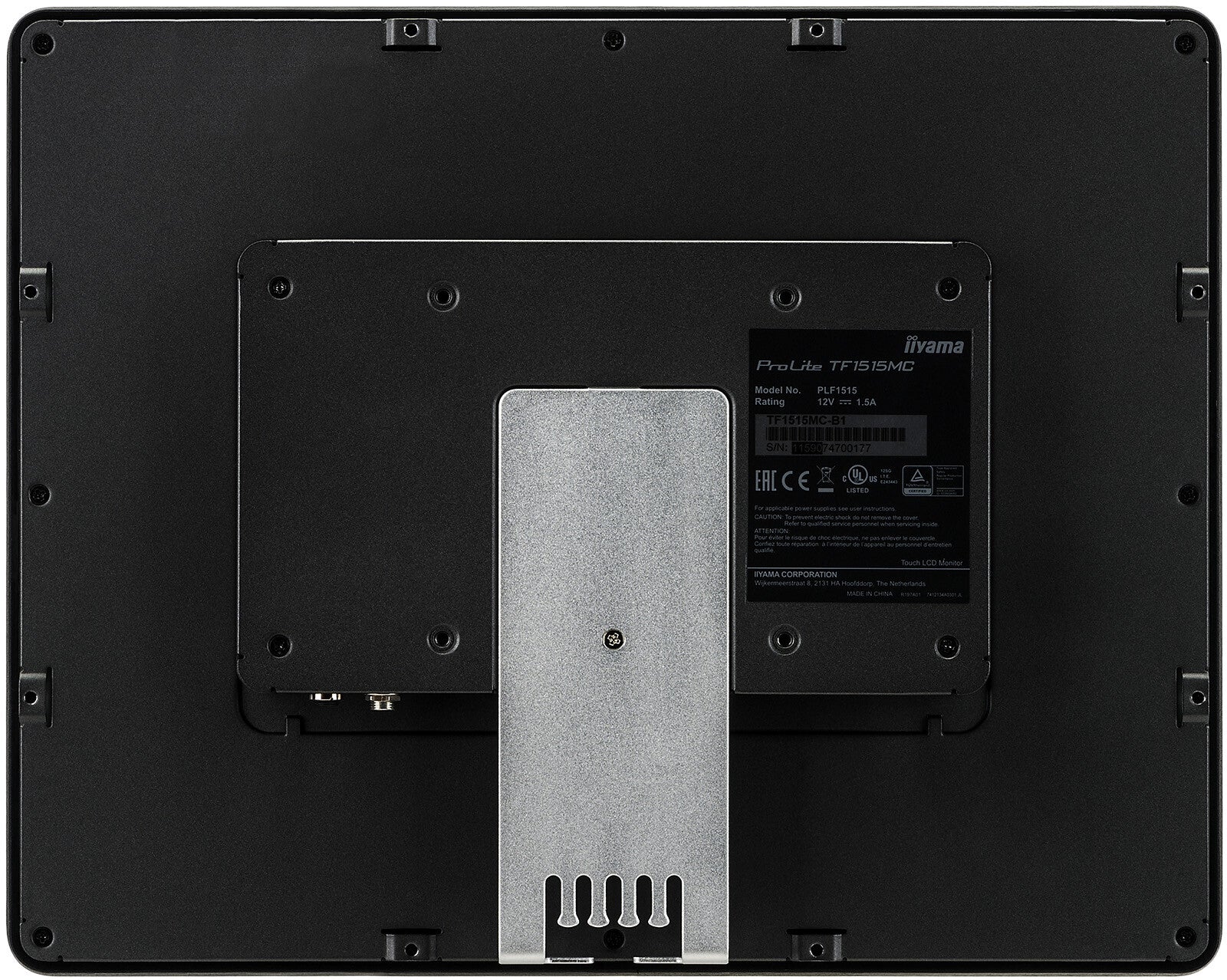

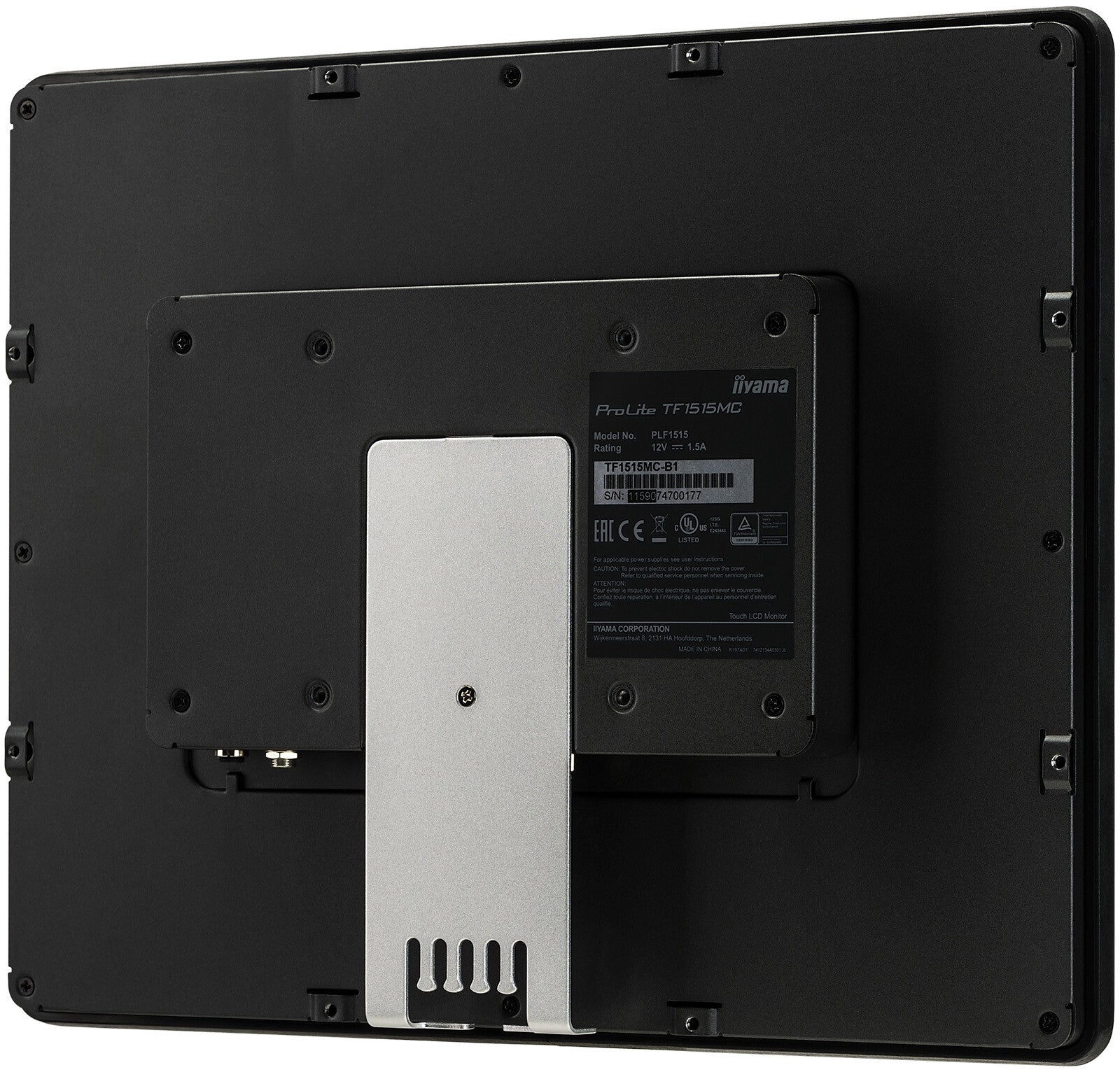

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages
7
Plug and Play
Yes
LED indicators
Yes
Power
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
10 kWh
Power consumption (typical)
16 W
Power consumption (standby)
1.2 W
Power consumption (off)
1.2 W
AC adapter output voltage
12 V
Power supply type
External
Energy efficiency scale
A to G
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Packaging content
Cables included
AC, USB, HDMI, DisplayPort
Quick start guide
Yes
Weight & dimensions
Width (with stand)
364 mm
Depth (with stand)
41.5 mm
Height (with stand)
291 mm
Weight (with stand)
2.9 kg
Width (without stand)
364 mm
Depth (without stand)
291 mm
Height (without stand)
41.5 mm
Weight (without stand)
2.9 kg
Packaging data
Package width
460 mm
Package depth
175 mm
Package height
470 mm
Package weight
4.6 kg
Sustainability
Sustainability certificates
ErP
Logistics data
Products per pallet
44 pc(s)
Pallet net width
86 cm
Pallet net length
12 cm
Pallet net height
97 cm
Harmonized System (HS) code
85285210
Technical details
Compliance certificates
CB, CE, cULus, EAC, REACH, RoHS, WEEE
Other features
AC adapter included
Yes
Packaging content
AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad
Placement supported
Horizontal/Vertical
Brightness
315 cd/m²
Display viewable area (HxV)
304.1 x 228.1 mm
Active display area (W x H)
304.1 x 228.1 mm
Depth
41.5 mm
Width
364 mm
Height
291 mm
Weight
2.9 kg

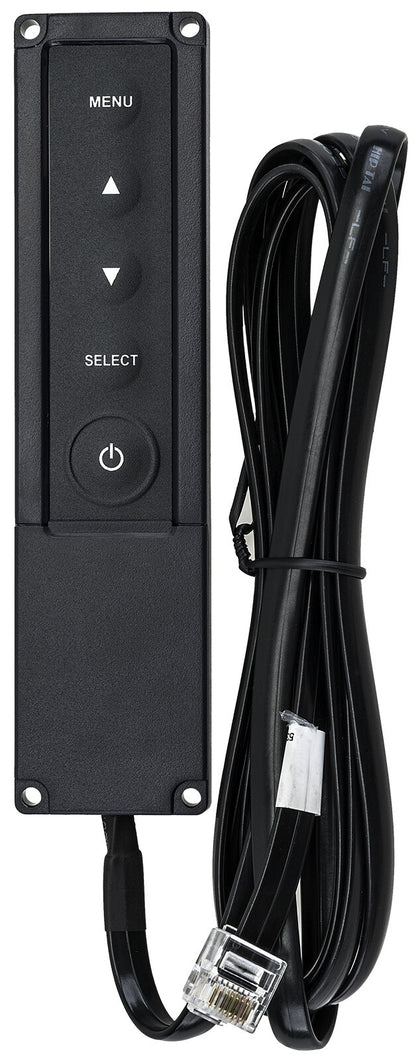

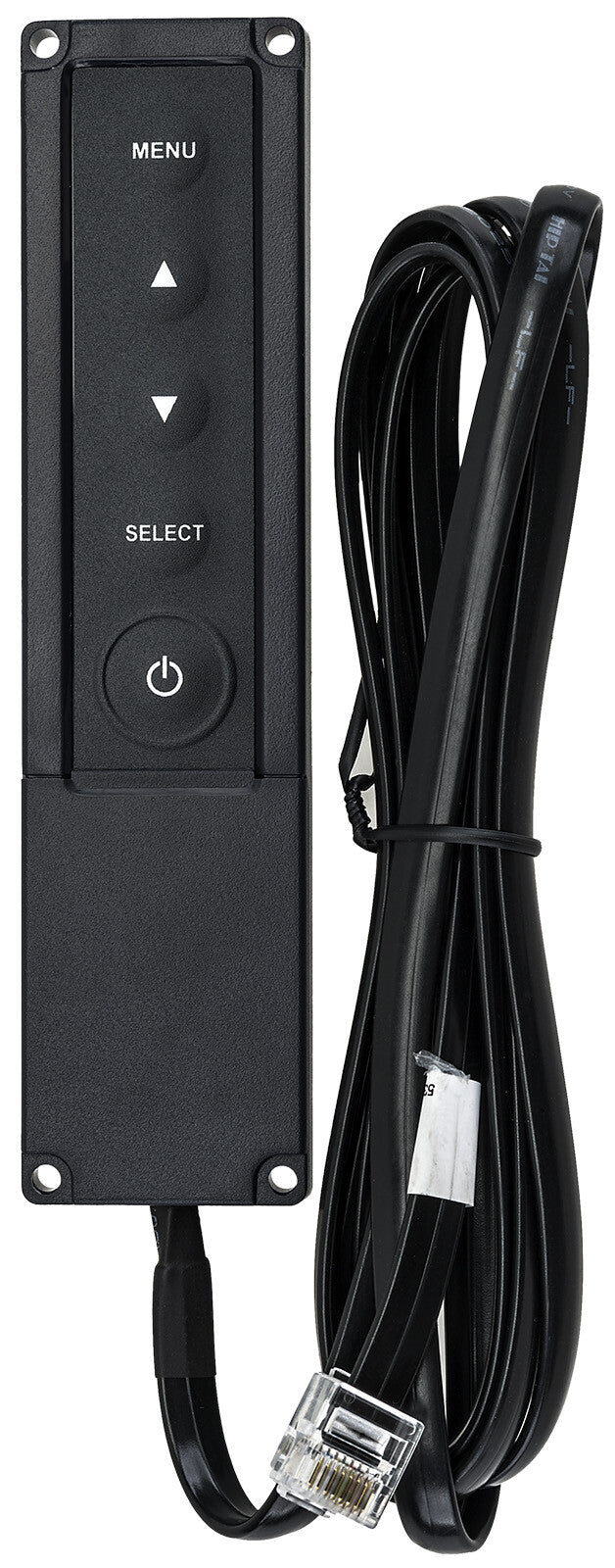

Control panel
menu,scroll up/ brightness, scroll down/ contrast, select, power
