• iiyama ProLite TF2415MC-B2 23.8-inch touch monitor
1 12

iiyama

iiyama ProLite TF2415MC-B2 computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black

iiyama ProLite TF2415MC-B2 computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black

TF2415MC-B2

£480.30 GBP£400.25 GBP
£0.00 GBP £480.30 GBP£400.25 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

20 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • 60.5 cm (23.8") Black
  • HDMI DisplayPorts quantity: 1
  • Screen shape: Flat
  • Response time: 16 ms
  • 1920 x 1080 pixels Full HD Panel type: VA
  • Energy efficiency class (SDR): E ErP CB, CE, cULus, REACH, RoHS, WEEE
Open Frame PCAP 10 point touch screen equipped with touch through glass function

The ProLite TF2415MC-B2 (23.8 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2415MC-B2 can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Display
Display diagonal 60.5 cm (23.8")
Display resolution 1920 x 1080 pixels
Native aspect ratio 16:9
Display technology LED
Touchscreen Yes
HD type Full HD
Panel type VA
Touchscreen type Multi-user
Touchscreen technology Projected capacitive system
Touch technology Multi-touch
Number of simultaneous touchpoints 10
Display brightness (typical) 350 cd/m²
Response time 16 ms
Screen shape Flat
Aspect ratio 16:9
Contrast ratio (typical) 3000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 16.78 million colours
Pixel pitch 0.2745 x 0.2745 mm
Horizontal scan range 31.4 - 82 kHz
Vertical scan range 56 - 75 Hz
Viewable size, horizontal 52.7 cm
Viewable size, vertical 29.6 cm
Display diagonal (metric) 60.5 cm
Surface hardness 7H
Display brightness 315 cd/m²
Separate H/V sync Yes
Performance
NVIDIA G-SYNC No
AMD FreeSync No
Compatible operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
OmniTapps Multitouch compatibility No
Multimedia
Built-in camera No
Built-in microphone No
Design
Product colour Black
Front bezel colour Black
International Protection (IP) code IP65
Certification CB, CE, TÜV-Bauart, CU, cULus
Ports & interfaces
USB Touch port Yes
VGA (D-Sub) ports quantity 1
HDMI Yes
HDMI ports quantity 1
DisplayPorts quantity 1
Audio output 1
HDCP Yes
Network
Ethernet LAN Yes
Ergonomics
VESA mounting Yes
Panel mounting interface 100 x 100 mm
Wall mountable Yes
On Screen Display (OSD) Yes
On Screen Display (OSD) languages Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages 7
Plug and Play Yes
Power
Energy efficiency class (SDR) E
Energy consumption (SDR) per 1000 hours 22 kWh
Power consumption (typical) 24.4 W
Power consumption (standby) 1.06 W
Power consumption (off) 0.32 W
AC adapter output voltage 12 V
Power supply type External
Energy efficiency scale A to G
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 20 - 80%
Storage relative humidity (H-H) 10 - 90%
Packaging content

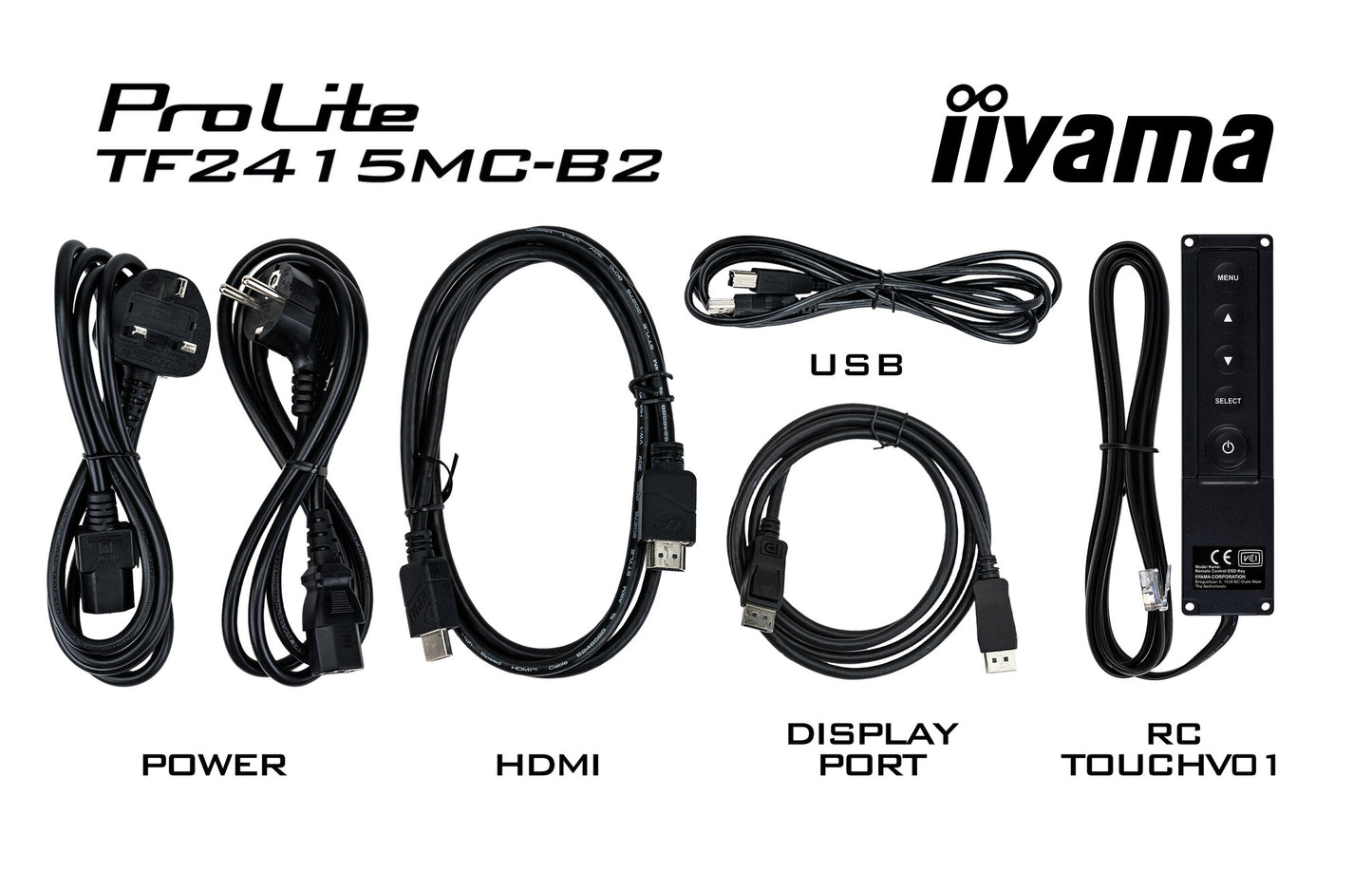

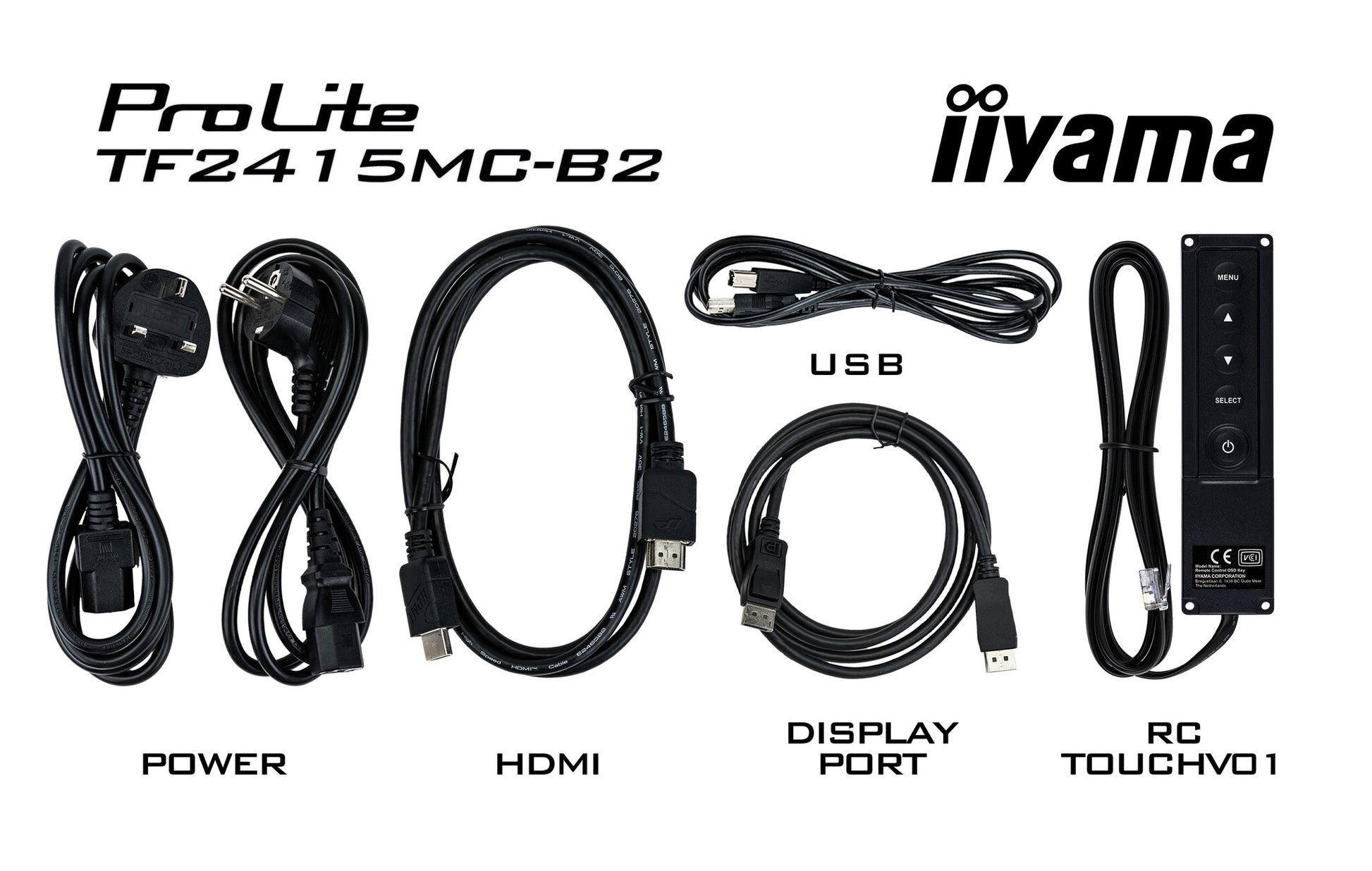

Cables included AC, USB, HDMI, DisplayPort
Quick start guide Yes
Weight & dimensions
Width (with stand) 575 mm
Depth (with stand) 42.5 mm
Height (with stand) 347 mm
Weight (with stand) 5.8 kg
Width (without stand) 575 mm
Depth (without stand) 42.5 mm
Height (without stand) 347 mm
Weight (without stand) 5.8 kg
Sustainability
Sustainability certificates ErP
general_information_attribute_container_name
attribute_product_family_name ProLite
Logistics data
Harmonized System (HS) code 85285210
Technical details
Compliance certificates CB, CE, cULus, REACH, RoHS, WEEE
Other features
AC adapter included Yes
Packaging content AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad
Glass protection Yes
Placement supported Horizontal/Vertical
Brightness 315 cd/m²
Display viewable area (HxV) 527.04 x 296.46 mm
Active display area (W x H) 527.04 x 296.46 mm
Depth 42.5 mm
Width 575 mm
Height 347 mm
Weight 5.8 kg
Ethernet LAN (RJ-45) ports 1
Control panel Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H. position, V. position, touch switch), option (reset, language, source select, display mode, factory)
Touch method stylus, finger, glove (latex)
Supplied AC adapter type AC
