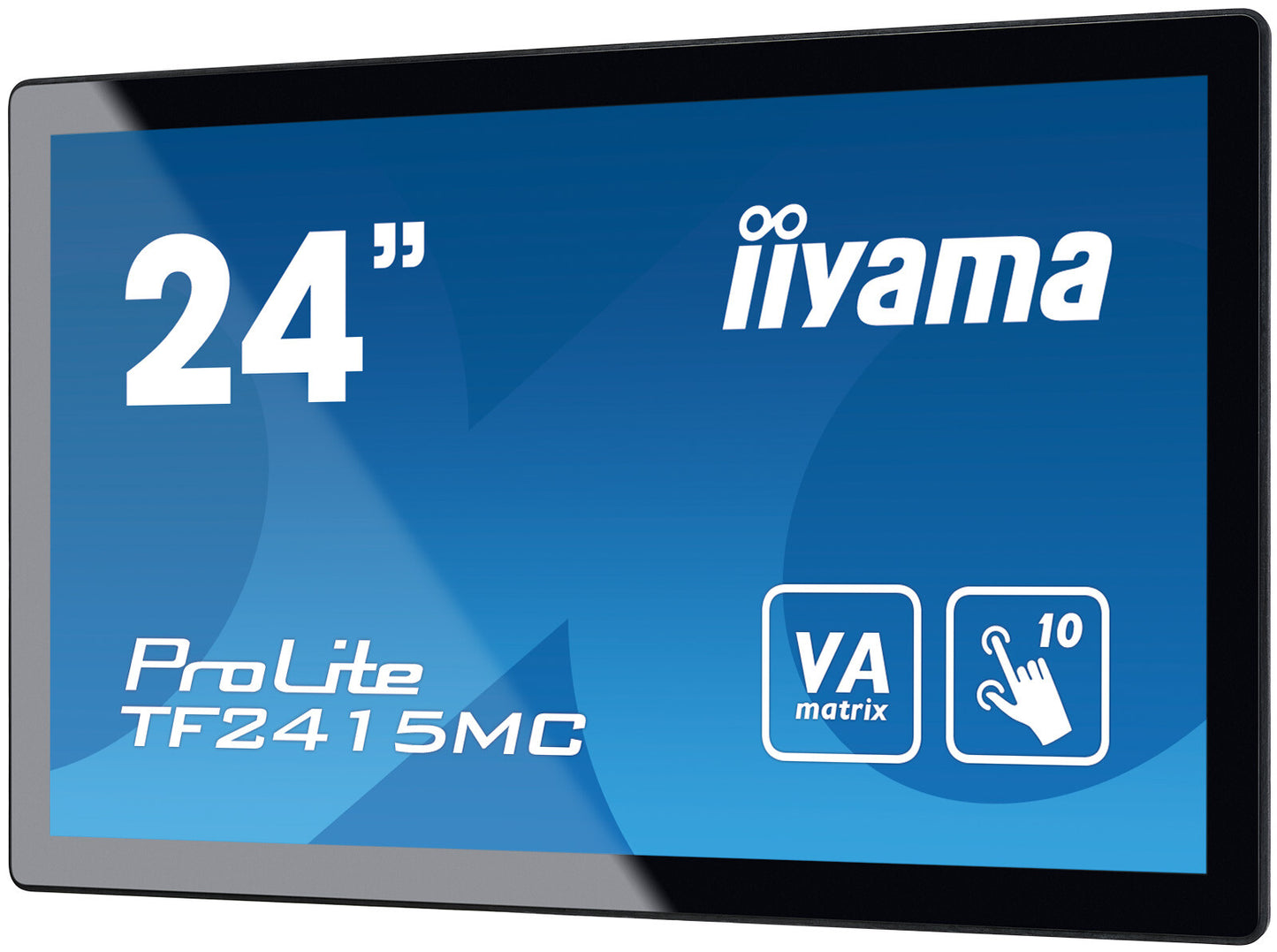

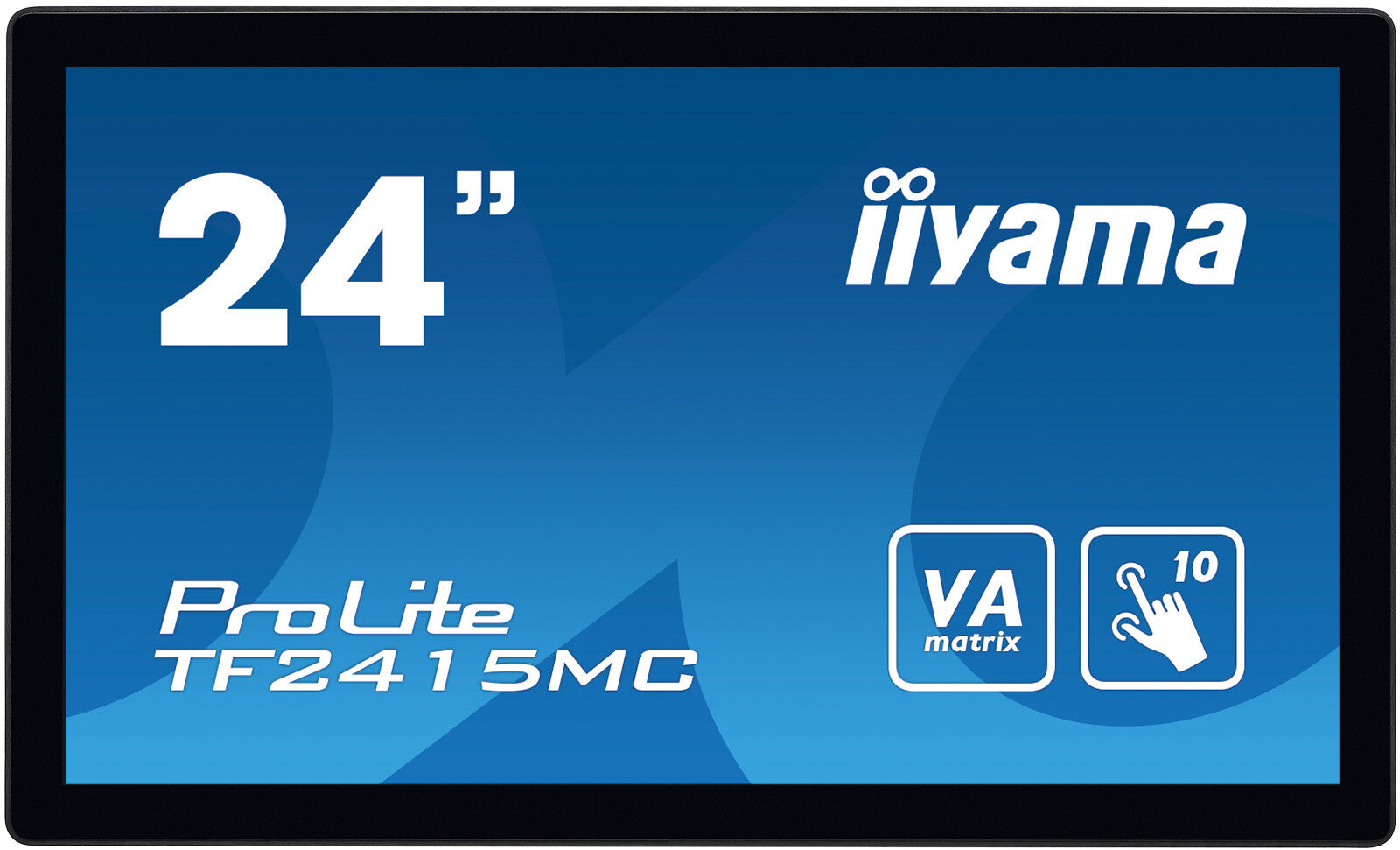

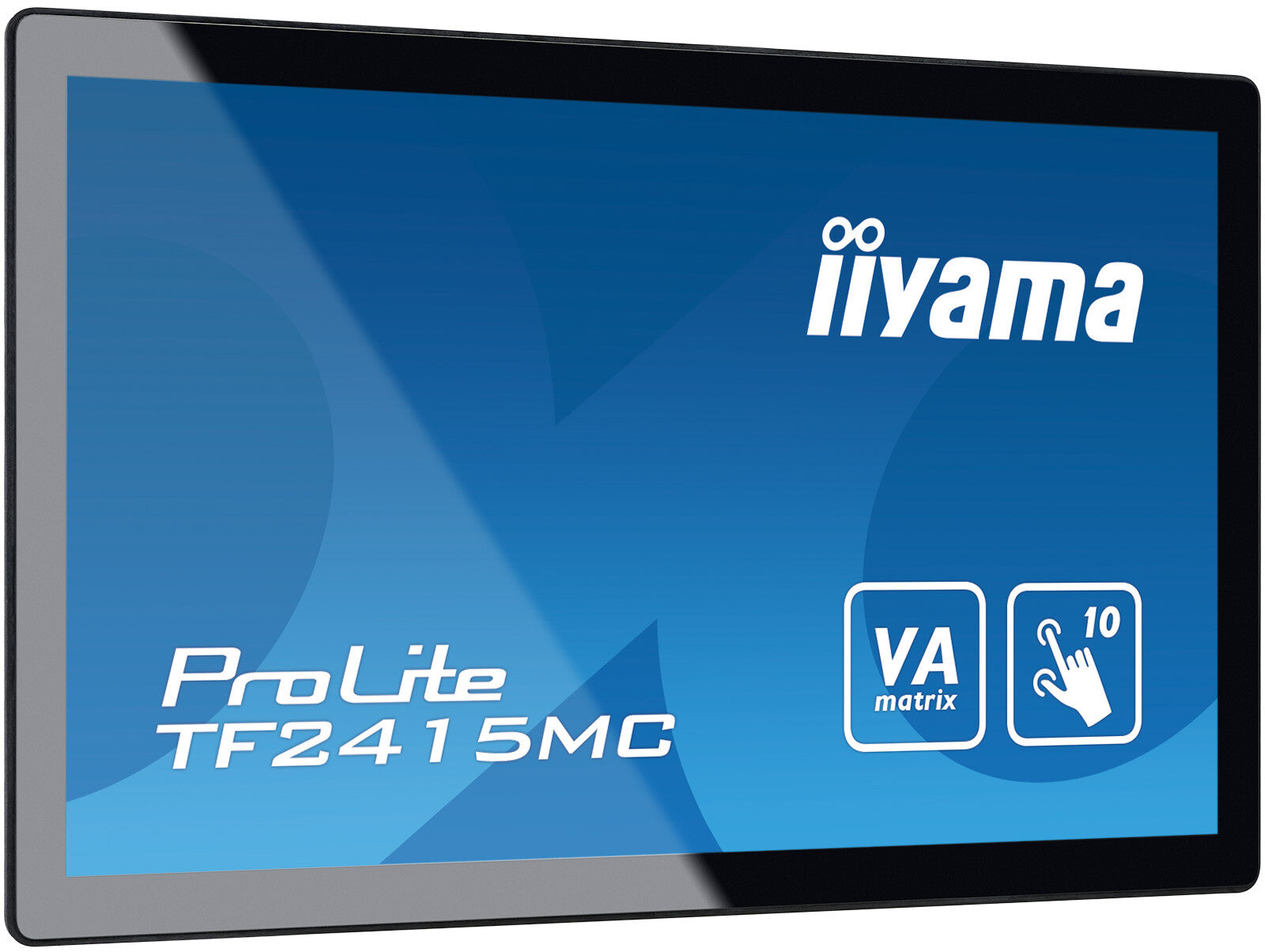

Open Frame PCAP 10 point touch screen equipped with touch through glass function

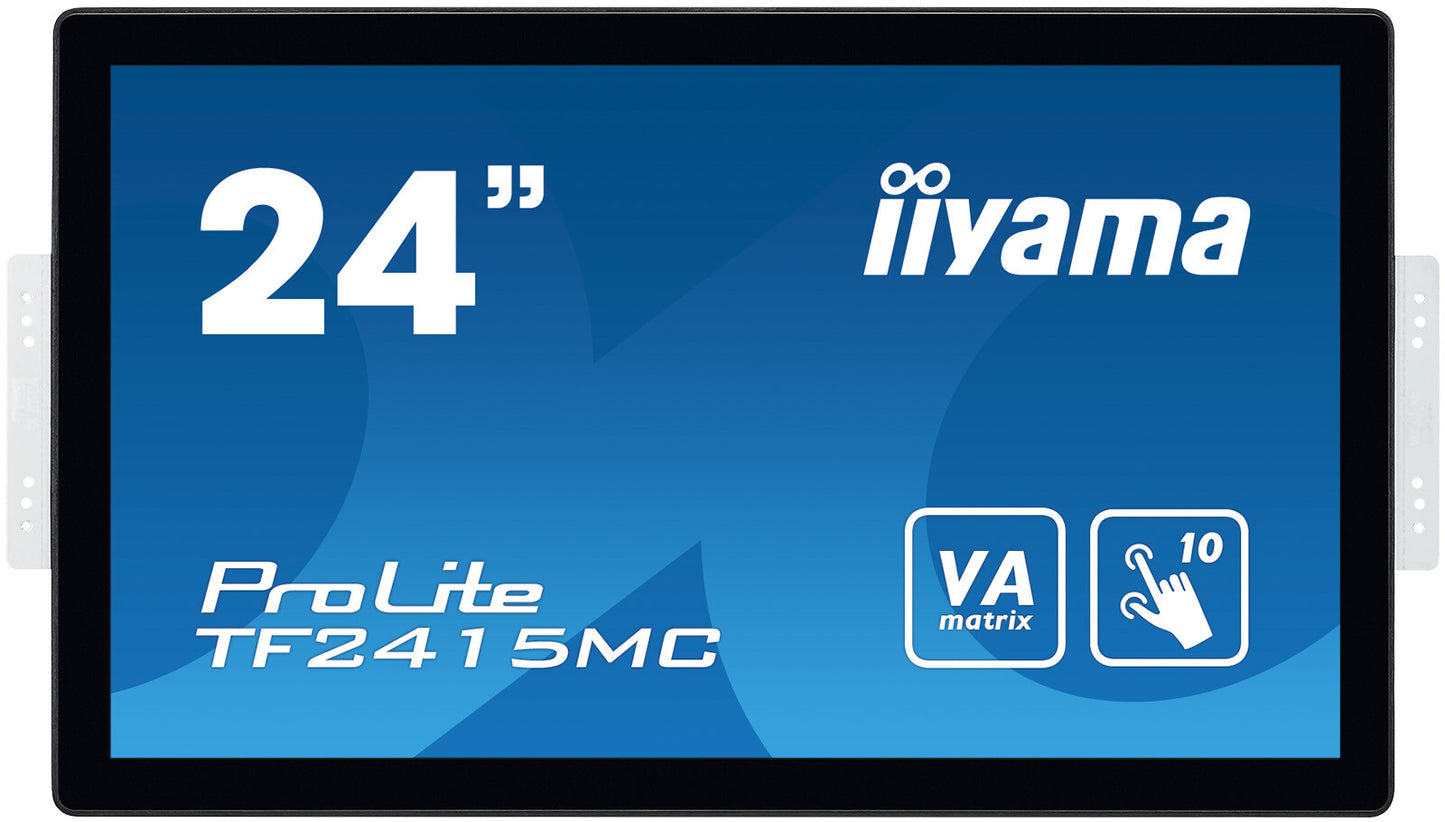

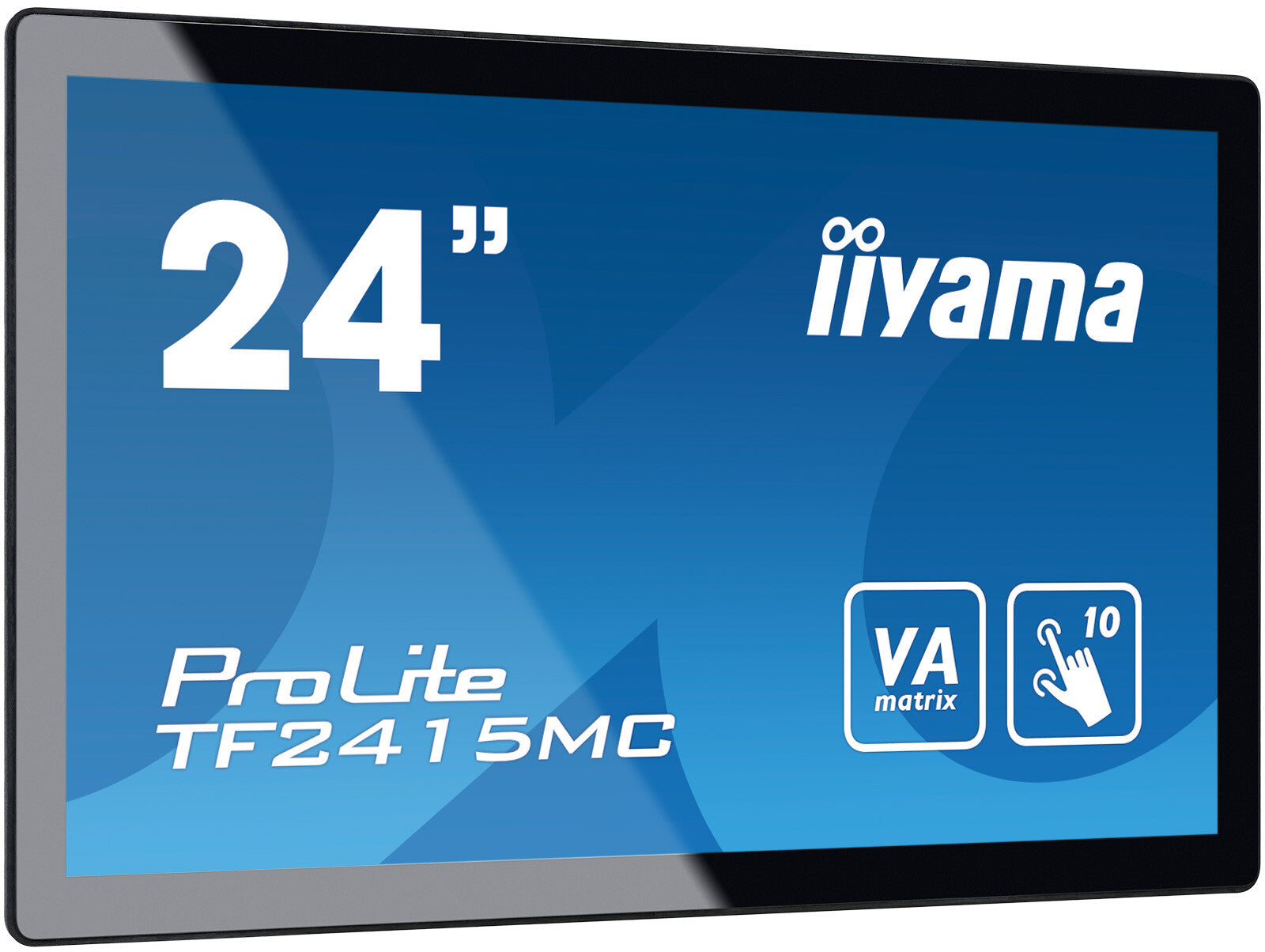

The ProLite TF2415MC-B2 (23.8 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2415MC-B2 can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Display
Separate H/V sync
Yes
Display brightness
315 cd/m²
Surface hardness
7H
Display diagonal (metric)
60.5 cm
Viewable size, vertical
29.6 cm
Viewable size, horizontal
52.7 cm
Vertical scan range
56 - 75 Hz
Horizontal scan range
31.4 - 82 kHz
Pixel pitch
0.2745 x 0.2745 mm
Display number of colours
16.78 million colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
3000:1
Aspect ratio
16:9
Screen shape
Flat
Response time
16 ms
Display brightness (typical)
350 cd/m²
Number of simultaneous touchpoints
10
Touch technology
Multi-touch
Touchscreen technology
Projected capacitive system
Touchscreen type
Multi-user
Panel type
VA
HD type
Full HD
Touchscreen
Yes
Display technology
LED
Native aspect ratio
16:9
Display resolution
1920 x 1080 pixels
Display diagonal
60.5 cm (23.8")
Performance
OmniTapps Multitouch compatibility
No
AMD FreeSync
No
NVIDIA G-SYNC
No
Multimedia
Built-in microphone
No
Built-in camera
No
Design
Certification
CB, CE, TÜV-Bauart, CU, cULus
International Protection (IP) code
IP65
Front bezel colour
Black
Product colour
Black

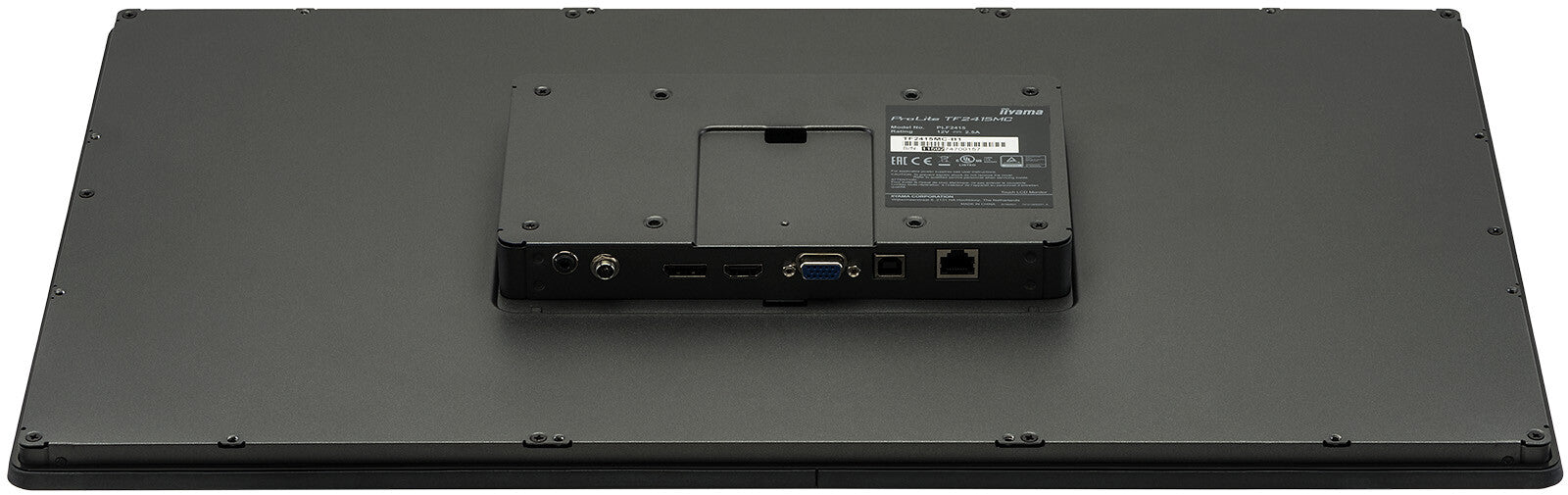

Ports & interfaces
HDCP
Yes
Audio output
1
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Yes
VGA (D-Sub) ports quantity
1
USB Touch port
Yes
Ergonomics
Plug and Play
Yes
Number of OSD languages
7
On Screen Display (OSD) languages
German, English, Spanish, French, Italian, Japanese
Wall mountable
Yes

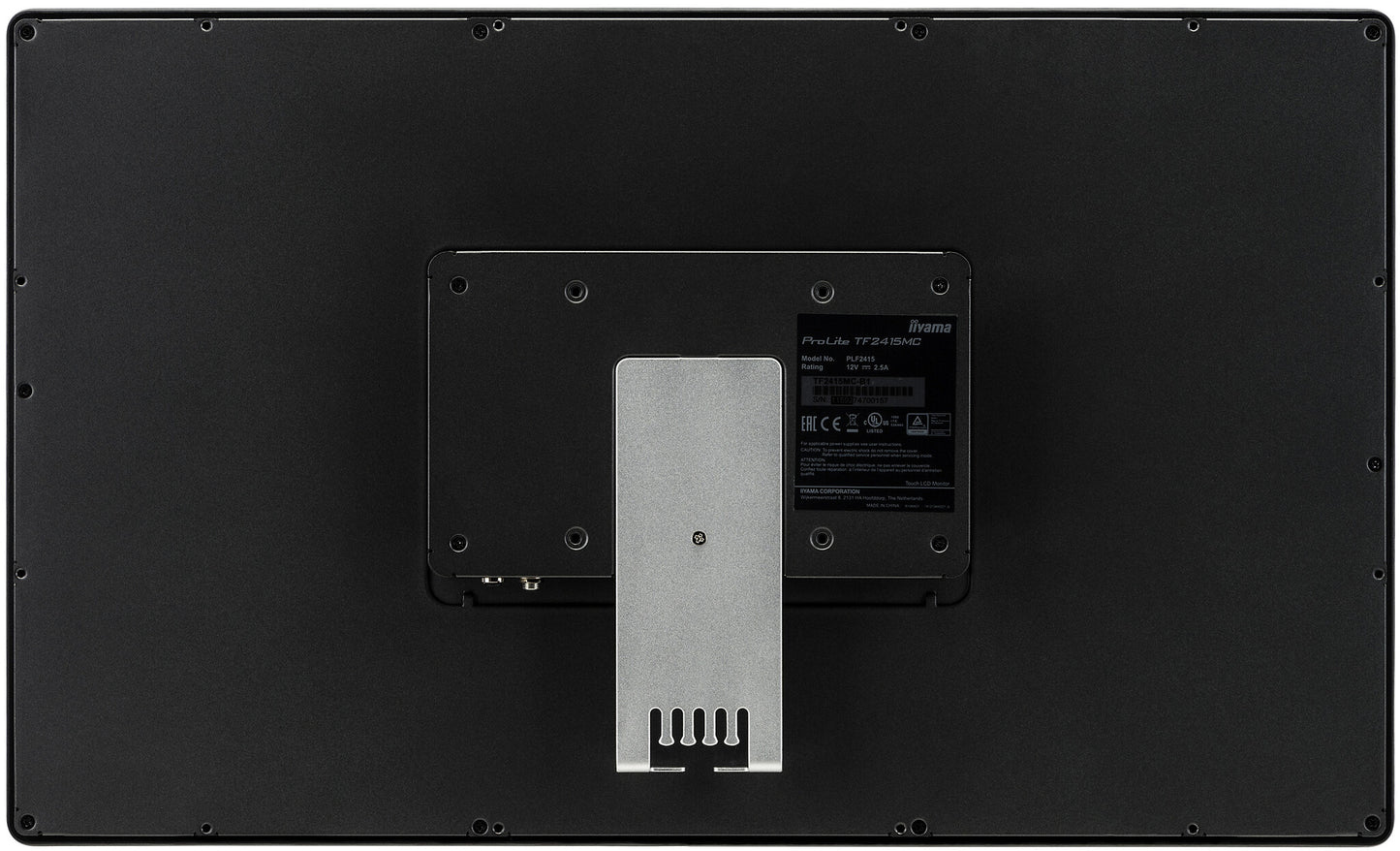

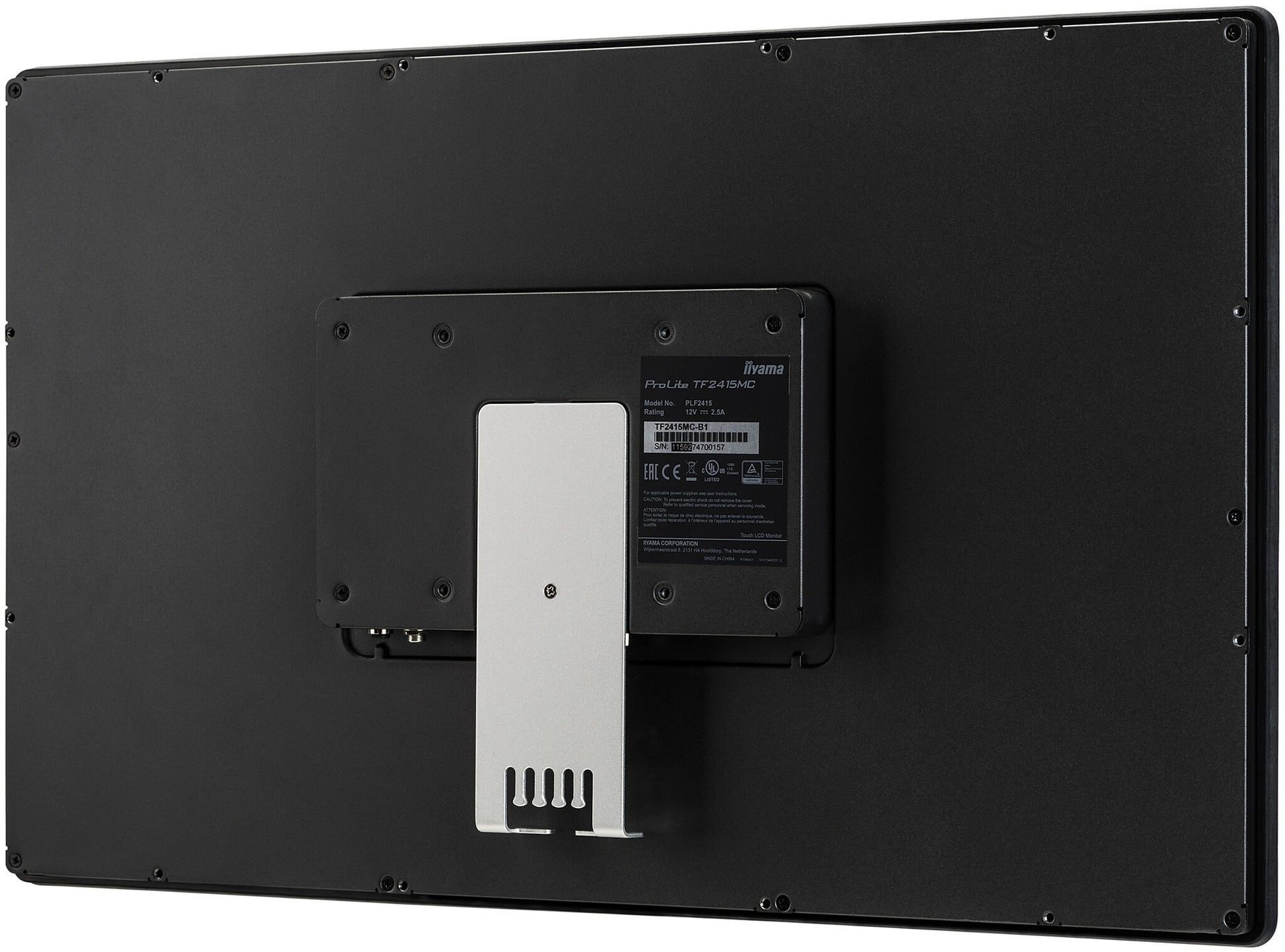

Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Power
Energy efficiency scale
A to G
Power supply type
External
AC adapter output voltage
12 V
Power consumption (off)
0.32 W
Power consumption (standby)
1.06 W
Power consumption (typical)
24.4 W
Energy consumption (SDR) per 1000 hours
22 kWh
Energy efficiency class (SDR)
F
Operational conditions
Storage relative humidity (H-H)
10 - 90%
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Packaging content
Quick start guide
Yes

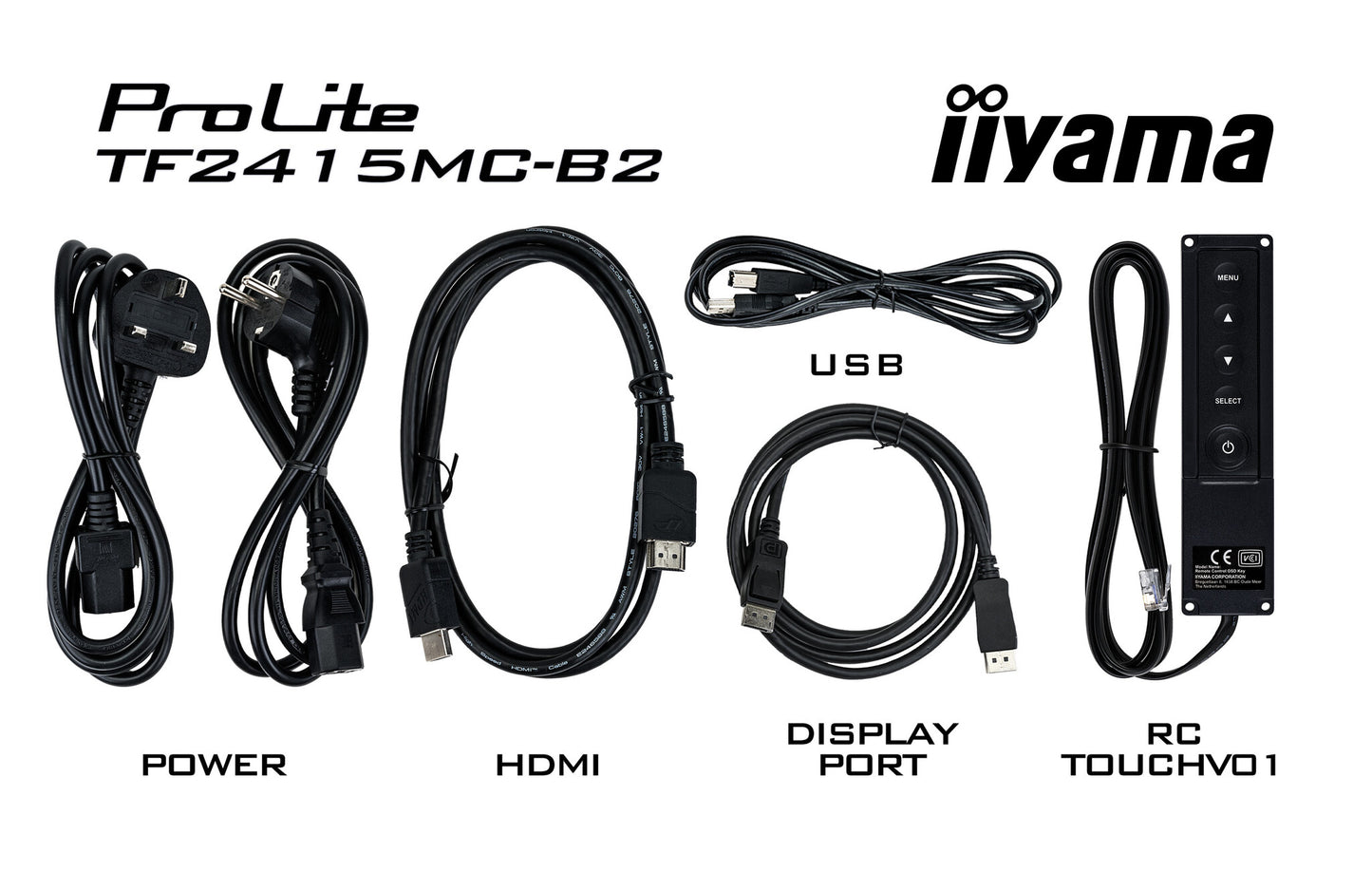

Cables included
AC, DisplayPort, HDMI, USB
Weight & dimensions
Weight (without stand)
5.8 kg
Height (without stand)
347 mm

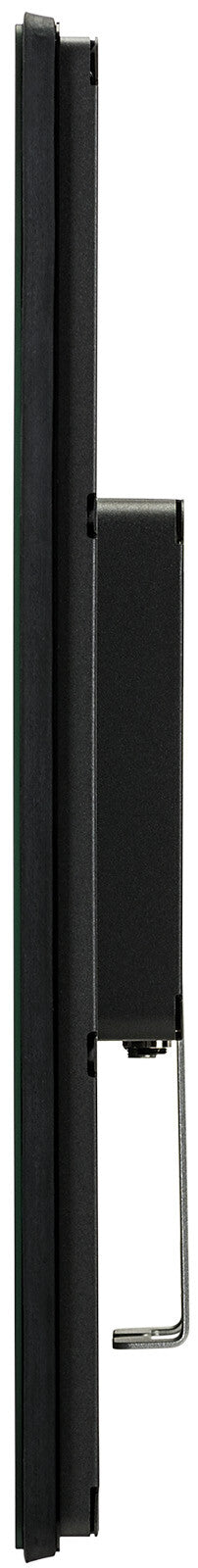

Depth (without stand)
42.5 mm
Width (without stand)
575 mm
Weight (with stand)
5.8 kg
Height (with stand)
347 mm
Depth (with stand)
42.5 mm
Width (with stand)
575 mm
Sustainability
European Product Registry for Energy Labelling (EPREL) code
