Energy efficiency class (SDR): E ErP CB, CE, cULus, REACH, RoHS, WEEE
10pt touch Open Frame monitor with IPS panel and touch through glass function

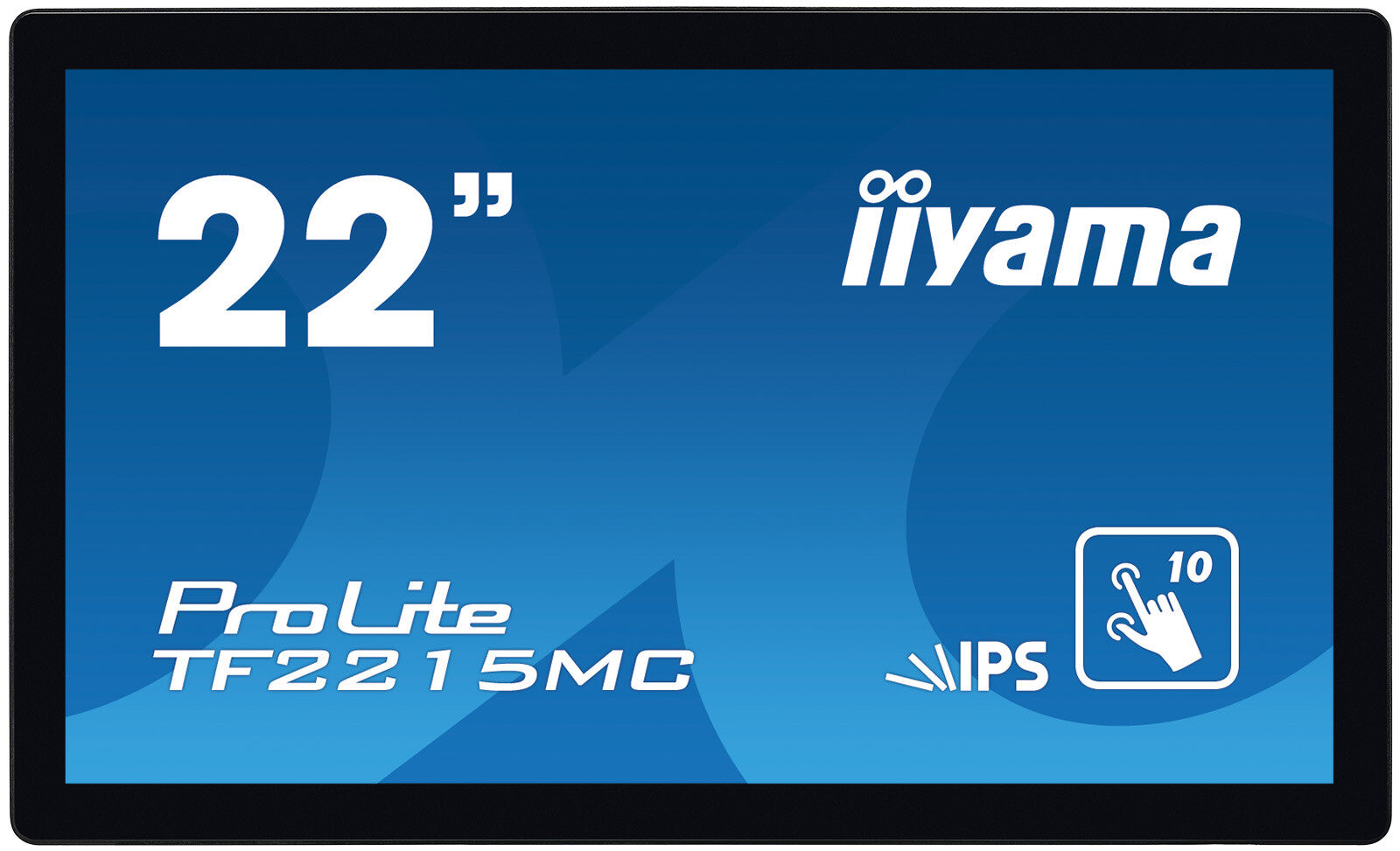

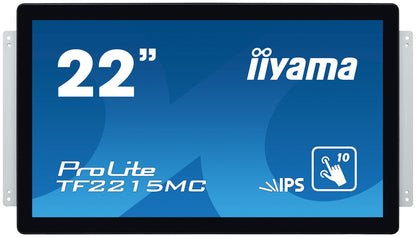

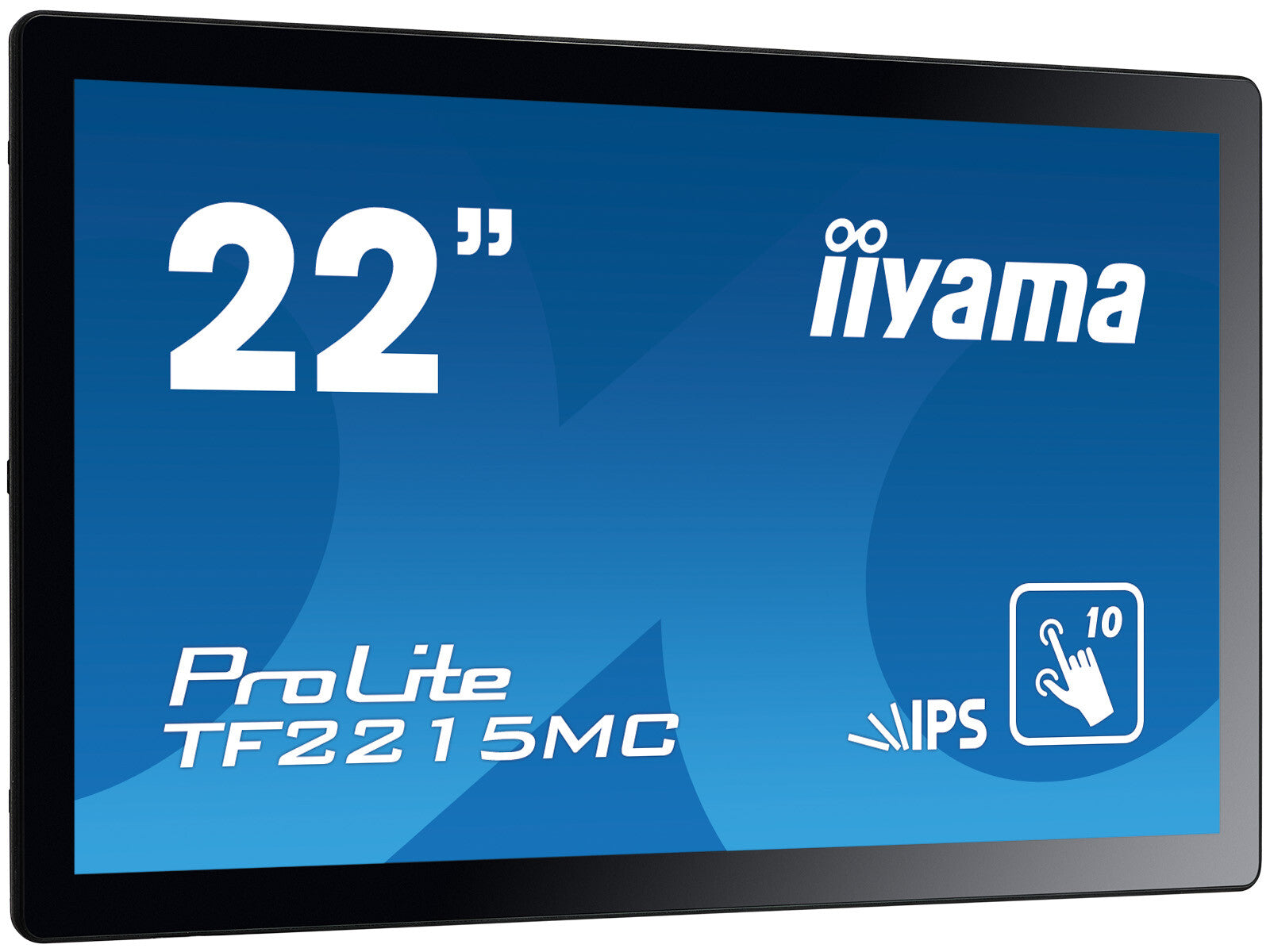

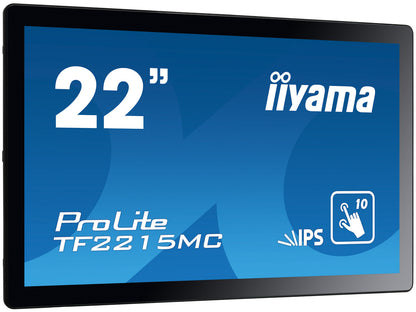

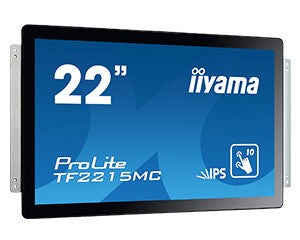

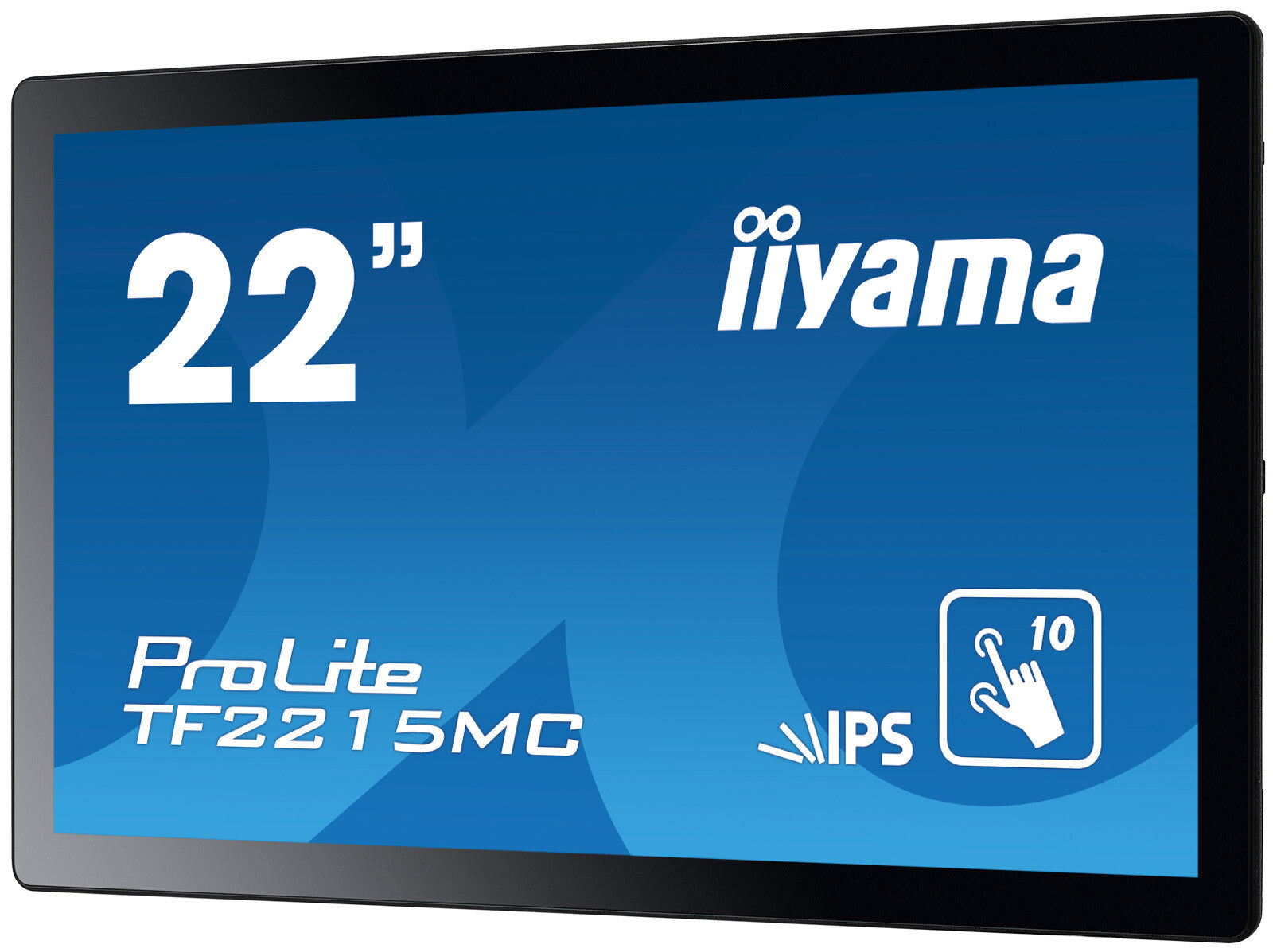

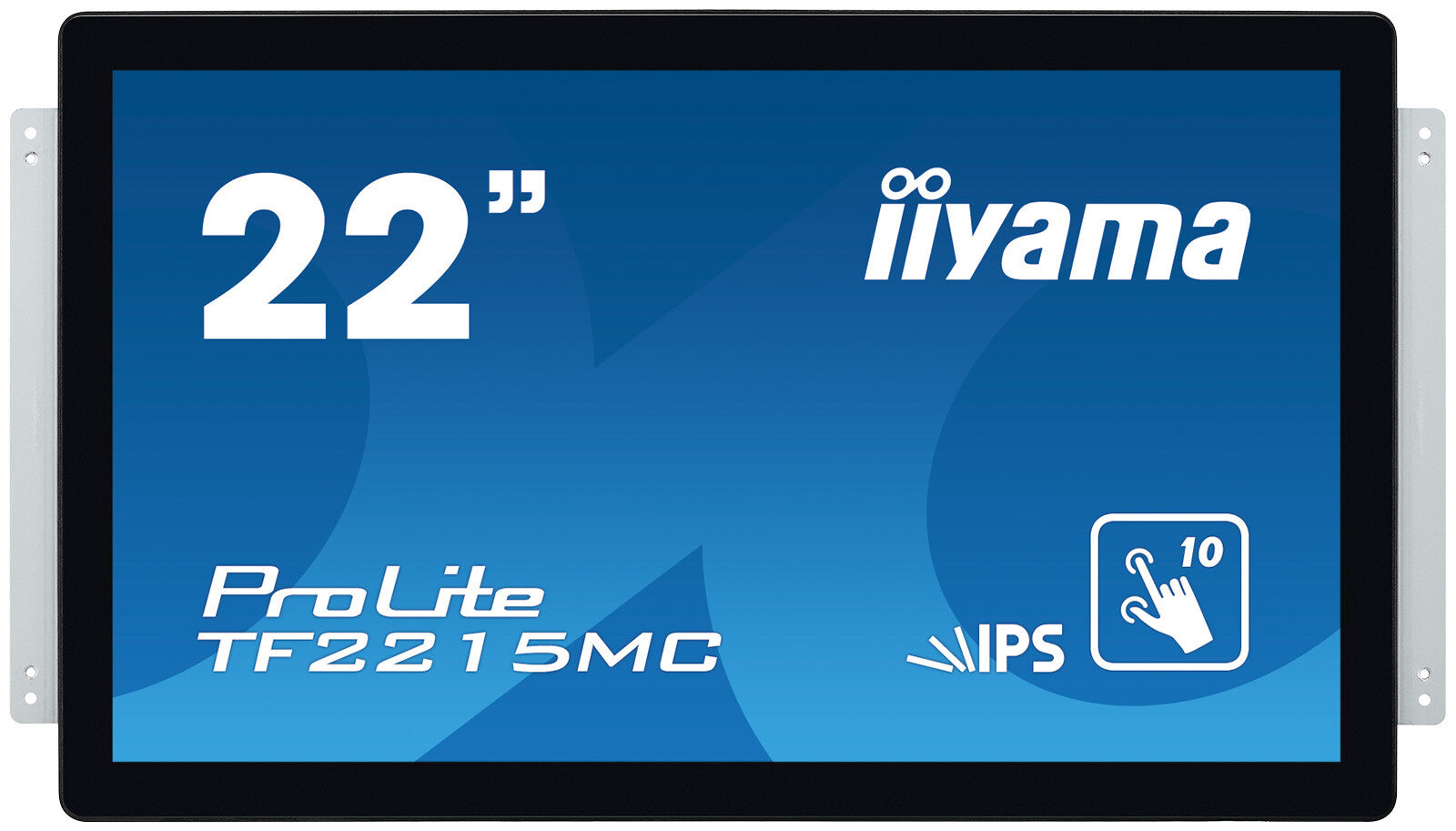

The ProLite TF2215MC-B2 (21.5 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2215MC-B2 can be equipped with optional external mounting brackets ( OMK3-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Display
Display diagonal
54.6 cm (21.5")
Display resolution
1920 x 1080 pixels
Native aspect ratio
16:9
Display technology
LED
Touchscreen
Yes
HD type
Full HD
Panel type
IPS
Touchscreen type
Multi-user
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Display brightness (typical)
350 cd/m²
Response time
14 ms
Screen shape
Flat
Aspect ratio
16:9
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.78 million colours
Pixel pitch
0.24795 x 0.24795 mm
Horizontal scan range
31.4 - 82 kHz
Vertical scan range
56 - 75 Hz
Viewable size, horizontal
47.6 cm
Viewable size, vertical
26.8 cm
Display diagonal (metric)
54.6 cm
Surface hardness
7H
Display brightness
315 cd/m²
Separate H/V sync
Yes
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
OmniTapps Multitouch compatibility
No
Multimedia
Built-in camera
No
Built-in microphone
No
Design
Product colour
Black
Front bezel colour
Black
International Protection (IP) code
IP65
Certification
CB, CE, TÜV-Bauart, CU, cULus, REACH

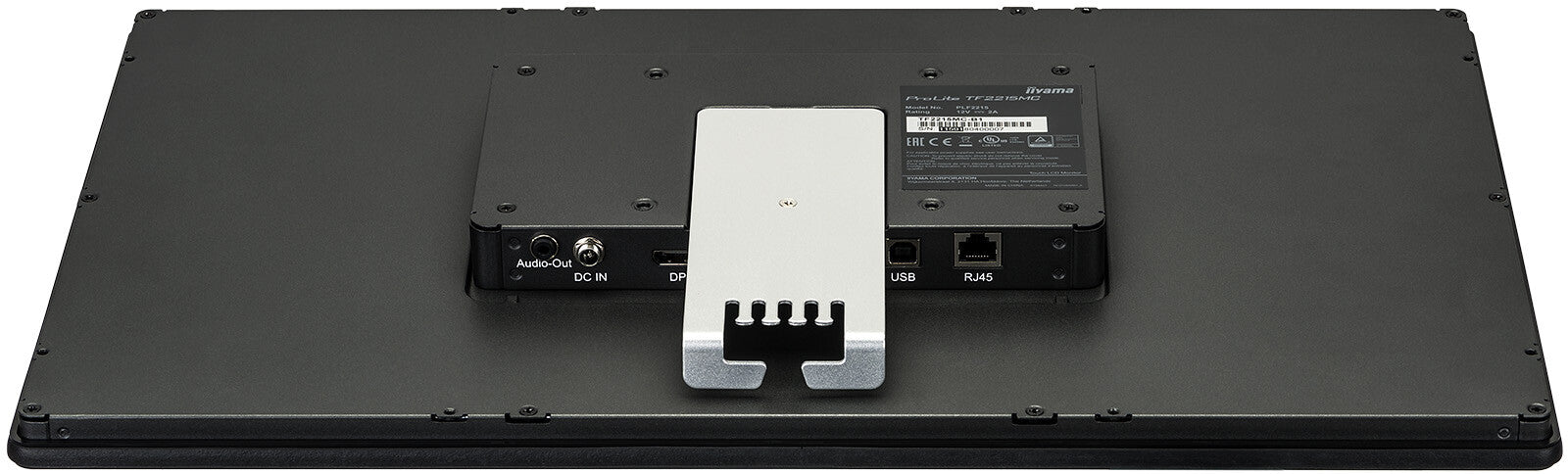

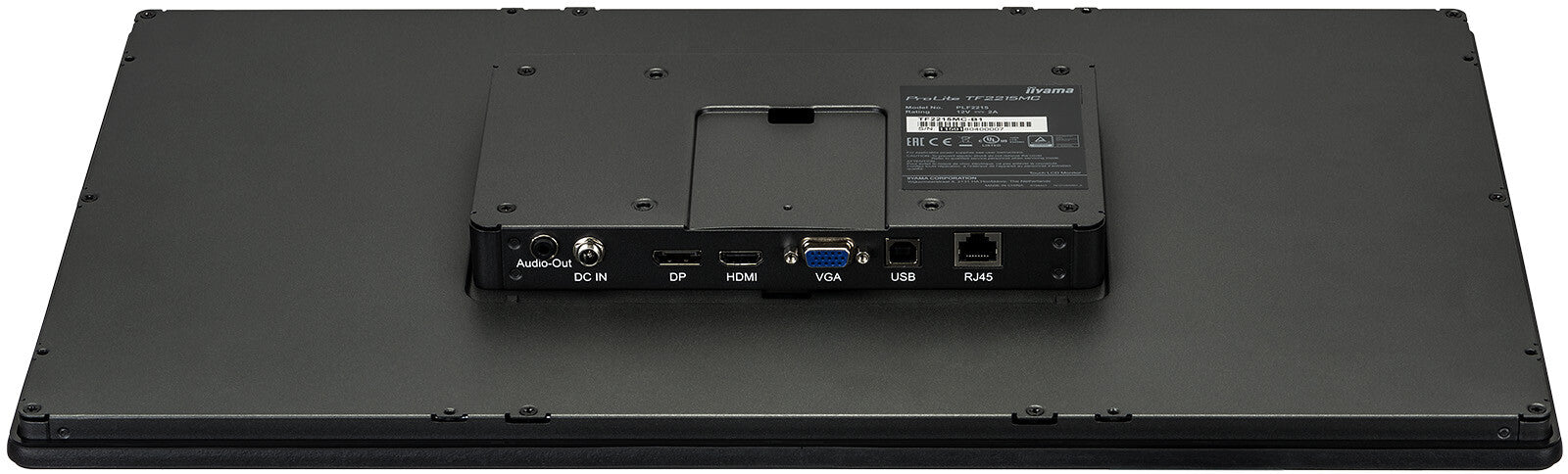

Ports & interfaces
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Headphone outputs
1
HDCP
Yes
Ergonomics

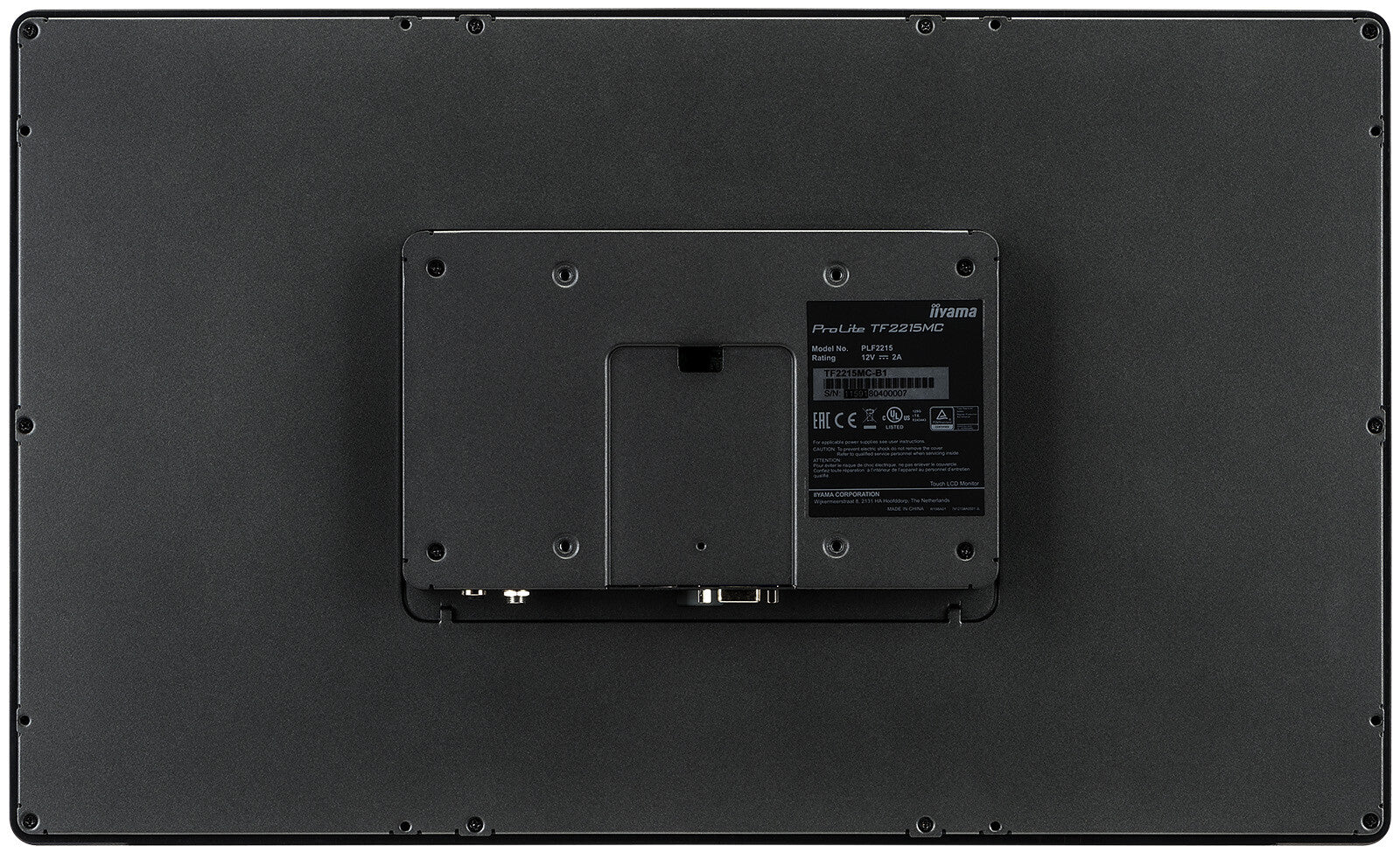

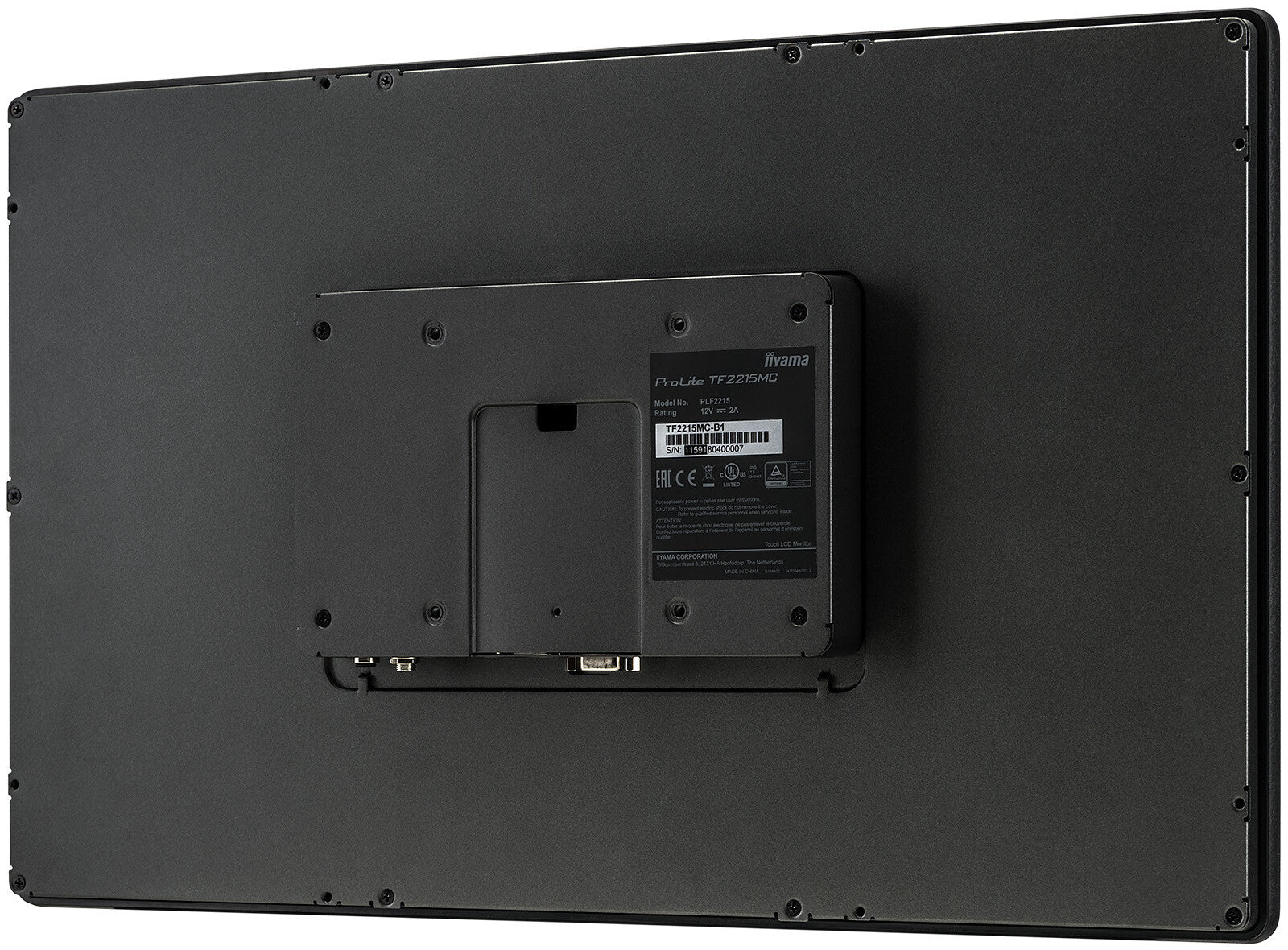

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages
6
Plug and Play
Yes
Power
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
19 kWh
Power consumption (typical)
20.8 W
Power consumption (standby)
1.05 W
Power consumption (off)
0.32 W
AC adapter output voltage
12 V
Power supply type
External
Energy efficiency scale
A to G
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Packaging content

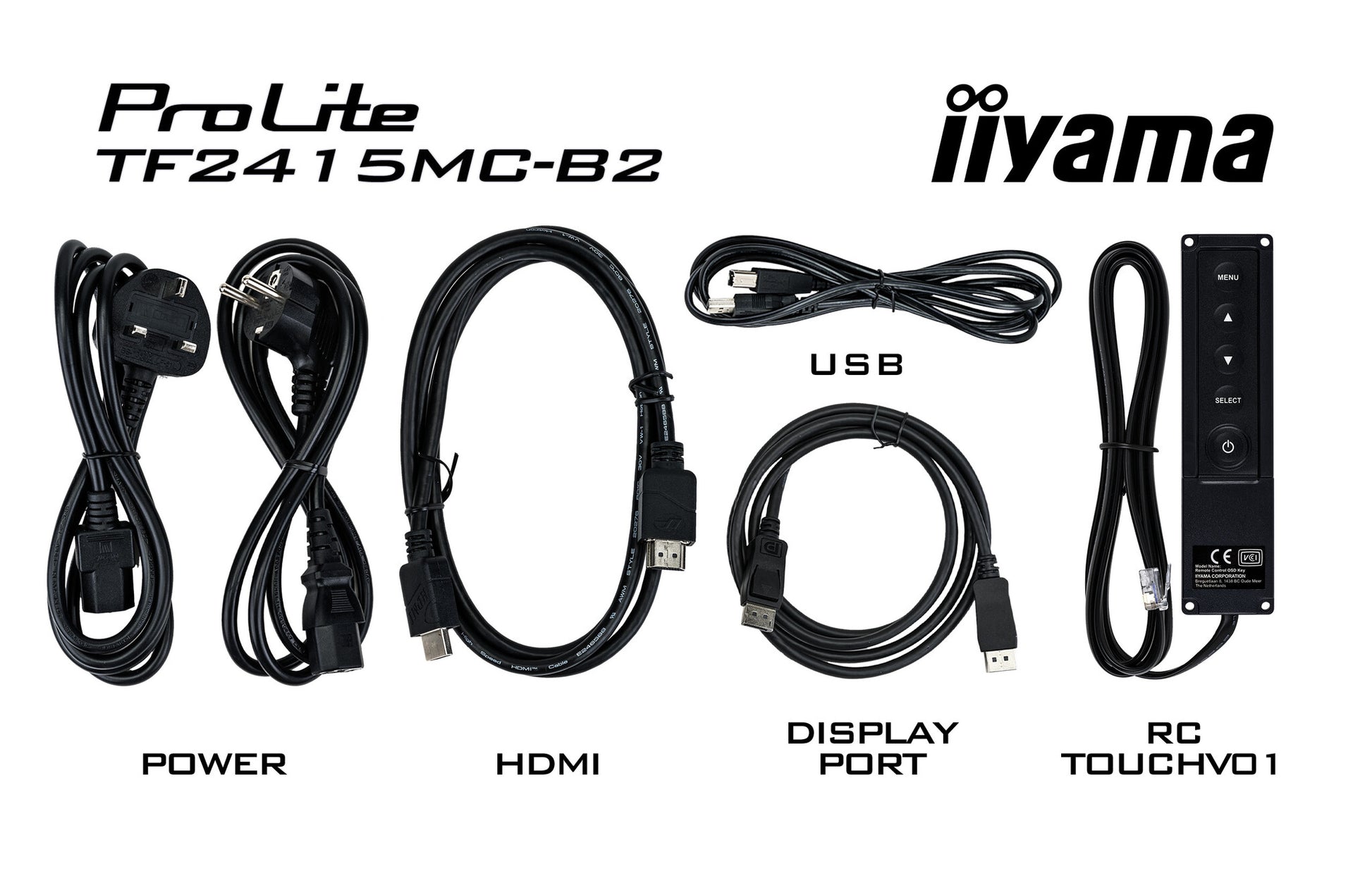

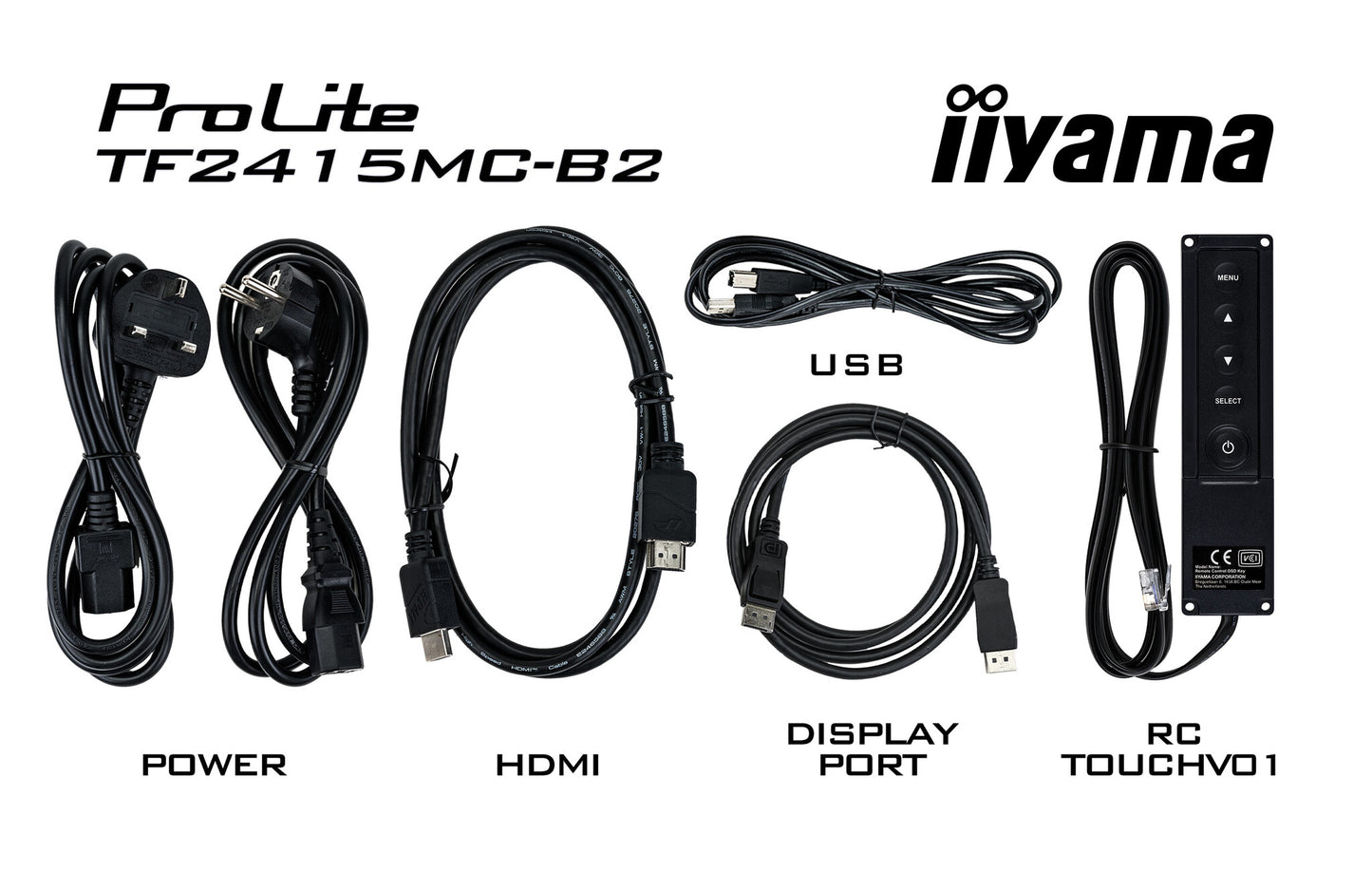

Cables included
AC, USB, HDMI, DisplayPort
Quick start guide
Yes
Weight & dimensions
Width (with stand)
520 mm
Depth (with stand)
42.5 mm
Height (with stand)
315 mm
Weight (with stand)
4.4 kg
Width (without stand)
520 mm
Depth (without stand)
42.5 mm
Height (without stand)
315 mm
Weight (without stand)
4.4 kg
Sustainability
Sustainability certificates
ErP
general_information_attribute_container_name
attribute_product_family_name
ProLite
Logistics data
Harmonized System (HS) code
85285210
Technical details
Compliance certificates
CB, CE, cULus, REACH, RoHS, WEEE
Other features
AC adapter included
Yes
Packaging content
AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad
Placement supported
Horizontal/Vertical
Brightness
315 cd/m²
Display viewable area (HxV)
476.064 x 267.786 mm
Active display area (W x H)
476.064 x 267.786 mm
Depth
42.5 mm
Width
520 mm
Height
315 mm
Weight
4.4 kg
Control panel
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
