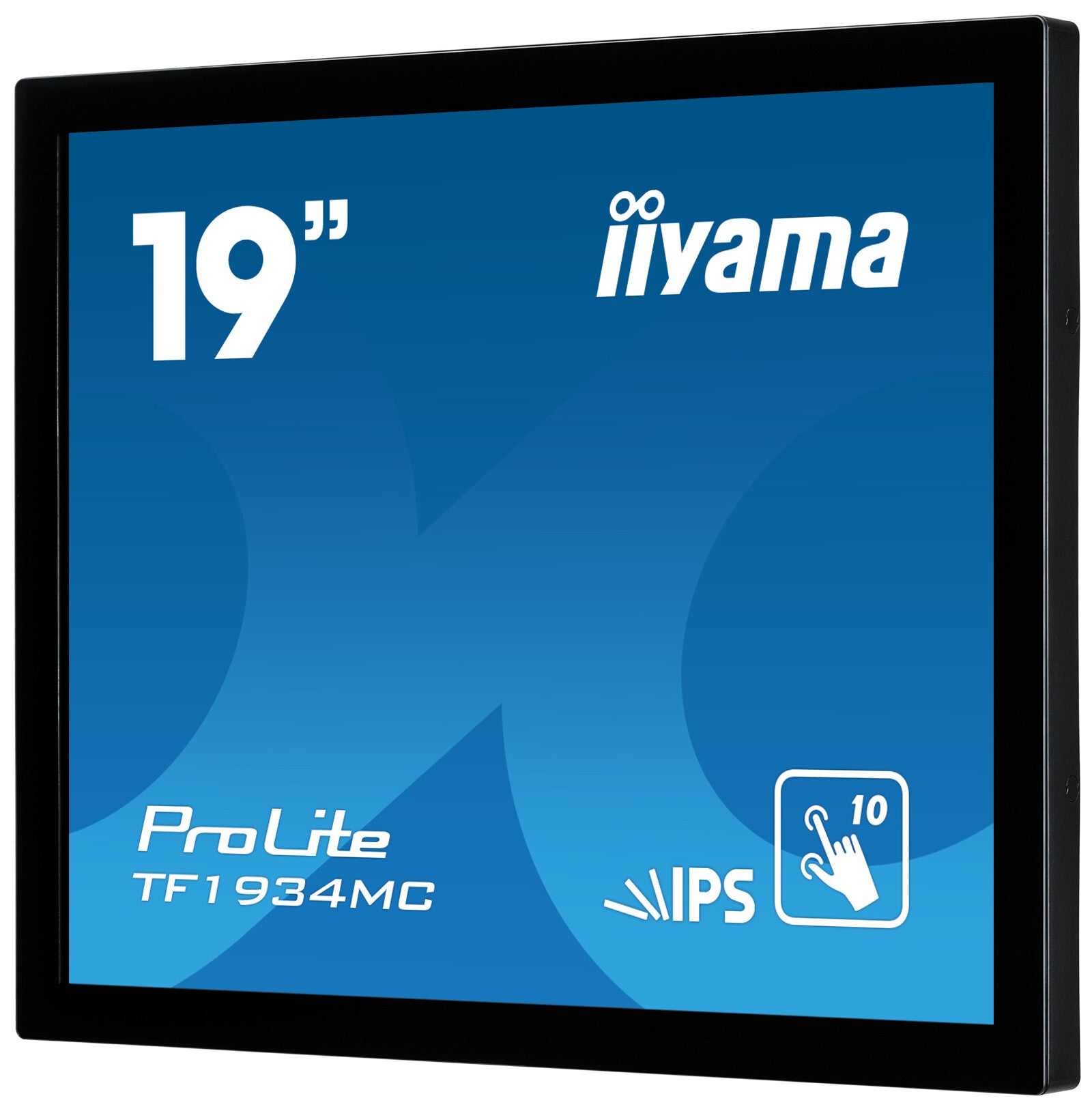

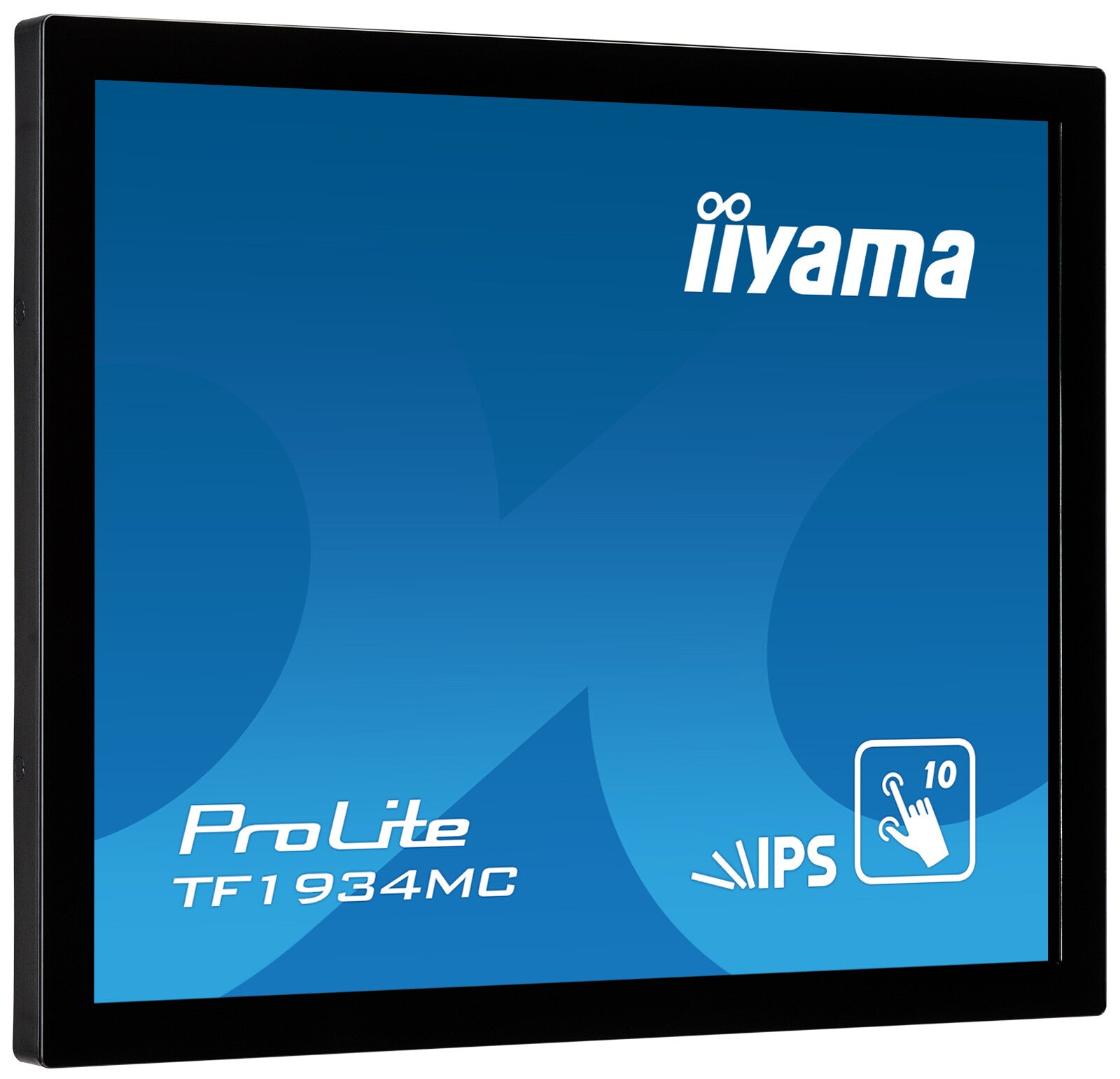

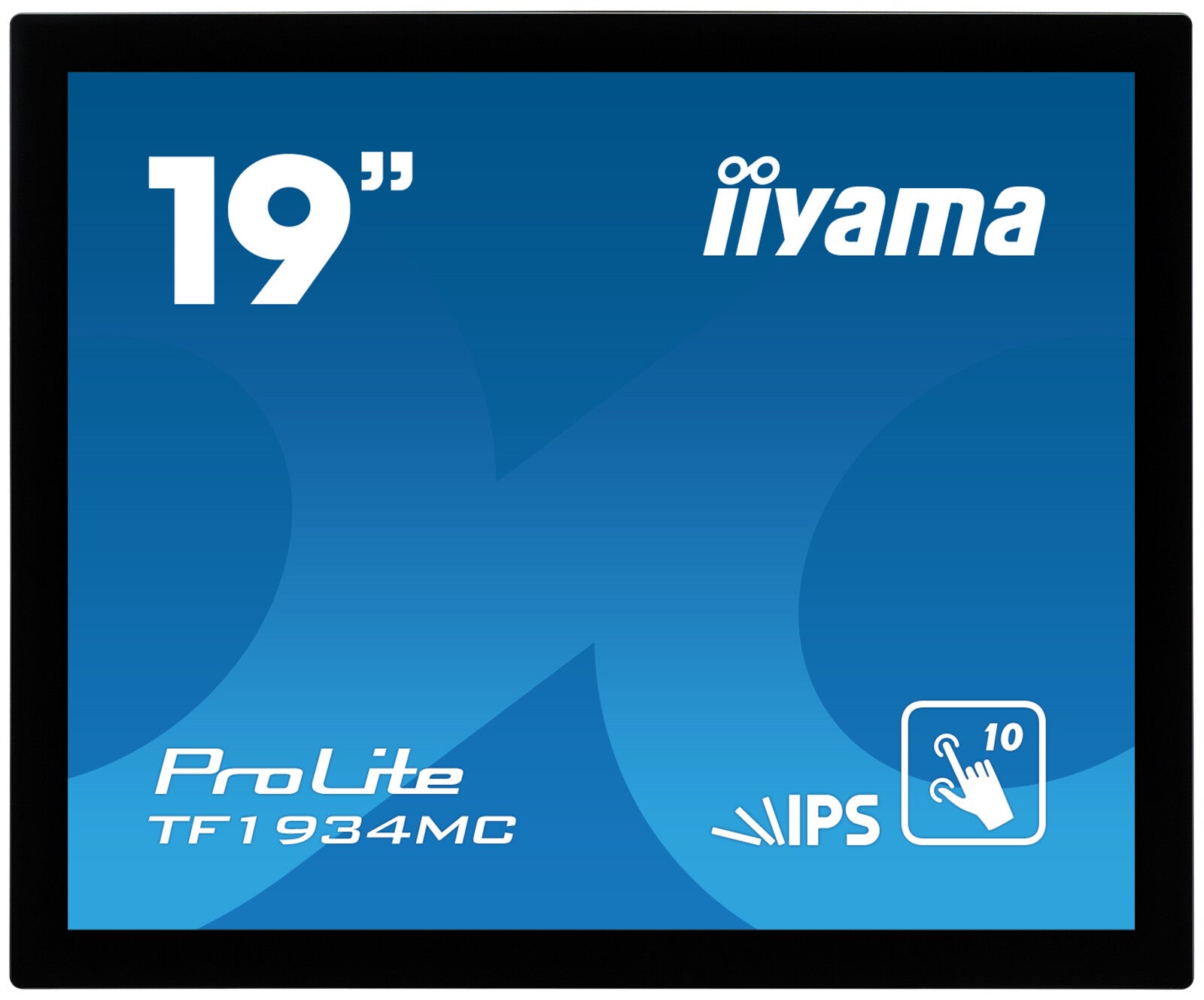

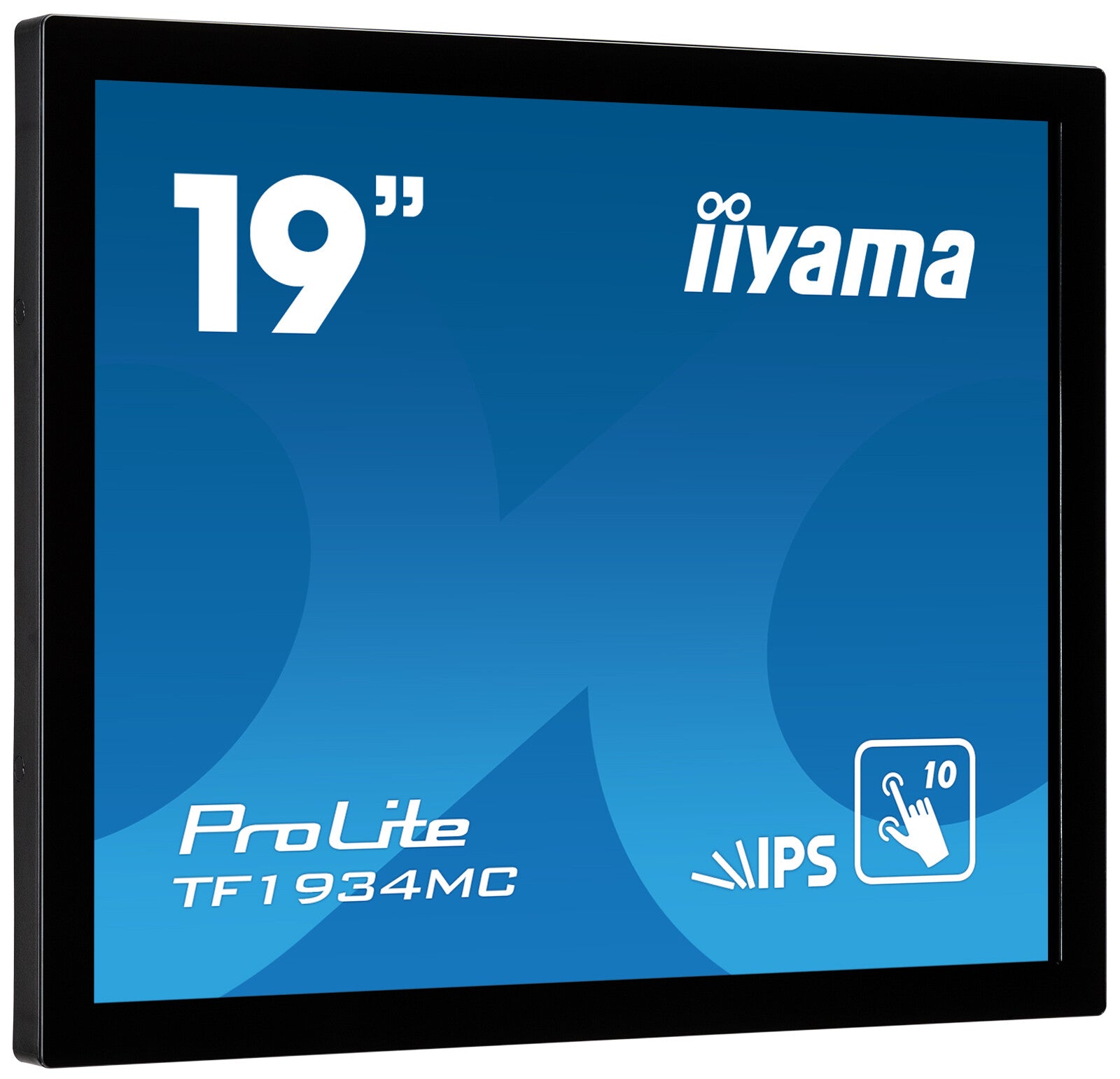

iiyama ProLite TF1934MC-B7X computer monitor 48.3 cm (19") 1280 x 1024 pixels SXGA LED Touchscreen Black

iiyama ProLite TF1934MC-B7X computer monitor 48.3 cm (19") 1280 x 1024 pixels SXGA LED Touchscreen Black

£493.98 GBP
£493.98 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

TF1934MC-B7X

Low stock: 1 left

  • anti-fingerprint coating, touch through-glass
  • IP65 (front)
  • OSD key lock
10pt touch Open Frame monitor with IPS panel and touch through glass function

ProLite TF1934MC-B7X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant. Equipped with a rugged bezel making it suitable for demanding environments. The ProLite TF1934MC-B7X is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations. For ease of integration, the TF1934MC-B7X can be equipped with optional external mounting brackets ( OMK1-1 ) making it an ideal solution for kiosk integrators and Instore Retail.

Display
Display diagonal 48.3 cm (19")
Display resolution 1280 x 1024 pixels
Native aspect ratio 5:4
Display technology LED
Touchscreen Yes
HD type SXGA
Panel type IPS
LED backlight Yes
Backlight type LED
Touchscreen technology Projected capacitive system
Touch technology Multi-touch
Number of simultaneous touchpoints 10
Display brightness (typical) 350 cd/m²
Response time 14 ms
Response time measurement type GTG (Gray to Gray)
Screen shape Flat
Supported graphics resolutions 1280 x 1024 (SXGA)
Aspect ratio 5:4
Contrast ratio (typical) 1000:1
Contrast ratio (dynamic) 1000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 16.7 million colours
Pixel pitch 0.294 x 0.294 mm
Horizontal scan range 31.4 - 80 kHz
Viewable size, horizontal 37.6 cm
Viewable size, vertical 30.1 cm
Viewable size diagonal 48 cm
Display diagonal (metric) 48 cm
Display brightness 315 cd/m²
Performance
NVIDIA G-SYNC No
AMD FreeSync No
Compatible operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection Yes
Multimedia
Built-in camera No
Built-in microphone No
Design
Product colour Black
Front bezel colour Black
International Protection (IP) code IP65
Glass thickness 6 mm
Certification CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, REACH SVHC above 0.1%: Lead
Ports & interfaces
USB Touch port Yes
VGA (D-Sub) ports quantity 1
HDMI Yes
HDMI ports quantity 1
DisplayPorts quantity 1
HDCP Yes
Ergonomics
VESA mounting Yes
Panel mounting interface 100 x 100 mm
Wall mountable Yes
On Screen Display (OSD) Yes
On Screen Display (OSD) languages Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages 7
Power
Energy efficiency class (SDR) F
Energy consumption (SDR) per 1000 hours 18 kWh
Power consumption (typical) 21 W
Power consumption (standby) 1.5 W
Power consumption (off) 1.5 W
AC adapter output voltage 12 V
Power supply type External
Energy efficiency scale A to G
Packaging content

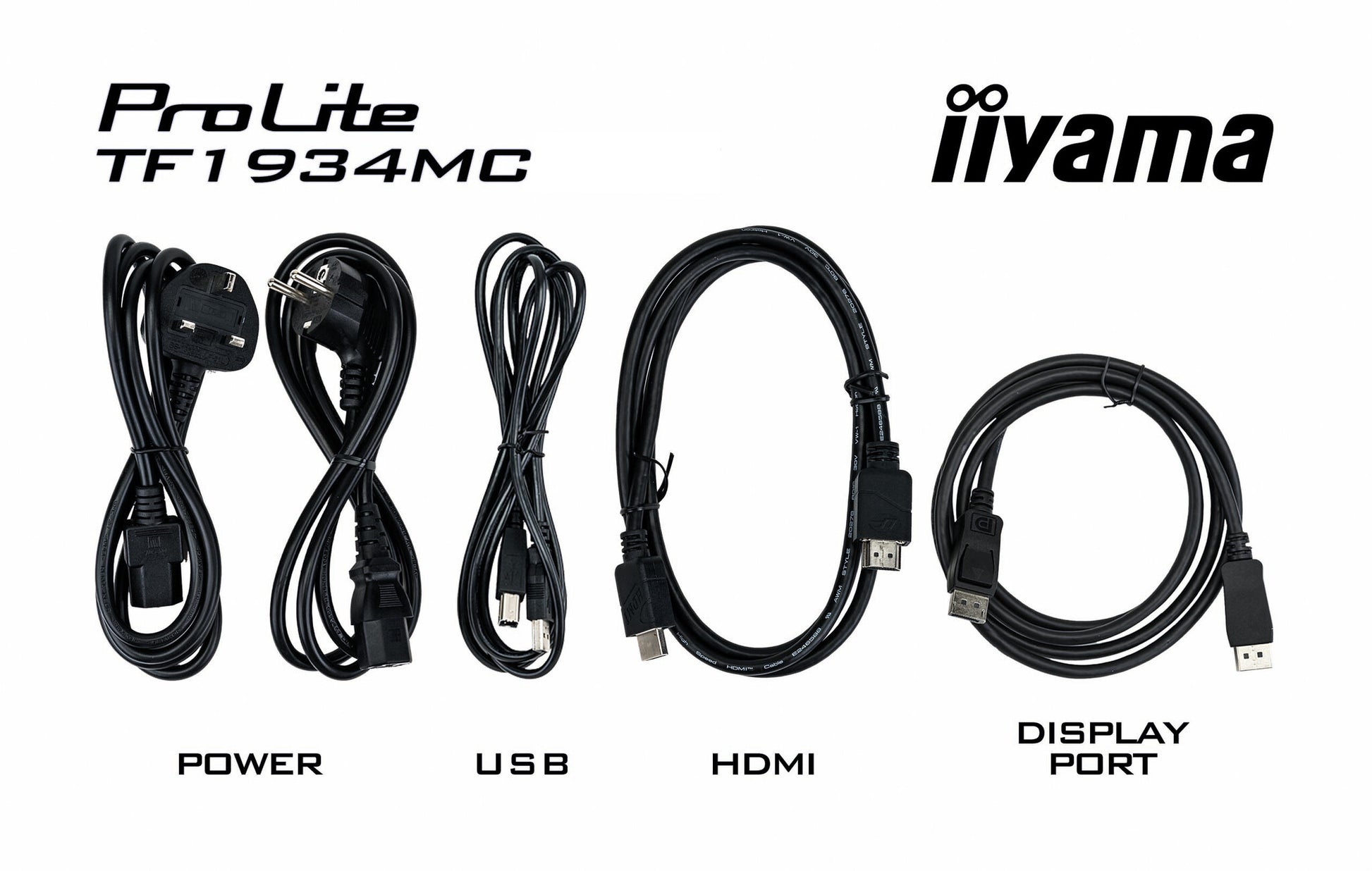

Cables included AC, USB, HDMI, DisplayPort
Quick start guide Yes
Weight & dimensions
Width (with stand) 416 mm
Depth (with stand) 46.5 mm
Height (with stand) 344 mm
Weight (with stand) 4.4 kg
Width (without stand) 416 mm
Depth (without stand) 46.5 mm
Height (without stand) 344 mm
Weight (without stand) 4.4 kg
Packaging data
Package width 16.4 mm
Package depth 1.8 mm
Package height 13.5 mm
Sustainability
Sustainability certificates ErP
general_information_attribute_container_name
attribute_product_family_name ProLite
Logistics data
Harmonized System (HS) code 85285210
Technical details
Compliance certificates CE, cULus, EAC, REACH, RoHS, WEEE
Other features
AC adapter included Yes
Packaging content AC adapter, Touch Panel Driver Disk (CD-ROM)
Brightness 315 cd/m²
Display viewable area (HxV) 376.5 x 301.1 mm
Active display area (W x H) 376.5 x 301.1 mm
Depth 46.5 mm
Width 416 mm
Height 344 mm
Weight 4.4 kg
Control panel Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Touch method stylus, finger, glove
Supplied AC adapter type AC
