iiyama

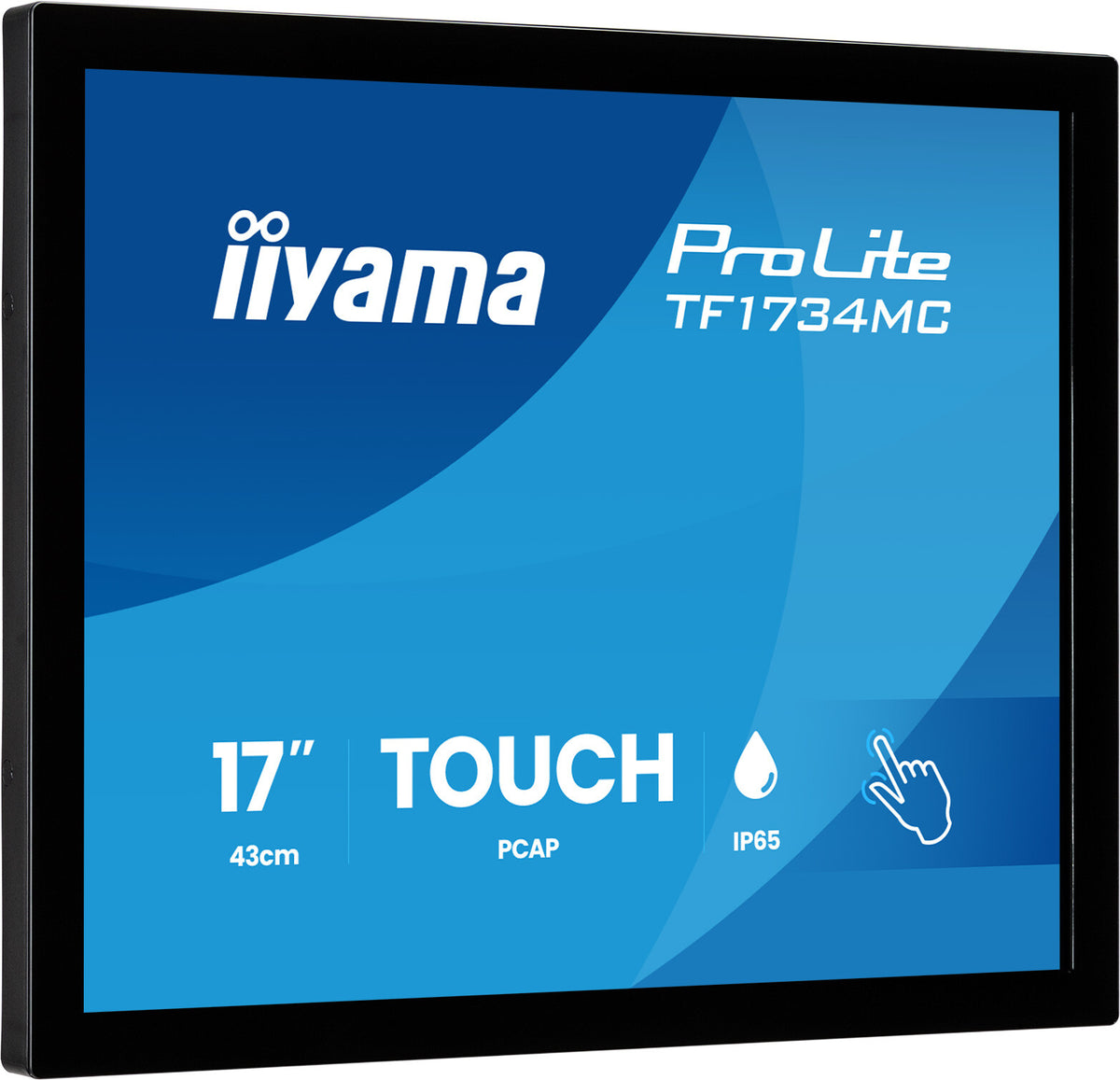

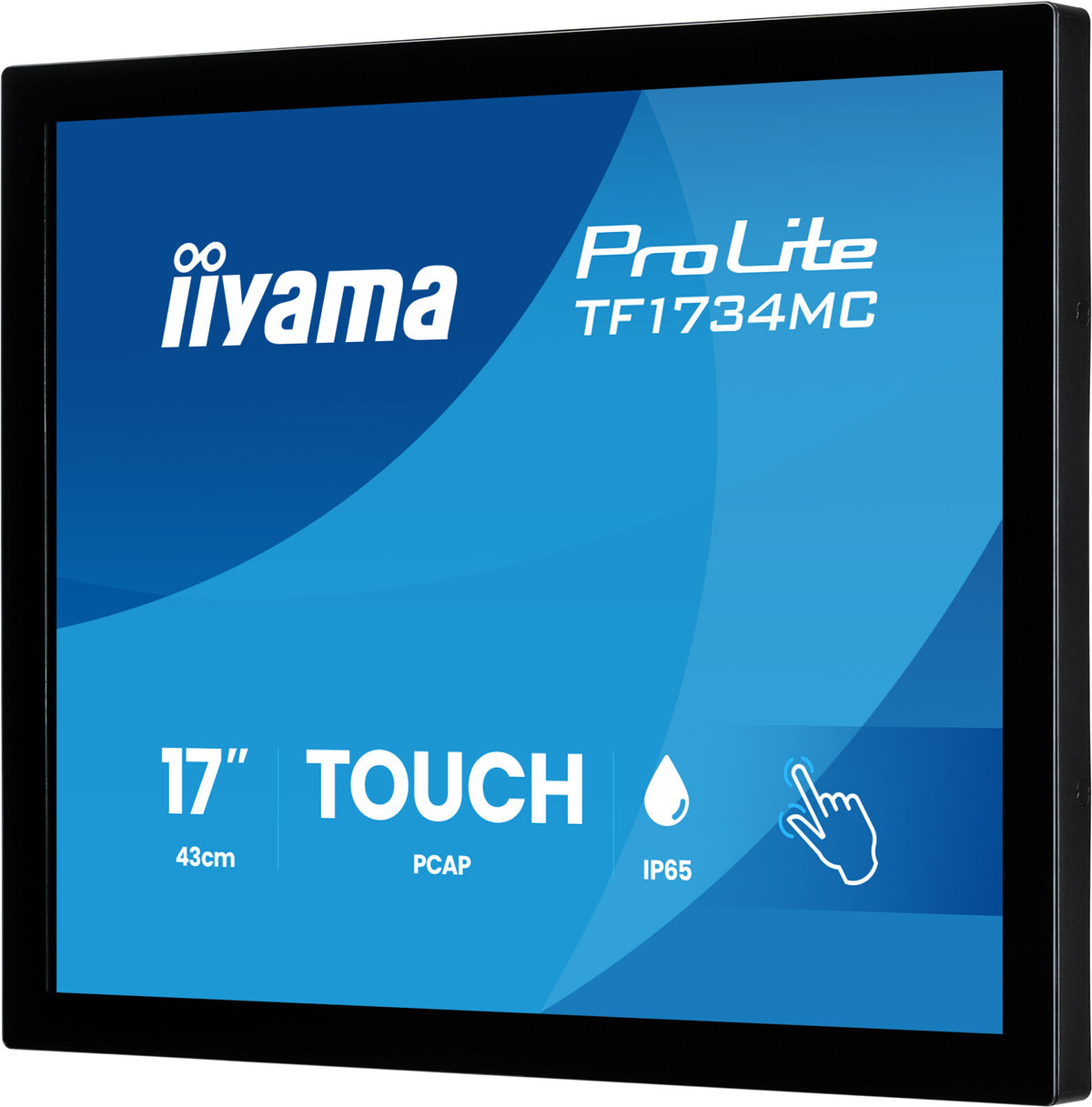

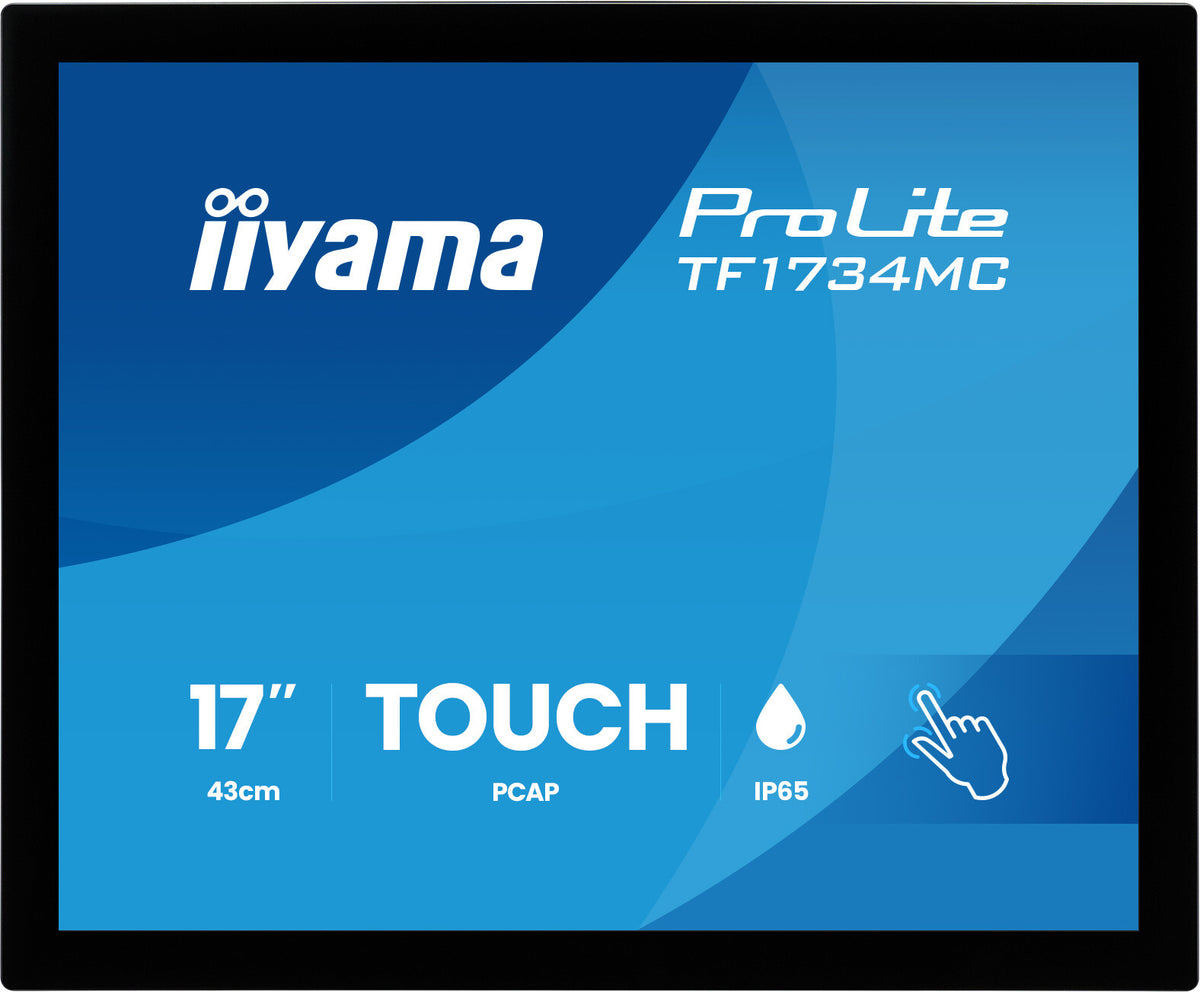

iiyama ProLite TF1734MC-B8X computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LCD Touchscreen Table Black

iiyama ProLite TF1734MC-B8X computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LCD Touchscreen Table Black

£474.84 GBP
£474.84 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

TF1734MC-B8X

Low stock: 1 left

  • 43.2 cm (17") Black
  • HDMI DisplayPorts quantity: 1
  • Screen shape: Flat
  • Maximum refresh rate: 75 Hz Response time: 5 ms
  • 1280 x 1024 pixels SXGA Panel type: TN
  • Energy efficiency class (SDR): E ErP CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Touch 17" TN, 1280x1024 px, 75 Hz, 5:4, 350 cd/m², 1000:1, VGA, HDMI, DisplayPort

17” Open Frame touchscreen monitor with edge-to-edge glass and Touch Through-Glass function for flexible integration

The ProLite TF1734MC-B8X is a 17” Open Frame touchscreen monitor designed for integration into kiosks, retail systems, interactive displays and custom installations. Its 10-point PCAP touch technology provides accurate multi-touch operation, while the edge-to-edge glass surface offers durability, scratch resistance and a clean, professional appearance.

With IP65-rated front protection, the screen is resistant to dust and splashing water from the front, making it suitable for demanding public and commercial environments. The anti-fingerprint coating helps keep the display clear and easy to use, even with frequent interaction.

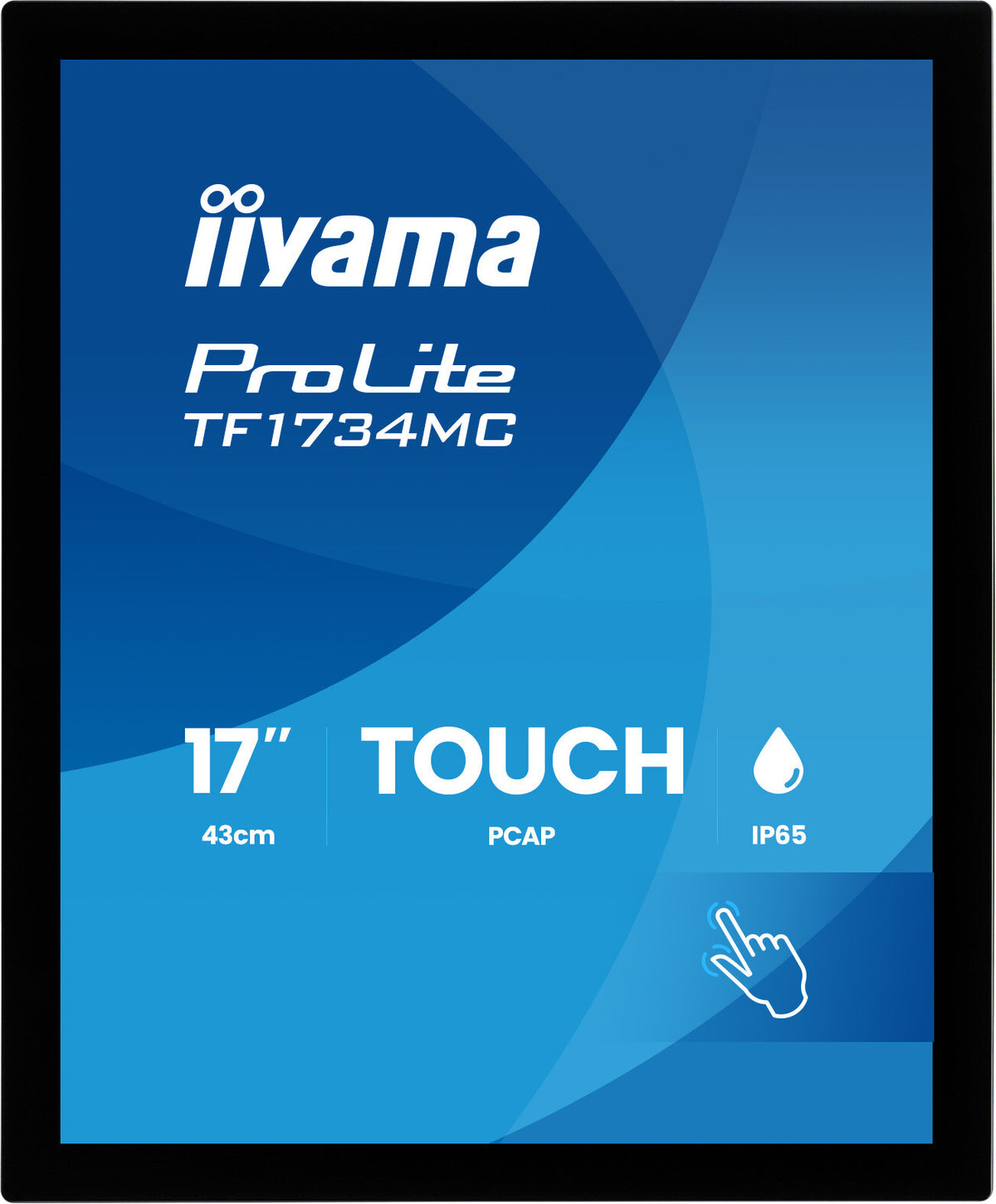

For applications requiring additional protection, the Touch Through-Glass function allows reliable touch operation through a glass overlay up to 6 mm. The monitor can be installed in landscape, portrait or face-up orientation, while optional Open Frame mounting brackets support easy and secure integration into different installation designs.For ease of integration, the monitor can be equipped with optional external mounting brackets (OMK1-1).

Display
Display diagonal 43.2 cm (17")
Display resolution 1280 x 1024 pixels
Native aspect ratio 5:4
Display technology LCD
Touchscreen Yes
HD type SXGA
Panel type TN
Touchscreen type Table
Touchscreen technology Projected capacitive system
Touch technology Multi-touch
Number of simultaneous touchpoints 10
Display brightness (peak) 350 cd/m²
Display brightness (typical) 300 cd/m²
Response time 5 ms
Screen shape Flat
Contrast ratio (typical) 1000:1
Maximum refresh rate 75 Hz
Viewing angle, horizontal 170°
Viewing angle, vertical 160°
Display number of colours 16.7 million colours
Pixel pitch 0.264 x 0.264 mm
Horizontal scan range 31 - 80 kHz
Viewable size, horizontal 33.8 cm
Viewable size, vertical 27 cm
Display diagonal (metric) 43 cm
Positional accuracy 2 mm
Display brightness 300 cd/m²
Performance
NVIDIA G-SYNC No
AMD FreeSync No
Palm rejection Yes
Multimedia
Built-in speaker(s) No
Built-in camera No
Design
Market positioning Business
Product colour Black
Front bezel colour Black
International Protection (IP) code IP65
Glass thickness 3 mm
Ports & interfaces
Built-in USB hub No
USB Touch port Yes
VGA (D-Sub) ports quantity 1
HDMI Yes
HDMI ports quantity 1
DisplayPorts quantity 1
Headphone out No
Ergonomics
VESA mounting Yes
Panel mounting interface 100 x 100 mm
Cable lock slot No
Height adjustment No
On Screen Display (OSD) Yes
On Screen Display (OSD) languages German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
Power
Energy efficiency class (SDR) E
Energy efficiency class (HDR) Not available
Power consumption (typical) 13 W
Power consumption (standby) 1.5 W
Power consumption (off) 0.3 W
AC adapter output voltage 12 V
Power supply type External
Packaging content
Cables included AC, USB, HDMI, DisplayPort
Quick start guide Yes
DisplayPort cable length 1.8 m
HDMI cable length 1.8 m
Power cable length 1.8 m
Weight & dimensions
Width (with stand) 369 mm
Depth (with stand) 47.5 mm
Height (with stand) 307 mm
Weight (with stand) 3.6 kg
Packaging data
Package width 387 mm
Package depth 455 mm
Package height 145 mm
Package weight 5.2 kg
USB cable length 1.8 m
Sustainability
Sustainability certificates ErP
general_information_attribute_container_name
attribute_product_family_name ProLite
Technical details
Native refresh rate 75 Hz
Compliance certificates CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Other features
AC adapter included Yes
Packaging content AC adapter
Brightness 300 cd/m²
Active display area (W x H) 338 x 270 mm
Depth 47.5 mm
Width 369 mm
Height 307 mm
Weight 3.6 kg
Control panel Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Touch method stylus, finger, glove (latex)
