Maximum refresh rate: 60 Hz Response time: 25 ms Response time measurement type: GTG (Gray to Gray)
1920 x 1080 pixels Full HD Panel type: IPS
Energy efficiency class (SDR): F ErP CE, cULus, EAC, REACH, RoHS, WEEE

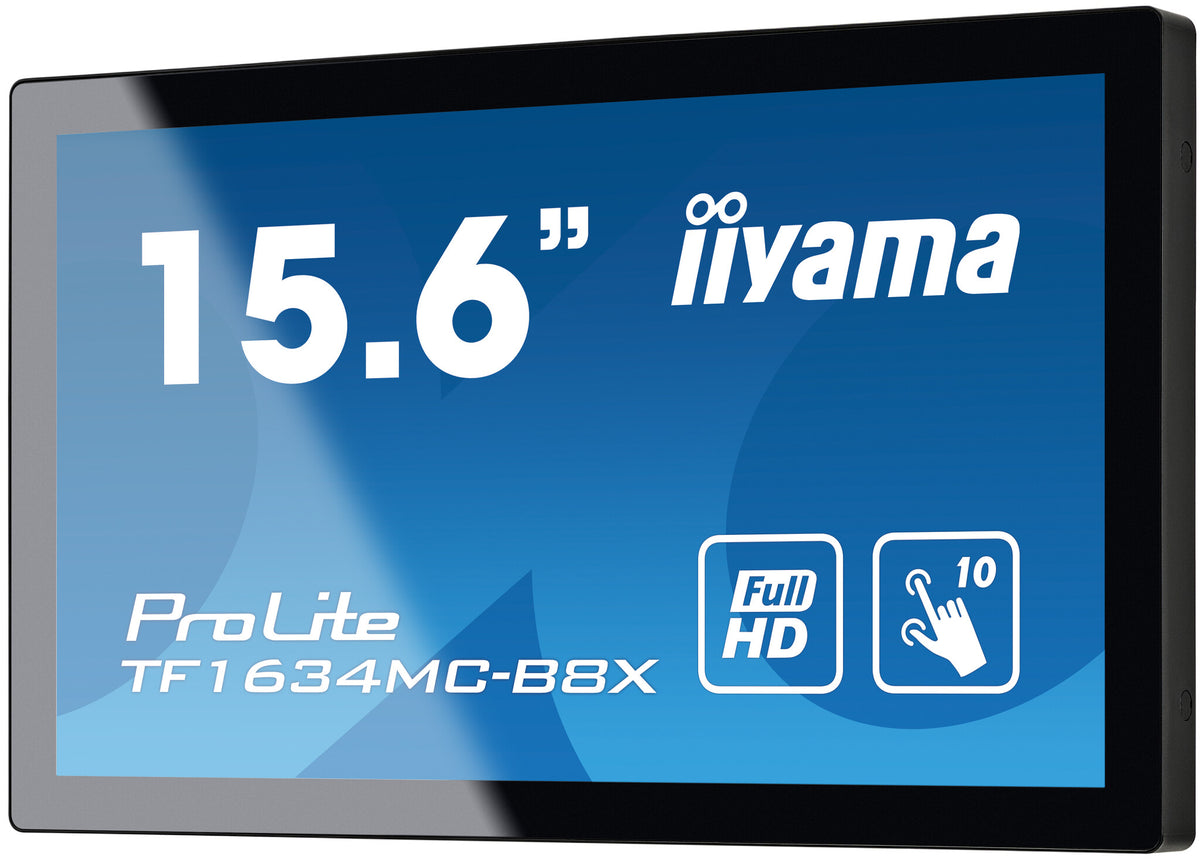

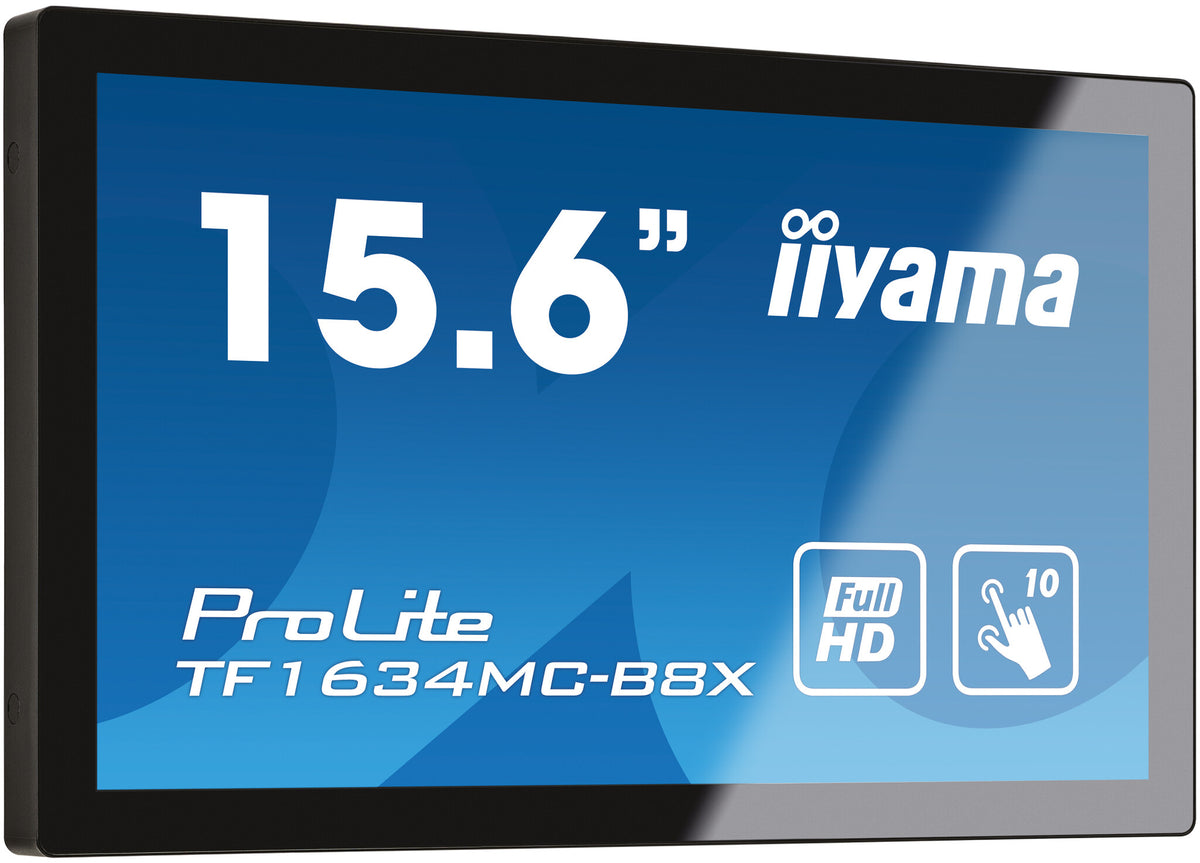

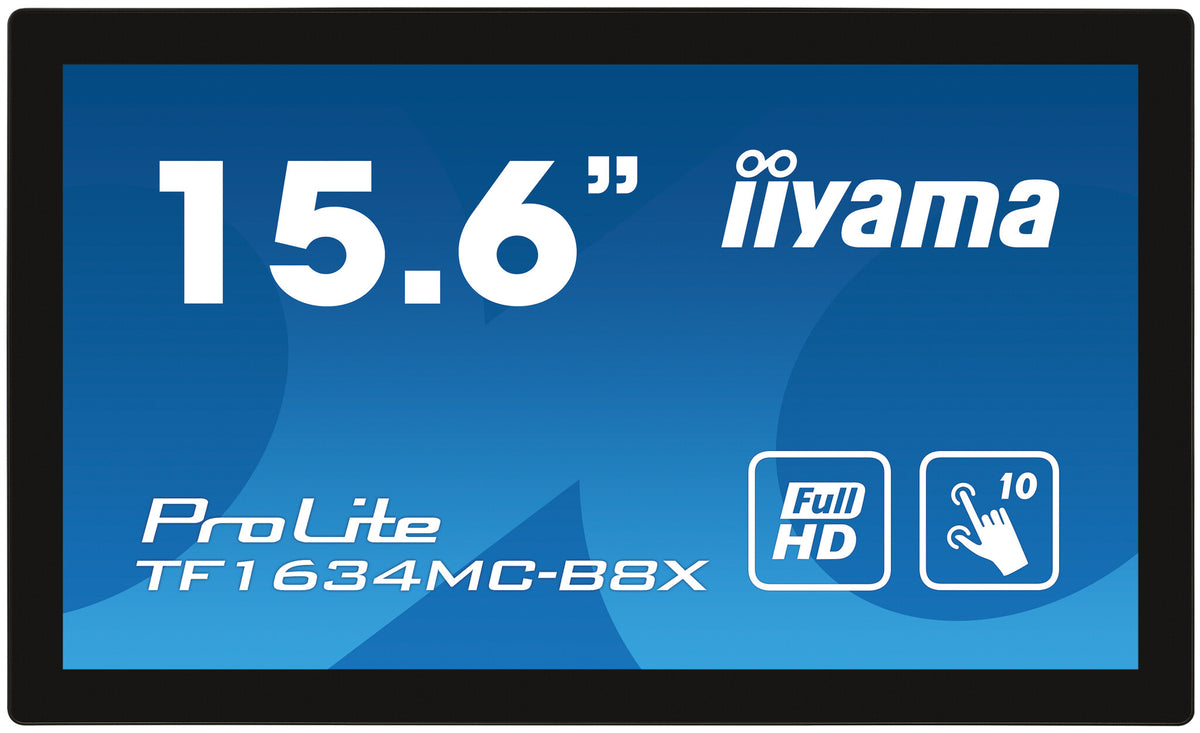

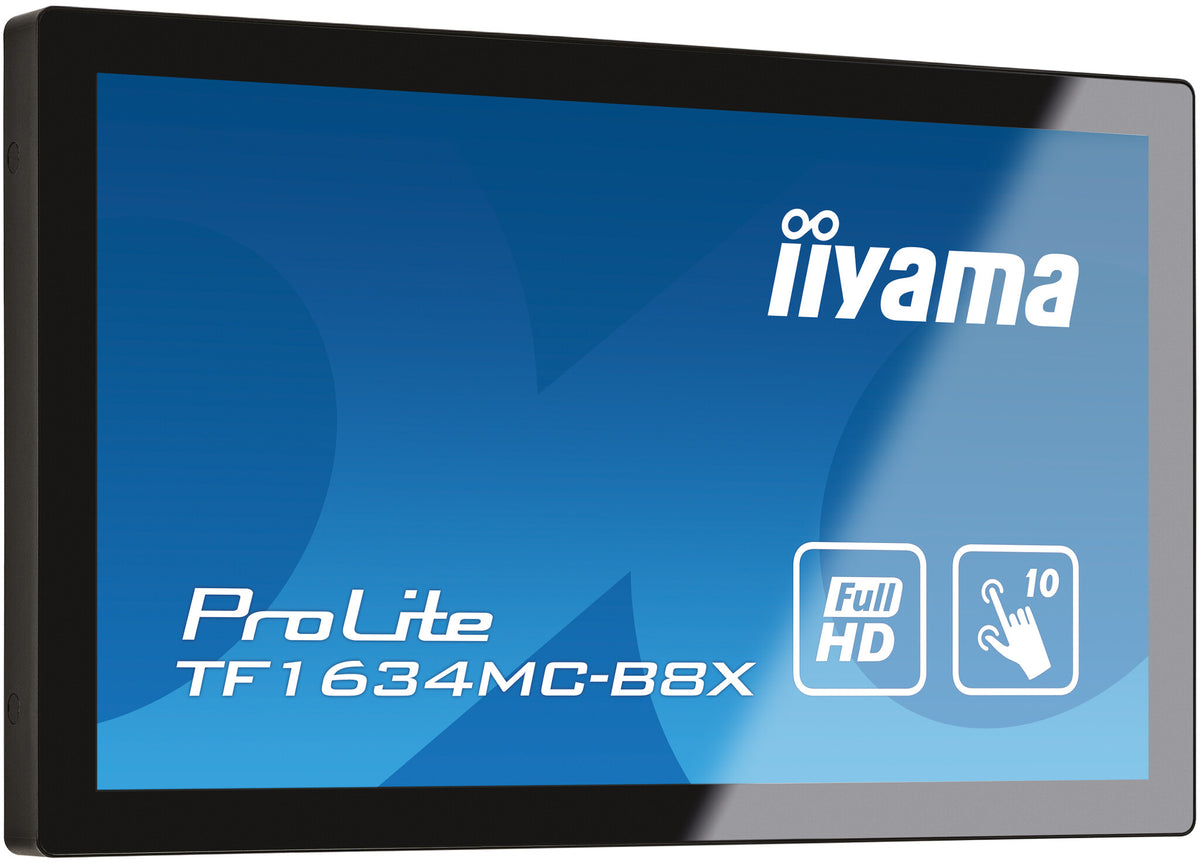

15.6" Full HD 10 point PCAP Open Frame touchscreen featuring IPS Panel Technology and touch through glass function
The ProLite TF1634MC-B8X uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding kiosk installations. For ease of integration, the TF1634MC-B8X can be equipped with optional external mounting brackets ( OMK1-1 ) making it an ideal solution for kiosk integrators and Instore Retail.
Display
Display diagonal
39.6 cm (15.6")
Display resolution
1920 x 1080 pixels
Native aspect ratio
16:9
Display technology
LED
Touchscreen
Yes
HD type
Full HD
Panel type
IPS
Touchscreen type
Multi-user
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Display brightness (typical)
450 cd/m²
Response time
25 ms
Response time measurement type
GTG (Gray to Gray)
Screen shape
Flat
Contrast ratio (typical)
700:1
Maximum refresh rate
60 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.2 million colours
Pixel pitch
0.179 x 0.179 mm
Horizontal scan range
30 - 84 kHz
Viewable size, horizontal
34.4 cm
Viewable size, vertical
19.4 cm
Display diagonal (metric)
39.5 cm
Surface hardness
7H
Display brightness
405 cd/m²
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection
Yes
Multimedia
Built-in camera
No
Built-in microphone
No
Design
Product colour
Black
Front bezel colour
Black
International Protection (IP) code
IP65
Glass thickness
2.4 mm
Ports & interfaces
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
HDCP
Yes
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages
7
Power
Energy efficiency class (SDR)
F
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
12.4 kWh
Power consumption (typical)
18 W
Power consumption (standby)
0.6 W
Power consumption (off)
0.3 W
AC adapter output voltage
12 V
Power supply type
External
Packaging content
Cables included
AC, USB, HDMI, DisplayPort
Quick start guide
Yes
Weight & dimensions
Width (with stand)
381 mm
Depth (with stand)
46 mm
Height (with stand)
230.5 mm
Weight (with stand)
2 kg
Width (without stand)
381 mm
Depth (without stand)
46 mm
Height (without stand)
230.5 mm
Weight (without stand)
2 kg
Packaging data
Package width
455 mm
Package depth
290 mm
Package height
365 mm
Package weight
3.9 kg
Sustainability
Sustainability certificates
ErP
general_information_attribute_container_name
attribute_product_family_name
ProLite
Logistics data
Products per pallet
78 pc(s)
Pallet net width
11.5 cm
Pallet net length
20.4 cm
Pallet net height
9.7 cm
Harmonized System (HS) code
85285210
Technical details
Native refresh rate
60 Hz
Compliance certificates
CE, cULus, EAC, REACH, RoHS, WEEE
Other features
AC adapter included
Yes
Packaging content
AC adapter
Placement supported
Horizontal/Vertical
Brightness
405 cd/m²
Display viewable area (HxV)
344.2 x 193.5 mm
Active display area (W x H)
344.2 x 193.6 mm

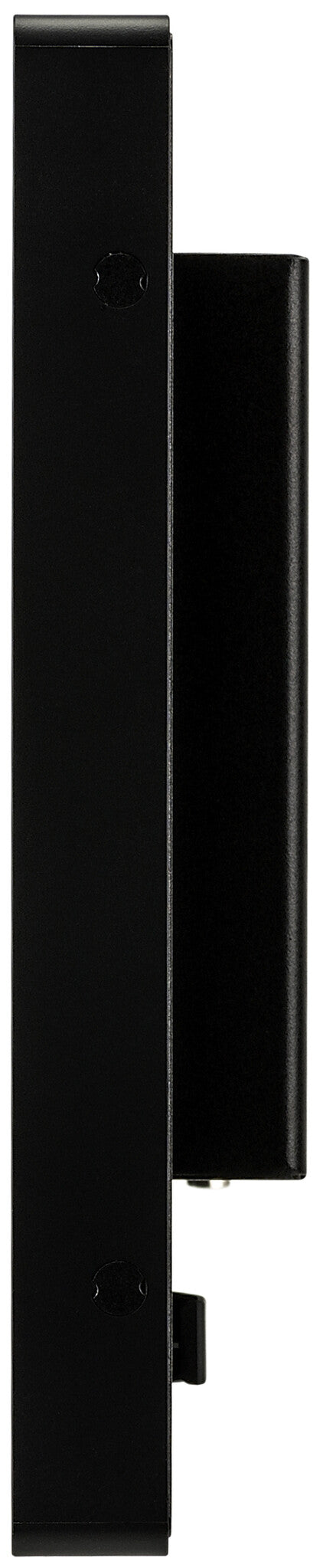

Depth
46 mm
Width
381 mm
Height
230.5 mm
Weight
2 kg
Control panel
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
