Energy efficiency class (SDR): E ErP CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Open Frame PCAP 10 point touch screen equipped with touch through glass function

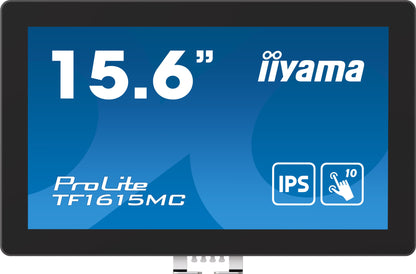

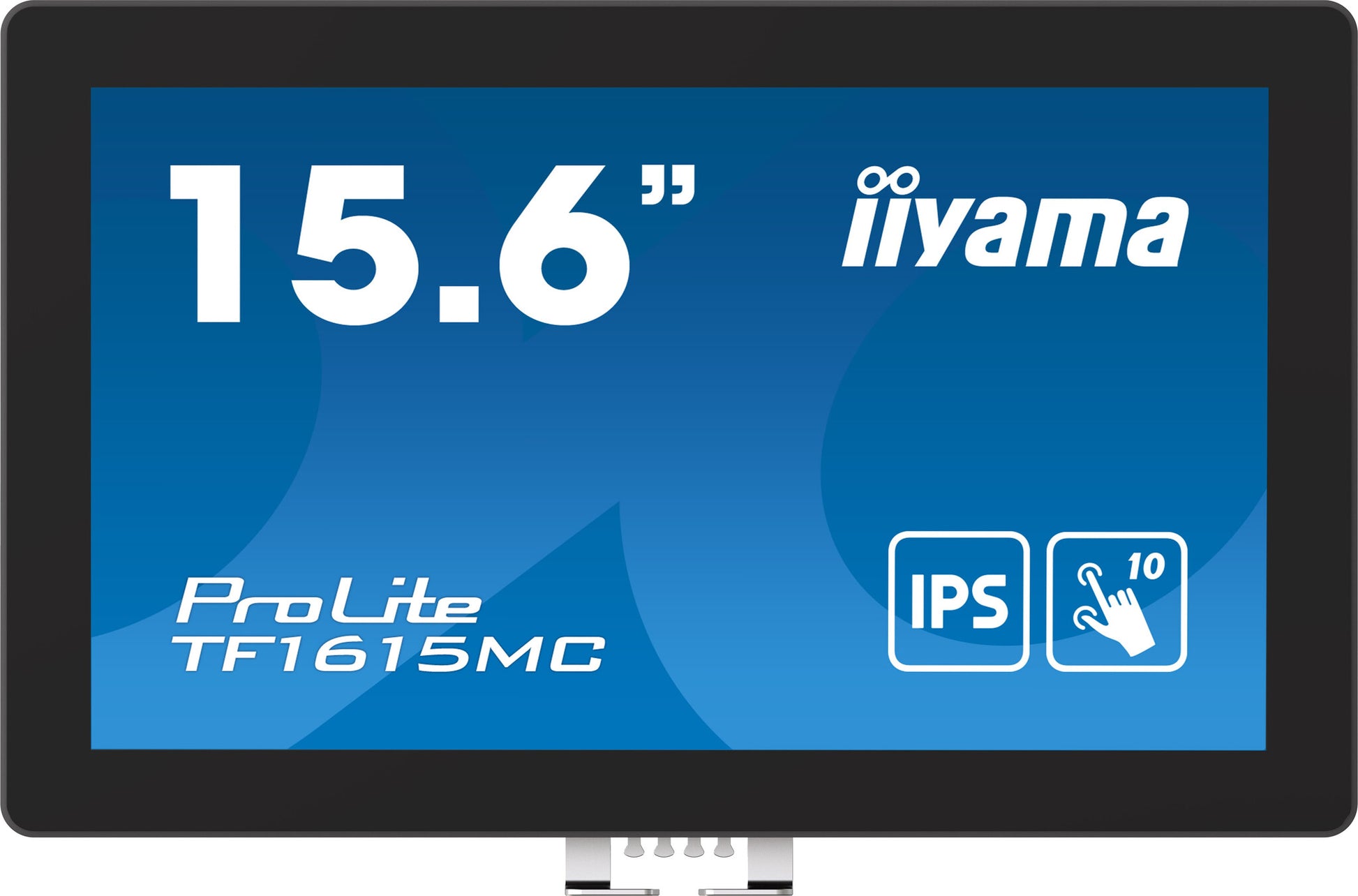

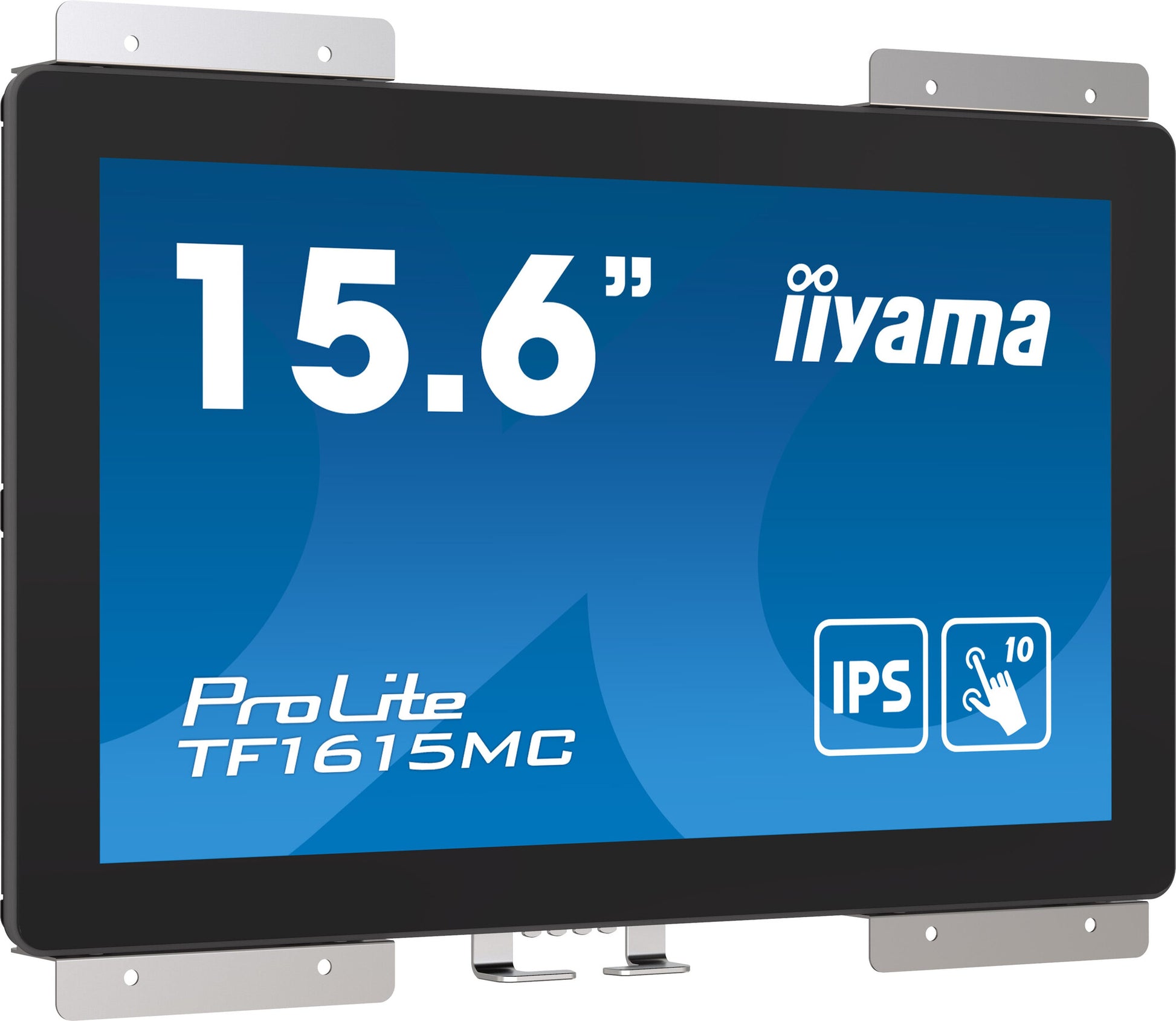

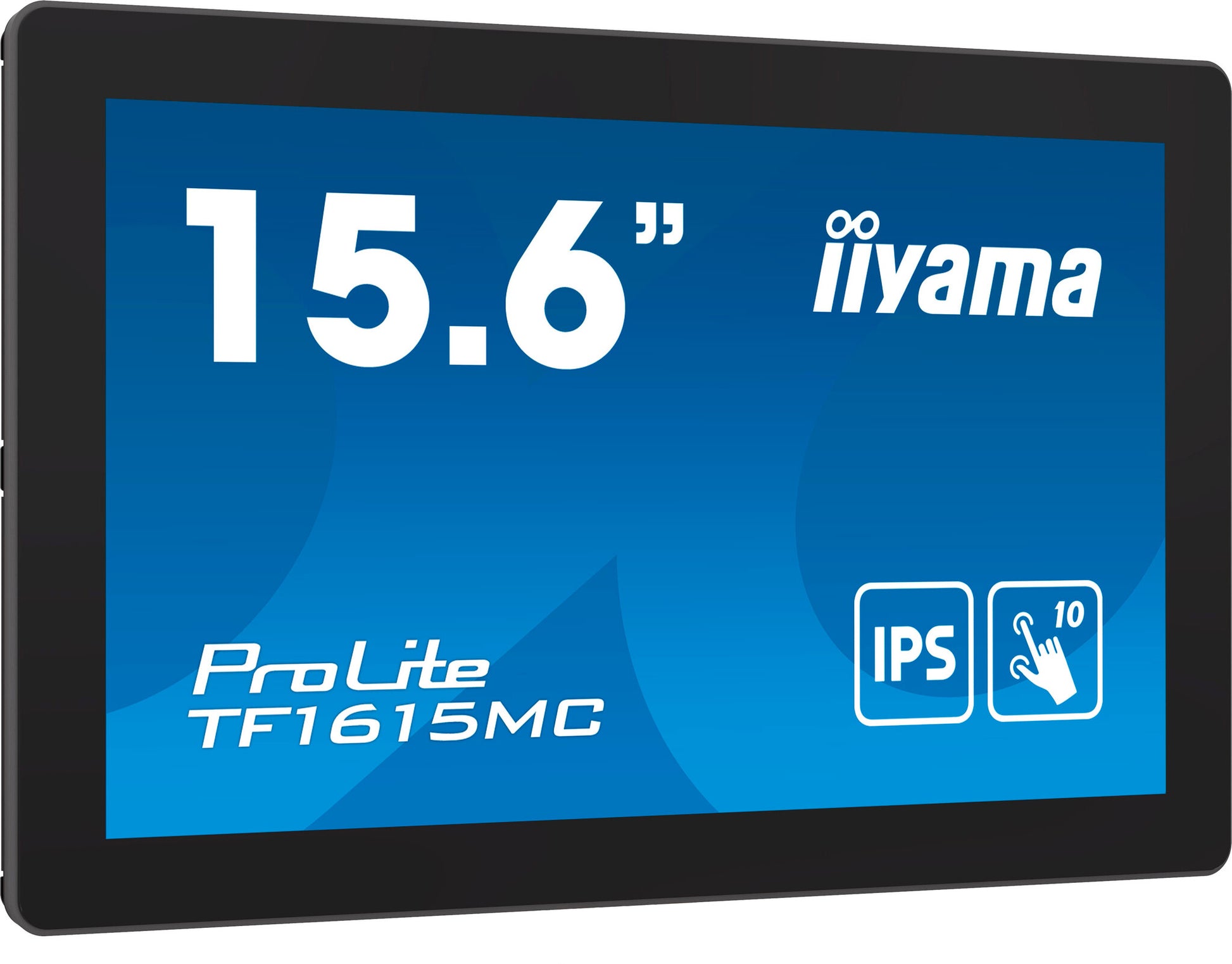

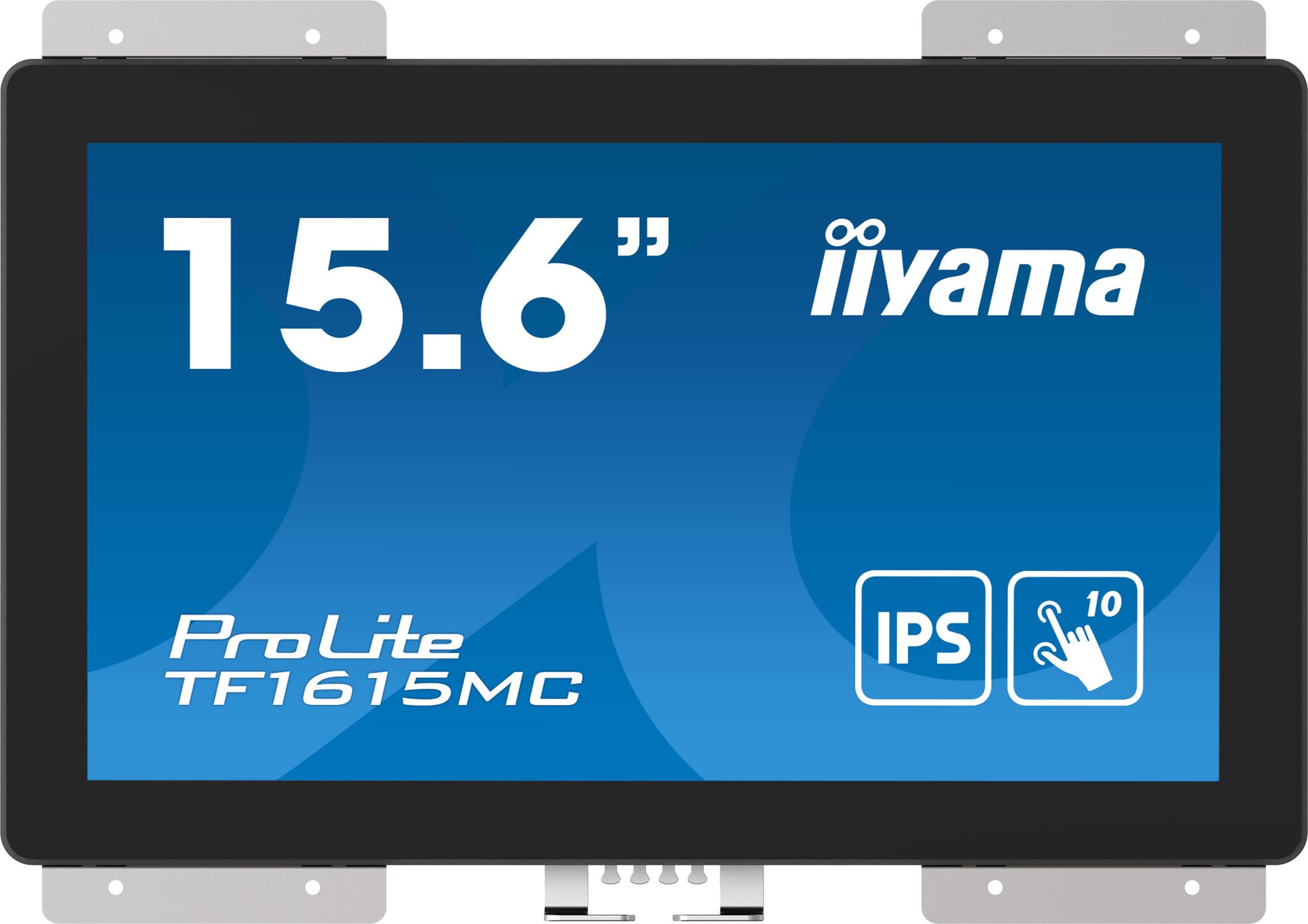

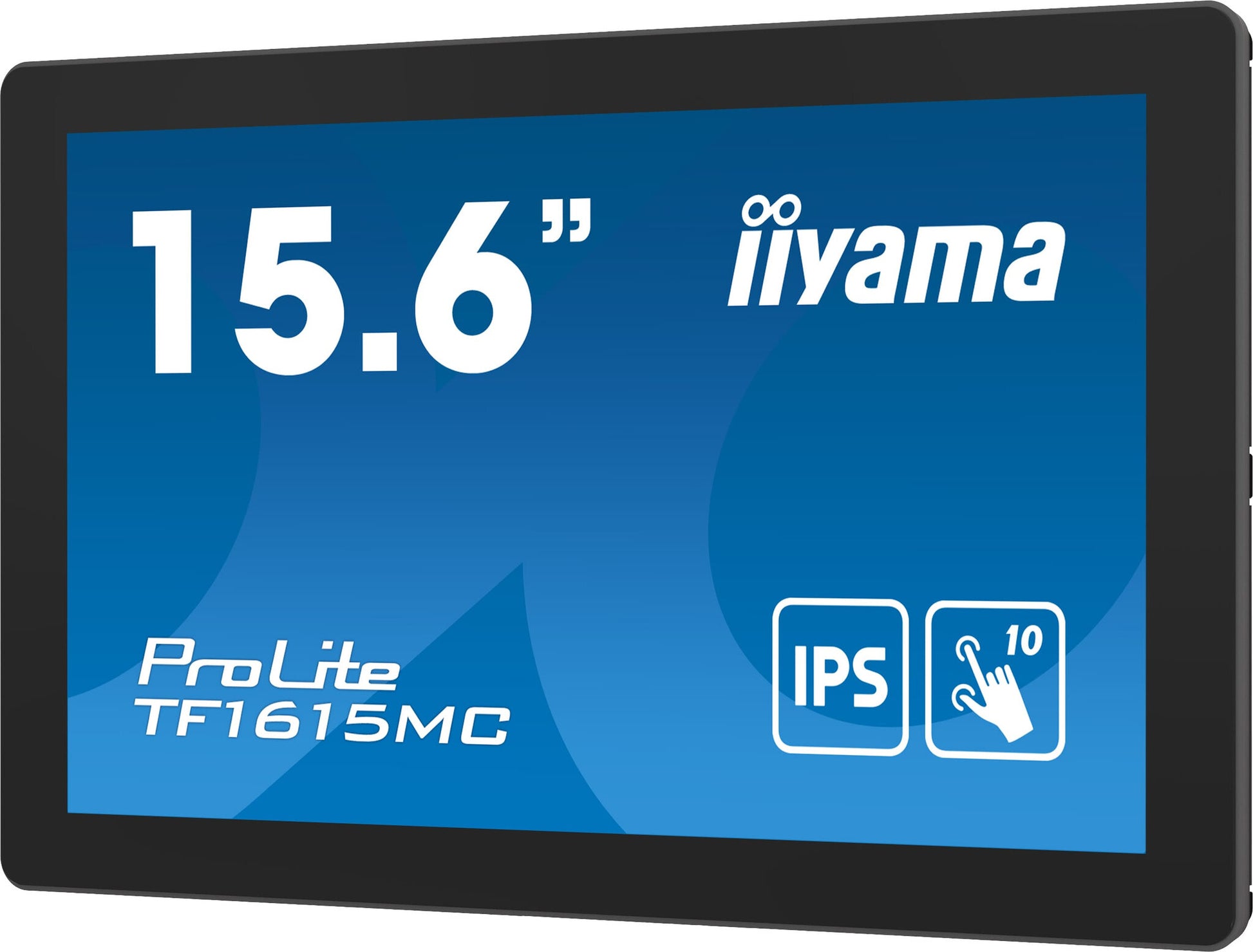

The ProLite TF1615MC-B1 (15.6 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the ProLite TF1615MC-B1 can be equipped with optional external mounting brackets ( OMK5-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Display
Display diagonal
39.6 cm (15.6")
Display resolution
1920 x 1080 pixels
Native aspect ratio
16:9
Touchscreen
Yes
HD type
Full HD
Panel type
IPS
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
10
Display brightness (peak)
450 cd/m²
Display brightness (typical)
450 cd/m²
Response time
25 ms
Screen shape
Flat
Aspect ratio
16:9
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.17925 x 0.17925 mm
Horizontal scan range
31.5 - 67.5 kHz
Viewable size, horizontal
34.5 cm
Viewable size, vertical
19.5 cm
Display diagonal (metric)
39.5 cm
Surface hardness
7H
Display brightness
405 cd/m²
Performance
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
