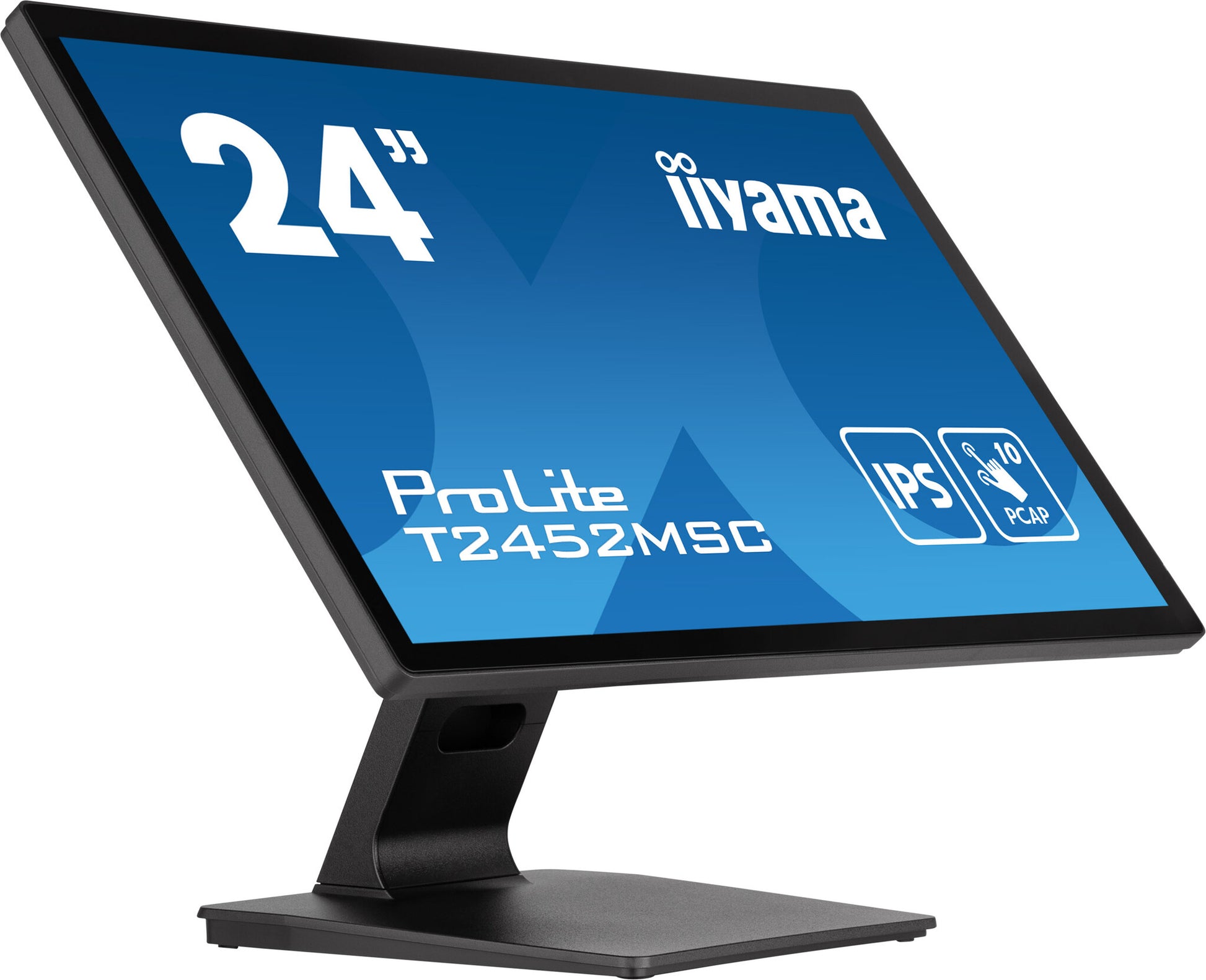

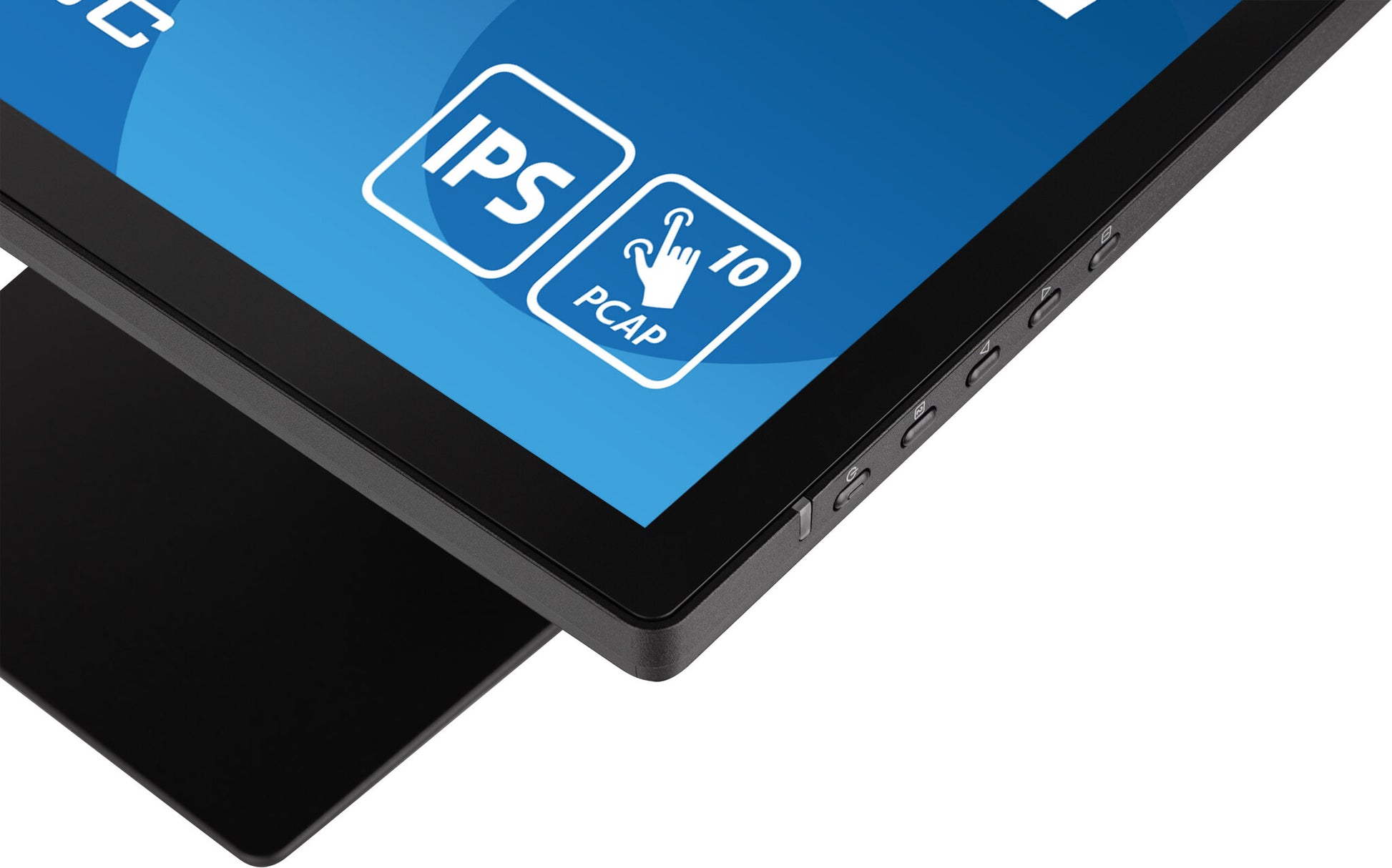

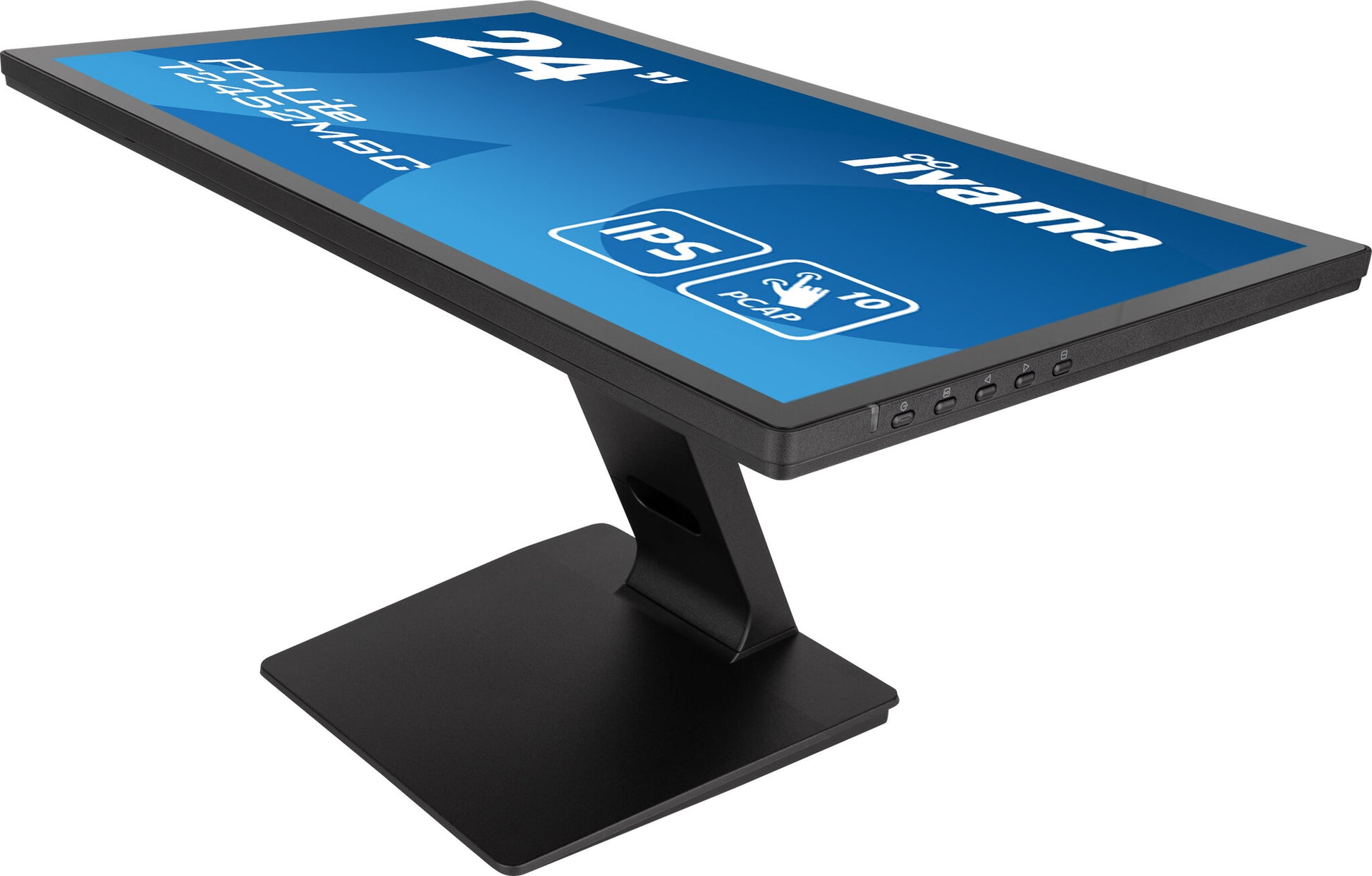

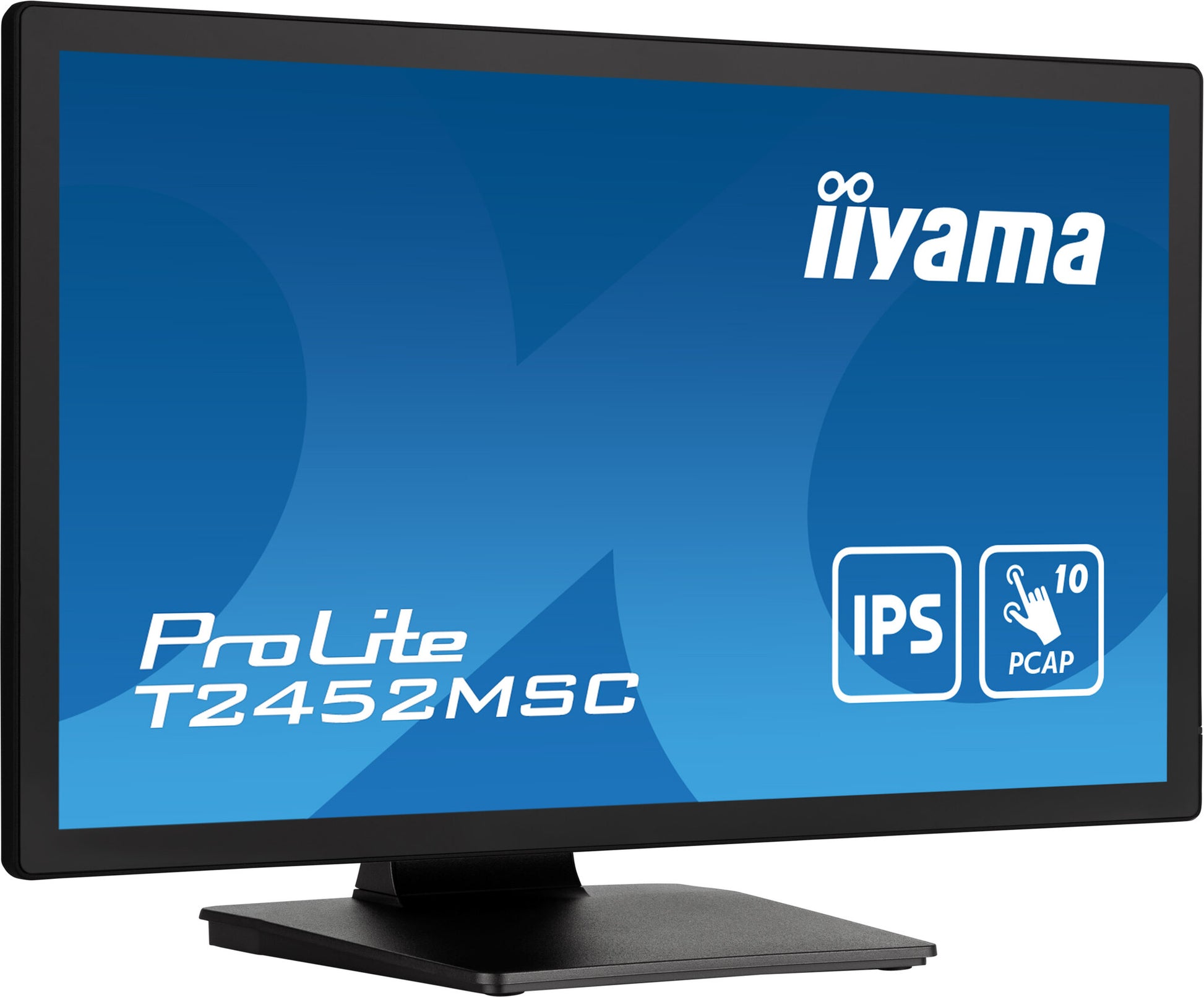

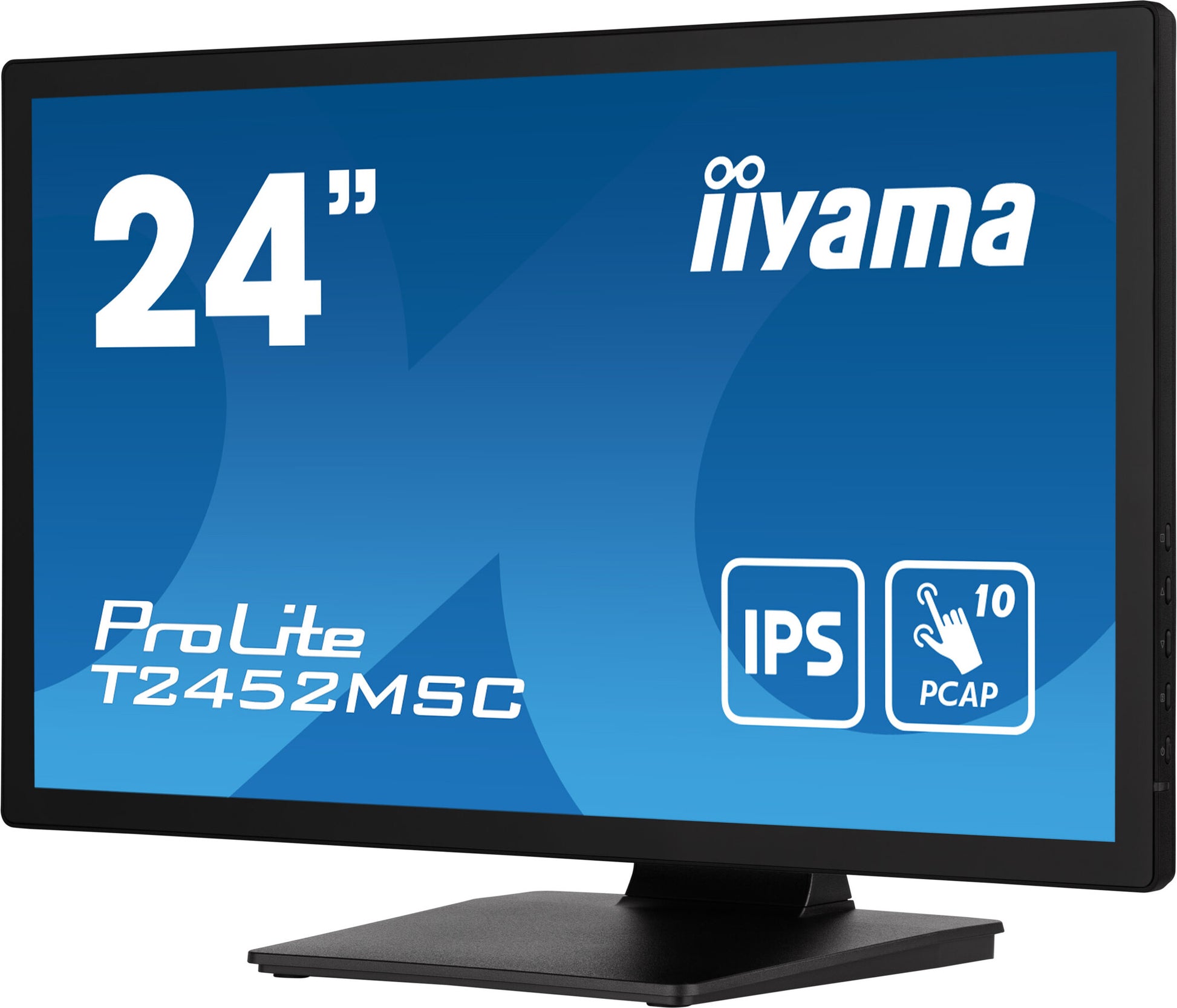

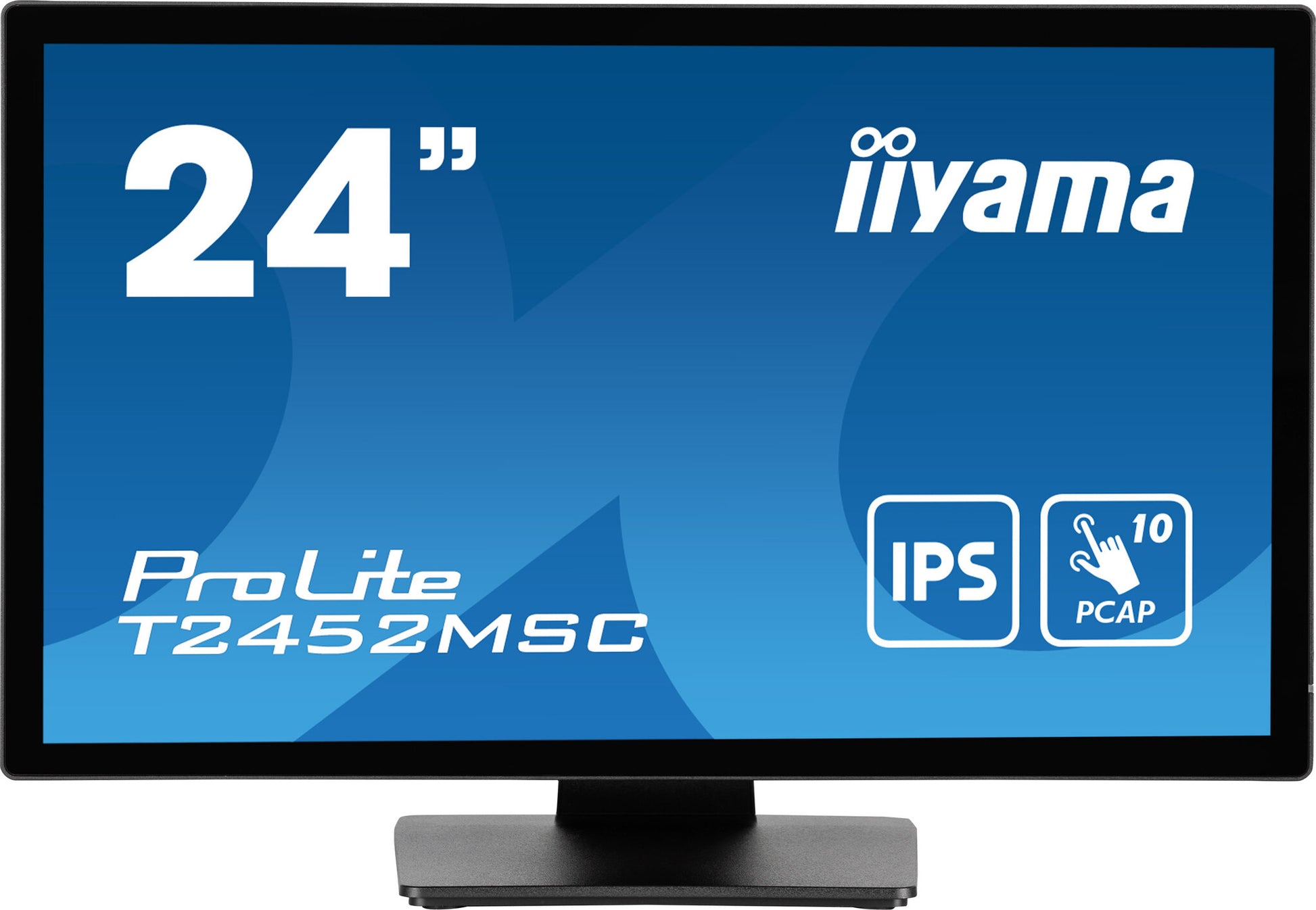

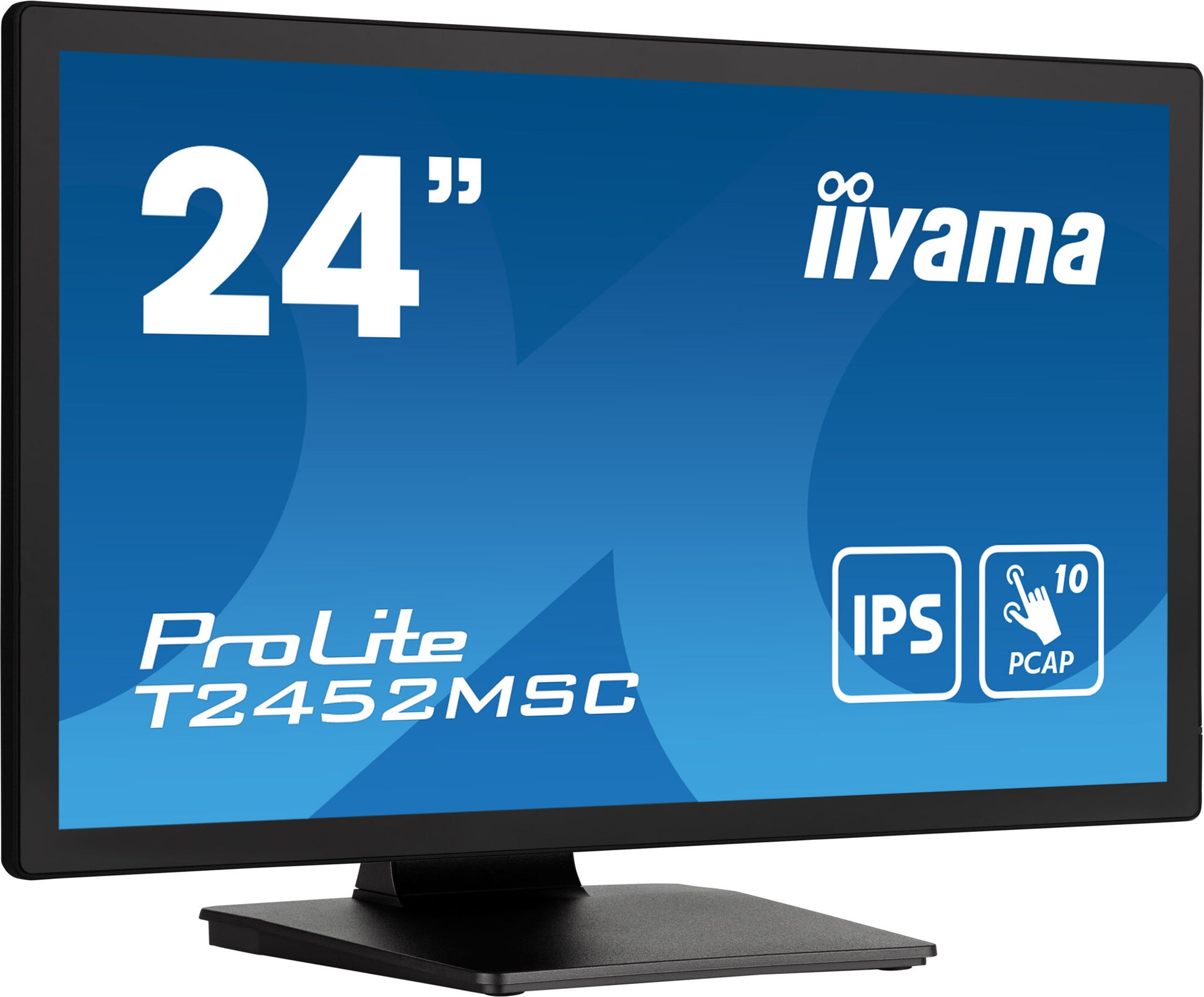

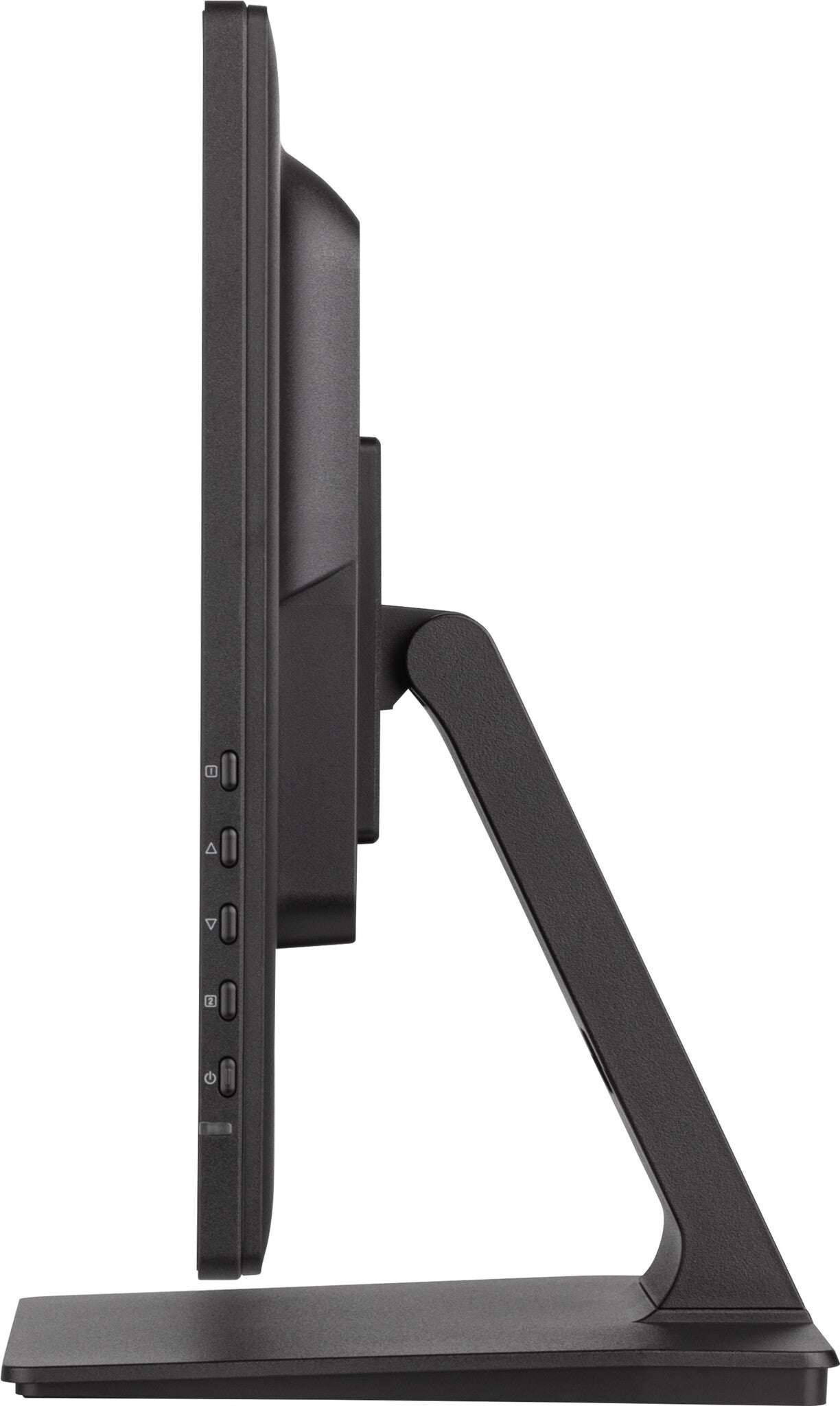

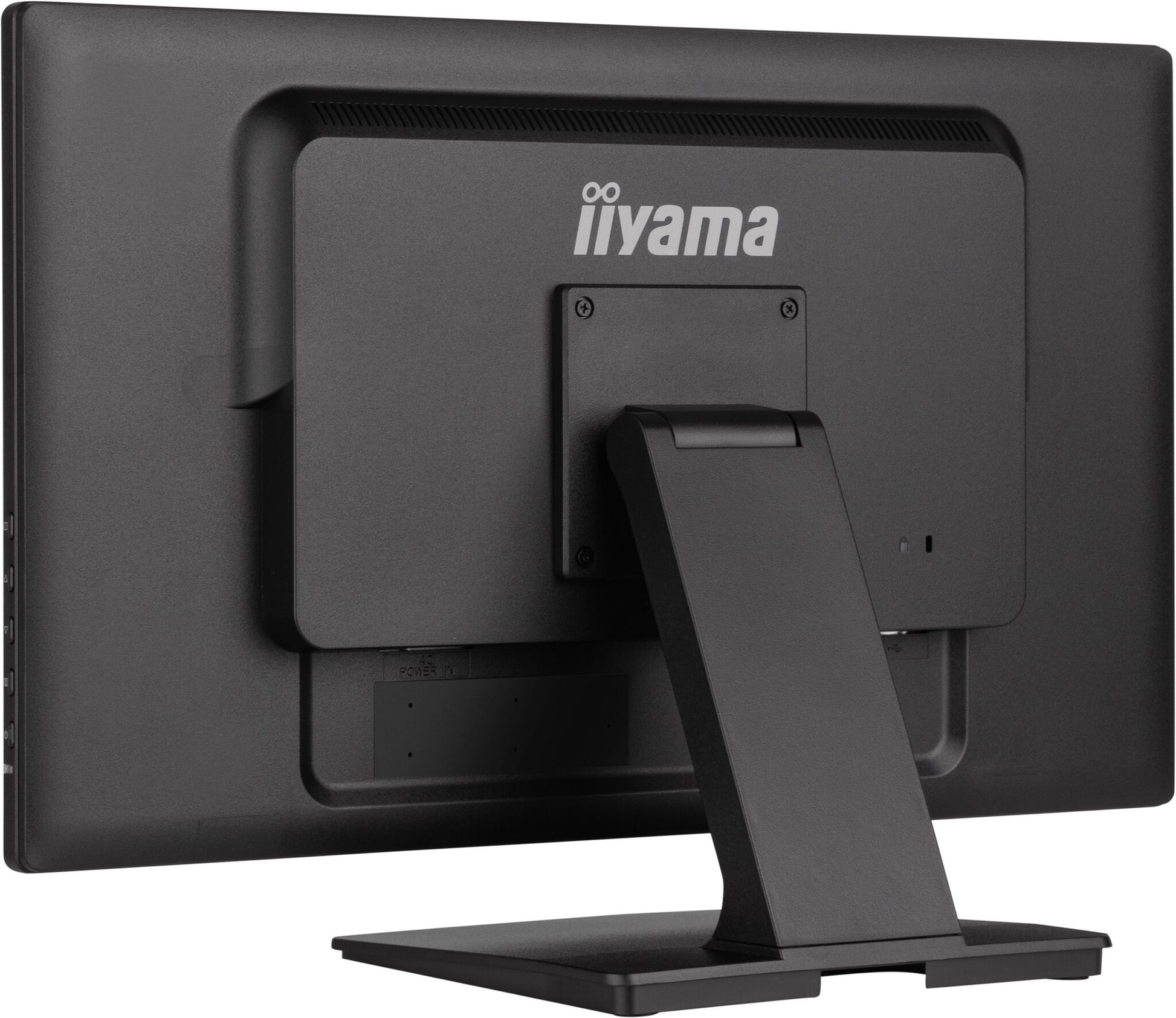

23.8” PCAP 10pt touchscreen monitor featuring IPS panel technology, Edge-to-Edge glass design and anti fingerprint coating
With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2452MSC-B1 delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition, the edge-to-edge glass and ultra slim design creates an eye-catching finish. The ProLite T2452MSC-B1 is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
Display
Positional accuracy
2 mm
Colour depth
8 bit
Surface hardness
7H
Display diagonal (metric)
60.5 cm
Viewable size, vertical
29.6 cm
Viewable size, horizontal
52.7 cm
Horizontal scan range
30 - 83 kHz
Pixel pitch
0.274 x 0.274 mm
Display number of colours
16.7 million colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Maximum refresh rate
60 Hz
Contrast ratio (typical)
1000:1
Screen shape
Flat
Response time measurement type
GTG (Gray to Gray)
Response time
5 ms
Display brightness (typical)
400 cd/m²
Number of simultaneous touchpoints
10
Touch technology
Multi-touch
Touchscreen technology
Projected capacitive system
Touchscreen type
Multi-user
Panel type
IPS
HD type
Full HD
Touchscreen
Yes
Display technology
LCD
Native aspect ratio
16:9
Display resolution
1920 x 1080 pixels
Display diagonal
60.5 cm (23.8")
Performance
Low Blue Light technology
Yes
Flicker-free technology
Yes
AMD FreeSync
No
NVIDIA G-SYNC
No
Multimedia
RMS rated power
2 W
Number of speakers
2
Built-in camera
No
Built-in speaker(s)
Yes
Design
Front bezel colour
Black
Product colour
Black

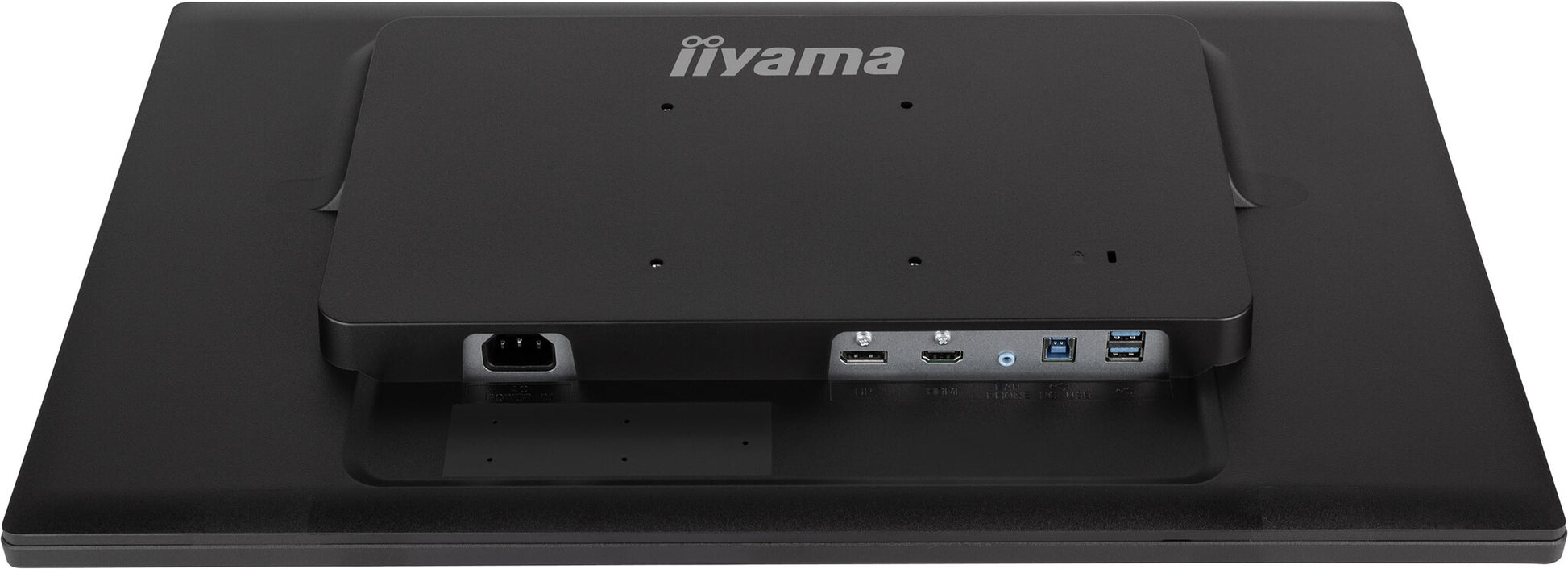

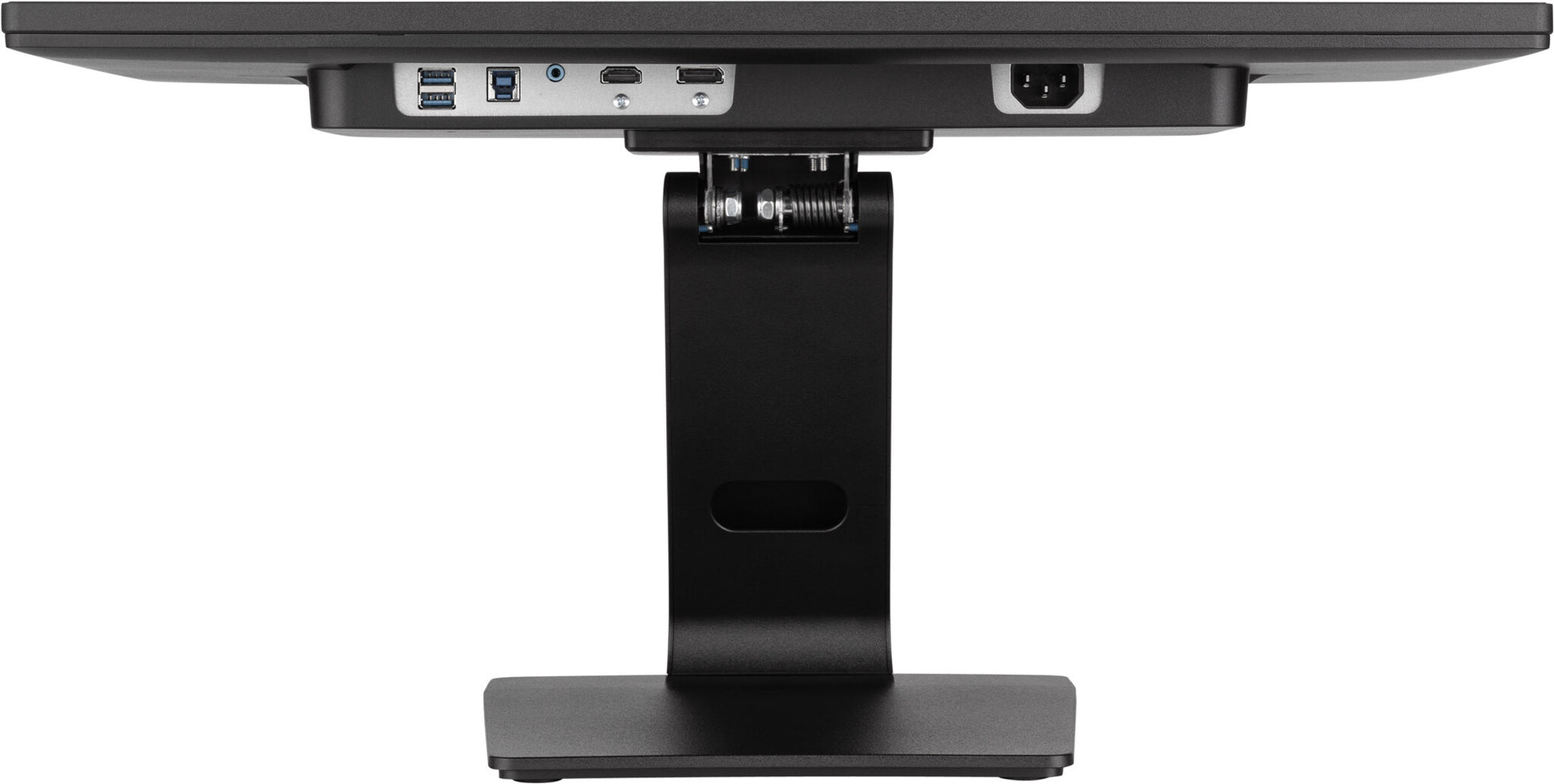

Ports & interfaces
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Yes
USB Touch port
Yes
USB Type-A downstream ports quantity
2
USB hub version
3.2 Gen 1 (3.1 Gen 1)
Built-in USB hub
Yes

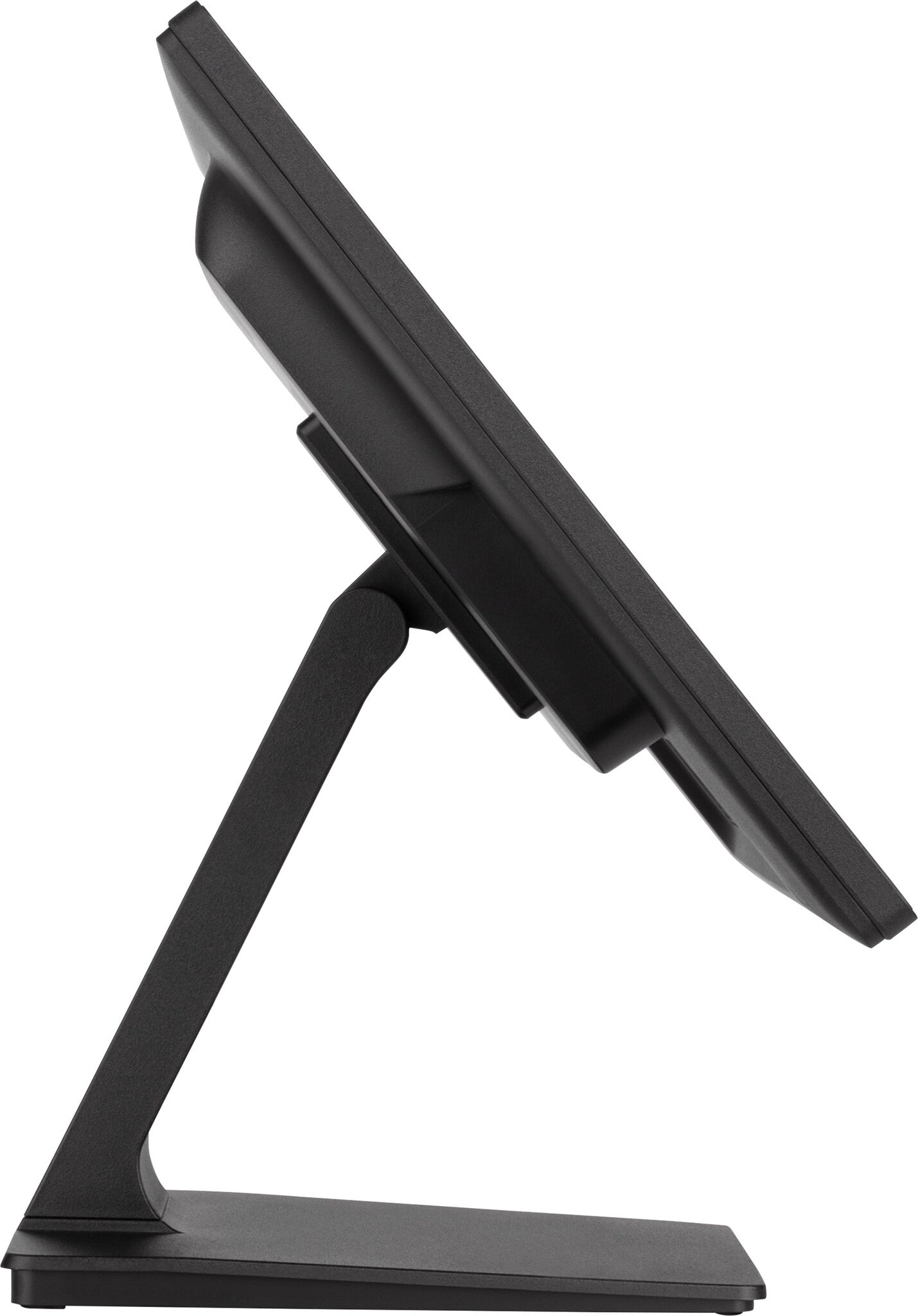

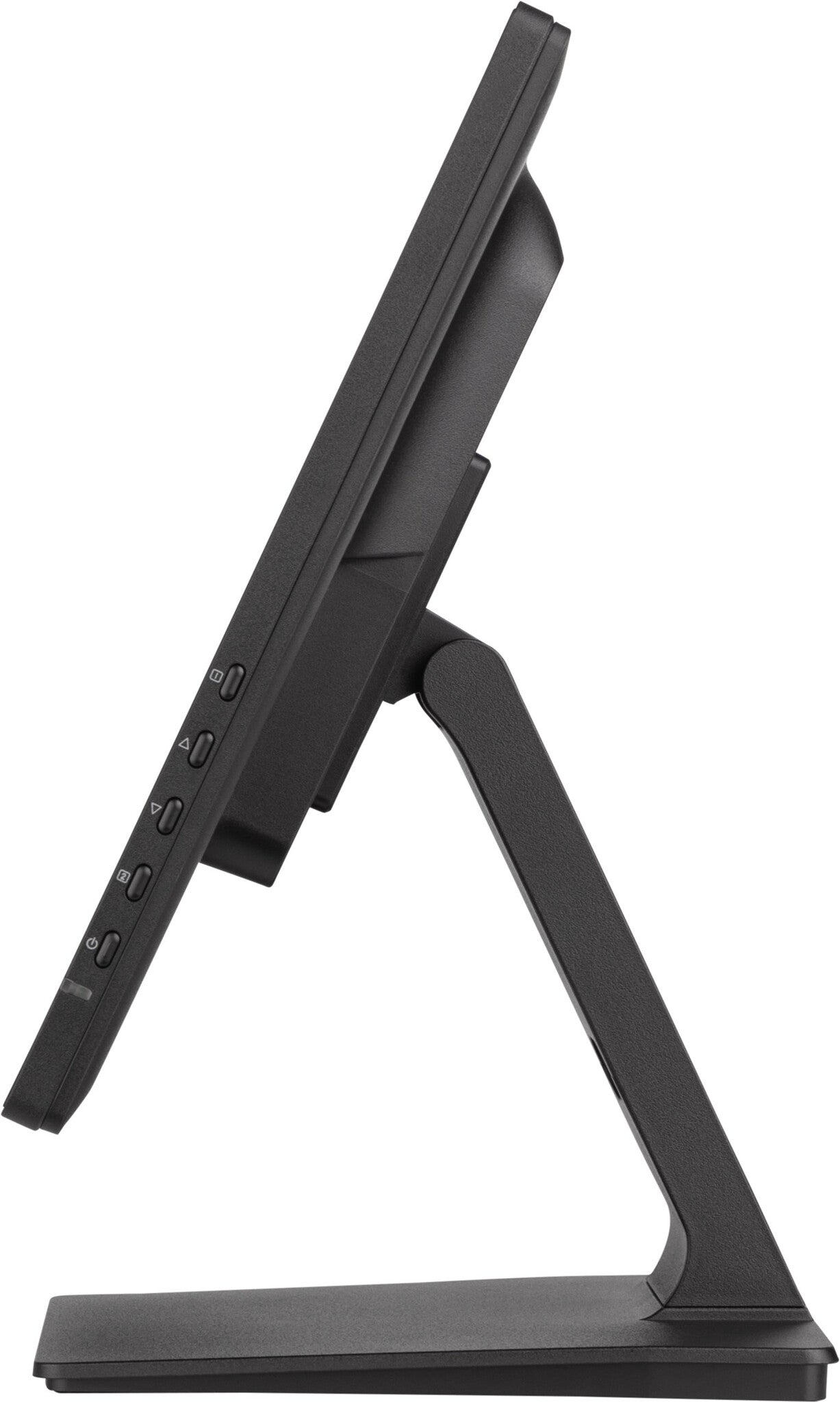

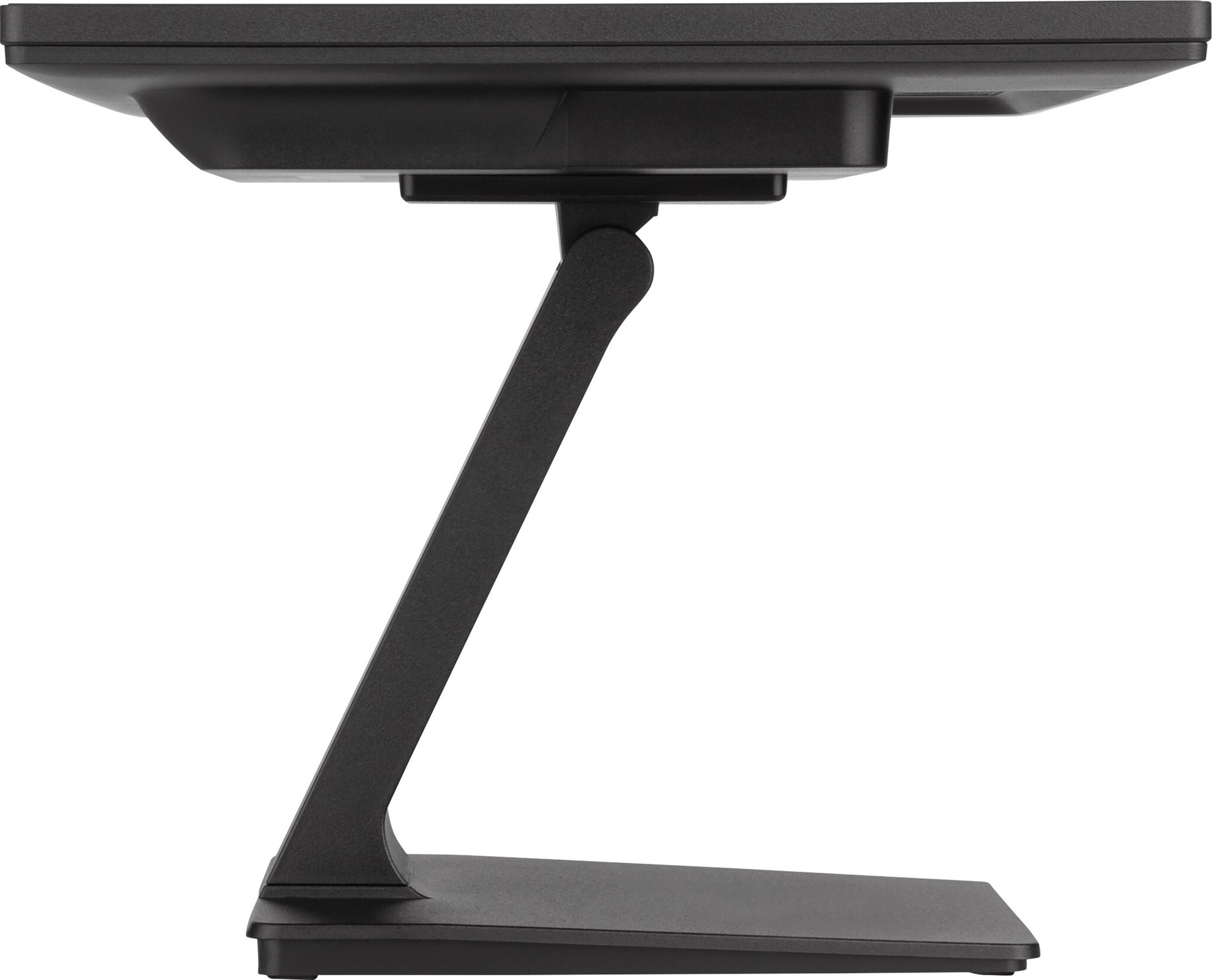

Ergonomics

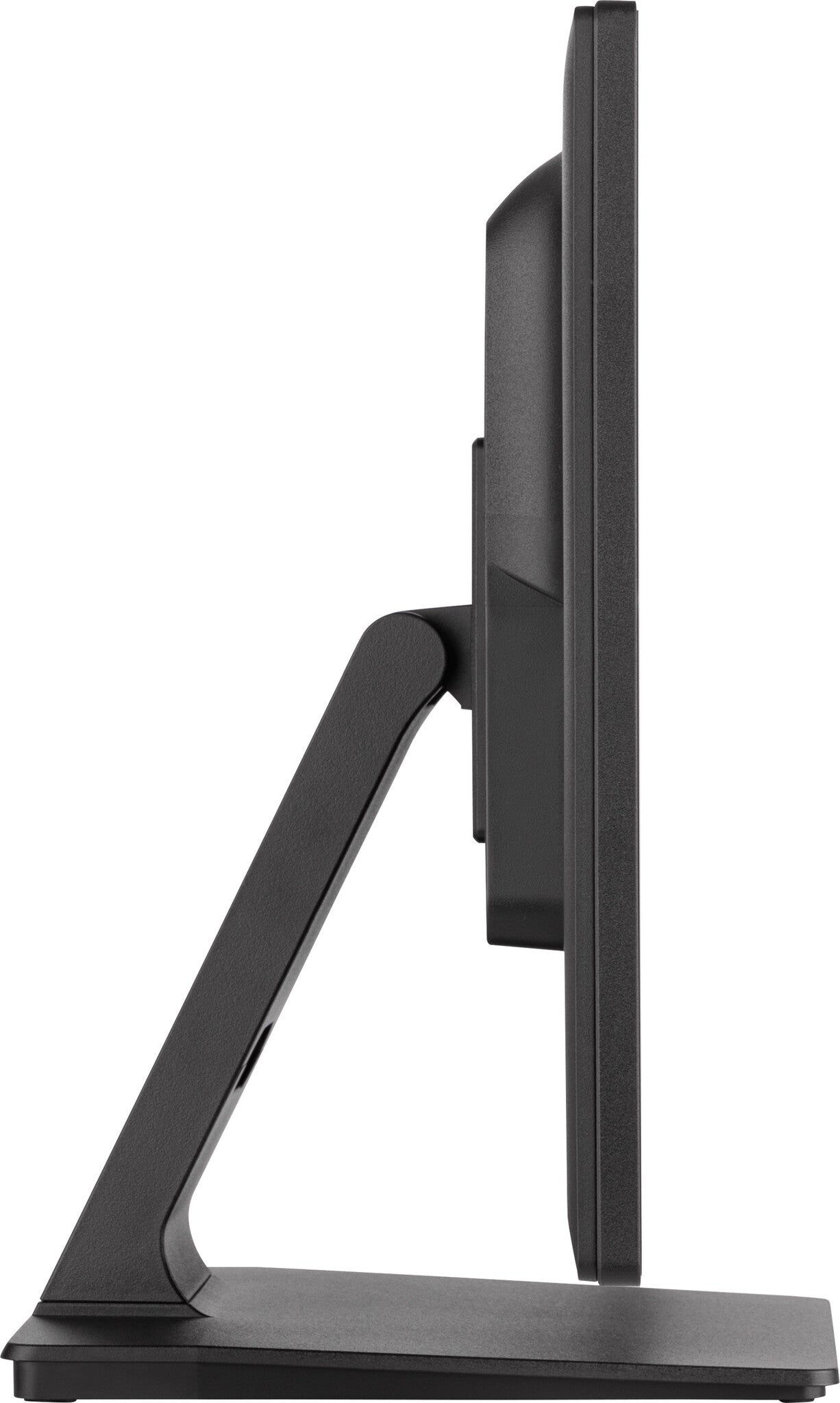

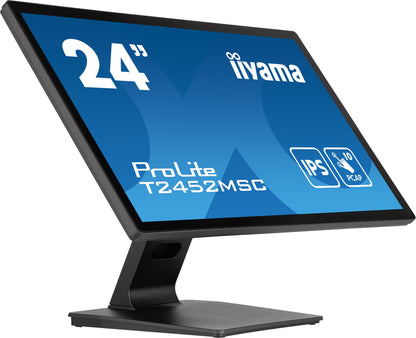

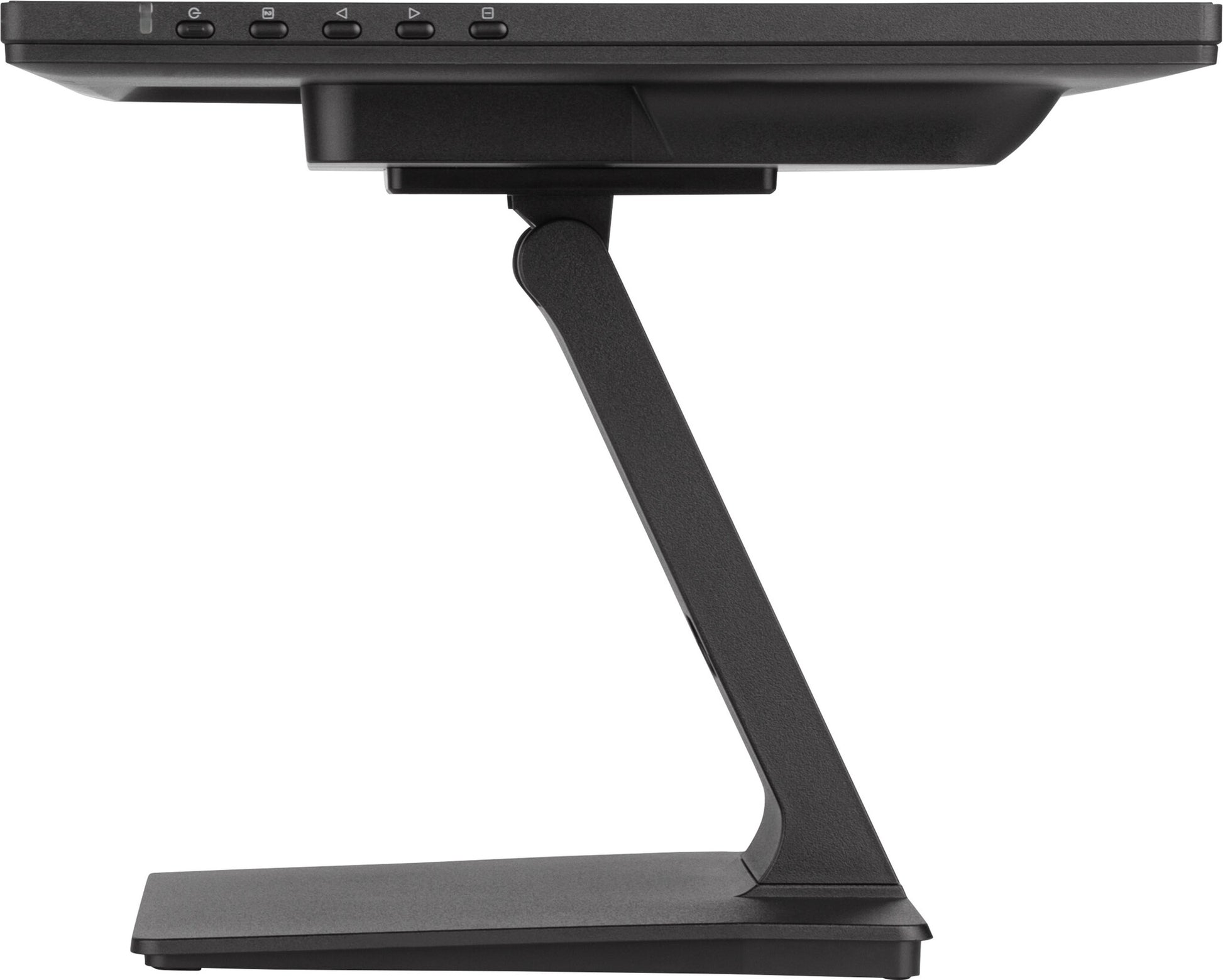

Tilt angle range
-25 - 90°
Tilt adjustment
Yes
Height adjustment
No
Cable lock slot type
Kensington
Cable lock slot
Yes

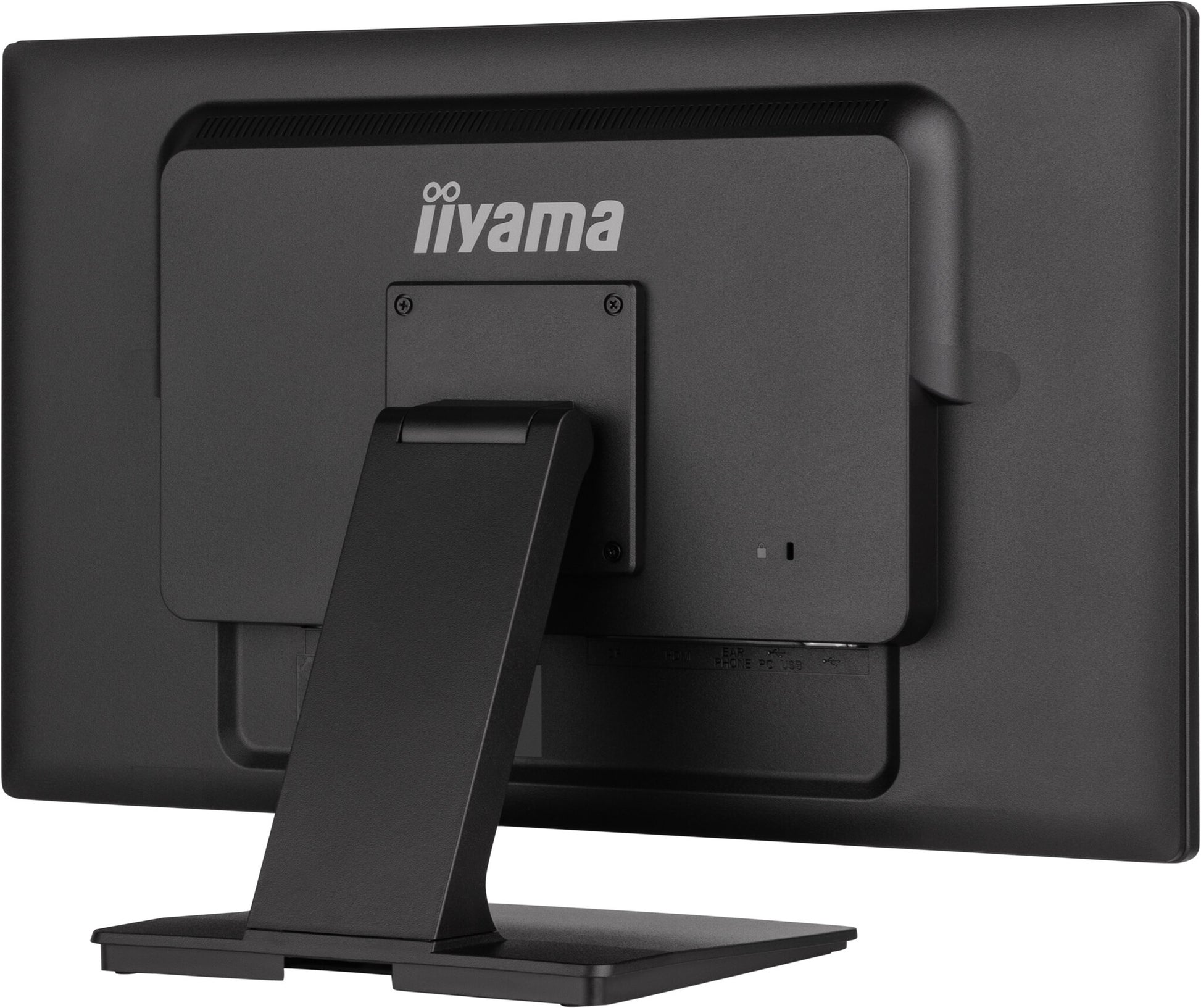

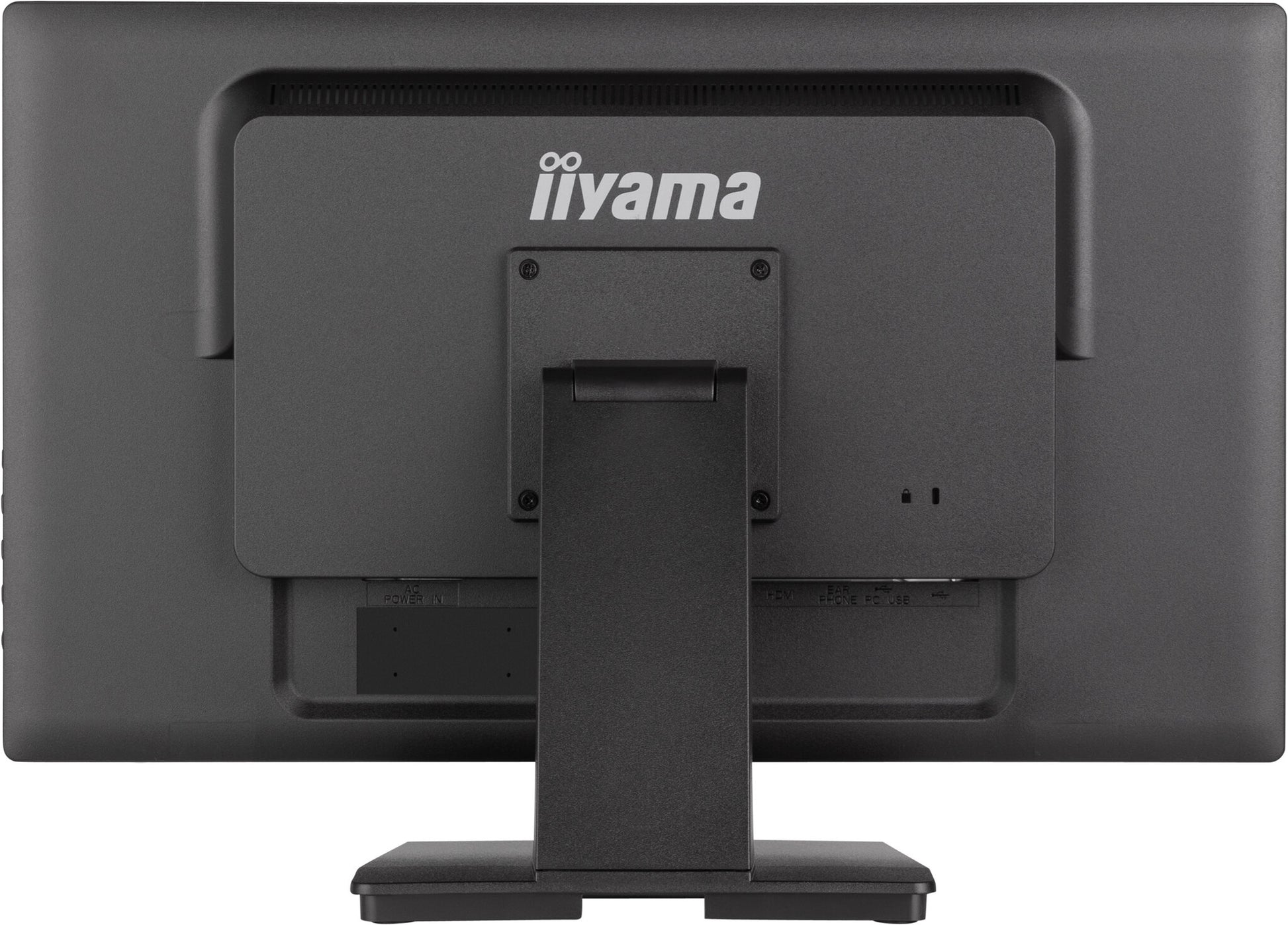

Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Power
Power supply type
Internal
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (standby)
0.7 W
Power consumption (typical)
18 W
Energy consumption (SDR) per 1000 hours
15 kWh
Energy efficiency class (HDR)
Not available
Energy efficiency class (SDR)
E
Packaging content
Quick start guide
Yes
Cables included
HDMI, Power, USB
Weight & dimensions
Weight (with stand)
5.6 kg
Height (with stand)
385 mm
Depth (with stand)
253.5 mm
Width (with stand)
567 mm
Packaging data
Package weight
7.2 kg
Package height
405 mm
Package depth
635 mm
Package width
635 mm
Sustainability
European Product Registry for Energy Labelling (EPREL) code
