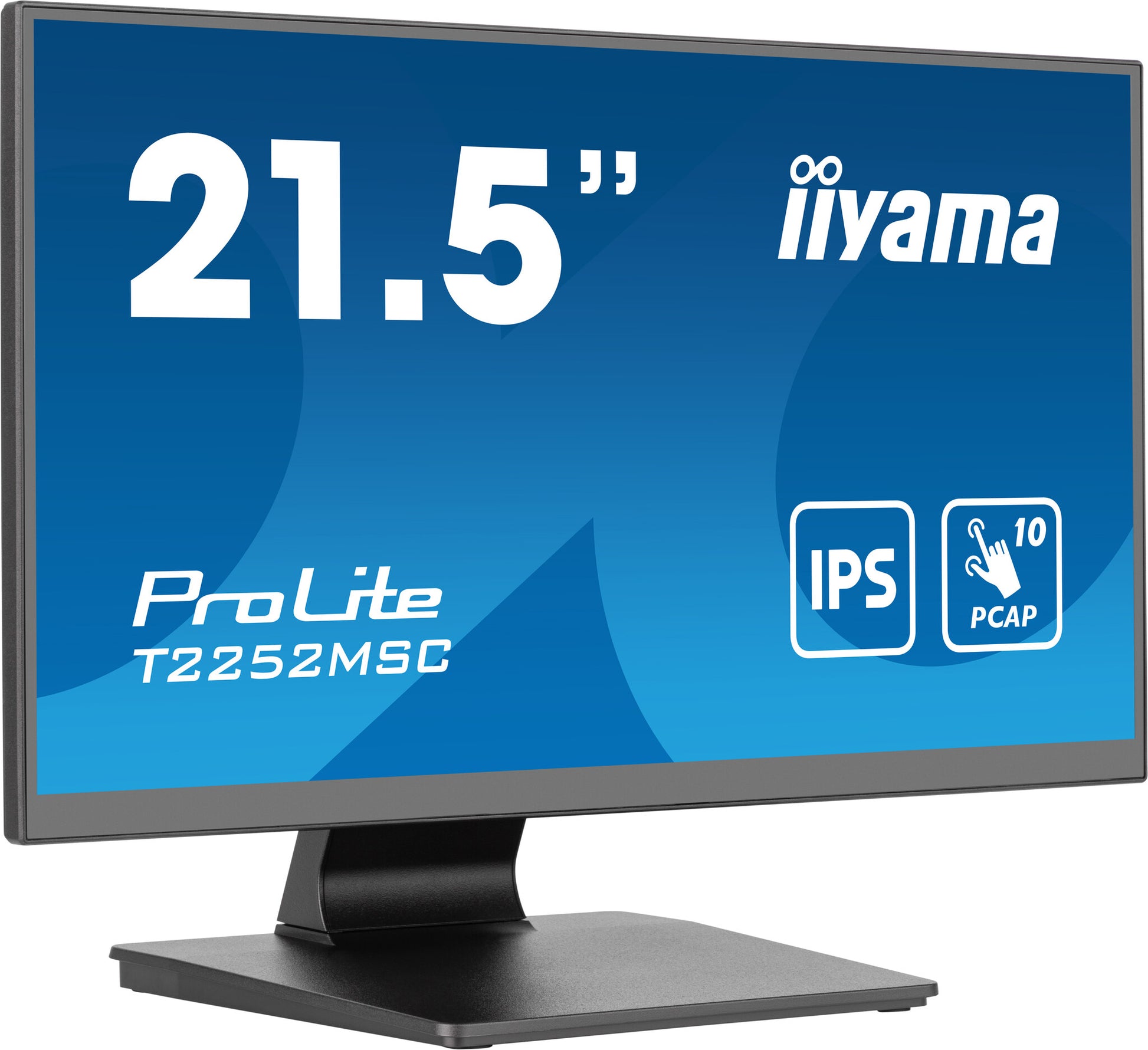

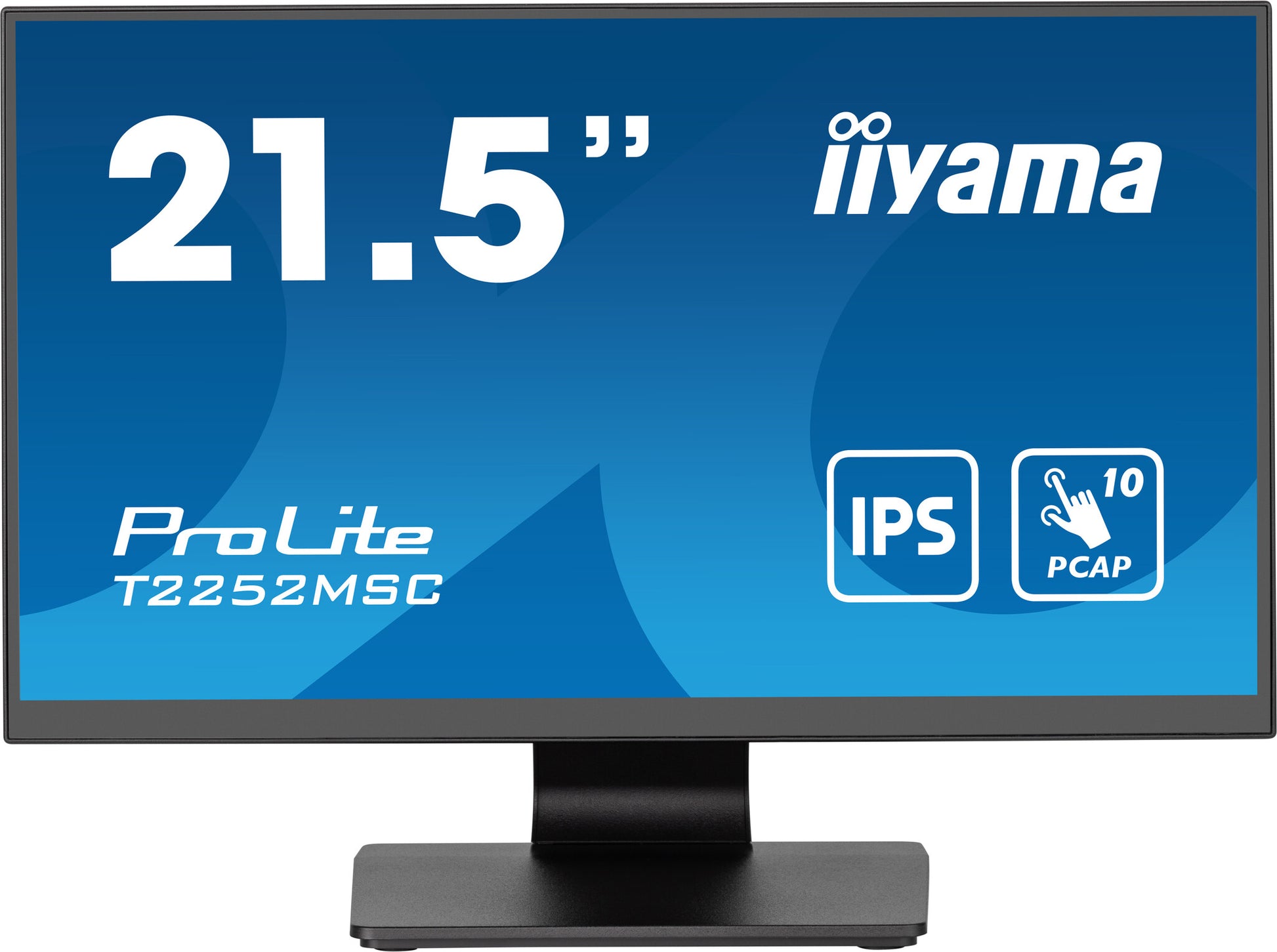

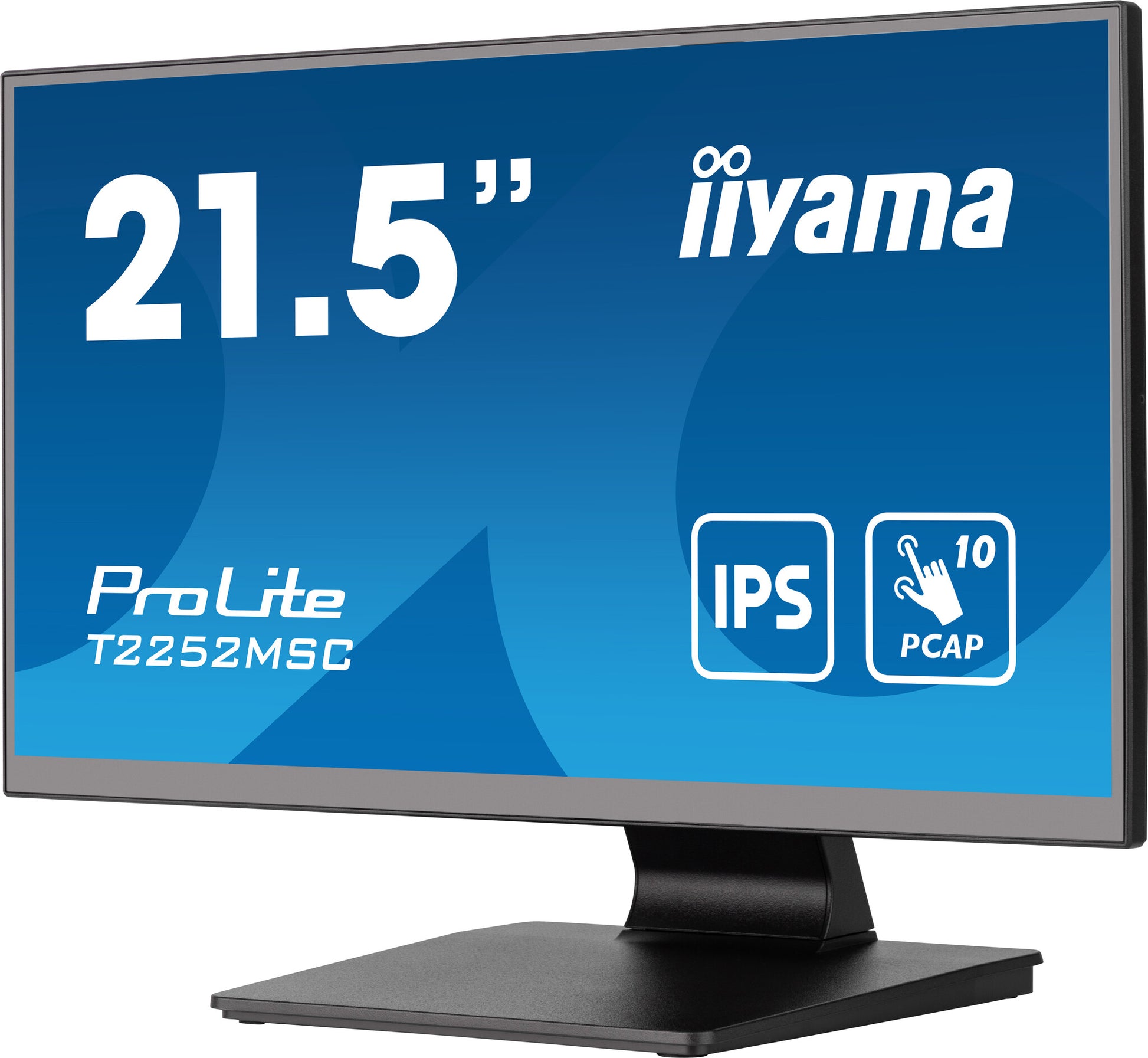

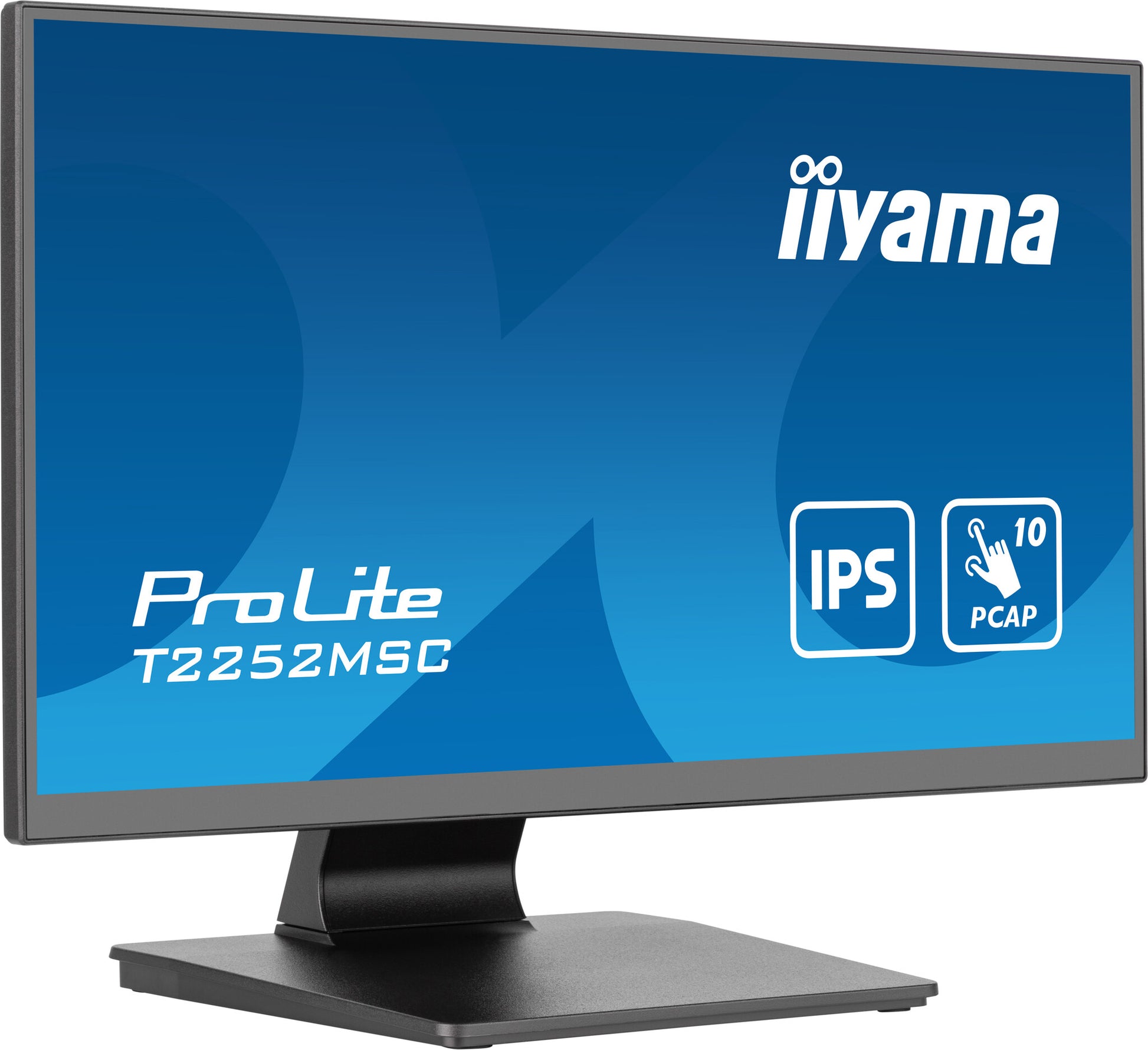

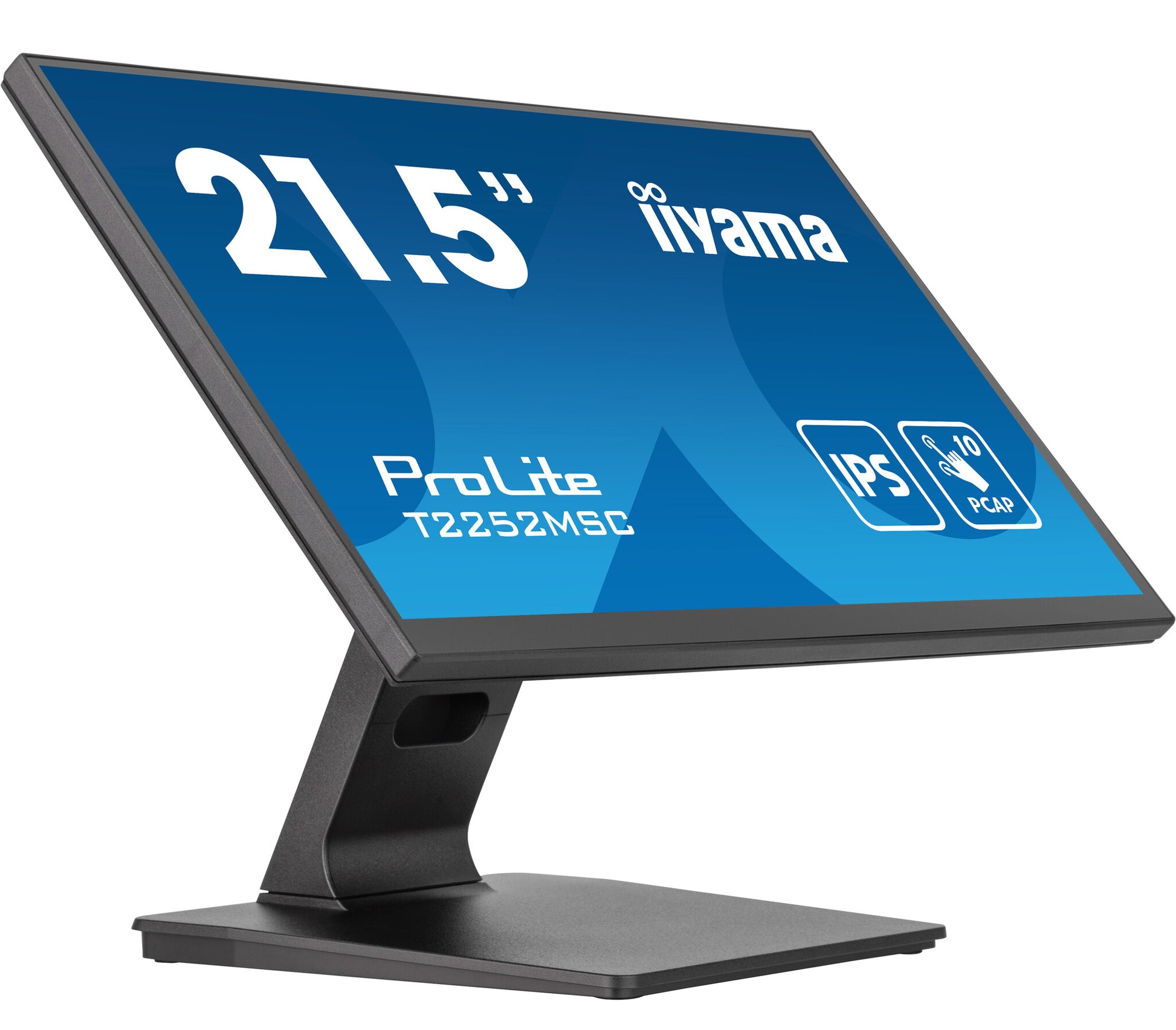

21.5” PCAP 10pt touchscreen monitor featuring IPS panel technology, Edge-to-Edge glass design and anti fingerprint coating

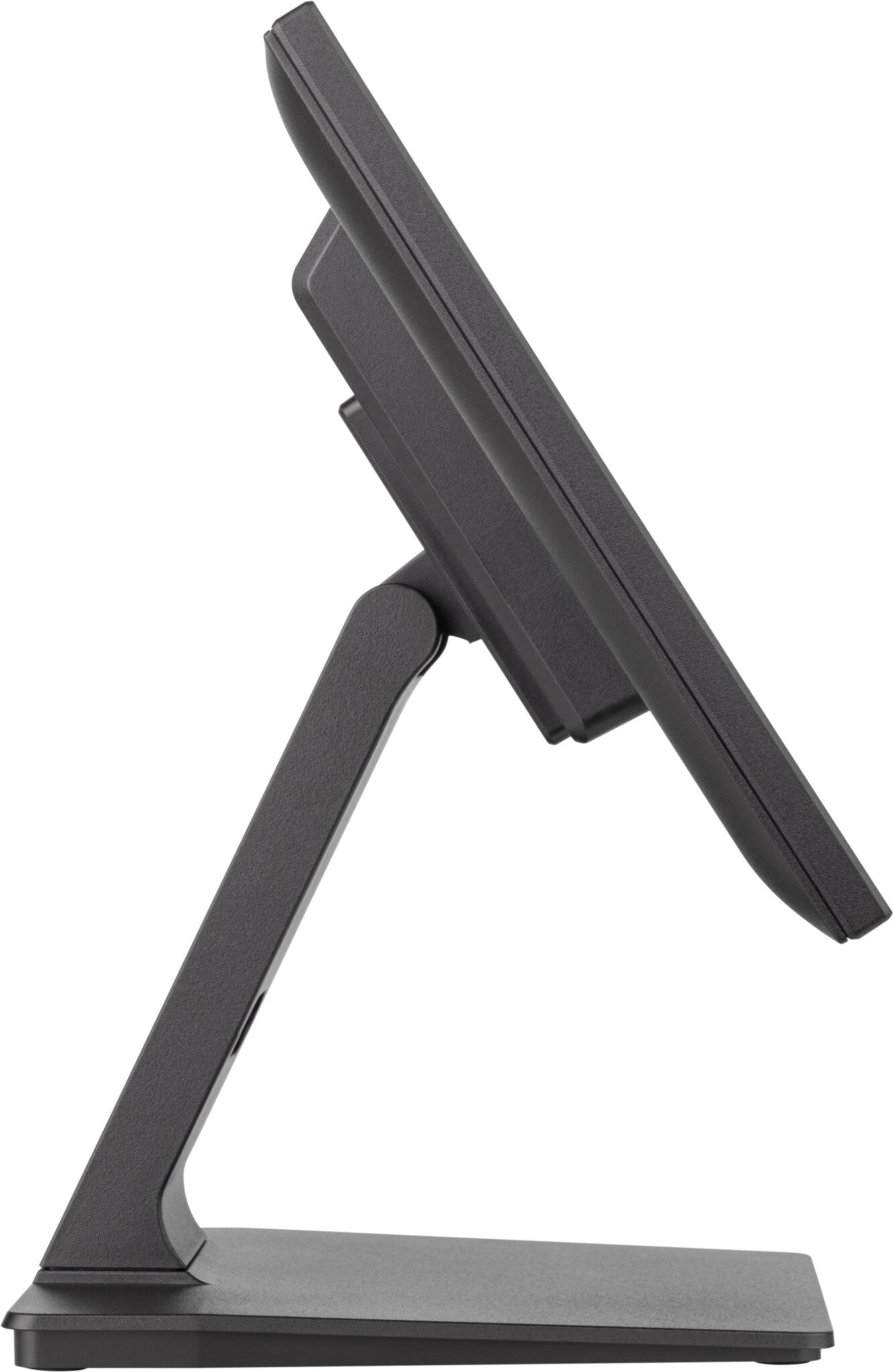

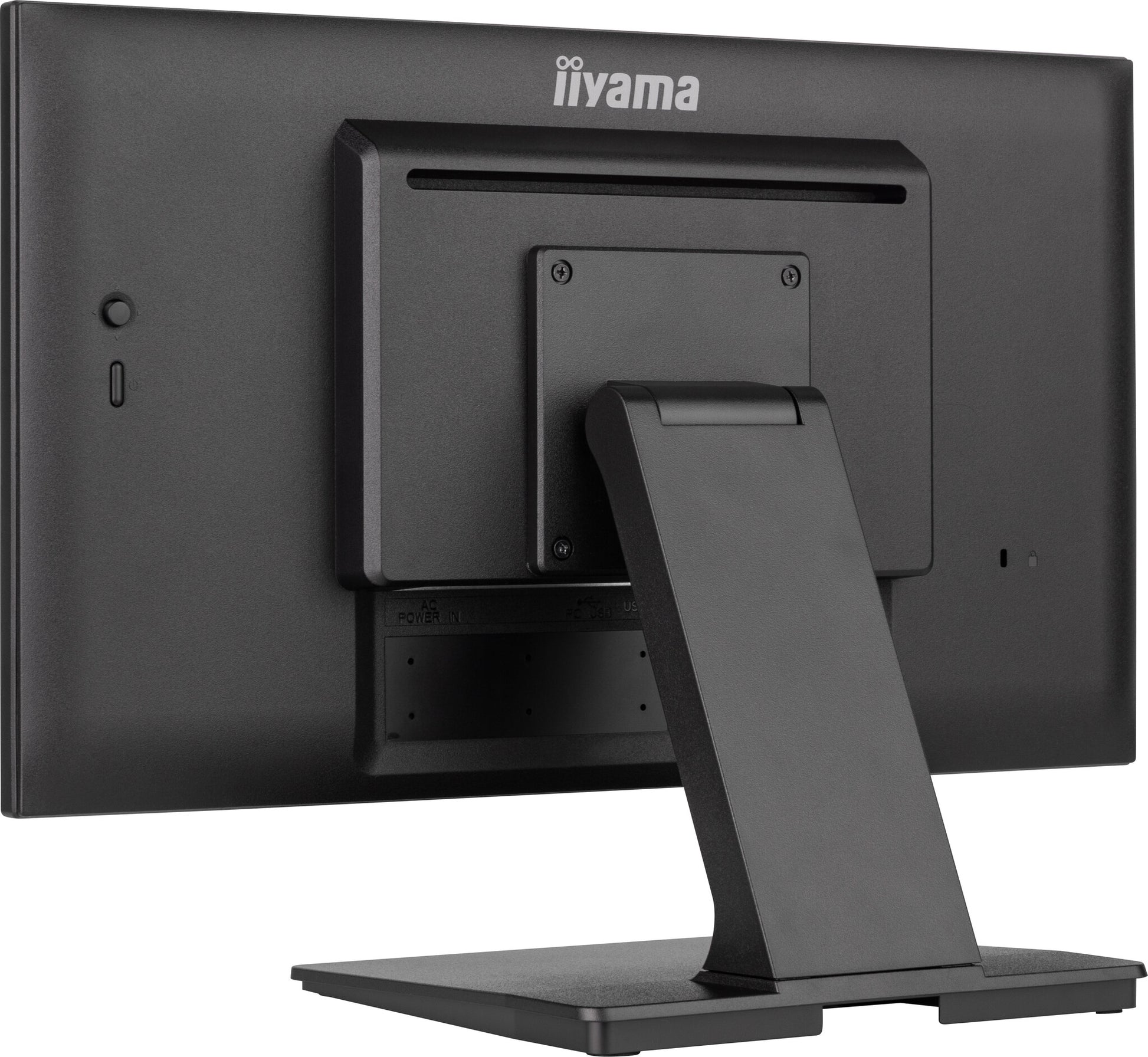

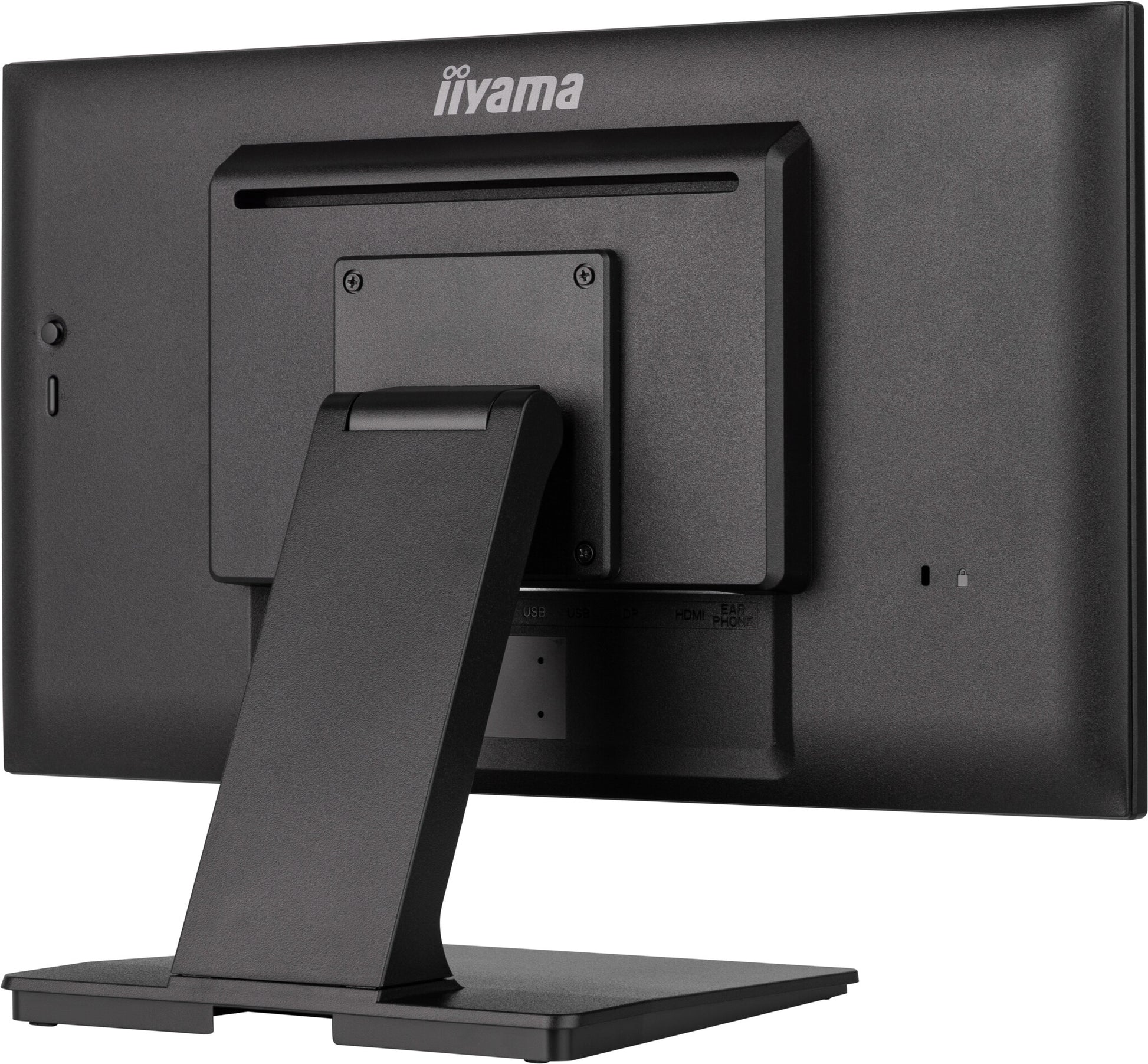

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2252MSC-B2 delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition, the edge-to-edge glass and ultra slim design creates an eye-catching finish. The ProLite T2252MSC-B2 is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
Display
Surface hardness
7H
Viewable size, vertical
26 cm
Viewable size, horizontal
47.9 cm
Horizontal scan range
30 - 83 kHz
Pixel pitch
0.249 x 0.249 mm
Display number of colours
16.7 million colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1000:1
Screen shape
Flat
Response time
5 ms
Display brightness (typical)
225 cd/m²
Display brightness (peak)
250 cd/m²
Number of simultaneous touchpoints
10
Touch technology
Multi-touch
Touchscreen technology
Projected capacitive system
Panel type
IPS
HD type
Full HD
Touchscreen
Yes
Display technology
LCD
Native aspect ratio
16:9
Display resolution
1920 x 1080 pixels
Display diagonal
54.6 cm (21.5")
Performance
Palm rejection
Yes
Low Blue Light technology
Yes
AMD FreeSync
No
NVIDIA G-SYNC
No
Multimedia
RMS rated power
2 W
Number of speakers
2
Built-in camera
No
Built-in speaker(s)
Yes
Design
Product colour
Black

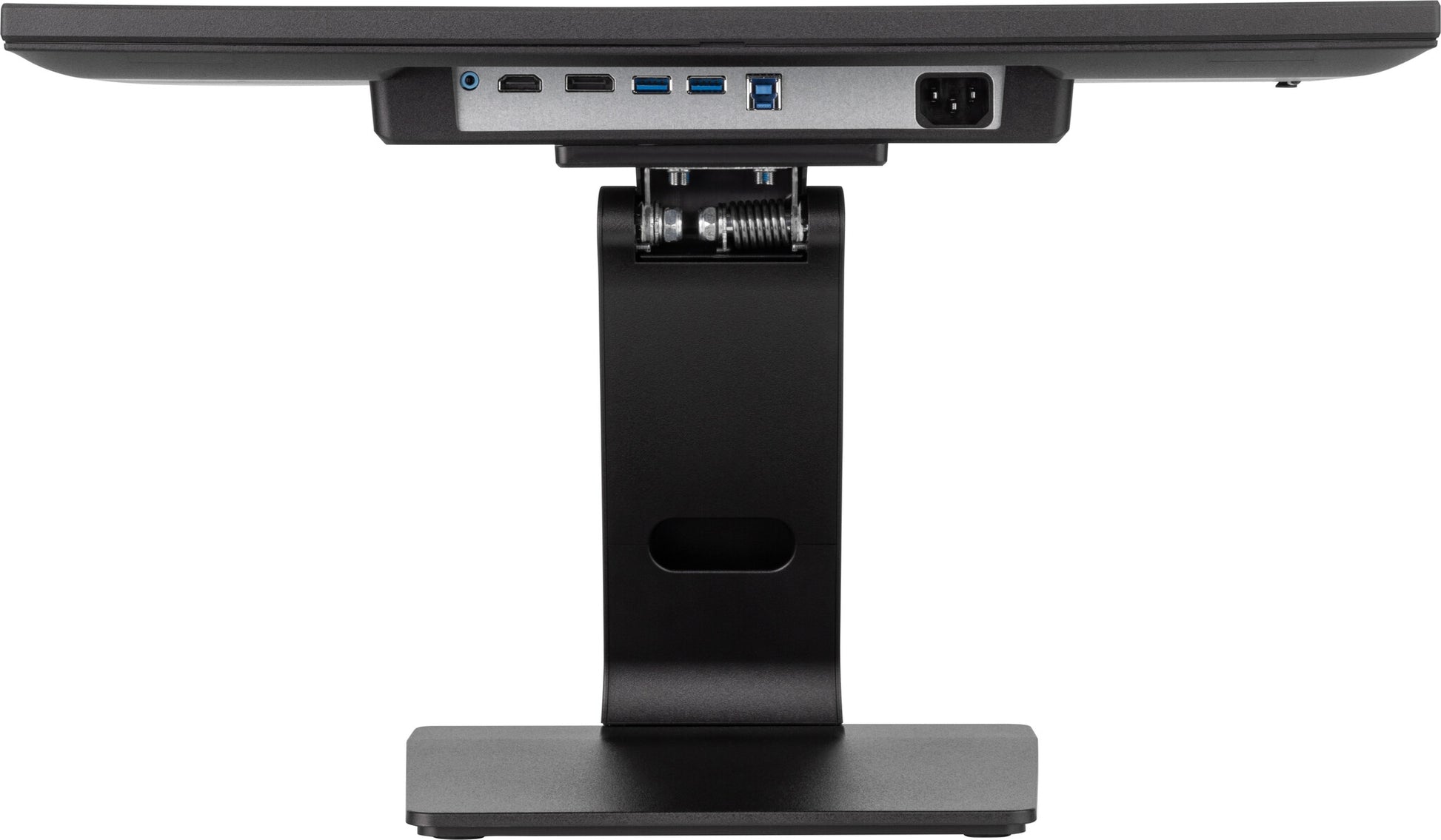

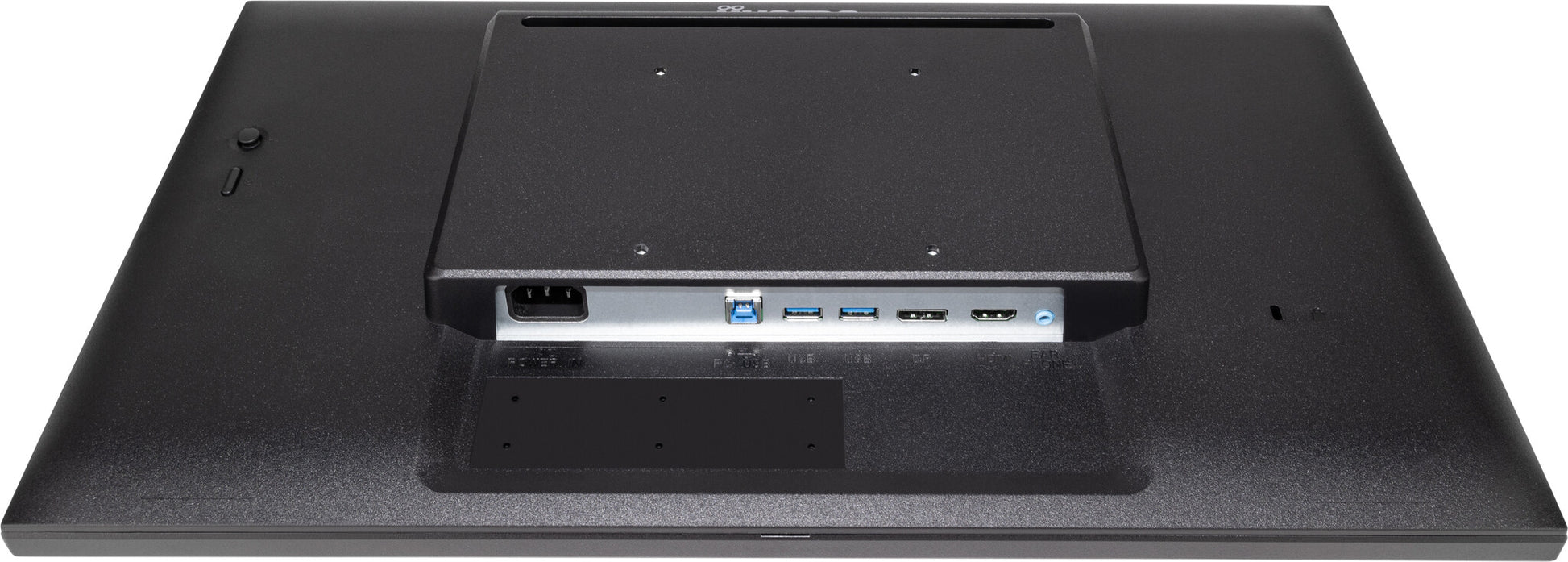

Ports & interfaces
HDCP
Yes
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Yes
Number of upstream ports
2
USB hub version
2.0 / 3.2 Gen 1 (3.1 Gen 1)
Built-in USB hub
Yes

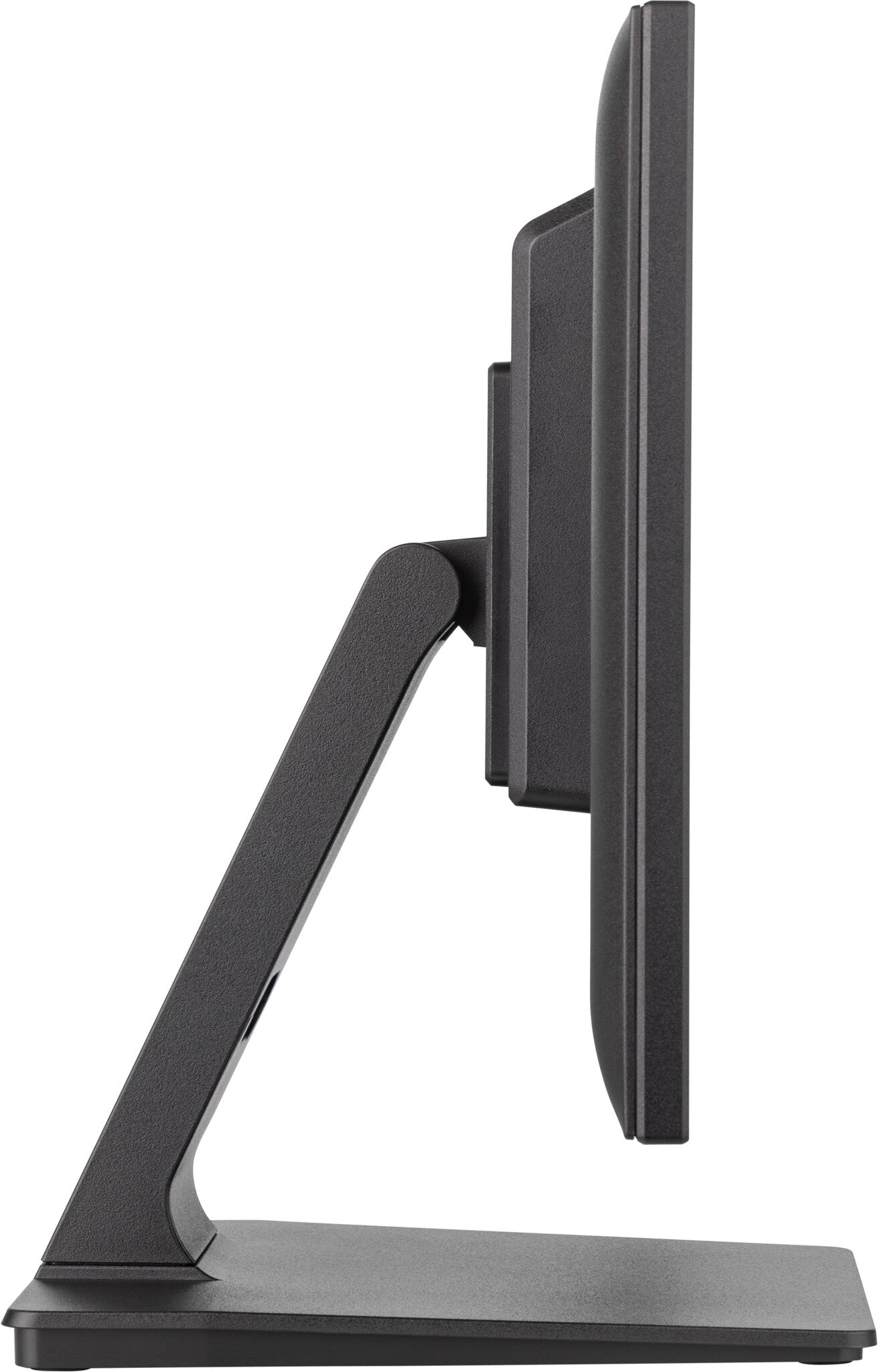

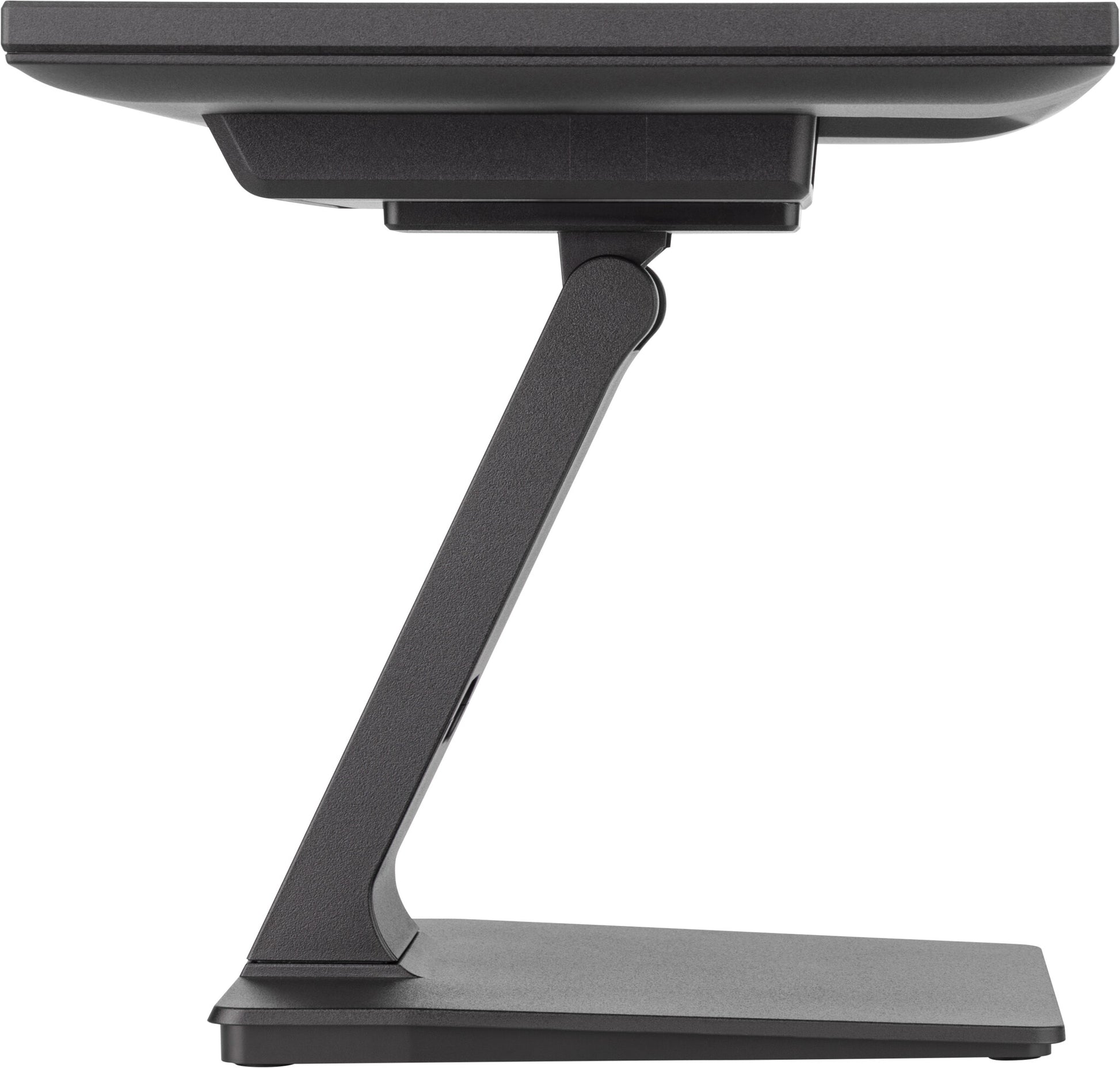

Ergonomics
Tilt angle range
-5 - 90°
Tilt adjustment
Yes
Height adjustment
No
Cable lock slot type
Kensington
Cable lock slot
Yes

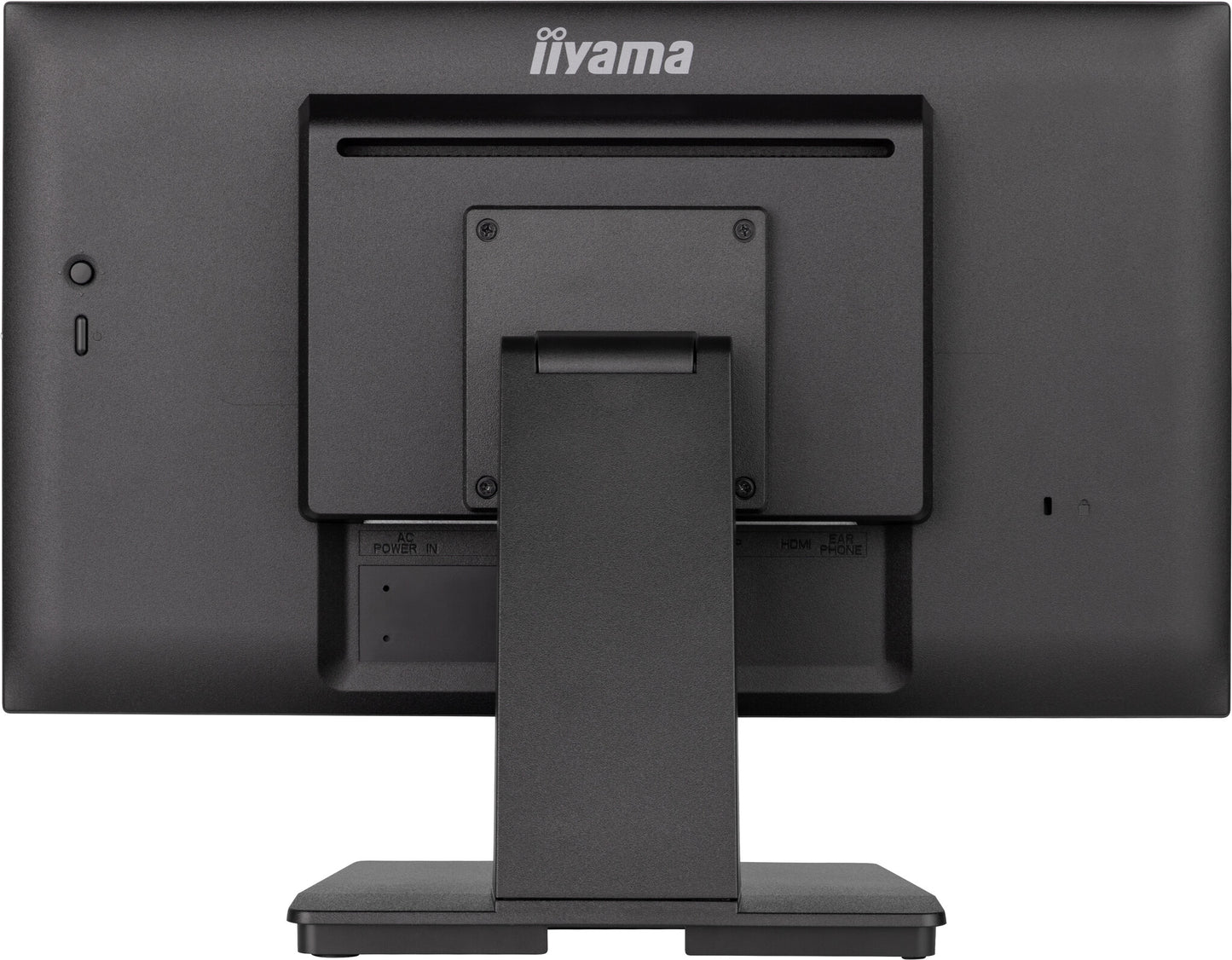

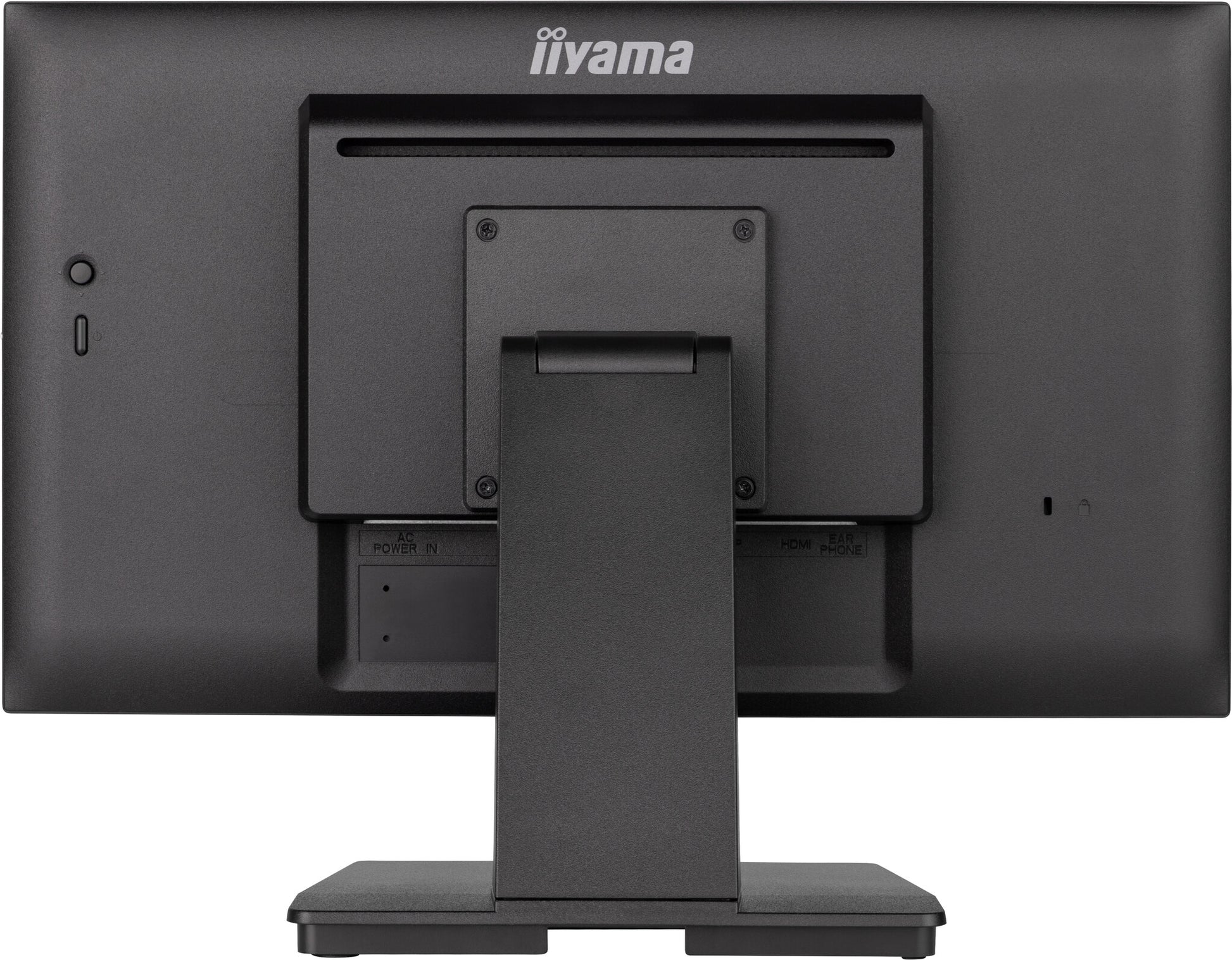

Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Power
Energy efficiency scale
A to G
Power supply type
Internal
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (standby)
1.5 W
Power consumption (typical)
11 W
Energy consumption (SDR) per 1000 hours
10 kWh
Energy efficiency class (HDR)
Not available
Energy efficiency class (SDR)
C
Weight & dimensions
Weight (with stand)
4.5 kg
Height (with stand)
361.5 mm
Depth (with stand)
239.5 mm
Width (with stand)
493.5 mm
Sustainability
European Product Registry for Energy Labelling (EPREL) code
