Energy efficiency class (SDR): E ErP CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
17" Projective Capacitive 10pt touch screen with AG-coating

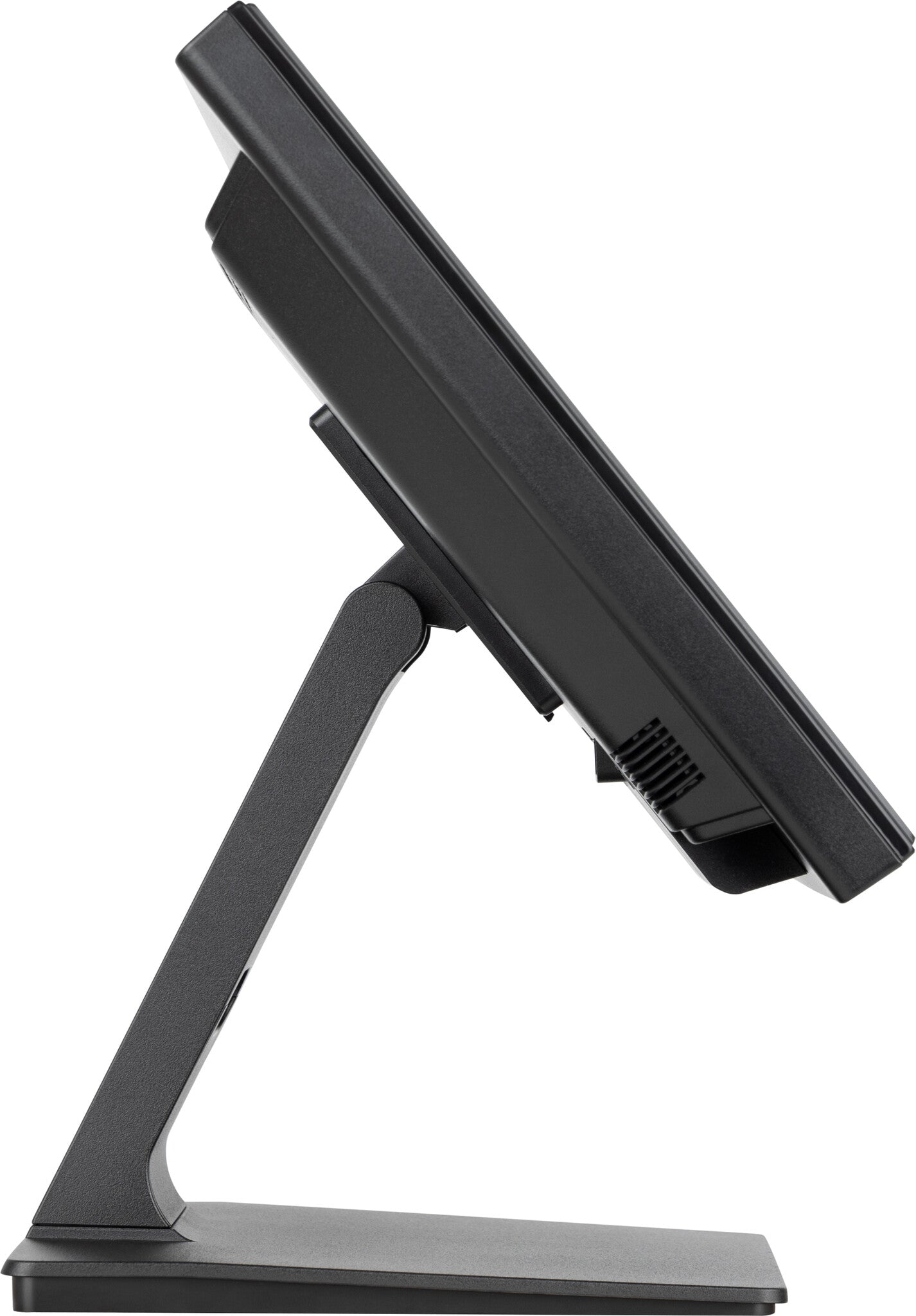

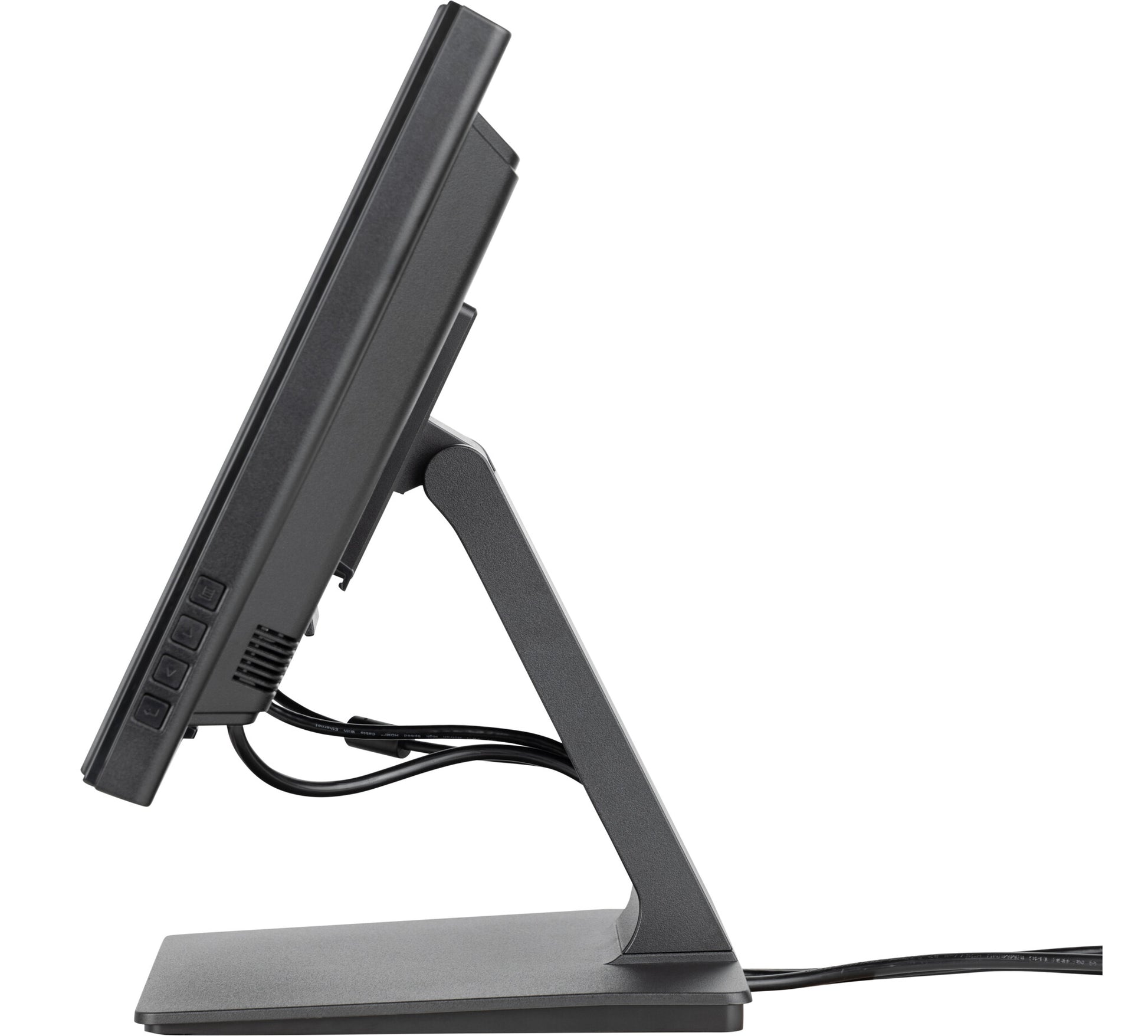

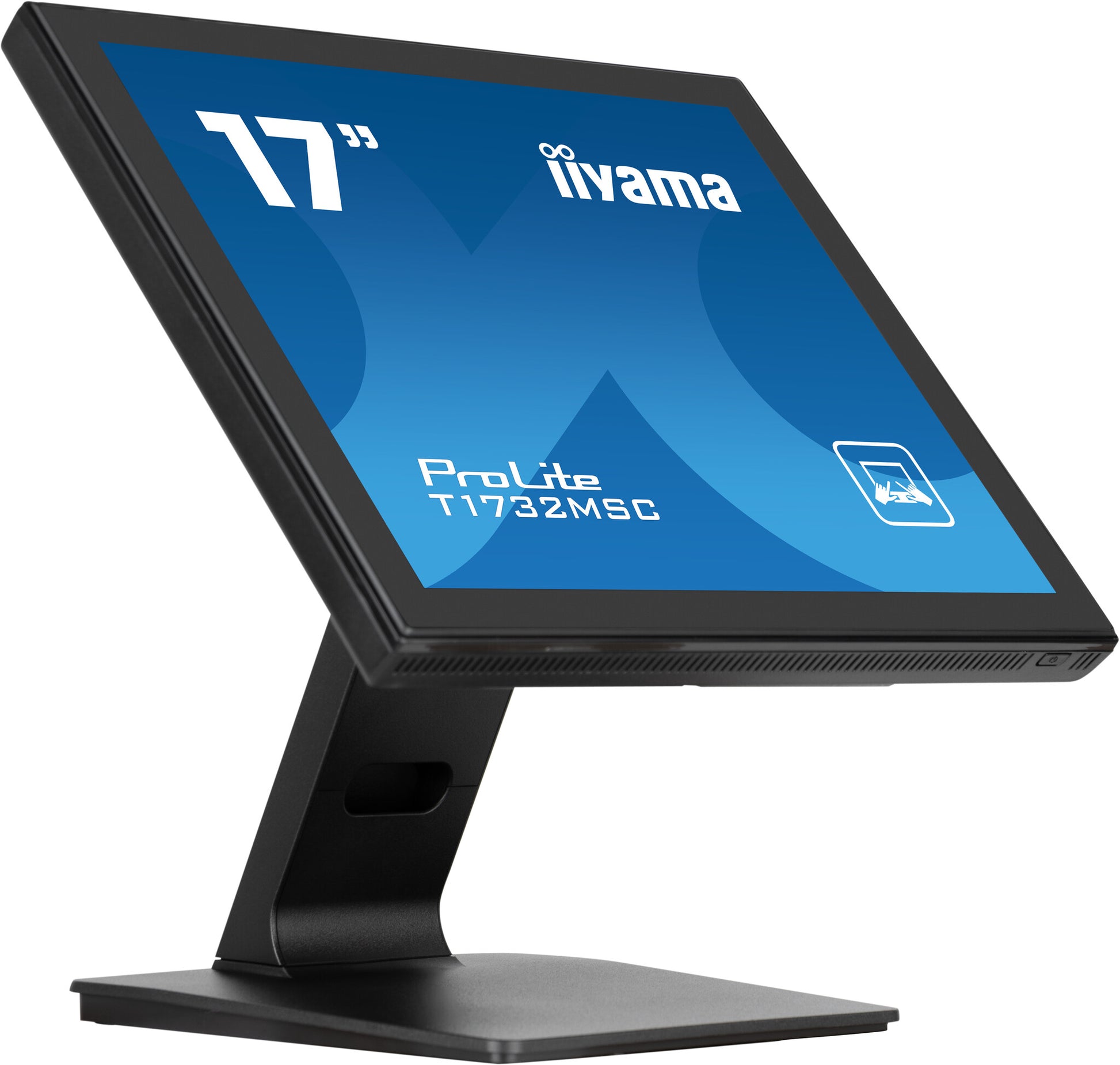

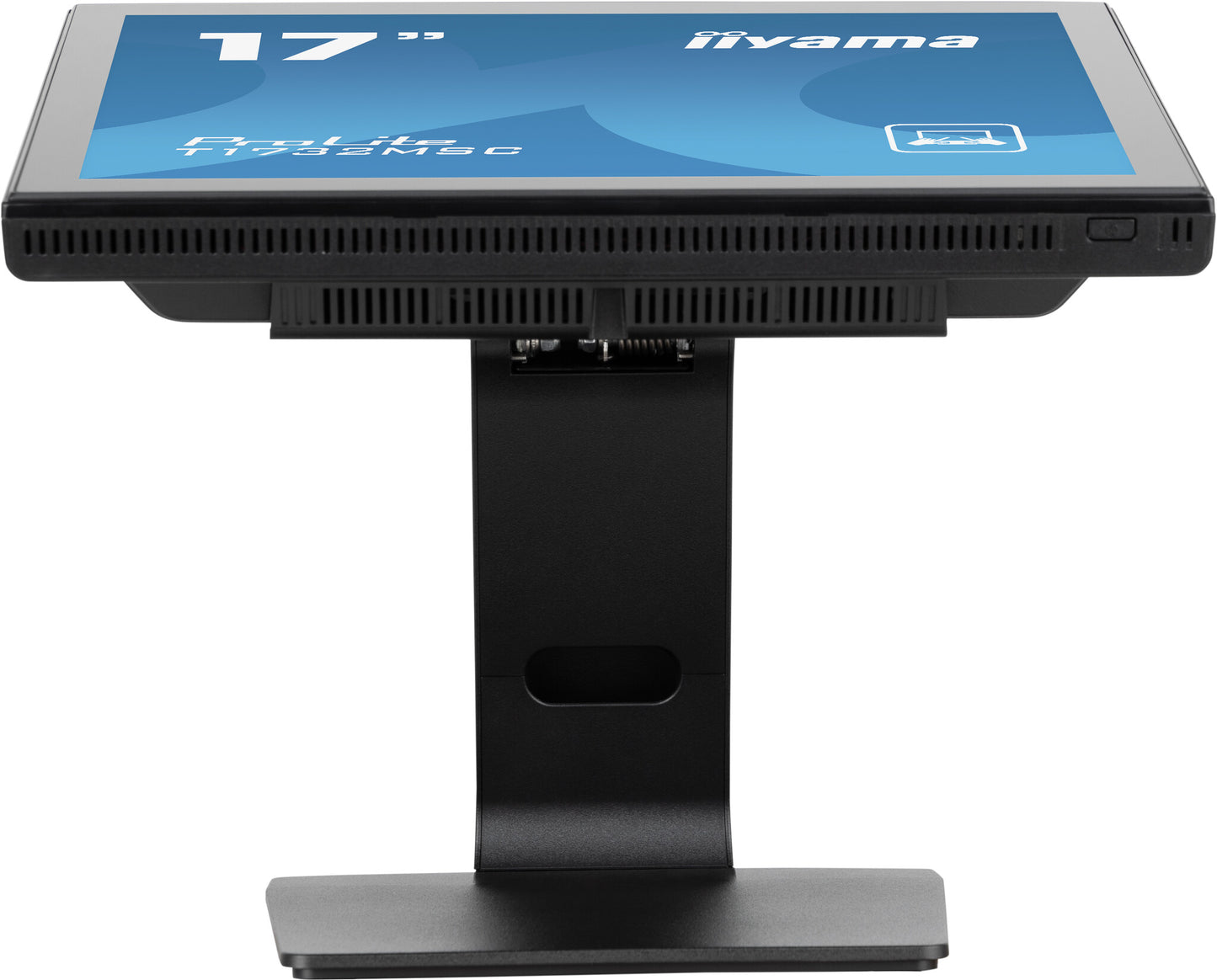

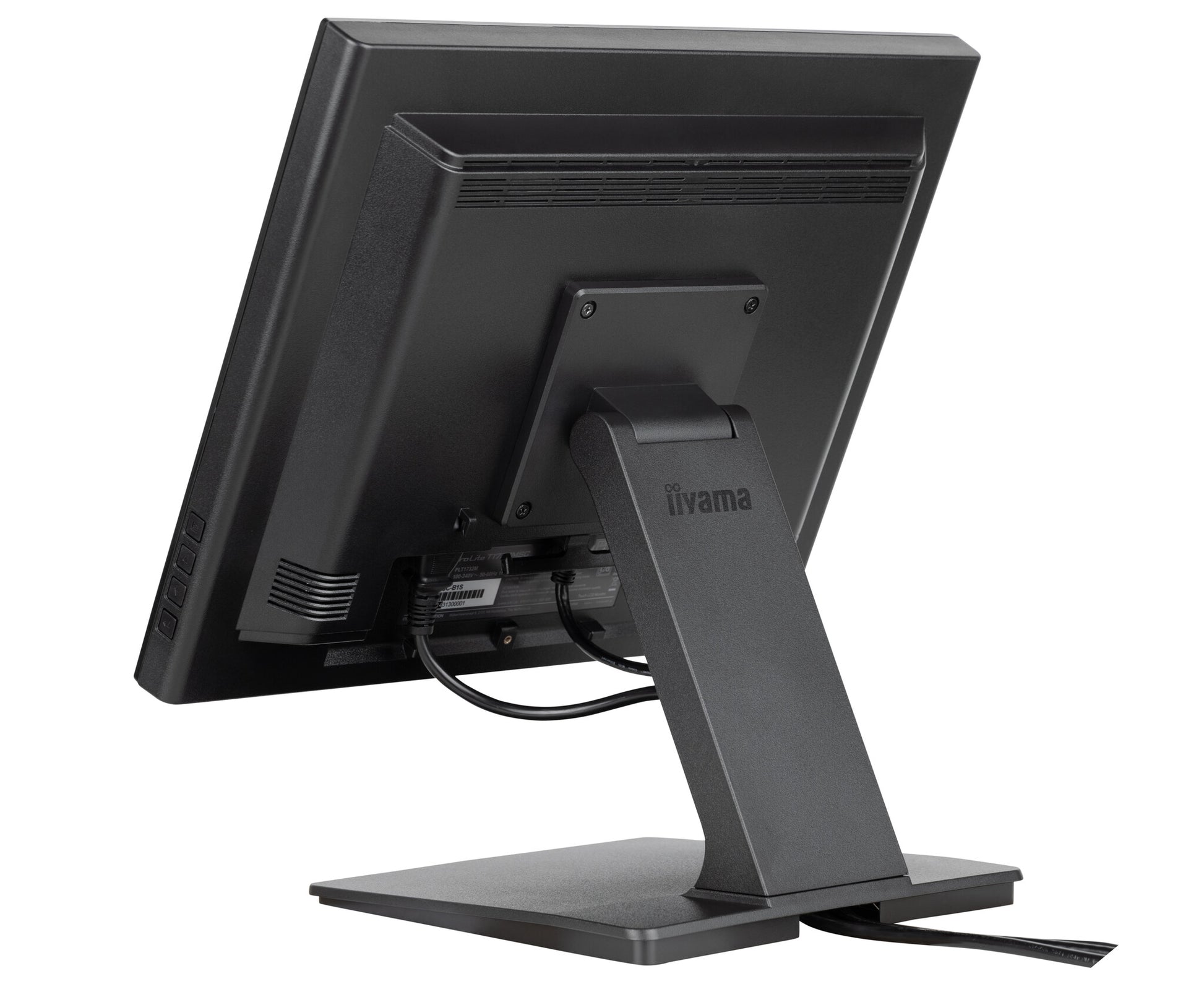

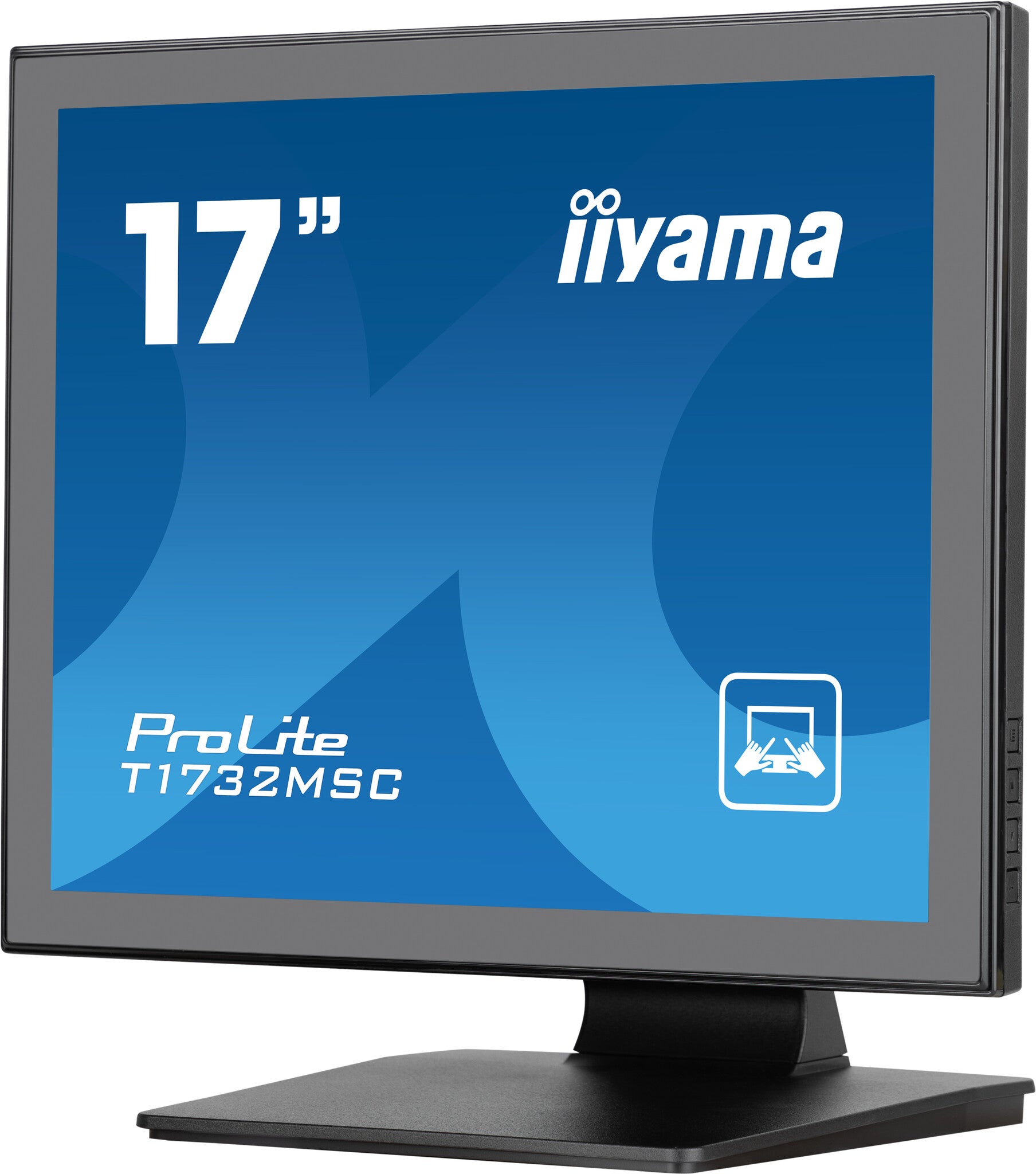

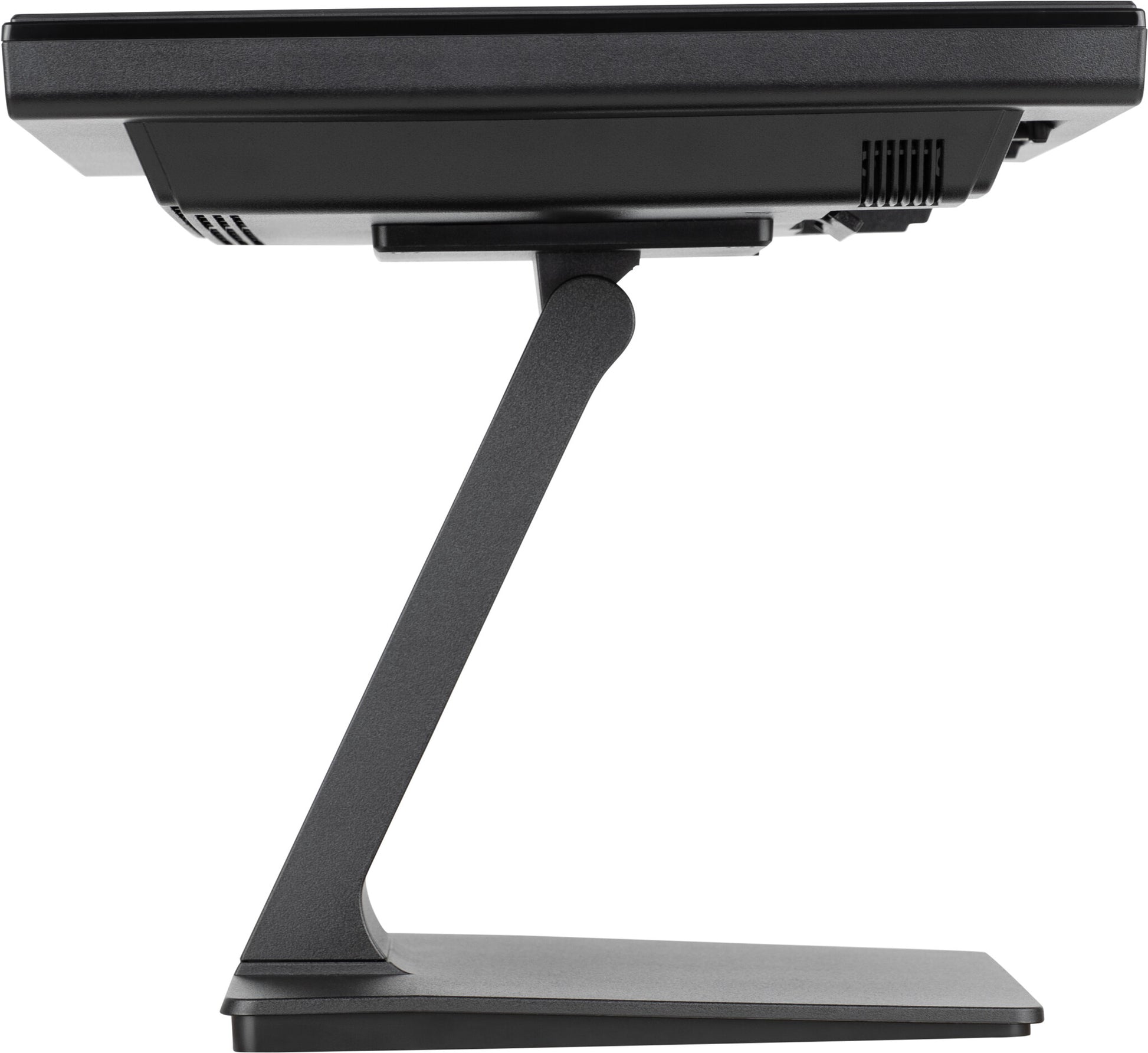

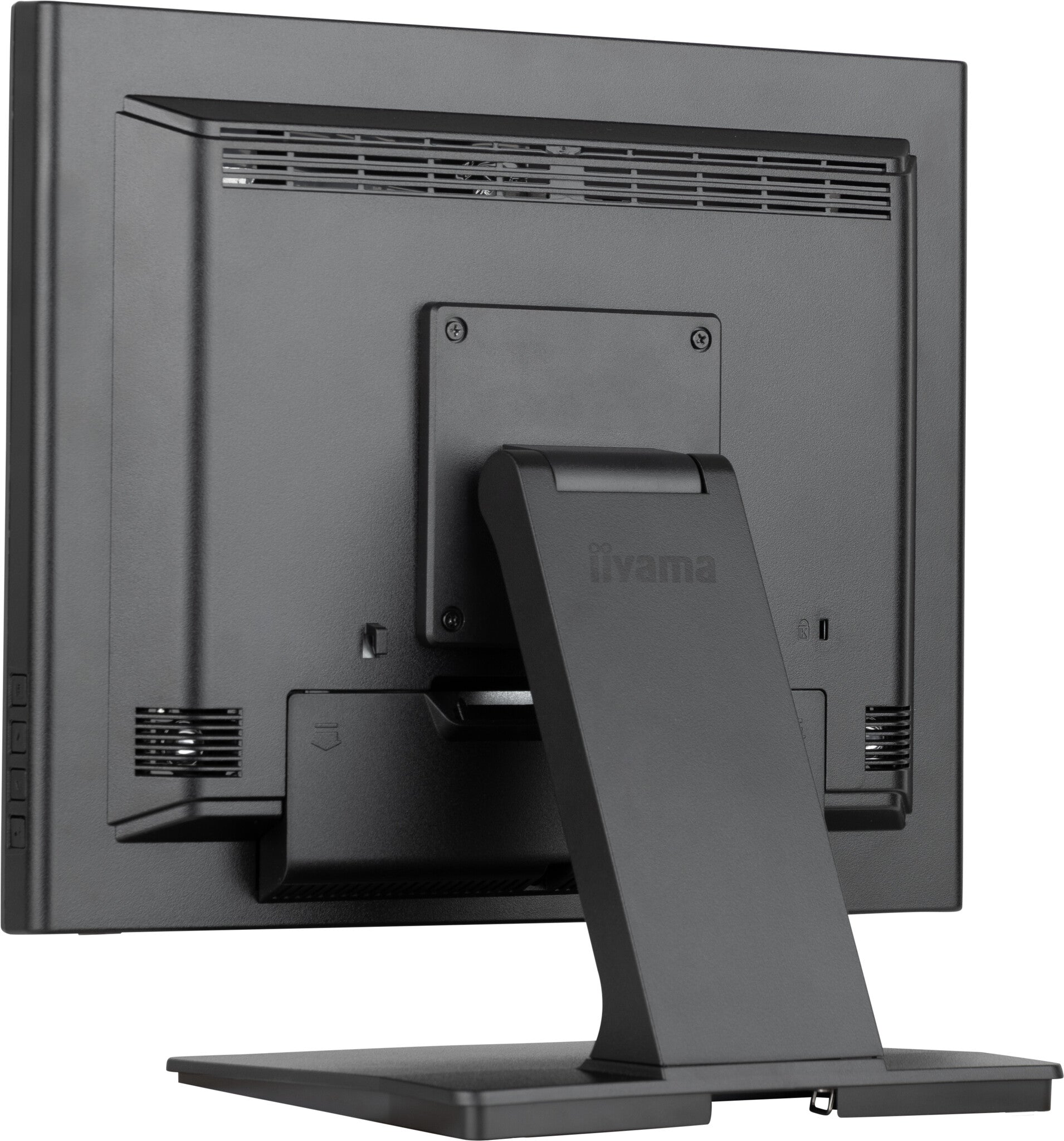

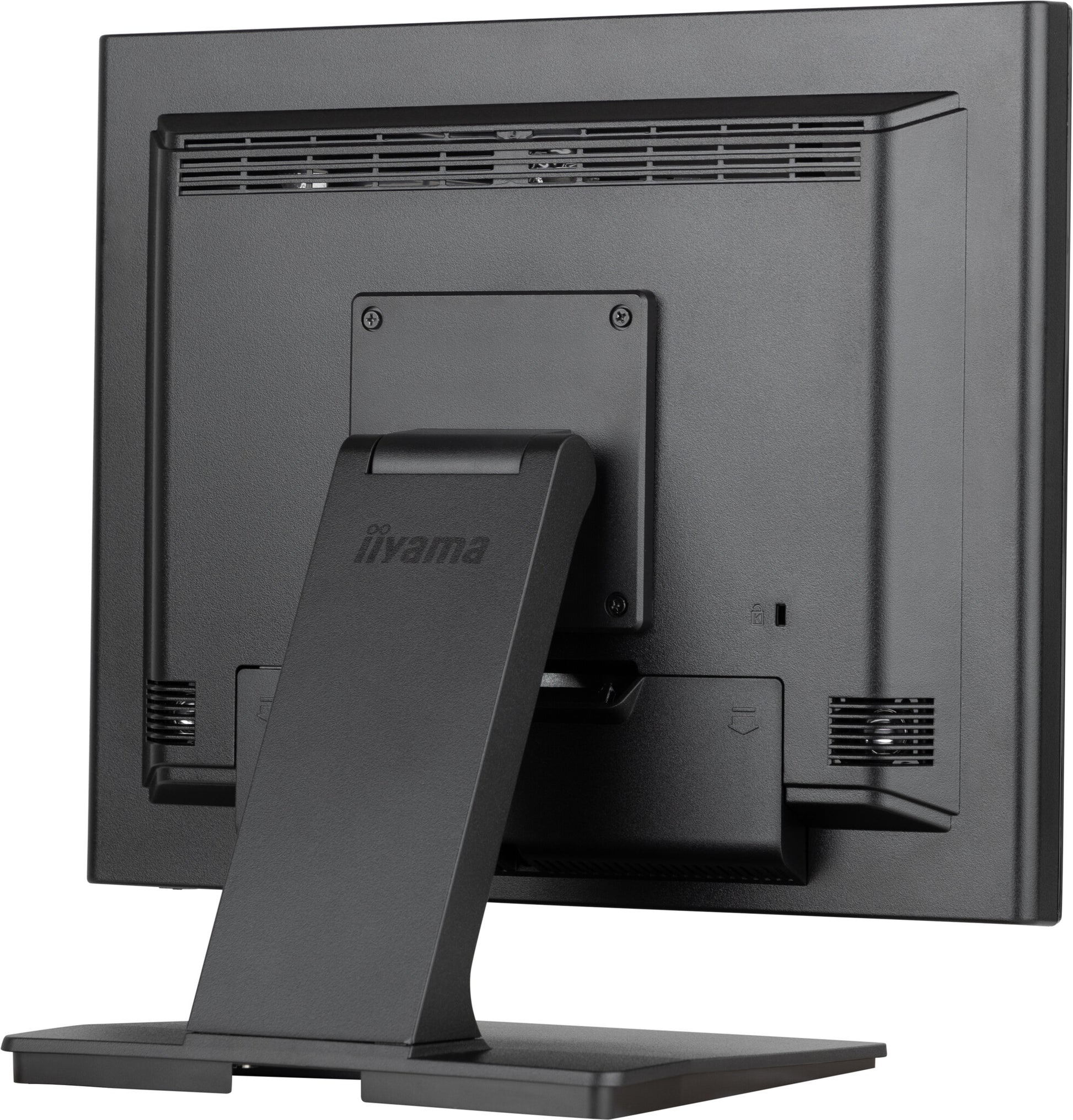

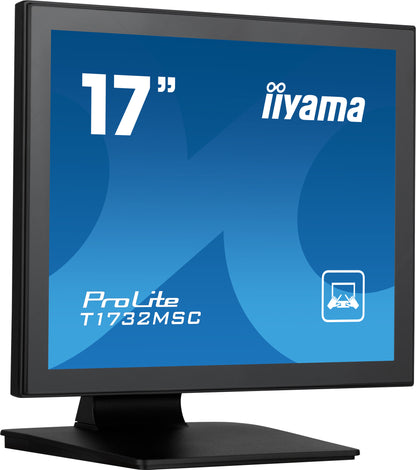

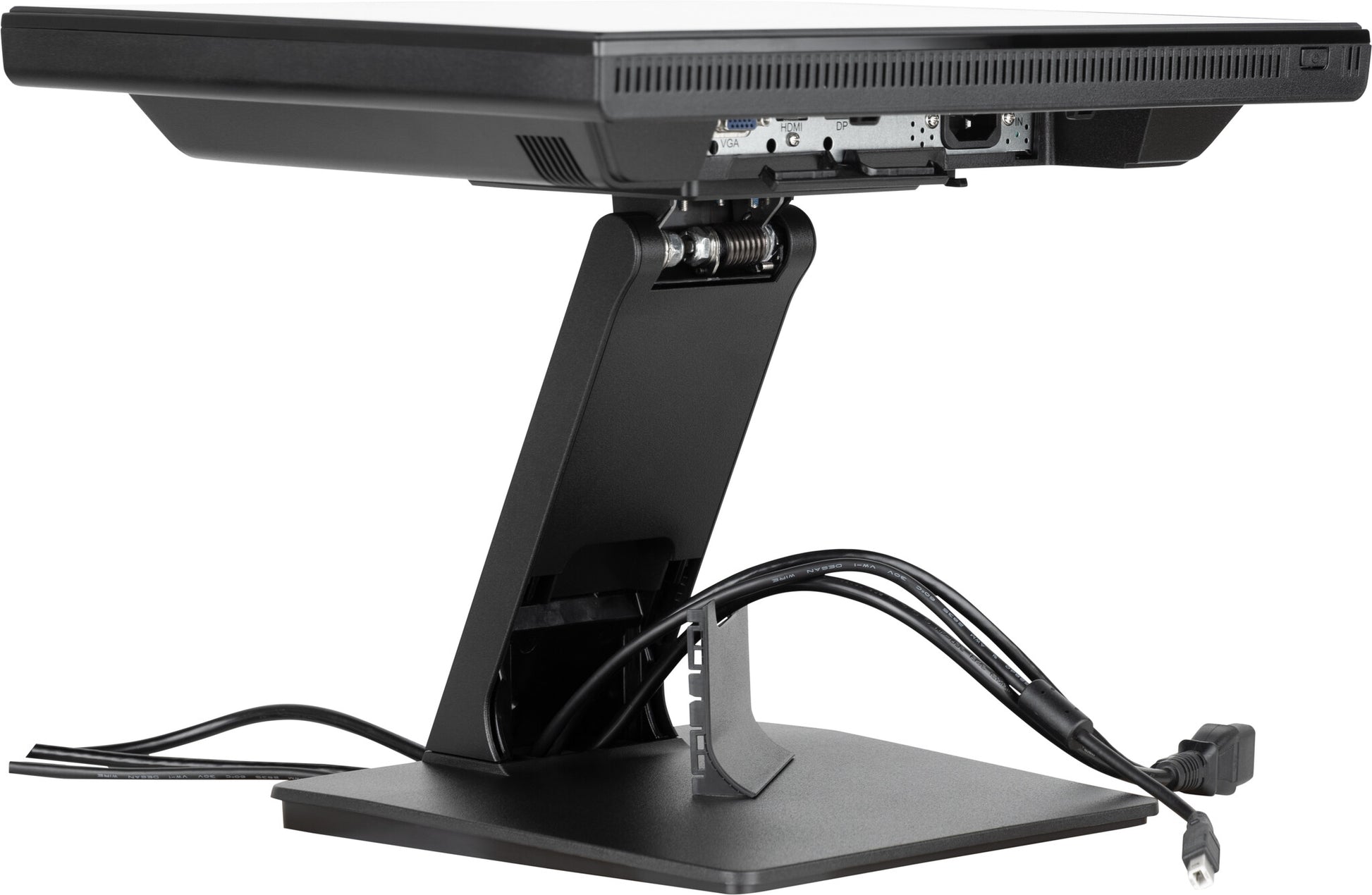

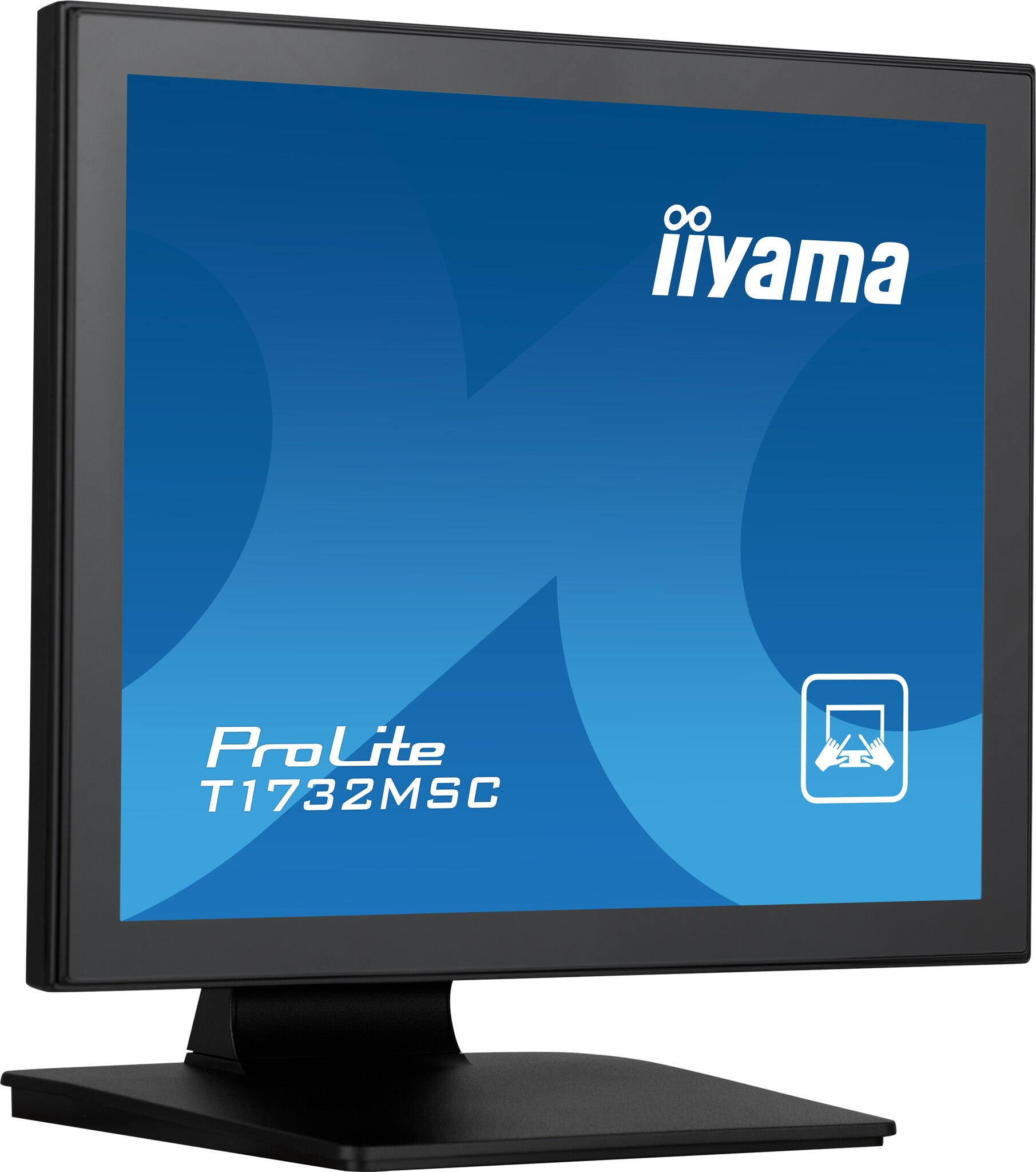

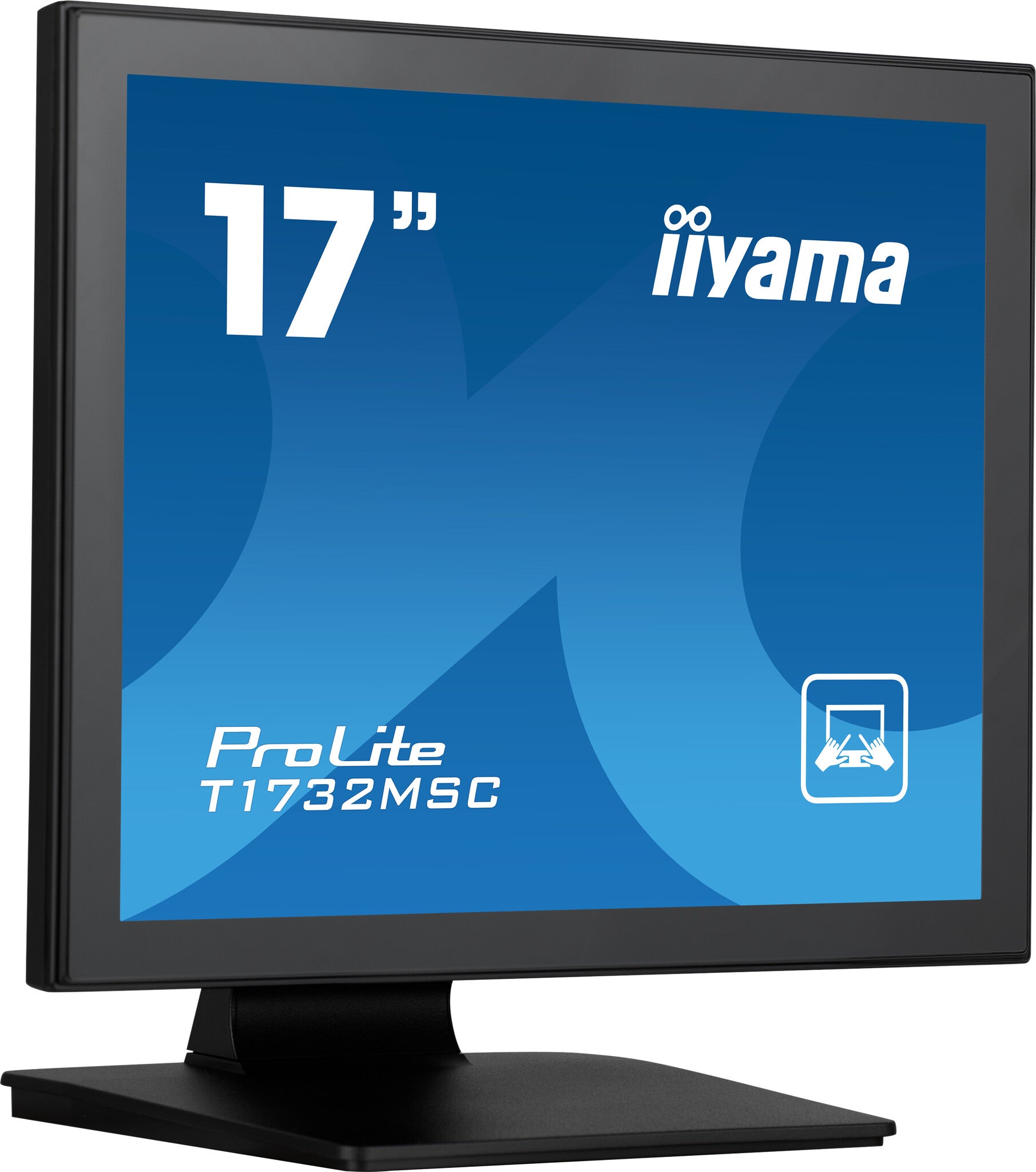

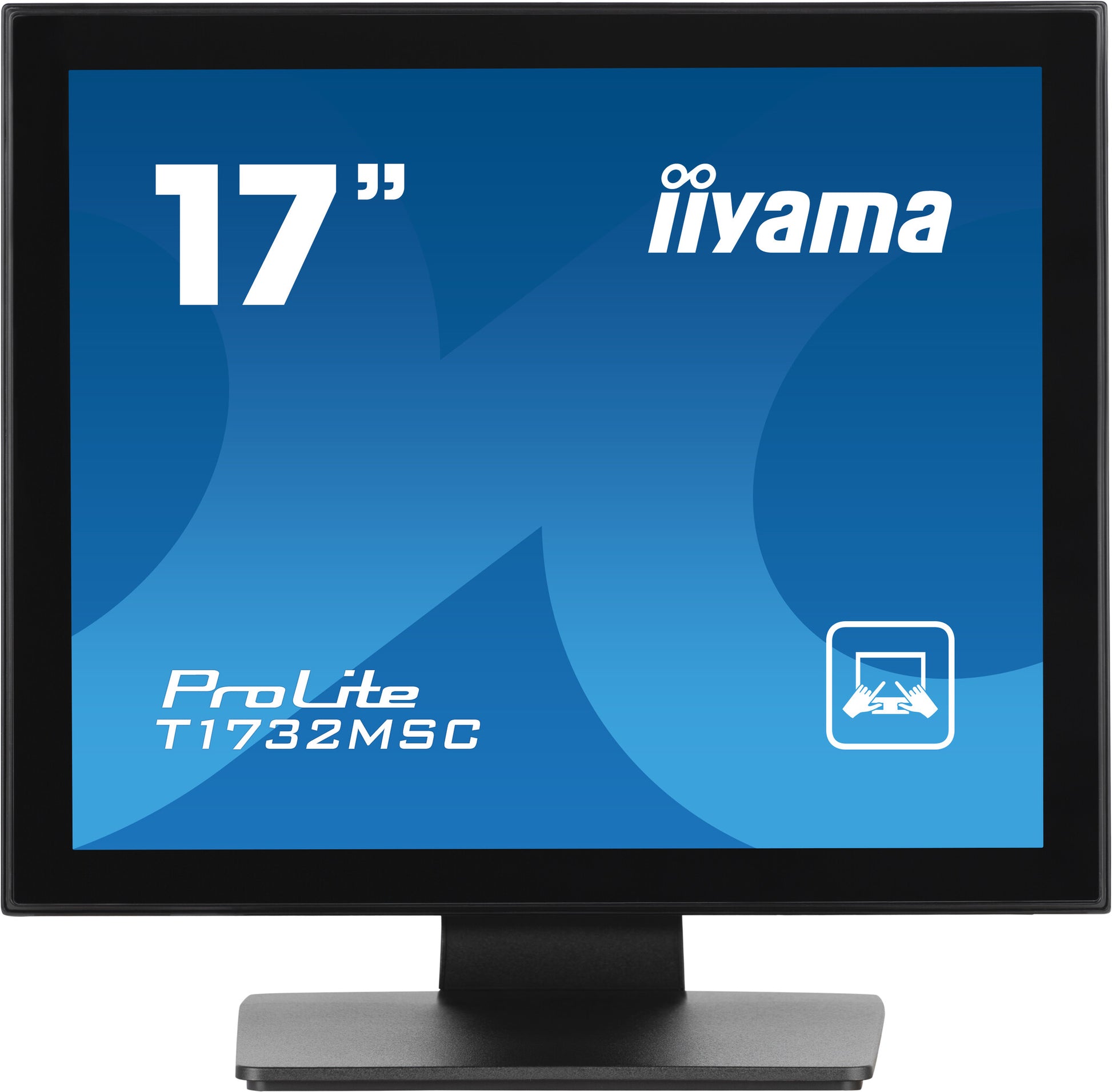

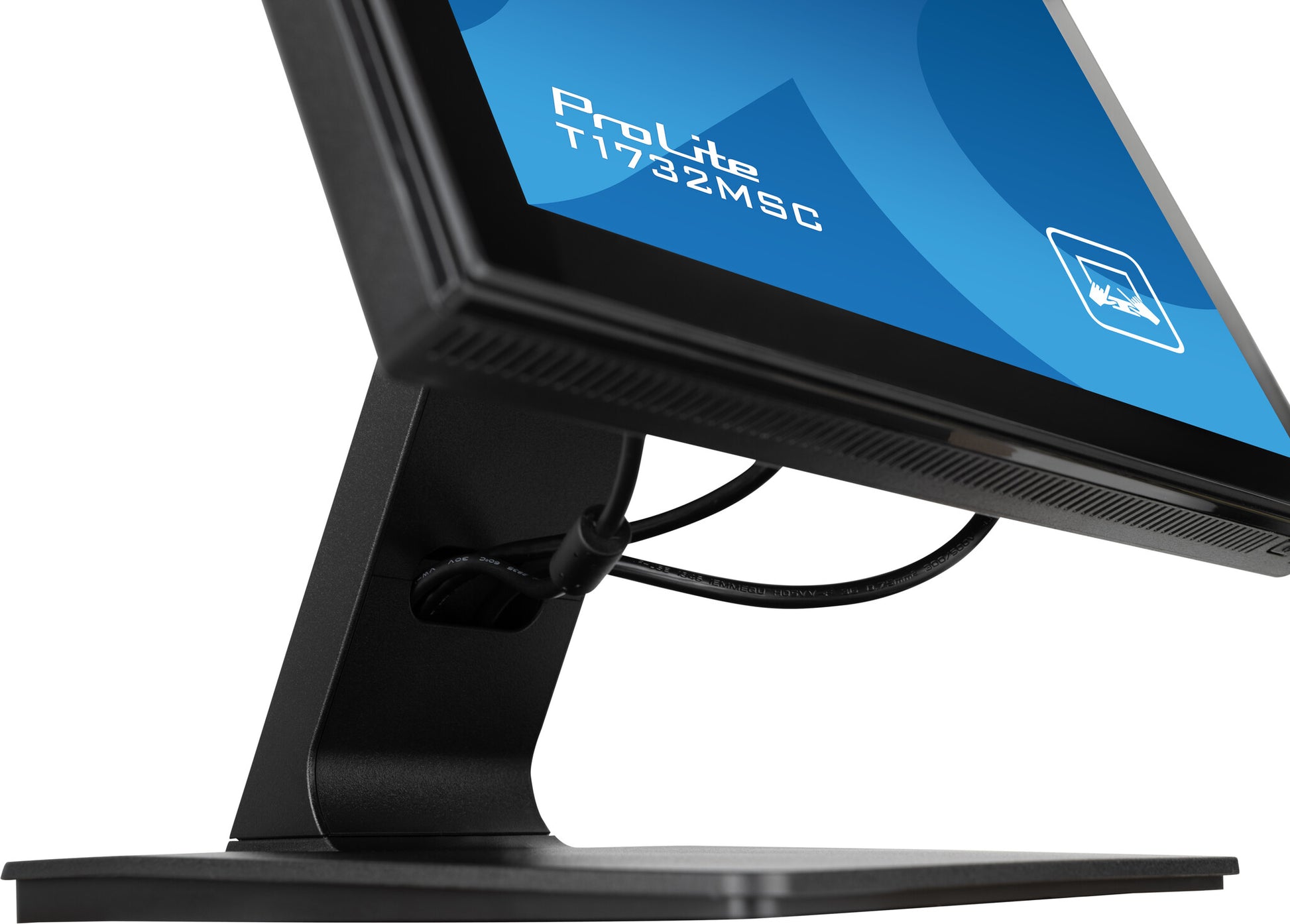

The ProLite T1732MSC-B1SAG 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The anti-glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.
Display
Display diagonal
43.2 cm (17")
Display resolution
1280 x 1024 pixels
Native aspect ratio
5:4
Display technology
LED
Touchscreen
Yes
HD type
Full HD
Panel type
TN
Backlight type
LED
Touchscreen type
Tabletop
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Display brightness (peak)
215 cd/m²
Display brightness (typical)
250 cd/m²
Response time
5 ms
Display surface
Matt
Anti-glare screen
Yes
Screen shape
Flat
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
Display number of colours
16.7 million colours
Pixel pitch
0.264 x 0.264 mm
Horizontal scan range
31 - 80 kHz
Viewable size, horizontal
33.8 cm
Viewable size, vertical
27.1 cm
Display diagonal (metric)
43 cm
Display brightness
215 cd/m²
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Multimedia
Built-in speaker(s)
Yes
Built-in camera
No
Number of speakers
2
RMS rated power
2 W
Design
Market positioning
Business
Product colour
Black
Front bezel colour
Black
Feet colour
Black
International Protection (IP) code
IP54
Glass thickness
1.2 mm

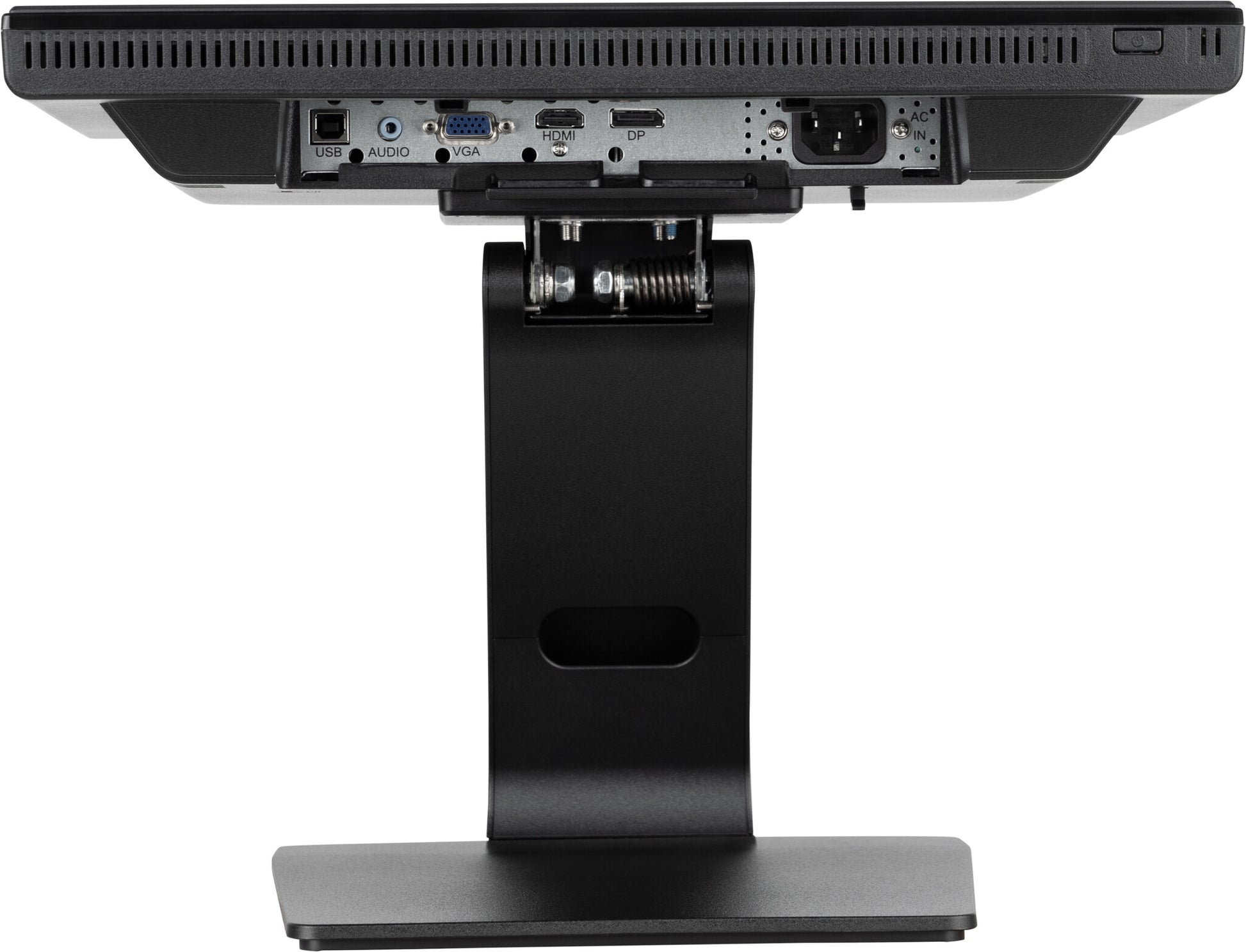

Ports & interfaces
Built-in USB hub
No
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Audio input
Yes
Audio output
Yes
Headphone outputs
1
HDCP
Yes
DC-in jack
Yes
Ergonomics

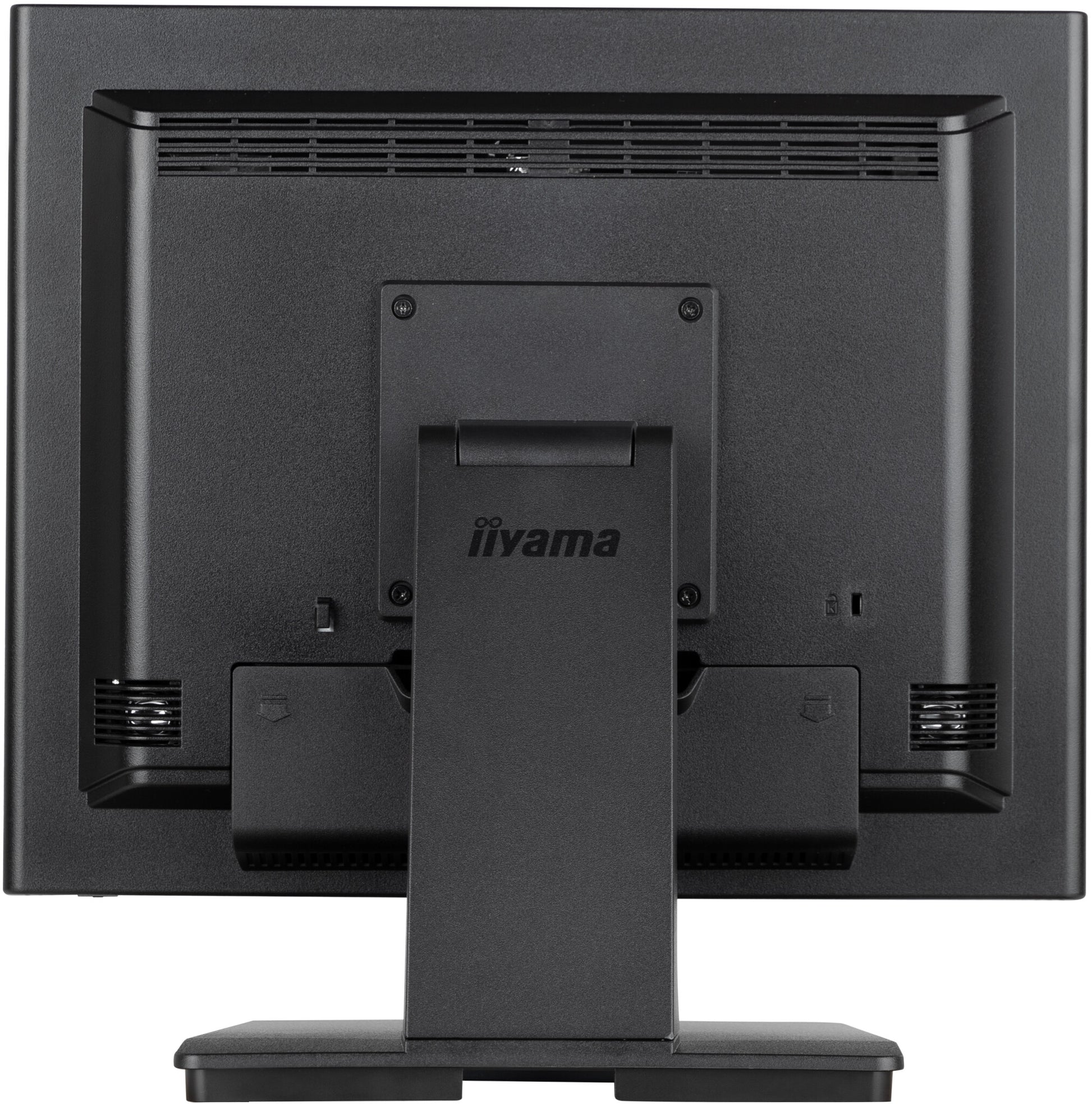

VESA mounting
Yes
Panel mounting interface
100 x 100 mm

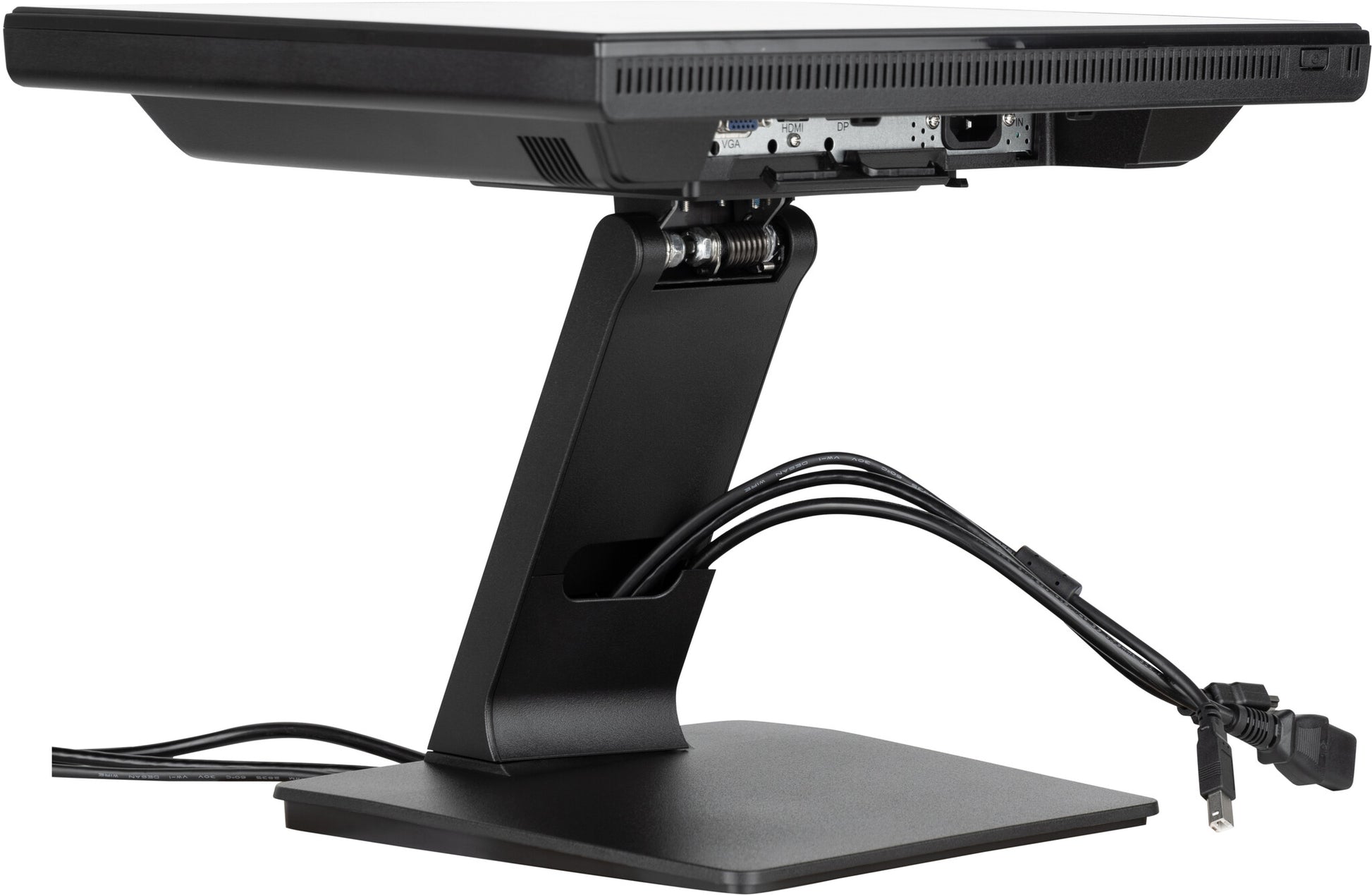

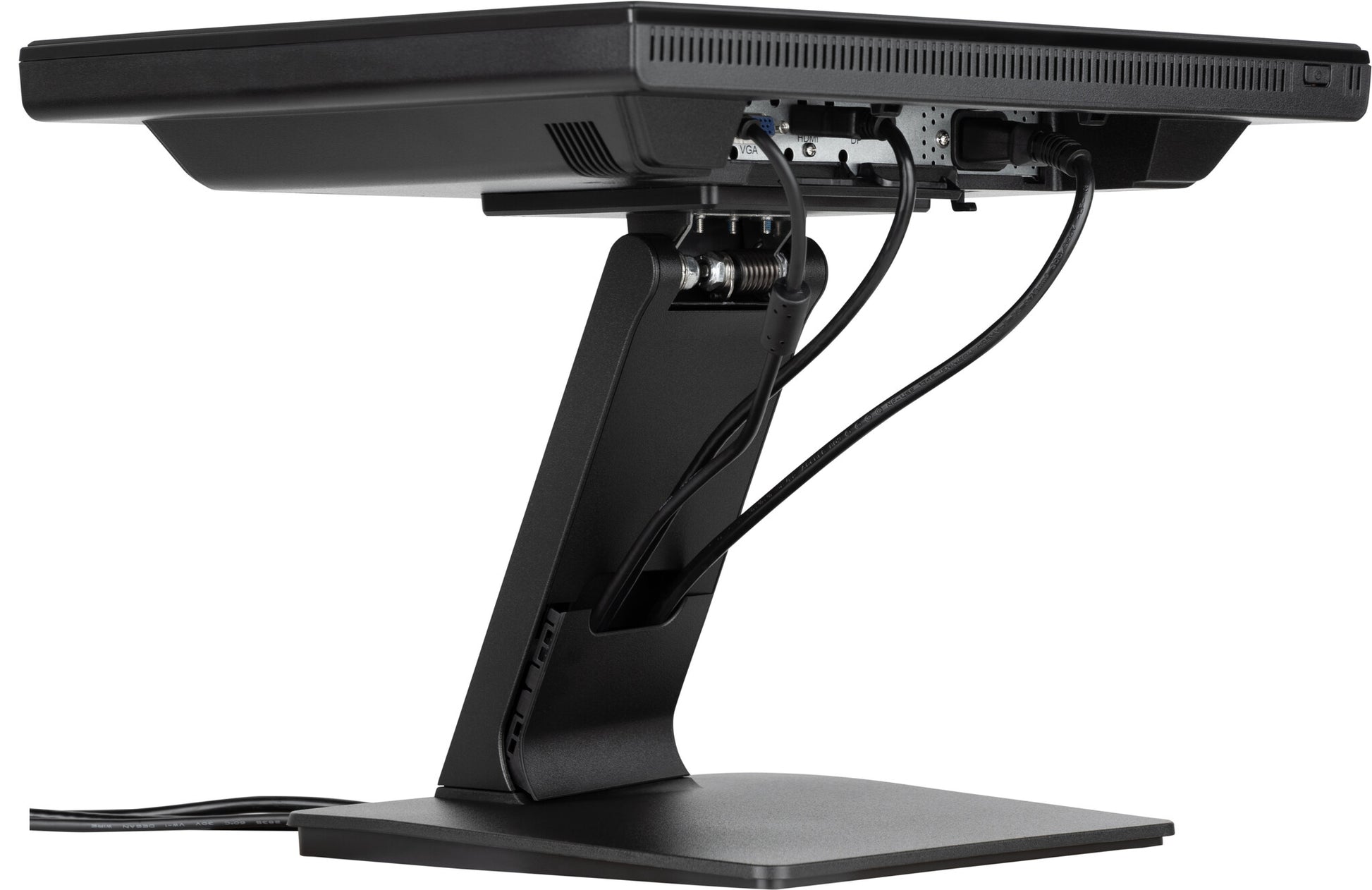

Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Tilt adjustment
Yes
Tilt angle range
5 - 90°
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages
7
Power
Energy efficiency class (SDR)
E
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
11.9 kWh
Power consumption (typical)
20 W
Power consumption (standby)
1.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Packaging content
Stand included
Yes
Cables included
AC, USB, HDMI, DisplayPort, Audio
Power adapter included
Yes
Quick start guide
Yes
Manual
Yes
Weight & dimensions
Width (with stand)
387 mm
Depth (with stand)
240 mm
Height (with stand)
378 mm
Weight (with stand)
4.9 kg
Sustainability
Sustainability certificates
ErP
Sustainability compliance
Yes
general_information_attribute_container_name
attribute_product_family_name
ProLite
Technical details
Compliance certificates
CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
Other features
Brightness
215 cd/m²
Active display area (W x H)
338 x 270.5 mm
Depth
240 mm
Width
387 mm
Height
378 mm
Weight
4.9 kg
Control panel
Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
