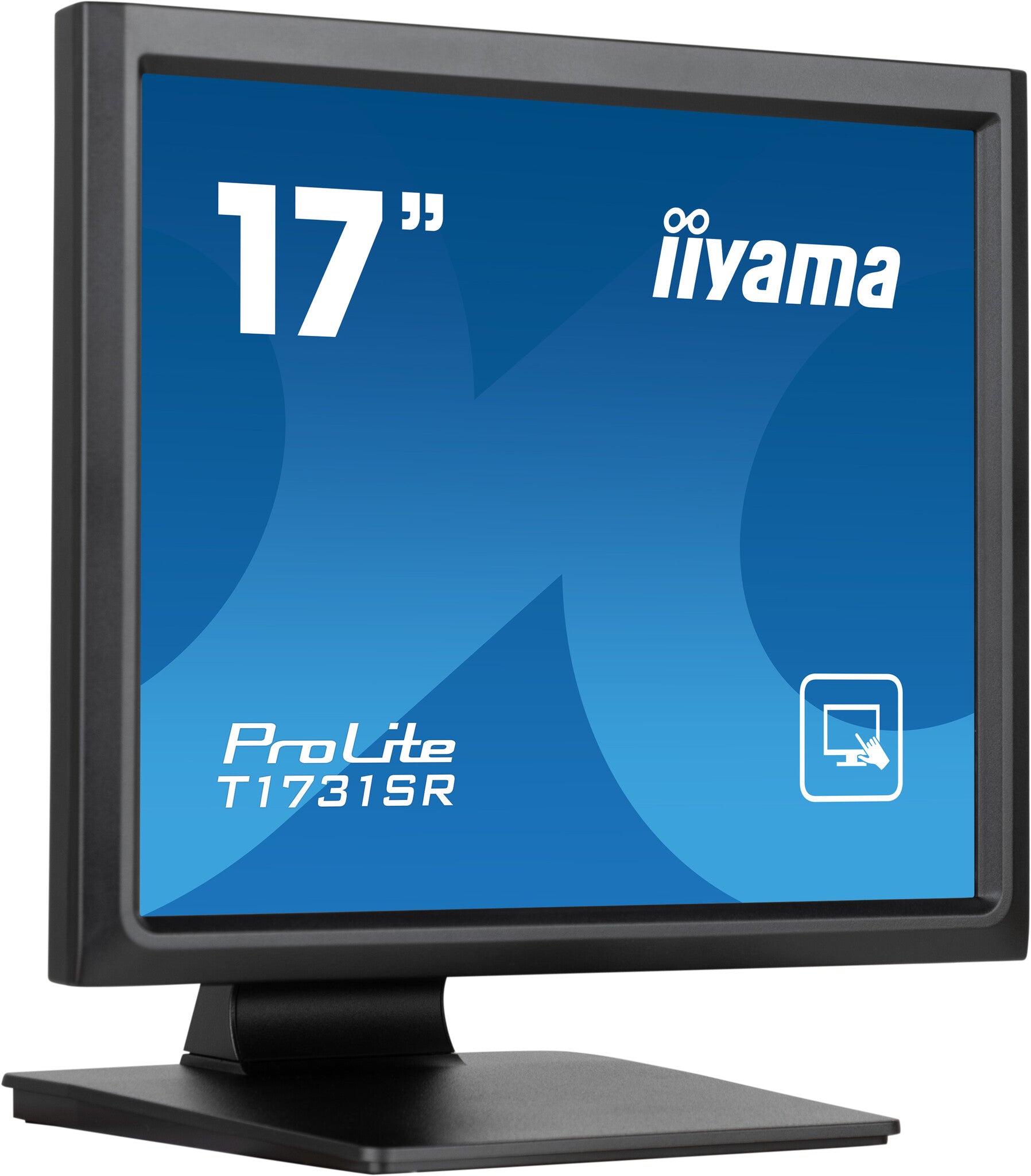

17” Touchscreen with 5-wire Resistive Touch Technology

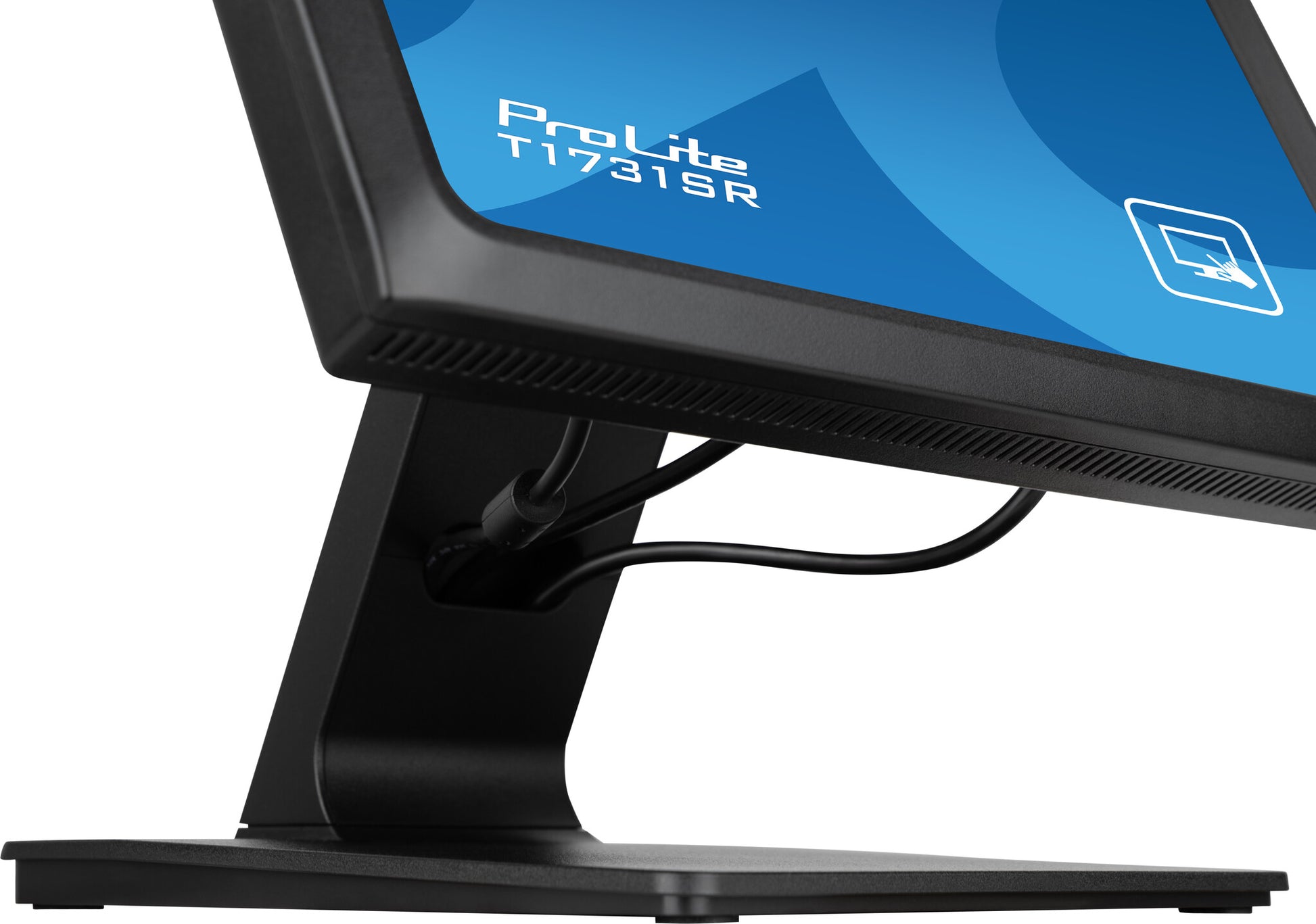

The T1731SR-B1S is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The T1731SR-B1S can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes.
Display
Display diagonal (metric)
43 cm
Viewable size, vertical
27 cm
Viewable size, horizontal
33.8 cm
Horizontal scan range
31.5 - 80 kHz
Pixel pitch
0.264 x 0.264 mm
Display number of colours
16.7 million colours
Viewing angle, vertical
160°
Viewing angle, horizontal
170°
Contrast ratio (typical)
1000:1
Screen shape
Flat
Response time
5 ms
Display brightness (typical)
250 cd/m²
Number of simultaneous touchpoints
1
Touch technology
Single-touch
Touchscreen technology
Resistive
Panel type
TN
HD type
SXGA
Touchscreen
Yes
Display technology
LCD
Native aspect ratio
5:4
Display resolution
1280 x 1024 pixels
Display diagonal
43.2 cm (17")
Multimedia
RMS rated power
2 W
Number of speakers
2
Built-in camera
No
Built-in speaker(s)
Yes
Design
International Protection (IP) code
IP54
Detachable stand
No
Front bezel colour
Black
Product colour
Black
Ports & interfaces
HDCP
Yes
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Yes
VGA (D-Sub) ports quantity
1
USB Touch port
Yes
Ergonomics
On Screen Display (OSD) languages
Simplified Chinese, German, English, Spanish, French, Italian, Japanese
On Screen Display (OSD)
Yes
Tilt angle range
-5 - 90°
Tilt adjustment
Yes
Cable lock slot type
Kensington
Cable lock slot
Yes
Cable management
Yes
Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Power
Energy efficiency scale
A to G
Power supply type
Internal
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (standby)
0.8 W
Power consumption (typical)
20 W
Energy consumption (SDR) per 1000 hours
13 kWh
Energy efficiency class (HDR)
Not available
Energy efficiency class (SDR)
E
Packaging content
Quick start guide
Yes
Stand included
Yes
Weight & dimensions
Weight (with stand)
5.4 kg
Height (with stand)
378 mm
Depth (with stand)
239.5 mm
Width (with stand)
387 mm
Sustainability
European Product Registry for Energy Labelling (EPREL) code
