Energy efficiency class (SDR): E ErP CE, cULus, REACH, RoHS, UKCA, WEEE
17" touchscreen featuring 10 touch points and PCAP technology

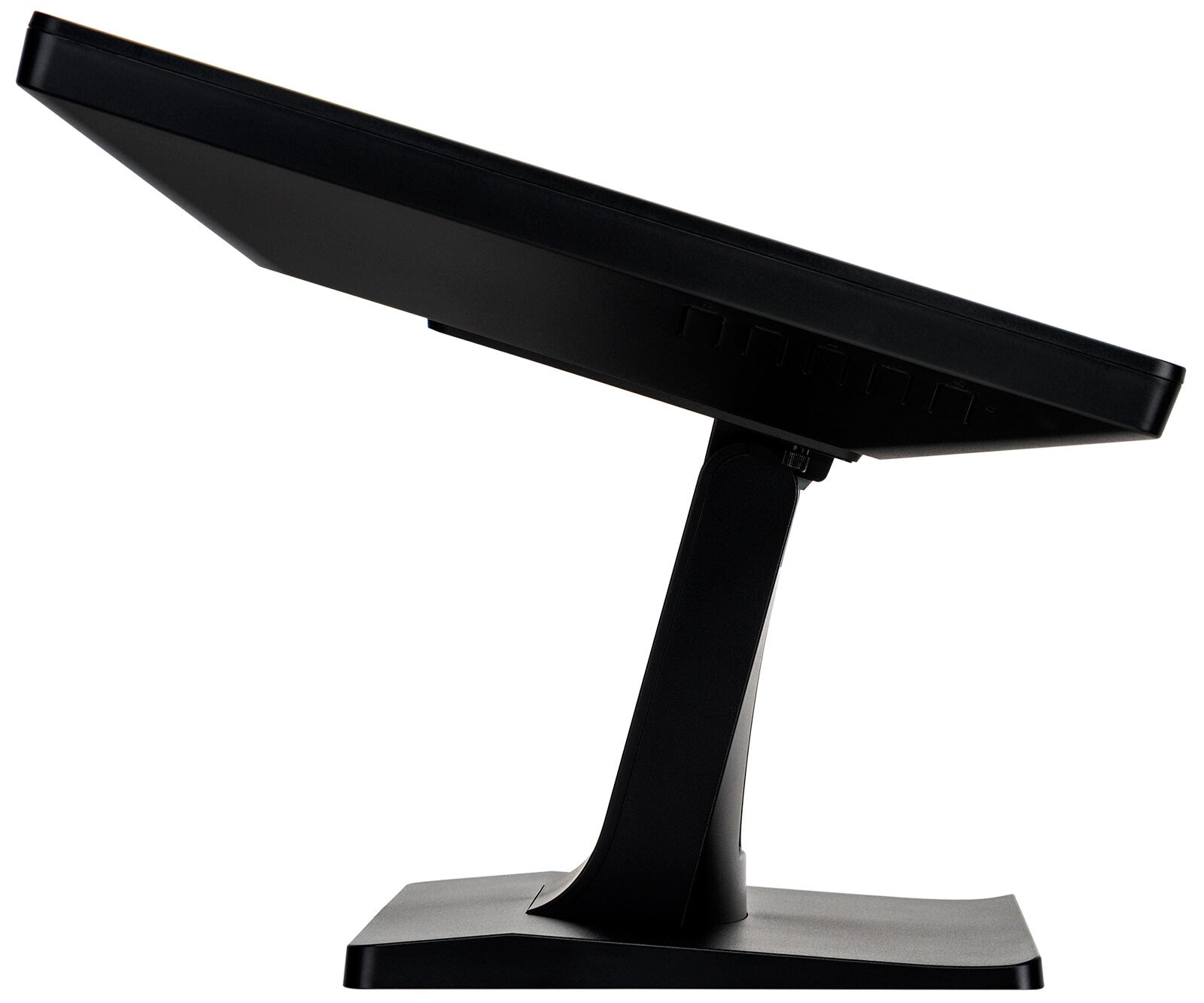

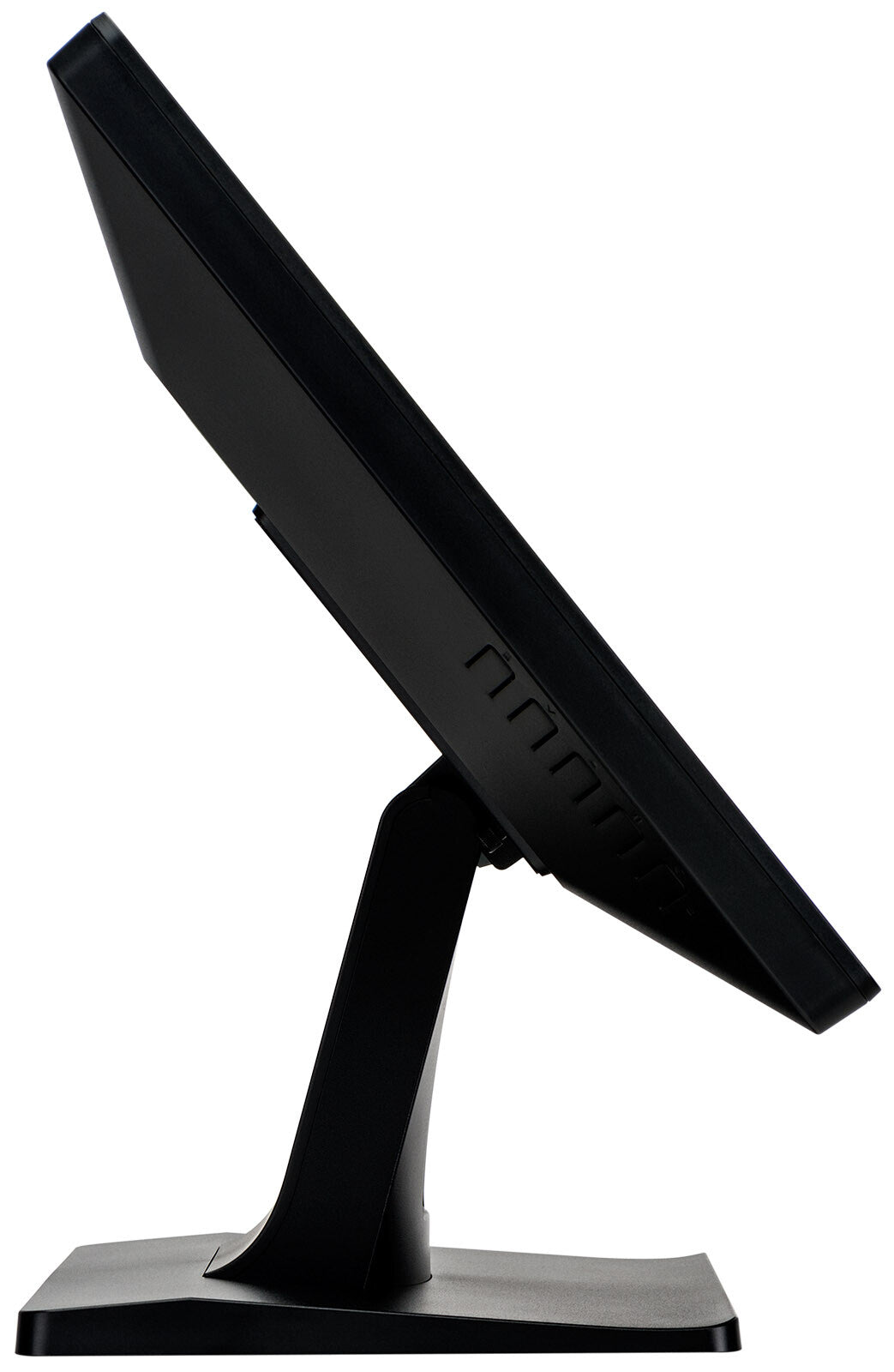

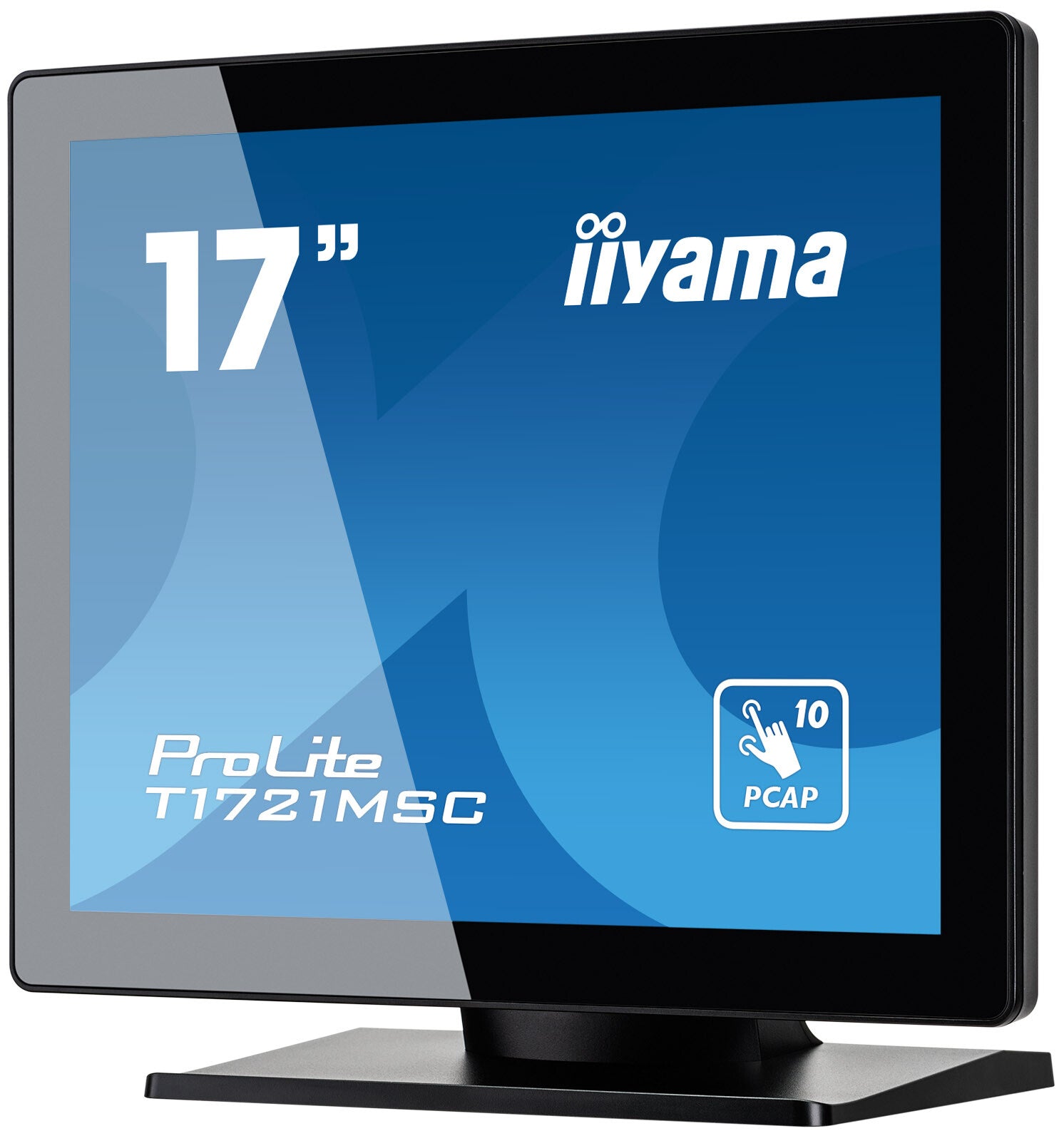

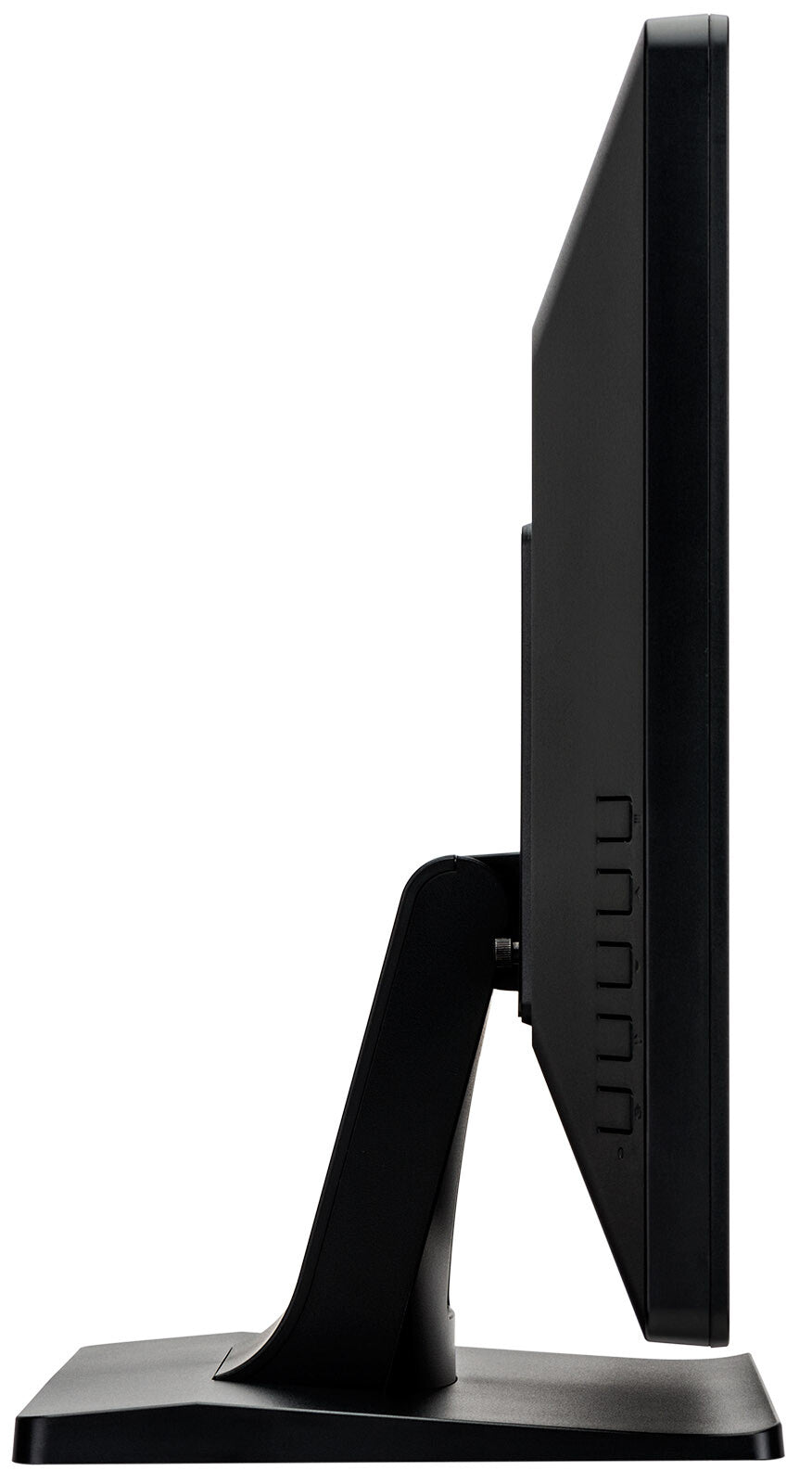

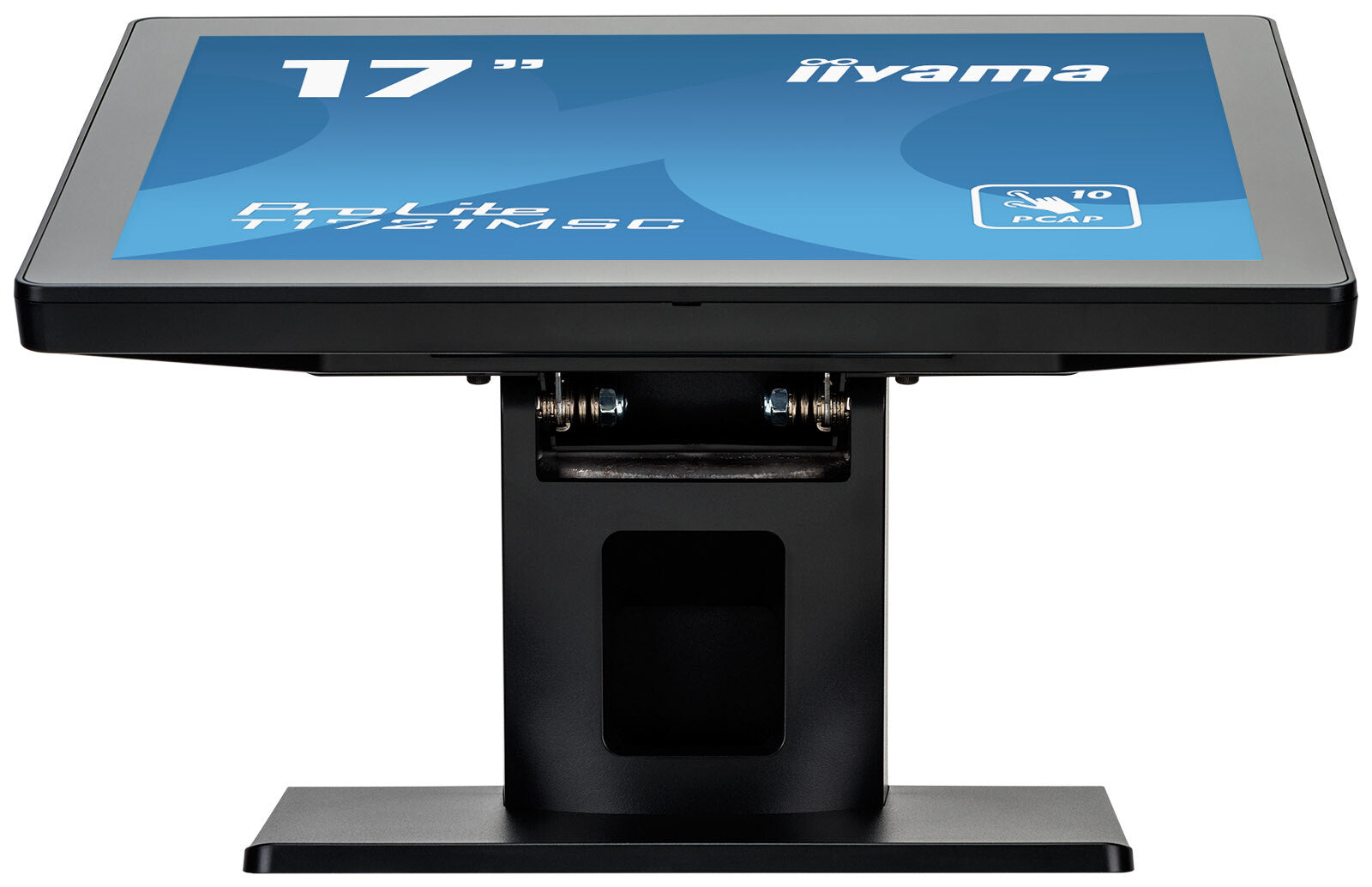

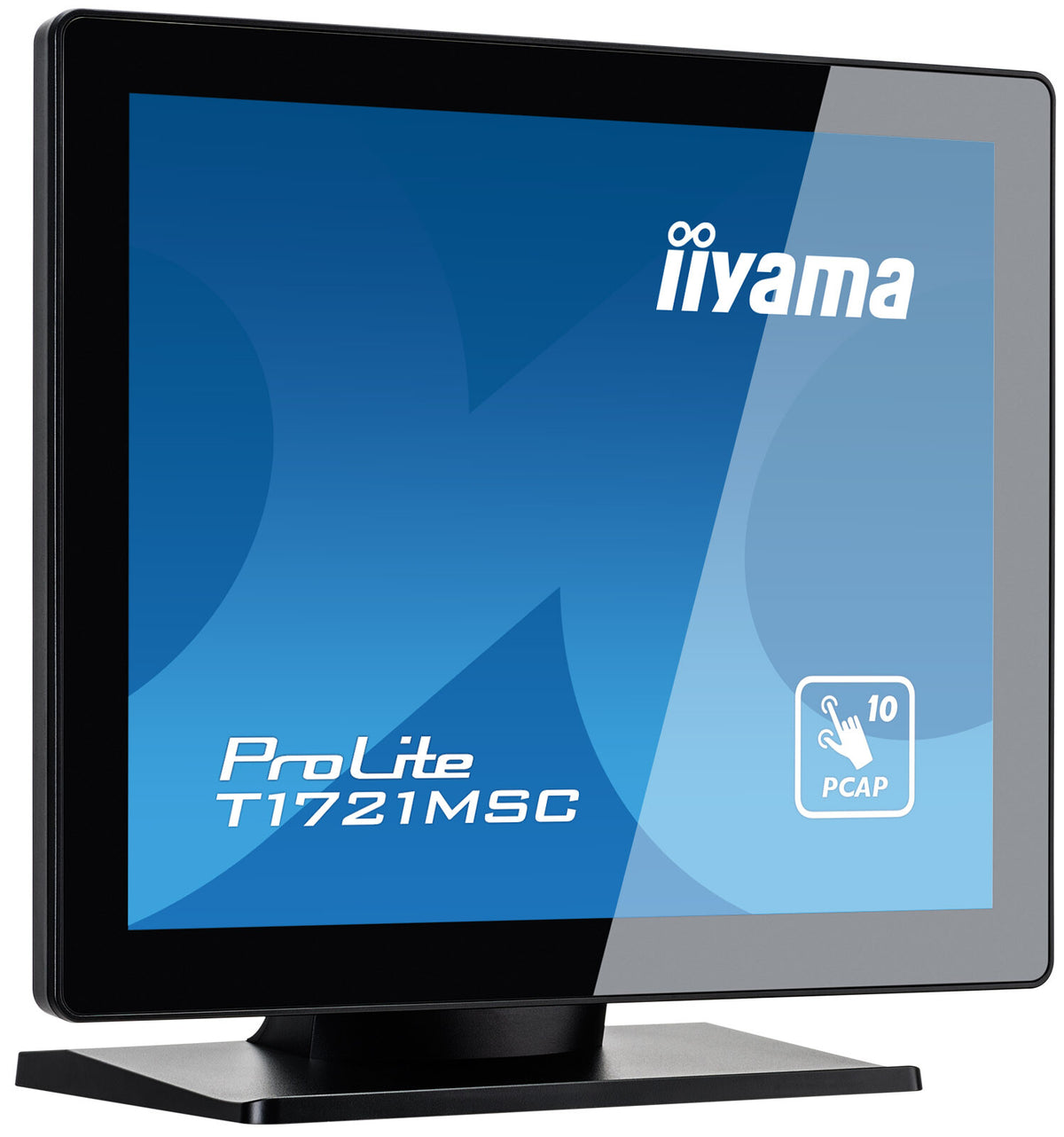

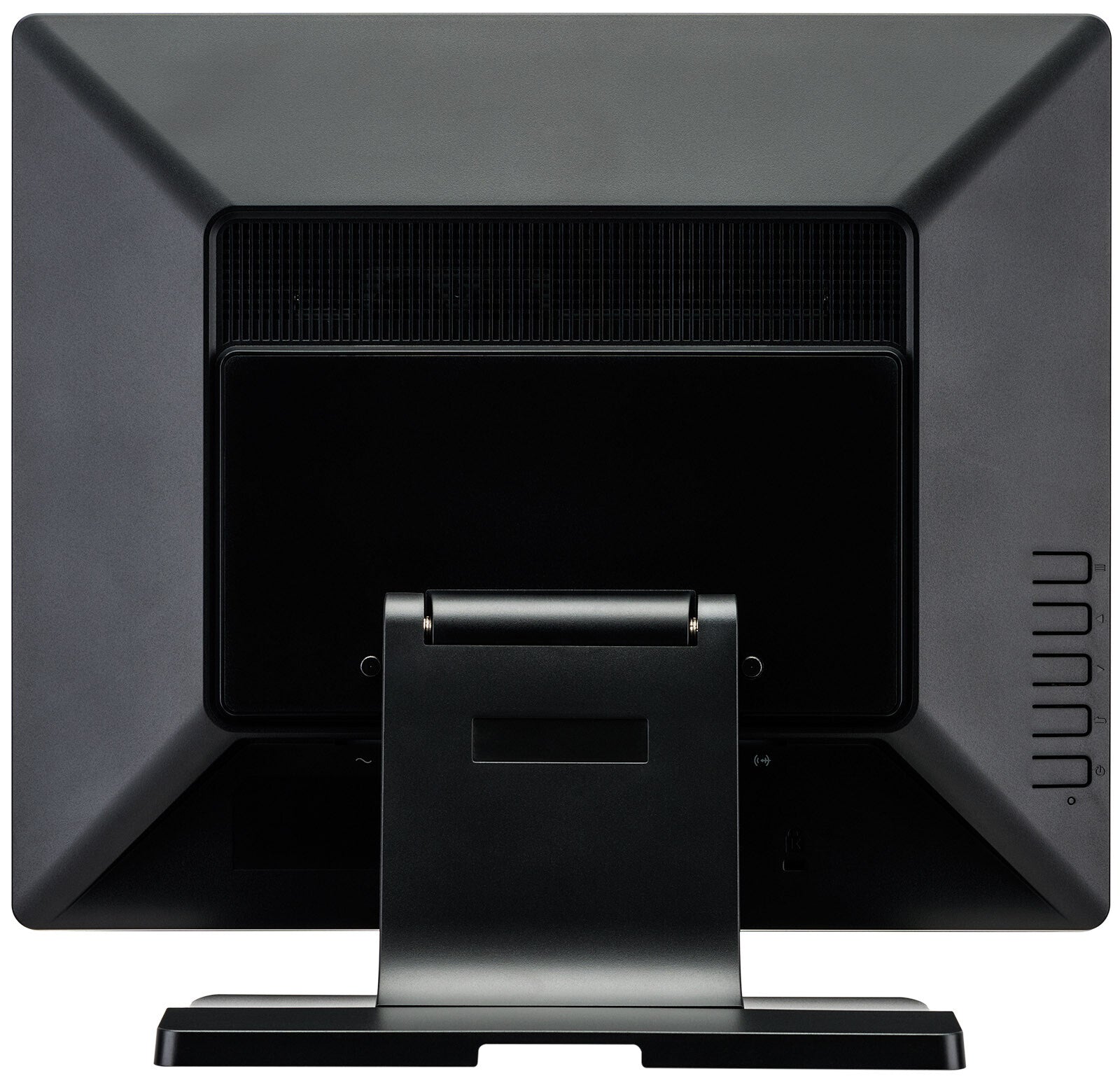

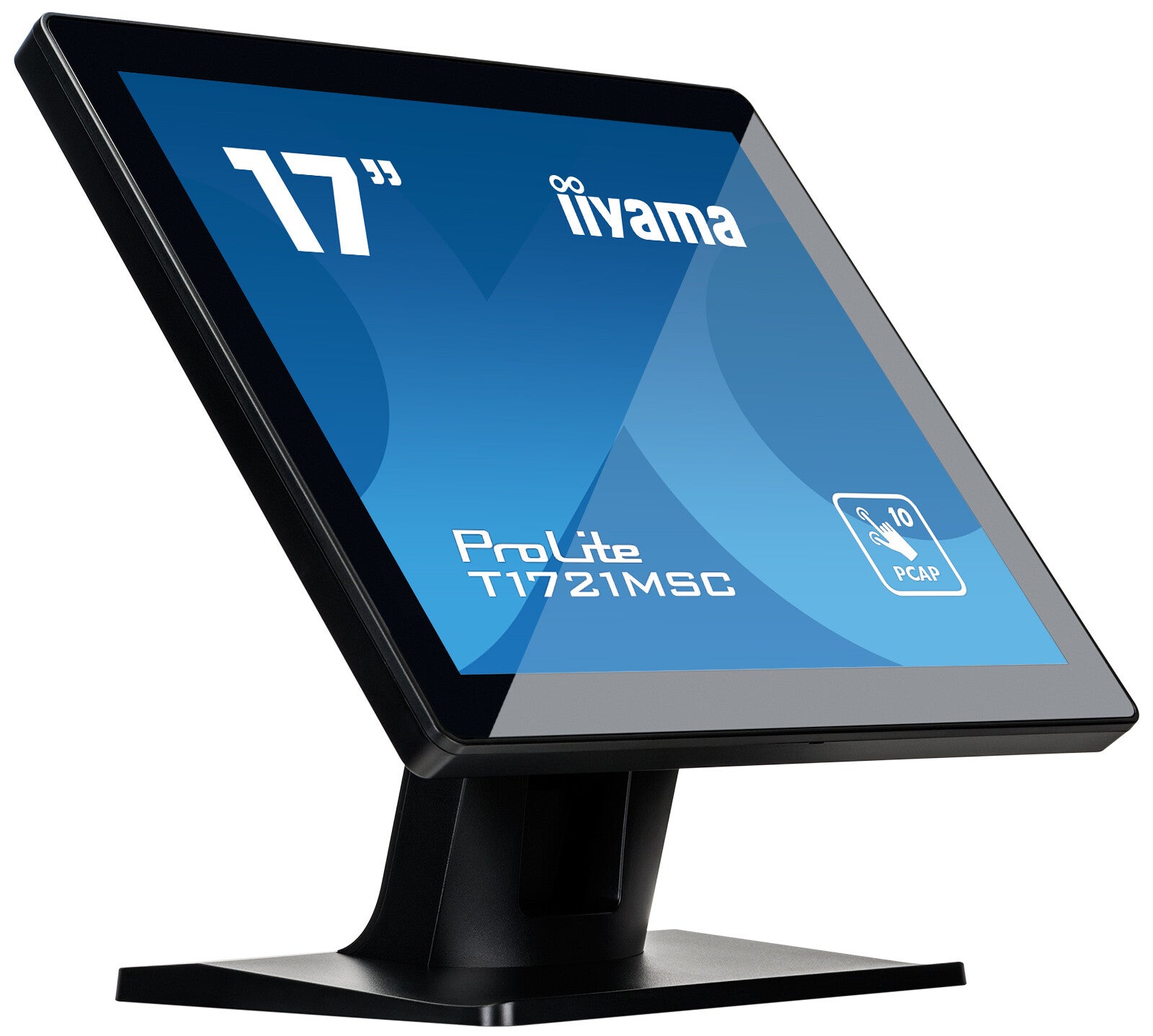

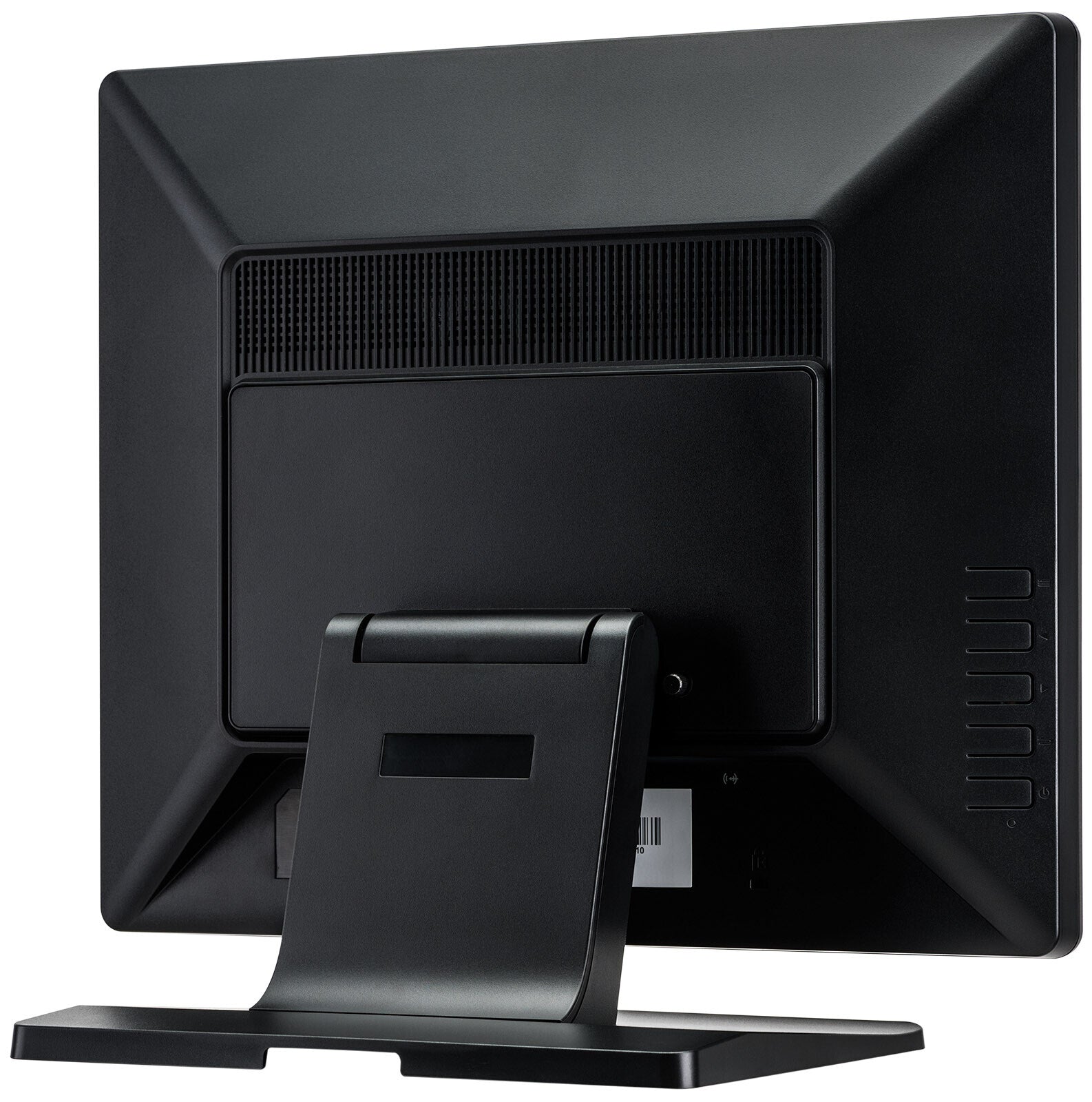

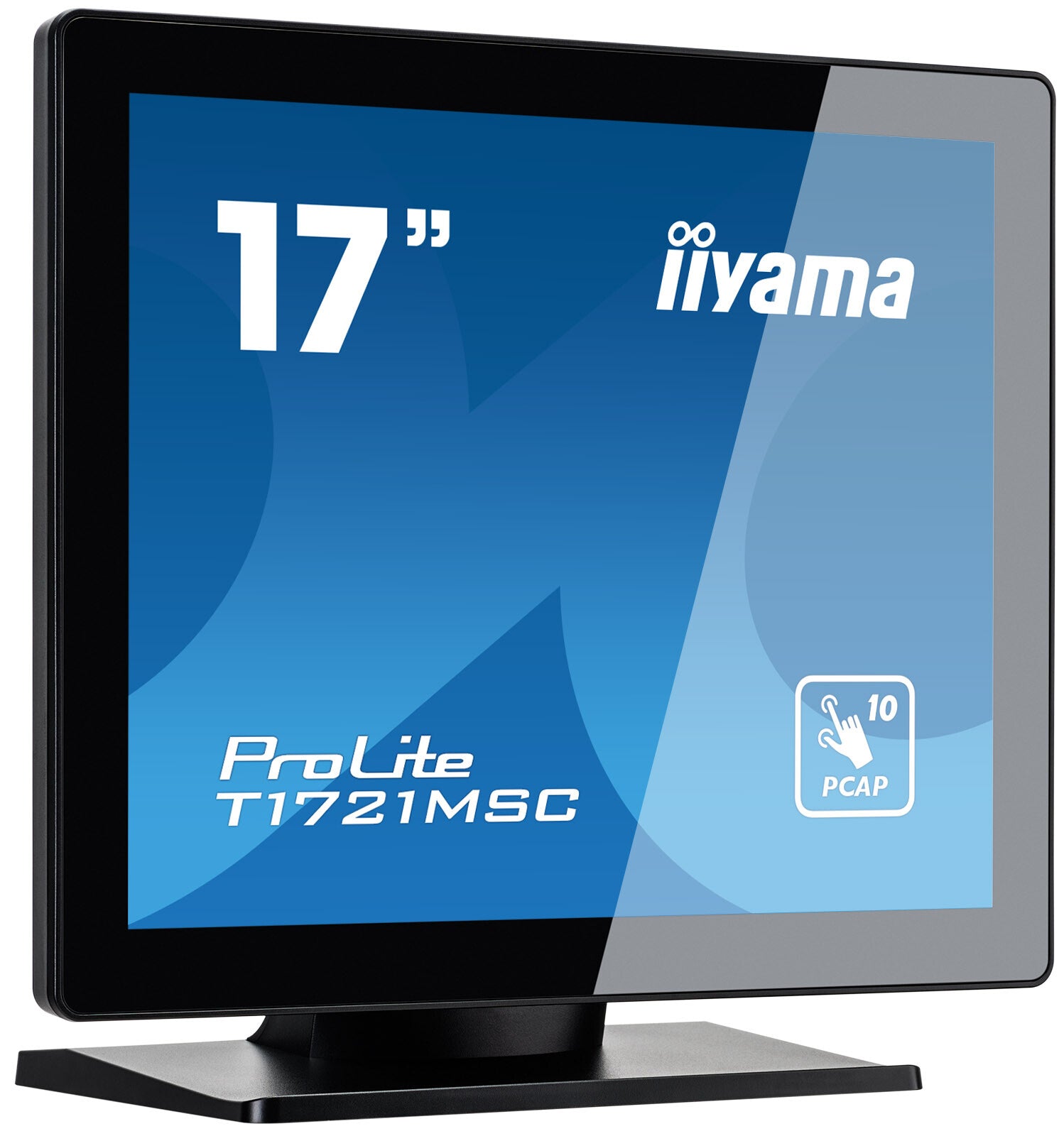

The ProLite T1721MSC-B2 17” touchscreen is based on projected capacitive technology, offering optimal seamless and accurate touch response. Due to its glass overlay, it guarantees high durability, scratch-resistance and perfect picture performance. A solid and steady base supports the touchscreen with an adjustable stand offering up to 80 degree tilt angles. Menu buttons are located on the back of the screen which can be locked to prevent tampering and include a handy function to deactivate the touchscreen for cleaning. The ProLite T1721MSC-B2 is an incredibly powerful touch solution, perfect for instore retail purposes.
Display
Display diagonal
43.2 cm (17")
Display resolution
1280 x 1024 pixels
Native aspect ratio
5:4
Display technology
LED
Touchscreen
Yes
HD type
SXGA
Panel type
TN
Backlight type
LED
Touchscreen type
Tabletop
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Display brightness (peak)
230 cd/m²
Display brightness (typical)
250 cd/m²
Response time
5 ms
Display surface
Matt
Screen shape
Flat
Contrast ratio (typical)
1000:1
Maximum refresh rate
75 Hz
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
Display number of colours
16.7 million colours
Pixel pitch
0.264 x 0.264 mm
Horizontal scan range
31.4 - 80 kHz
Viewable size, horizontal
33.8 cm
Viewable size, vertical
27.1 cm
Display diagonal (metric)
43 cm
DDC/CI
Yes
Surface hardness
7H
Display brightness
230 cd/m²
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Low Blue Light technology
Yes
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Multimedia
Built-in speaker(s)
Yes
Built-in camera
No
Number of speakers
2
RMS rated power
4 W
Design
Market positioning
Business
Product colour
Black
Front bezel colour
Black
Feet colour
Black
International Protection (IP) code
IPX3
Glass thickness
1.5 mm
Certification
CE, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Ports & interfaces
Built-in USB hub
Yes
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
Audio input
Yes
Headphone out
Yes
HDCP
Yes
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Tilt adjustment
Yes
Tilt angle range
10 - 70°
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages
8
Power
Energy efficiency class (SDR)
E
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
13 kWh
Power consumption (typical)
20 W
Power consumption (standby)
1.5 W
Power consumption (off)
0.3 W
AC adapter output voltage
12 V
Power supply type
External
Energy efficiency scale
A to G
Packaging content
Stand included
Yes
Cables included
AC, USB, HDMI
Power adapter included
Yes
Quick start guide
Yes
Manual
Yes
HDMI cable length
1.8 m
Power cable length
1.8 m
Weight & dimensions
Width (with stand)
392.5 mm
Depth (with stand)
198 mm
Height (with stand)
364 mm
Weight (with stand)
4.4 kg
Packaging data
Package width
537 mm
Package depth
172 mm
Package height
500 mm
Package weight
5.8 kg
USB cable length
1.8 m
Sustainability
Sustainability certificates
ErP
Sustainability compliance
Yes
general_information_attribute_container_name
attribute_product_family_name
ProLite
Technical details
Native refresh rate
75 Hz
Compliance certificates
CE, cULus, REACH, RoHS, UKCA, WEEE
Other features
AC adapter included
Yes
Packaging content
AC adapter, mylar sheet (for VESA mount)
Brightness
230 cd/m²
USB ports quantity
1
Active display area (W x H)
338 x 270.5 mm
Depth
198 mm
Width
392.5 mm
Height
364 mm
Weight
4.4 kg
Mean time between failures (MTBF)
50000 h
Control panel
Menu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power
User controls
picture (backlight, brightness, contrast, sharpness) display (auto adjustment, H position, V position, pixel clock, phase) colour (colour temp, picture mode) input, audio (volume, mute, audio source), other (reset, OSD time, OSD H position, OSD V position, language) information
