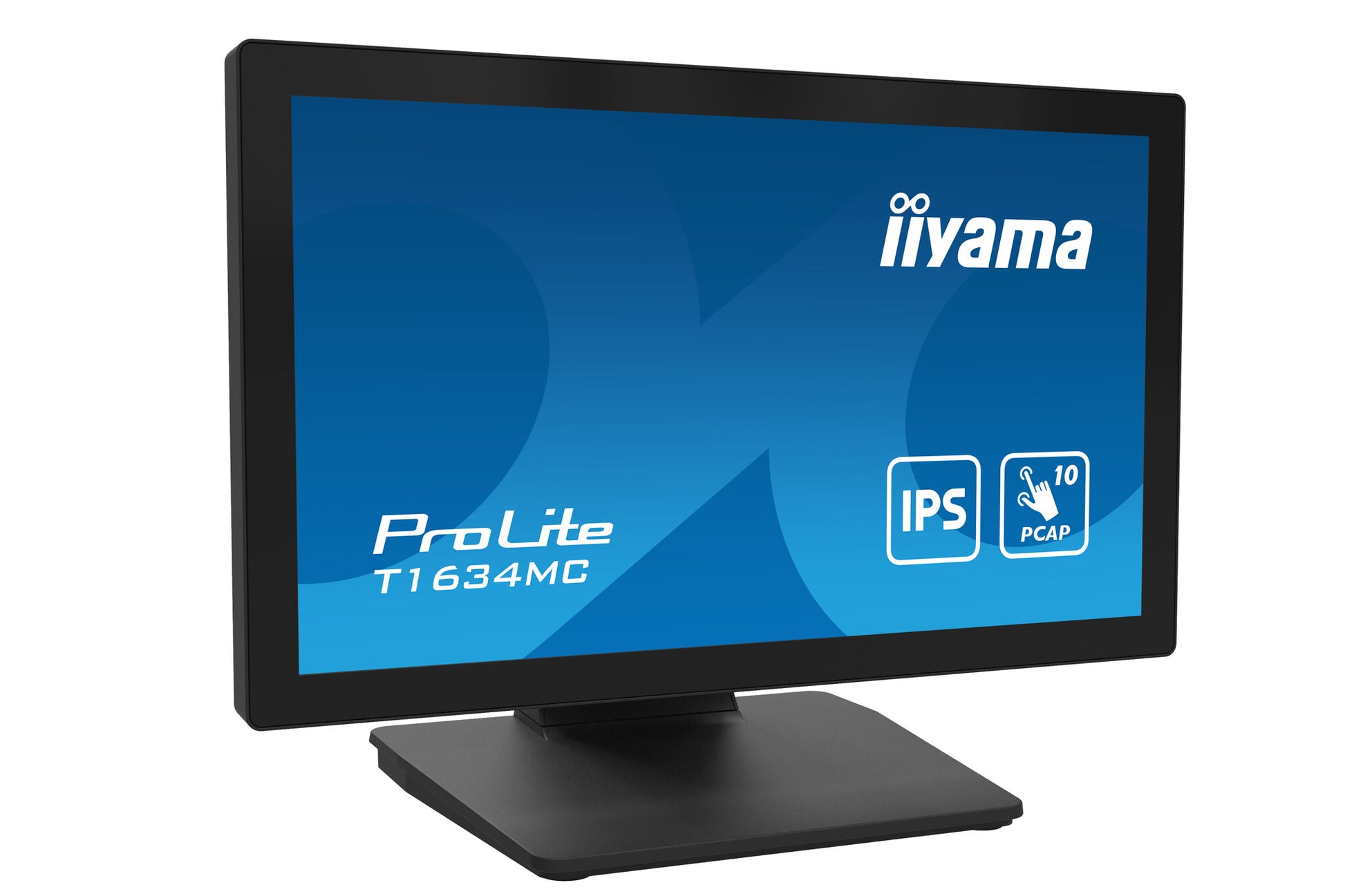

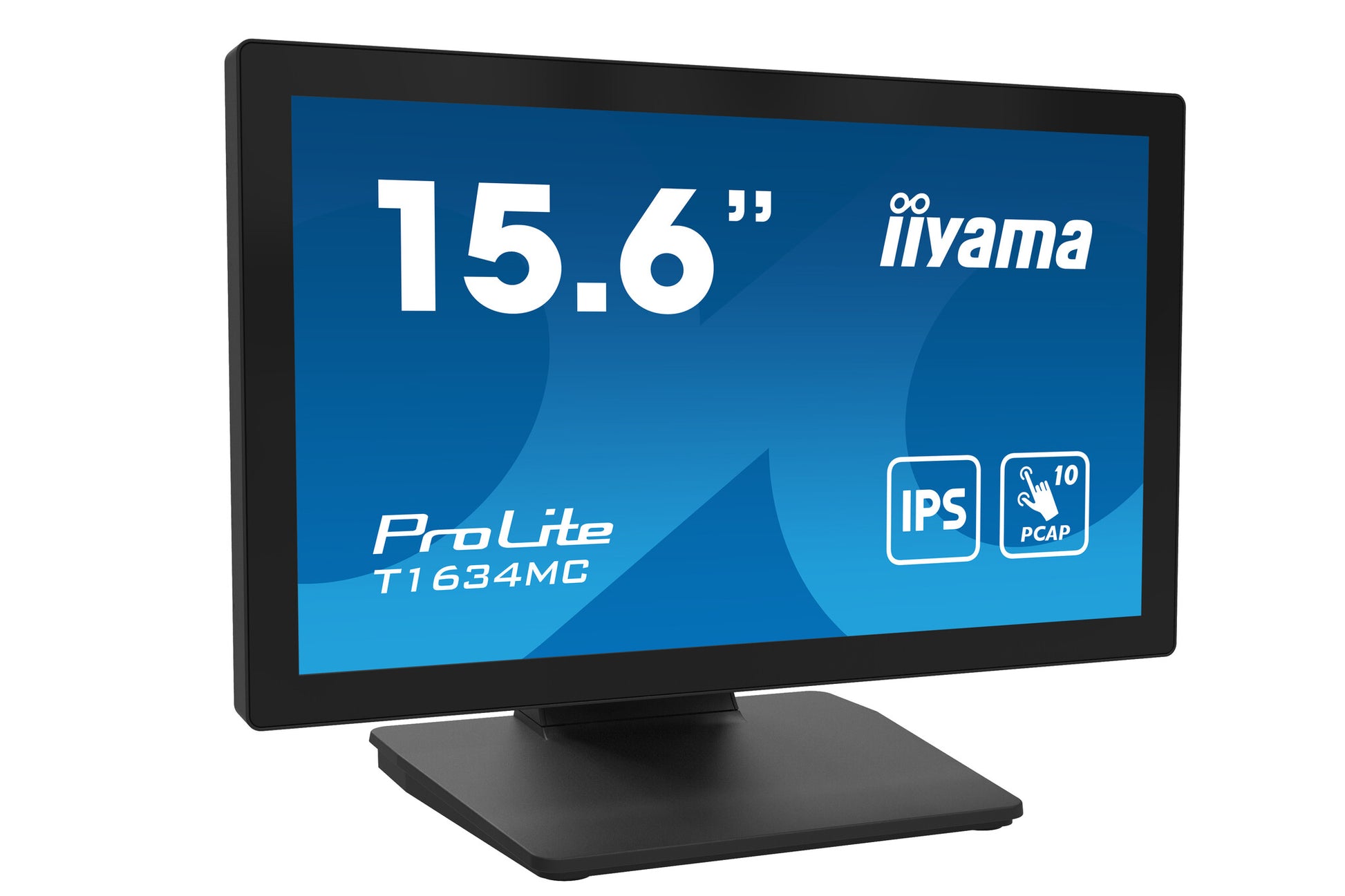

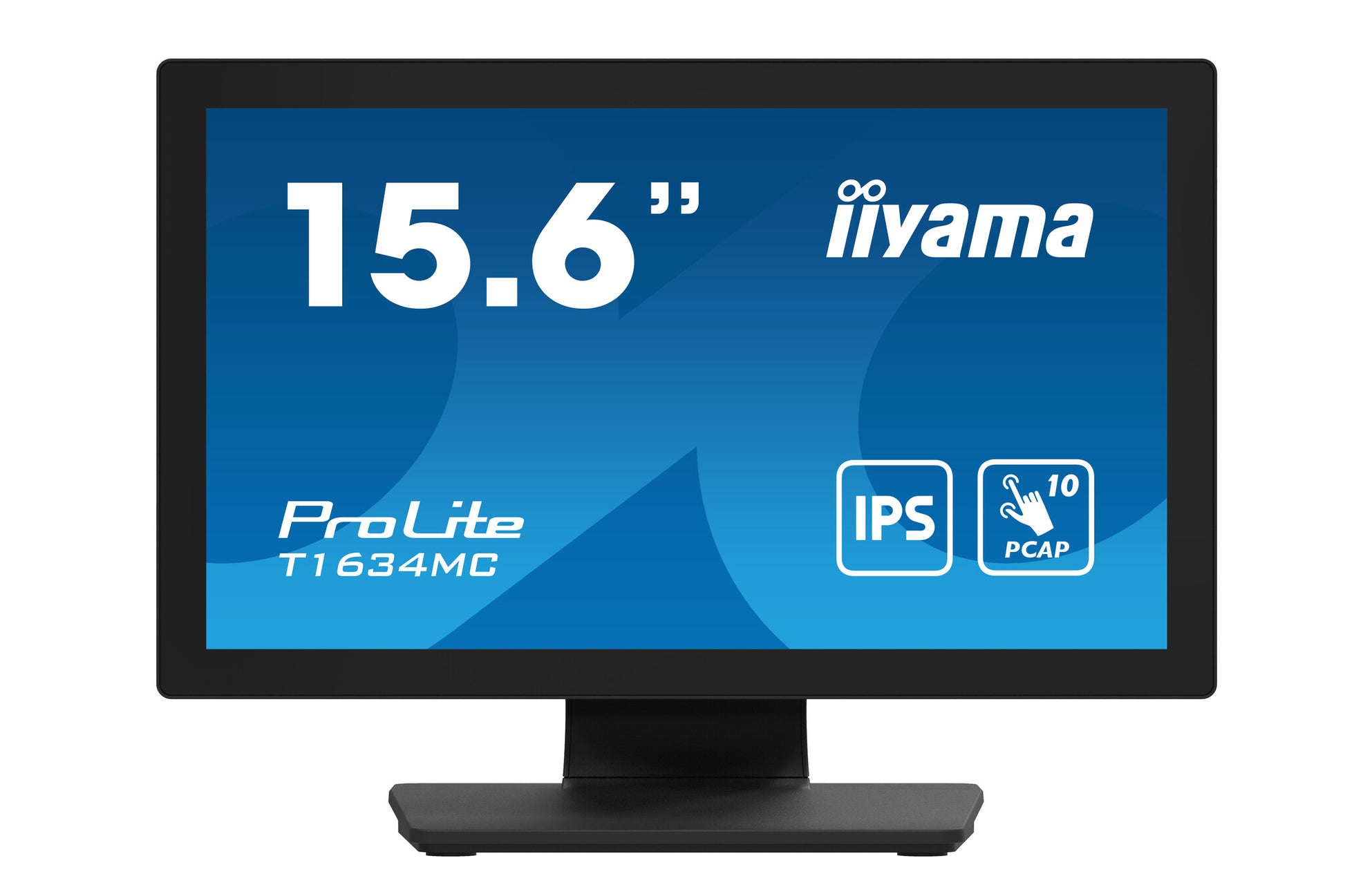

15.6" Full HD PCAP 10 point touch monitor with edge-to-edge glass, IPS Panel Technology and touch through glass function

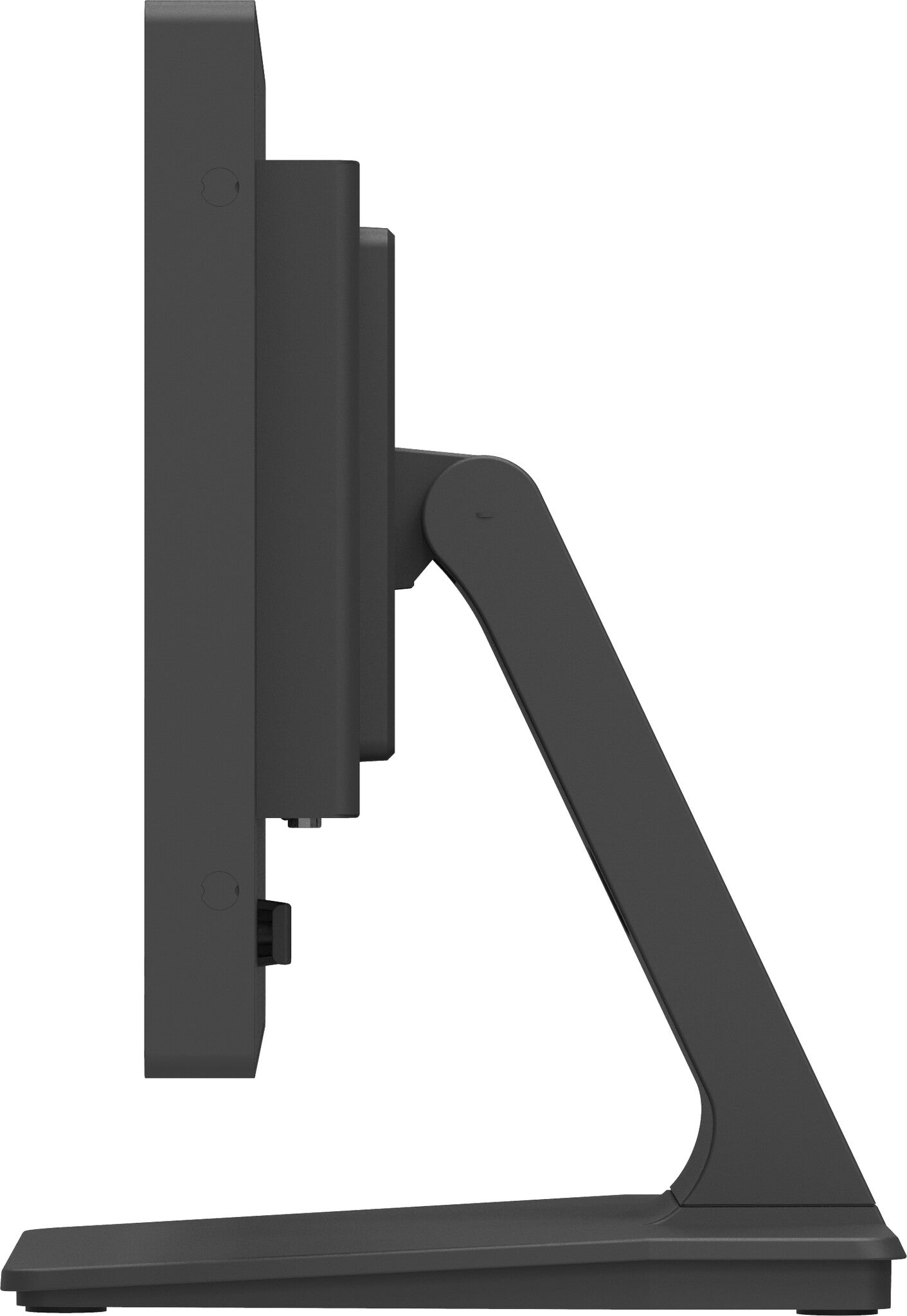

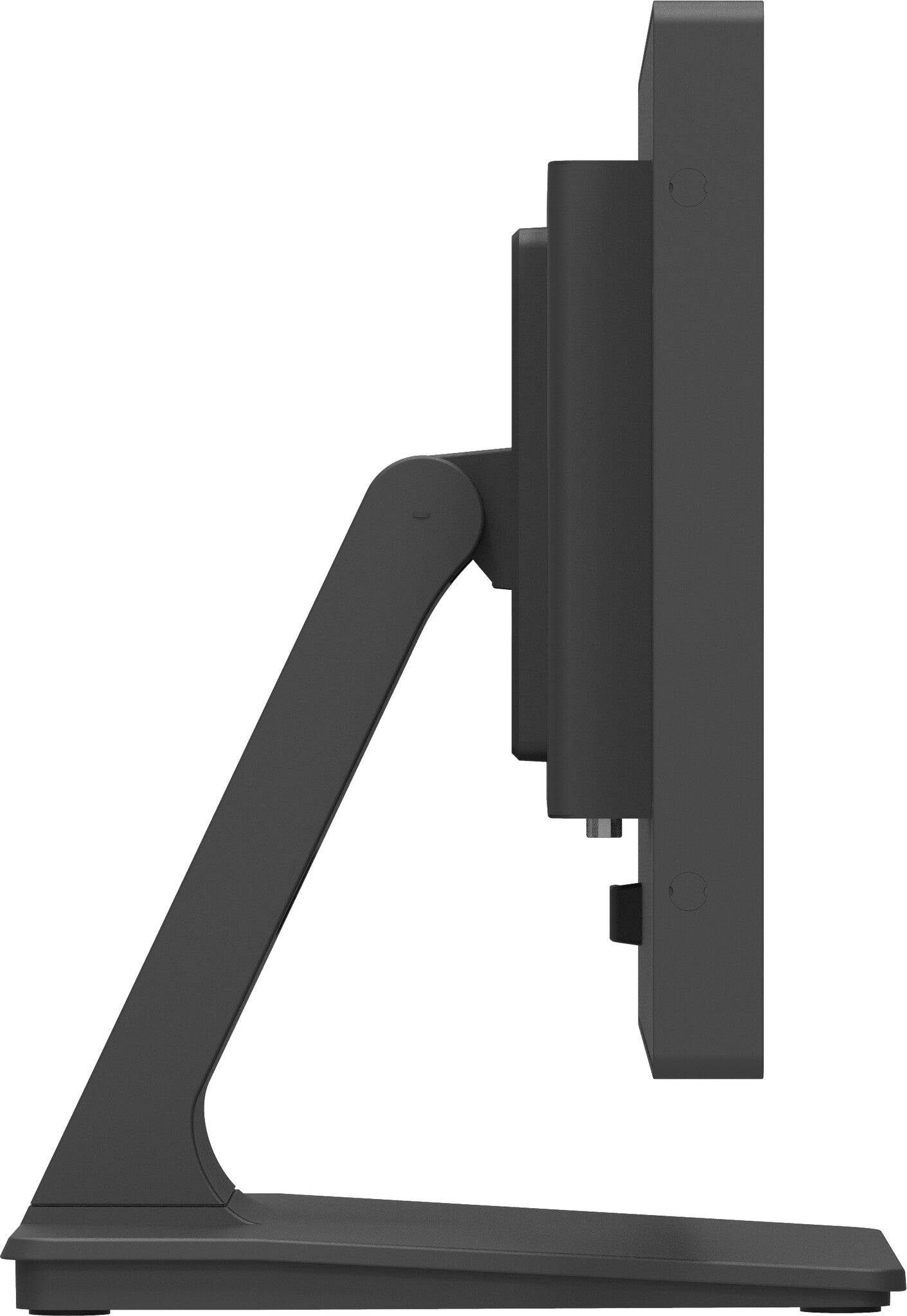

The ProLite T1634MC-B1S uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding environments. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications.
Display
Second display effective viewing area
344.2 x 193.6 mm
Colour gamut
90%
Colour depth
6 bit
Surface hardness
7H
Display diagonal (metric)
39.5 cm
Digital horizontal frequency
30 - 84 kHz
Viewable size, vertical
19.4 cm
Viewable size, horizontal
34.4 cm
Horizontal scan range
30 - 84 kHz
Pixel pitch
0.179 x 0.179 mm
Response time (fast)
25 ms
Display number of colours
16.2 million colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Maximum refresh rate
60 Hz
Contrast ratio (typical)
700:1
Screen shape
Flat
Display surface
Matt
Response time measurement type
GTG (Gray to Gray)
Response time
25 ms
Display brightness (typical)
450 cd/m²
Display brightness (peak)
450 cd/m²
Number of simultaneous touchpoints
10
Touchscreen technology
Projected capacitive system
Panel type
IPS
HD type
Full HD
Touchscreen
Yes
Display technology
LED
Native aspect ratio
16:9
Display resolution
1920 x 1080 pixels
Display diagonal
39.6 cm (15.6")
Design
Glass thickness
2.4 mm
International Protection (IP) code
IP65
Front bezel colour
Black
Product colour
Black
Market positioning
Office
Ports & interfaces
HDCP
Yes
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Yes
VGA (D-Sub) ports quantity
1
USB Touch port
Yes
Ergonomics
On Screen Display (OSD)
Yes
Tilt angle range
90 - 5°
Tilt adjustment
Yes
Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Power
Energy efficiency scale
A to G
Power supply type
External
AC adapter output voltage
12 V
Power consumption (off)
0.3 W
Power consumption (standby)
0.7 W
Power consumption (typical)
18 W
Energy consumption (SDR) per 1000 hours
10 kWh
Energy efficiency class (HDR)
Not available
Energy efficiency class (SDR)
E
Packaging content
Quick start guide
Yes

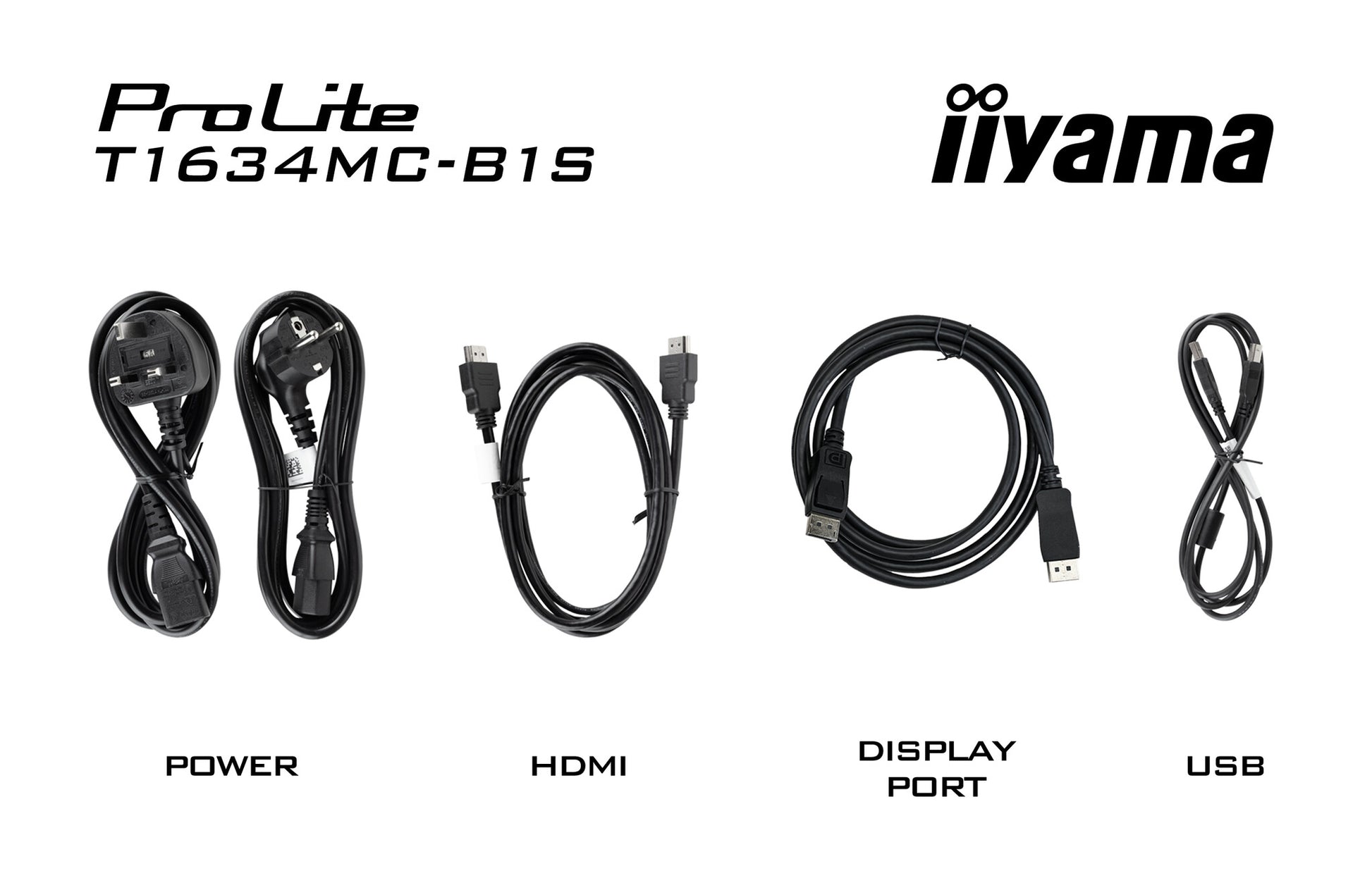

Cables included
AC, DisplayPort, HDMI, USB
Weight & dimensions
Weight (with stand)
3.4 kg
Height (with stand)
285.5 mm
Depth (with stand)
200 mm
Width (with stand)
381 mm
Packaging data
Package weight
5.18 kg
Package height
355 mm
Package depth
445 mm
Package width
445 mm
Sustainability
European Product Registry for Energy Labelling (EPREL) code
