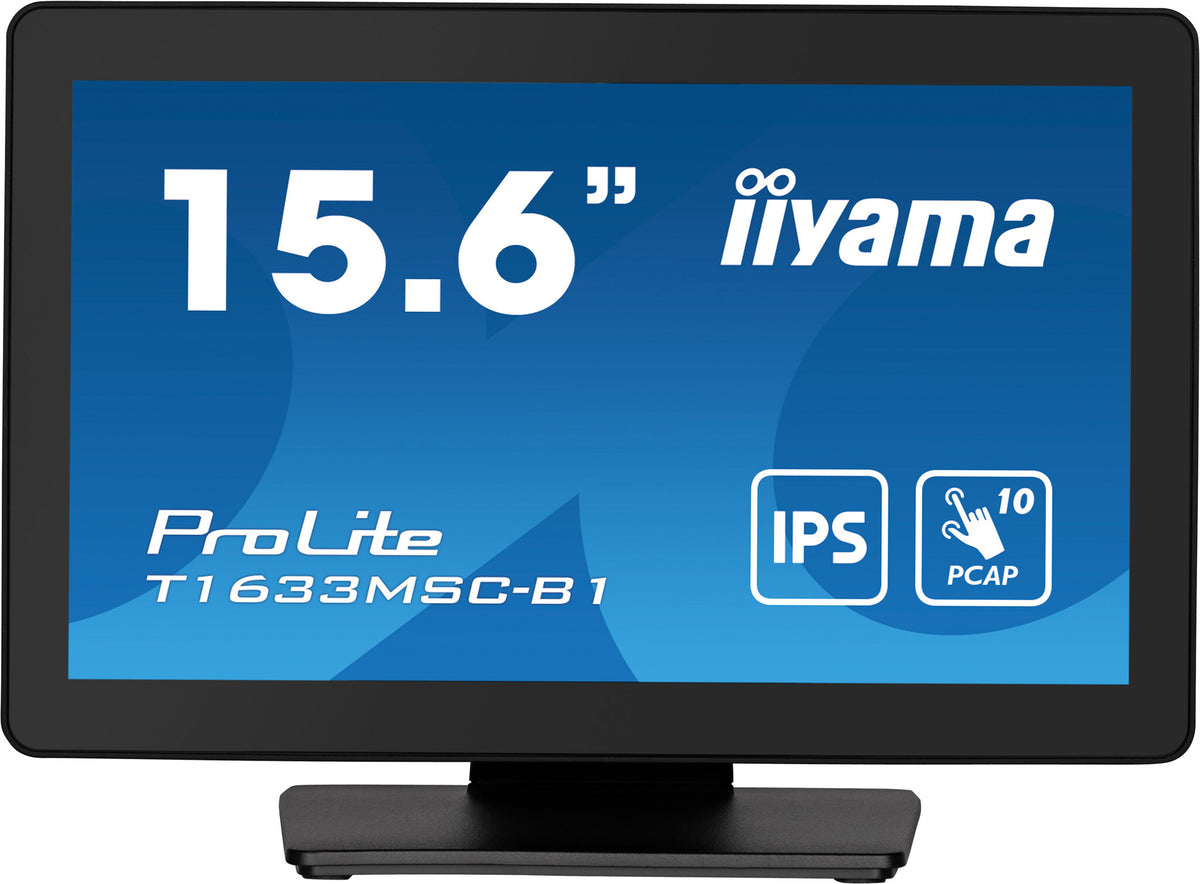

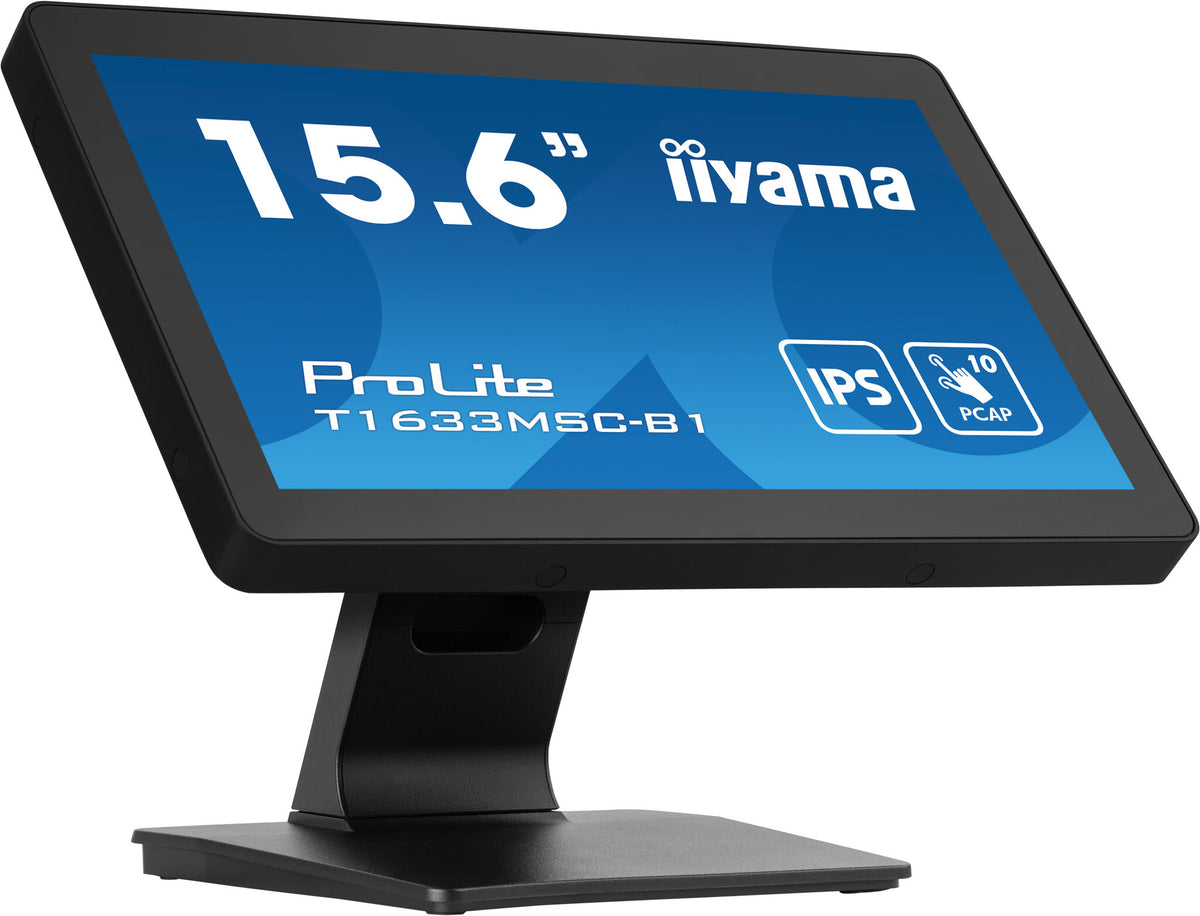

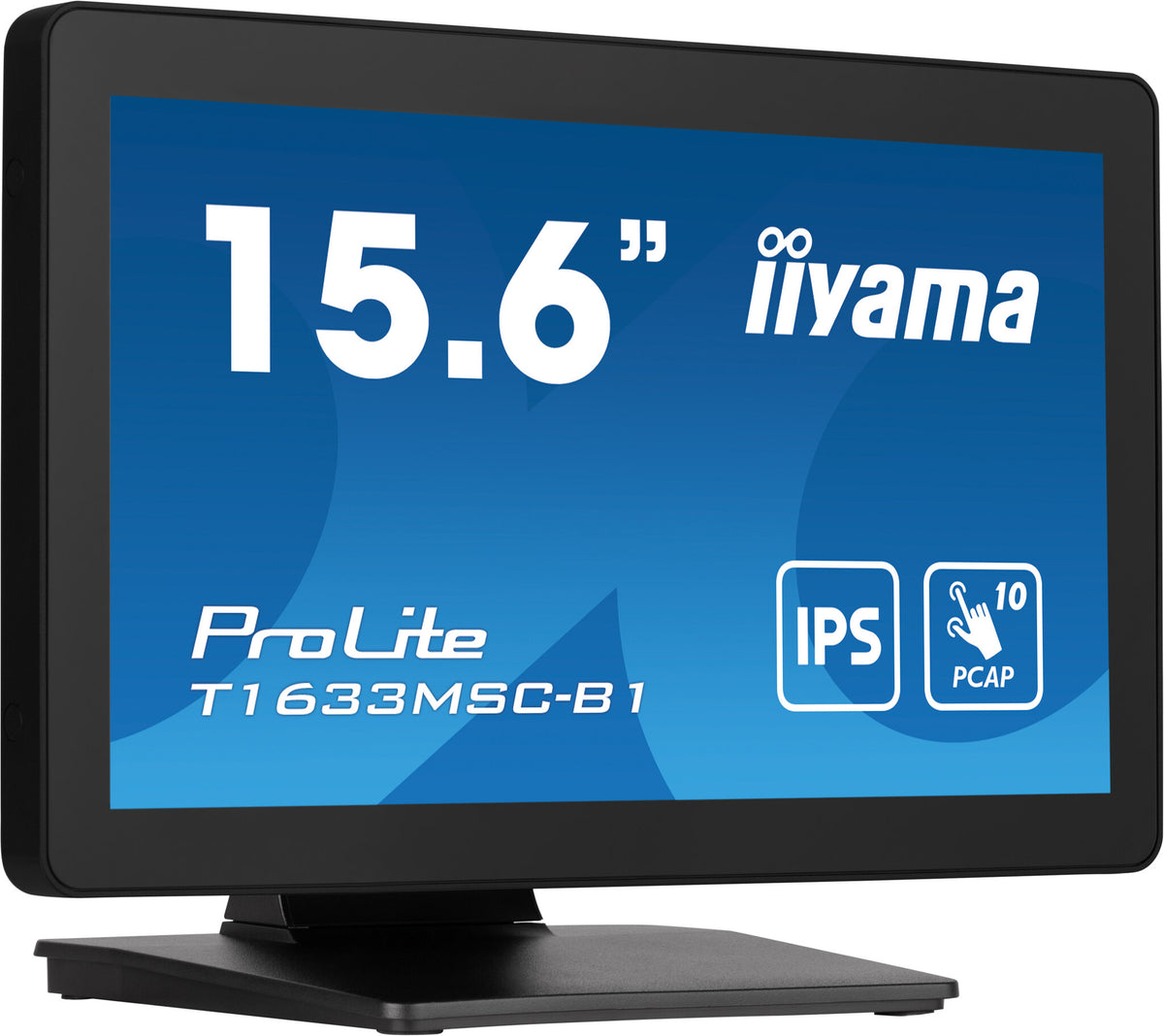

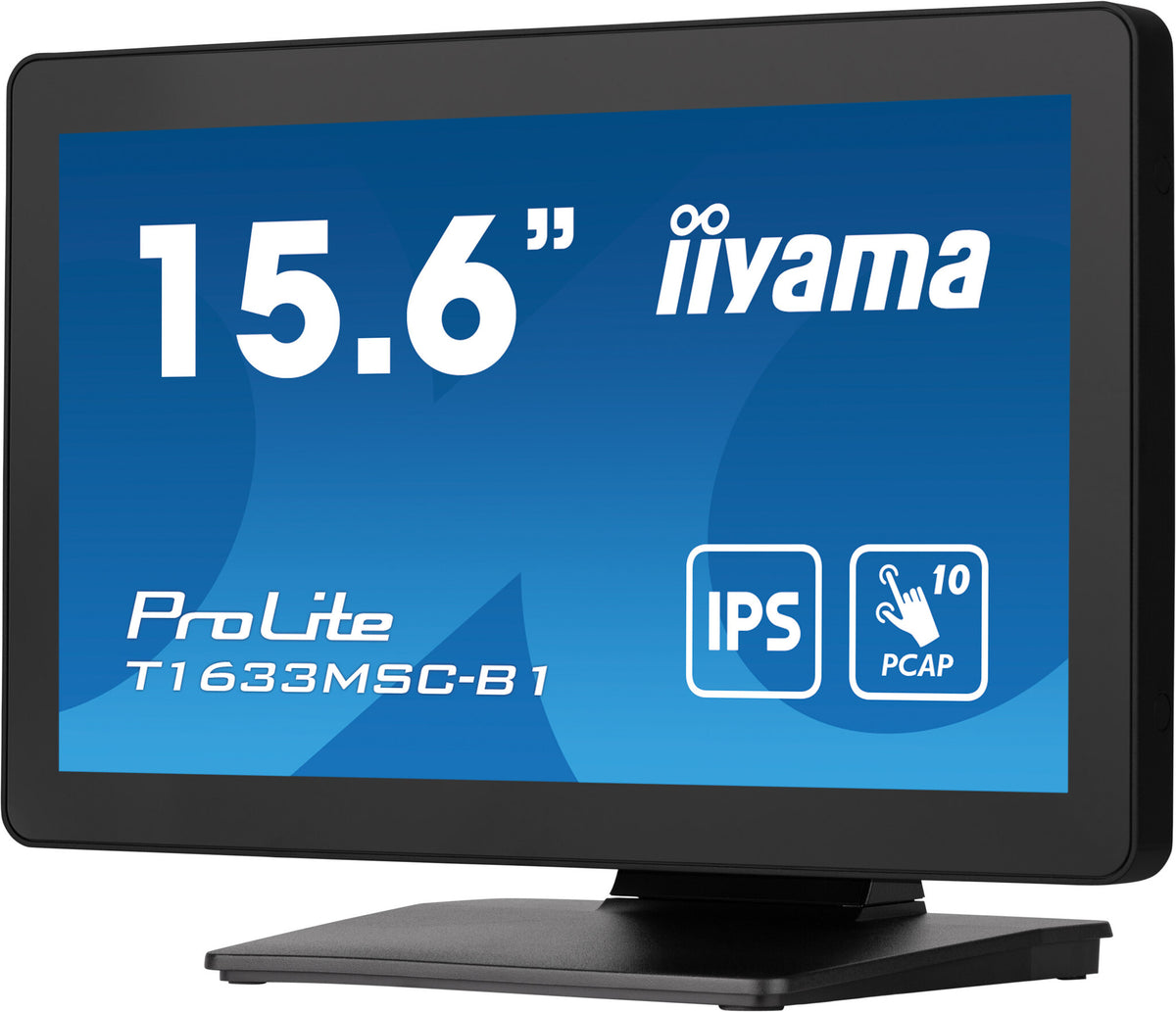

15.6" PCAP 10 points multi-touch monitor with edge-to-edge glass and IPS panel technology

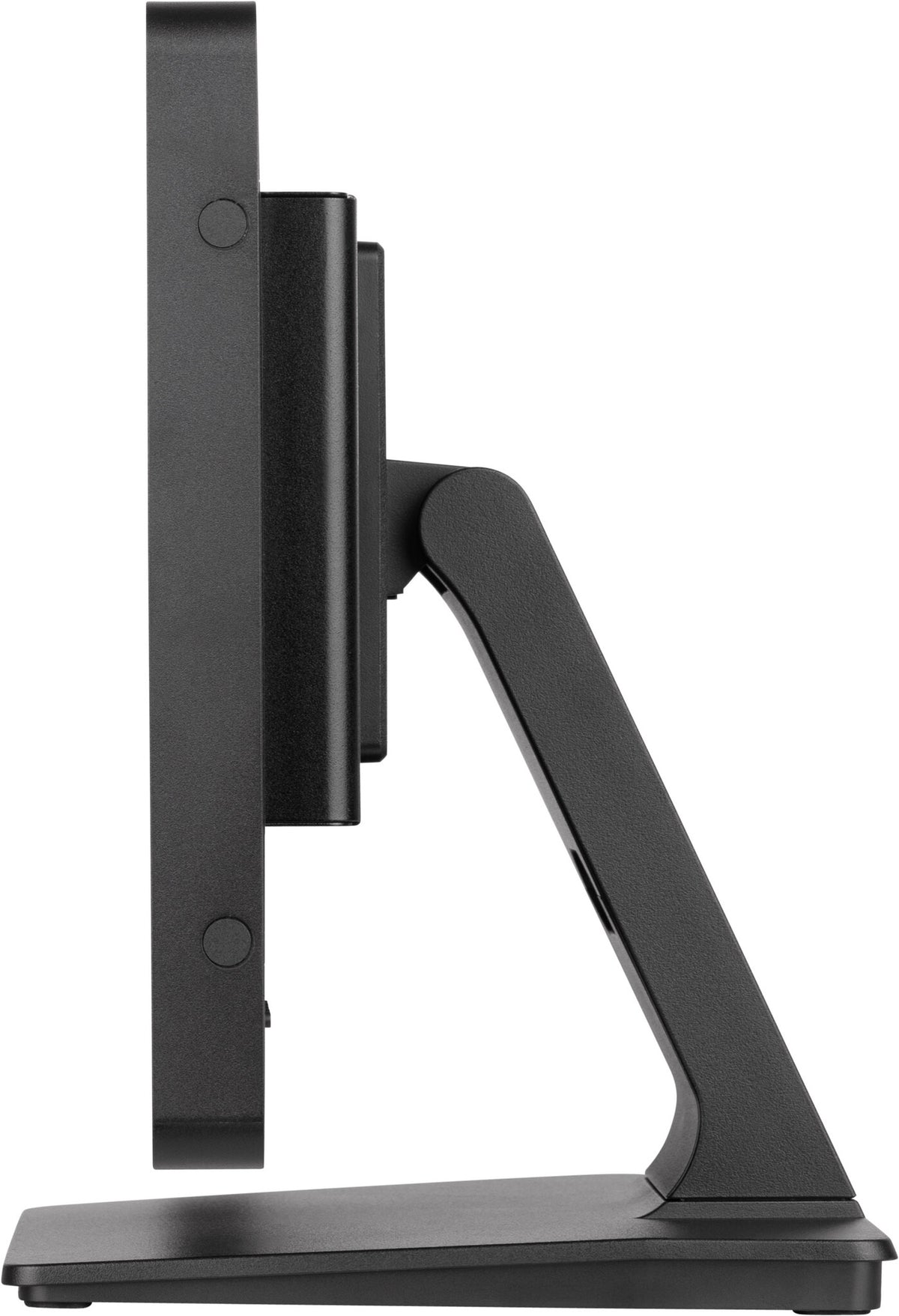

The ProLite T1633MSC-B1 uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. The screen guarantees high durability, scratch-resistance, clarity and a perfect picture performance. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP54 rating, which means the screen and bezel is dust and water resistant from the front. A perfect solution for retail applications.
Display
Display diagonal
39.6 cm (15.6")
Display resolution
1920 x 1080 pixels
Native aspect ratio
16:9
Display technology
LCD
Touchscreen
Yes
HD type
Full HD
Panel type
IPS
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
10
Display brightness (typical)
450 cd/m²
Response time
5 ms
Response time measurement type
GTG (Gray to Gray)
Screen shape
Flat
Contrast ratio (typical)
1000:1
Maximum refresh rate
60 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.179 x 0.179 mm
Horizontal scan range
30 - 68 kHz
Viewable size, horizontal
34.4 cm
Viewable size, vertical
19.4 cm
Display diagonal (metric)
39.5 cm
Display brightness
385 cd/m²
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Low Blue Light technology
Yes
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
