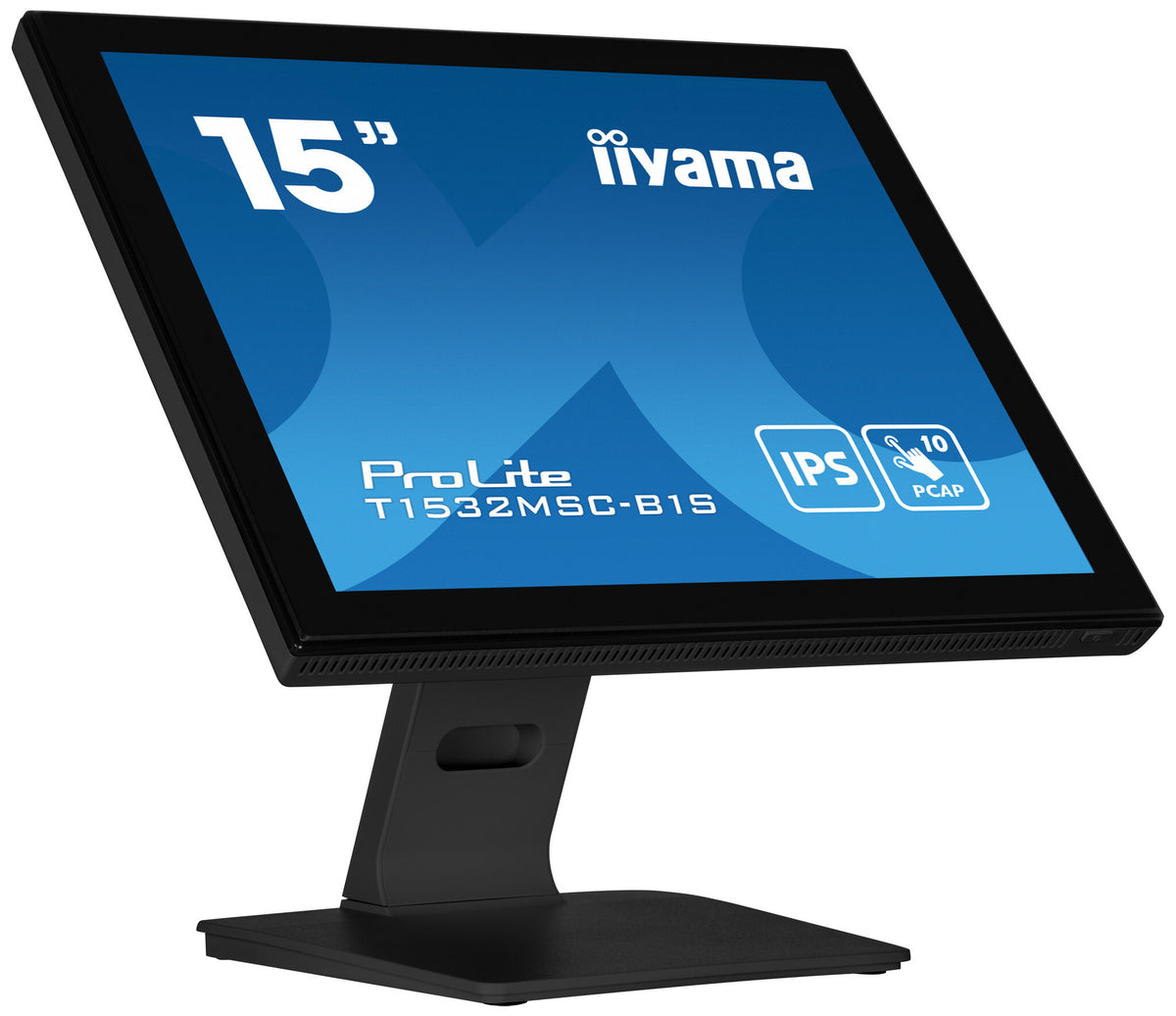

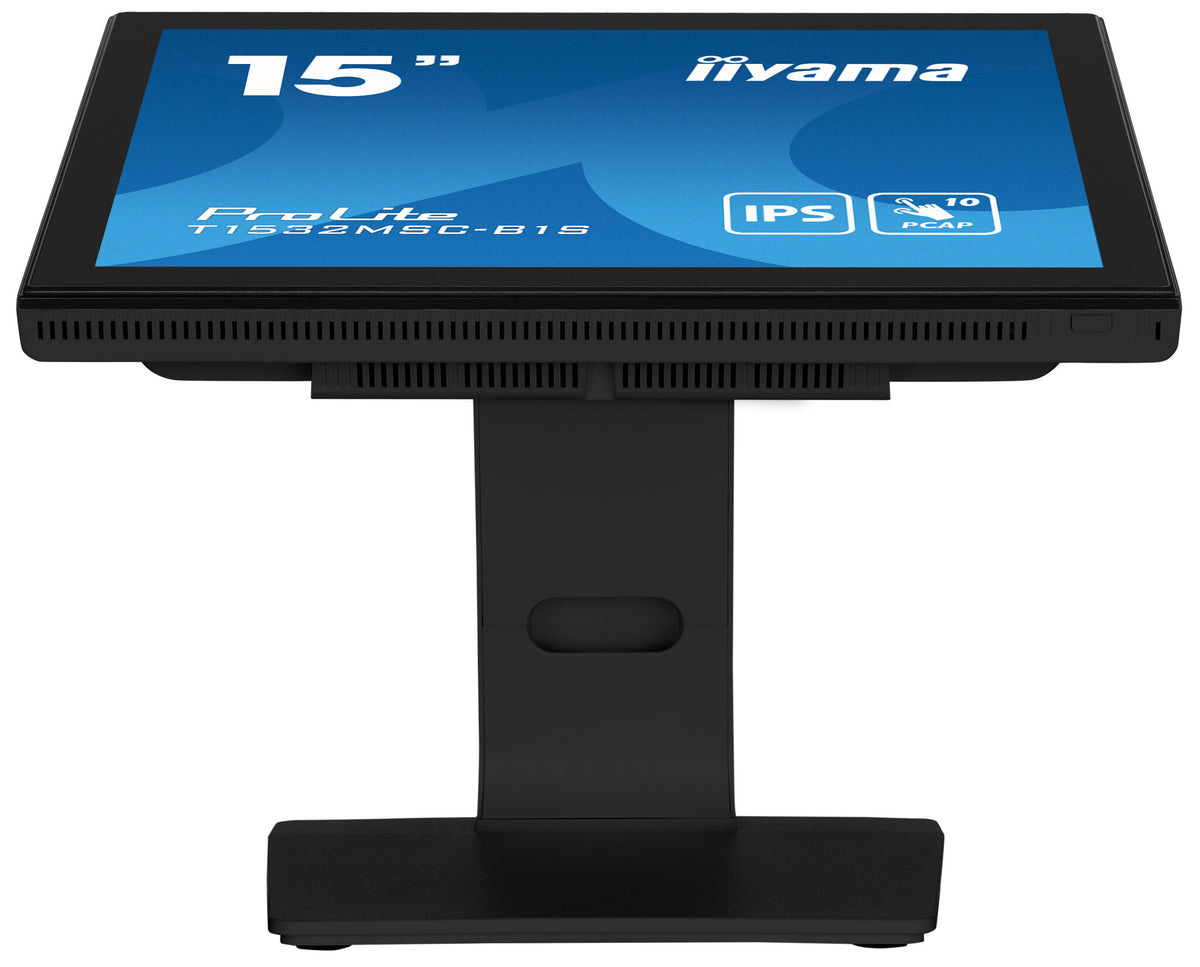

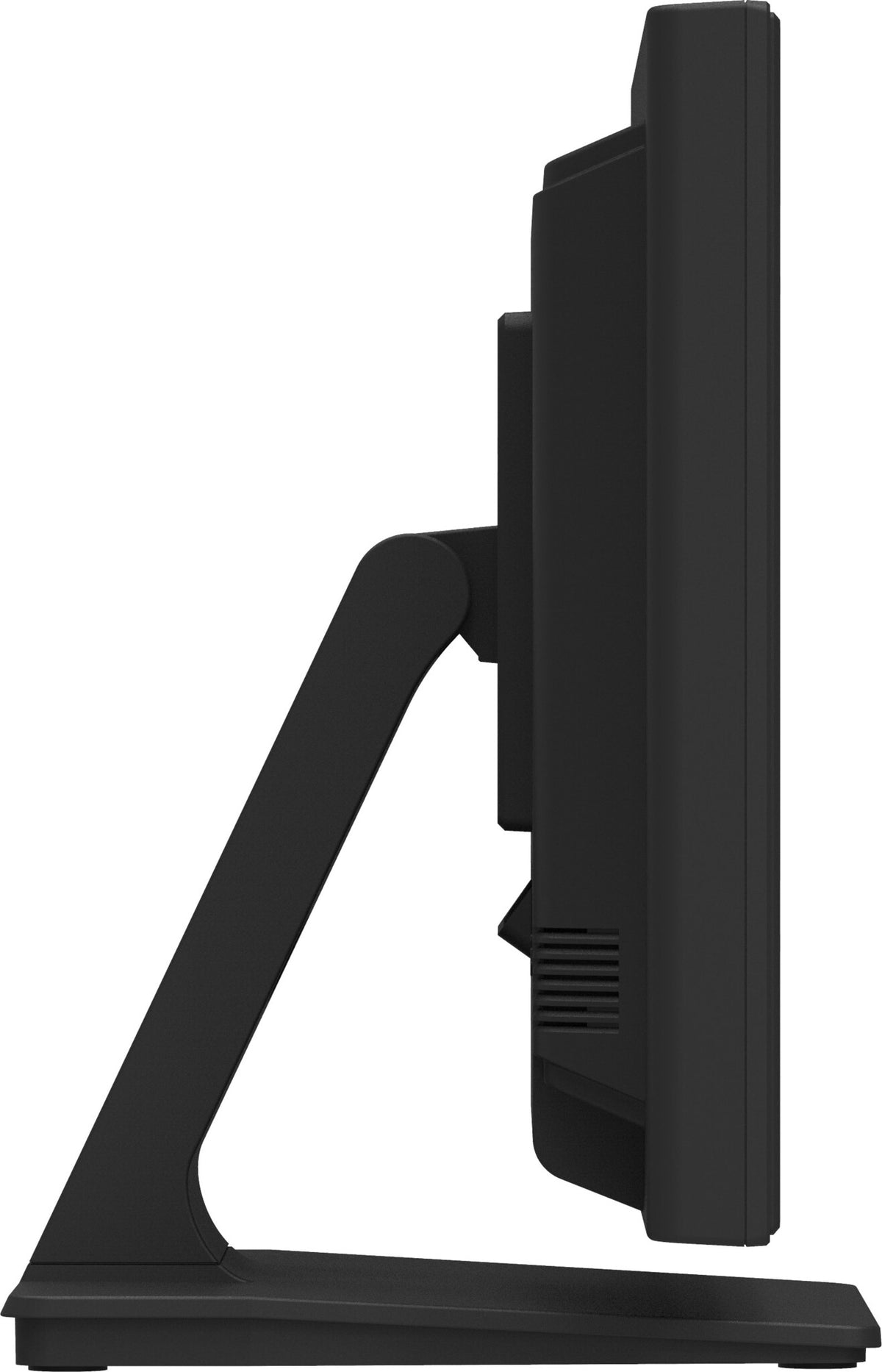

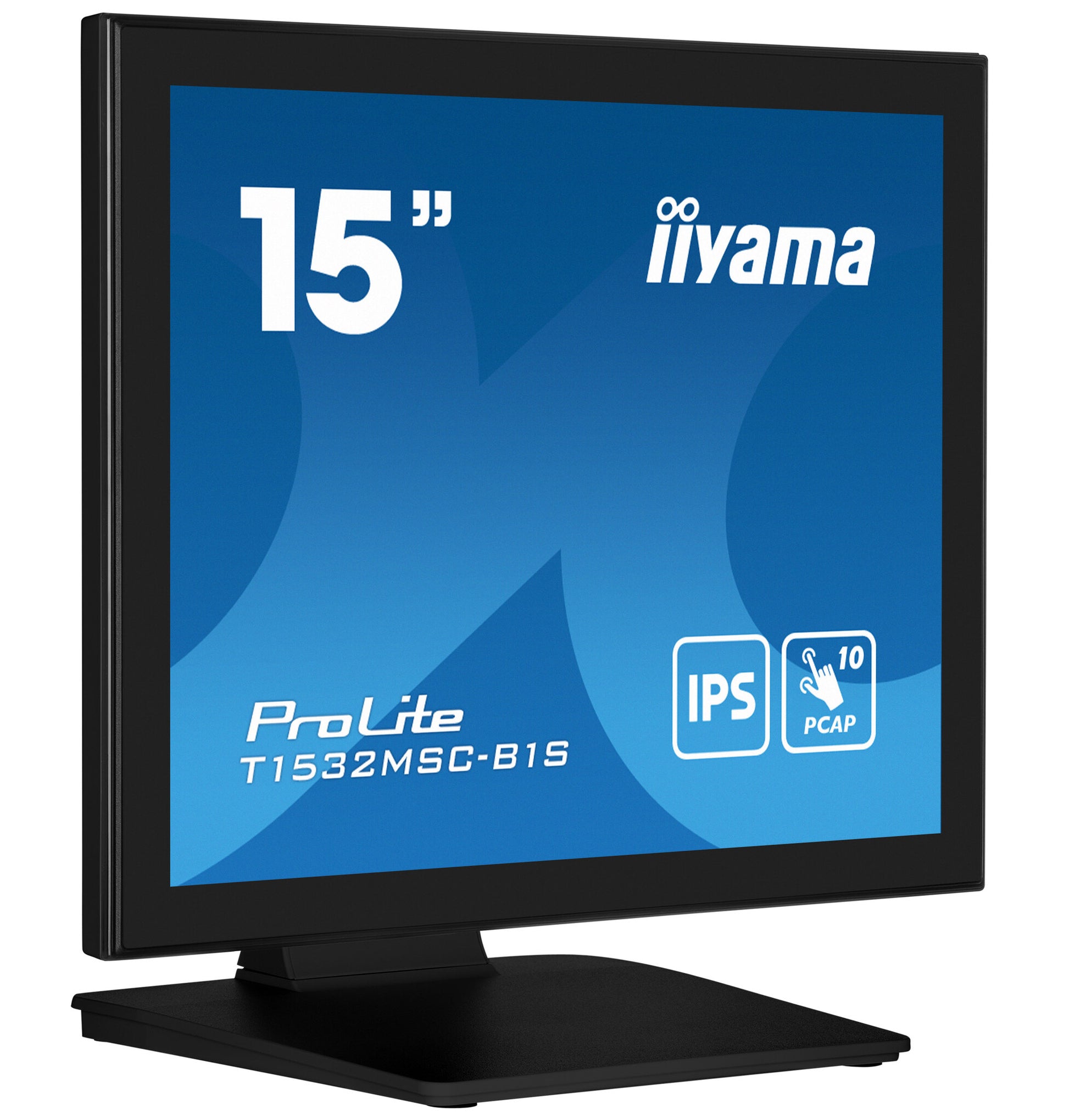

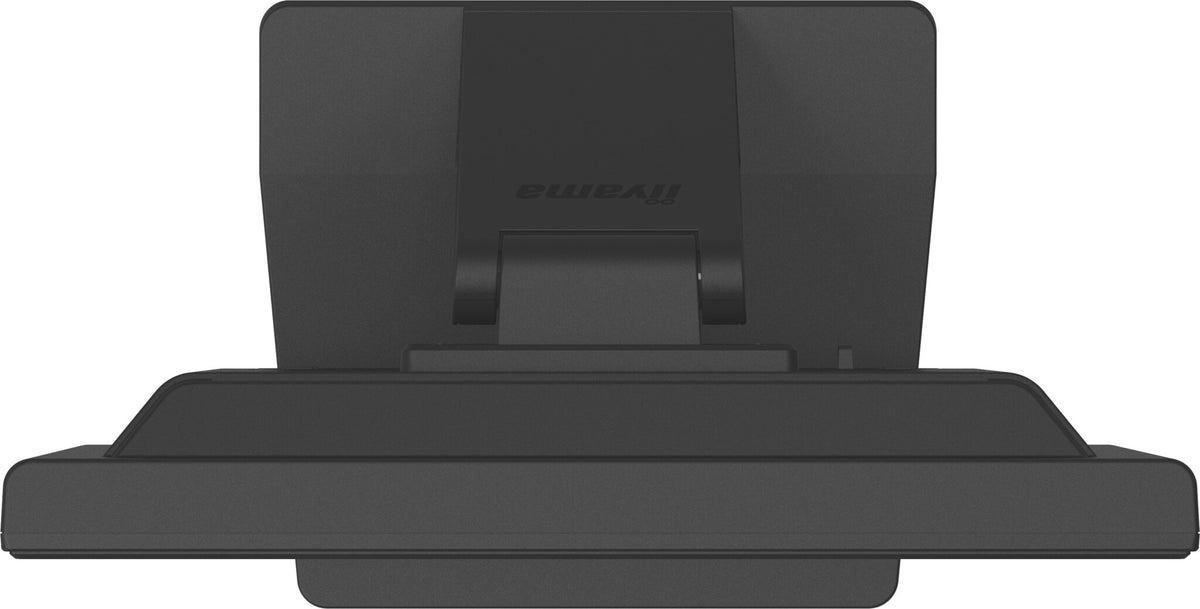

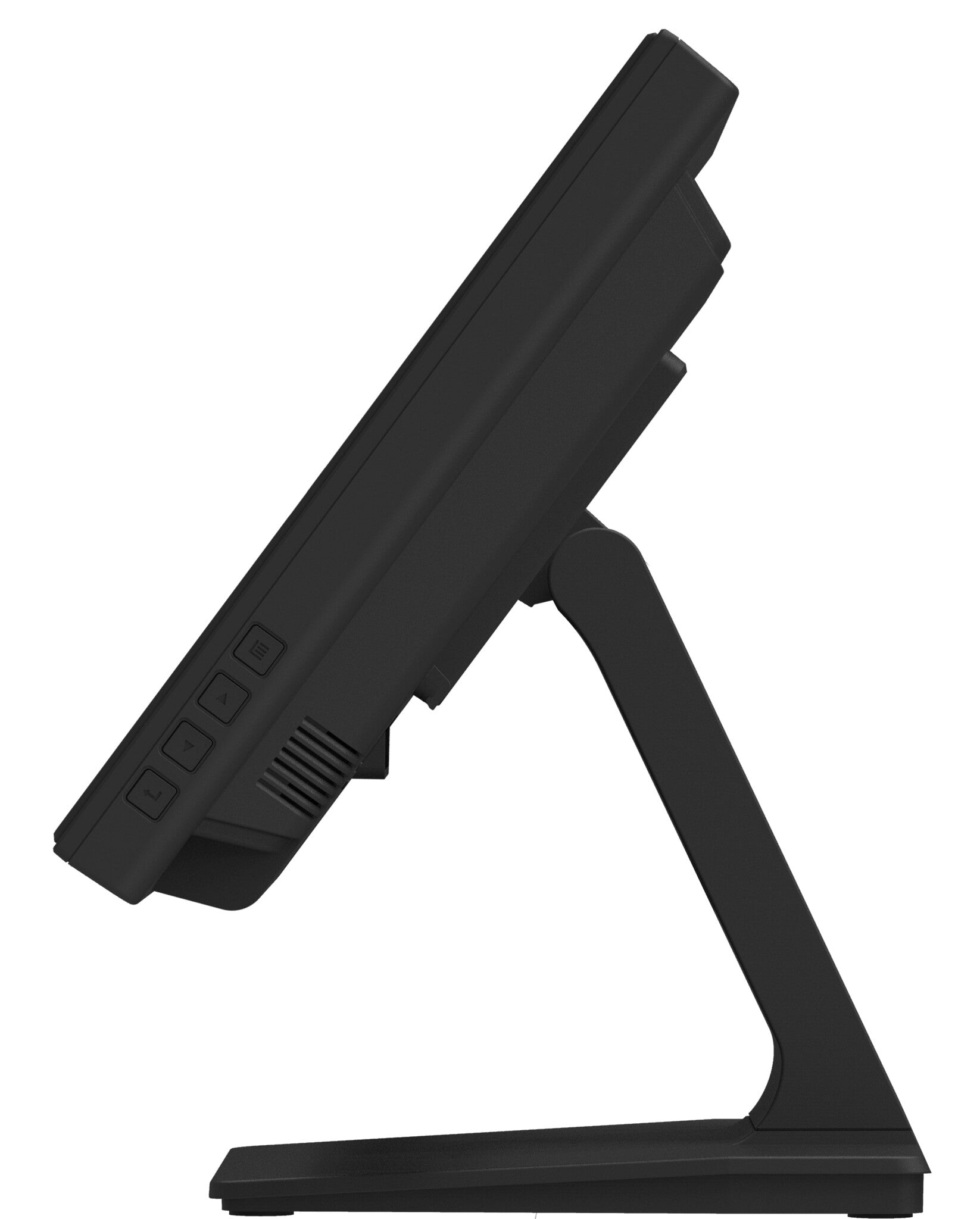

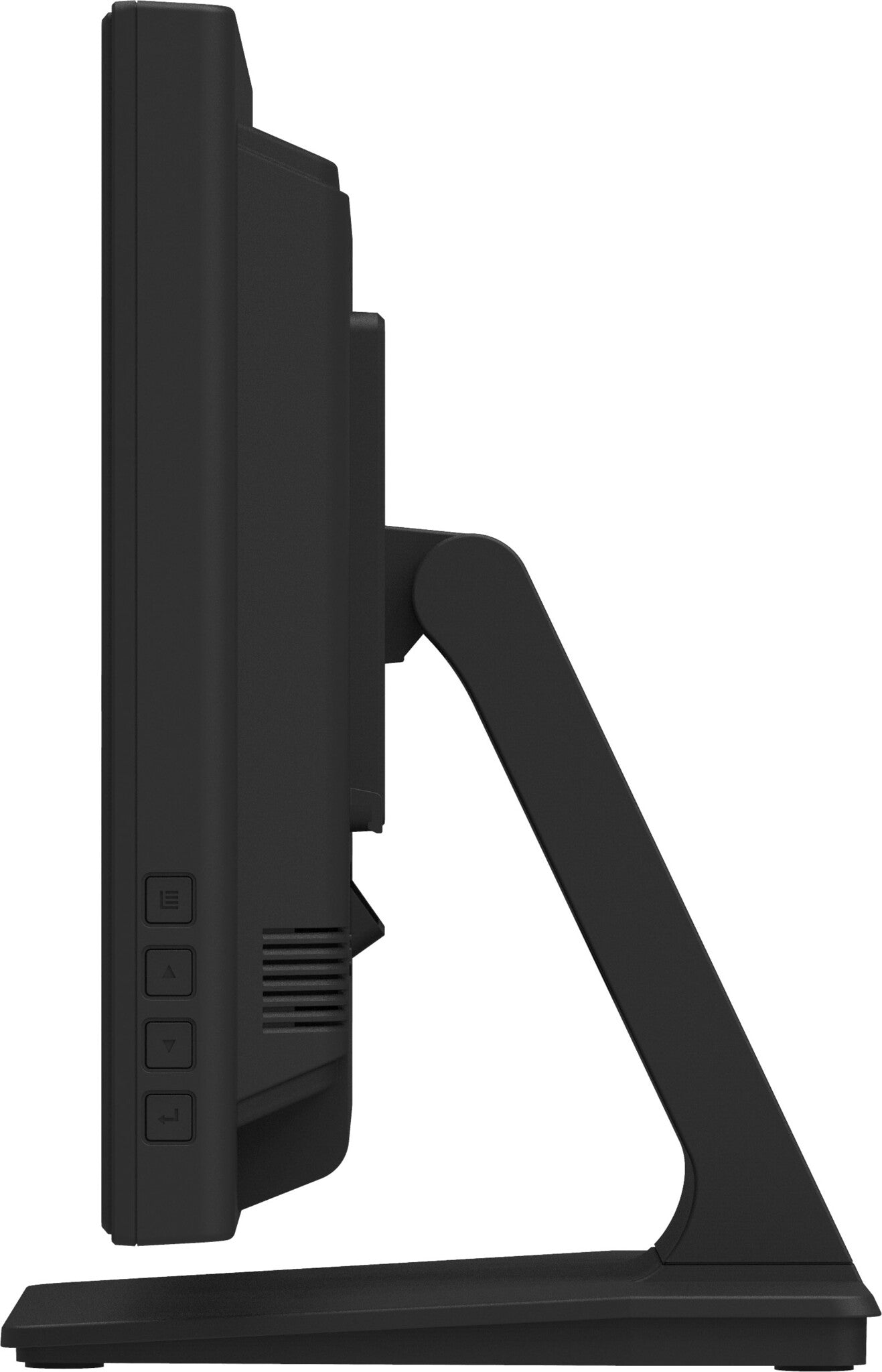

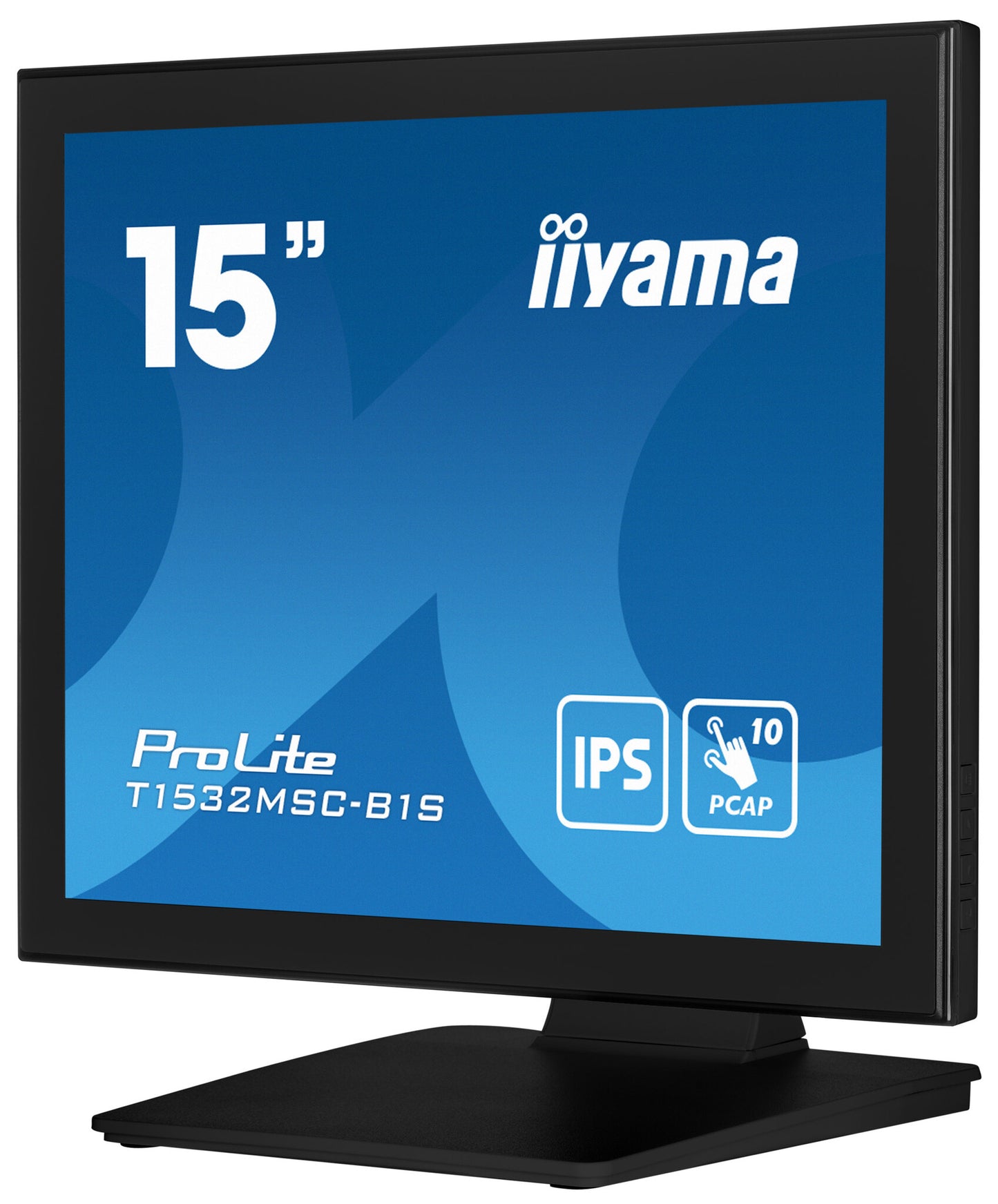

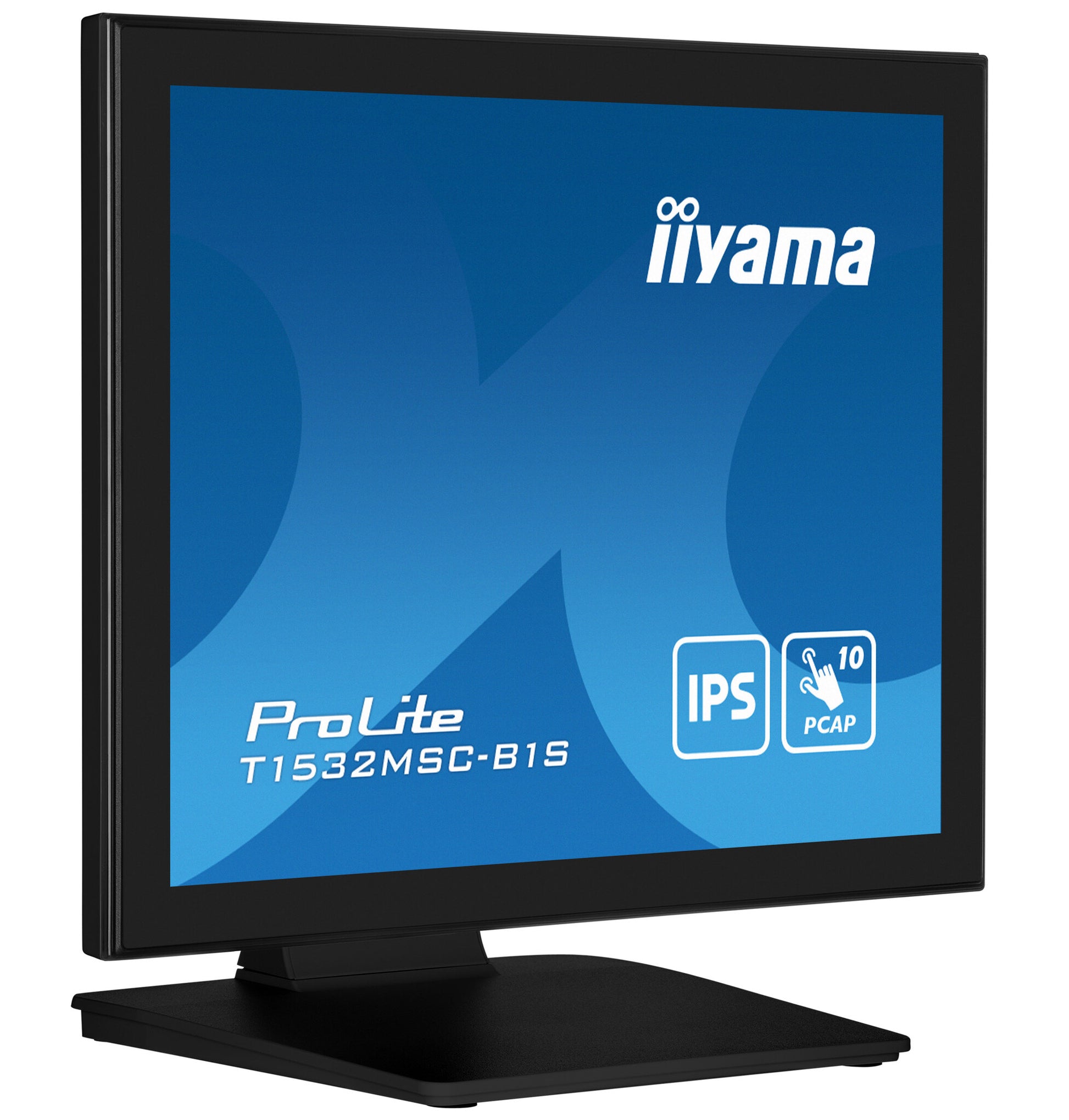

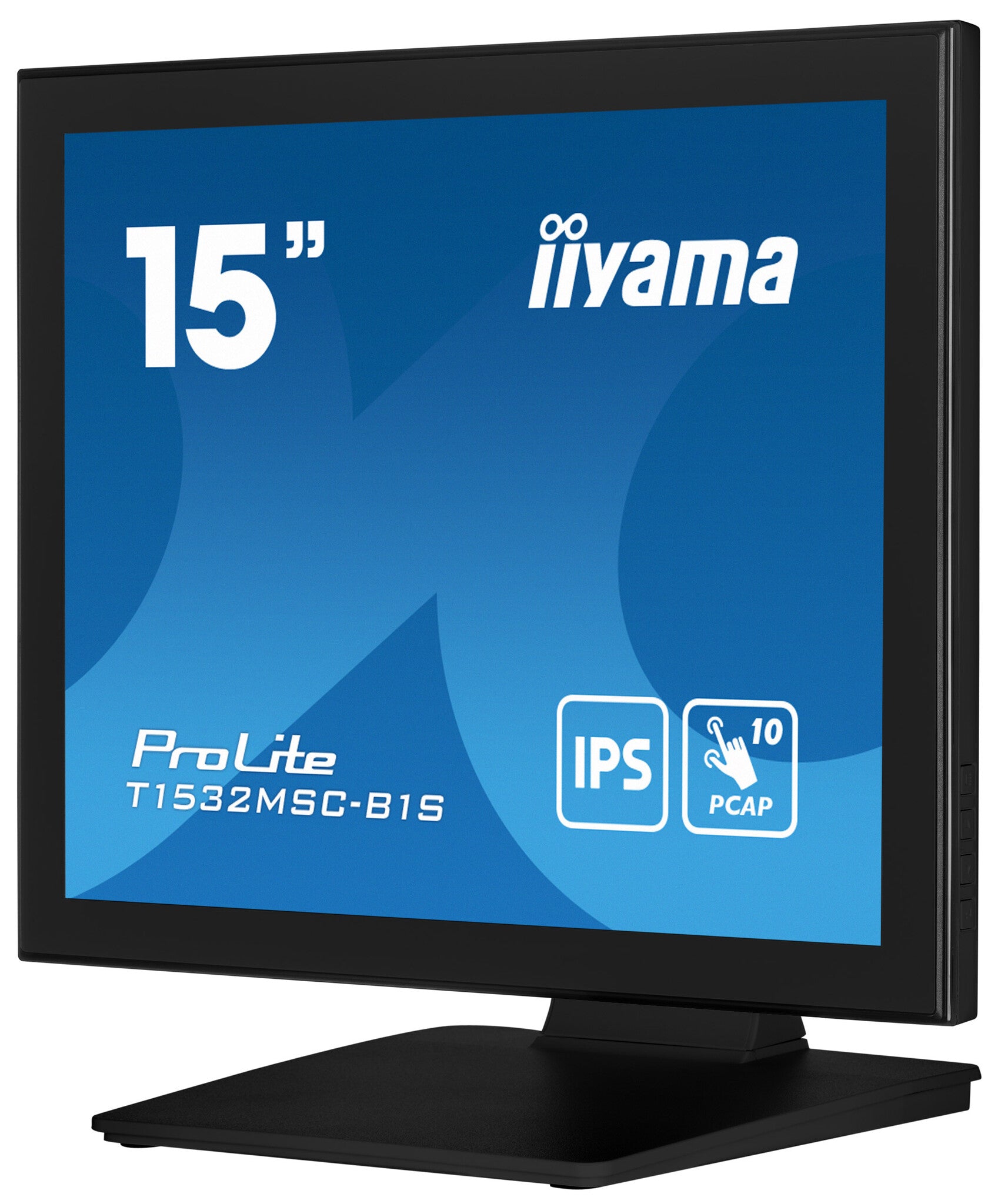

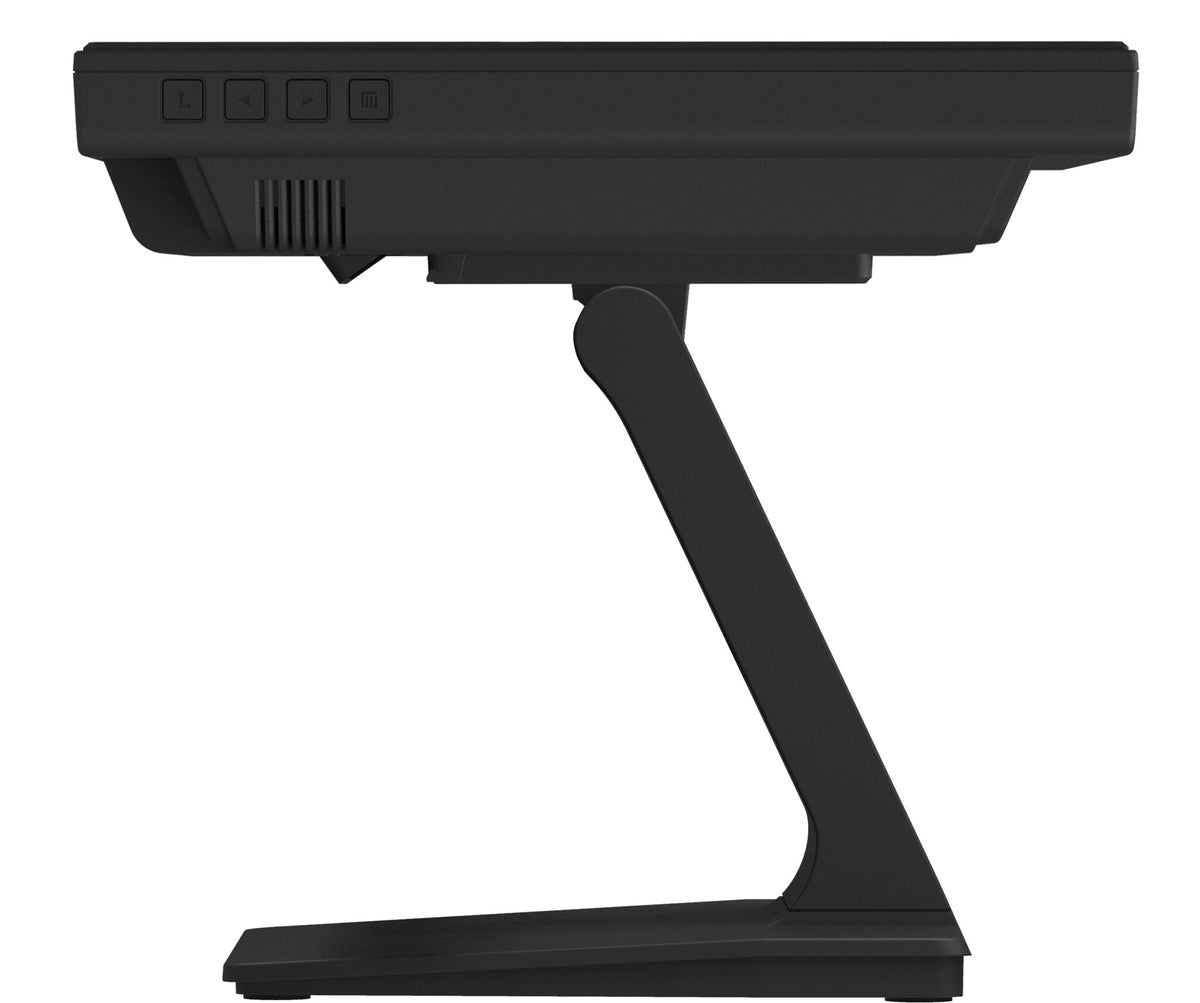

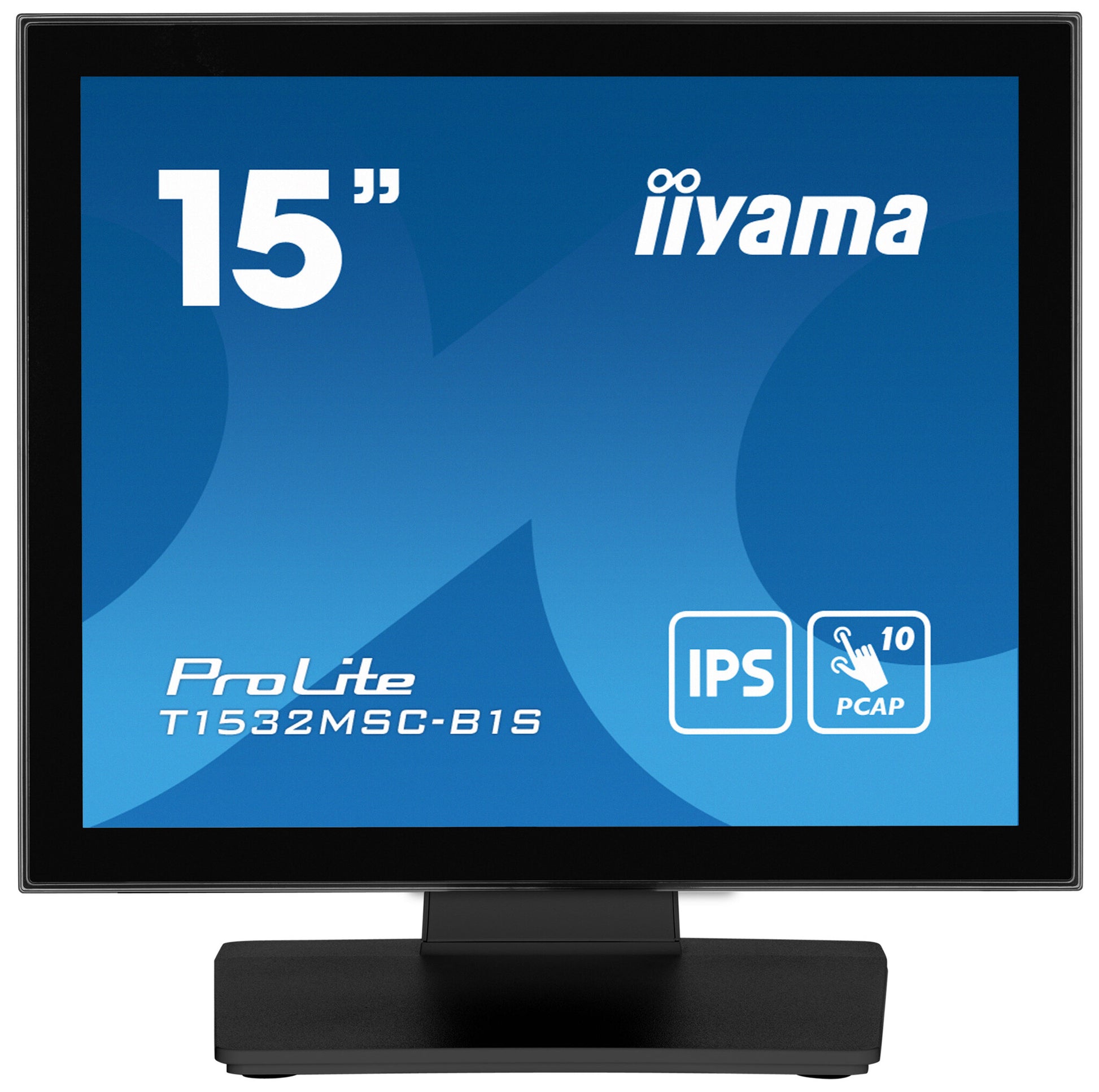

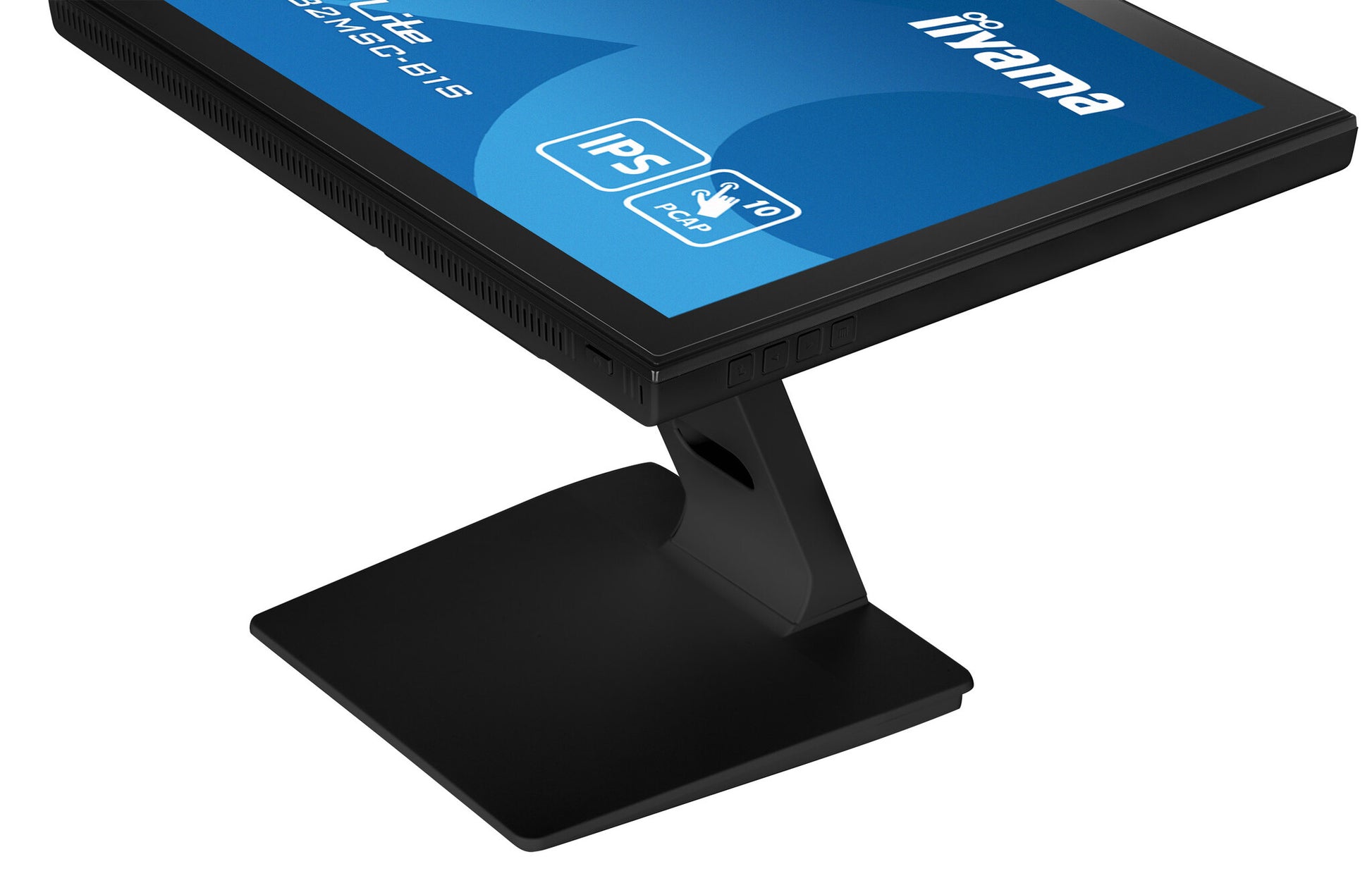

The ProLite T1532MSC-B1S 15" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.
Display
Display diagonal
38.1 cm (15")
Display resolution
1024 x 768 pixels
Native aspect ratio
4:3
Display technology
LCD
Touchscreen
Yes
HD type
XGA
Panel type
TN
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Display brightness (typical)
350 cd/m²
Response time
8 ms
Screen shape
Flat
Contrast ratio (typical)
800:1
Viewing angle, horizontal
176°
Viewing angle, vertical
176°
Pixel pitch
0.297 x 0.297 mm
Horizontal scan range
31 - 60 kHz
Viewable size, horizontal
30.4 cm
Viewable size, vertical
22.8 cm
Digital horizontal frequency
31 - 60 kHz
Display diagonal (metric)
38 cm
Display brightness
315 cd/m²
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Multimedia
Built-in speaker(s)
Yes
Built-in camera
No
Number of speakers
2
RMS rated power
2 W
Design
Product colour
Black
Front bezel colour
Black
International Protection (IP) code
IP54
Ports & interfaces
Built-in USB hub
No
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Headphone out
No
HDCP
Yes
Ergonomics

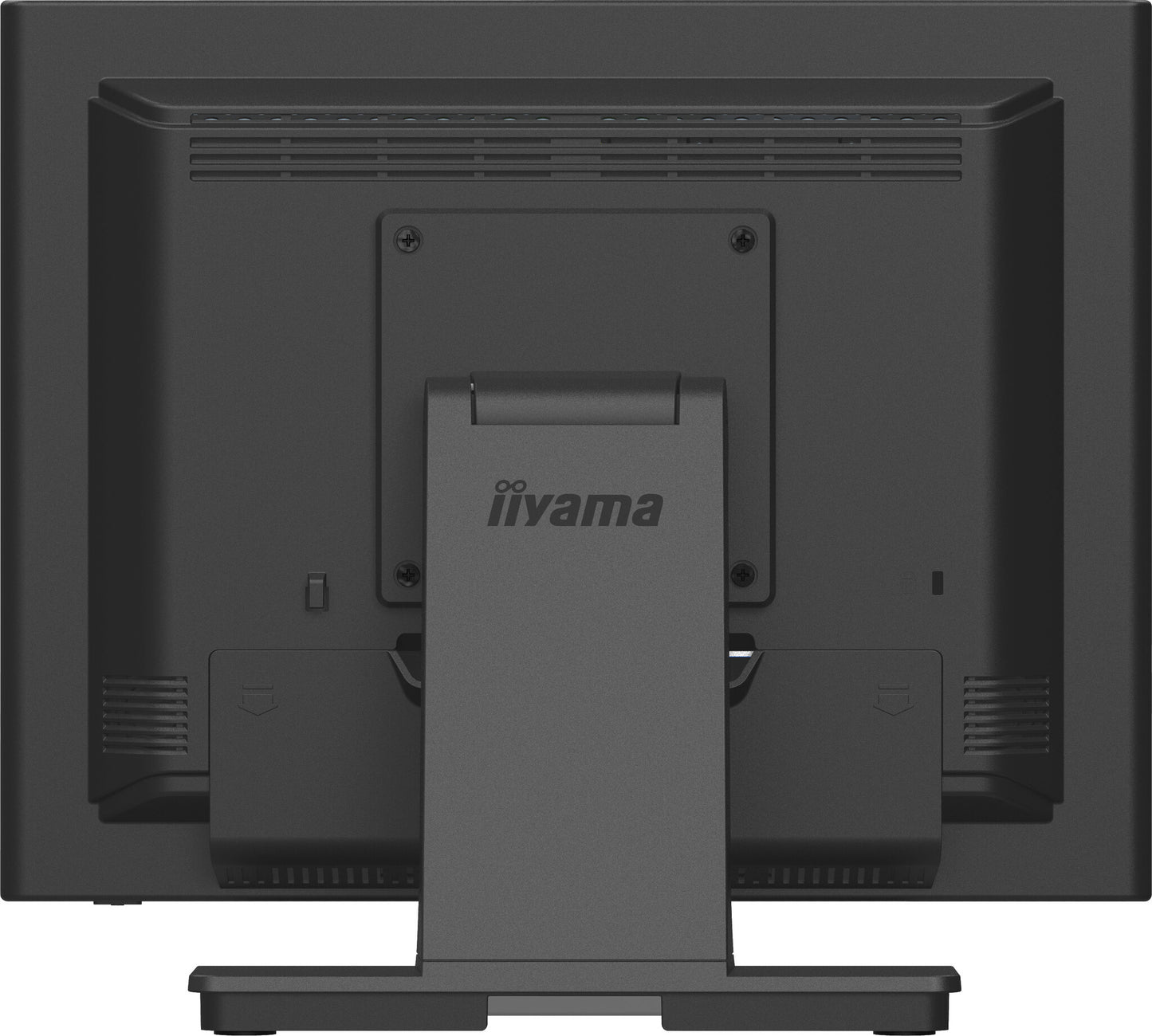

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Height adjustment
No
Tilt adjustment
Yes
Tilt angle range
-5 - 90°
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Power
Energy efficiency class (SDR)
E
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
10.1 kWh
Power consumption (typical)
16 W
Power consumption (standby)
1.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Packaging content
Cables included
AC, USB, HDMI, DisplayPort, Audio
Quick start guide
Yes
Weight & dimensions
Width (with stand)
351 mm
Depth (with stand)
200 mm
Height (with stand)
306.5 mm
Weight (with stand)
3.7 kg
Sustainability
Sustainability certificates
ErP
general_information_attribute_container_name
attribute_product_family_name
ProLite
Technical details
Compliance certificates
CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
Other features
Brightness
315 cd/m²
Active display area (W x H)
304.1 x 228.1 mm
Depth
200 mm
Width
351 mm
Height
306.5 mm
Weight
3.7 kg
Control panel
Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
User controls
picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H. position, V. position), option (reset, language, source select, display mode, volume, mute, factory)
