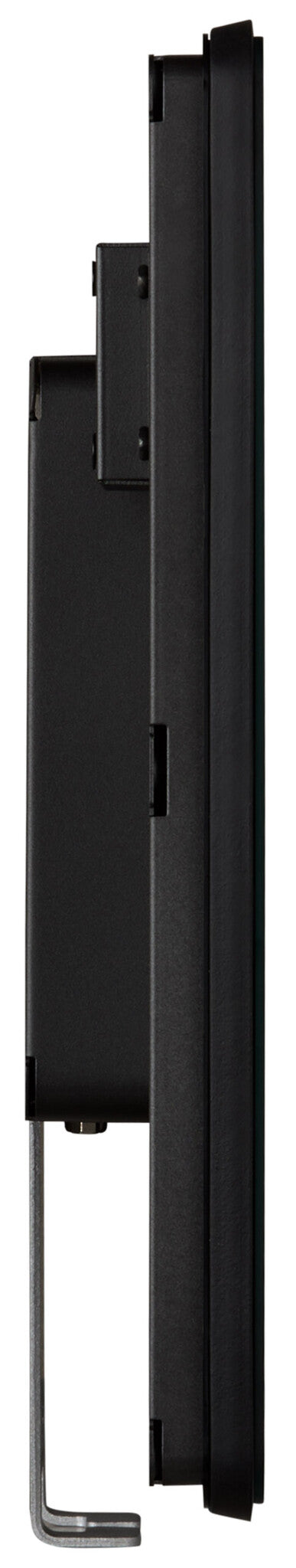

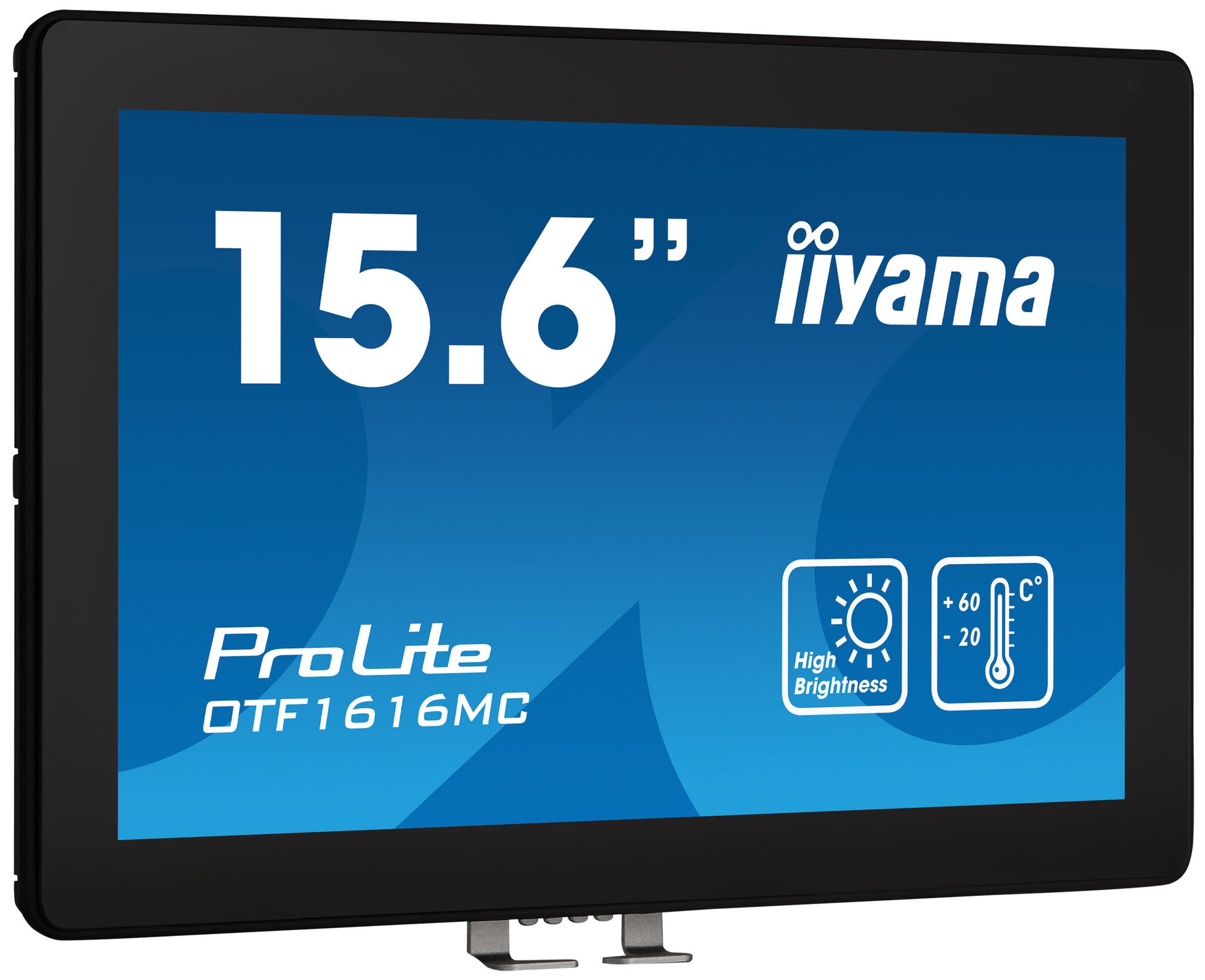

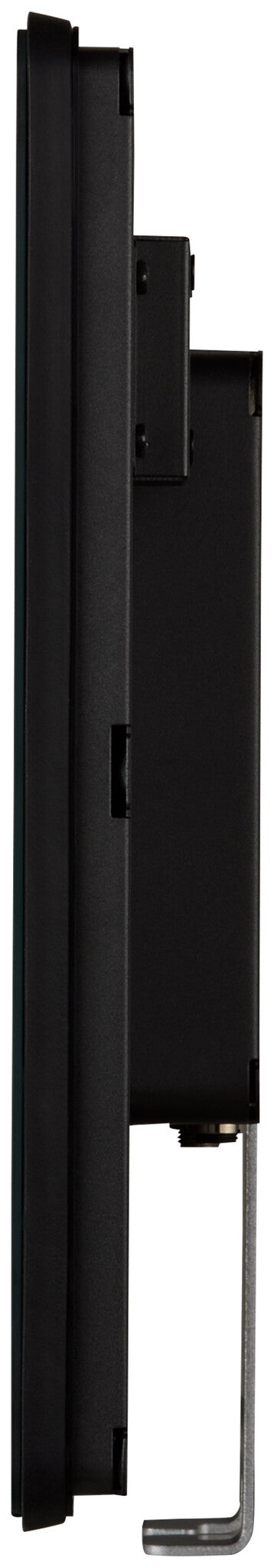

iiyama OTF1616MC-B1 computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD LCD Touchscreen Black
iiyama OTF1616MC-B1 computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD LCD Touchscreen Black
Couldn't load pickup availability
SKU:OTF1616MC-B1
Low stock: 4 left
- 39.6 cm (15.6") Black
- HDMI DisplayPorts quantity: 1
- Screen shape: Flat
- Maximum refresh rate: 60 Hz Response time: 25 ms
- 1920 x 1080 pixels Full HD Panel type: VA
- Energy efficiency class (SDR): E ErP CE, cULus, EAC, REACH, RoHS, UKCA, WEEE

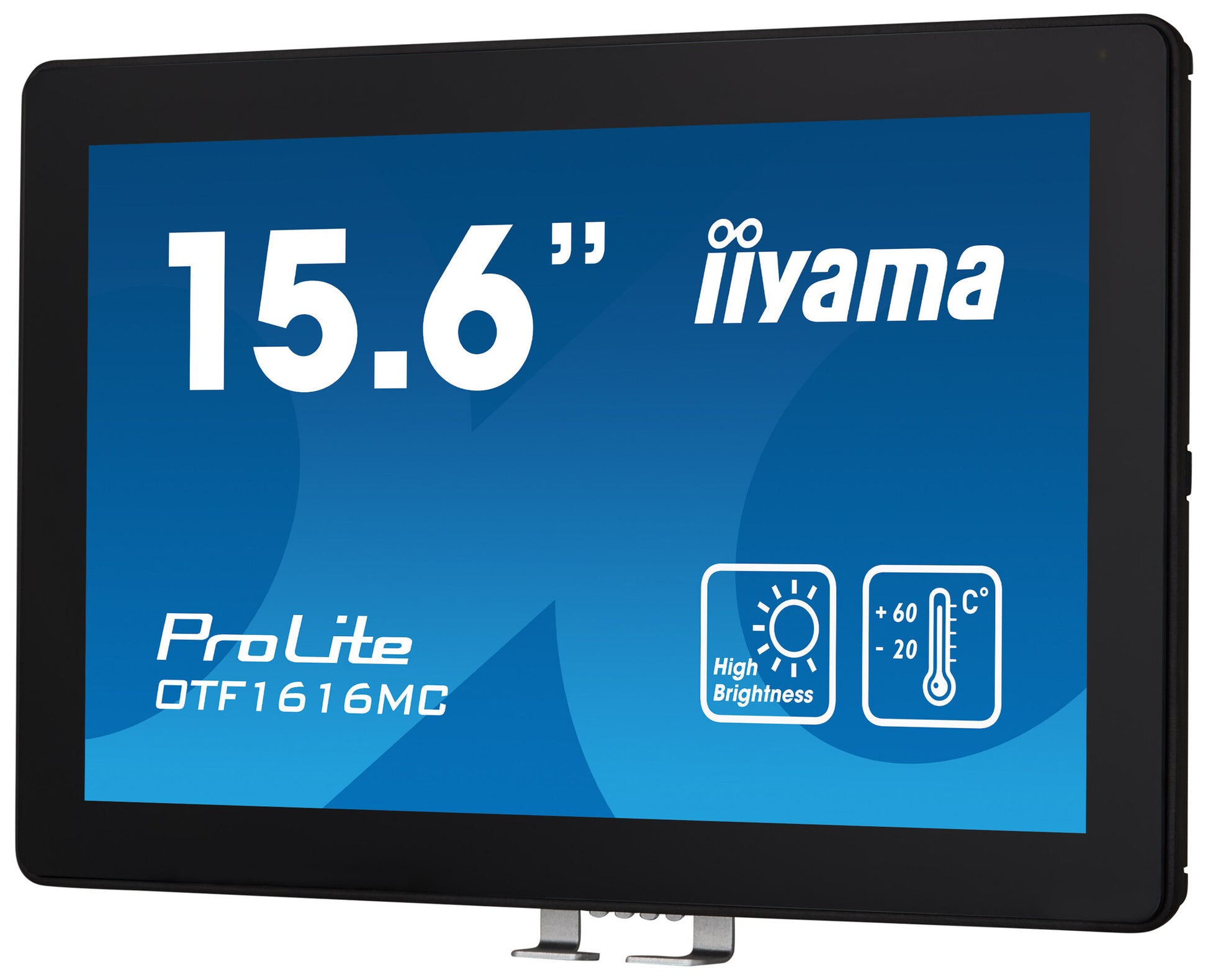

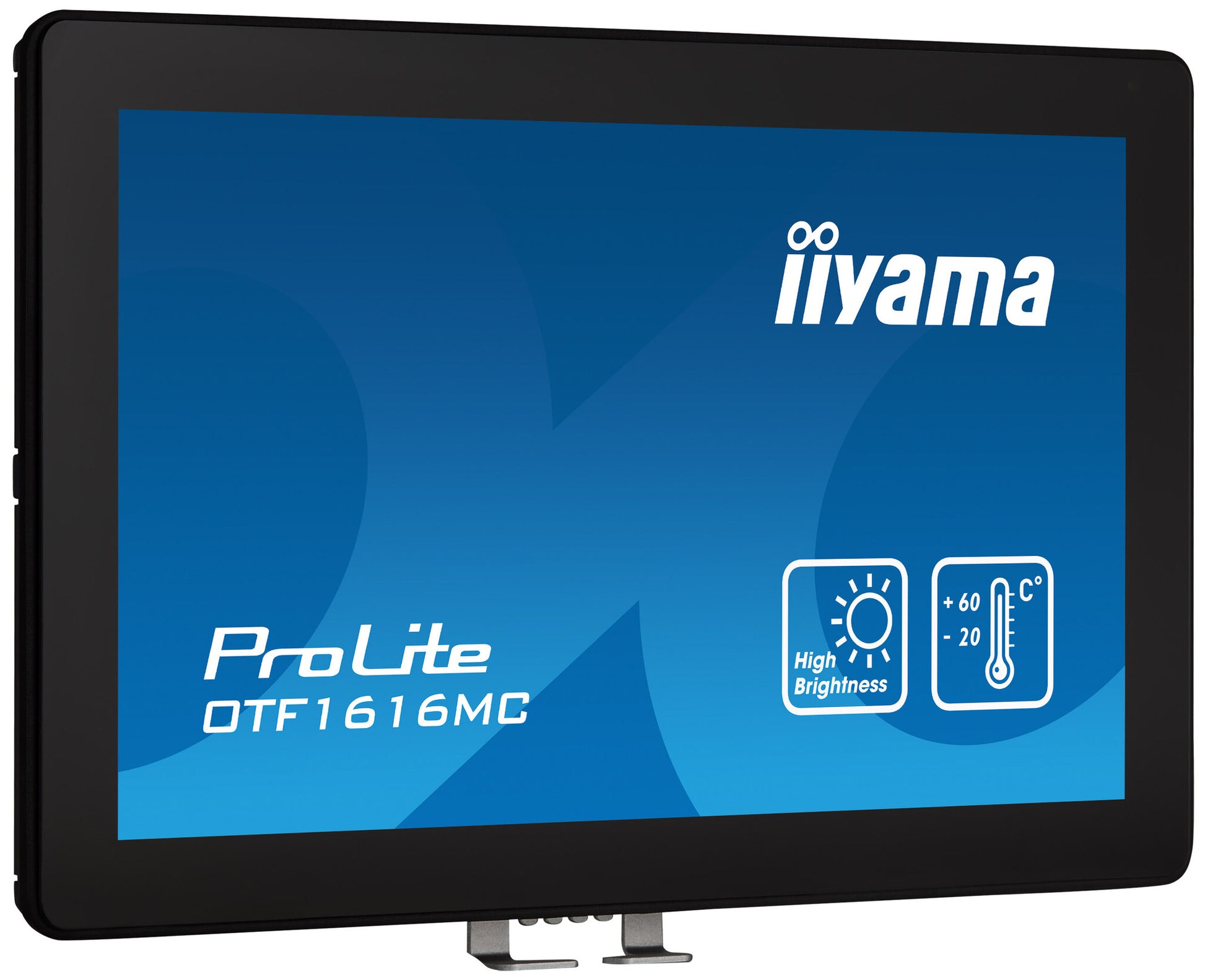

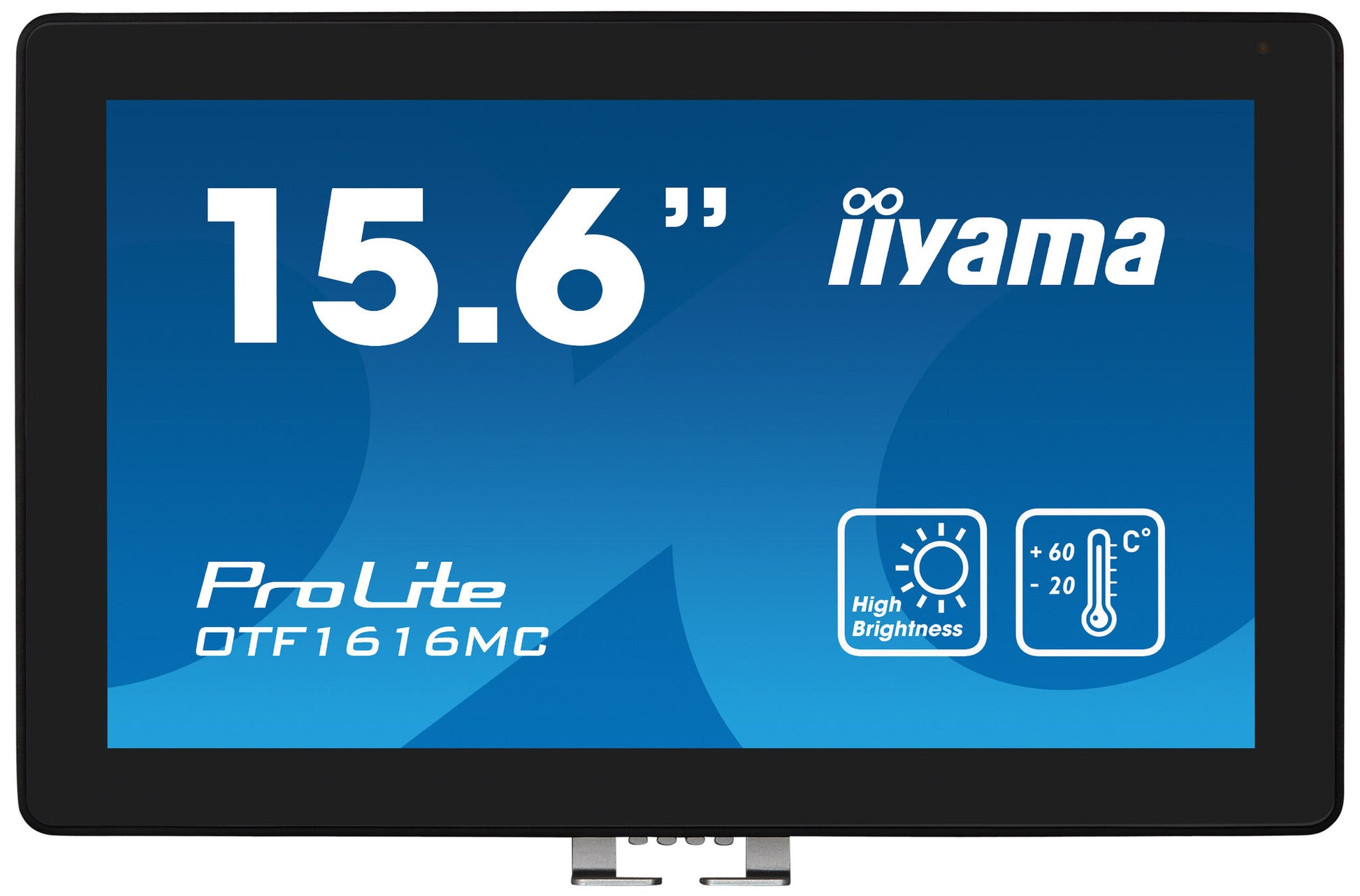

Built into a rugged, edge-to-edge glass bezel the ProLite OTF1616MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It offers a brightness of up to 935 cd/m², the content displayed will be visible even in very bright environments. The anti-glare display is UV resistant and IP65 protected, ensuring durability against sunlight, dust and water resistance from the front, additionally it can operate in temperatures ranging from -20˚C up to +60˚C. The anti-fingerprint coating ensures a smoother touch. A reliable solution for pick-up points and kiosks. A proximity sensor turns off the screen when no one is present, an ambient light sensor adjusts screen brightness, and a temperature sensor controls fan speed for cooling, resulting in energy savings and extended product durability. For ease of integration, the ProLite OTF1616MC-B1 can be equipped with optional external mounting brackets ( OMK5-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multi-media.
| Display | |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | VA |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 1100 cd/m² |
| Display brightness (typical) | 1100 cd/m² |
| Response time | 25 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 800:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.179 x 0.179 mm |
| Horizontal scan range | 31.5 - 67.5 kHz |
| Viewable size, horizontal | 34.5 cm |
| Viewable size, vertical | 19.5 cm |
| Digital horizontal frequency | 31.5 - 67.5 kHz |
| Display diagonal (metric) | 39.5 cm |
| Surface hardness | 7H |
| Display brightness | 935 cd/m² |
| Performance | |
|---|---|
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection | Yes |
| Design | |
|---|---|
| Market positioning | Office |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Glass thickness | 3.15 mm |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |

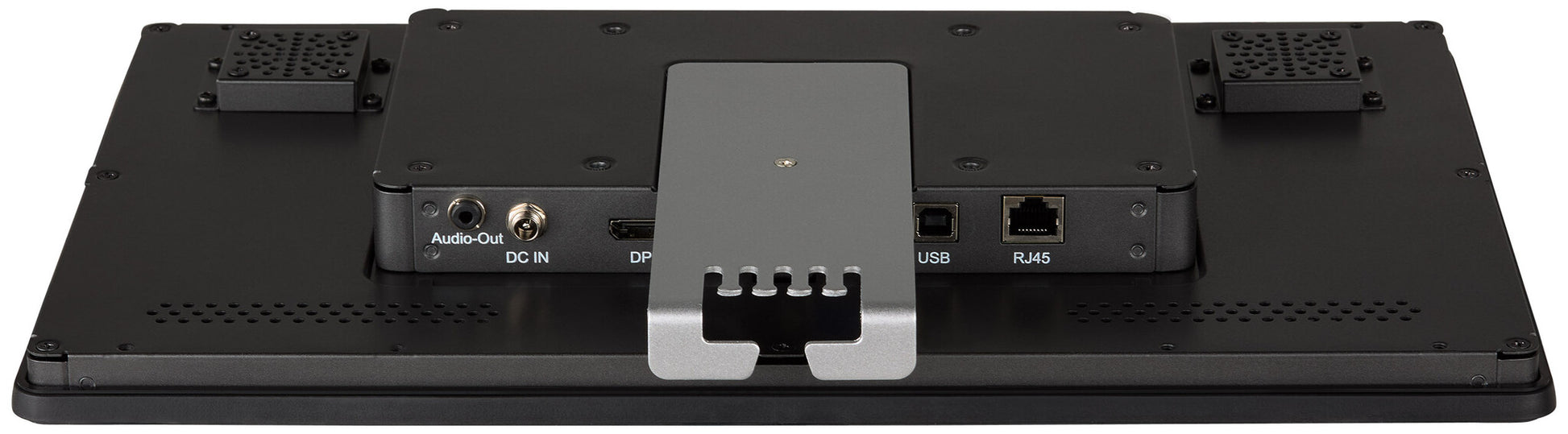

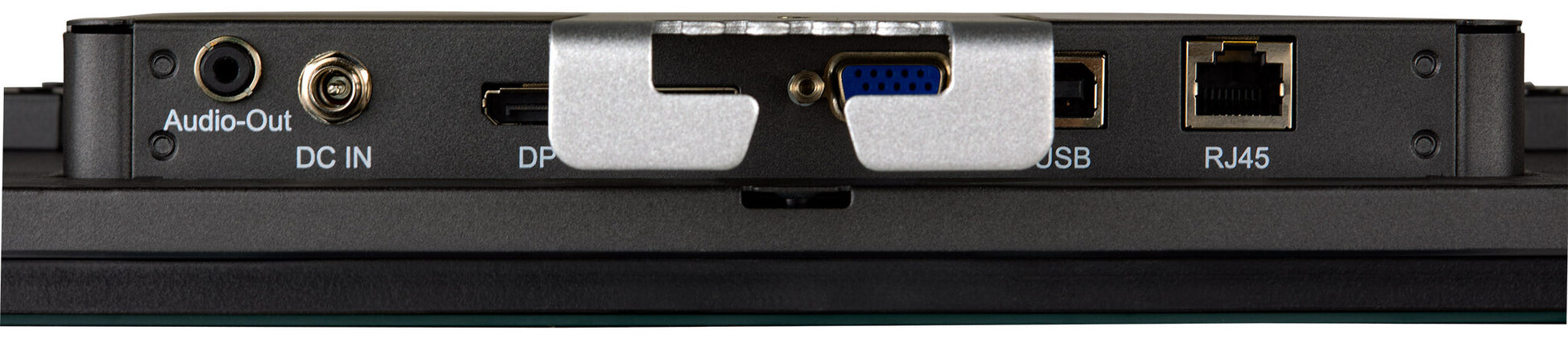

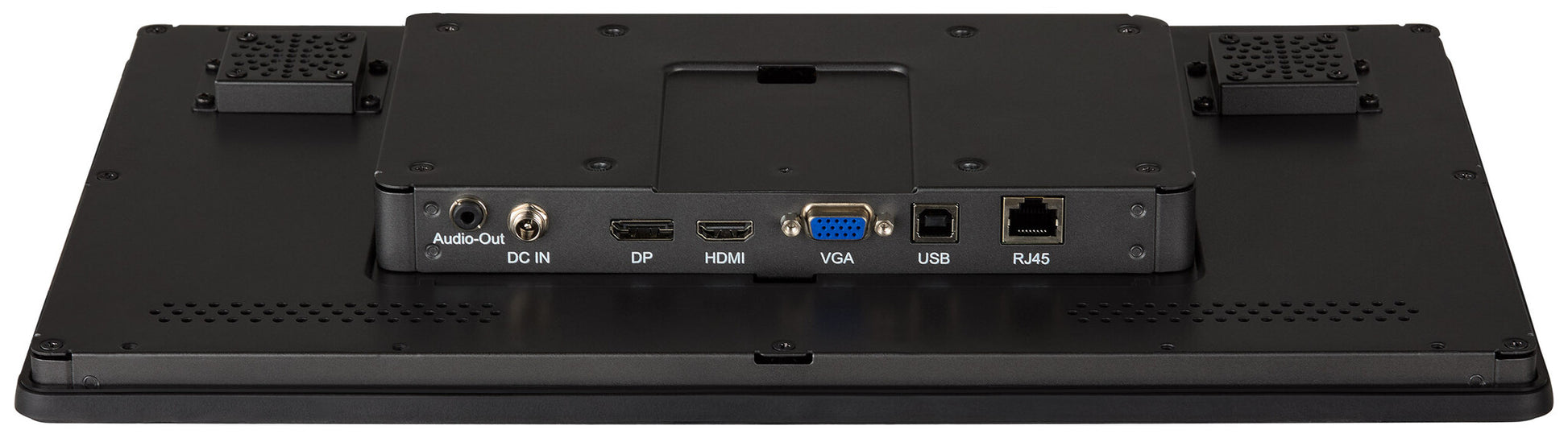

| Ports & interfaces | |
|---|---|
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone out | Yes |
| HDCP | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ergonomics | |
|---|---|

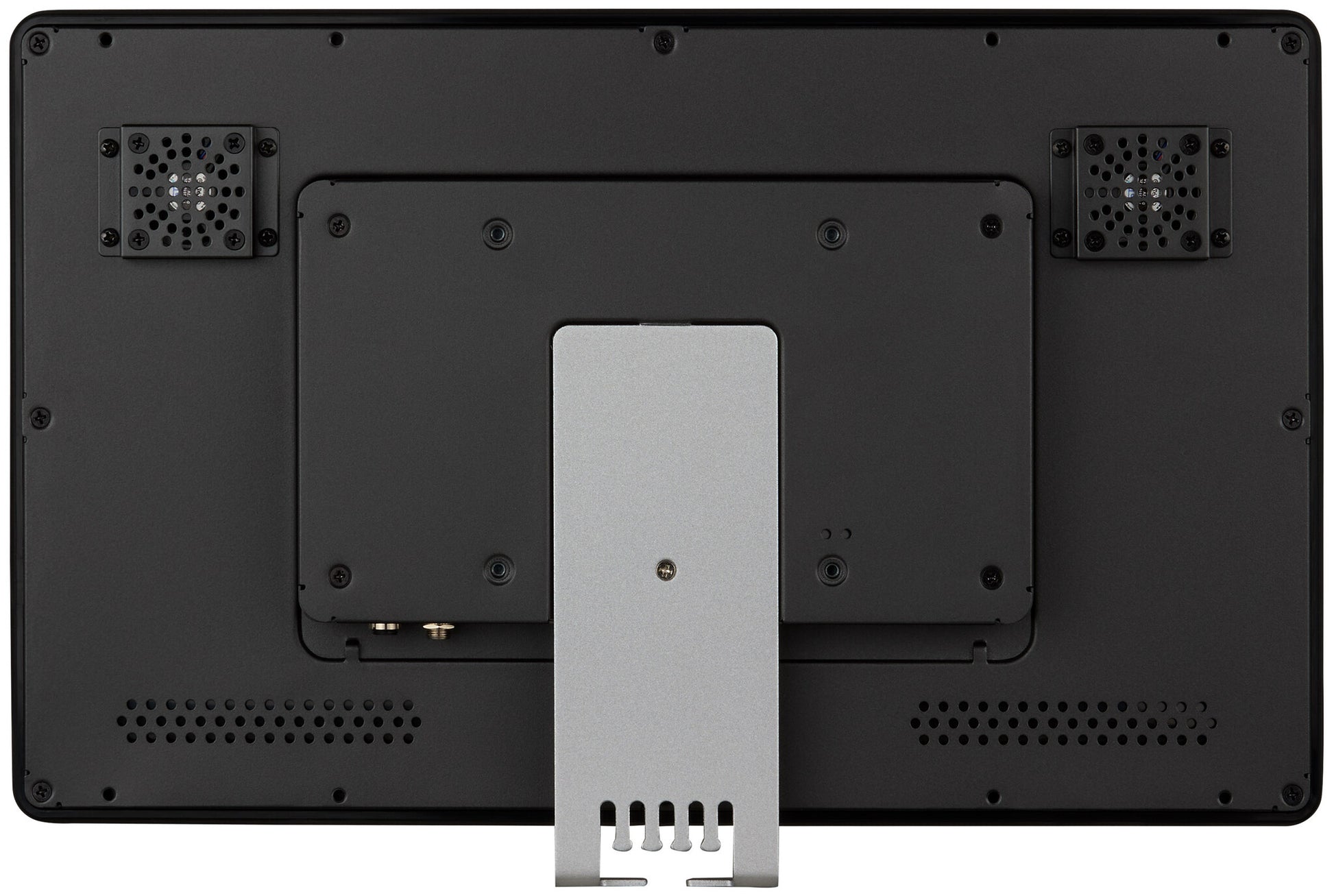

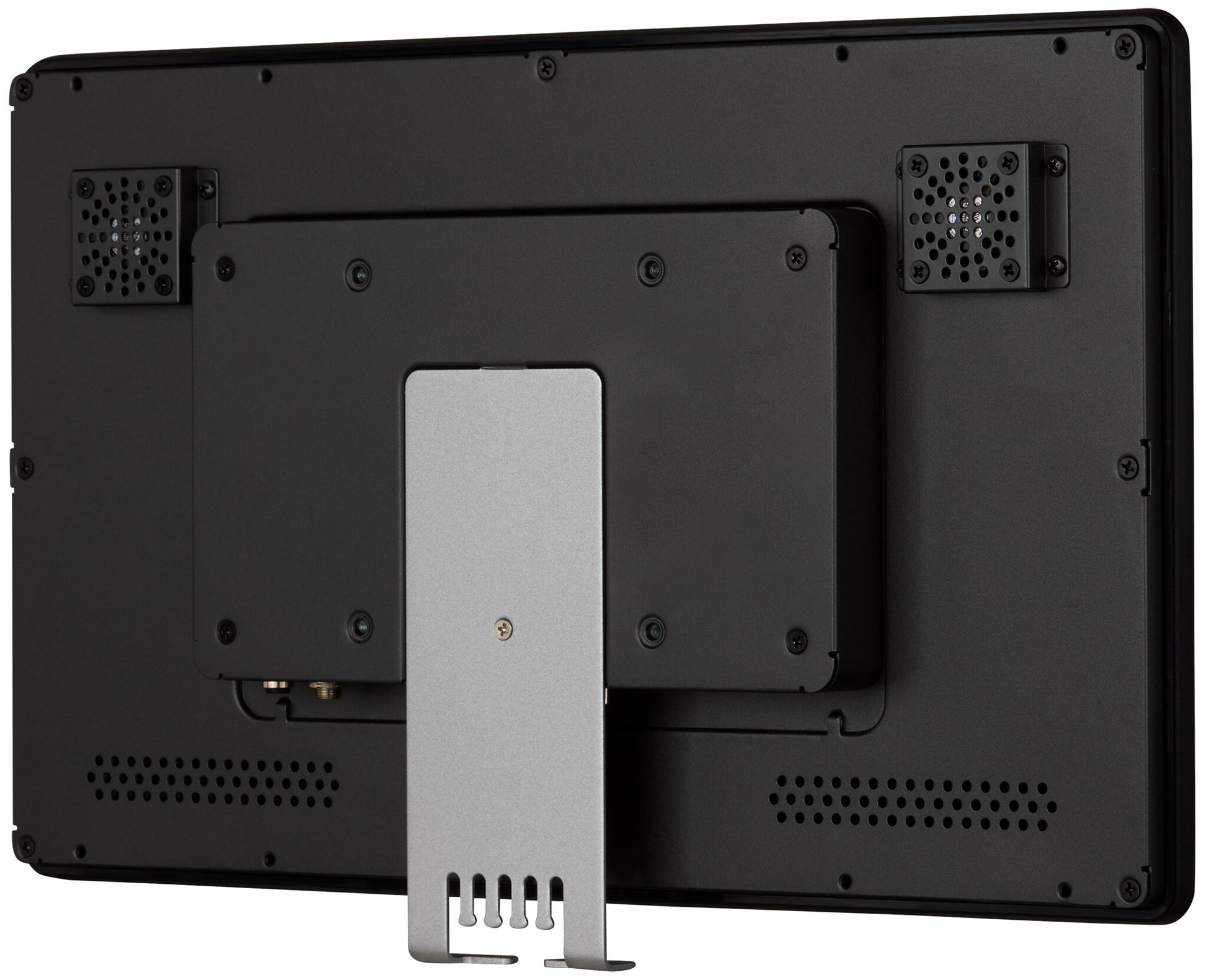

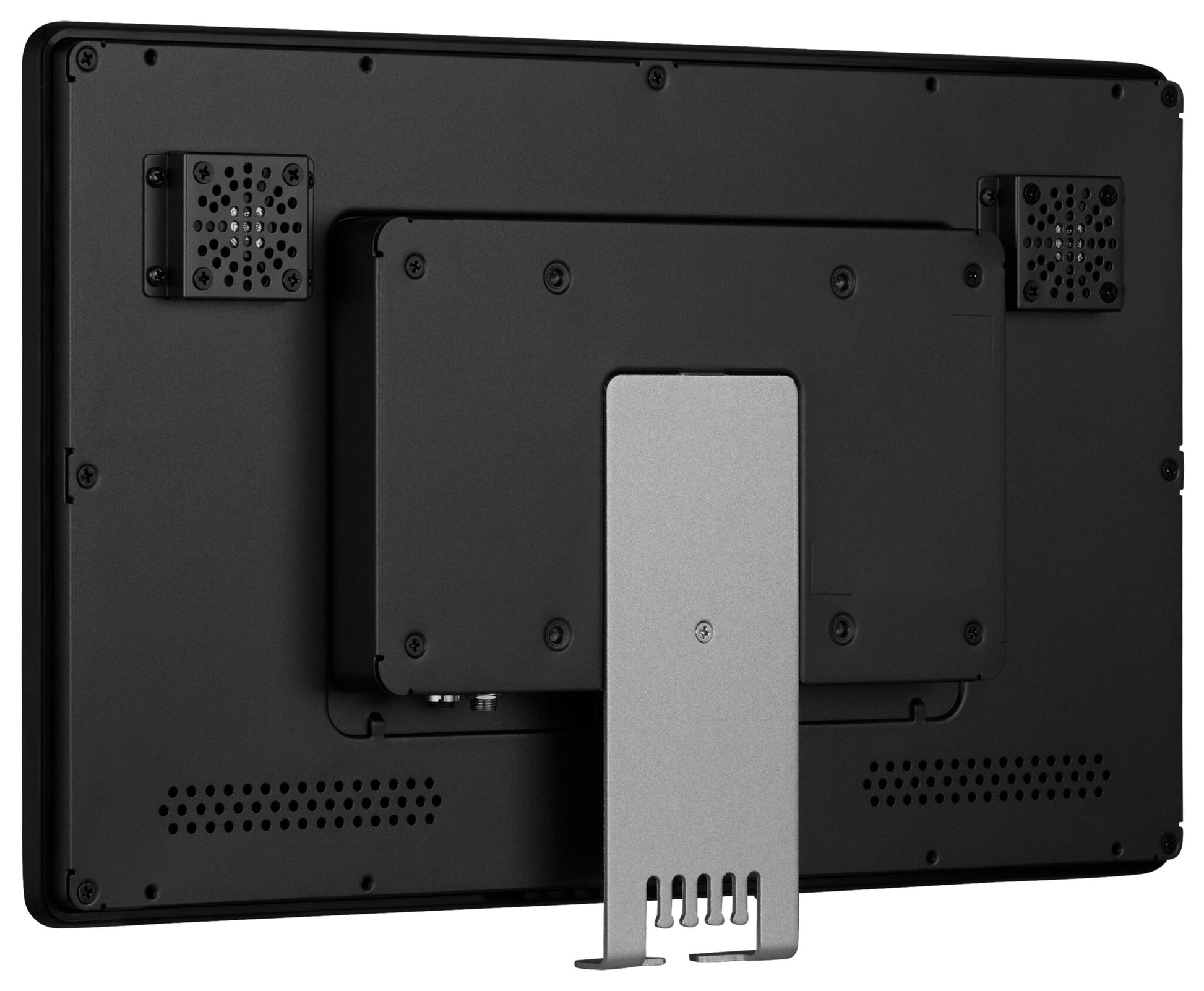

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| Power | |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 10.5 kWh |
| Power consumption (typical) | 24 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Packaging content | |
|---|---|
| Cables included | AC, USB, HDMI, DisplayPort |
| Remote control included | Yes |
| Quick start guide | Yes |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 398.5 mm |
| Depth (with stand) | 42 mm |
| Height (with stand) | 246 mm |
| Weight (with stand) | 3 kg |
| Width (without stand) | 398.5 mm |
| Depth (without stand) | 42 mm |
| Height (without stand) | 246 mm |
| Weight (without stand) | 3 kg |
| Packaging data | |
|---|---|
| Package width | 485 mm |
| Package depth | 150 mm |
| Package height | 370 mm |
| Package weight | 4.62 kg |
| Sustainability | |
|---|---|
| Sustainability certificates | ErP |
| Technical details | |
|---|---|
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, WEEE |
| Other features | |
|---|---|
| AC adapter included | Yes |

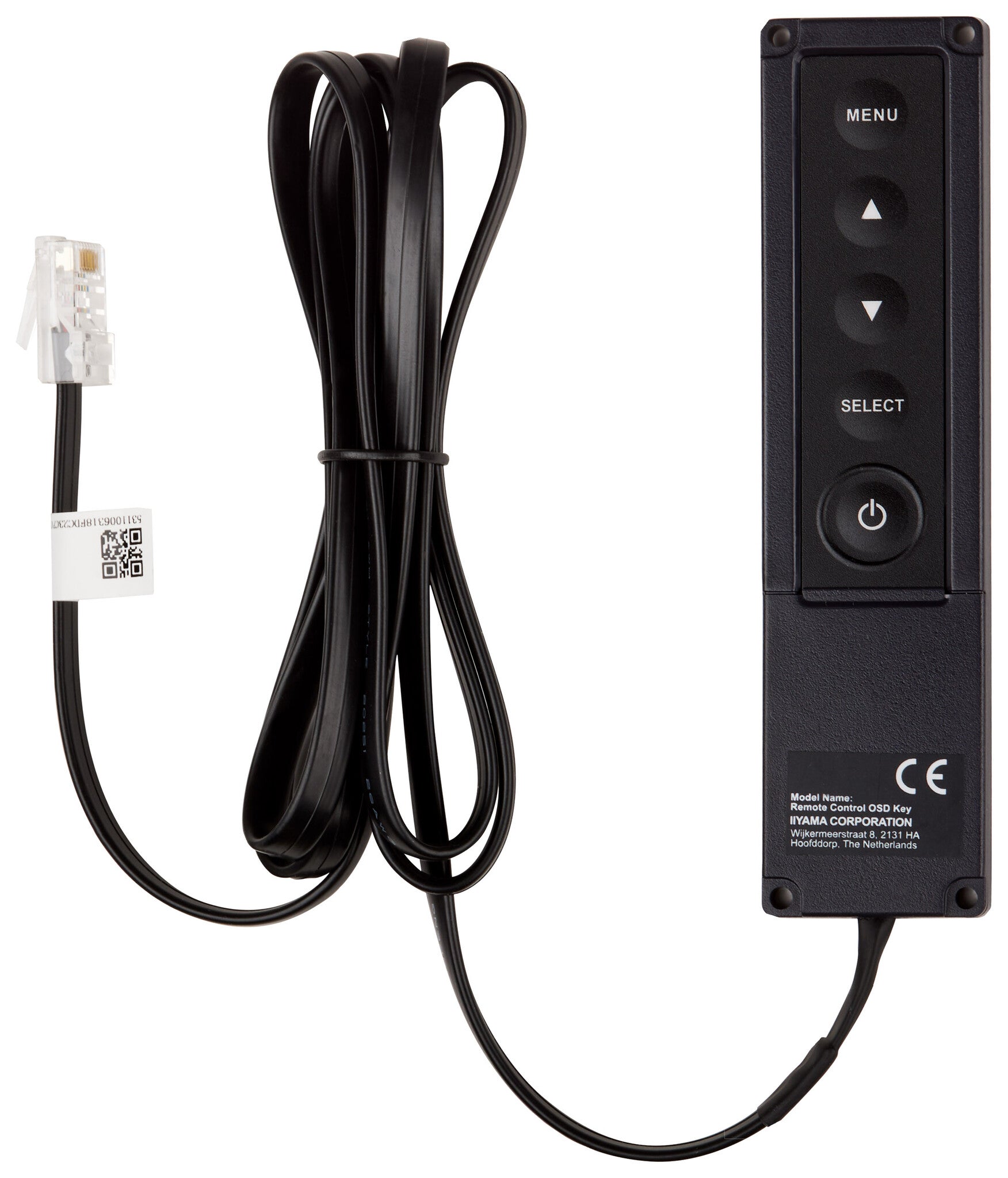

| Packaging content | AC adapter, External control pad (remote) |
| Placement supported | Indoor |
| Brightness | 935 cd/m² |
| Active display area (W x H) | 345.2 x 194.6 mm |
| Depth | 42 mm |
| Width | 398.5 mm |
| Height | 246 mm |
| Weight | 3 kg |
| Mean time between failures (MTBF) | 60000 h |
| Ethernet LAN (RJ-45) ports | 1 |
| Control panel | Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power |
| User controls | picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch, factory), option (reset, language, source select, display mode, fan control, presence sensor, ambient light sensor) |
| Touch method | finger, glove (latex) |
