Energy efficiency class (SDR): C ErP CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
10.1" Open Frame PCAP 10 point touch screen equipped with IPS panel technology and a foam seal finish for seamless integration

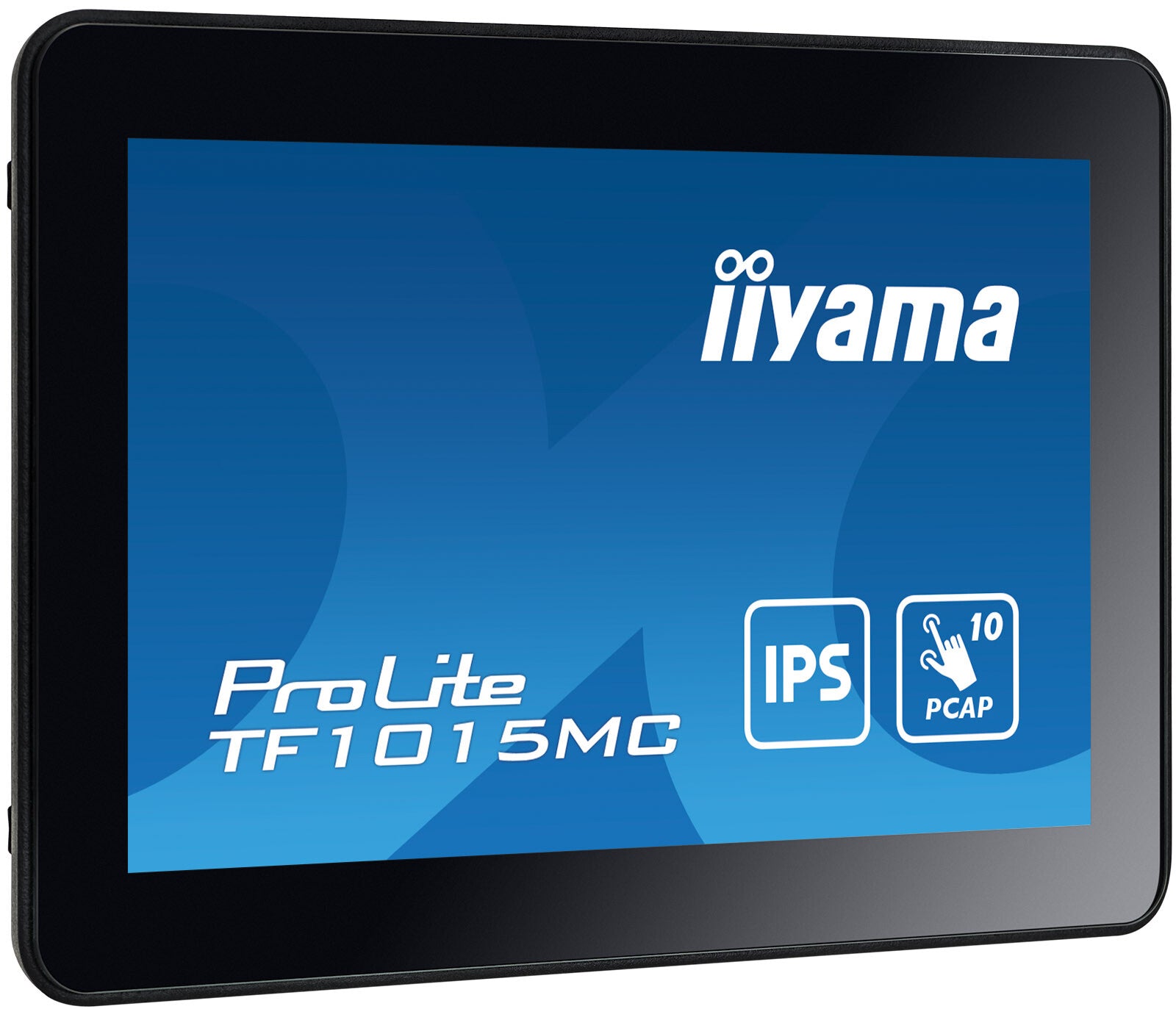

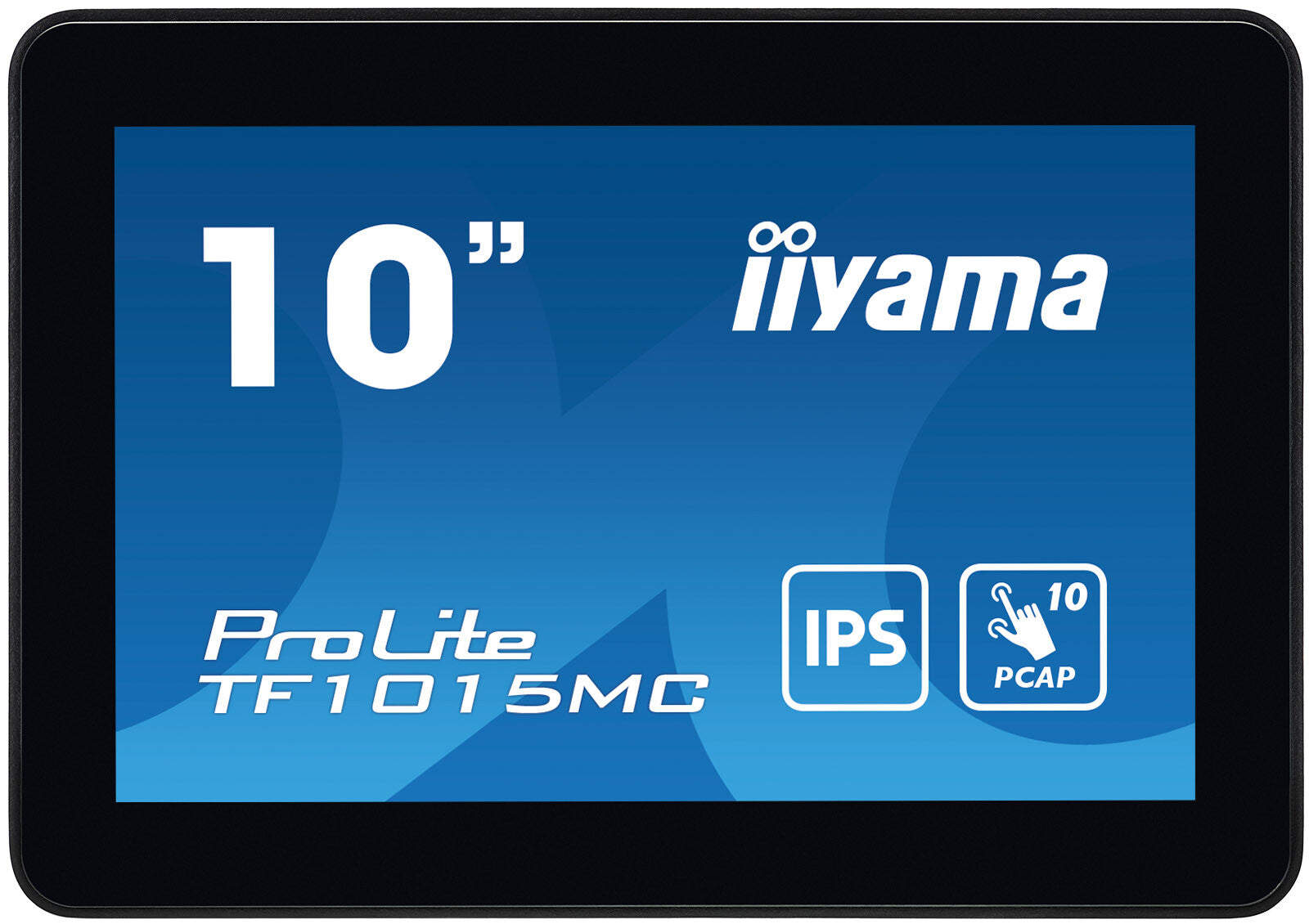

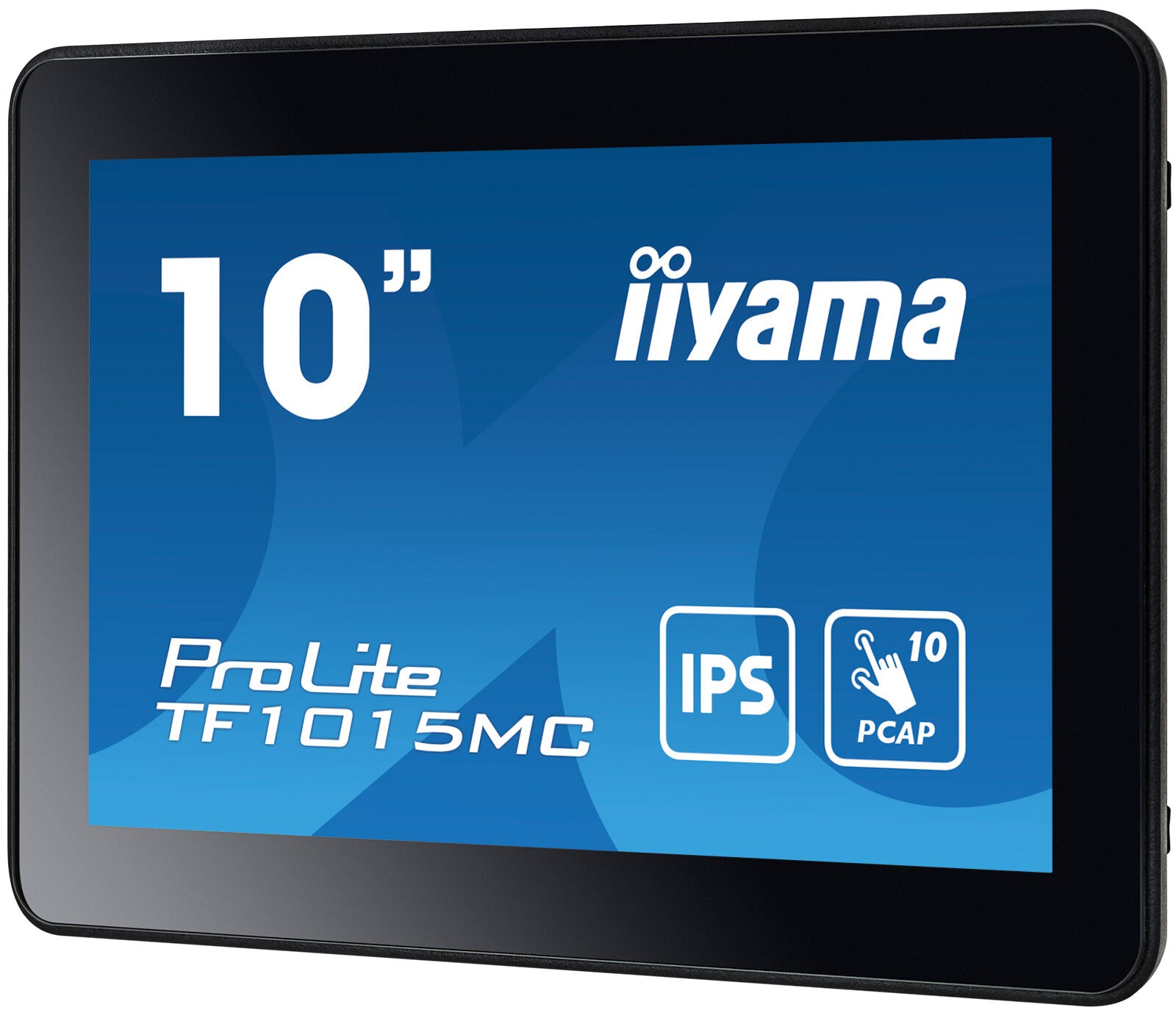

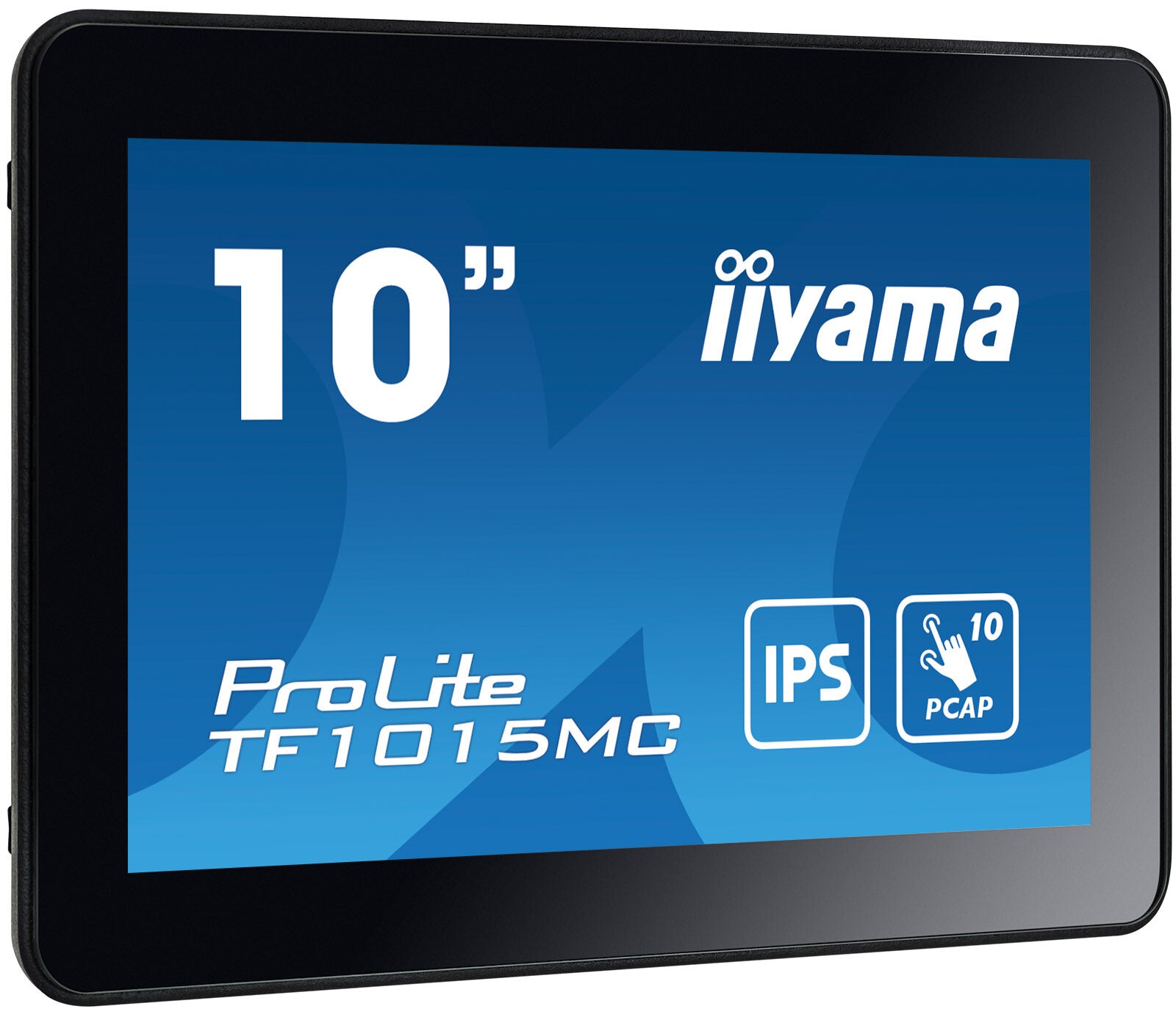

The ProLite TF1015MC (10.1 inch) uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Display
Display diagonal
25.6 cm (10.1")
Display resolution
1280 x 800 pixels
Native aspect ratio
16:10
Display technology
LED
Touchscreen
Yes
HD type
HD
Panel type
IPS
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Display brightness (peak)
500 cd/m²
Display brightness (typical)
500 cd/m²
Response time
29 ms
Screen shape
Flat
Contrast ratio (typical)
800:1
Maximum refresh rate
75 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.1695 x 0.1695 mm
Horizontal scan range
30 - 49.7 kHz
Viewable size, horizontal
21.7 cm
Viewable size, vertical
13.6 cm
Digital horizontal frequency
30 - 49.7 kHz
Display diagonal (metric)
25.7 cm
Surface hardness
7H
Display brightness
425 cd/m²
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection
Yes
Design
Market positioning
Business
Product colour
Black
Front bezel colour
Black
International Protection (IP) code
IP65
Glass thickness
3.3 mm
Certification
CB, CE, TÜV-Bauart, EAC, cULus

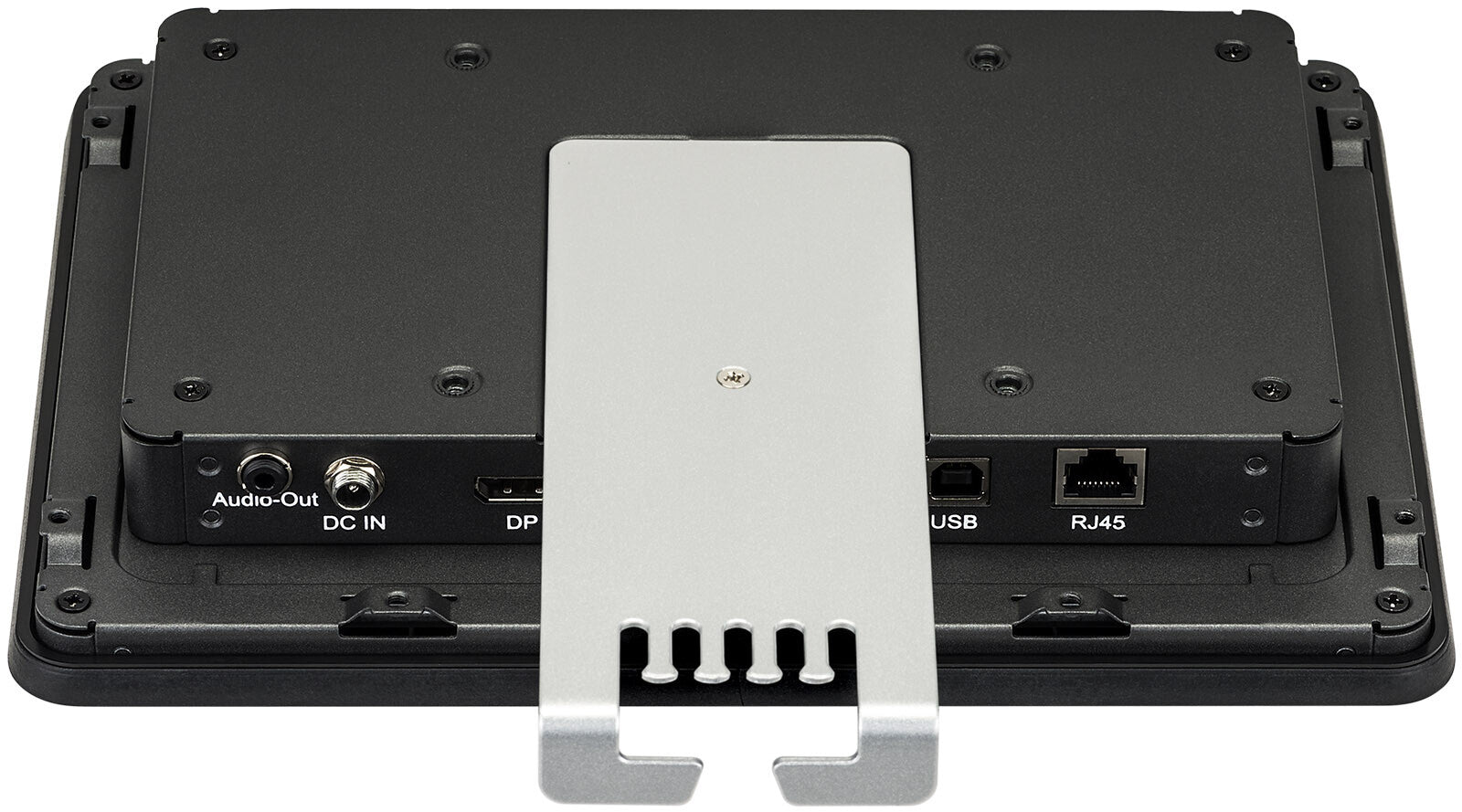

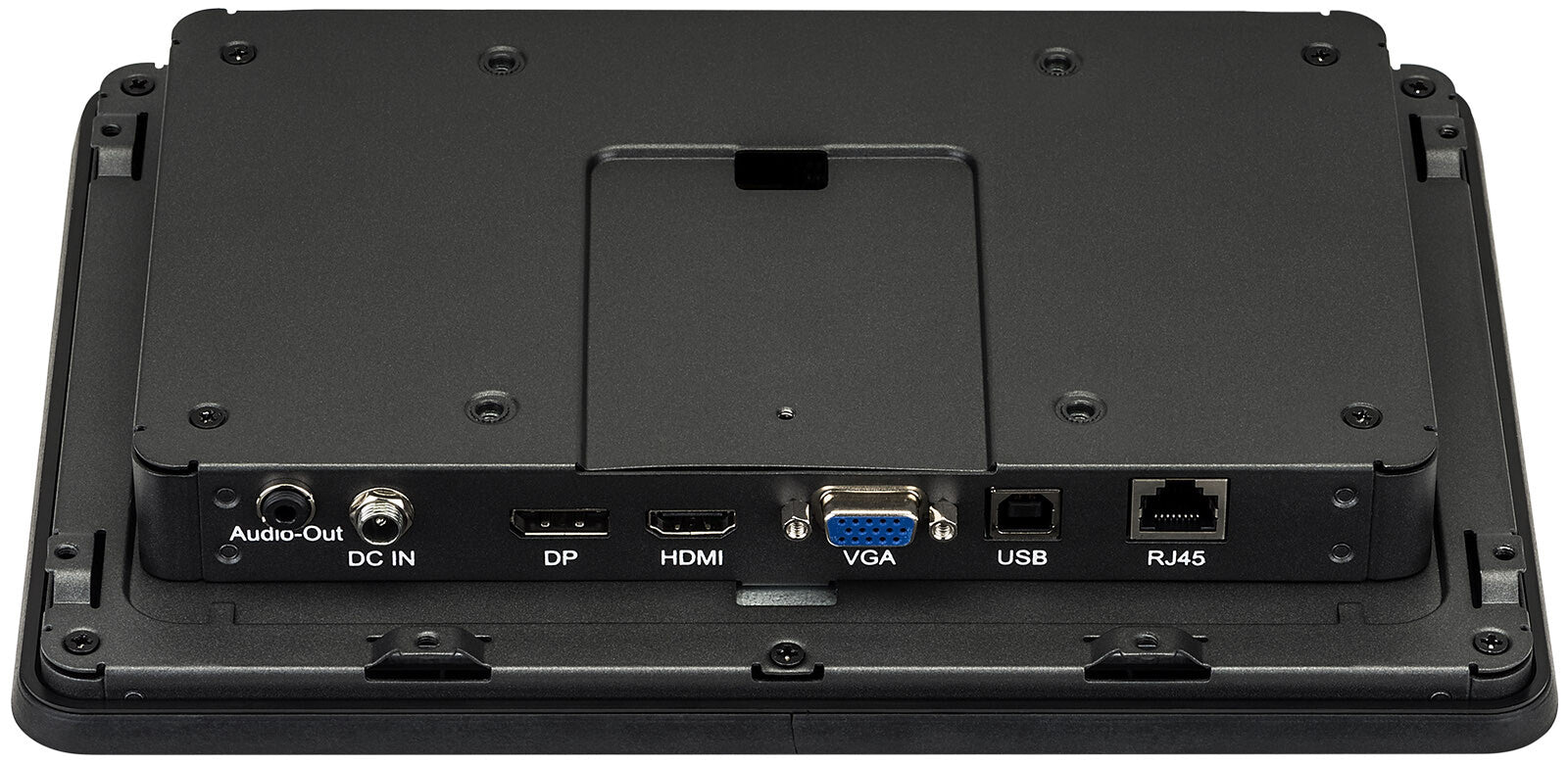

Ports & interfaces
Built-in USB hub
Yes
Number of upstream ports
1
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
DVI port
No
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Headphone connectivity
3.5 mm
HDCP
Yes
Network
Ethernet LAN
Yes
Ergonomics

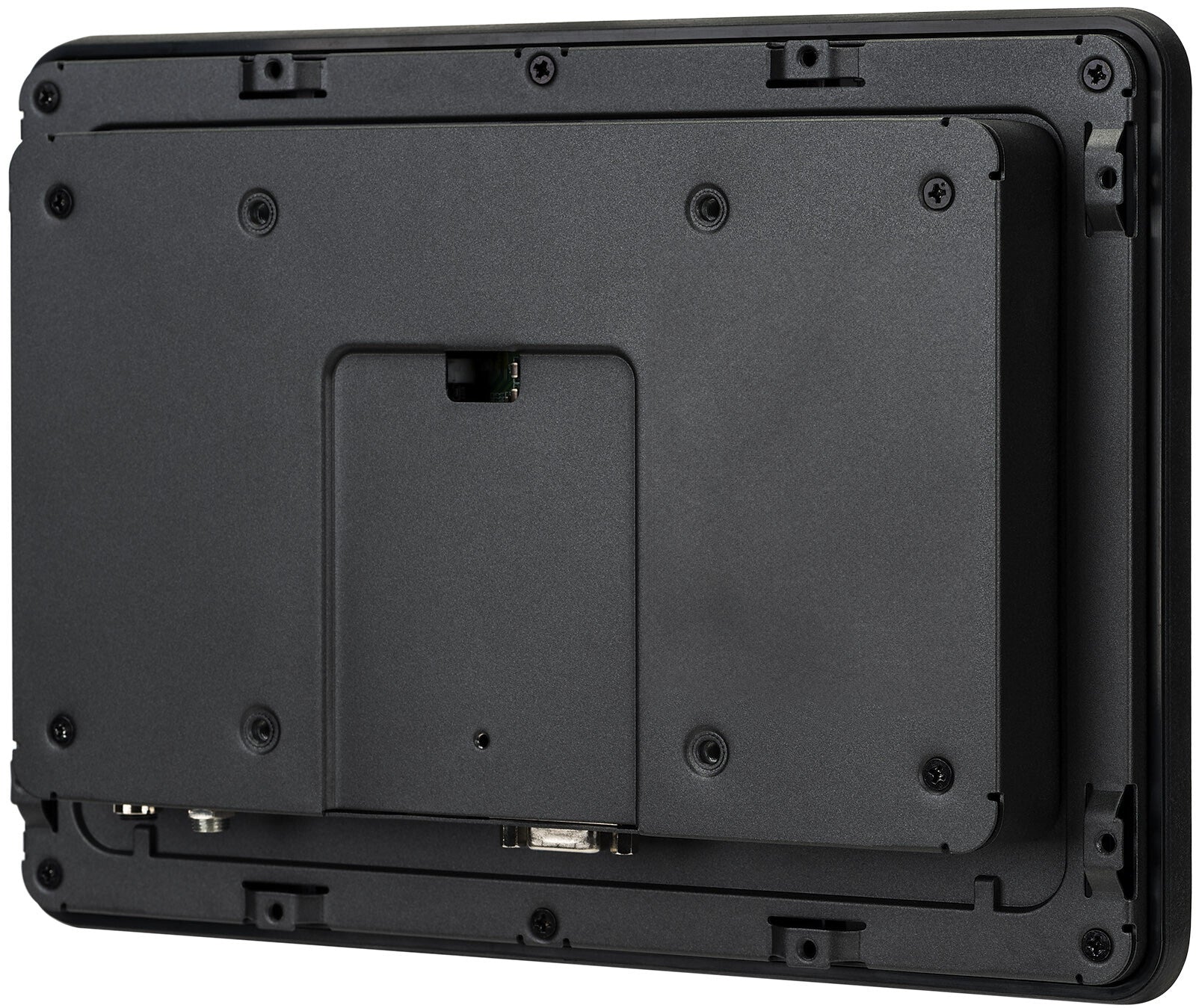

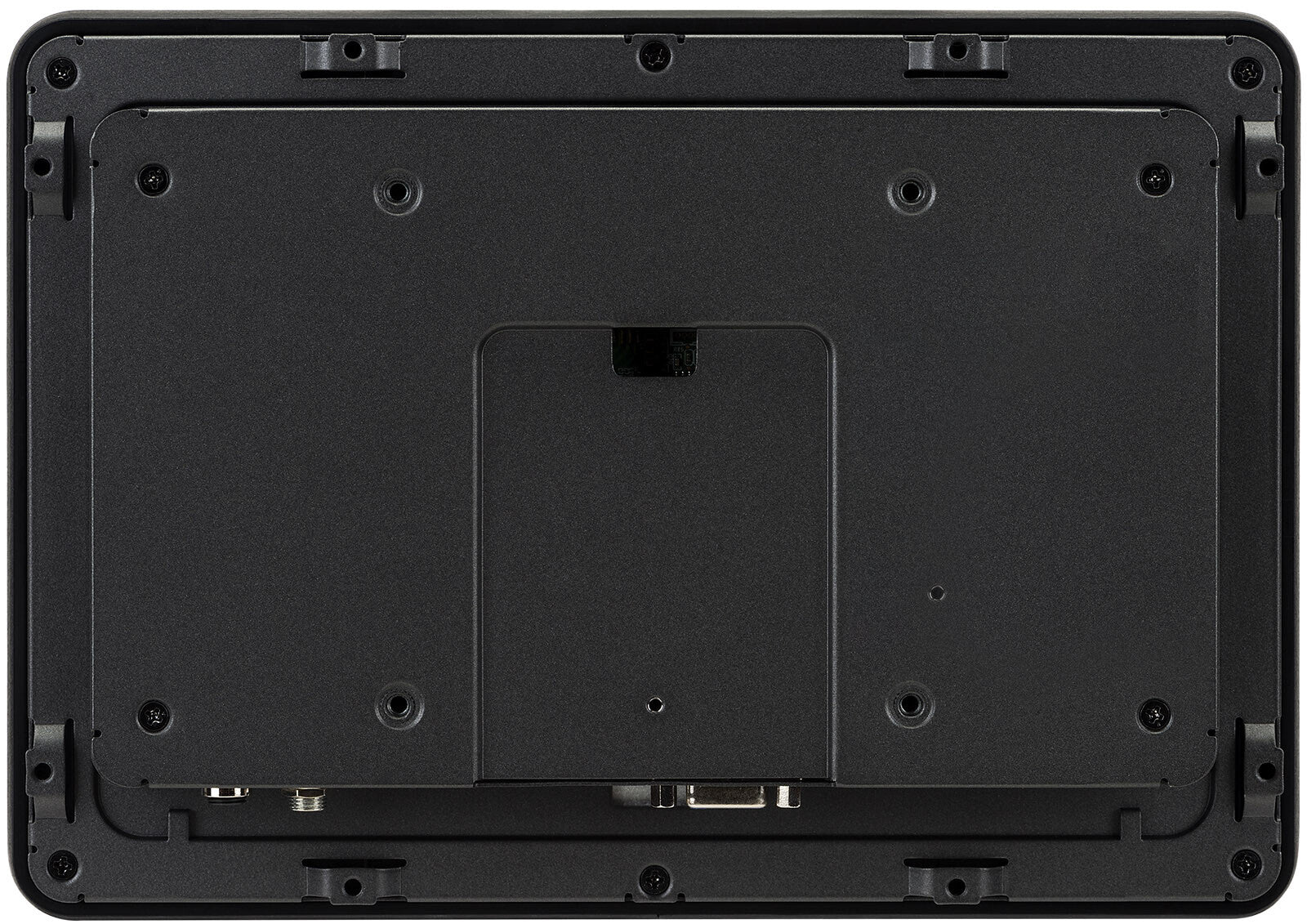

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages
7
Plug and Play
Yes
LED indicators
Yes
Power
Energy efficiency class (SDR)
C
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
5.7 kWh
Power consumption (typical)
6 W
Power consumption (standby)
1.5 W
Power consumption (off)
0.3 W
AC adapter output voltage
12 V
Power supply type
External
Energy efficiency scale
A to G
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C

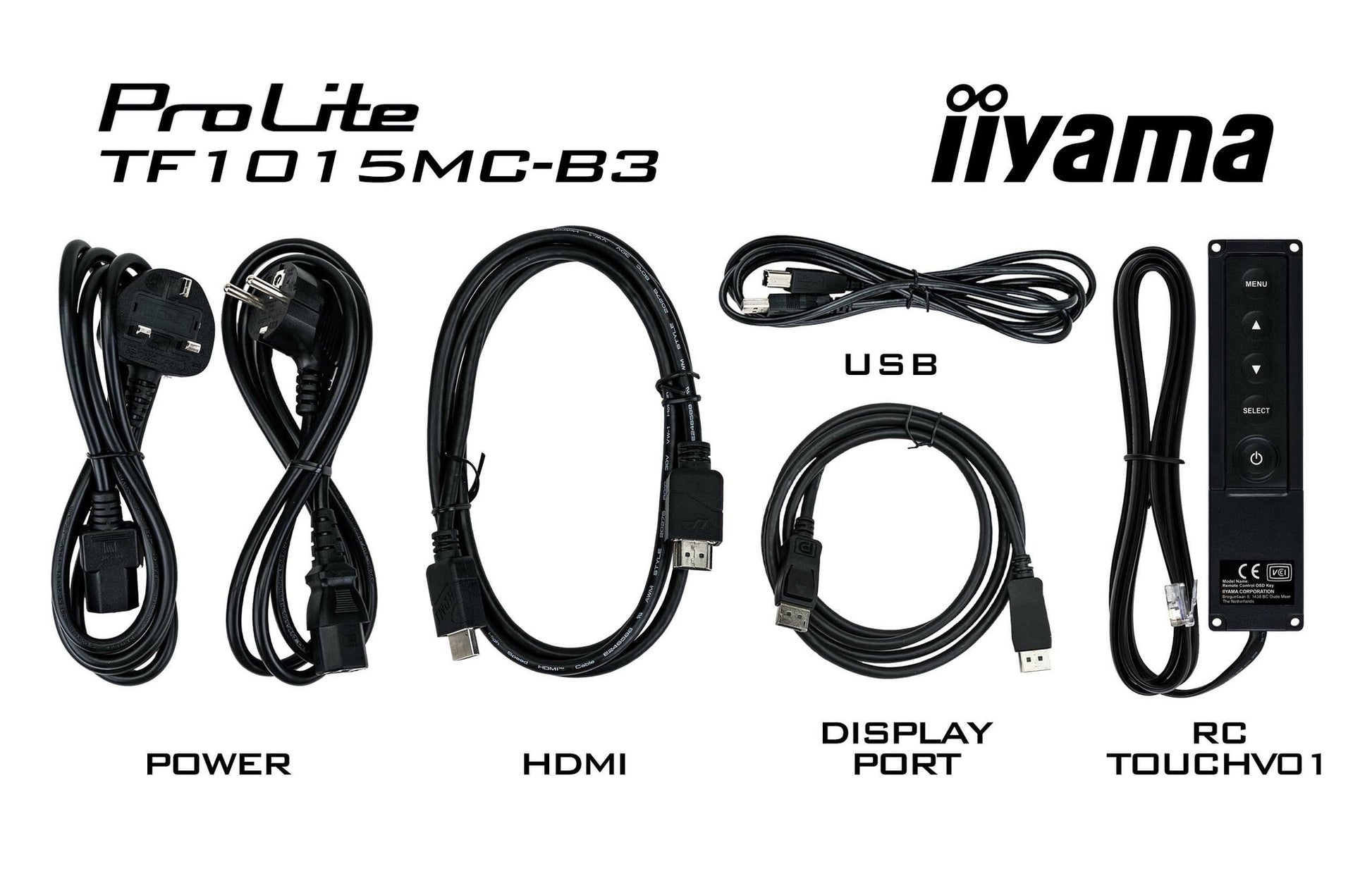

Packaging content
Cables included
AC, USB, HDMI, DisplayPort
Remote control included
Yes
Quick start guide
Yes
Weight & dimensions
Width (with stand)
260.5 mm
Depth (with stand)
39.5 mm
Height (with stand)
183.5 mm
Weight (with stand)
1.4 kg
Width (without stand)
260.5 mm
Depth (without stand)
39.5 mm
Height (without stand)
183.5 mm
Weight (without stand)
2.7 kg
Packaging data
Package width
310 mm
Package depth
370 mm
Package height
160 mm
Package weight
2.7 kg
Sustainability
Sustainability certificates
ErP
Technical details
Compliance certificates
CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Other features
AC adapter included
Yes
Packaging content
AC adapter, external control pad
Placement supported
Indoor
Brightness
425 cd/m²
USB ports quantity
1
Active display area (W x H)
216.96 x 135.6 mm
Depth
39.5 mm
Width
260.5 mm
Height
183.5 mm
Weight
1.4 kg
Mean time between failures (MTBF)
50000 h
Ethernet LAN (RJ-45) ports
1
Control panel
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
