Hewlett Packard Enterprise

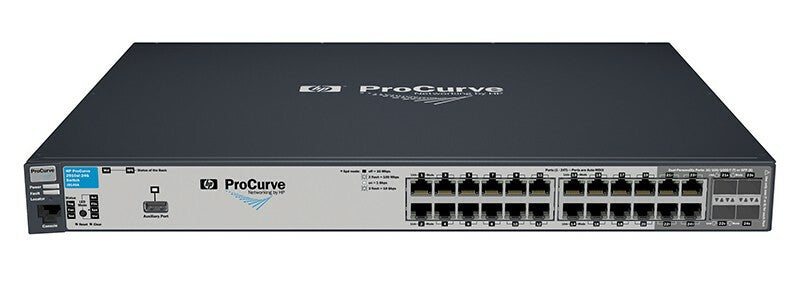

HPE ProCurve 2910al-24G Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey

HPE ProCurve 2910al-24G Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey

£46.08 GBP
£46.08 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

J9145A-RFB

Low stock: 2 left

  • Managed L3 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
  • 10G support 10BASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 16000 entries Switching capacity: 128 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
ProCurve 2910al-24G Switch, Refurbished

The ProCurve 2910 al Switch Series consists of four switches: the ProCurve 2910-24G al and 2910-24G-PoE+ al Switches with 24 10/100/1000 ports, and the ProCurve 2910-48G al and 2910-48G-PoE+ al Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or mini-GBIC connectivity. In addition, the 2910 al Switch Series supports up to four optional 10 Gigabit Ethernet (CX4 and/or SFP+) ports, thereby offering the most flexible and easy-to-deploy uplinks in its class. Together with static and RIP IPv4 routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the 2910 series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at enterprise edge and remote branch offices, converged networks, and data center top of rack.

Management features
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Yes
Web-based management Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Console port RJ-45
Network
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G support Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring Yes
IP routing Yes
Full duplex Yes
Routing entries 2000
Auto-sensing Yes
Rate limiting Yes
Spanning tree protocol Yes
Link aggregation Yes
Auto MDI/MDI-X Yes
VLAN support Yes
Data transmission
MAC address table 16000 entries
Switching capacity 128 Gbit/s
Throughput 95 Mpps
Latency (1 Gbps) 2.9 µs
Latency (10 Gbps) 1.3 µs
Jumbo frames support Yes
Packet buffer memory 6 MB
Security
DHCP features DHCP server
Access Control List (ACL) Yes
IGMP snooping Yes
SSH/SSL support Yes
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour Grey
general_information_attribute_container_name
Product series E2910 al
attribute_product_family_name ProCurve
Performance
Built-in processor Yes
Processor frequency 515 MHz
Memory type SDRAM
Internal memory 512 MB
Flash memory 4 MB
Power
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (typical) 82 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 15 - 95%
Storage relative humidity (H-H) 15 - 95%
Heat dissipation 279 BTU/h
Weight & dimensions
Width 442 mm
Depth 365.8 mm
Height 43.9 mm
Weight 4.95 kg
