Hewlett Packard Enterprise

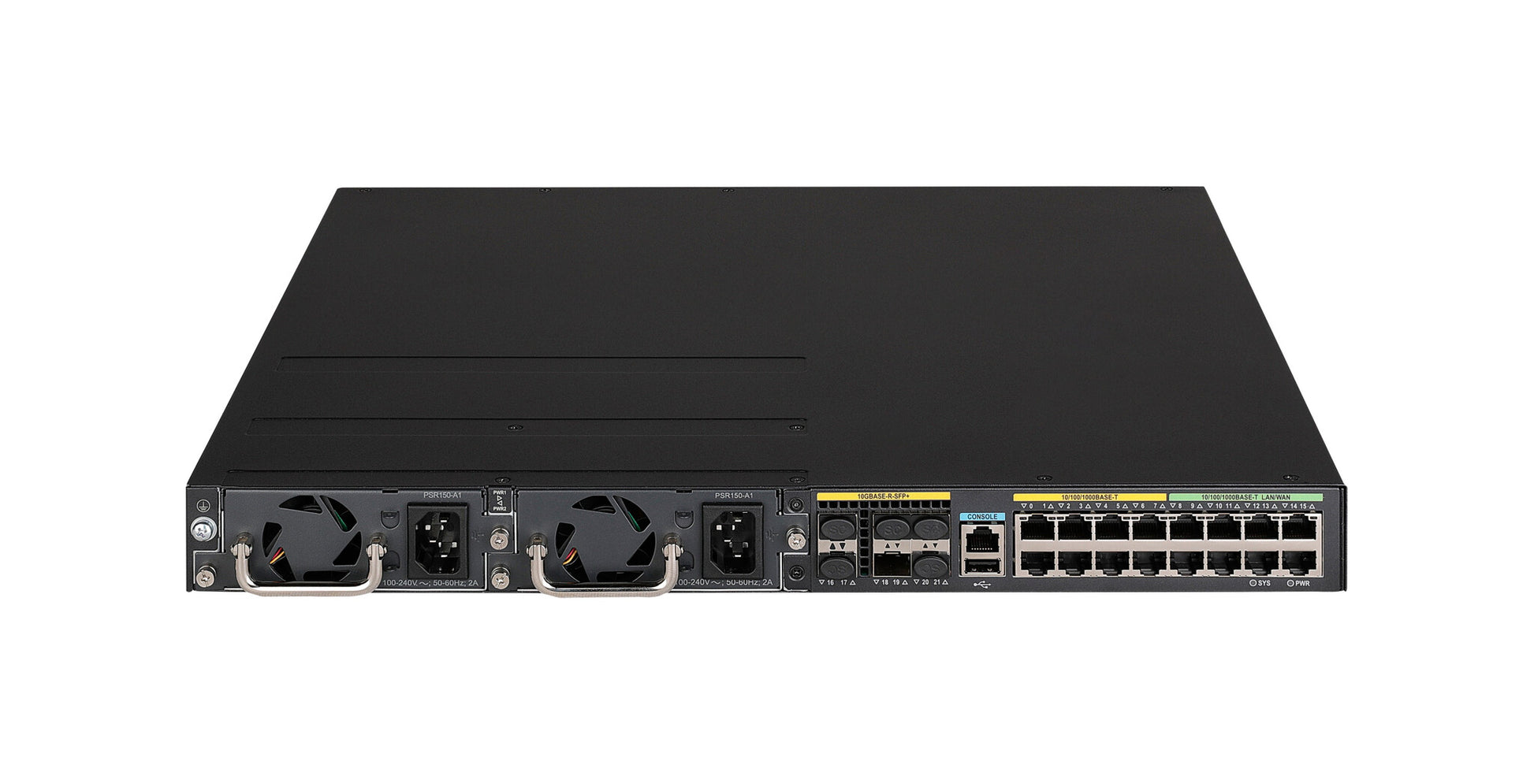

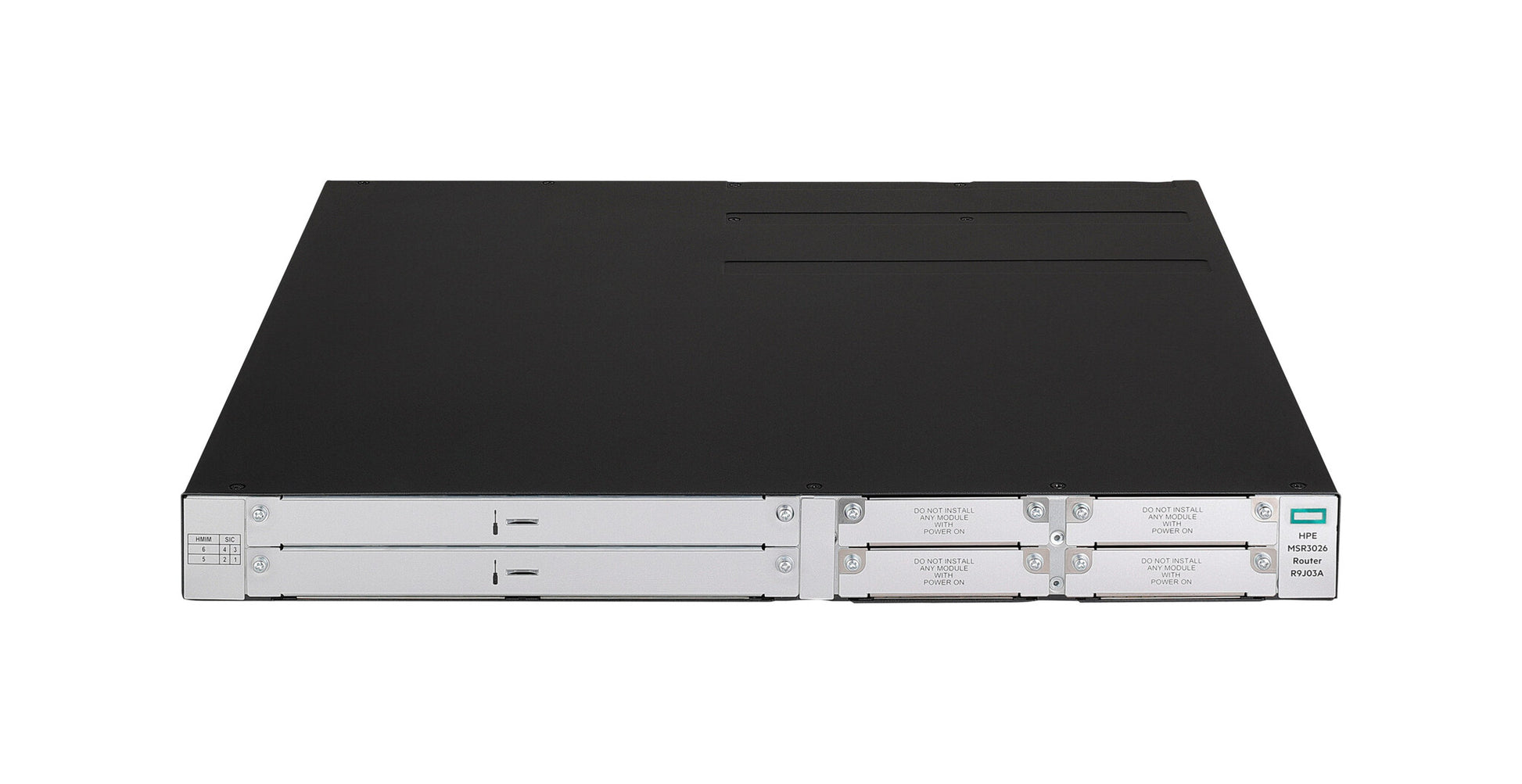

HPE Networking Comware Router MSR3026

HPE Networking Comware Router MSR3026

Regular price £5,021.96 GBP
Regular price Sale price £5,021.96 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:R9J03A

9876 in stock

  • Ethernet WAN 3G/4G USB modem compatibility
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab
  • 10 Gigabit Ethernet, Gigabit Ethernet
  • Web-based management
  • DHCP client DHCP server
  • 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES
Networking Comware Router MSR3026

The HPE Networking Comware Router Series MSR3000 feature a modular design that delivers unmatched application services for medium to large branch offices. These routers offer Gigabit switching, provide an enhanced PCI bus, ship with the Comware v7 OS, provide a full-featured resilient routing platform including IPv6 and MPLS, offer up to 13 Mpps forwarding capacity and 14.3 Gb/s of IPSec VPN encrypted throughput to ensure high performance with concurrent services. With the Open Application Platform module, the HPE Networking Comware Router Series MSR3000 offers a wide range of virtualized applications. Its distributed architecture and high reliability also strengthen the resiliency of medium to large branches. The MSR3000 series provides an agile, flexible network infrastructure that enables you to quickly adapt to changing business requirements while delivering integrated concurrent services on a single, easy-to-manage platform.

What is new supporting point:
Enhances security with built-in IPS and stateful firewall, with optional HPE IPS filter subscription.
High-density voice modules and channelized POS access to cover.
Additional features such as ADVPN and hierarchical QoS.
New Serial, GbE and Gig-T SIC modules increase configuration flexibility.

WAN connection
3G/4G USB modem compatibility Yes
SIM card slot No
DSL WAN No
Ethernet WAN Yes
Network
Traffic control Yes
VLAN support Yes
Forwarding rate 8 Mpps
Ethernet LAN data rates 10,100,1000,10000 Mbit/s
Ethernet interface type 10 Gigabit Ethernet, Gigabit Ethernet
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab
Mobile network
Mobile network generation 4G
Management features
Quality of Service (QoS) support Yes
Web-based management Yes
Ports & interfaces
USB ports quantity 1
USB version 2.0
Smart Interface Card (SIC) slots quantity 4
WAN ports quantity 8
WAN/Ethernet LAN ports quantity 8
Ethernet LAN (RJ-45) ports 8
Protocols
DHCP client Yes
DHCP server Yes
Security
MAC address table 500000 entries
Security algorithms 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES
Features
Heat dissipation 168 BTU/h
Internal memory type DDR3
Internal memory 4096 MB
Flash memory 1000 MB
Processor frequency 1800 MHz
Built-in processor Yes
Design
Rack capacity 1U
Rack mounting Yes
Product colour Black
Power
AC input voltage 220 - 240 V
Power source type AC
Power consumption (max) 100 W
Power consumption (typical) 100 W
Operational conditions
Operating relative humidity (H-H) 5 - 90%
Operating temperature (T-T) 0 - 45 °C
Weight & dimensions
Weight 5.9 kg
Height 470 mm
Depth 439 mm
Width 43 mm
