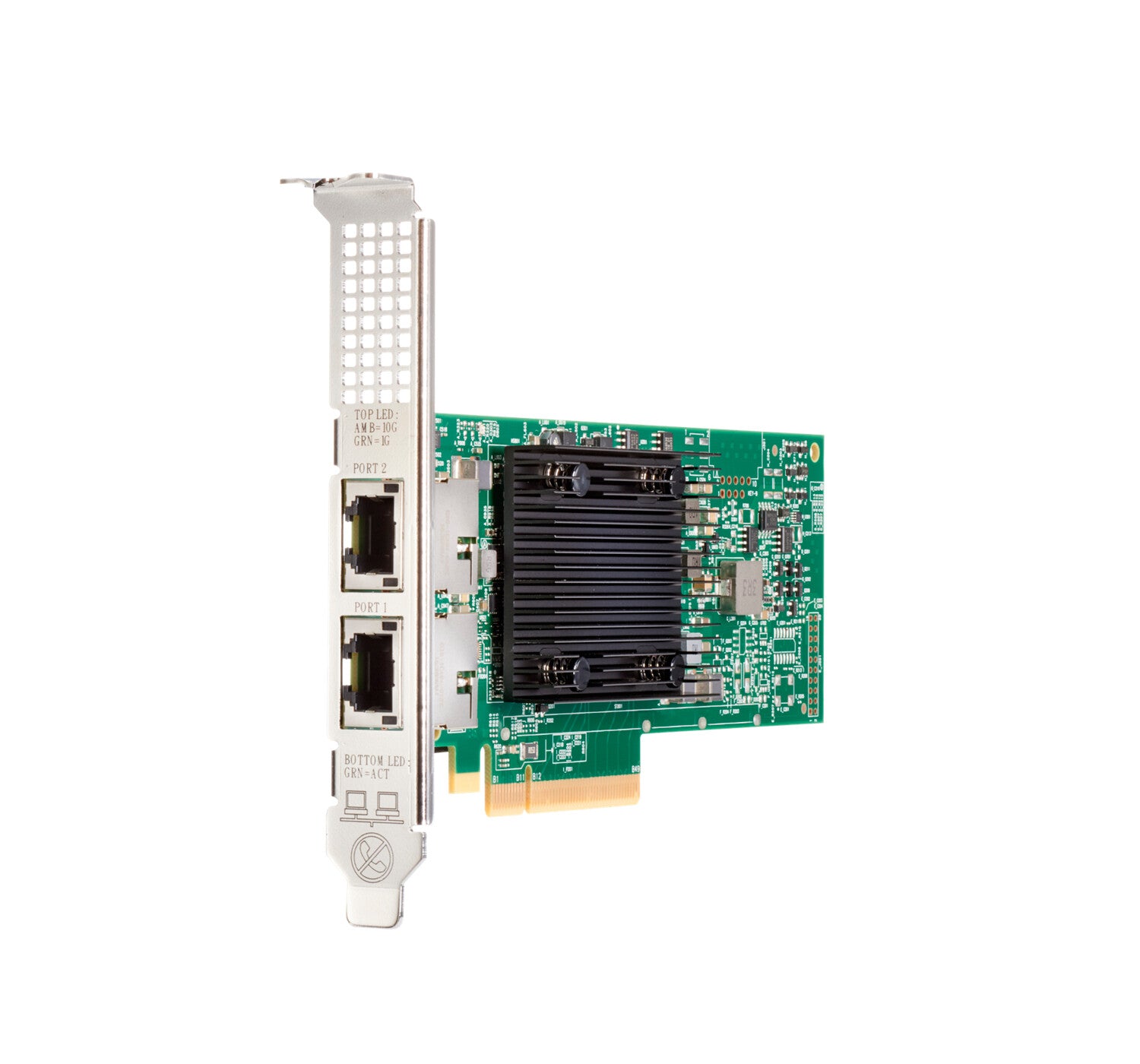

HPE Ethernet 10Gb 2‑port FLR‑T X550‑AT2 Internal 10000 Mbit/s
HPE Ethernet 10Gb 2‑port FLR‑T X550‑AT2 Internal 10000 Mbit/s
Couldn't load pickup availability
SKU:817745-B21-RFB
Low stock: 2 left
- Wired
- PCI Express 3.0 Ethernet
- 10 Gigabit Ethernet 10000 Mbit/s
- Internal Component for: PC/Thin Client/Tablet/Server/Workstation
Are you looking for a simple way to migrate to 10G high performance data center with low cost and low power in your data center? The HPE Ethernet 10Gb 2-port X550-AT2 Adapter deliver high performance and low latency for Ethernet traffic to and from the server with minimal CPU resources required. Processing of I/O packets on the adapter frees up CPU to do other more important tasks. For environments such as Telco/NFV, high-performance computing (HPC) and ecommerce that deal with large volumes of small packet traffic, these adapters accelerate small packet processing by bypassing processing in the host O/S kernel.
Improve Application Performance
- The HPE Ethernet 10Gb 2-port X550-AT2 Adapter offload packet processing to reduce CPU utilization with tunnel offloads (VXLAN and NVGRE). Now you can distribute network traffic across CPU cores in your data center.
- Speeds up packet processing to service more I/O requests utilizing data plane development packet (DPDK).
Increase I/O Bandwidth for Workload Intensive Applications
- The HPE Ethernet 10Gb 2-port X550-AT2 Adapter deliver single root I/O virtualization (SR-IOV) which increases virtual network performance while decreasing CPU utilization.
- Provides a seamless performance upgrade from 1GBASE-T to 10GBASE-T with backward compatibility.
| Ports & interfaces | |
|---|---|
| PCI version | 3.0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1as, IEEE 802.3ad, IEEE 802.3x |
| Maximum data transfer rate | 10000 Mbit/s |
| Design | |
|---|---|
| Compatible products | ProLiant DL20 Gen10ProLiant DL120 Gen10ProLiant DL160 Gen10ProLiant DL180 Gen10ProLiant DL360 Gen10ProLiant DL380 Gen10ProLiant DL560 Gen10ProLiant DL580 Gen10ProLiant DL385 Gen10ProLiant DL325 Gen10Apollo 2000 - XL170r Gen10Apollo 2000 - XL190r Gen10Apollo 4500 - XL450 Gen10 |
| Component for | PC/Thin Client/Tablet/Server/Workstation |
| Internal | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 10.5 W |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -65 - 85 °C |
| Operating temperature (T-T) | 0 - 55 °C |
