Hewlett Packard Enterprise

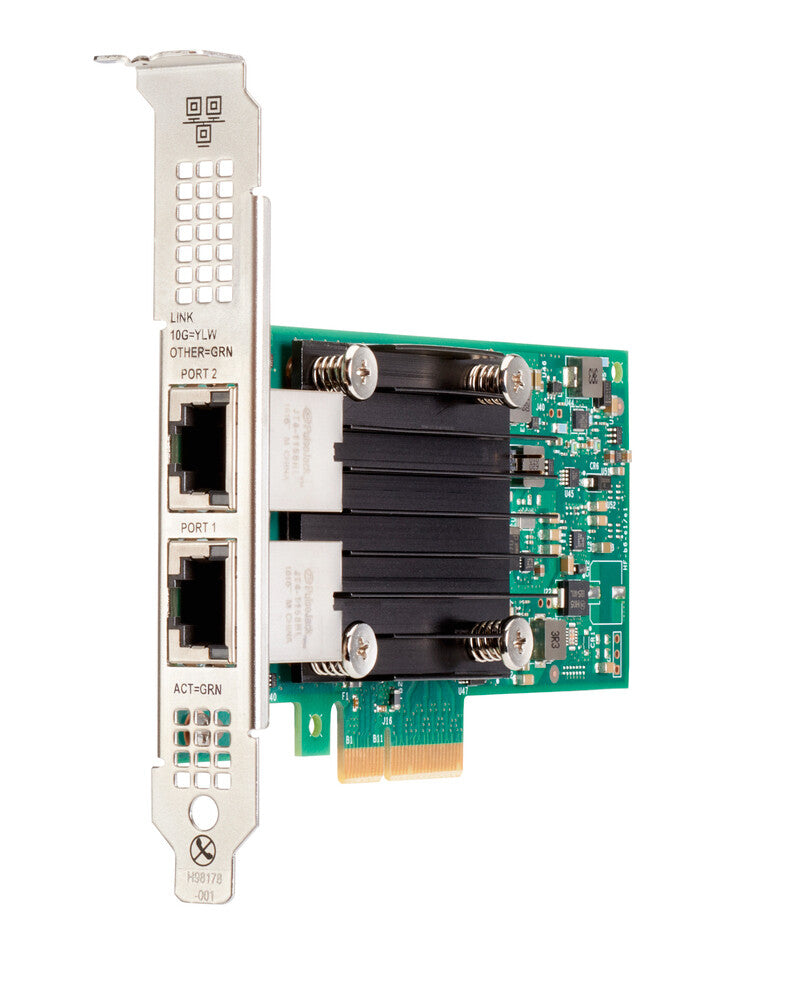

HPE Ethernet 10Gb 2-port BASE-T X550-AT2 Internal 20000 Mbit/s

HPE Ethernet 10Gb 2-port BASE-T X550-AT2 Internal 20000 Mbit/s

Regular price £153.91 GBP
Regular price Sale price £153.91 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:817738-B21-RFB

Low stock: 2 left

  • Wired
  • PCI Express 3.0 Ethernet
  • 10 Gigabit Ethernet 20000 Mbit/s 10GBase-T
  • Internal Component for: Server Chipset: Intel® X550-AT2
Ethernet 10Gb 2-port BASE-T X550-AT2 Adapter, Refurbished

Are you looking for a simple way to migrate to 10G high performance data center with low cost and low power in your data center? The HPE Ethernet 10Gb 2-port 562 Adapters deliver high performance and low latency for Ethernet traffic to and from the server with minimal CPU resources required. Processing of I/O packets on the adapter frees up CPU to do other more important tasks. For environments such as Telco/NFV, high-performance computing (HPC) and ecommerce that deal with large volumes of small packet traffic, these adapters accelerate small packet processing by bypassing processing in the host O/S kernel.

Features

Improve Application Performance
- HPE Ethernet 10Gb 2-port 562 Adapters offload packet processing to reduce CPU utilization with tunnel offloads (VXLAN and NVGRE). Now you can distribute network traffic across CPU cores in your data center.
- Speeds up packet processing to service more I/O requests utilizing data plane development packet (DPDK).

Increase I/O Bandwidth for Workload Intensive Applications
- HPE Ethernet 10Gb 2-port 562 Adapters deliver single root I/O virtualization (SR-IOV) which increases virtual network performance while decreasing CPU utilization.
- Provides a seamless performance upgrade from 1GBASE-T to 10GBASE-T with backward compatibility.

Ports & interfaces
PCI version 3.0
Ethernet LAN (RJ-45) ports 2
Interface Ethernet
Host interface PCI Express
Connectivity technology Wired
Network
Jumbo frames support Yes
Cabling technology 10GBase-T
Ethernet LAN data rates 10000 Mbit/s
Ethernet interface type 10 Gigabit Ethernet
Ethernet LAN Yes
Networking standards IEEE 1588, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1as, IEEE 802.3ad, IEEE 802.3x
Maximum data transfer rate 20000 Mbit/s
Design
Compatible products HPE ProLiant DL120 Gen10 ServerHPE ProLiant DL160 Gen10 ServerHPE ProLiant DL180 Gen10 ServerHPE ProLiant DL360 Gen10 ServerHPE ProLiant DL380 Gen10 ServerHPE ProLiant DL560 Gen10 ServerHPE ProLiant DL580 Gen10 ServerHPE Apollo 2000 - XL170r Gen10 ServerHPE Apollo 2000 - XL190r Gen10 ServerHPE Apollo 4500 - XL450 Gen10 ServerHPE Apollo 6000 – XL230k Gen10 ServerHPE ProLiant ML110 Gen10 ServerHPE ProLiant ML350 Gen10 Server
Chipset Intel® X550-AT2
Component for Server
Internal Yes
Power
Power consumption (typical) 10.5 W
Operational conditions
Storage relative humidity (H-H) 5 - 95%
Operating temperature (T-T) 5 - 60 °C
Technical details
Compliance certificates RoHS
