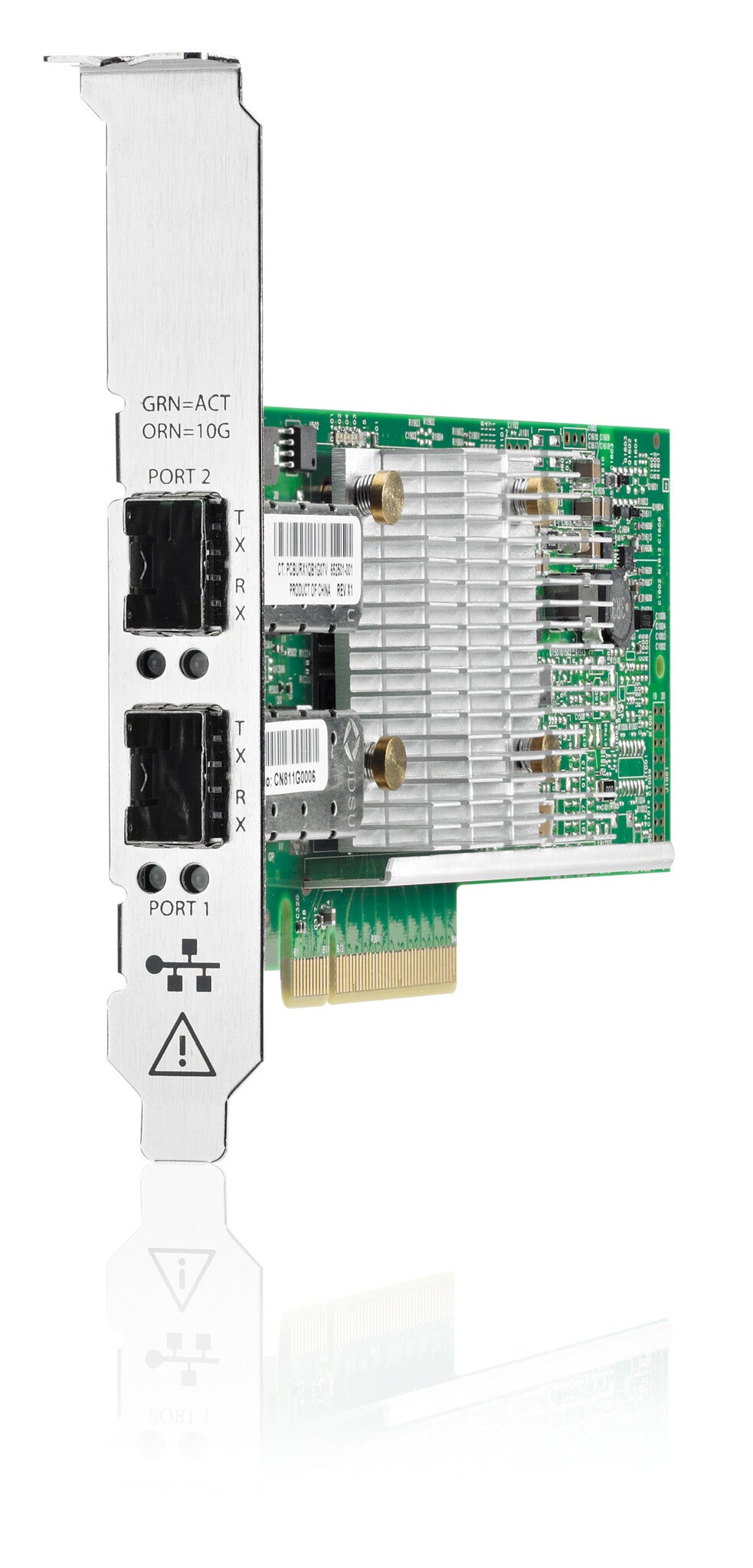

HPE Ethernet 10Gb 2-port 530SFP+ Internal Fiber 20000 Mbit/s

• Wired
• PCI Express 2.0 Fiber
• 20000 Mbit/s
• Internal Component for: Server Chipset: Cavium 57810S

Need a 10Gb Ethernet adapter that’s big on performance small on power? The HPE 530SFP+ is a dual-port 10 Gb Ethernet adapter in a PCIe 2.0 compliant form factor designed for select HPE ProLiant Gen9, Gen8 and Gen7 ML/DL/SL servers. Leveraging HPE’s market-proven architecture and software, the HPE 530SFP+ delivers full line-rate performance across all ports with low power consumption. Support for Hewlett Packard Enterprise Sea of Sensors 3D Technology enhances server performance while reducing energy use and expense.

The HPE 530SFP supports enterprise class features such as VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumbo frames, PXE boot and virtualization features such as VMware NetQueue and Microsoft VMQ.

Features

Dual-port 10 Gb Ethernet Low Profile Adapter Designed for Greater Network Performance
- Ethernet transfer rate of 20 Gbps full duplex per port (40 Gbps aggregate) improves response times and alleviates bottlenecks in next generation data centers.
- Comprehensive stateless offloads optimize host efficiency and virtual machine density by offloading network processes from the host CPU.
- Virtualization support for VMware NetQueue and Microsoft VMQ to meet the performance demands of consolidated virtual workloads. Ready for SR-IOV virtualization.
- Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores.
- TCP/IP Offload Engine (TOE) frees server CPU for other operations.

Power, Performance and Integration are key to this 10Gb Ethernet adapter
- Single-chip solution integrating PHY and MAC.
- Up to 40 Gb/s bi-directional near line rate throughput.
- Less than 8 watts total power dissipation.
