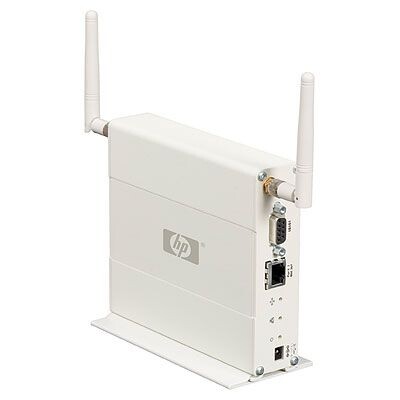

Bridges an Ethernet LAN segment, supporting a wide range of DECnet, IPX, Appletalk and other devices, to 802.11 a/b/g WLAN providing 802.1X PEAP authentication and up to WPA2 security without upgrading the clients.
Enhanced security: - Configurable Ethernet MAC and protocol filters - WPA2, WPA, and WEP - IEEE 802.1X PEAP WLAN authentication - Hardware-assisted AES and RC4 encryption
Location flexibility: - 100 mW radio and antenna diversity provide excellent range - Configurable IEEE 802.11 a/b/g radio with external antenna connectors - Plenum rated - Centrally manageable as part of the HP ProCurve Intelligent Mobility system
1 RJ-45 auto-sensing 10/100 port(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX), Duplex: half or full; 1 RS-232C serial console port
Security
Security algorithms
WPA, WPA2
Management features
Supported protocols
IEEE 802.11a High Speed Physical Layer in the 5 GHz Band; IEEE 802.11b Higher-Speed Physical Layer Extension in the 2.4 GHz Band; IEEE 802.11g Further Higher Data Rate Extension in the 2.4 GHz Band; IEEE 802.11i Medium Access Control (MAC) Security EnhancementsMobility
Power
Power requirements
IEEE 802.3af PoE compliant or 5 VDC from available AC power supply
Power consumption (typical)
5 W
Operational conditions
Non-operating relative humidity (non-condensing)
5 - 95%
Storage temperature (T-T)
-40 - 80 °C
Operating temperature (T-T)
0 - 50 °C
Certificates
Certification
EN 55022 Class B; EN 301 489-1; EN 301 489-17; ICES-003 Class B; FCC Part 15, Class B
Safety
UL 2043; UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1
Electromagnetic compatibility
EN 55022 Class B; EN 60601-1-2; EN 301 489-1; EN 301 489-17; ICES-003 Class B; FCC Part 15, Class B
