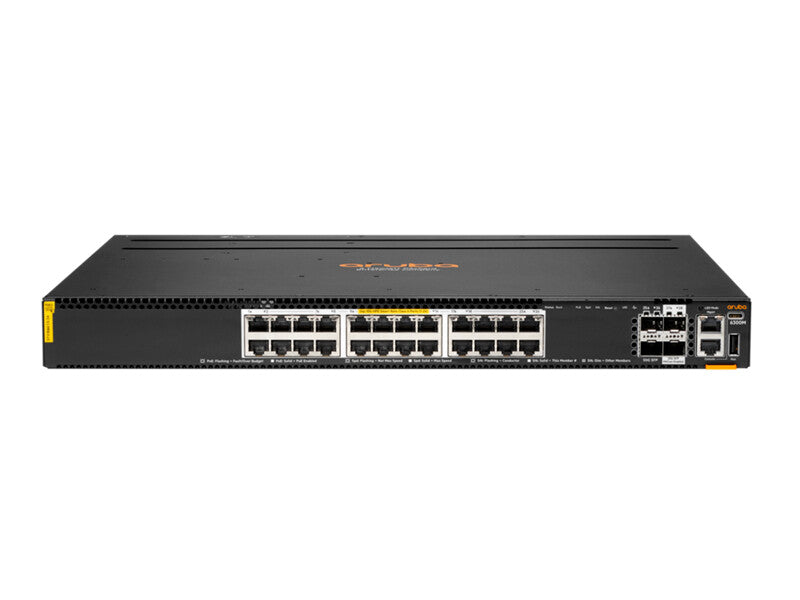

• HPE Aruba Networking R8S89A network switch, Managed, 24-port, Power over Ethernet (PoE), black
1 3

Hewlett Packard Enterprise

HPE Aruba Networking R8S89A network switch Managed 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Black

HPE Aruba Networking R8S89A network switch Managed 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Black

R8S89A

£22,022.79 GBP£18,352.33 GBP
£0.00 GBP £22,022.79 GBP£18,352.33 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 1 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • 24x ports SmartRate 100M/1G/2.5G/5G/10G BaseT Class 6 PoE ports supporting up to 60W per port
  • 2x 10G/25G/50G SFP ports
  • 2x 10G/25G SFP ports (MACSEC)
  • Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W)
  • 1x USB-C Console Port
  • 1x RJ Console Port
  • 1x OOBM port
  • 1x USB Type A Host port
  • 1x Bluetooth dongle to be used with CX Mobile App
6300M 24p HPE Smart Rate 1G/2.5G/5G/10G Class6 PoE and 2p 50G and 2p 25G Switch
Management features
Switch type Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
SFP module slots quantity 4
Console port RJ-45/USB Type-C
Network
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
10G support Yes
Data transmission
Switching capacity 880 Gbit/s
Throughput 660 Mpps
Latency (1 Gbps) 4.24 µs
Latency (10 Gbps) 1.5 µs
Packet buffer memory 8 MB
Design
Product colour Black
general_information_attribute_container_name
attribute_product_family_name Aruba Networking
Performance
Built-in processor Yes
Processor model ARM Cortex-A72
Processor frequency 1.8 MHz
Memory type DDR4-SDRAM
Flash memory 32 MB
Power
Power source AC
Power supply included Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) power per port 60 W
Weight & dimensions
Width 442 mm
Depth 385 mm
Height 44 mm
Weight 6.71 kg
