• HPE Aruba Networking Instant On Switch 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 370 W 1960, Managed, 24-port
1 3

HP

HPE Aruba Networking Networking Instant On Switch 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 370W 1960

HPE Aruba Networking Networking Instant On Switch 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 370W 1960

JL807A

£810.02 GBP£675.02 GBP
£0.00 GBP £810.02 GBP£675.02 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

57 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Managed L2+ Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • 10G support
  • MAC address table: 16000 entries Switching capacity: 128 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • AC Power supply included Power over Ethernet (PoE)

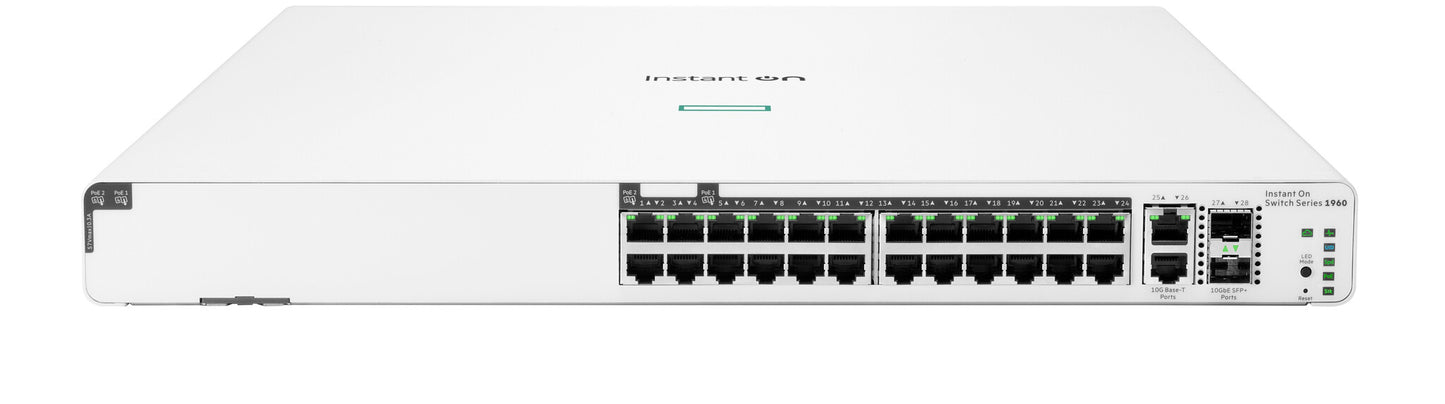

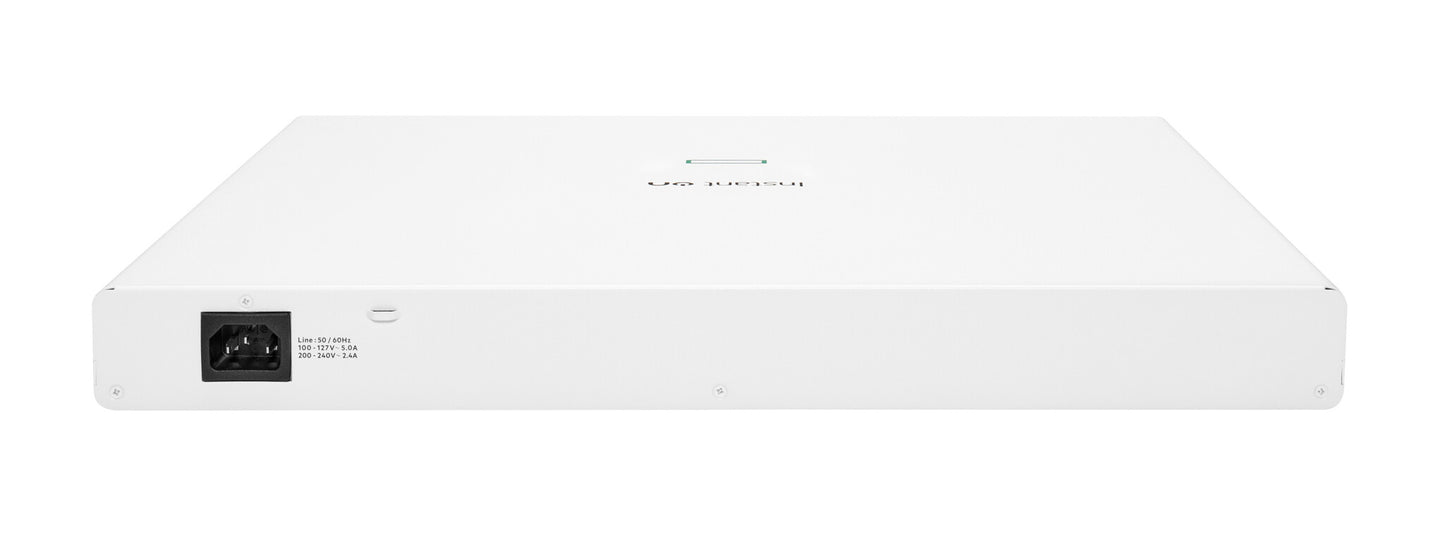

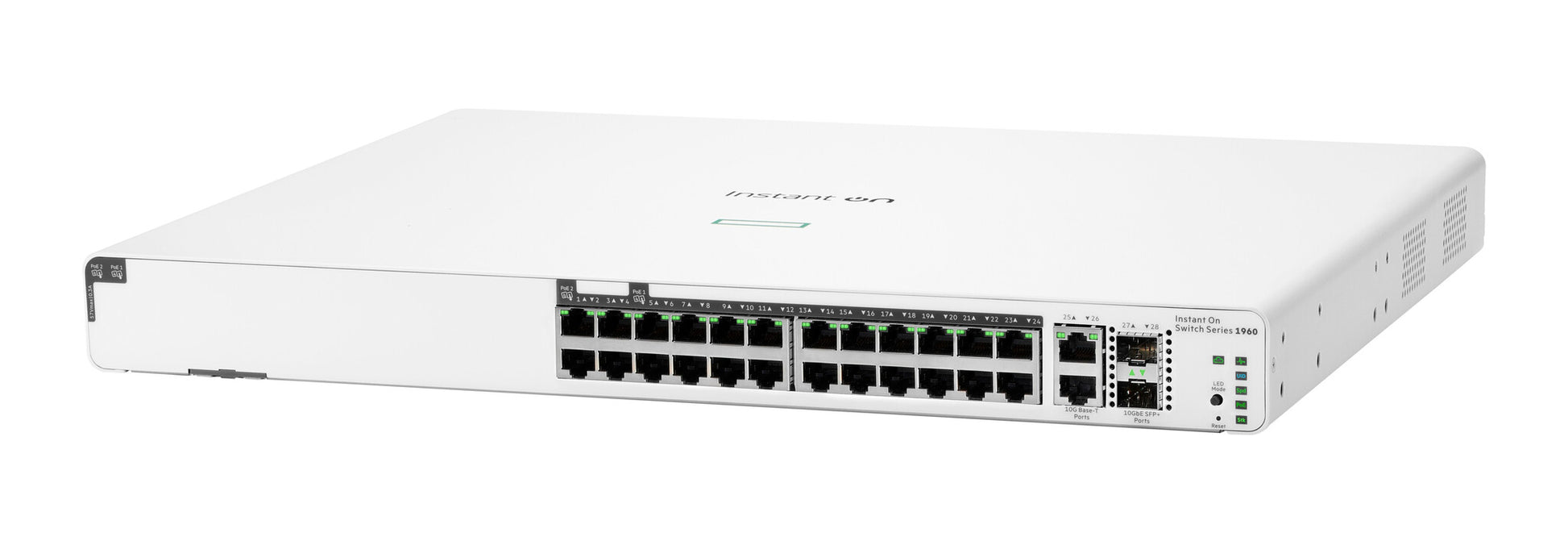

Networking Instant On Switch 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 370W 1960

HPE Networking Instant On Switch 1960 series, consist of advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. The Instant On 1960 switches are made to handle the today bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.

What is new supporting point:
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
For environments with heavy bandwidth needs, 10 GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
The Networking Instant On 1960 aggregation switches comes with twelve 10 GBase-T and four SFP+ ports, providing 10 G connectivity to servers, network storage devices and access switches alike.
Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.
Simplify network management by stacking up to four Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.

Management features
Switch type Managed
Switch layer L2+
Quality of Service (QoS) support Yes
Cloud-managed Yes
Web-based management Yes
ARP inspection Yes
System event log Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
10G Ethernet (copper) ports quantity 2
SFP+ module slots quantity 2
Network
Networking standards IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3z
10G support Yes
Port mirroring Yes
Full duplex Yes
Auto-sensing Yes
Rate limiting Yes
Spanning tree protocol Yes
Link aggregation Yes
Auto MDI/MDI-X Yes
Flow control support Yes
VLAN support Yes
Data transmission
MAC address table 16000 entries
Switching capacity 128 Gbit/s
Throughput 95 Mpps
Latency (10-100 Mbps) 4.4 µs
Latency (1 Gbps) 2.2 µs
Latency (10 Gbps) 1.1 µs
Jumbo frames support Yes
Jumbo frames 9216
Packet buffer memory 1.5 MB
Security
DHCP features DHCP snooping
Access Control List (ACL) Yes
IGMP snooping Yes
Authentication Port-based authentication
SSH/SSL support Yes
Authentication type RADIUS
Multicast features
Multicast support Yes
Protocols
IPv4 & IPv6 features IPv4/IPv6 access-control list (ACL)
IPv4 FIB entries 32
IPv6 FIB entries 32
Design
Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour White
general_information_attribute_container_name
attribute_product_family_name Aruba Networking
Performance
Physical stacking (units) 4
Built-in processor Yes
Processor model ARM Cortex-A9
Processor frequency 800 MHz
Memory type DDR3-SDRAM
Internal memory 1024 MB
Flash memory 512 MB
Power
Power source AC
Power supply included Yes
AC input voltage 200 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (max) 480 W
Power consumption note Maximum: 100-127V: 500W 200-220V: 480W Idle: 100-127V: 40W 200-220V: 80W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Total Power over Ethernet (PoE) budget 370 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 15 - 95%
Storage relative humidity (H-H) 15 - 90%
Operating altitude 0 - 3000 m
Weight & dimensions
Width 350.5 mm
Depth 442.5 mm
Height 44 mm
Weight 4.7 kg
Logistics data
Harmonized System (HS) code 85176990
Other features
Memory and processor Single-Core ARM v7 Cortex-A9 @800 MHz; 1 GB DDR3; 512 MB NAND flash; Packet buffer size: 1.5 MB
Performance management HPE Networking Instant On Cloud; Web browser; SNMP Manager
Weight (imperial) 4.72 kg (10.4 lbs)
I/O ports 24 RJ-45 autosensing 10/100/1000 BASE-T ports with 4 ports of IEEE 802.af/at/bt CL6 PoE and 20 ports of IEEE 802.af/at CL4 PoE (IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T, IEEE 802.an 10 GBASE-T); Duplex: 100 BASE-TX: half or full; 1000 BASE-T: full only 10 GBASE-T: full only 2 SFP+ 10 GbE ports 2 RJ-45 autosensing 100/1000/10 GBASE-T ports
