Hewlett Packard Enterprise

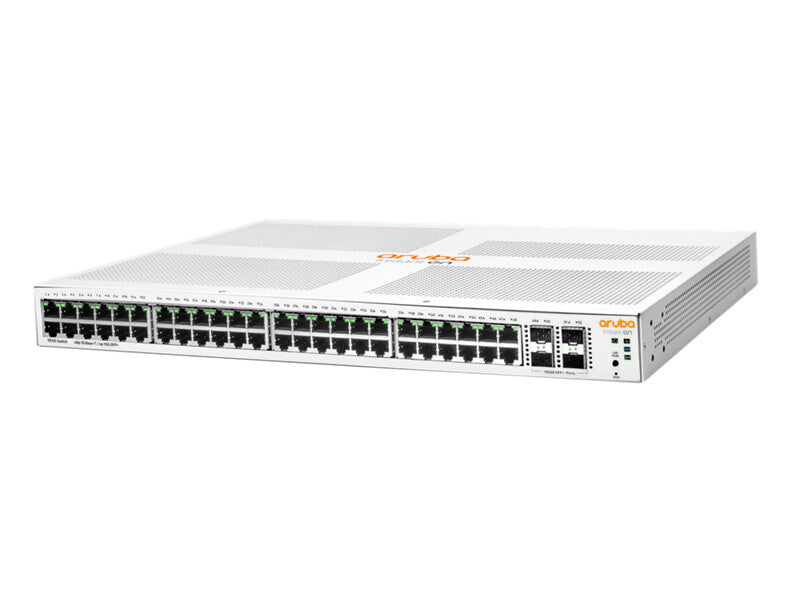

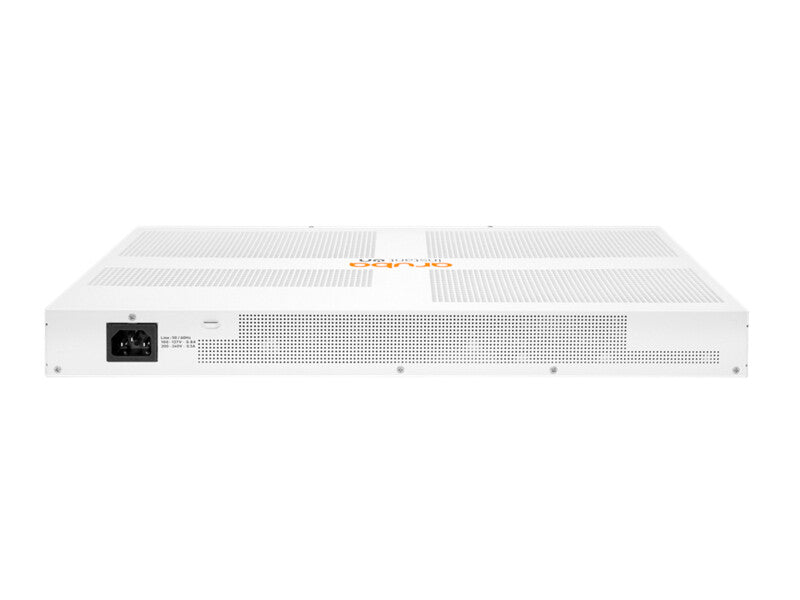

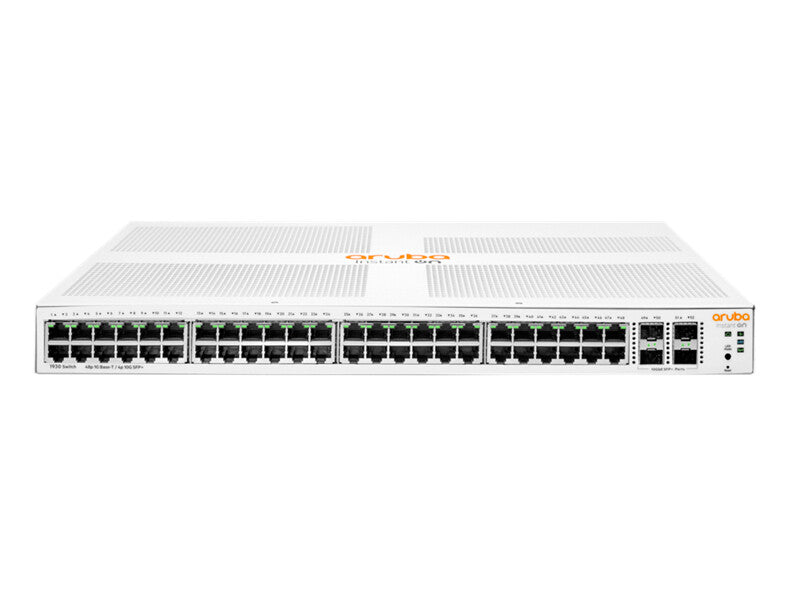

HPE Aruba Networking JL685A network switch Managed Gigabit Ethernet (10/100/1000) 1U White

HPE Aruba Networking JL685A network switch Managed Gigabit Ethernet (10/100/1000) 1U White

£386.69 GBP
£386.69 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

JL685A

Low stock: 1 left

  • Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity
  • Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility
  • 1G/10G SFP+ ports on 24-and 48-port models for fiber connectivity
  • Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely
  • Option to manage your switches through local web GUI
  • Limited Lifetime Warranty
Aruba Instant On 1930 48G 4SFP/SFP+ Switch, 100 - 127 / 200 - 240 VAC, ARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer

DifferentiatorAdvanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 48 10/100/1000 RJ-45 and 4 SFP 1/10GbE ports.

Management features
Switch type Managed
Quality of Service (QoS) support Yes
Cloud-managed Yes
Web-based management Yes
ARP inspection Yes
System event log Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 4
Network
10G support No
Copper ethernet cabling technology 1000BASE-T
Port mirroring Yes
IP routing Yes
Full duplex Yes
Routing entries 32
Active link detection Yes
Auto-sensing Yes
Rate limiting Yes
Ethernet LAN data rates 10,1000,100 Mbit/s
Spanning tree protocol Yes
Link aggregation Yes
Flow control support Yes
VLAN support Yes
Number of VLANs 4093
Data transmission
MAC address table 16000 entries
Switching capacity 176 Gbit/s
Throughput 130.95 Mpps
Security
DHCP features DHCP client, DHCP snooping
Access Control List (ACL) Yes
IGMP snooping Yes
Loop protection Yes
BPDU filtering/protection Yes
SSH/SSL support Yes
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour White
general_information_attribute_container_name
attribute_product_family_name Aruba Networking
Performance
Built-in processor Yes
Processor model ARM Cortex-A9
Processor frequency 800 MHz
Memory type SDRAM / Flash
Internal memory 512 MB
Flash memory 256 MB
Power
Power source AC
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Input current 0.2 A
Power consumption (max) 36.9 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Weight & dimensions
Width 442.5 mm
Depth 282.5 mm
Height 43.9 mm
Weight 3.13 kg
