Hewlett Packard Enterprise

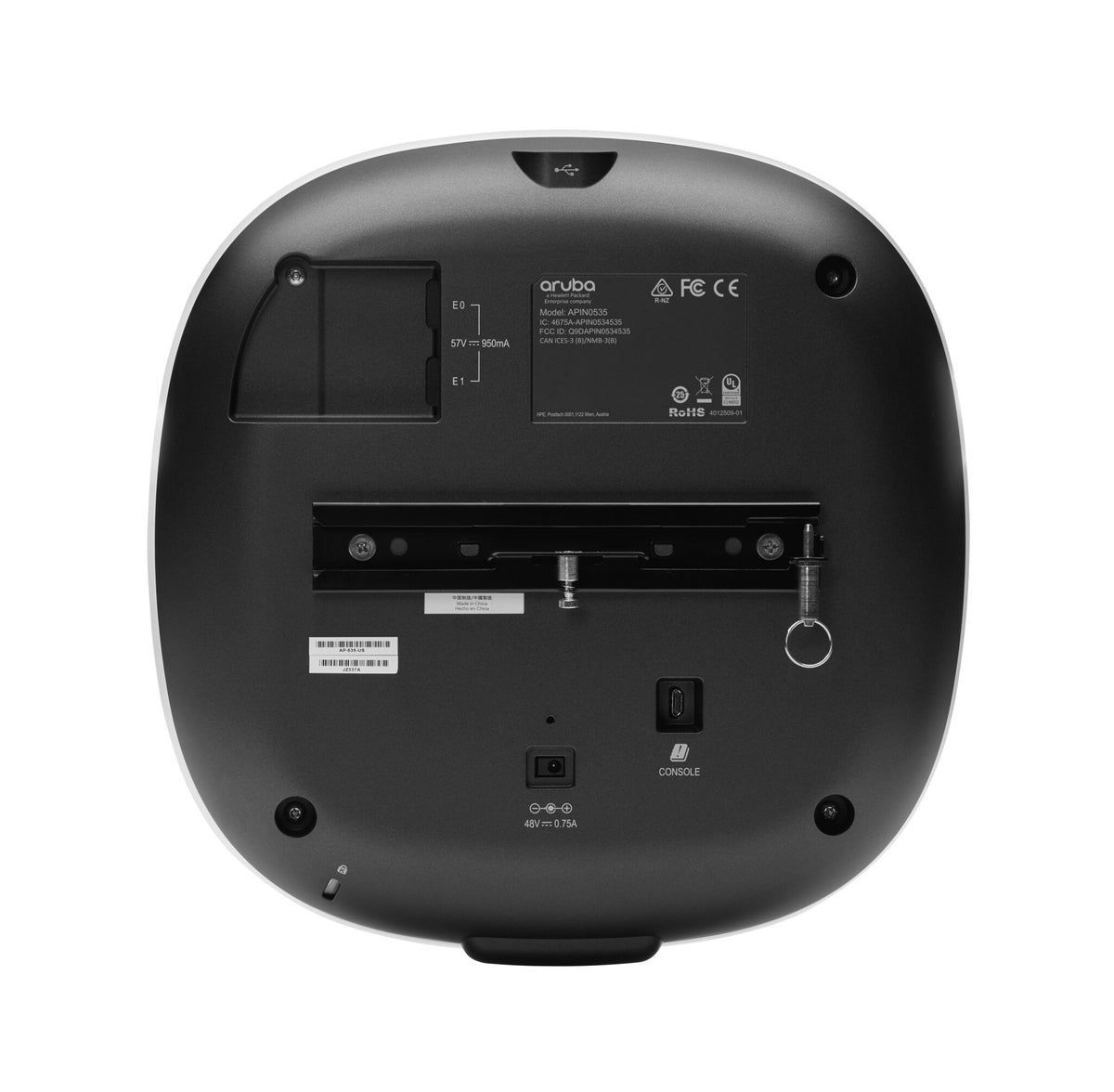

HPE Aruba Networking Aruba AP-535 (RW) 3550 Mbit/s White Power over Ethernet (PoE)

HPE Aruba Networking Aruba AP-535 (RW) 3550 Mbit/s White Power over Ethernet (PoE)

£766.08 GBP
£766.08 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

JZ336A

52 in stock

  • 2.4 GHz 1148 Mbit/s
  • 5 GHz 2402 Mbit/s
  • Maximum data transfer rate: 3550 Mbit/s
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3z
  • WMM, WPA, WPA2
  • Power over Ethernet (PoE)
  • Antennas quantity: 4 Internal Integrated antenna
Aruba AP-535 (RW) Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP

The Aruba 530 Series with 802.11ax (Wi-Fi 6), combined with Aruba intelligent software features are designed to deliver high performance connectivity in extreme density deployments of mobile and IoT devices.

The 530 Series is designed to simultaneously serve multiple clients and types of traffic, boosting overall network performance by up to 4X versus 802.11ac APs.

In addition to 802.11ax benefits, the 530 Series also provide Aruba differentiated capabilities that include AI-powered RF optimization, always-on connectivity and WPA3 certified security.

Additionally, Green AP mode for 802.11ax APs also leverages AI/ML capabilities for energy savings of up to 70%.

Enhanced performance
Aruba's ClientMatch feature intelligently groups Wi-Fi 6 clients onto the best AP's to leverage 802.11ax multi-user capabilities.

Smart power management
Aruba Intelligent Power Monitoring (IPM) allows APs to operate even if existing Ethernet switches lack adequate PoE power.

IoT and location ready
Leverage your Wi-Fi infrastructure to support Zigbee and Bluetooth use cases, devices and applications.

Features
Modulation 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Spread spectrum method DSSS, OFDM
MIMO Yes
Auto MDI/MDI-X Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3z
Ethernet LAN data rates 100,1000,2500,5000 Mbit/s
Maximum data transfer rate (5 GHz) 2402 Mbit/s
Maximum data transfer rate (2.4 GHz) 1148 Mbit/s
Maximum data transfer rate 3550 Mbit/s
5 GHz Yes
2.4 GHz Yes
Security
Security algorithms WMM, WPA, WPA2
Ports & interfaces
USB connector type USB Type-A
USB 2.0 ports quantity 1
Ethernet LAN (RJ-45) ports 2
Power
Power consumption (max) 23.3 W
Power over Ethernet (PoE) Yes
Design
Cable lock slot type Kensington
Cable lock slot Yes
Product colour White
Placement Ceiling, Wall
Antenna
Antenna gain level (max) 5.4 dBi
Antennas quantity 4
Antenna features Integrated antenna
Antenna direction type Omni-directional
Antenna type Internal
general_information_attribute_container_name
attribute_product_family_name Aruba Networking
Weight & dimensions
Weight 1.27 kg
Height 57 mm
Depth 240 mm
Width 240 mm
Operational conditions
Storage relative humidity (H-H) 5 - 93%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 5 - 93%
Logistics data
Harmonized System (HS) code 85176990
