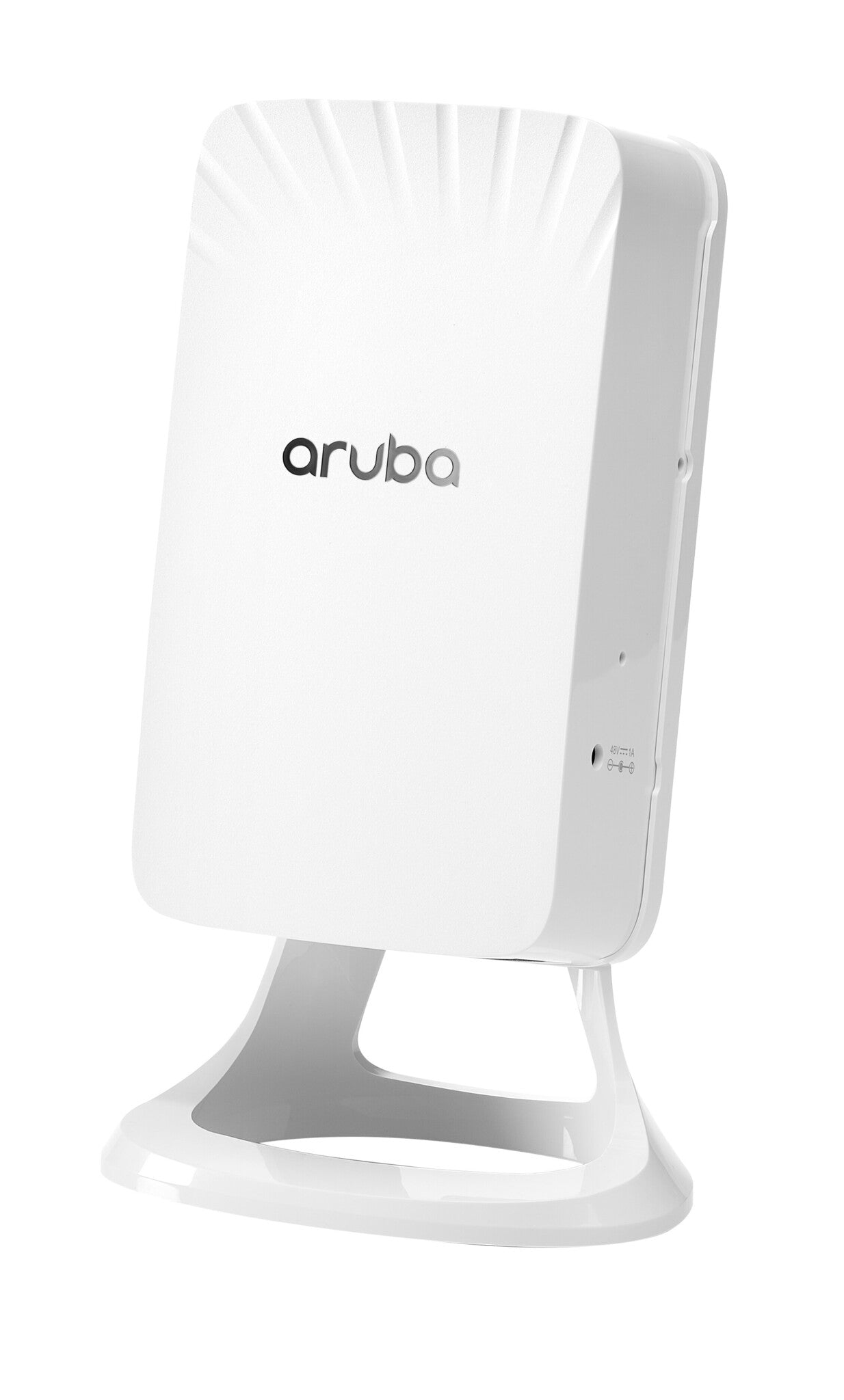

HPE Aruba Networking Aruba AP-505H (RW) 1487 Mbit/s White Power over Ethernet (PoE)
HPE Aruba Networking Aruba AP-505H (RW) 1487 Mbit/s White Power over Ethernet (PoE)
SKU:R3V46A
Low stock: 1 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 2.4 GHz 287 Mbit/s
- 5 GHz 1200 Mbit/s
- Maximum data transfer rate: 1487 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz
- WPA, WPA2, WPA3
- Power over Ethernet (PoE)
- Antennas quantity: 2 Internal Integrated antenna
The Aruba 500H series access points, with Wi-Fi 6 (802.11ax) technology and Aruba’s intelligent software innovations, deliver high performance connectivity for mobile and IoT devices in any environment.
The 500H series is designed to simultaneously serve multiple clients and traffic types in dense environments, and boosts overall network performance by up to 400% compared to 802.11ac APs.
The 500H series includes AI-powered RF optimization, Live upgrades, WPA3 and Enhanced Open certified security, and unified wired and wireless policy with Dynamic Segmentation.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1487 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 287 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Security | |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 50 W |
| Design | |
|---|---|
| Placement | Table, Wall |
| Product colour | White |
| Antenna | |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Semi-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5.4 dBi |
| general_information_attribute_container_name | |
|---|---|
| attribute_product_family_name | Aruba Networking |
| Weight & dimensions | |
|---|---|
| Width | 86 mm |
| Depth | 47 mm |
| Height | 150 mm |
| Weight | 360 g |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
