Hewlett Packard Enterprise

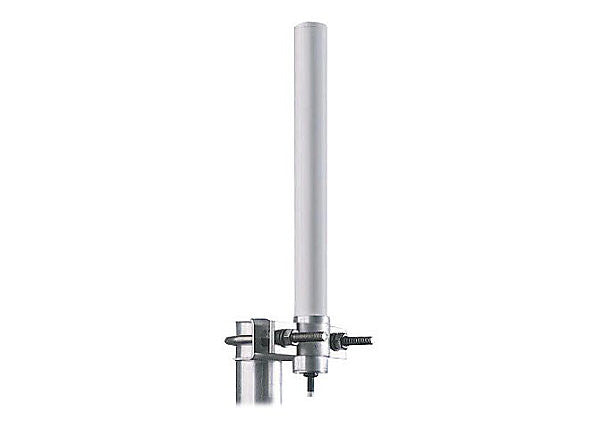

HPE Aruba Networking AP-ANT-19 network antenna Omni-directional antenna RP-SMA 6 dBi

HPE Aruba Networking AP-ANT-19 network antenna Omni-directional antenna RP-SMA 6 dBi

£129.74 GBP
£129.74 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

AP-ANT-19

Low stock: 3 left

  • Omni-directional antenna RP-SMA White
  • 6 dBi
  • 2.4 - 2.5 / 5.1 - 5.875 GHz
  • 50 Ω
  • Vertical polarization
  • Pole
Indoor/Outdoor, 2.4GHz / 5GHz, 802.11b/a/g/n

The wideband AP-ANT-19 antenna offers full-band coverage for 802.11b/a/g/n and includes all hardware required to mount indoors or outdoors. The antenna provides the “no compromise” performance expected from a single-band radio system in a dual-band radio.

While many dual-band antennas are a compromise between the two operating bands, the AP-ANT-19 provides full-band coverage and omnidirectional coverage over both bands.

Performance
Vertical beam width (5 GHz) 20°
Horizontal beam width (5 GHz) 360°
Vertical beam width (2.4 GHz) 50°
Horizontal beam width (2.4 GHz) 360°
Impedance 50 Ω
Antenna gain (2.4 GHz) 3 dBi
Antenna gain (5 GHz) 6 dBi
Networking standards IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency band 2.4 - 2.5 / 5.1 - 5.875 GHz
Antenna gain level (max) 6 dBi
Features
Product colour White
Housing material Polycarbonate (PC)
Mounting Pole
Purpose Indoor & outdoor
Cable length 0.914 m
Voltage Standing Wave Ratio (VSWR) 2.0:1
Polarization Vertical polarization
Antenna connector type RP-SMA
Antenna type Omni-directional antenna
general_information_attribute_container_name
attribute_product_family_name Aruba Networking
Operational conditions
Operating temperature (T-T) -40 - 70 °C
Weight & dimensions
Weight 140 g
Height 245 mm
Packaging content
Quantity per pack 1 pc(s)
