Hewlett Packard Enterprise

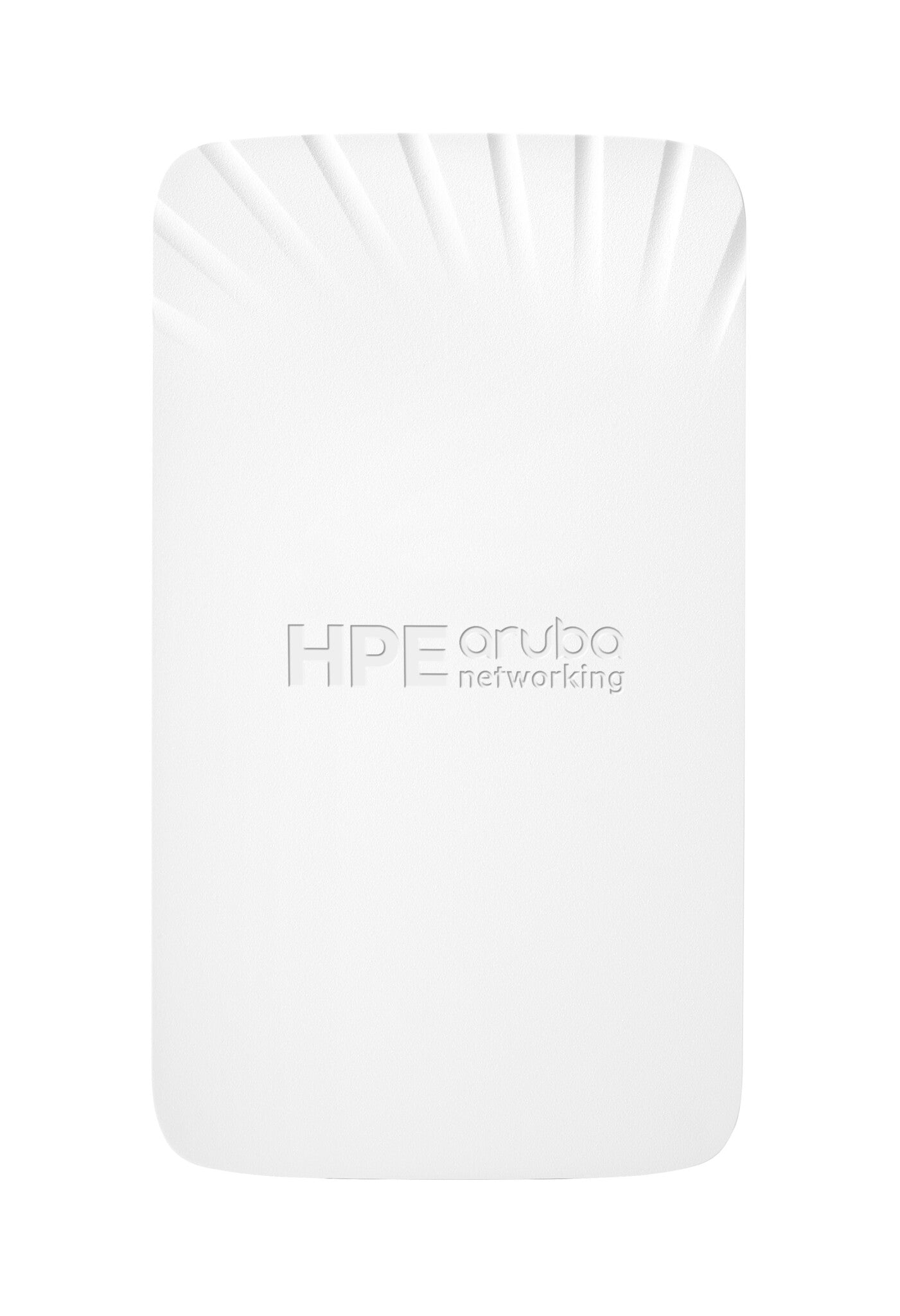

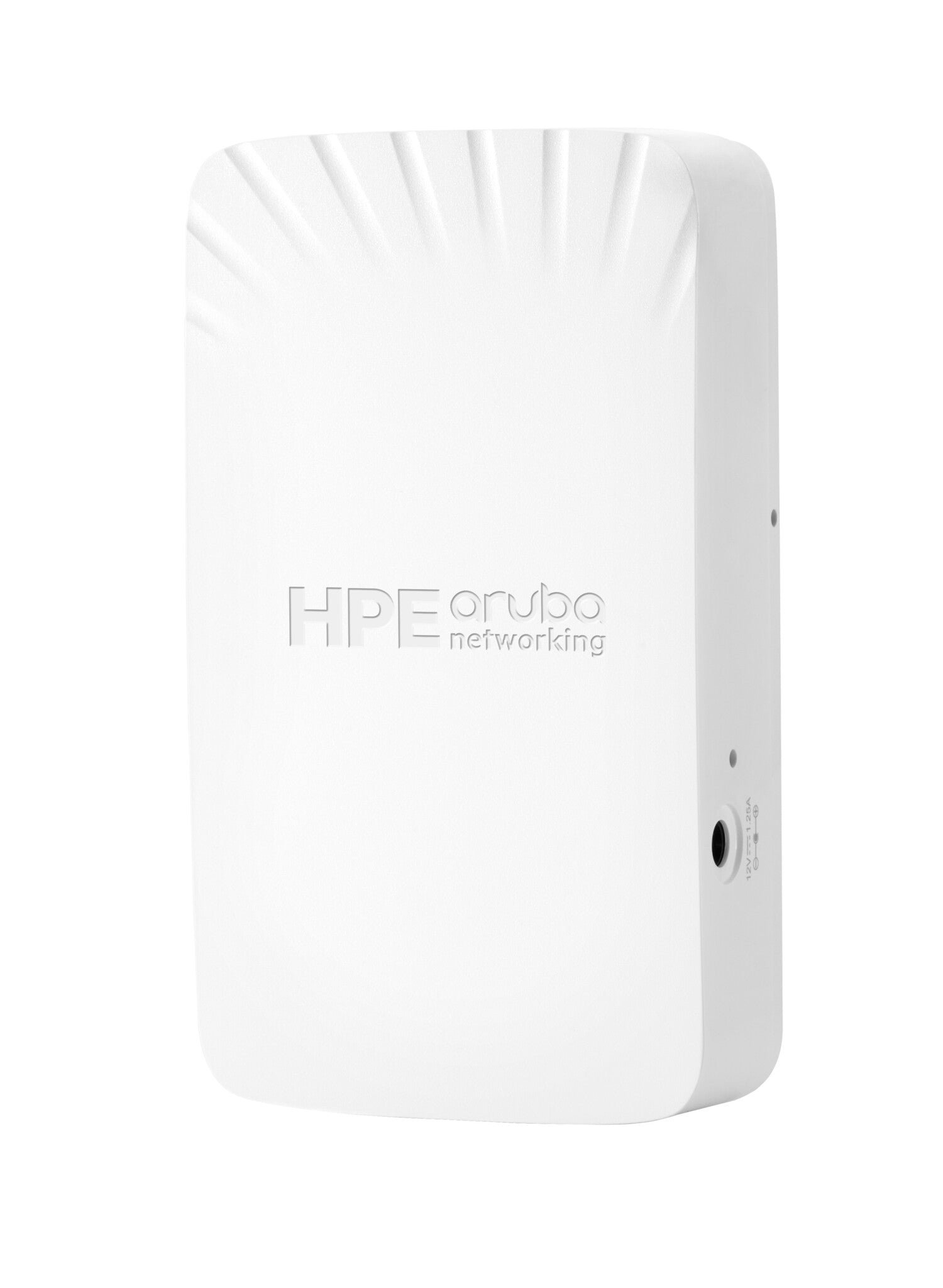

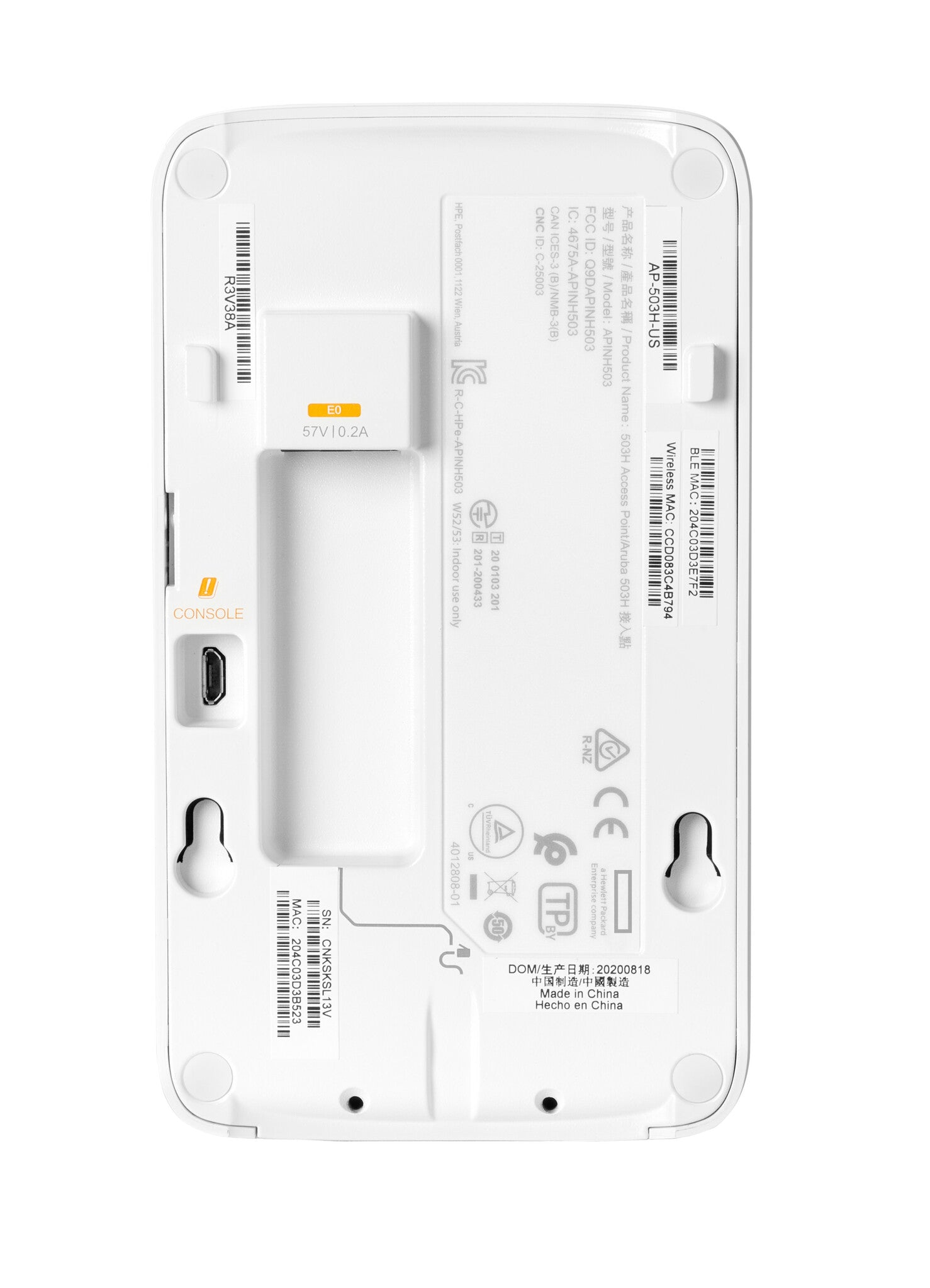

HPE Aruba Networking AP-503H (RW) Dual Radio 802.11ax 2x2 1+2 Ethernet Unified TAA Hospitality AP

HPE Aruba Networking AP-503H (RW) Dual Radio 802.11ax 2x2 1+2 Ethernet Unified TAA Hospitality AP

Regular price £525.91 GBP
Regular price Sale price £525.91 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:R3V37A

9876 in stock

  • 2.4 GHz 287 Mbit/s
  • 5 GHz 1200 Mbit/s
  • Maximum data transfer rate: 1487 Mbit/s
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3az
  • WPA2, WPA3
  • Power over Ethernet (PoE)
  • Antennas quantity: 2 Internal Integrated antenna
Aruba Networking AP-503H (RW) Dual Radio 802.11ax 2x2 1+2 Ethernet Unified TAA Hospitality AP

HPE Aruba Networking 500H Series Unified Hospitality Access Points delivers cost-effective Wi-Fi 6 coverage in a compact form factor that is ideal for hotels, residence halls, and remote offices. With 1.5 Gbps maximum combined speed, Zero Touch Provisioning, and wired ports, the 500H Series is ready to improve wireless experiences for guests, employees, students, and teleworkers. The 500H Series is Wi-Fi CERTIFIED™ and supports 802.11ax features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 500H Series includes a limited lifetime warranty.

What is new supporting point:
You can customize deployment with optional desktop stand and models that offer choice of wired connectivity, USB, and PoE out support.
Zero Touch Provisioning that provides ease of implementation in branch offices and remote sites, without on-site technical expertise.
Cost-effective Wi-Fi 6 hospitality access points provide up to 1.5 Gbps maximum combined data rate with a range of connectivity options for venues such as hotels, residence halls, and remote offices.
The AP provides supports for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security.
The AP provides IoT-ready Bluetooth 5 and Zigbee support.
Dynamic Segmentation and policy enforcement firewalls (PEF) automatically enforce consistent policies across all networks, enhancing user and device security.

Features
Modulation 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Spread spectrum method DSSS, OFDM, OFDMA
MIMO type Multi User MIMO
MIMO Yes
Auto MDI/MDI-X Yes
Bluetooth version 5.0
Bluetooth Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3az
Ethernet LAN data rates 10,100,1000 Mbit/s
Maximum data transfer rate (5 GHz) 1200 Mbit/s
Maximum data transfer rate (2.4 GHz) 287 Mbit/s
Maximum data transfer rate 1487 Mbit/s
5 GHz Yes
2.4 GHz Yes
Security
Security algorithms WPA2, WPA3
Ports & interfaces
USB connector type Micro-USB B
Ethernet LAN (RJ-45) ports 2
Power
Power consumption (typical) 10 W
Power over Ethernet (PoE) Yes
Design
Certification None
Product colour White
Placement Table, Wall
Antenna
Antenna gain level (max) 5.6 dBi
Antennas quantity 2
Antenna features Integrated antenna
Antenna direction type Semi-directional
Antenna type Internal
general_information_attribute_container_name
attribute_product_family_name Aruba Networking
Technical details
Compliance certificates Low Voltage Directive (LVD)
Weight & dimensions
Weight 360 g
Height 150 mm
Depth 47 mm
Width 86 mm
Operational conditions
Storage relative humidity (H-H) 5 - 93%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 93%
