HP

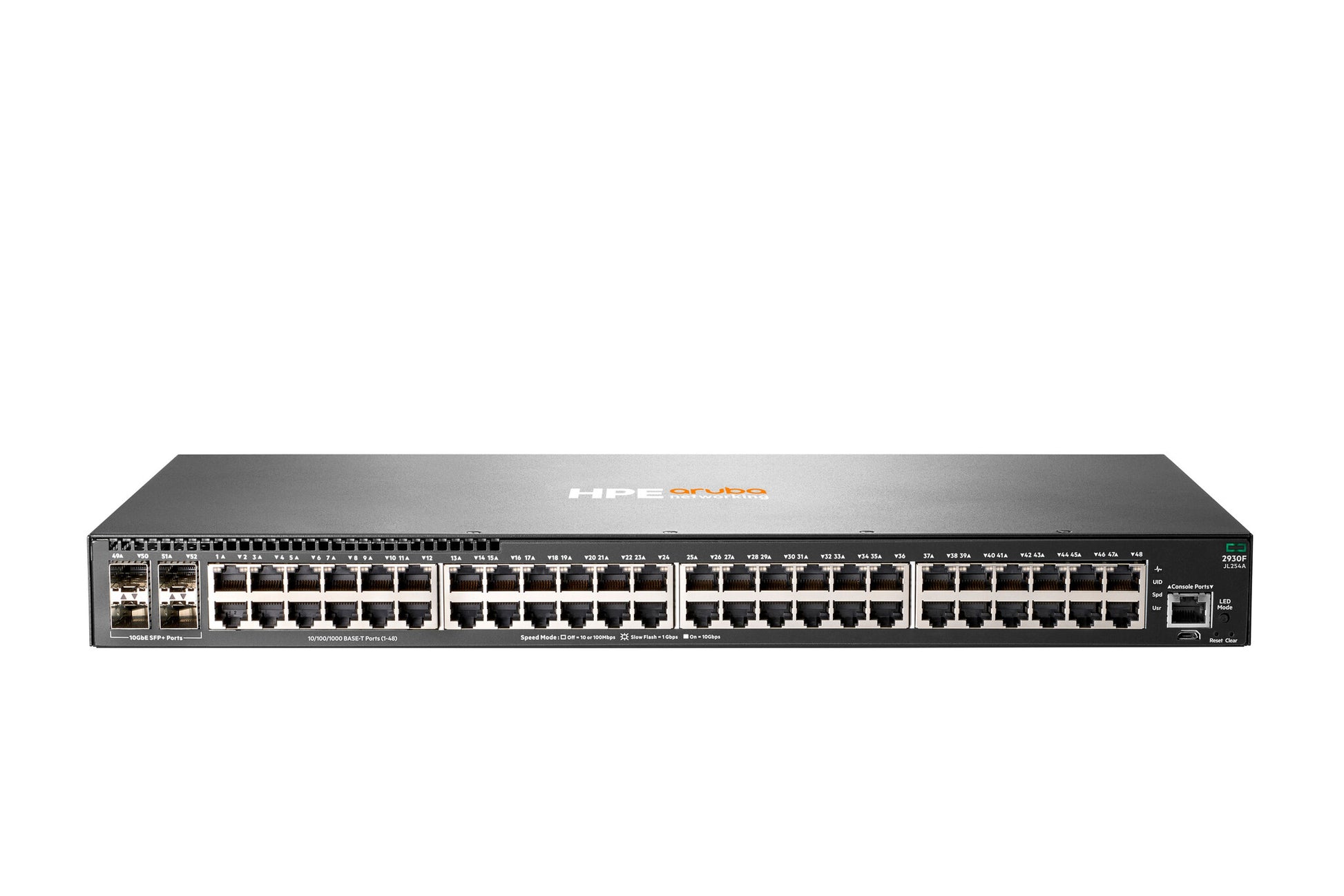

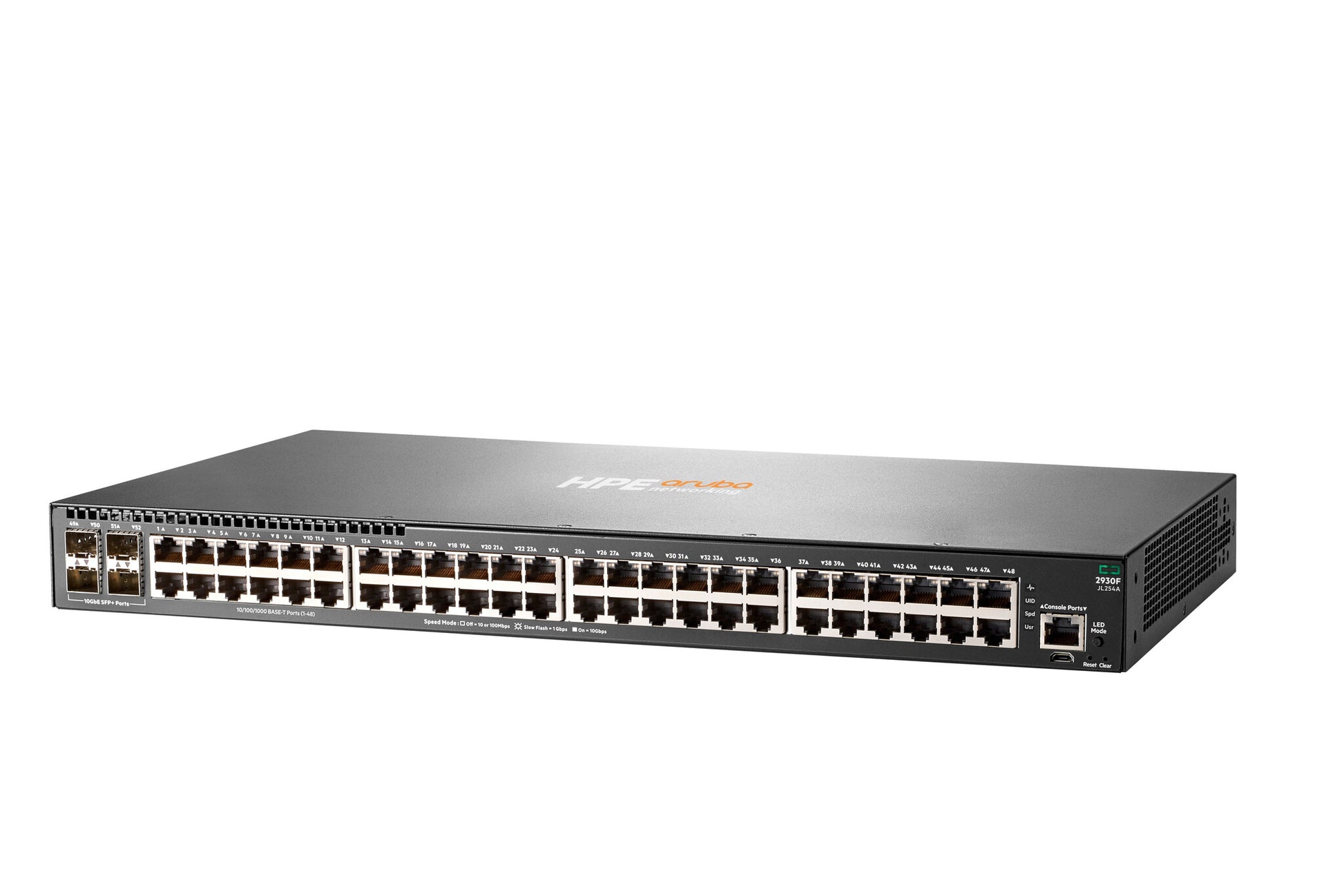

HPE Aruba Networking 2930F 48G 4SFP+ Switch
HPE Aruba Networking 2930F 48G 4SFP+ Switch
SKU:JL254A
Low stock: 1 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Managed L3 Web-based management SNMPv1, SNMPv2, SNMPv3, Telnet, RMON1, FTP
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45/micro-USB
- 10G support
- MAC address table: 32768 entries Switching capacity: 176 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC Power supply included
The HPE Aruba Networking 2930F Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (AirWave) and cloud-based HPE Aruba Networking Central. HPE Aruba Networking Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10 GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
What is new supporting point:
Convenient built-in 1 GbE or 10 GbE uplinks and up to 740W PoE+.
Scale with 8-member stacking.
Simplify with Zero Touch Provisioning (ZTP) and cloud-based HPE Aruba Networking Central support.
The HPE Aruba Networking 2930F Switch Series is a family of Layer 3 stackable switches that are easy to deploy and manage, providing scale for enterprise, SMB and branch access networks.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45/micro-USB |
| Network | |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| IP routing | Yes |
| Half duplex | Yes |
| Auto-sensing | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Data transmission | |
|---|---|
| MAC address table | 32768 entries |
| Switching capacity | 176 Gbit/s |
| Throughput | 112 Mpps |
| Latency (1 Gbps) | 3.8 µs |
| Latency (10 Gbps) | 1.6 µs |
| Packet buffer memory | 12.38 MB |
| Security | |
|---|---|
| Access Control List (ACL) | Yes |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| Authentication type | RADIUS, TACACS+ |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMPv1, SNMPv2, SNMPv3, Telnet, RMON1, FTP |
| Routing protocols | RIPng, VRRP |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Airflow direction | Side-to-side airflow |
| general_information_attribute_container_name | |
|---|---|
| attribute_product_family_name | Aruba Networking |
| Performance | |
|---|---|
| Virtual stacking (units) | 8 |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 4096 MB |
| Power | |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 46.6 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 95% |
| Heat dissipation | 157.2 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Height | 246.3 mm |
| Weight | 3.1 kg |
