Hewlett Packard Enterprise

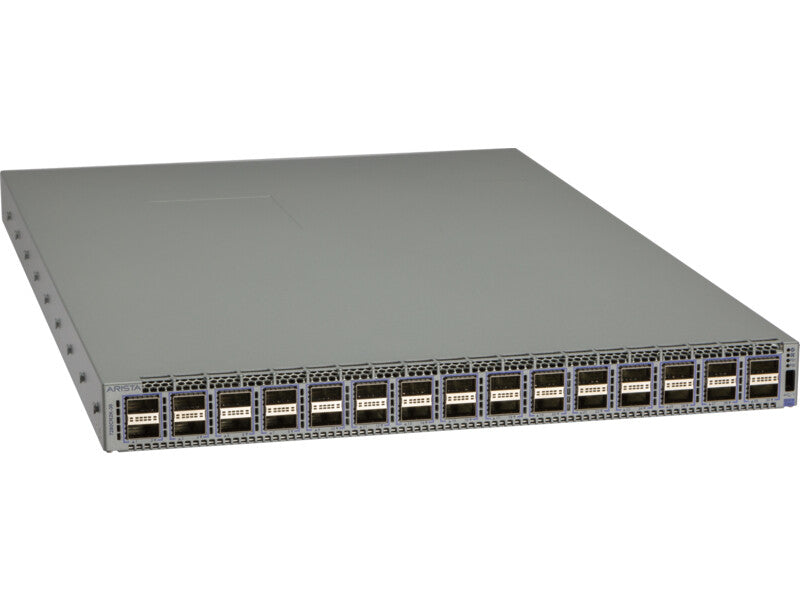

HPE Arista 7280R2 Managed L3 1U Grey

HPE Arista 7280R2 Managed L3 1U Grey

Regular price £104,754.89 GBP
Regular price Sale price £104,754.89 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:JQ208A

9976 in stock

  • Managed L3
  • Quality of Service (QoS) support
  • Console port: RS-232
  • 10G support
  • MAC address table: 768000 entries
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • Power supply included
Arista 7280R2 30QSFP28 Algomatch-2 Expanded L3 Front-to-Back AC Switch

The Arista 7280R Data Center Switch Router Series are designed for storage, content delivery, leaf and spine networks and data center interconnects. This solution’s fixed-configuration switches combine dynamic and deep buffering for lossless forwarding with high density, internet scale table sizes and comprehensive Layer 2 and Layer 3 features. Advanced Extensible Operating System (EOS) features for network monitoring, precision timing, VXLAN network virtualization and rich automation are combined with extensive hardware resources. A choice of density and interface types allows this router series to address the myriad different applications and traffic patterns found in modern data centers.

What's new
- Dynamic Deep Buffers and Virtual Output Queing (VOQ) for lossless forwarding.
- Flexible design choices for delivering 10GbE, 25Gbe, 40GbE, 50GbE and 100GbE.
- Arista FlexRoute and EOS NetDB for Internet peering with high density and low power.
- Arista AlgoMatch for flexible and scalable network policy control.
- Accelerated sFlow for high-capacity network security and application monitoring.
- EOS open programmability for advanced traffic control, provisioning and monitoring.

Features

Scaling Data Center Performance
- Arista 7280R Data Center Switch Router Series delivers non-blocking switching capacity that enables dramatically faster and simpler network designs for data centers and lowers both capital and operational expenses.
- Series of fixed and modular systems with a single consistent Arista Extensible Operating System (EOS) allows for flexible selections at all tiers of the network and deployment scenarios including Layer 2 MLAG, Layer 3 ECMP, VXLAN overlay, and Internet peering.
- The Arista FlexRoute engine provides the flexible scalability to support deployment as a routing platform with Internet scale routing.

Designed for the Data Center
- Arista 7280R Data Center Switch Router Series delivers a suite of advanced traffic control and monitoring features to improve the agility of modern high-performance environments, with solutions for automation and virtualization.
- Automates complex IT workflows and simplifies network operations while reducing or even nearly eliminating downtime.
- Addressing the needs of one of the largest public cloud environments as well as applying those lessons learned in the turnkey Arista CloudVision automation offering.

Arista Extensible Operating System (EOS)
- The Arista 7280R Data Center Switch Router Series features Arista EOS, which is a modular switch operating system with a unique state sharing architecture that cleanly separates switch state from protocol processing and application logic.
- Built on top of a standard Linux® kernel, all EOS processes run in their own protected memory space and exchange state through an in-memory database.
- Arista EOS automates complex IT workflows and simplifies network operations while reducing downtime. It’s rich automation capabilities not only reducing the human error element in network operations but also enables IT operators to make the network work the way they want.

Management features
Quality of Service (QoS) support Yes
Switch layer L3
Switch type Managed
Ports & interfaces
Console port RS-232
Fiber optic connector QSFP28
Fiber ports quantity 30
Basic switching RJ-45 Ethernet ports type No
Network
Number of VLANs 4096
VLAN support Yes
Flow control support Yes
Link aggregation Yes
Spanning tree protocol Yes
10G support Yes
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3p, IEEE 802.3x, IEEE 802.3z
Optical fiber
Switching optical modules type 100 Gigabit Ethernet
Data transmission
Packet buffer memory 12288 MB
Jumbo frames support Yes
MAC address table 768000 entries
Security
IGMP snooping Yes
Access Control List (ACL) Yes
Multicast features
Multicast support Yes
Protocols
Routing protocols BGP, IS-IS, OSPF, OSPFv3, RIP-2
Design
Product colour Grey
Form factor 1U
Stackable Yes
Rack mounting Yes
Performance
Flash memory 4096 MB
Internal memory 32768 MB
Power
Power consumption (max) 565 W
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Weight & dimensions
Weight 15.5 kg
Height 44 mm
Depth 670 mm
Width 483 mm
