Hewlett Packard Enterprise

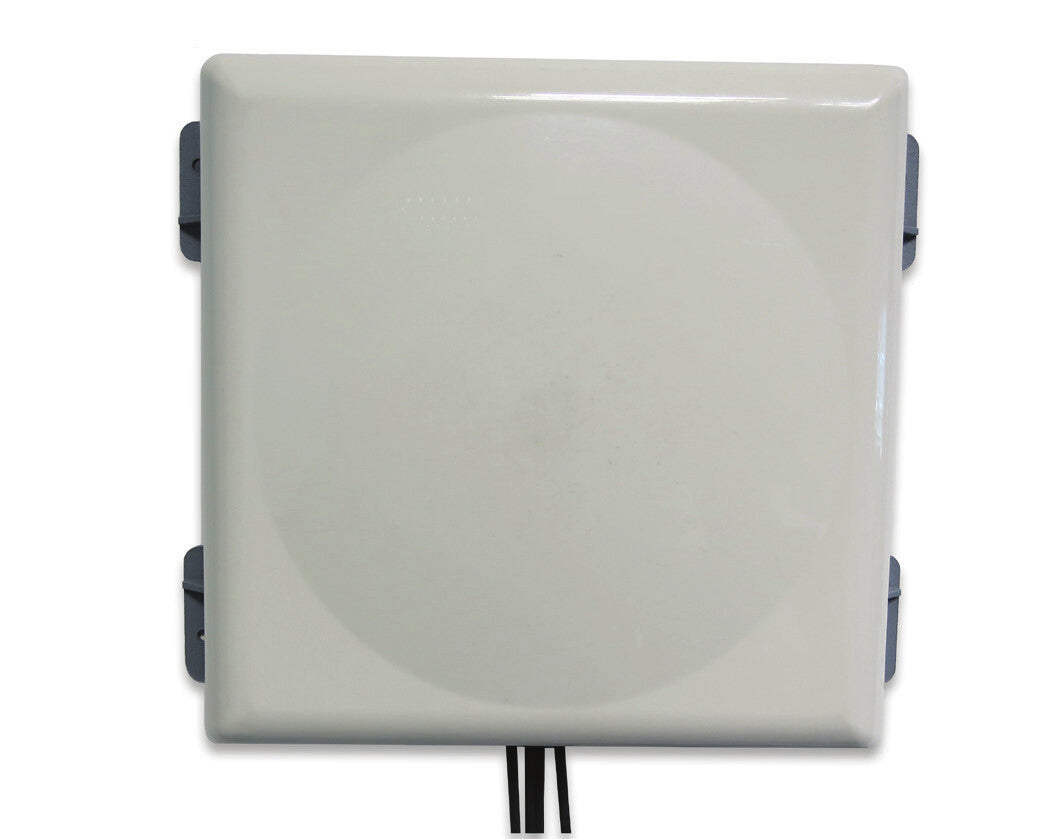

HPE AP-ANT-48 network antenna Sector antenna RP-SMA 8.5 dBi
HPE AP-ANT-48 network antenna Sector antenna RP-SMA 8.5 dBi
Regular price
£572.23 GBP
Regular price
Sale price
£572.23 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:JW019A
Low stock: 10 left
- Sector antenna RP-SMA
- 8.5 dBi
- 2.4-2.5/4.9-6.0 GHz
- 50 Ω
- Male
- Wall
- 6 W
AP-ANT-48, 2.4-2.5/4.9-6.0 GHz, 8.5 dBim 50 Ohms
AP-ANT-48 is a multi-polarized antenna with nominal 60° H x 60° V beamwidths. This antenna is well suited for 2.4 and 5 GHz sector coverage for access.
| Performance | |
|---|---|
| Vertical beam width (5 GHz) | 56° |
| Horizontal beam width (5 GHz) | 56° |
| Vertical beam width (2.4 GHz) | 70° |
| Horizontal beam width (2.4 GHz) | 70° |
| Impedance | 50 Ω |
| Antenna gain (2.4 GHz) | 8.5 dBi |
| Antenna gain (5 GHz) | 8.5 dBi |
| Frequency band | 2.4-2.5/4.9-6.0 GHz |
| Antenna gain level (max) | 8.5 dBi |
| Features | |
|---|---|
| Housing material | Aluminium, Plastic |
| Mounting | Wall |
| Cable length | 0.3 m |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Antenna connector type | RP-SMA |
| Connector gender | Male |
| Antenna type | Sector antenna |
| Power | |
|---|---|
| Power consumption (max) | 6 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -45 - 65 °C |
| Weight & dimensions | |
|---|---|
| Weight | 700 g |
| Height | 44 mm |
| Depth | 190 mm |
| Width | 190 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85177100 |
