Hewlett Packard Enterprise

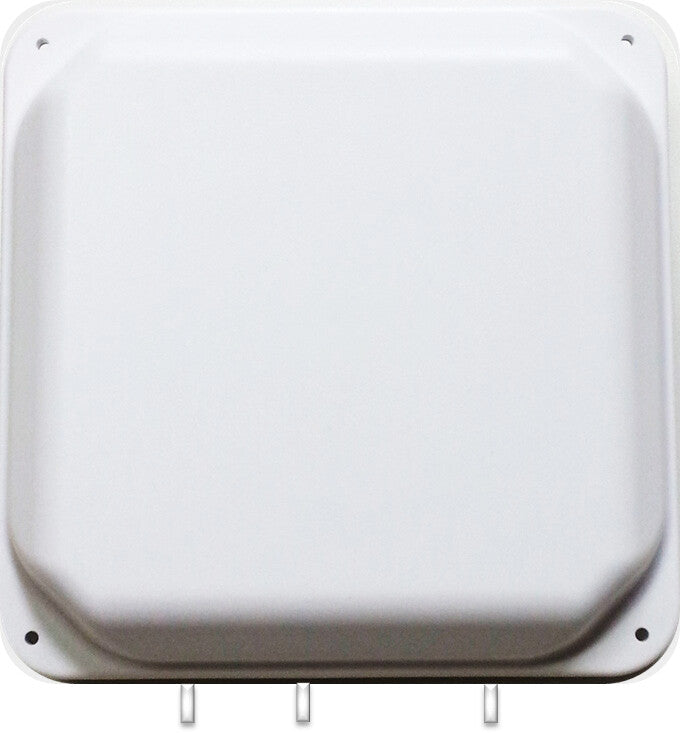

HPE AP-ANT-38 network antenna Sector antenna RP-SMA 7.5 dBi
HPE AP-ANT-38 network antenna Sector antenna RP-SMA 7.5 dBi
Regular price
£375.41 GBP
Regular price
Sale price
£375.41 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:JW016A
83 in stock
- Sector antenna RP-SMA White
- 7.5 dBi
- 2.4-2.5/4.9-6.0 GHz
- 50 Ω
- Vertical polarization Male
- Wall
- 6 W
AP-ANT-38, 2.4-2.5/4.9-6.0 GHz, 7.5 dBi, 50 ohms
AP-ANT-38 is a multipolarized antenna with 60° H x 60° V beamwidths. This antenna is well suited for 2.4-GHz and 5-GHz sector coverage for Wi-Fi access.
| Performance | |
|---|---|
| Horizontal beam width | 60° |
| Vertical beam width | 60° |
| Impedance | 50 Ω |
| Antenna gain (2.4 GHz) | 7.5 dBi |
| Antenna gain (5 GHz) | 7.5 dBi |
| Frequency band | 2.4-2.5/4.9-6.0 GHz |
| Antenna gain level (max) | 7.5 dBi |
| Features | |
|---|---|
| Product colour | White |
| Housing material | Aluminium, Plastic |
| Mounting | Wall |
| Purpose | Indoor & outdoor |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Polarization | Vertical polarization |
| Antenna connector type | RP-SMA |
| Connector gender | Male |
| Antenna type | Sector antenna |
| Power | |
|---|---|
| Power consumption (max) | 6 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -45 - 65 °C |
| Weight & dimensions | |
|---|---|
| Diameter | 54.8 cm |
| Height | 34.5 mm |
| Depth | 197.5 mm |
| Width | 197.5 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85177100 |
