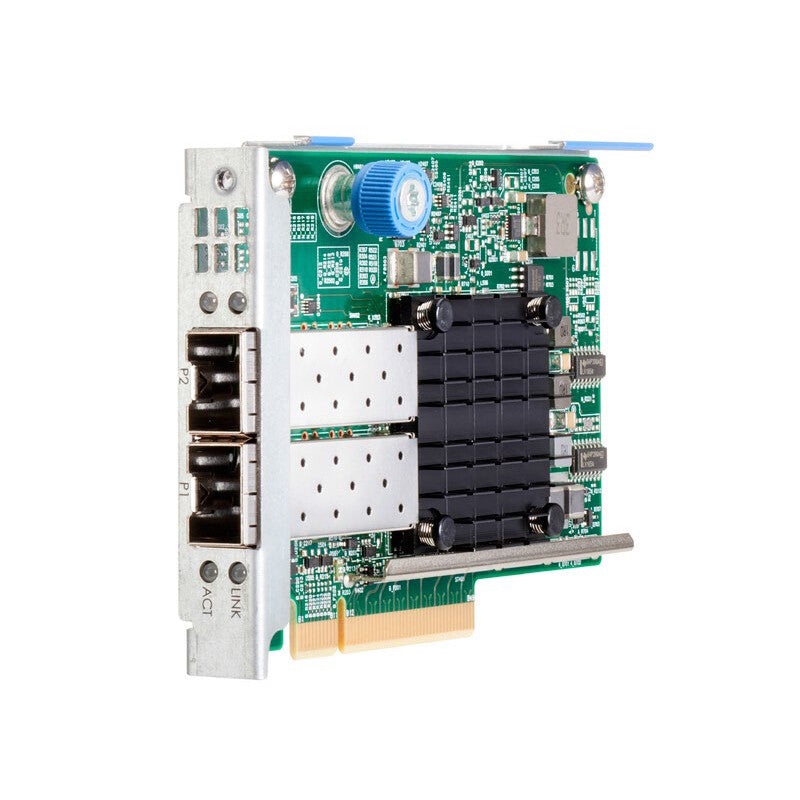

HPE 840133-001 Internal Ethernet / Fiber 25000 Mbit/s
HPE 840133-001 Internal Ethernet / Fiber 25000 Mbit/s
SKU:840133-001-RFB
Low stock: 1 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Wired
- PCI Express 3.0 Ethernet / Fiber
- 25000 Mbit/s
- Internal Component for: Server
Do you want to increase bandwidth and reduce network vulnerability while reducing costs?The HPE Ethernet 10/25Gb 2-port BCM57414 Adapters deliver the capability to drive either 10G (SFP+) or 25G (SFP28) speeds, providing the option for a large jump in Ethernet performance. Compared to a 10G implementation these adapters offer cost reductions by lowering the number of servers, adapters, cables and switches while accelerating server performance and targeted workloads. These adapters help prevent, detect and recover from cyber attacks by protecting applications, data and server infrastructure by authenticating digitally signed firmware via a Root of Trust architecture. In addition, they offer Secure Boot, Device-level Firewall and other advanced security features.
Features
Safeguard Your Data and Your Business Network
- The HPE Ethernet 10/25Gb 2-port BCM57414 Adapter blocks installation of rogue or corrupted firmware and verifies that the executing firmware is trusted via Hardware Root of Trust and Authentication.
- Stops unmanaged access to memory or storage with Device - level Firewall. This validates that on-device firmware and configuration data can only be accessed by authorized agents.
- Provides traceability into authenticated firmware updates by capturing changes in standard system logs.
Boosting I/O Bandwidth with Lower Latency
- The HPE Ethernet 10/25Gb 2-port BCM57414 Adapter delivers single root I/O virtualization (SR-IOV) with the ability to run a large number of virtual machines (VMs) per server, which reduces the need for hardware and the resultant costs of space and power required by hardware devices.
- Reduces CPU Utilization and helps improve host VM density and server efficiency using remote direct memory access (RDMA) over Converged Ethernet (RoCE v2) for Live Migration, Microsoft SMB Direct environments.
Realize Breakthrough Economics
- The HPE Ethernet 10/25Gb 2-port BCM57414 Adapter offloads packet processing to reduce CPU utilization and lower power with Tunnel Offloads (VXLAN and NVGRE).
- Speeds packet processing to service more I/O requests utilizing data plane development packet (DPDK).
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet / Fiber |
| Fiber optic connector | SFP28 |
| Fiber ports quantity | 2 |
| PCI version | 3.0 |
| Network | |
|---|---|
| Maximum data transfer rate | 25000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x |
| Ethernet LAN data rates | 10000,25000 Mbit/s |
| Design | |
|---|---|
| Internal | Yes |
| Component for | Server |
| Compatible products | ProLiant DL180 Gen10 |
| Power | |
|---|---|
| Power consumption (typical) | 9.04 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
