Hewlett Packard Enterprise

HPE 533FLR-T Internal Ethernet 20000 Mbit/s

HPE 533FLR-T Internal Ethernet 20000 Mbit/s

Regular price £256.94 GBP
Regular price Sale price £256.94 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:700759-B21

Low stock: 1 left

  • Wired
  • PCI Ethernet
  • 20000 Mbit/s
  • Internal Chipset: Broadcom BCM57810S

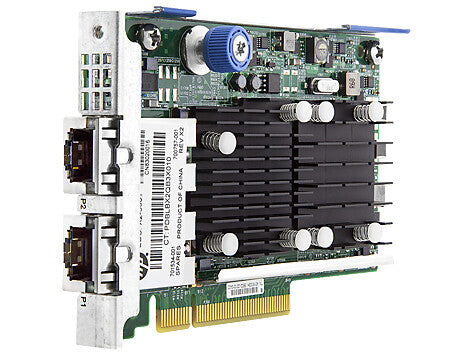

FlexFabric 10Gb 2P 533FLR-T Adapter

Are your enterprise data centers growing and requiring increased network performance? Increased workload demands are putting pressure on server I/O. The HP FlexFabric 10Gb 2-port 533FLR-T Adapter increases throughput for the HP ProLiant Gen8 DL and SL Server series by using the innovative HP FlexibleLOM form factor to offer dual-ports in a 10GBASE-T adapter configuration.

This is an affordable choice for workload-intensive computing environments, providing a reliable, high performance 10 GbE connectivity solution.

Accelerates Server Performance
- The HP FlexFabric 10Gb 2-port 533FLR-T Adapter boosts network performance with full line-rate 10 GbE throughput across all ports.
- Provides increased server performance by delivering full hardware offload for storage traffic.

Robust Virtualization Capabilities
- The HP FlexFabric 10Gb 2-port 533FLR-T Adapter delivers Single Root I/O Virtualization (SR-IOV) support to allow multiple operating systems to share a physical interconnect.
- Supports Vmware NetQueue and Microsoft VMQ technologies.
- Enhances network management and efficiency with support for VLAN tagging.

Streamlines Deployment and Management
- Makes Broadcom Ethernet solutions available across a wide range of HP server platforms.
- Unifies NIC and storage management using HP ProActive Insight architecture.
- Provides backward compatibility with existing 1GbE networks and low-cost CAT 6a UTP cabling, supporting distances up to 100 meters.

Ports & interfaces
PCI Card form factor Full-height (low-profile)
Ethernet LAN (RJ-45) ports 2
Interface Ethernet
Host interface PCI
Connectivity technology Wired
Network
Full duplex Yes
Ethernet LAN data rates 10,100,1000,10000 Mbit/s
Ethernet LAN Yes
Networking standards IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3x
Maximum data transfer rate 20000 Mbit/s
Design
Chipset Broadcom BCM57810S
Internal Yes
Power
Power consumption (typical) 15.5 W
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) 0 - 55 °C
Sustainability
Sustainability certificates RoHS
Logistics data
Harmonized System (HS) code 85176990
Other features
Flash memory 256 MB
