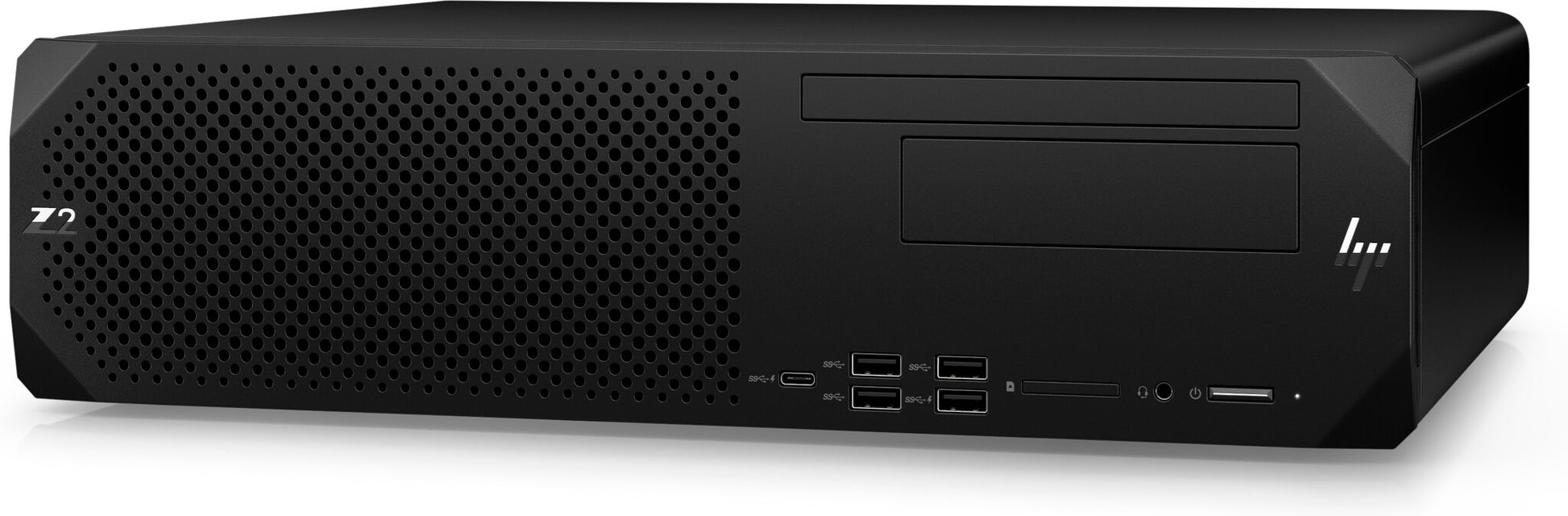

Z2 Small Form Factor G9 Workstation, Windows 11 Pro, Intel Core™ i7, 16GB RAM, 512GB SSD
Full size Z tower power at half the size Get all the power of a full size tower at a fraction of the size. Re-engineered to fit full-height, full-length graphics while leaving room for upgrades and expansion, the Z2 SFF delivers high performance for your intensive workflow—from 3D design to real time ray tracing—now and in the future.
Processor
Processor base power
65 W
Maximum turbo power
219 W
Processor cache type
L3
Processor cache
33 MB
Efficient-core base frequency
1.5 GHz
Performance-core base frequency
2.1 GHz
Efficient-core Max Turbo Frequency
4.2 GHz
Performance-core Max Turbo Frequency
5.3 GHz
Efficient cores
12
Performance cores
8
Processor boost frequency
5.4 GHz
Processor threads
28
Processor cores
16
Processor model
i7-14700
Processor generation
Intel® Core™ i7 (14th gen)
Processor family
Intel® Core™ i7
Processor manufacturer
Intel
Memory
ECC
No
Non-ECC
Yes
Memory clock speed
4800 MHz
Memory layout (slots x size)
1 x 16 GB
Internal memory type
DDR5-SDRAM
Maximum internal memory
128 GB
Internal memory
16 GB
Storage
SSD form factor
M.2
SSD interface
PCI Express 4.0
NVMe
Yes
SSD capacity
512 GB
Number of SSDs installed
1
Total SSDs capacity
512 GB
Number of storage drives installed
1
Storage media
SSD
Optical drive type
No
Total storage capacity
512 GB
Graphics
On-board graphics card model
Intel UHD Graphics 770
On-board graphics card family
Intel® UHD Graphics
On-board GPU manufacturer
Intel
On-board graphics card
Yes
Network
Ethernet LAN
Yes
Ports & interfaces
Line-in
Yes
Line-out
Yes
Ethernet LAN (RJ-45) ports
1
DisplayPort version
1.4
DisplayPorts quantity
2
USB Type-C DisplayPort Alternate Mode
Yes
USB 3.2 Gen 2x2 Type-C ports quantity
1
USB Power Delivery
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 2.0 ports quantity
3
Expansion slots
PCI Express x16 (Gen 4.x) slots
3
PCI Express x4 (Gen 3.x) slots
2
PCI Express x1 (Gen 3.x) slots
1
Design
Introduction year
2024
Product colour
Black
Number of 2.5" bays
1
Number of 3.5" bays
1
Chassis type
SFF
Performance
Password protection type
BIOS, Power on, User
Password protection
Yes
Audio chip
Realtek ALC3252
Market positioning
Performance
Product type
Workstation
Software
Bundled software
HP Wolf Pro Security Edition (1 year)
Pre-installed software
HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP PC Hardware Diagnostics Windows; HP Privacy Settings; HP Desktop Support Utilities; HP Image Assistant; HP Manageability Integration Kit; HP Notifications; Performance Advisor 3.0; HP Data Science Stack Manager; myHP
Operating system installed
Windows 11 Pro
Brand-specific features
HP GTIN (EAN/UPC)
198415924513
HP segment
Business
HP Software provided
HP PC Hardware Diagnostics UEFI; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit
HP Management tools
HP Client Catalog (download); HP Cloud Recovery; HP Driver Packs; HP Management Integration Kit for Microsoft System Center Configuration Management Gen4; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Image Assistant (download); HP Client Management Script Library (download)
HP Security tools
HP Secure Erase; HP Sure Click; HP BIOSphere Gen6; HP Sure Admin; Hood Sensor Optional Kit; HP Client Security Manager Gen6; HP Sure Start Gen7; HP Sure Recover Gen4; HP Tamper Lock; HP Sure Sense Gen2; HP Sure Run Gen5
HP Support Assistant
Yes
Power
Power supply
450 W
Sustainability
Sustainable technologies and materials
80 Plus® Gold power supplies available; 25% ITE-derived closed loop plastic; Bulk packaging available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; 45% post-consumer recycled plastic; 10% ITE-derived closed loop plastic; Ocean-bound plastic in speaker enclosure and system fan; Low halogen PCAs; Product Carbon Footprint; Ocean-bound plastic in system fan, processor fan and speaker
