Intel® Core™ i5-1235U (up to 4.4 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 10 cores, 12 threads)
Windows 11 Pro
40.6 cm (16") diagonal WUXGA display
Intel® Iris® Xᵉ Graphics
8 GB memory; 256 GB SSD storage

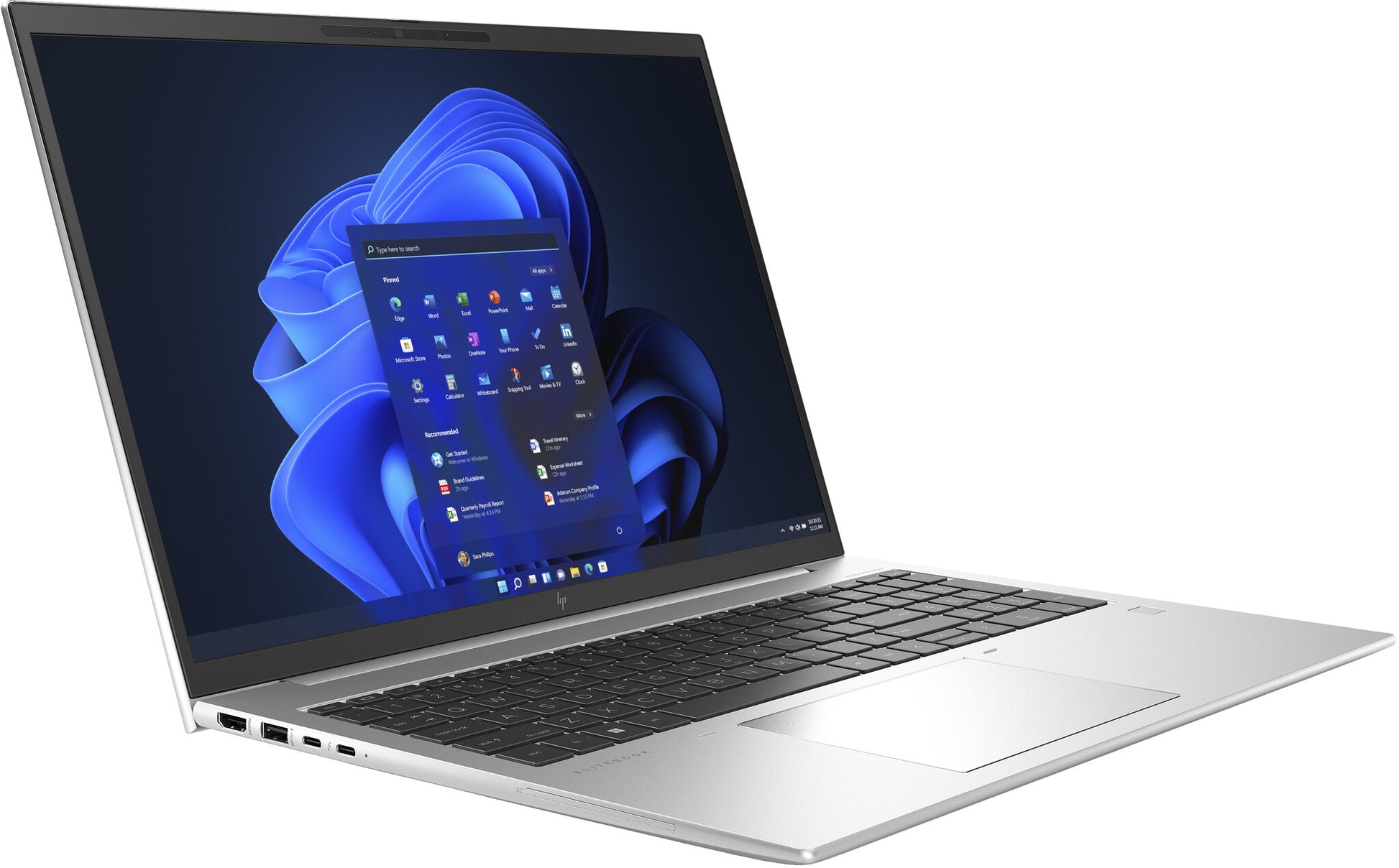

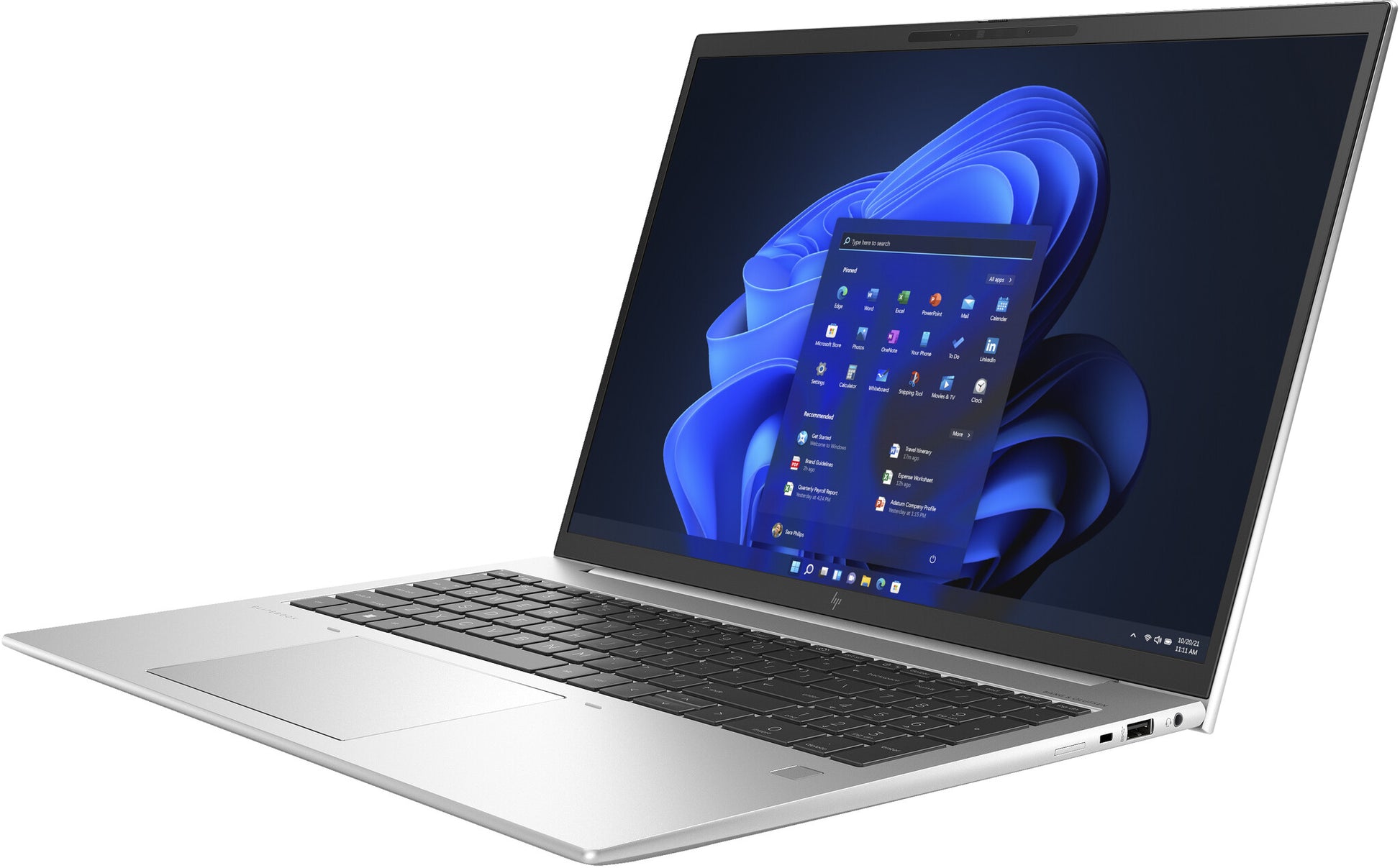

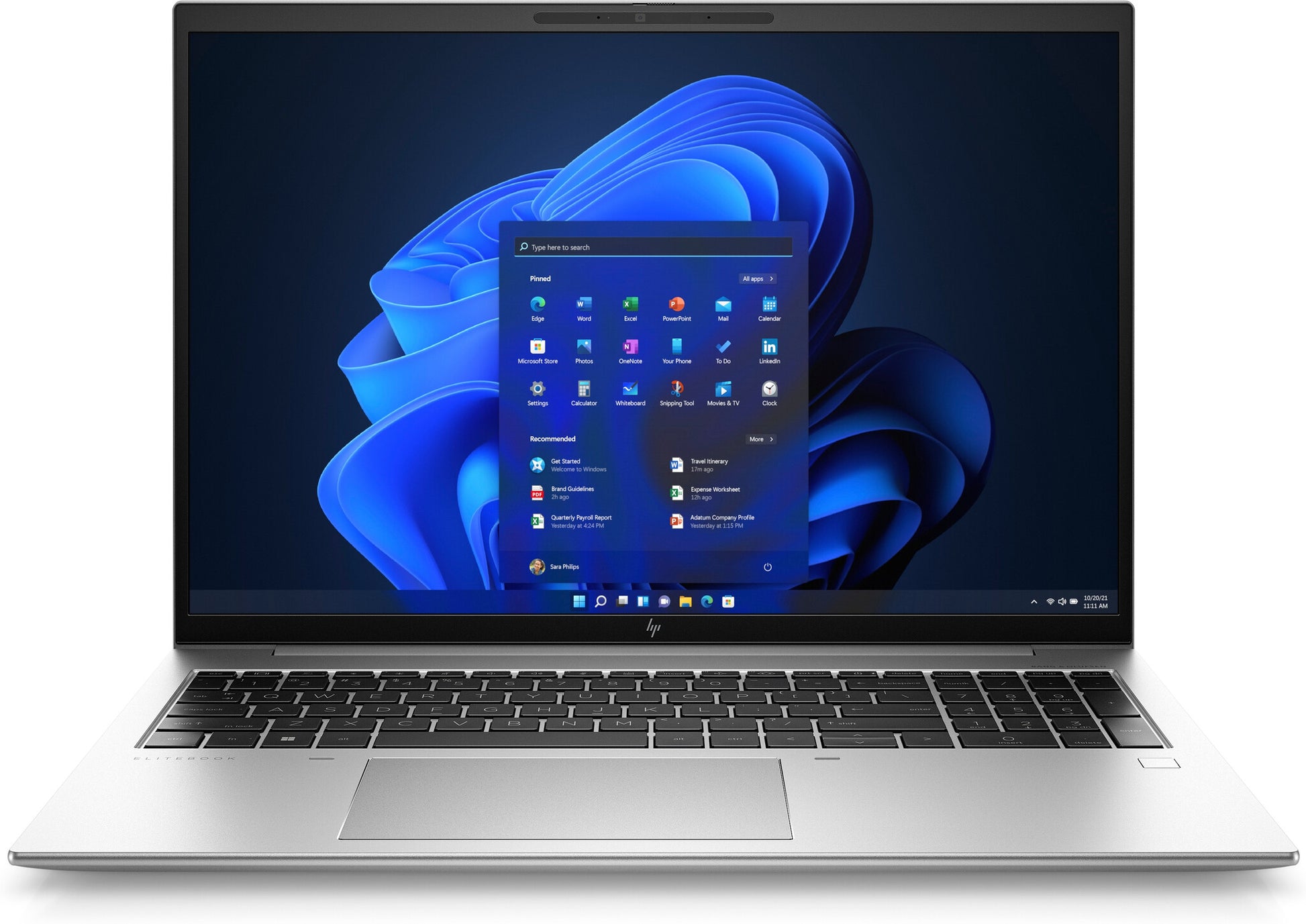

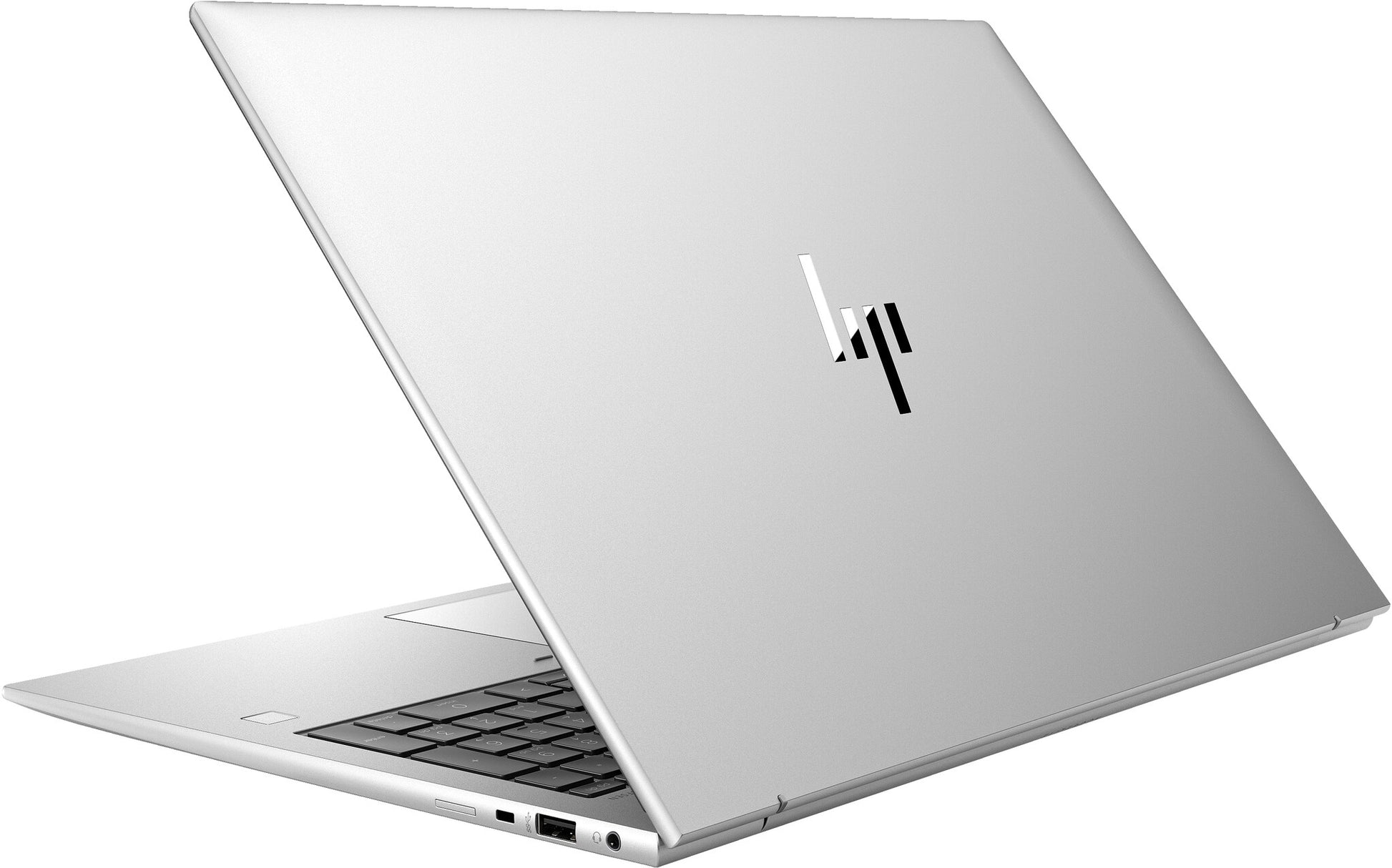

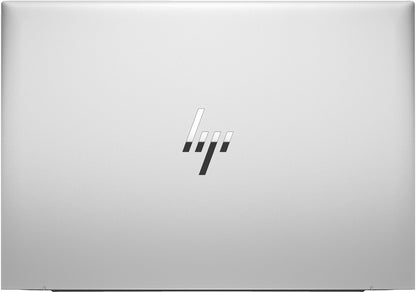

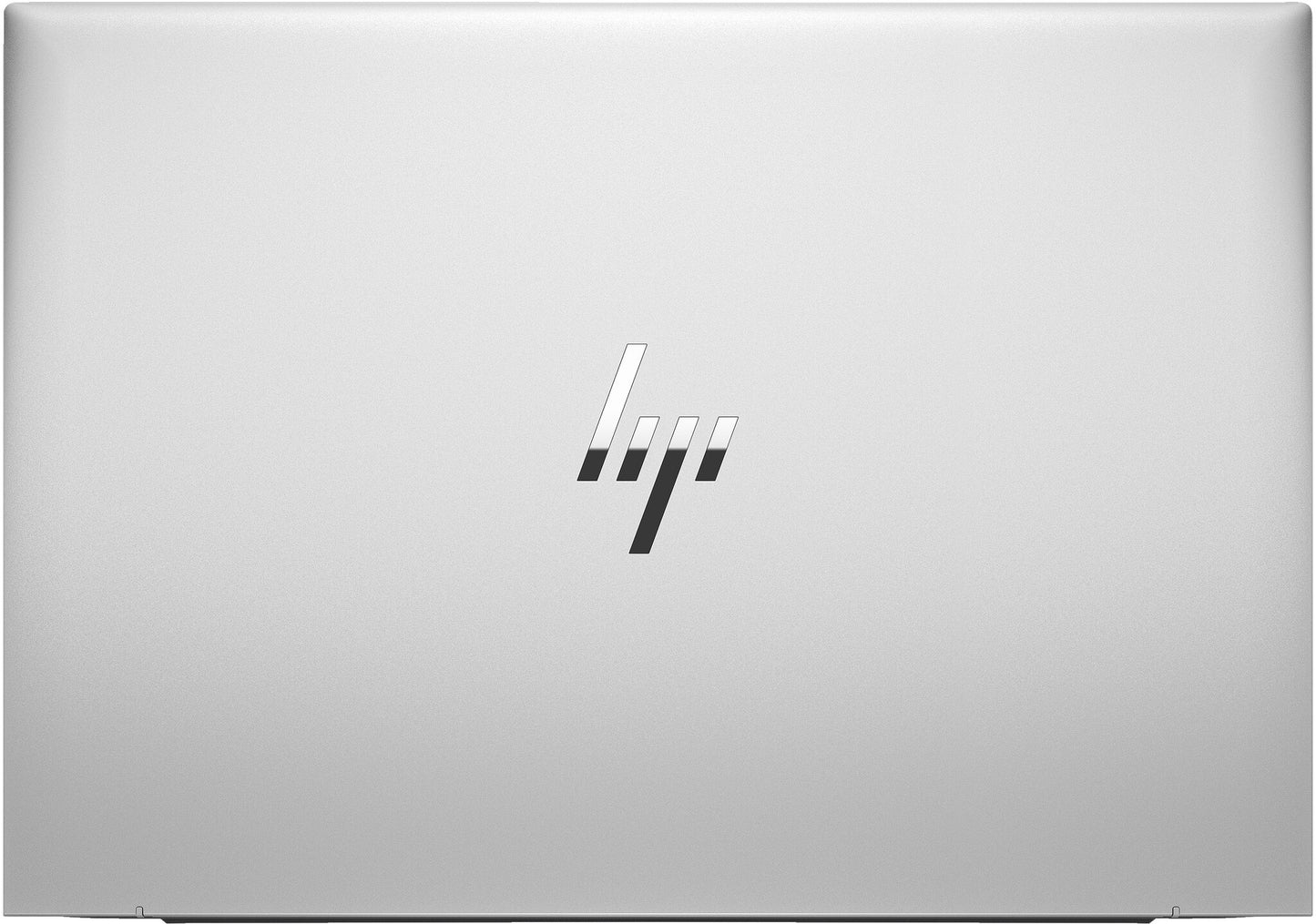

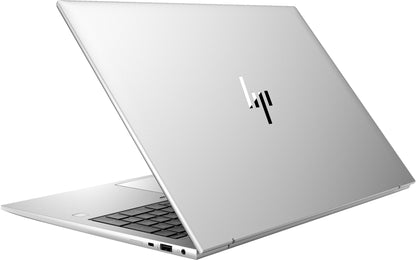

EliteBook 860 16 inch G9 Notebook PC Wolf Pro Security Edition, 16", Windows 11 Pro, Intel® Core™ i5, 8GB RAM, 256GB SSD, WUXGA
Redefine corporate standards Remove barriers to hybrid work with the HP EliteBook 860. This enterprise business laptop brings new conferencing capabilities powered by HP Presence[3], productivity, and security that is easily managed in hybrid work environments.
Design
Country of origin
China
Original brand name
HP
Introduction year
2022
Market positioning
Premium
Form factor
Clamshell
Product colour
Silver
Product type
Laptop
Display
Display diagonal (metric)
40.6 cm
RGB colour space
NTSC
Colour gamut
45%
Display brightness
250 cd/m²
Anti-glare screen
Yes
Panel type
IPS
HD type
WUXGA
Touchscreen
No
Display resolution
1920 x 1200 pixels
Display diagonal
40.6 cm (16")
Processor
Configurable TDP-down
12 W
Processor cache type
L3
Processor cache
12 MB
Processor boost frequency
4.4 GHz
Processor threads
12
Processor cores
10
Processor model
i5-1235U
Processor generation
12th gen Intel® Core™ i5
Processor family
Intel® Core™ i5
Processor manufacturer
Intel
Memory
Number of free internal memory expansion slots
1
ECC
No
Non-ECC
Yes
Memory slots
2x SO-DIMM
Memory layout (slots x size)
1 x 8 GB
Memory clock speed
4800 MHz
Internal memory type
DDR5-SDRAM
Internal memory
8 GB
Storage
Optical drive type
No
NVMe
Yes
SSD interface
PCI Express
SSD capacity
256 GB
Number of SSDs installed
1
Total SSDs capacity
256 GB
Storage media
SSD
Total storage capacity
256 GB
Graphics
On-board graphics card model
Intel Iris Xe Graphics
On-board graphics card family
Intel Iris Xe Graphics
On-board GPU manufacturer
Intel
Discrete graphics card model
Not available
Discrete graphics card
No
On-board graphics card
Yes
Audio
Number of microphones
2
Built-in microphone
Yes
Speakers manufacturer
Bang & Olufsen
Number of built-in speakers
2
Built-in speaker(s)
Yes
Audio system
B&O PLAY
Camera
Front camera resolution (numeric)
5 MP
Front camera
Yes
Network
Bluetooth version
5.3
Bluetooth
Yes
WLAN controller model
Intel Wi-Fi 6E AX211
WLAN controller manufacturer
Intel
Antenna type
2x2
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Mobile network connection
No

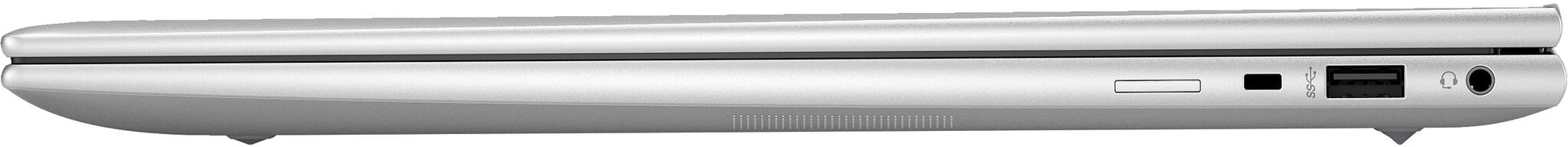

Ports & interfaces
USB Power Delivery
Yes
USB Type-C DisplayPort Alternate Mode
Yes
Combo headphone/mic port
Yes
Thunderbolt 4 ports quantity
2
HDMI version
2.0
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Keyboard
Keyboard special features
Spill-resistant
Input device model
HP Premium Keyboard
Spill-resistant keyboard
Yes
Numeric keypad
Yes
Keyboard backlit
Yes
Pointing device
Clickpad
Software
Bundled software
HP Wolf Pro Security Edition (1 year)
Pre-installed software
HP Connection Optimizer; HP Image Assistant; HP Hotkey Support; HP MAC Address Manager; HP Support Assistant; HP Easy Clean; HP Power Manager; myHP; HP Privacy Settings; Touchpoint Customizer for Commercial; HP Notifications; HP QuickDrop; HP Quick Touch; HP PC Hardware Diagnostics Windows
Operating system installed
Windows 11 Pro
Processor special features
CPU configuration (max)
1
Embedded options available
No
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Flex Memory Access
Yes
Intel Trusted Execution Technology
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Execute Disable Bit
Yes
Brand-specific features
HP GTIN (EAN/UPC)
196786575167
HP segment
Business
HP Software provided
HP Image Assistant; HP Hotkey Support; HP MAC Address Manager; HP Easy Clean; myHP; HP Privacy Settings; Touchpoint Customizer for Commercial; HP Notifications; HP QuickDrop; Tile App; HP Quick Touch; HP PC Hardware Diagnostics Windows
HP Management tools
HP Client Management Script Library (download); HP Driver Packs (download); HP Manageability Integration Kit Gen4 (download); HP Image Assistant Gen5 (download); HP Patch Assistant (download); HP Cloud Recovery; HP Connect for Microsoft Endpoint Manager
HP Security tools
Absolute persistence module; HP DriveLock and Automatic DriveLock; HP Secure Erase; HP Sure Click; HP Sure Sense; BIOS Update via Network; HP Sure Admin; HP BIOSphere Gen6; HP Client Security Manager Gen7; Secured-core PC capable; TPM 2.0 embedded security chip (Common Criteria EAL4+ and FIPS 140-2 Level 2 Certified); HP Sure Start Gen7; HP Wake on WLAN; HP Tamper Lock; HP Sure Run Gen5; HP Sure Recover Gen5
HP front camera
HP Webcam 5MP
HP Smart AC Adapter
Yes
HP Support Assistant
Yes
HP Connection Optimizer
Yes
HP speaker type
HP Dual Speakers
Battery
Battery capacity
51 Wh
Number of battery cells
3
Battery technology
Lithium-Ion (Li-Ion)
Power
USB Type-C charging port
Yes
AC adapter input voltage
100 - 240 V
AC adapter frequency
50 - 60 Hz
AC adapter power
65 W
Security
Password protection type
BIOS, Power on, User
Password protection
Yes
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Fingerprint reader
Yes
Certificates
Compliance certificates
GS mark
Sustainability
Sustainability compliance
Yes
Sustainability certificates
ENERGY STAR, TCO
Sustainable technologies and materials
Low Halogen; Bulk packaging available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; 55% post-consumer recycled plastic; Ocean-bound plastic in speaker enclosure(s)
