ADF: Paper (Plain, Inkjet, Inkjet Brochure/Glossy), Photo Paper; Flatbed: All ADF Media, Envelopes, Labels, Cards, Books
XGA 1024 x 768 mm LCD display; Light touch technology that supports gesture based interactions; Screen brightness-adjustment control; Home icon for quick return to the UI Home Screen; Virtual keyboard and a physical keyboard
Front panel applications: E-mail; Save to Network Folder; Save to USB; Save to Device Memory; Open Extensibility Platform (OXP) applications; Software scan using HP Scan Software; User application via TWAIN (32/64-bit), ISIS, WIA or Kofax VirtualRescan (VRS) Professional drivers

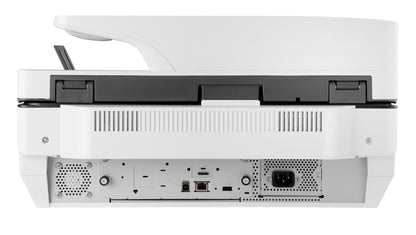

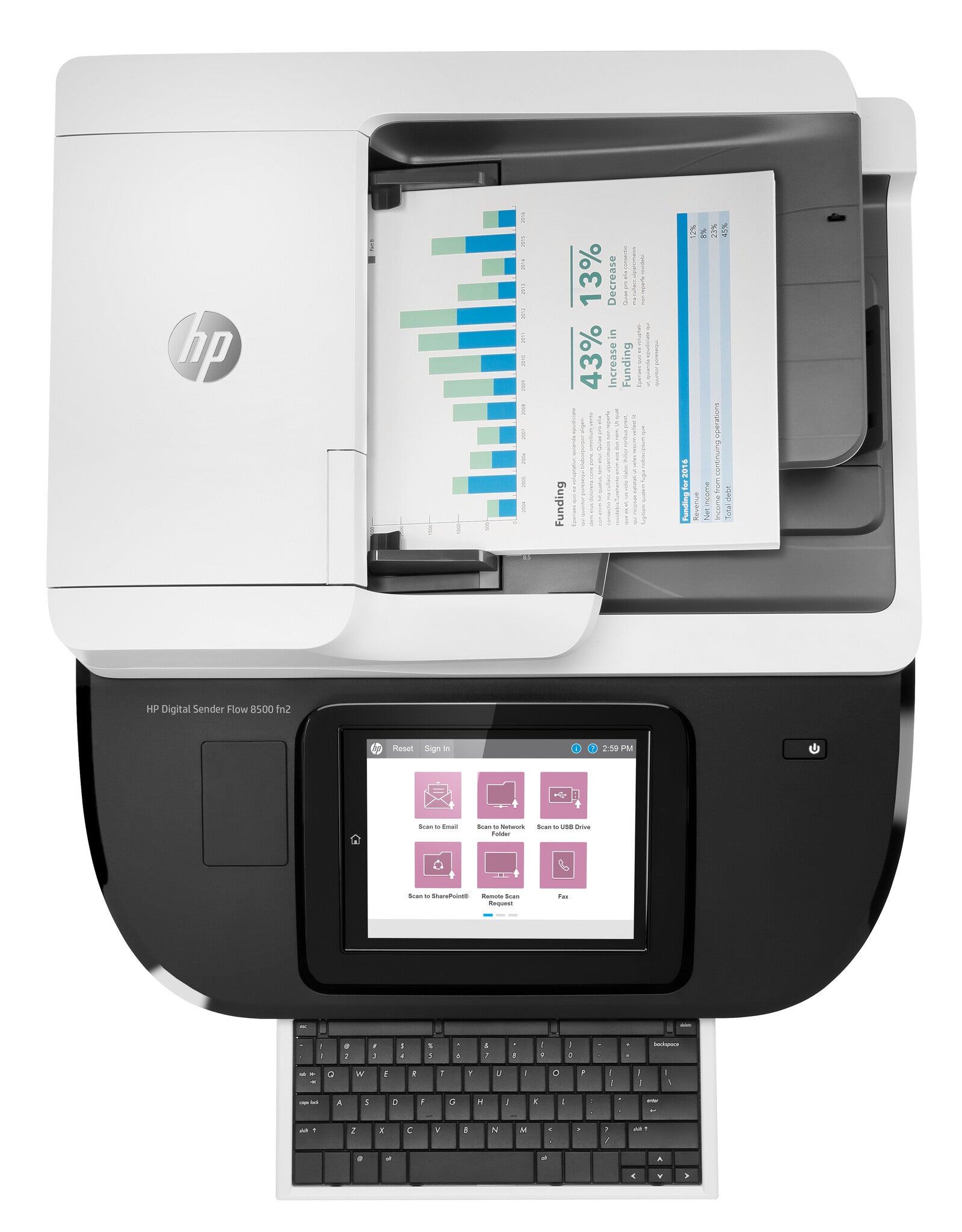

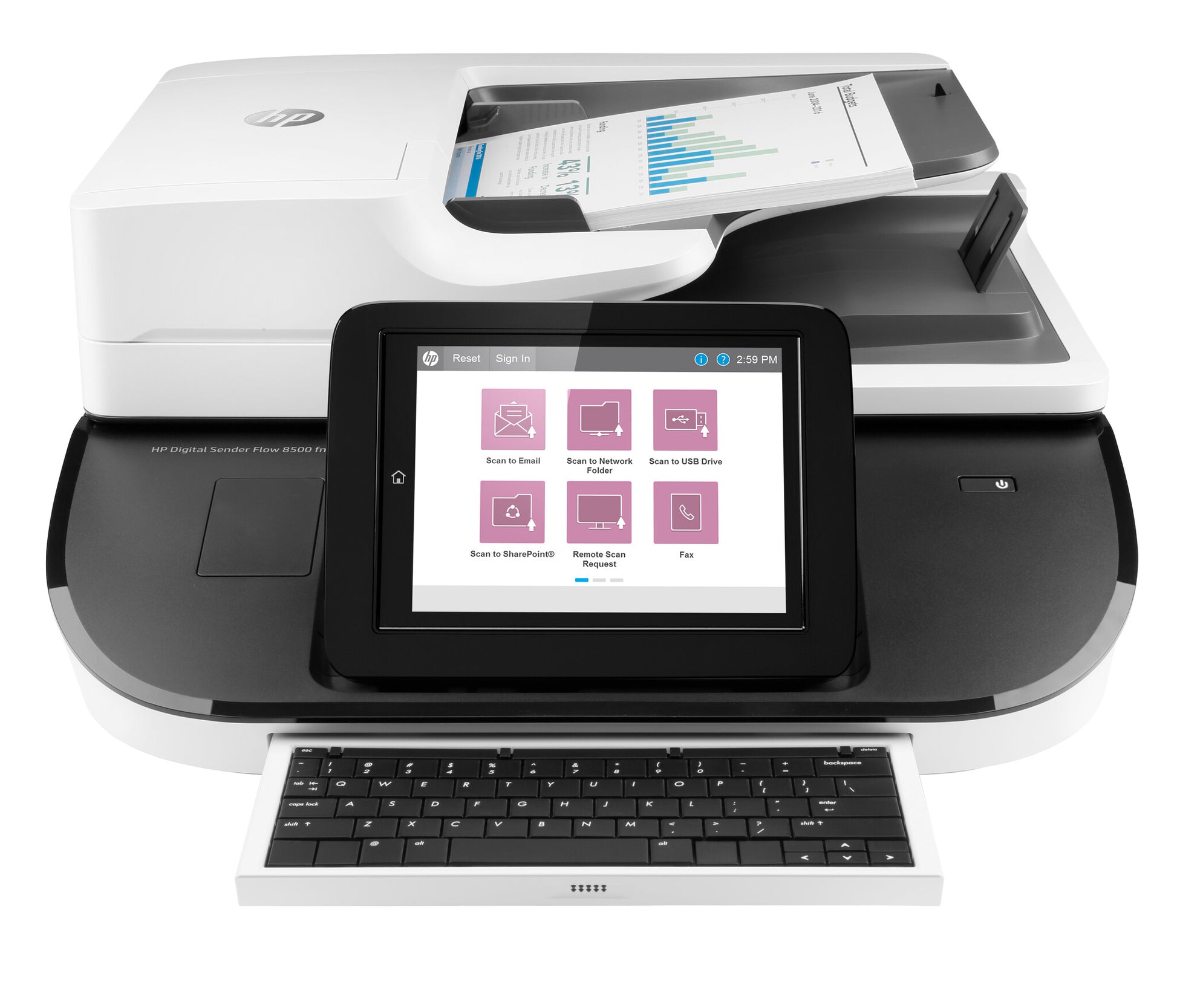

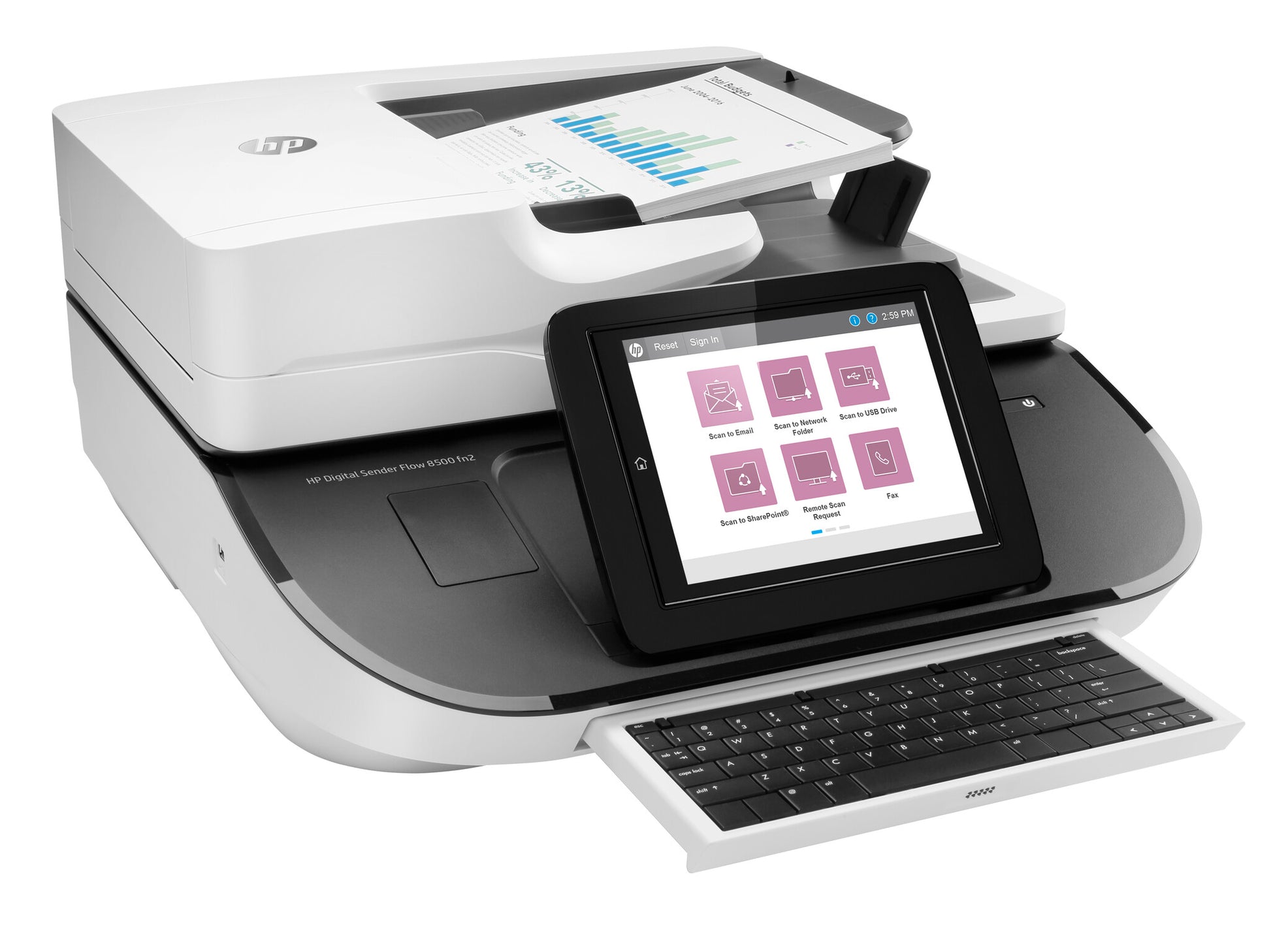

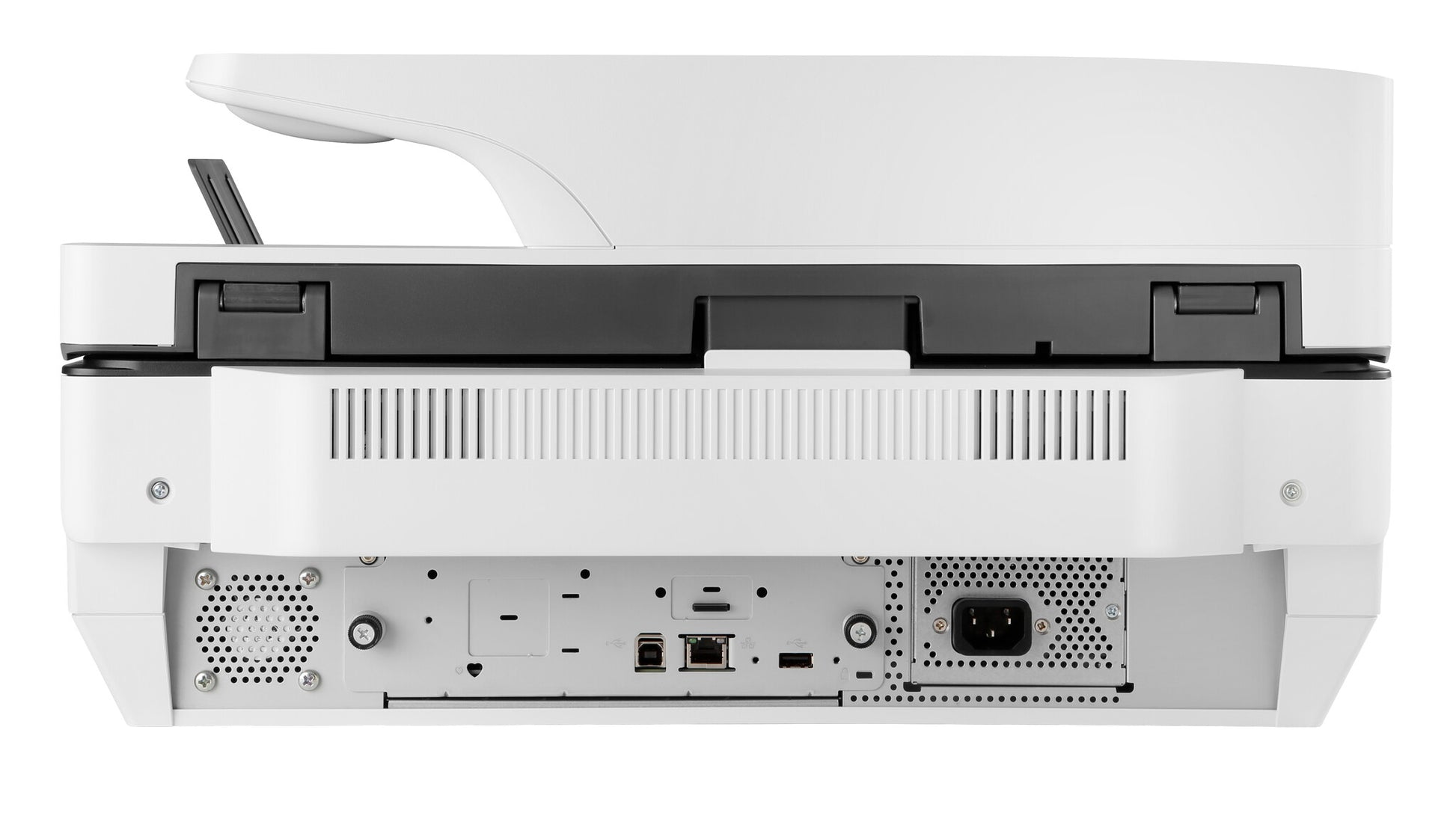

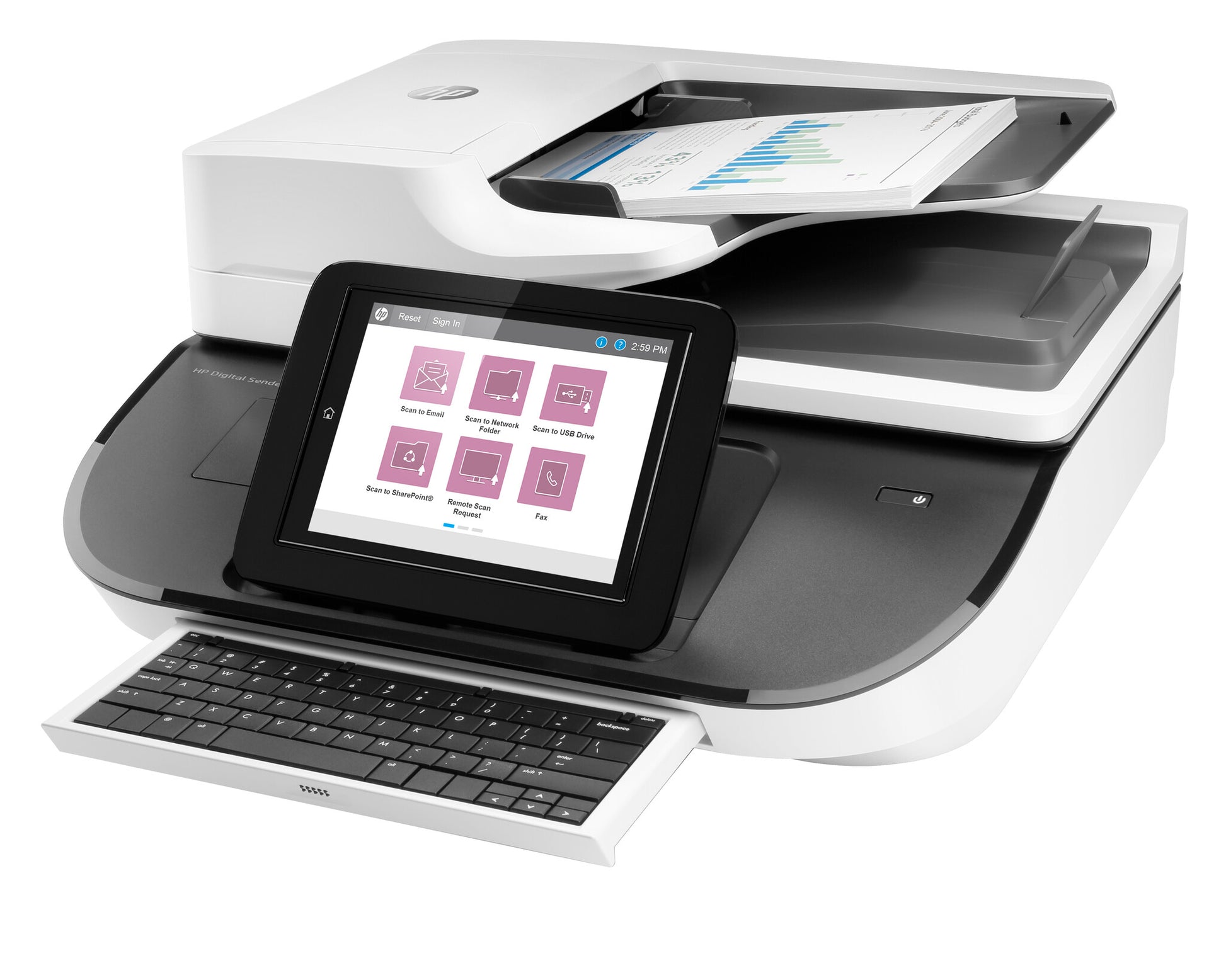

Digital Sender Flow 8500 fn2 Document Capture Workstation
The fastest, most secure network scanner helps accelerate your business forward.[1,2] The fastest, most secure network scanner helps accelerate your business forward. Utilising high-performance features for a more productive office.[1,2]
Scanning
Colour scanning
Yes
Duplex scanning
Yes
Greyscale levels
256
Design
Scanner type
Flatbed scanner
Built-in display
Yes
Display
LCD
Control type
Touch
Performance
Scan file formats
CSV, HTML, JPG, OCR, PDF, RTF, TIFF, TXT, XPS
Maximum duty cycle
10000 pages per month
Scan to
E-mail, Network folder, USB, FTP
Scan drivers
ISIS, TWAIN, WIA
Internal memory
3584 MB
Processor frequency
1200 MHz
Input capacity
Auto document feeder (ADF) input capacity
150 sheets
Ports & interfaces
USB port
Yes
Power
Power consumption (typical)
22 W
Power supply type
AC
Power consumption (off)
0.3 W
Power consumption (PowerSave)
1.2 W
AC input frequency
50 Hz
Power consumption (sleep)
1.2 W
Sustainability
Total carbon footprint
600
Network
Ethernet LAN
Yes
Security algorithms
SNMPv3, TLS, FIPS 140, HTTPS, IPSec
Features
Country of origin
China
HP segment
Business
Packaging data
Package dimensions (WxDxH)
599 x 396 x 731 mm
Package width
599 mm
Package depth
396 mm
Package height
731 mm
Package weight
20.3 kg
System requirements
Minimum system requirements
2 GB available hard disk space, OS hardware requirements see http://www.microsoft.com, or 1.3 GB available hard drive space, Internet; OS hardware requirements see http://www.apple.com for more info; For HP Scan: Windows 10, 8.1, 8, 7: 32/64-bit, 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer, 2 GHz processor, 1024 x 768 SVGA monitor
Compatible operating systems
Windows 11; Windows 10; Windows 8; Windows 8.1; Windows 7; macOS X 10.10 Yosemite; macOS 10.11 El Capitan; macOS 10.12 Sierra; Linux; UNIX
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, MacOS
Windows operating systems supported
Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11
Operational conditions
Storage temperature (T-T)
-40 - 60 °C
Operating relative humidity (H-H)
15 - 80%
Certificates
Electromagnetic compatibility
CISPR 22:2008 (International) - Class A, CISPR 32:2012 (International) - Class A, EN 55032: 2012 (EU) - Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, EMC Directive 2014/30/EU; Other EMC approvals as required by individual countries
Certification
CISPR 22:2008 (International) - Class A, CISPR 32:2012 (International) - Class A, EN 55032: 2012 (EU) - Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, EMC Directive 2014/30/EU; Other EMC approvals as required by individual countries
Weight & dimensions
Width
512 mm
Depth
585.3 mm
Height
263.4 mm
Weight
17.5 kg
Packaging content
Cables included
USB, AC
Bundled software
HP browser, Mac OS Welcome Screen (Directs users to HP.com or OS App Source for printer software), Online user manuals. Download from hp.com Network TWAIN (32-bit and 64-bit), and USB TWAIN (32-bit and 64-bit) solution, WIA, Kofax VRS Pro
Other features
Network ready
Yes
Cable lock slot
Yes
Recommended system requirements
2 GB available hard disk space; or 1.3 GB available hard drive space; Internet; For HP Scan; Windows 10; 8.1; 8; 7; 32/64-bit; 2 GB available hard disk space; CD-ROM/DVD drive or Internet connection; USB port; Internet Explorer; 2 GHz processor; 1024 x 768 SVGA monitor. 1.3 GB available hard drive space; Internet.
Dimensions (WxDxH)
512 x 585.3 x 263.4 mm
Media types supported
ADF: Paper (Plain, Inkjet, Inkjet Brochure/Glossy), Photo Paper; Flatbed: All ADF Media, Envelopes, Labels, Cards, Books

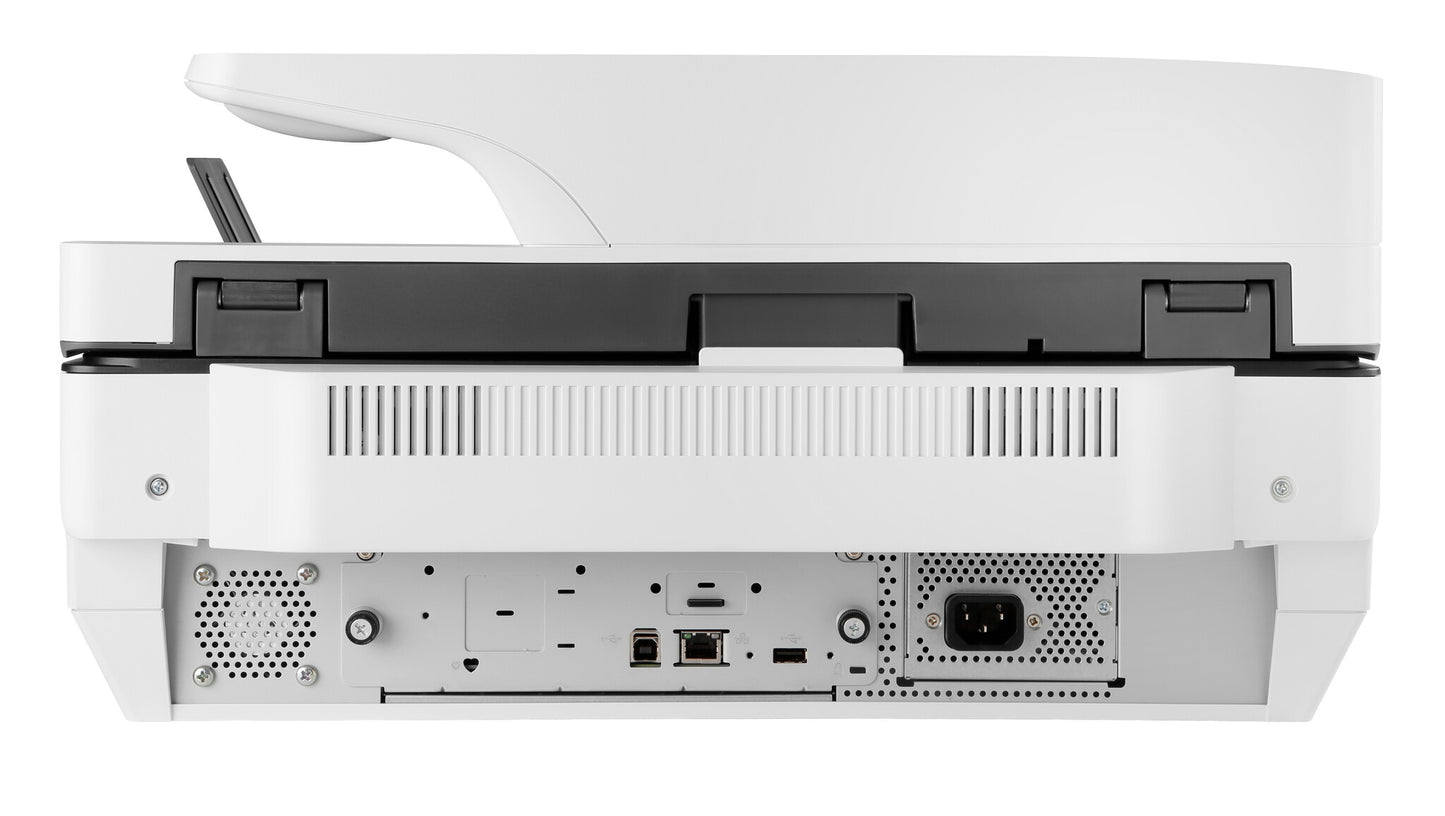

Interface
USB, 10/100/1000 Ethernet
Image formats supported
JPEG, MTIFF, TIFF
UNSPSC-code
43211711
Recommended operating temperature range (T-T)
10 - 35 °C
Recommended media weight
45 - 199 g/m²
Control panel
XGA 1024x768 LCD
Box contents
HP Digital Sender Flow 8500 fn2 Document Capture; Hardware install guide; HP 8500 fn2 HbrCD for Mac And PC; HP user's guide regulatory Info CD; Power cord; USB cable
