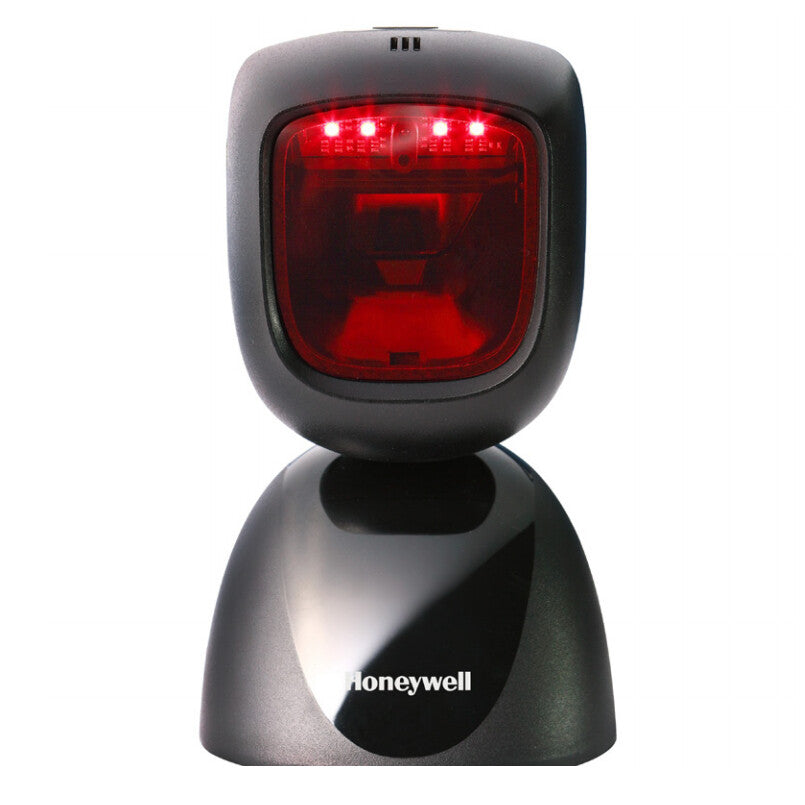

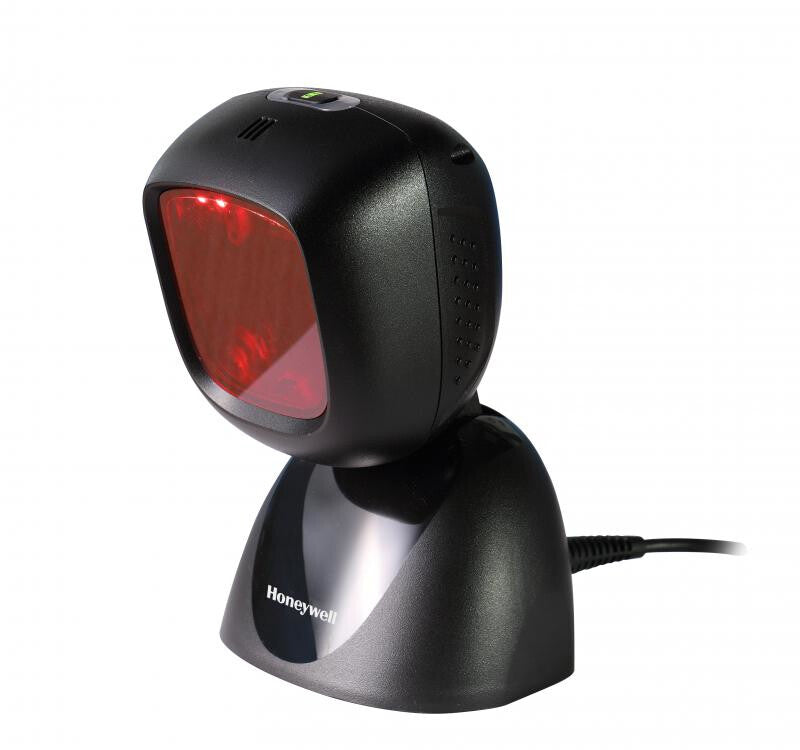

Honeywell Youjie HF600 Fixed bar code reader 1D/2D Photo diode Black

Honeywell Youjie HF600 Fixed bar code reader 1D/2D Photo diode Black

£225.64 GBP
£225.64 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

YJ HF600-1-2USB

33 in stock

  • Fixed bar code reader Black
  • Scanner type: 1D/2D Sensor type: Photo diode
  • Code 39 Data Matrix, PDF417, QR Code
  • Tilt reading angle: 0 - 360°
  • Wired Standard interfaces: RS-232, USB, Keyboard wedge
  • Power source type: DC
Youjie HF600, 5 VDC±0.5V, 100.000LUX, USB RS232, 1D/2D, 610 - 620 nm

With affordable price and stable performance, HF600 is the ideal choice for various small and medium-sized enterprises with 2D scanning needs, including but not limited to E-membership card reading, mobile coupon scanning, warehousing and logistics document control.

Scanning
Yaw reading angle 0 - 70°
Pitch reading angle 0 - 60°
Tilt reading angle 0 - 360°
Wavelength 620 nm
Light levels (direct sunlight) 0 - 100000 lx
Linear (1D) barcodes supported Code 39
Sensor type Photo diode
2D (matrix & stacked) barcodes supported Data Matrix, PDF417, QR Code
Scanner type 1D/2D
Type Fixed bar code reader
Ports & interfaces
USB 2.0 ports quantity 1
Standard interfaces RS-232, USB, Keyboard wedge
Connectivity technology Wired
Performance
LED indicators Yes
Product colour Black
Power
Power consumption 400 mA
Input voltage 5 V
Power consumption (standby) 0.45 W
Power consumption (typical) 2 W
Power source type DC
Weight & dimensions
Weight 340 g
Height 170 mm
Depth 87.4 mm
Width 98.2 mm
Operational conditions
Storage temperature (T-T) -40 - 60 °C
Operating relative humidity (H-H) 0 - 95%
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84716070
