Honeywell

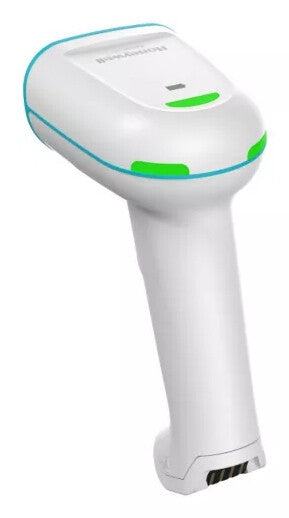

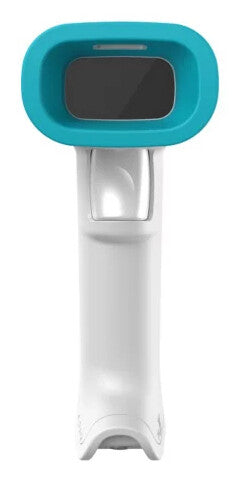

Honeywell Xenon Ultra 1962h Handheld bar code reader 1D/2D LED White
Honeywell Xenon Ultra 1962h Handheld bar code reader 1D/2D LED White
SKU:1962HHD-5USB-5-R
Low stock: 8 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Handheld bar code reader White
- Scanner type: 1D/2D Sensor type: LED
- 1280 x 1080 pixels
- Tilt reading angle: -360 - 360°
- Wireless Standard interfaces: Bluetooth, Keyboard wedge, RS-232, USB
- Power source type: Battery Lithium-Ion (Li-Ion) 3300 mAh
Designed for healthcare, the Xenon Ultra 1962h incorporates Honeywell’s next generation of scanning – allowing patient care to stay top priority for clinicians, improving retention of employees and lowering the total cost of ownership for hospitals. It offers multiple operating modes, ensuring patient comfort while maintaining clinician productivity. Additionally, its compact size allows for versatile mounting or storage options, enabling point-of-care workers to prioritize patient safety and comfort.
Designed for Healthcare:
The Xenon Ultra 1962h features disinfectant-ready, anti-microbial housing that actively combats germ proliferation. It offers multiple point-of-care operating modes, flexible mounting options, and offers superior scanning performance to address the wide range of barcodes encountered in healthcare environments.
Optimized for Clinicians:
The Xenon Ultra 1962h includes features like patient-do-not-disturb, vibration alerts, and an intelligent scan lamp that can illuminate only when necessary. Optional magnetic retention balances ease of use with secure retention, ideal for Workstation-on-Wheels (WoW) carts as clinicians move between patients. The contactless charging feature for both battery and battery-free scanning mitigates the risk of corrosion, better supporting rigorous cleaning protocols. The Bluetooth configuration enhances functionality and offers premium accessory upgrades, including interchangeable power sources and contactless charging capabilities.
Ultra Performance:
The Xenon Ultra 1962h delivers exceptional scanning performance, even on damaged or low-quality barcodes, ensuring high precision and minimizing the need for manual data entry, which is particularly important for data integrity in the healthcare environment. Its modern design not only improves aesthetics but also meets the durability standards critical for healthcare environments. The battery-free scanner provides at least 450 scans of UPC/EAN codes without recharging, making it an ideal choice for bedside medication administration and specimen collection.
| Scanning | |
|---|---|
| Yaw reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Tilt reading angle | -360 - 360° |
| Wavelength | 525 nm |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Vertical field of view | 36° |
| Horizontal field of view | 42° |
| Optical sensor resolution (W x H) | 1280 x 1080 pixels |
| Sensor type | LED |
| Scanner type | 1D/2D |
| Type | Handheld bar code reader |
| Ports & interfaces | |
|---|---|
| Cable length | 2.7 m |
| Standard interfaces | Bluetooth, Keyboard wedge, RS-232, USB |
| Connectivity technology | Wireless |
| Performance | |
|---|---|
| Print contrast | 15% |
| Buzzer | Yes |
| LED indicators | Yes |
| Protection features | Anti-bacterial, Drop proof, Electrostatic Discharge (ESD) protection |
| International Protection (IP) code | IP52 |
| Product colour | White |
| Power | |
|---|---|
| Charging time | 4.5 h |
| Battery life | 22 h |
| Number of reads per charge | 80000 |
| Battery voltage | 3.635 V |
| Battery capacity | 3300 mAh |
| Battery type | Built-in battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power consumption (standby) | 0.75 W |
| Power source type | Battery |
| Weight & dimensions | |
|---|---|
| Presentation base weight | 214 g |
| Presentation base dimensions (WxDxH) | 70.4 x 82.9 x 121.6 mm |
| Weight | 247 g |
| Height | 160.2 mm |
| Depth | 108.2 mm |
| Width | 70.4 mm |
| Packaging data | |
|---|---|
| Cables included | USB |
| Charging base | Yes |
| External power adapter | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| general_information_attribute_container_name | |
|---|---|
| attribute_product_family_name | Xenon |
| Battery | |
|---|---|
| Battery capacity | 12 Wh |
