Honeywell

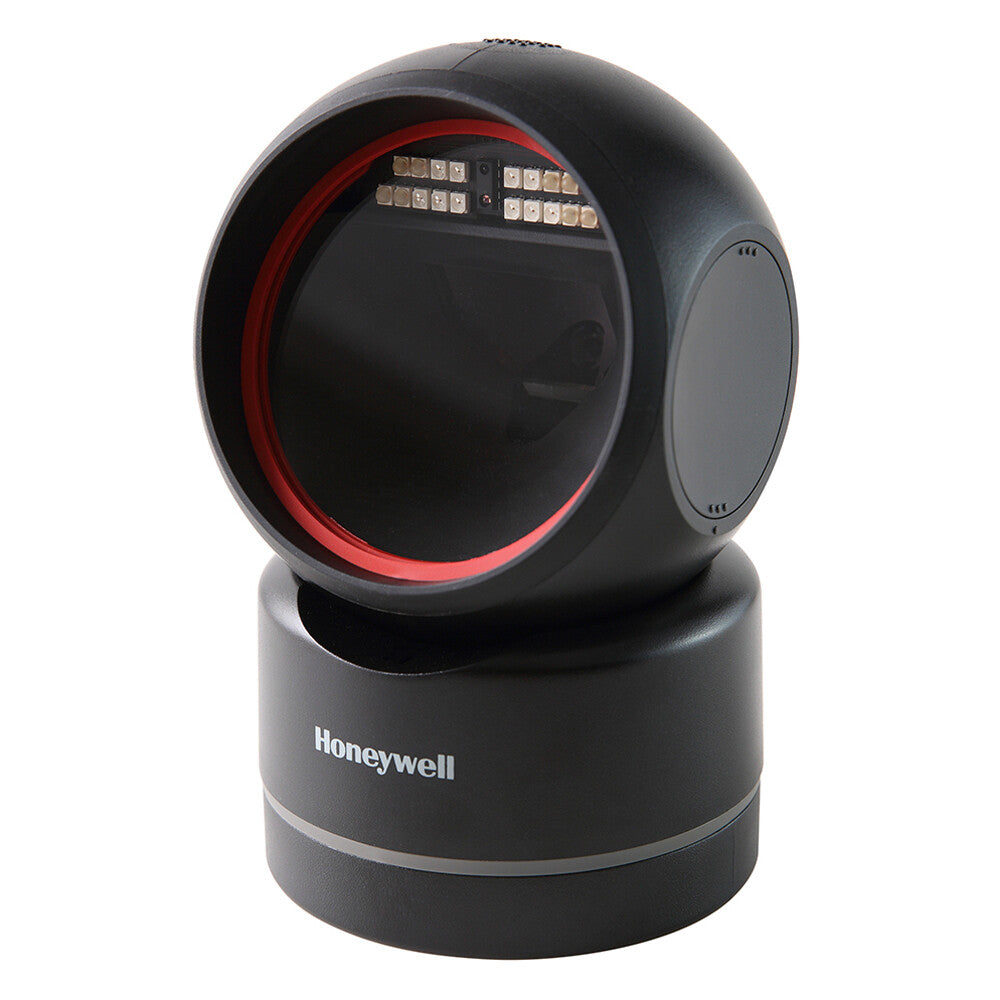

Honeywell Orbit HF680 Barcode module bar code reader 1D/2D Black
Honeywell Orbit HF680 Barcode module bar code reader 1D/2D Black
SKU:HF680-R1-2USB-EU
34 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- FASTER SCANNING - With its Megapixel sensor and 1Ghz processor, the Orbit HF680’s fast scanning will speed customers through the checkout line – even when presented with digital or damaged barcodes
- SIMPLIFIED SCANNER INTEGRATION - Save time by rapidly configuring the Orbit HF680 with Honeywell’s EZConfig configuration utility. Simplify installations with OPOS/JPOS drivers that ensure scanner compatibility with various POSs
- MODERN STYLING - The Orbit HF680 provides retailers a scanner that can be displayed proudly at the checkout counter
- GREAT PRICE - Exceptional performance and design at an exceptional price
Honeywell’s Orbit HF680 point-of-sale hands free/presentation scanner is the perfect blend of affordability, performance and style. With the Orbit HF680, retailers no longer have to compromise their budgets to get performance and a modern design. Get it all with Honeywell’s Orbit HF680. Customers will zip through the checkout line with the Orbit HF680’s lightning fast scanning of both 1D and 2D barcodes.
And the Orbit HF680 minimizes checkout delays by quickly scanning traditionally difficult to read digital barcodes and even damaged barcodes. The Orbit HF680 scanning is not only fast, it’s also unobtrusive.
The low profile, recessed LED lights in the scan window light up barcodes without irritating your customers. And when the scanner is not in use, its lighting will automatically turn off.
| Scanning | |
|---|---|
| Type | Barcode module bar code reader |
| Scanner type | 1D/2D |
| Linear (1D) barcodes supported | Code 39, UPC-A |
| 2D (matrix & stacked) barcodes supported | Data Matrix, QR Code |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Pitch reading angle | -60 - 60° |
| Motion tolerance (cm/s) | 250 |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Performance | |
|---|---|
| Product colour | Black |
| Print contrast | 20% |
| Power | |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 2 W |
| Power consumption (standby) | 0.85 W |
| AC adapter output voltage | 5 V |
| Power consumption | 400 mA |
| Weight & dimensions | |
|---|---|
| Width | 88 mm |
| Depth | 85 mm |
| Height | 139 mm |
| Weight | 278 g |
| Packaging data | |
|---|---|
| External power adapter | Yes |
| Cables included | USB |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | -10 - 40 °C |
