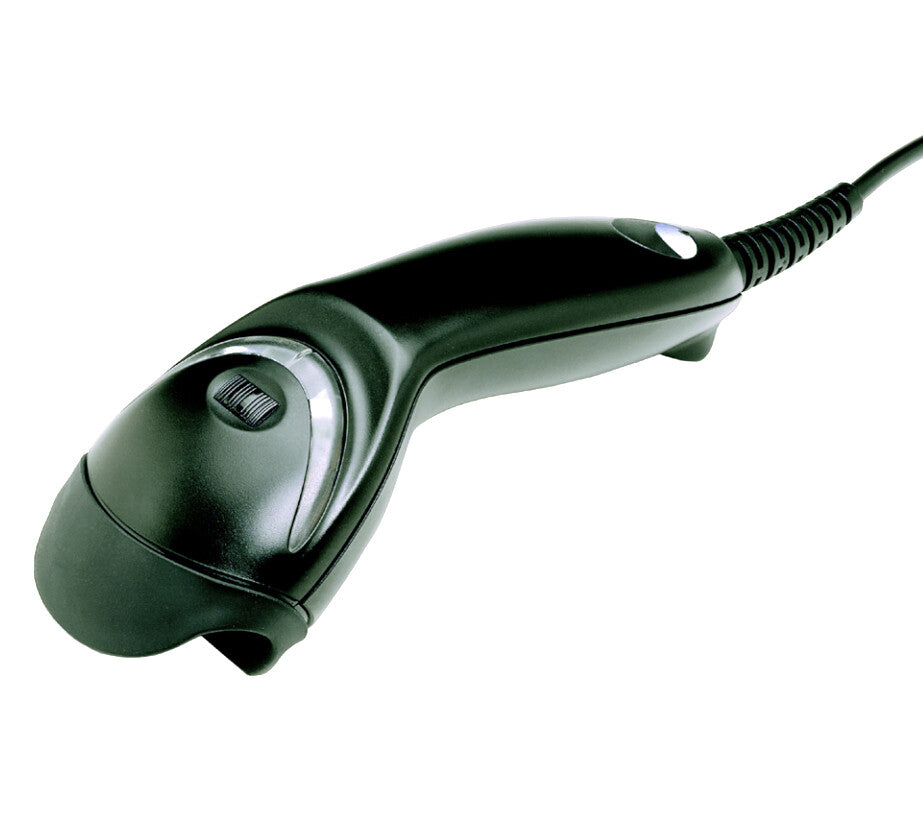

Honeywell MS5145 Eclipse Handheld bar code reader 1D Laser Black
Honeywell MS5145 Eclipse Handheld bar code reader 1D Laser Black
Couldn't load pickup availability
SKU:MK5145-31C41-EU
Low stock: 1 left
- Handheld bar code reader Black
- Scanner type: 1D Sensor type: Laser
- Working distance: 150 cm
- Tilt reading angle: 0 - 52°
- Wired Standard interfaces: RS-232
- Power source type: DC
The MS5145 Eclipse is a single-line, hand-held laser scanner. Honeywell’s patented CodeGate® technology allows the user to easily target the desired bar code and complete data transmission with a simple press of a button, making Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control.
CodeGate: Ideal for menu scanning applications
CodeSense: Automatically switches from “pulse mode” to continuous beaming when a bar code is detected
Powerlink cables: Uses the same user-replaceable cables and power supplies as Voyager, Orbit and Cubit
Flash ROM: Update firmware from any PC via MetroSet2 software provided by Metrologic
OPOS and JPOS system compatible: Easily adaptable to any end-user system environment
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Sensor type | Laser |
| Working distance | 150 cm |
| Read rate (max) | 42 reads/s |
| Light levels (direct sunlight) | 0 - 4842 lx |
| Wavelength | 650 nm |
| Tilt reading angle | 0 - 52° |
| Pitch reading angle | 0 - 68° |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | RS-232 |
| Cable length | 2.1 m |
| Performance | |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
| Certification | 1D, GS1, FCC Part 15, ICES-003, RoHS, EN55022 Class B |
| Power | |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 0.672 W |
| Input voltage | 5 V |
| Power consumption | 675 mA |
| Weight & dimensions | |
|---|---|
| Width | 63 mm |
| Depth | 169 mm |
| Height | 51 mm |
| Weight | 100 g |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84716070 |
