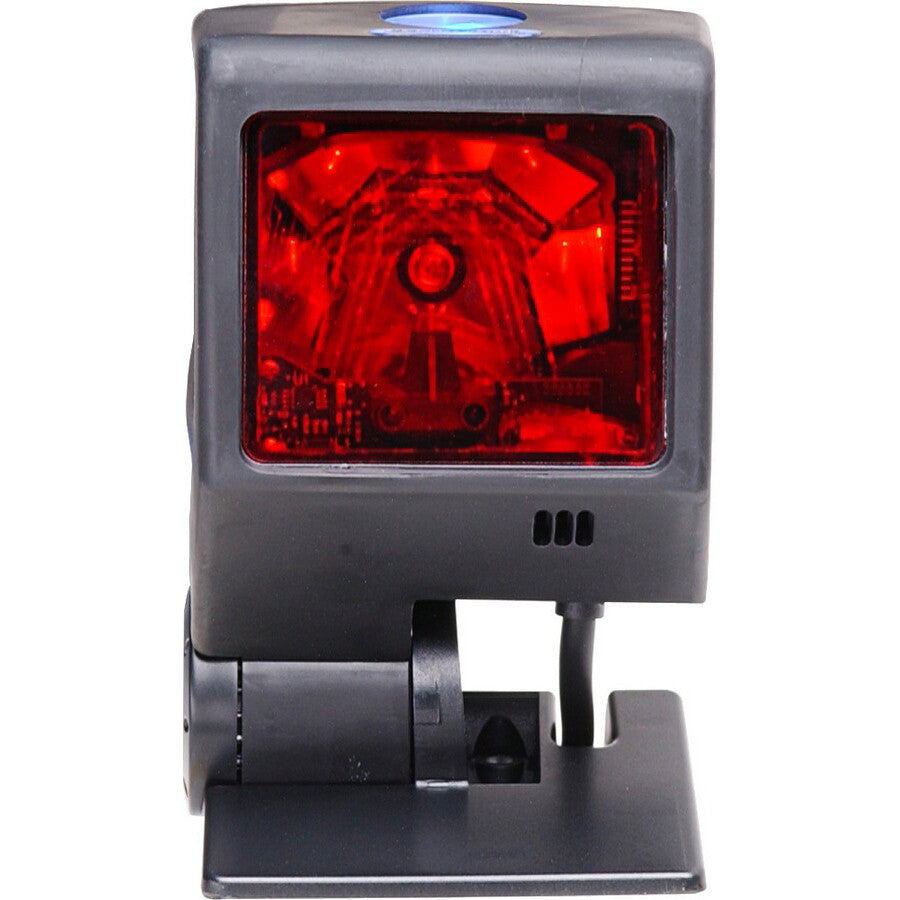

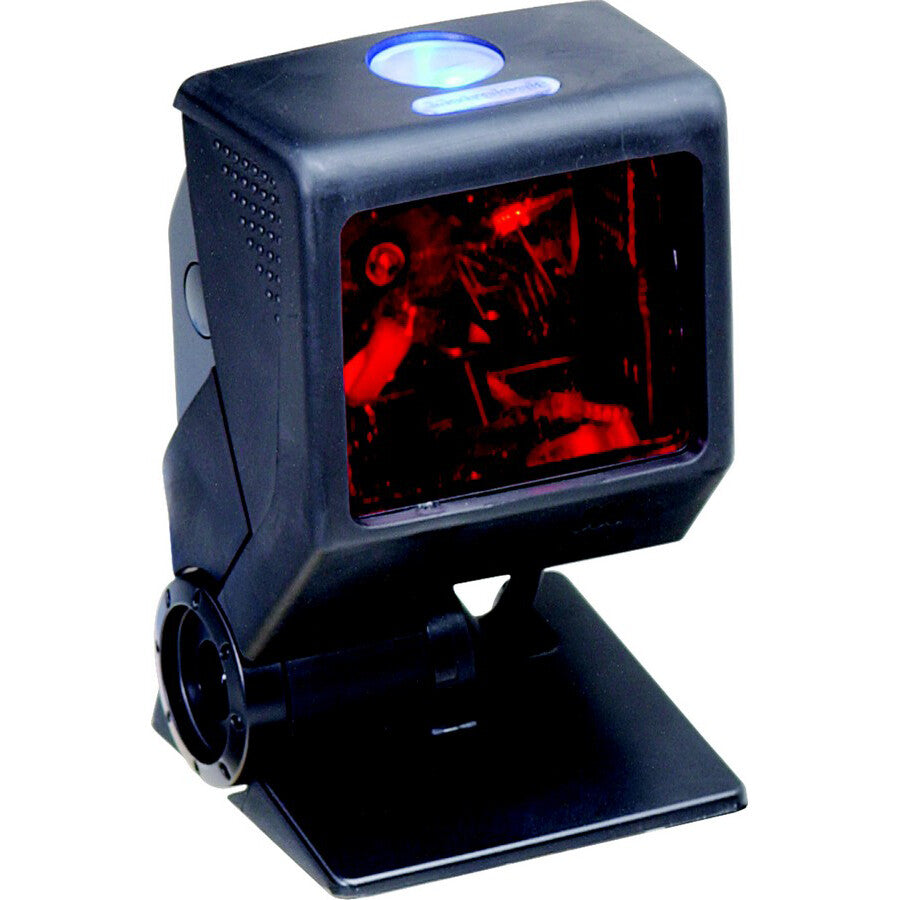

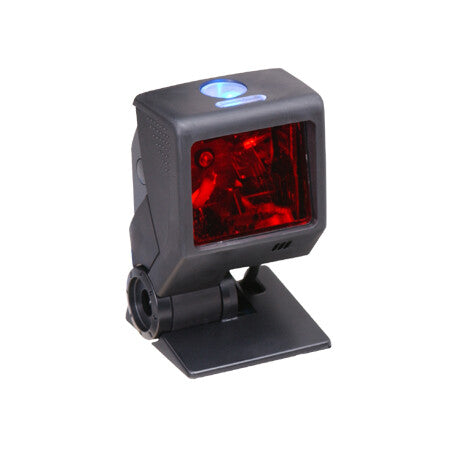

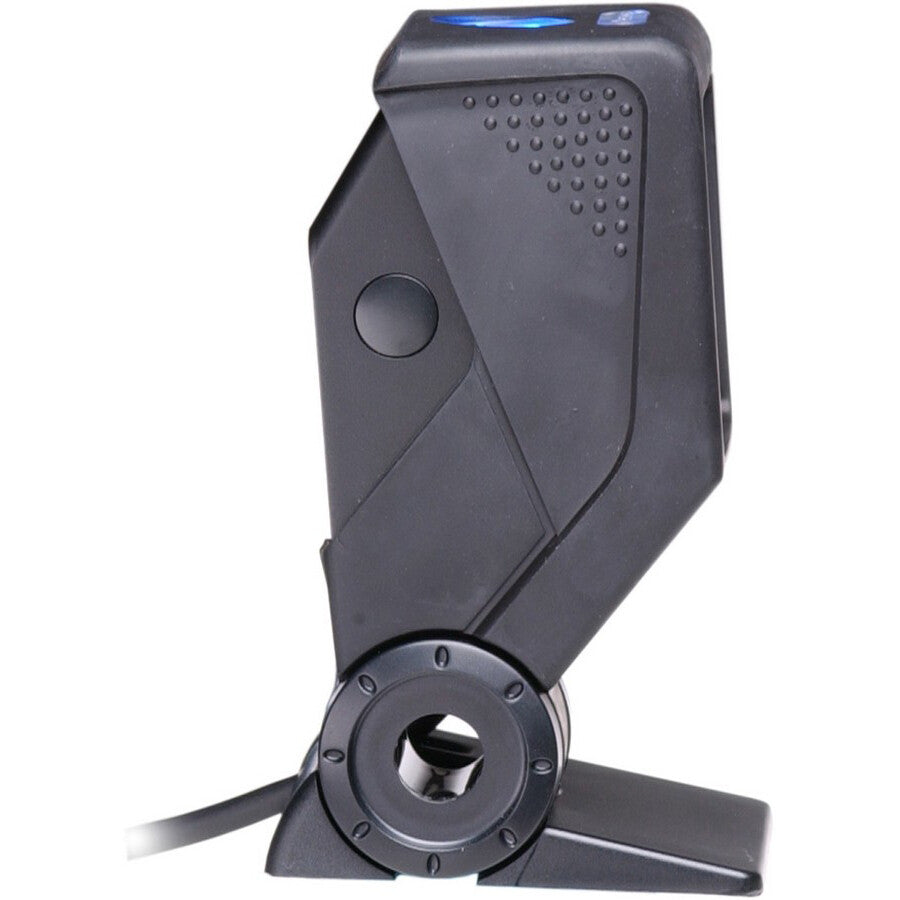

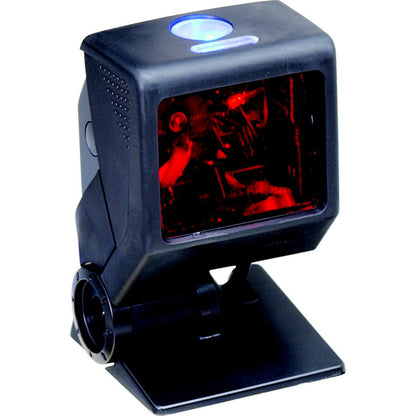

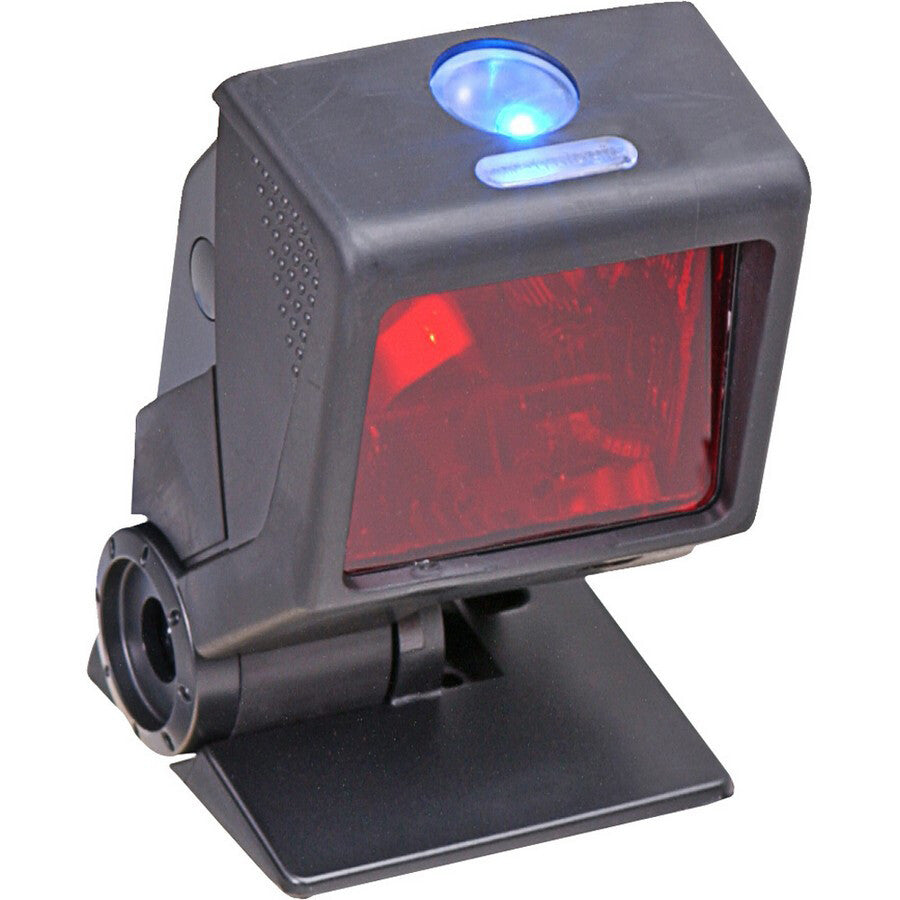

Honeywell MS3580 Quantum T Fixed bar code reader Laser Black

Honeywell MS3580 Quantum T Fixed bar code reader Laser Black

£232.97 GBP
£232.97 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

MK3580-31A38

Low stock: 1 left

  • Fixed bar code reader Black
  • Sensor type: Laser
  • GS1-128 (UCC/EAN-128)
  • Tilt reading angle: 0 - 360°
  • Wired Standard interfaces: USB
  • Power source type: AC
Quantum MS-3580, USB

The MS3580 QuantumT provides retailers with industry-leading omnidirectional scan performance and optional single-line scanning in a compact form factor. Patented CodeGate technology saves time and reduces unwanted scans by offering a single-line mode for scanning menu-style codes. A small footprint and numerous stand options minimize required counter space, increasing available room for merchandise and advertisement displays.

Scanning
Maximum scan width 27.9 cm
Yaw reading angle 0 - 60°
Pitch reading angle 0 - 60°
Tilt reading angle 0 - 360°
Wavelength 650 nm
Light levels (direct sunlight) 0 - 4842 lx
Linear (1D) barcodes supported GS1-128 (UCC/EAN-128)
Sensor type Laser
2D (matrix & stacked) barcodes supported Not supported
Type Fixed bar code reader
Ports & interfaces
Standard interfaces USB
Connectivity technology Wired
Performance
Certification IEC60825-1, EN60825-1, FCC, ICES, EN55022
Buzzer Yes
Product colour Black
Power
Input voltage 5 V
Power consumption (standby) 1.2 W
Power consumption (typical) 1.4 W
Power source type AC
Weight & dimensions
Weight 170 g
Height 108 mm
Depth 66 mm
Width 67 mm
Operational conditions
Operating temperature (T-T) -20 - 40 °C
Storage temperature (T-T) -40 - 60 °C
Operating relative humidity (H-H) 5 - 95%
Logistics data
Harmonized System (HS) code 84716070
