Honeywell

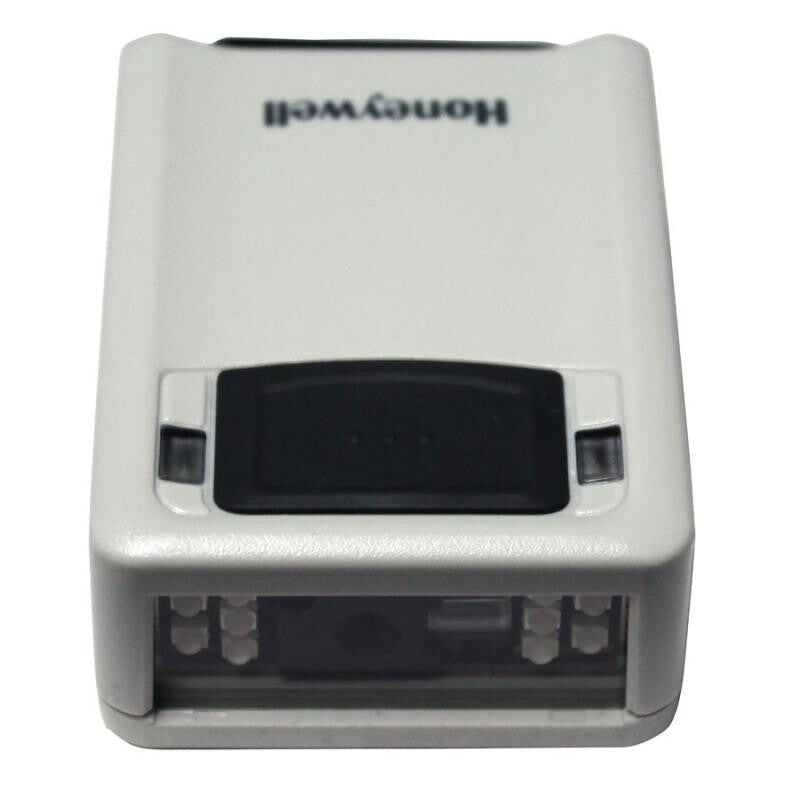

Honeywell 3320G-4USB-0 barcode reader Fixed bar code reader 1D/2D Photo diode Ivory

Honeywell 3320G-4USB-0 barcode reader Fixed bar code reader 1D/2D Photo diode Ivory

3320G-4USB-0

£200.90 GBP£167.42 GBP
£0.00 GBP £200.90 GBP£167.42 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

128 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Fixed bar code reader Ivory
  • Scanner type: 1D/2D Sensor type: Photo diode
  • PDF417
  • Wired Standard interfaces: RS-232, USB, Keyboard wedge
  • Power source type: DC
3320G-4USB-0, 1D, PDF417, 2D, USB, 5VDC ± 0.25V, 838 x 640 pixel, IP53, ±45°, ±65°

The Honeywell Vuquest3320g compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner’s sleek and elegant design also blends seamlessly in retail environments.

Designed with the customer in mind, the unobtrusive illumination contained within the Vuquest 3320g scanner reduces the annoying after-effects commonly associated with the illumination used in imaging-based scanners.

Scanning
Type Fixed bar code reader
Scanner type 1D/2D
Linear (1D) barcodes supported PDF417
Sensor type Photo diode
Light levels (direct sunlight) 0 - 100000 lx
Pitch reading angle -45 - 45°
Yaw reading angle -65 - 65°
Optical sensor resolution 838 pixels
Ports & interfaces
Connectivity technology Wired
Standard interfaces RS-232, USB, Keyboard wedge
Performance
Product colour Ivory
International Protection (IP) code IP53
LED indicators Yes
Power
Power source type DC
Power consumption (typical) 2.3 W
Power consumption (standby) 0.45 W
Input voltage 5 V
Power consumption 450 mA
Weight & dimensions
Width 51 mm
Depth 73 mm
Height 26 mm
Weight 77 g
Packaging data
Cables included USB
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Logistics data
Harmonized System (HS) code 84716070
